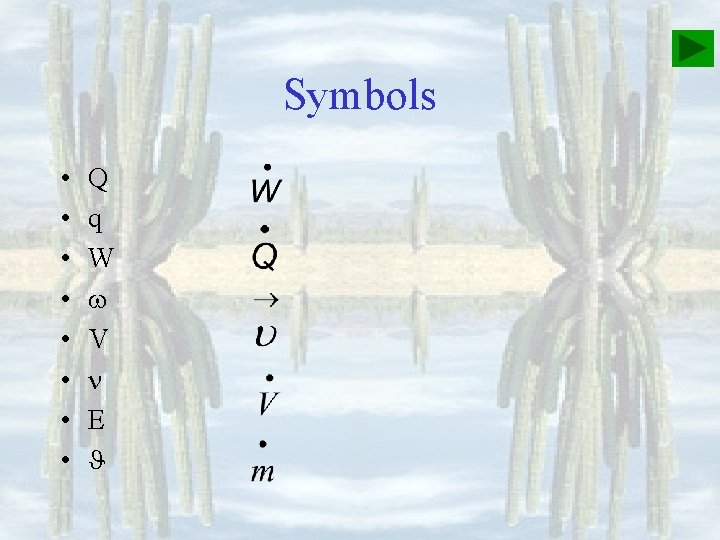

Symbols • • Q q W V E

Symbols • • Q q W V E

Introduction - Objectives: 1. Explain the need for the second law of thermodynamics on

Introduction - Objectives: 1. Explain the need for the second law of thermodynamics on real processes. 2. State the general and the specific statements of the second law of thermodynamics. 3. State the meaning of reservoirs and working fluids. 4. List down the characteristics of heat engines.

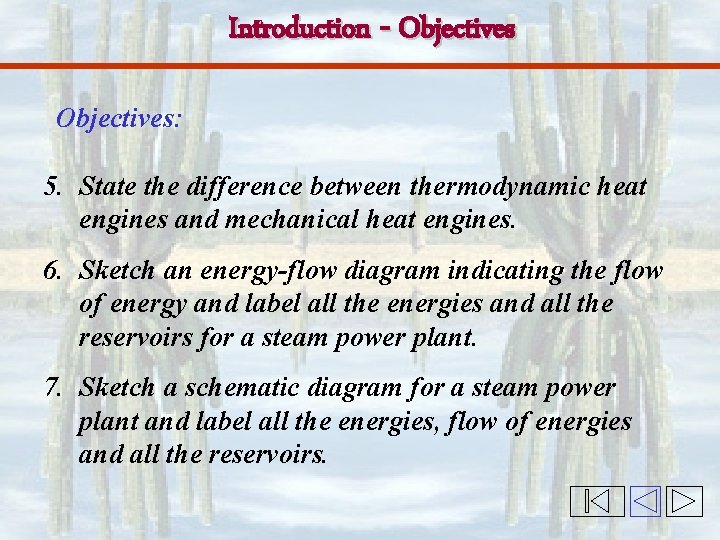

Introduction - Objectives: 5. State the difference between thermodynamic heat engines and mechanical heat

Introduction - Objectives: 5. State the difference between thermodynamic heat engines and mechanical heat engines. 6. Sketch an energy-flow diagram indicating the flow of energy and label all the energies and all the reservoirs for a steam power plant. 7. Sketch a schematic diagram for a steam power plant and label all the energies, flow of energies and all the reservoirs.

Introduction - Objectives: 8. State the desired output and required input for a steam

Introduction - Objectives: 8. State the desired output and required input for a steam power plant. 9. State the meaning of engines’ performance and obtain the performance of a steam power plant in terms of the heat exchange. 10. State the Kelvin-Planck statement on steam power plant.

Introduction - Objectives: 11. Sketch an energy-flow diagram indicating the flow of energy and

Introduction - Objectives: 11. Sketch an energy-flow diagram indicating the flow of energy and label all the energies and all the reservoirs for a refrigerator. 12. Sketch a schematic diagram for a refrigerator and label all the energies, flow of energies and all the reservoirs. 13. State the desired output and required input for a refrigerator.

Introduction - Objectives: 14. Obtain the performance of a refrigerator in terms of the

Introduction - Objectives: 14. Obtain the performance of a refrigerator in terms of the heat exchange. 15. Sketch an energy-flow diagram indicating the flow of energy and label all the energies and all the reservoirs for a heat pump. 16. Sketch a schematic diagram for a a heat pump and label all the energies, flow of energies and all the reservoirs.

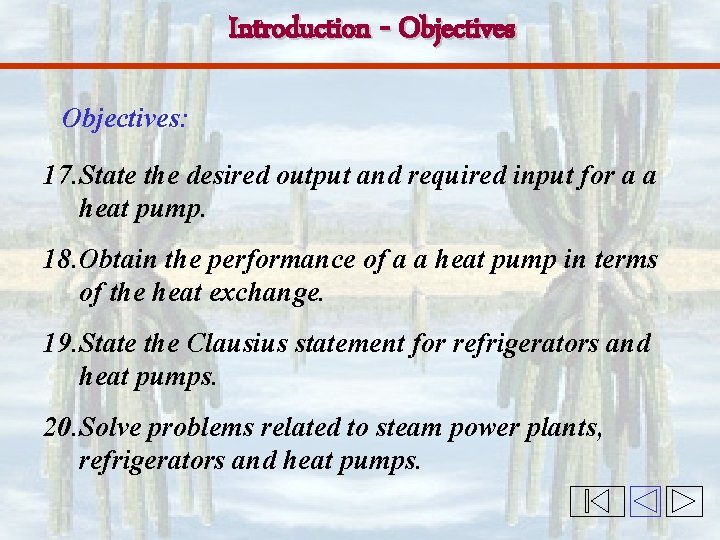

Introduction - Objectives: 17. State the desired output and required input for a a

Introduction - Objectives: 17. State the desired output and required input for a a heat pump. 18. Obtain the performance of a a heat pump in terms of the heat exchange. 19. State the Clausius statement for refrigerators and heat pumps. 20. Solve problems related to steam power plants, refrigerators and heat pumps.

Review - First Law • All processes must obey energy conservation • Processes which

Review - First Law • All processes must obey energy conservation • Processes which do not obey energy conservation cannot happen. • Processes which do not obey mass conservation cannot happen Piston-cylinders, rigid tanks Turbines, compressors, Nozzles, heat exchangers

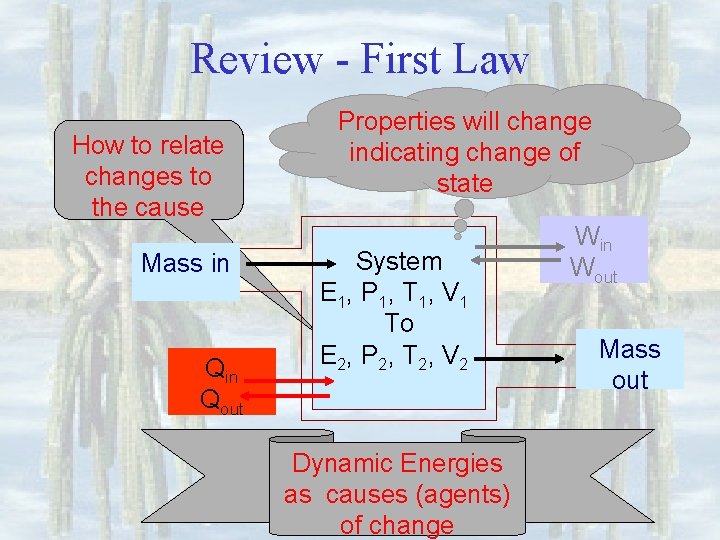

Review - First Law How to relate changes to the cause Mass in Qout

Review - First Law How to relate changes to the cause Mass in Qout Properties will change indicating change of state System E 1, P 1, T 1, V 1 To E 2, P 2, T 2, V 2 Dynamic Energies as causes (agents) of change Win Wout Mass out

Review - First Law Energy Change of Entering - Leaving = system’s a system

Review - First Law Energy Change of Entering - Leaving = system’s a system energy Energy Balance Amount of energy causing change must be equal to amount of energy change of system

Review - First Law Energy Change of Entering - Leaving = system’s a system

Review - First Law Energy Change of Entering - Leaving = system’s a system energy Energy Balance Ein – Eout = Esys, k. J or ein – eout = esys, k. J/kg or

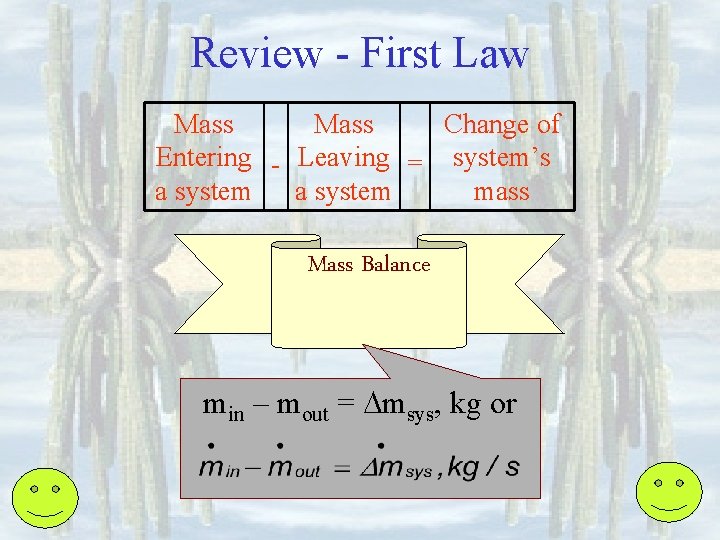

Review - First Law Mass Change of Entering - Leaving = system’s a system

Review - First Law Mass Change of Entering - Leaving = system’s a system mass Mass Balance min – mout = msys, kg or

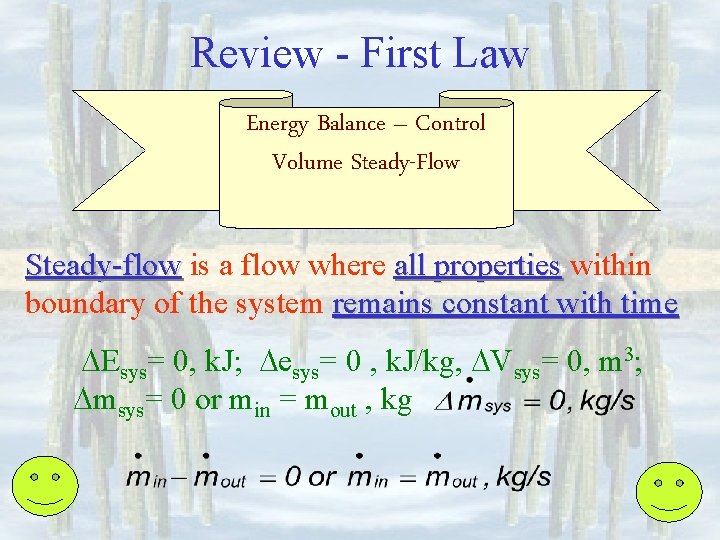

Review - First Law Energy Balance – Control Volume Steady-Flow Steady-flow is a flow

Review - First Law Energy Balance – Control Volume Steady-Flow Steady-flow is a flow where all properties within boundary of the system remains constant with time Esys= 0, k. J; esys= 0 , k. J/kg, Vsys= 0, m 3; msys= 0 or min = mout , kg

Review - First Law Mass & Energy Balance–Steady. Flow CV Mass balance Energy balance

Review - First Law Mass & Energy Balance–Steady. Flow CV Mass balance Energy balance qin + win + qin = qout+ wout+ qout, k. J/kg

Review - First Law Mass & Energy Balance–Steady. Flow: Single Stream Mass balance Energy

Review - First Law Mass & Energy Balance–Steady. Flow: Single Stream Mass balance Energy balance qin – qout+ in – out = qout – qin, k. J/kg = hout - hin + keout– kein + peout - pein, k. J/kg

First Law – Heat Exchanger Boundary has 2 inlets and 2 exits

First Law – Heat Exchanger Boundary has 2 inlets and 2 exits

First Law – Heat Exchanger Boundary has 1 inlet and 1 exit

First Law – Heat Exchanger Boundary has 1 inlet and 1 exit

First Law of Thermodynamics In, 3 Heat Exchanger -no mixing -2 inlets and 2

First Law of Thermodynamics In, 3 Heat Exchanger -no mixing -2 inlets and 2 exits In, 1 Exit, 2 Exit, 4

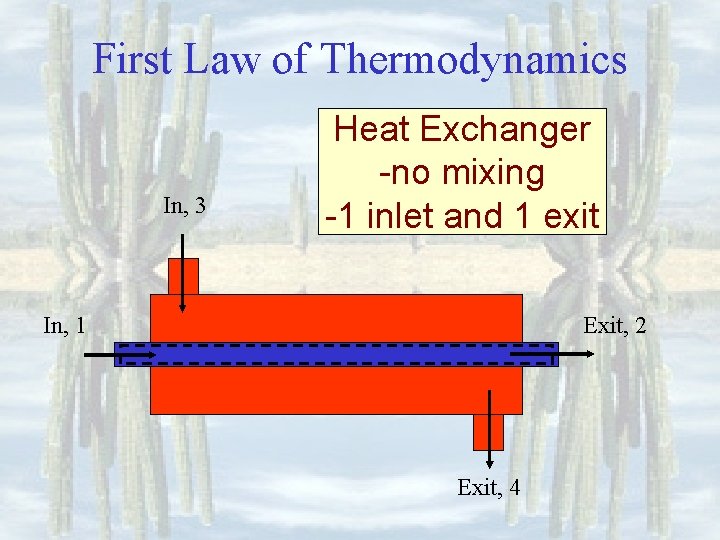

First Law of Thermodynamics In, 3 Heat Exchanger -no mixing -1 inlet and 1

First Law of Thermodynamics In, 3 Heat Exchanger -no mixing -1 inlet and 1 exit In, 1 Exit, 2 Exit, 4

First Law of Thermodynamics Heat Exchanger Case 1 Energy balance Mass balance

First Law of Thermodynamics Heat Exchanger Case 1 Energy balance Mass balance

First Law of Thermodynamics Heat Exchanger Case 2 Mass balance Energy balance Qout

First Law of Thermodynamics Heat Exchanger Case 2 Mass balance Energy balance Qout

First Law of Thermodynamics Heat Exchanger Energy balance: Case 1 Mass balance: where Purpose:

First Law of Thermodynamics Heat Exchanger Energy balance: Case 1 Mass balance: where Purpose: Remove or add heat

First Law of Thermodynamics Heat Exchanger Purpose: Remove or add heat Mass balance: Energy

First Law of Thermodynamics Heat Exchanger Purpose: Remove or add heat Mass balance: Energy balance: Case 2 where Qout

First Law of Thermodynamics Heat Exchanger Purpose: Remove or add heat Mass balance: Energy

First Law of Thermodynamics Heat Exchanger Purpose: Remove or add heat Mass balance: Energy balance: Case 2 Qin where

Second Law 0 -qout+ 0 - 0 = - u = u 1 -

Second Law 0 -qout+ 0 - 0 = - u = u 1 - u 2, k. J/kg • First Law involves quantity or amount of energy to be conserved in processes Qout Tsys, initial=40 C Tsys, final=25 C • OK for this cup Tsurr=25 C This is a natural process!!! Q flows from high T to low T medium until thermal equilibrium is reached

Second Law qin – 0 + 0 - 0 = u 2 - u

Second Law qin – 0 + 0 - 0 = u 2 - u 1, k. J/kg Qin Tsys, initial=25 C Tsys, final=40 C Qin Tsurr=25 C This is NOT a natural process!!! process Q does not flow from low T to high T medium. Never will the coffee return to its initial state.

Second Law qin – 0 + 0 - 0 = u 2 - u

Second Law qin – 0 + 0 - 0 = u 2 - u 1, k. J/kg Qin Tsys, initial=25 C Tsys, final=40 C Qin Tsurr=25 C This is NOT a natural process!!! process Q does not flow from low T to high T medium. Never will the coffee return to its initial state.

Second Law • First Law involves quantity or amount of energy to be conserved

Second Law • First Law involves quantity or amount of energy to be conserved in processes qin – 0 + 0 - 0 = u =u 2 -u 1 k. J/kg Qin Tsys, initial=25 C Tsys, final=40 C Qin Tsurr=25 C This is a NOT a natural process!!! process But is the Q does not flow from low T to process in this high T medium. Never will cup possible? ? equilibrium be reached

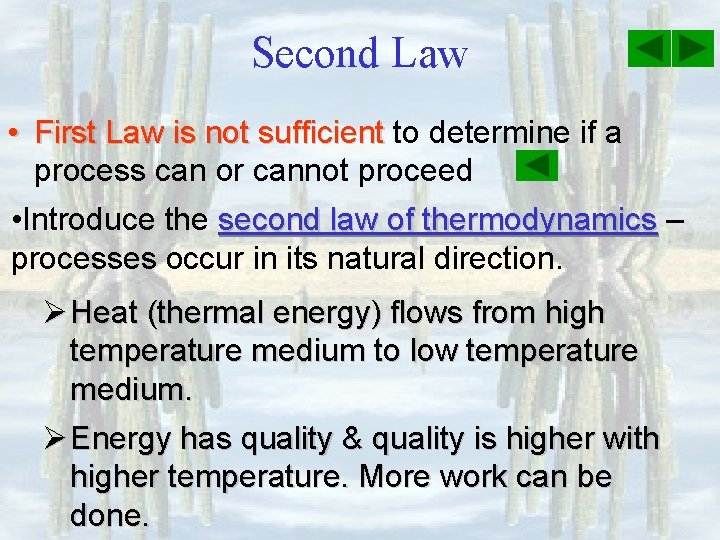

Second Law • First Law is not sufficient to determine if a process can

Second Law • First Law is not sufficient to determine if a process can or cannot proceed

Second Law • First Law is not sufficient to determine if a process can

Second Law • First Law is not sufficient to determine if a process can or cannot proceed • Introduce the second law of thermodynamics – processes occur in its natural direction. Ø Heat (thermal energy) flows from high temperature medium to low temperature medium. Ø Energy has quality & quality is higher with higher temperature. More work can be done.

Second Law Considerations: • Work can be converted to heat directly & totally. •

Second Law Considerations: • Work can be converted to heat directly & totally. • Heat cannot be converted to work directly & totally. Ø Requires a special device – heat engine.

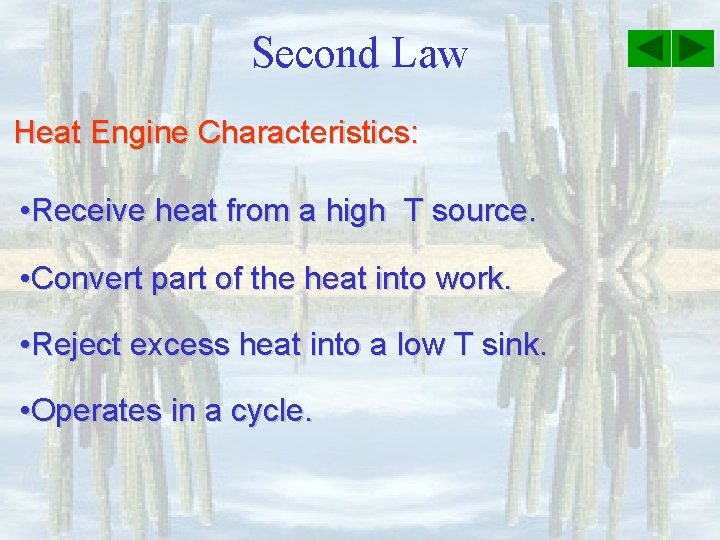

Second Law Heat Engine Characteristics: • Receive heat from a high T source. •

Second Law Heat Engine Characteristics: • Receive heat from a high T source. • Convert part of the heat into work. • Reject excess heat into a low T sink. • Operates in a cycle.

Second Law Heat Engines • Thermodynamics heat engines – external combustion: steam power plants

Second Law Heat Engines • Thermodynamics heat engines – external combustion: steam power plants Combustion outside system • Mechanical heat engines – internal combustion: jets, cars, motorcycles Combustion inside system Performance = Desired output / Required input

Working fluid: Water qin - qout = out - in Second Law High T

Working fluid: Water qin - qout = out - in Second Law High T Res. , TH Furnace qin = q. H qin = net, out + qout Purpose: Produce work, Wout, out Steam Power Plant net, out = qin - qout = q. L Low T Res. , TL Water from river An Energy-Flow diagram for a SPP net, out

Working fluid: Water Second Law High T Res. , TH Furnace qin = q.

Working fluid: Water Second Law High T Res. , TH Furnace qin = q. H Boiler Pump Turbin e in out Condenser qin - qout = out - in qout = q. L Low T Res. , TL Water from river qin - qout = net, out A Schematic diagram for a Steam Power Plant

Second Law Thermal Efficiency for steam power plants

Second Law Thermal Efficiency for steam power plants

Second Law Thermal Efficiency for steam power plants

Second Law Thermal Efficiency for steam power plants

Second Law Kelvin Planck Statement for steam power plants • It is impossible for

Second Law Kelvin Planck Statement for steam power plants • It is impossible for engines operating in a cycle to receive heat from a single reservoir and convert all of the heat into work. • Heat engines cannot be 100% efficient.

Second Law Working fluid: Ref-134 a High T Res. , TH, Kitchen room /

Second Law Working fluid: Ref-134 a High T Res. , TH, Kitchen room / Outside house qout – qin = in - out qout = q. H Refrigerator/ Air Cond net, in = qout - qin net, in = q. H - q. L qin = q. L Low Temperature Res. , TL, Inside fridge or house net, in Purpose: Maintain space at low T by Removing q. L An Energy-Flow diagram for a Refrigerator/Air Cond.

Working fluid: Refrigerant-134 a Second Law High T Res. , TH Kitchen/Outside house qout

Working fluid: Refrigerant-134 a Second Law High T Res. , TH Kitchen/Outside house qout = q. H Condenser Com pressor Throttle Valve in Evaporator qin = q. L Low T Res. , TL Ref. Space/Room A Schematic diagram for a Refrigerator/Air Cond.

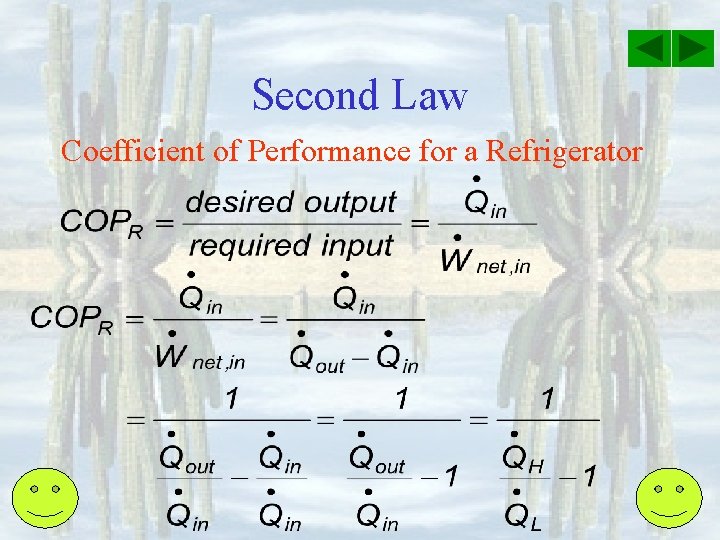

Second Law Coefficient of Performance for a Refrigerator Divide top and bottom by qin

Second Law Coefficient of Performance for a Refrigerator Divide top and bottom by qin

Second Law Coefficient of Performance for a Refrigerator

Second Law Coefficient of Performance for a Refrigerator

Second Law Working fluid: Ref-134 a High Temperature Res. , TH, Inside house qout

Second Law Working fluid: Ref-134 a High Temperature Res. , TH, Inside house qout = net, in + qin qout = q. H Heat Pump net, in = qout - qin = q. L net, in = q. H - q. L Low Temperature Res. , TL, Outside house An Energy-Flow diagram for a Heat Pump Purpose: Maintain space at high T by supplying q. H net, in

Working fluid: Refrigerant-134 a Second Law High T Res. , TH Inside house qout

Working fluid: Refrigerant-134 a Second Law High T Res. , TH Inside house qout = q. H Condenser Com pressor Throttle Valve Evaporator qin = q. L Low T Res. , TL Outside the house A Schematic diagram for a Heat Pump in

Second Law Coefficient of Performance for a Heat Pump

Second Law Coefficient of Performance for a Heat Pump

Second Law Clausius Statement on Refrigerators/Heat Pump • It is impossible to construct a

Second Law Clausius Statement on Refrigerators/Heat Pump • It is impossible to construct a device operating in a cycle and produces no effect other than the transfer of heat from a low T to a high T medium. • Must do external work to the device to make it function. Hence more energy removed to the surrounding.

Second Law – Energy Degrade What is the maximum performance of real engines if

Second Law – Energy Degrade What is the maximum performance of real engines if it can never achieve 100%? ? Factors of irreversibilities • less heat can be converted to work – Friction between 2 moving surfaces – Processes happen too fast – Non-isothermal heat transfer

Second Law – Dream Engine Carnot Cycle • Isothermal expansion v. Slow adding of

Second Law – Dream Engine Carnot Cycle • Isothermal expansion v. Slow adding of Q resulting in work done by system (system expand) v. Qin – Wout = U = 0. So, Qin = Wout. Pressure drops. • Adiabatic expansion v 0 – Wout = U. Final U smaller than initial U. v. T & P drops.

Second Law – Dream Engine Carnot Cycle • Isothermal compression v. Work done on

Second Law – Dream Engine Carnot Cycle • Isothermal compression v. Work done on the system v. Slow rejection of Q v- Qout + Win = U = 0. So, Qout = Win. v. Pressure increases. • Adiabatic compression v 0 + Win = U. Final U higher than initial U. v. T & P increases.

Second Law – Dream Engine Carnot Cycle P, k. Pa P - diagram for

Second Law – Dream Engine Carnot Cycle P, k. Pa P - diagram for a Carnot (ideal) power plant 1 qin 2 4 3 qout , m 3/kg

Second Law – Dream Engine Reverse Carnot Cycle P, k. Pa P - diagram

Second Law – Dream Engine Reverse Carnot Cycle P, k. Pa P - diagram for a Carnot (ideal) refrigerator 1 qout 4 2 3 qin , m 3/kg

Second Law – Dream Engine Carnot Principles • For heat engines in contact with

Second Law – Dream Engine Carnot Principles • For heat engines in contact with the same hot and cold reservoir v. All reversible engines have the same performance. v. Real engines will have lower performance than the ideal engines.

Working fluid: Not a factor P 1: 1 = 2 = 3 Second Law

Working fluid: Not a factor P 1: 1 = 2 = 3 Second Law High T Res. , TH Furnace qin = q. H Steam Power Plants P 2: real < rev net, out qout = q. L Low T Res. , TL Water from river An Energy-Flow diagram for a Carnot SPPs

Working fluid: Not a factor Second Law High T Res. , TH, Kitchen room

Working fluid: Not a factor Second Law High T Res. , TH, Kitchen room / Outside house qout = q. H Rev. Fridge/ Heat Pump net, in qin = q. L Low Temperature Res. , TL, Inside fridge or house An Energy-Flow diagram for Carnot Fridge/Heat Pump
