Thermo Solver An Integrated Educational Thermodynamics Software Program

Thermo. Solver An Integrated Educational Thermodynamics Software Program Connelly Barnes

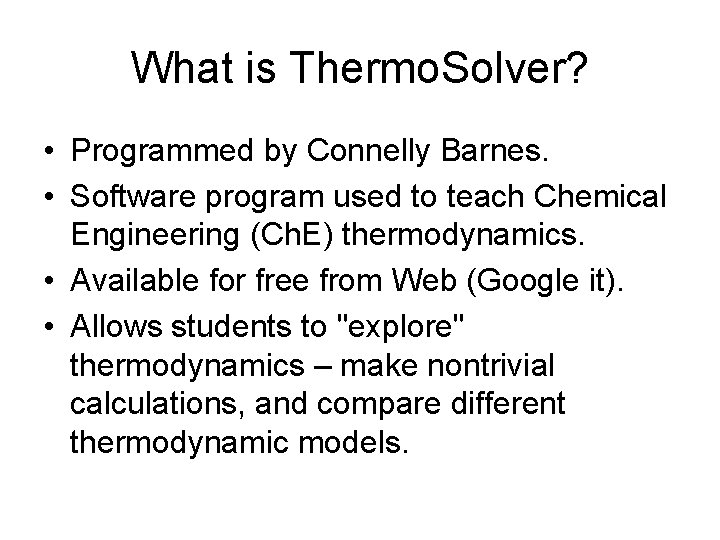

What is Thermo. Solver? • Programmed by Connelly Barnes. • Software program used to teach Chemical Engineering (Ch. E) thermodynamics. • Available for free from Web (Google it). • Allows students to "explore" thermodynamics – make nontrivial calculations, and compare different thermodynamic models.

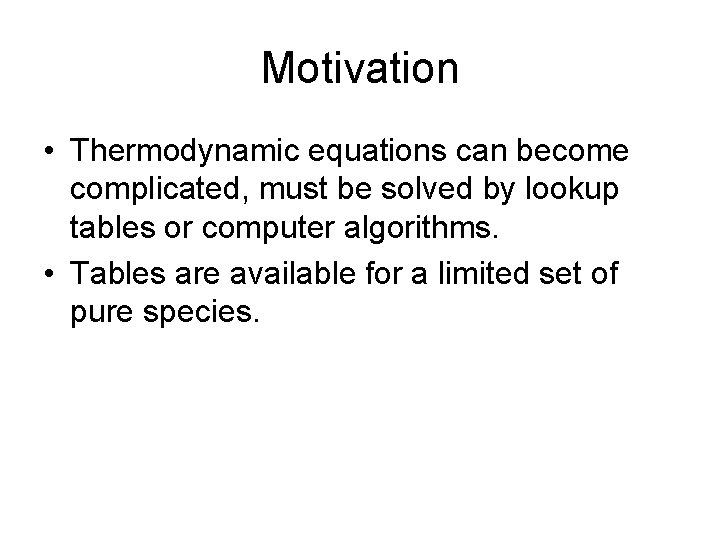

Motivation • Thermodynamic equations can become complicated, must be solved by lookup tables or computer algorithms. • Tables are available for a limited set of pure species.

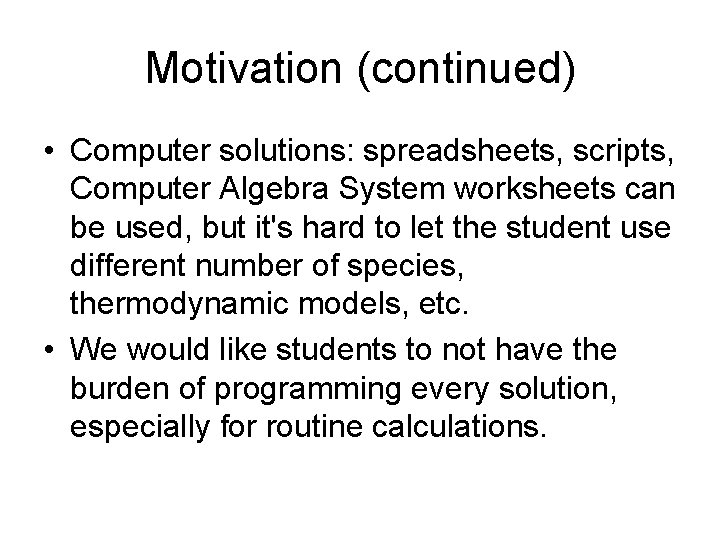

Motivation (continued) • Computer solutions: spreadsheets, scripts, Computer Algebra System worksheets can be used, but it's hard to let the student use different number of species, thermodynamic models, etc. • We would like students to not have the burden of programming every solution, especially for routine calculations.

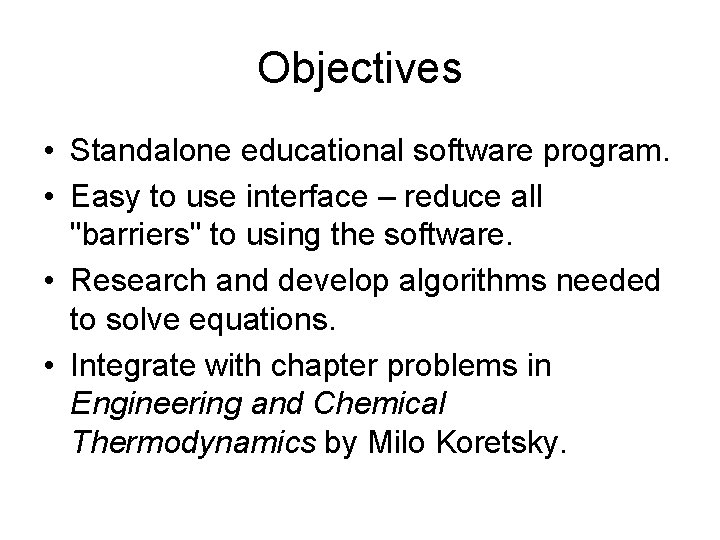

Objectives • Standalone educational software program. • Easy to use interface – reduce all "barriers" to using the software. • Research and develop algorithms needed to solve equations. • Integrate with chapter problems in Engineering and Chemical Thermodynamics by Milo Koretsky.

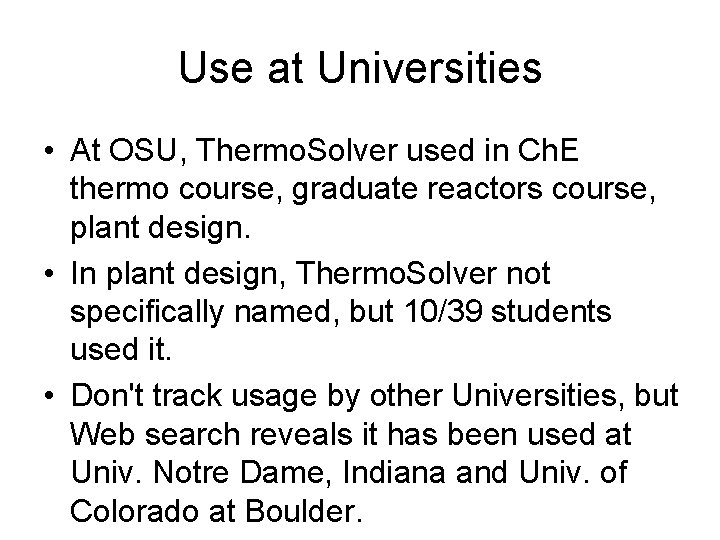

Use at Universities • At OSU, Thermo. Solver used in Ch. E thermo course, graduate reactors course, plant design. • In plant design, Thermo. Solver not specifically named, but 10/39 students used it. • Don't track usage by other Universities, but Web search reveals it has been used at Univ. Notre Dame, Indiana and Univ. of Colorado at Boulder.

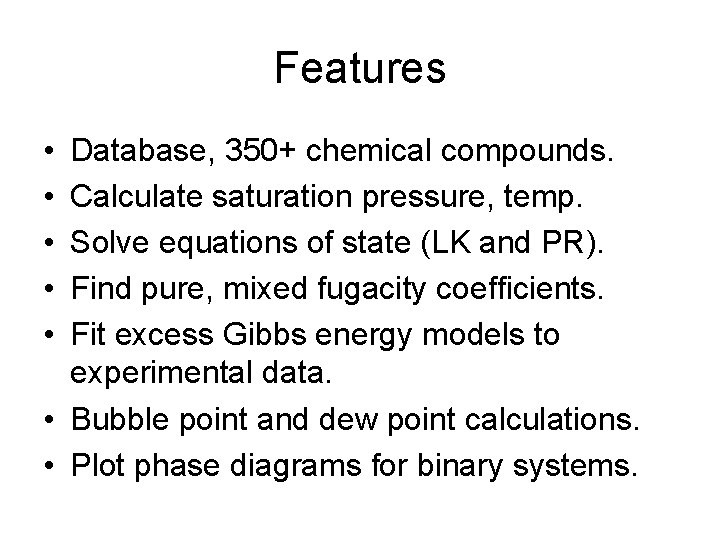

Features • • • Database, 350+ chemical compounds. Calculate saturation pressure, temp. Solve equations of state (LK and PR). Find pure, mixed fugacity coefficients. Fit excess Gibbs energy models to experimental data. • Bubble point and dew point calculations. • Plot phase diagrams for binary systems.

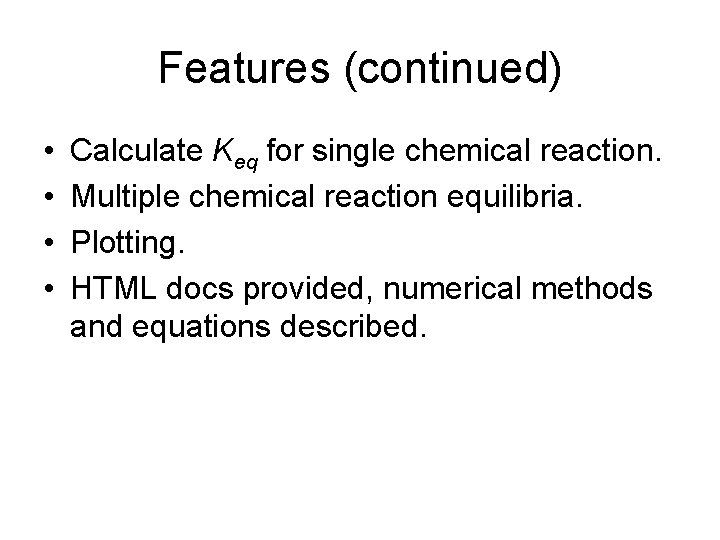

Features (continued) • • Calculate Keq for single chemical reaction. Multiple chemical reaction equilibria. Plotting. HTML docs provided, numerical methods and equations described.

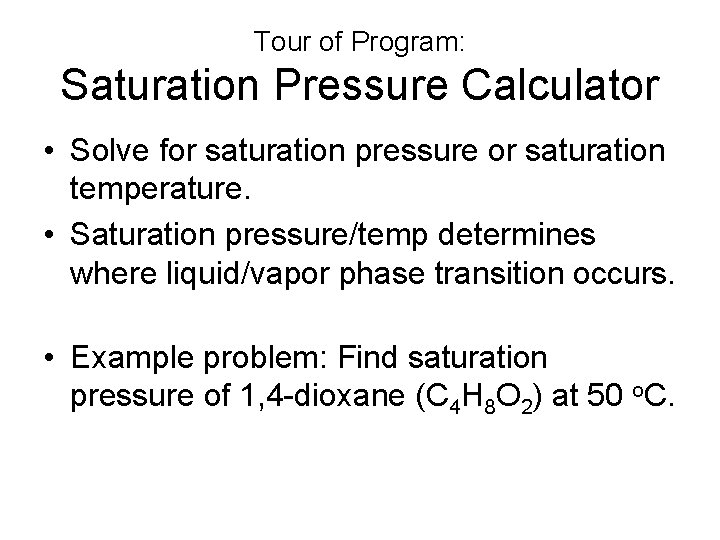

Tour of Program: Saturation Pressure Calculator • Solve for saturation pressure or saturation temperature. • Saturation pressure/temp determines where liquid/vapor phase transition occurs. • Example problem: Find saturation pressure of 1, 4 -dioxane (C 4 H 8 O 2) at 50 o. C.

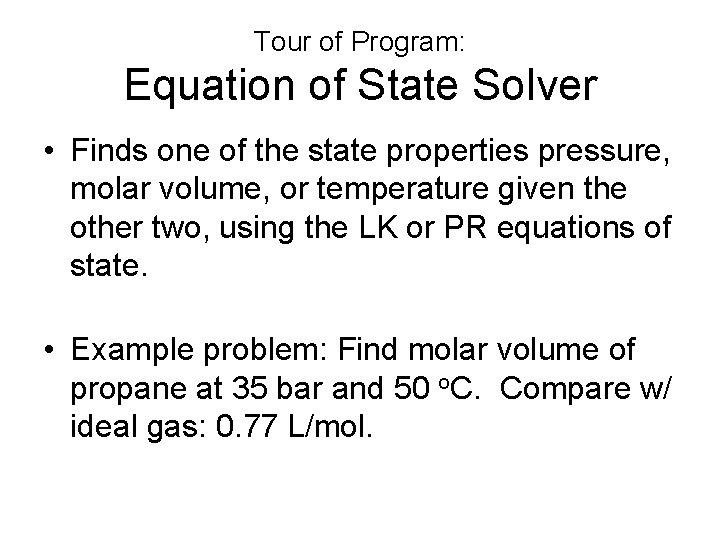

Tour of Program: Equation of State Solver • Finds one of the state properties pressure, molar volume, or temperature given the other two, using the LK or PR equations of state. • Example problem: Find molar volume of propane at 35 bar and 50 o. C. Compare w/ ideal gas: 0. 77 L/mol.

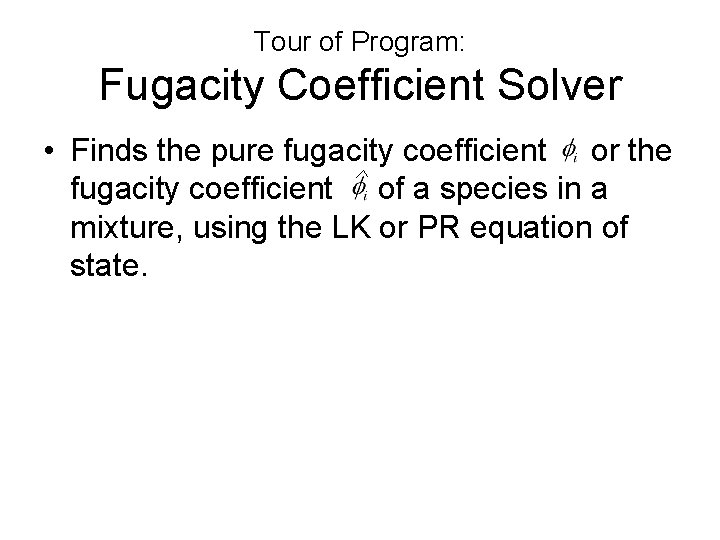

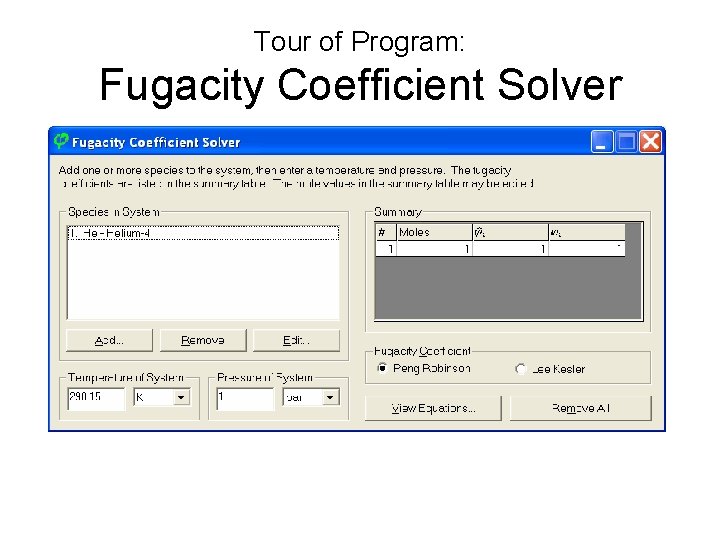

Tour of Program: Fugacity Coefficient Solver • Finds the pure fugacity coefficient or the fugacity coefficient of a species in a mixture, using the LK or PR equation of state.

Tour of Program: Fugacity Coefficient Solver

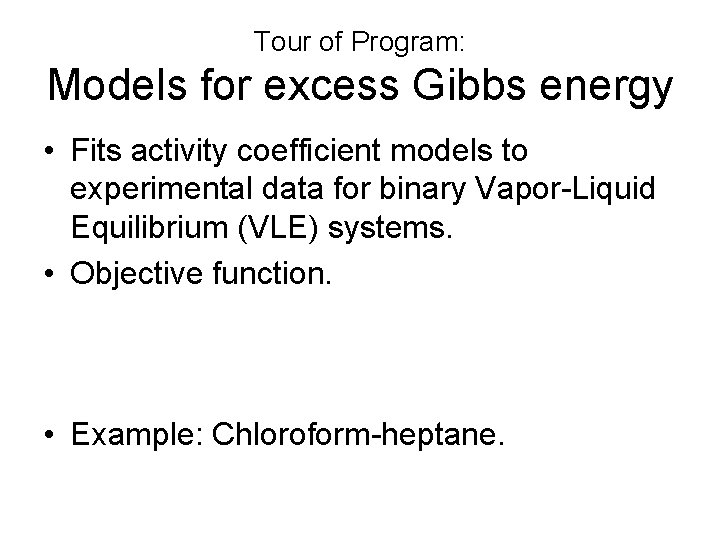

Tour of Program: Models for excess Gibbs energy • Fits activity coefficient models to experimental data for binary Vapor-Liquid Equilibrium (VLE) systems. • Objective function. • Example: Chloroform-heptane.

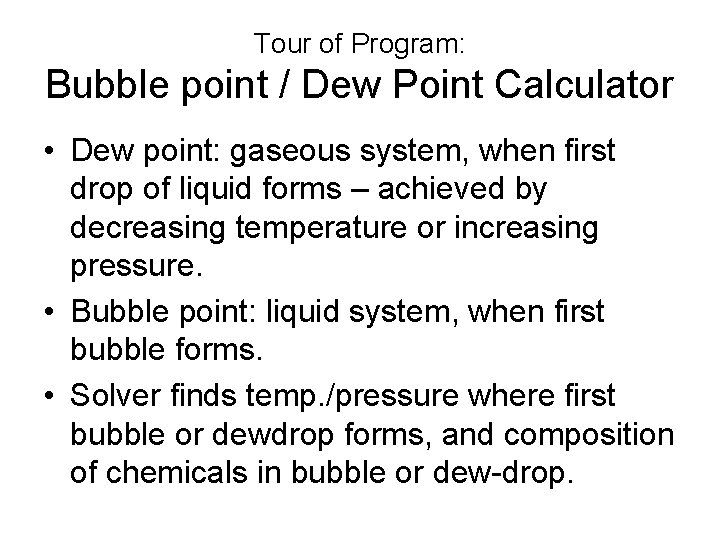

Tour of Program: Bubble point / Dew Point Calculator • Dew point: gaseous system, when first drop of liquid forms – achieved by decreasing temperature or increasing pressure. • Bubble point: liquid system, when first bubble forms. • Solver finds temp. /pressure where first bubble or dewdrop forms, and composition of chemicals in bubble or dew-drop.

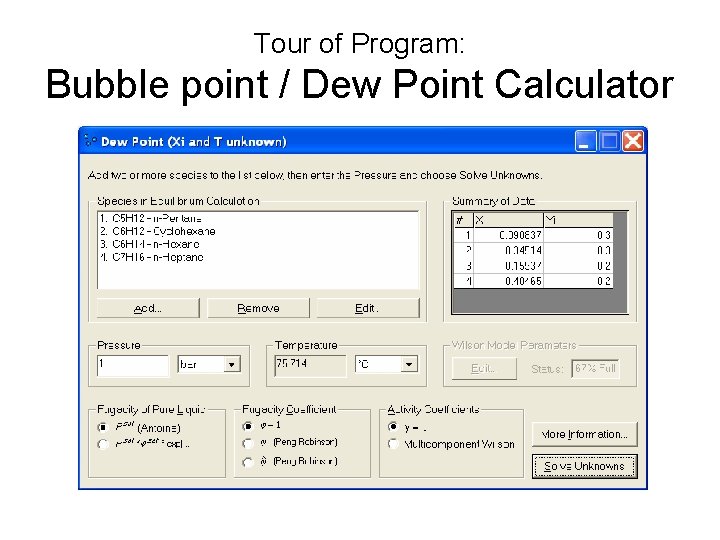

Tour of Program: Bubble point / Dew Point Calculator

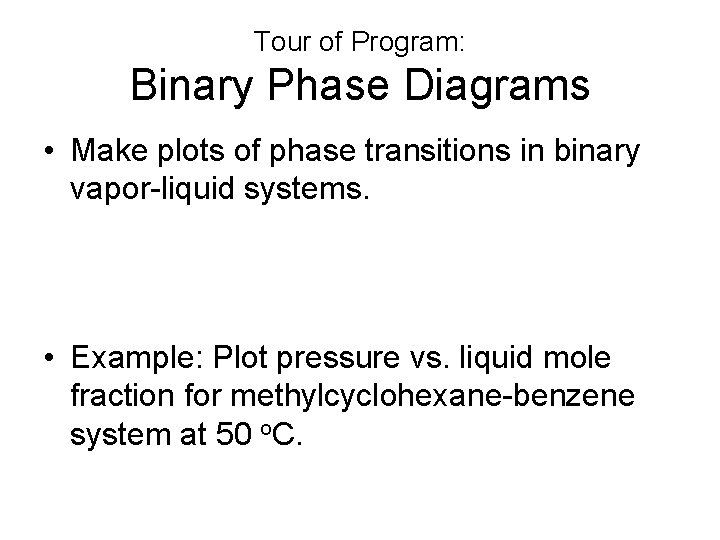

Tour of Program: Binary Phase Diagrams • Make plots of phase transitions in binary vapor-liquid systems. • Example: Plot pressure vs. liquid mole fraction for methylcyclohexane-benzene system at 50 o. C.

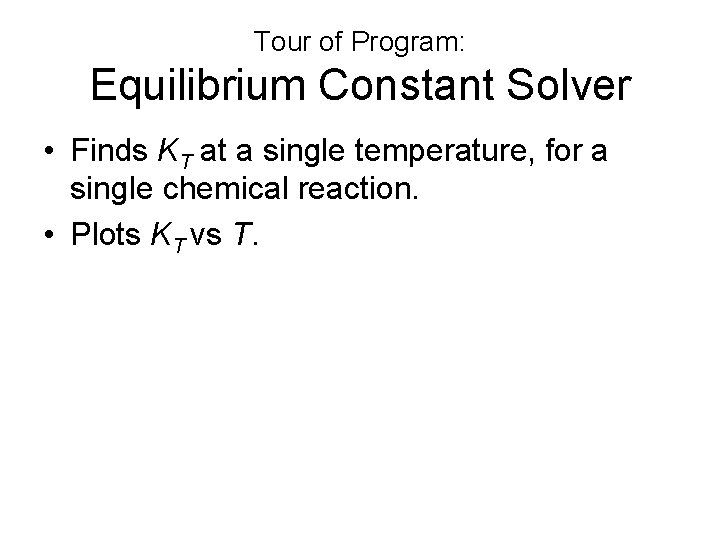

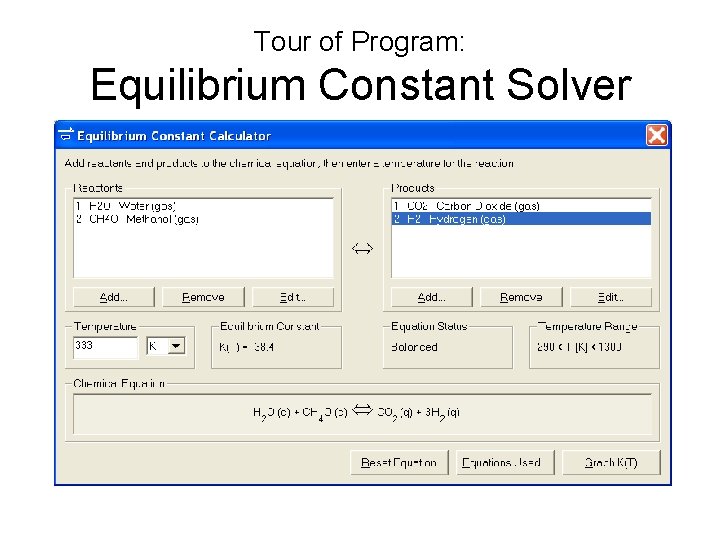

Tour of Program: Equilibrium Constant Solver • Finds KT at a single temperature, for a single chemical reaction. • Plots KT vs T.

Tour of Program: Equilibrium Constant Solver

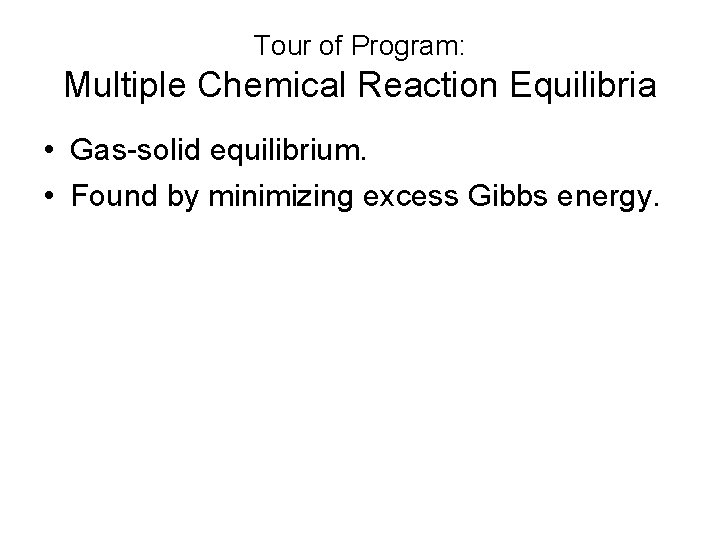

Tour of Program: Multiple Chemical Reaction Equilibria • Gas-solid equilibrium. • Found by minimizing excess Gibbs energy.

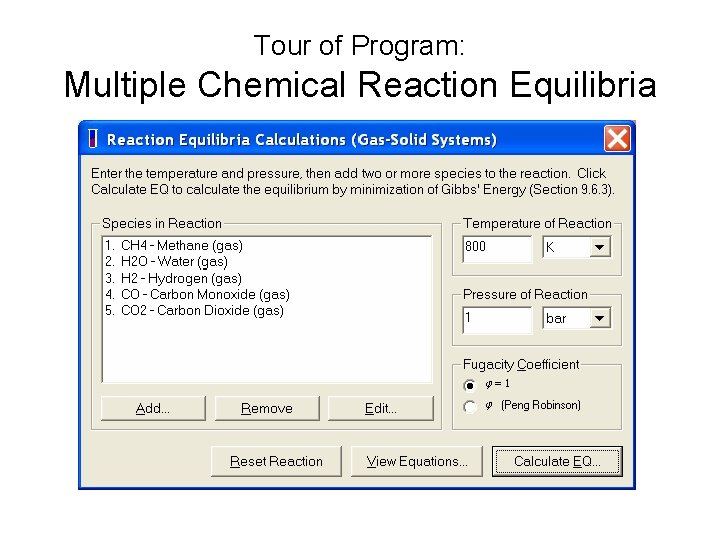

Tour of Program: Multiple Chemical Reaction Equilibria

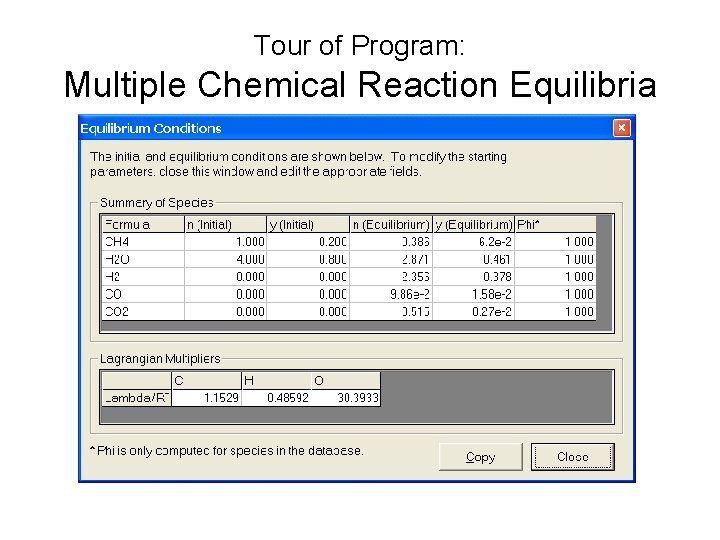

Tour of Program: Multiple Chemical Reaction Equilibria

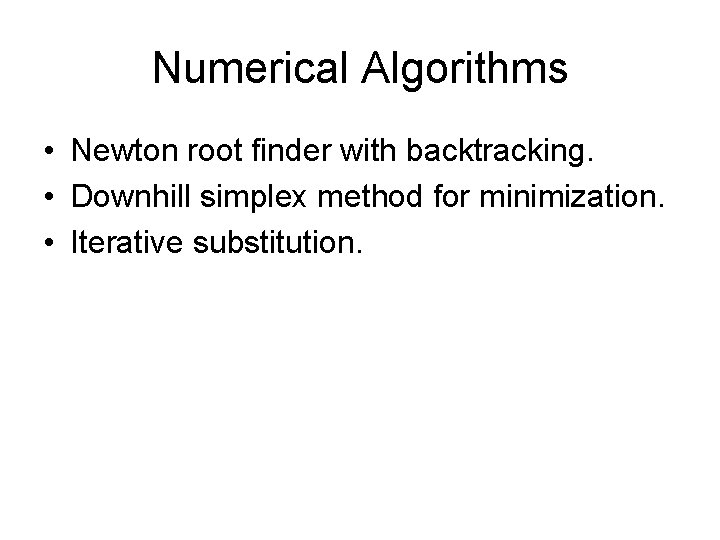

Numerical Algorithms • Newton root finder with backtracking. • Downhill simplex method for minimization. • Iterative substitution.

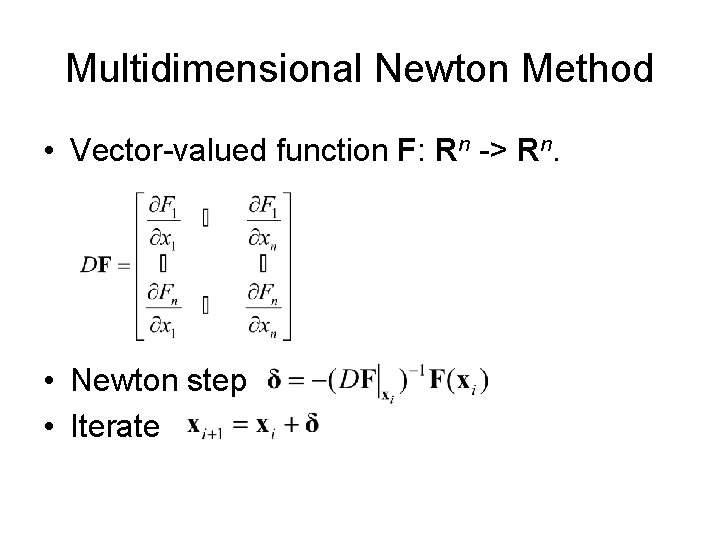

Multidimensional Newton Method • Vector-valued function F: Rn -> Rn. • Newton step • Iterate

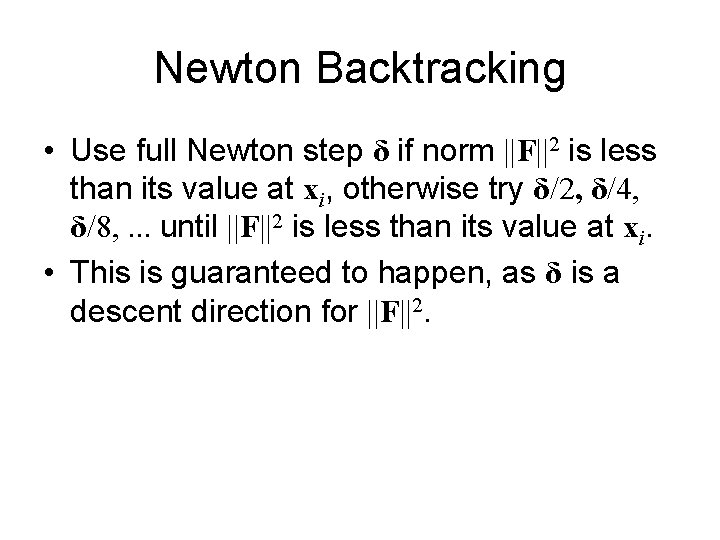

Newton Backtracking • Use full Newton step δ if norm ||F||2 is less than its value at xi, otherwise try δ/2, δ/4, δ/8, . . . until ||F||2 is less than its value at xi. • This is guaranteed to happen, as δ is a descent direction for ||F||2.

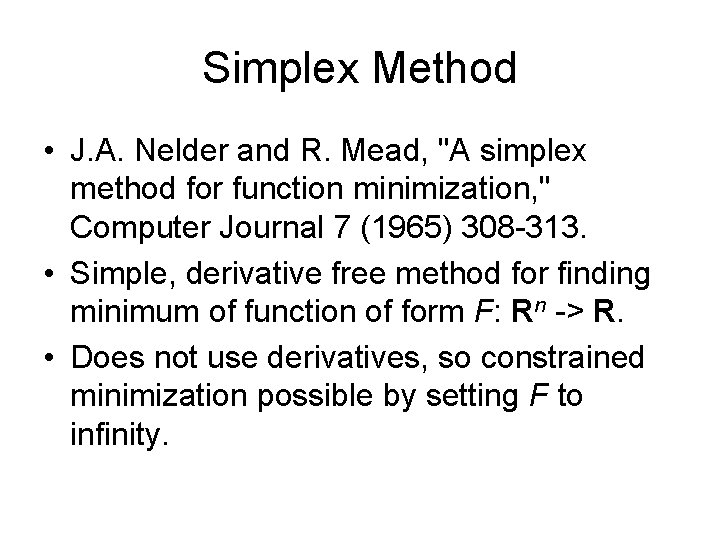

Simplex Method • J. A. Nelder and R. Mead, "A simplex method for function minimization, " Computer Journal 7 (1965) 308 -313. • Simple, derivative free method for finding minimum of function of form F: Rn -> R. • Does not use derivatives, so constrained minimization possible by setting F to infinity.

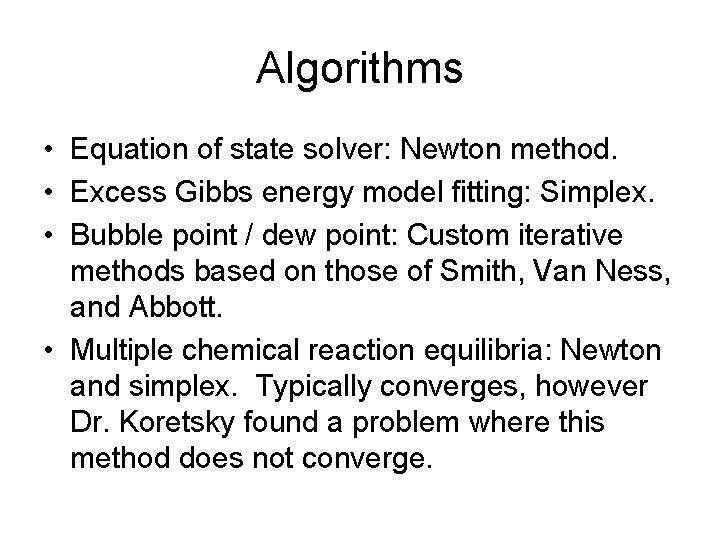

Algorithms • Equation of state solver: Newton method. • Excess Gibbs energy model fitting: Simplex. • Bubble point / dew point: Custom iterative methods based on those of Smith, Van Ness, and Abbott. • Multiple chemical reaction equilibria: Newton and simplex. Typically converges, however Dr. Koretsky found a problem where this method does not converge.

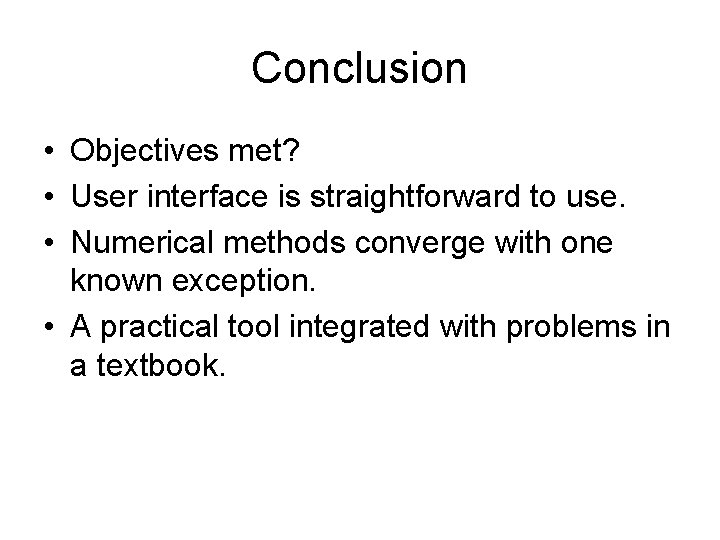

Conclusion • Objectives met? • User interface is straightforward to use. • Numerical methods converge with one known exception. • A practical tool integrated with problems in a textbook.

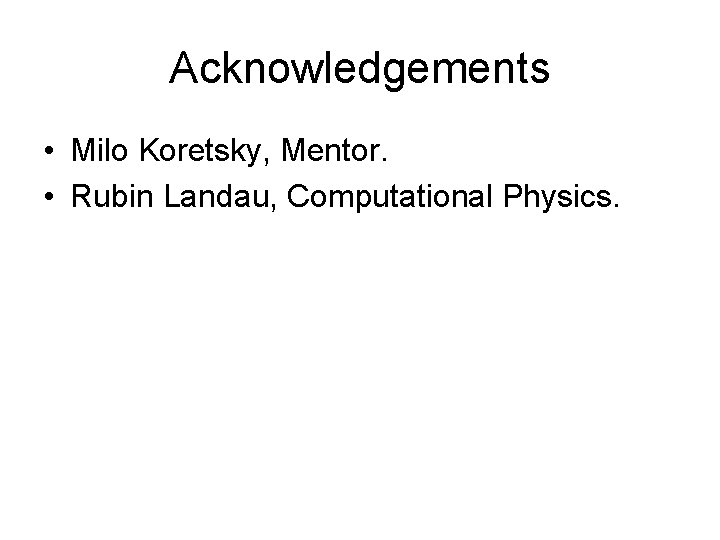

Acknowledgements • Milo Koretsky, Mentor. • Rubin Landau, Computational Physics.
