Thermaltake Versa T 25 TG Middle tower StyleSimple

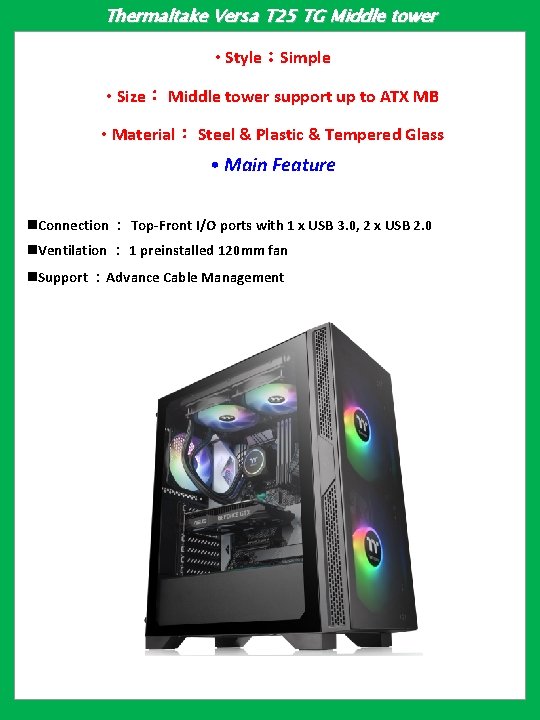

Thermaltake Versa T 25 TG Middle tower • Style：Simple • Size： Middle tower support up to ATX MB • Material： Steel & Plastic & Tempered Glass • Main Feature n. Connection ： Top-Front I/O ports with 1 x USB 3. 0, 2 x USB 2. 0 n. Ventilation ： 1 preinstalled 120 mm fan n. Support ：Advance Cable Management

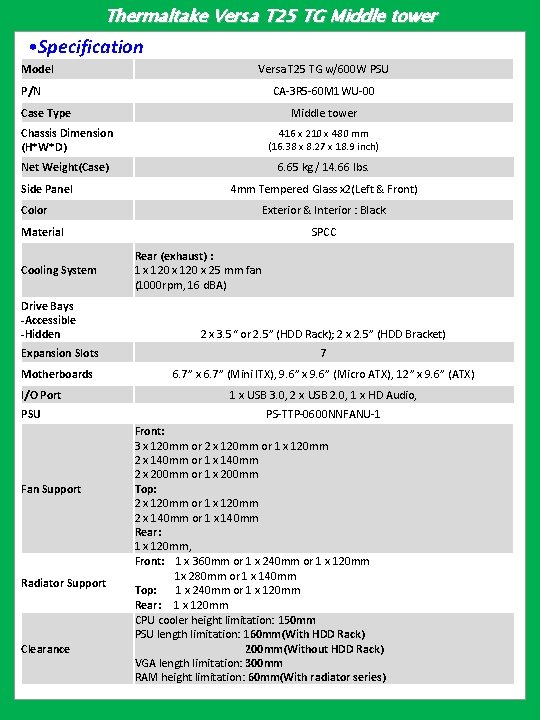

Thermaltake Versa T 25 TG Middle tower • Specification Model Versa T 25 TG w/600 W PSU P/N CA-3 R 5 -60 M 1 WU-00 Case Type Middle tower Chassis Dimension (H*W*D) 416 x 210 x 480 mm (16. 38 x 8. 27 x 18. 9 inch) Net Weight(Case) 6. 65 kg / 14. 66 lbs. Side Panel 4 mm Tempered Glass x 2(Left & Front) Color Exterior & Interior : Black Material Cooling System Drive Bays -Accessible -Hidden SPCC Rear (exhaust) : 1 x 120 x 25 mm fan (1000 rpm, 16 d. BA) 2 x 3. 5“ or 2. 5” (HDD Rack); 2 x 2. 5” (HDD Bracket) Expansion Slots 7 Motherboards 6. 7” x 6. 7” (Mini ITX), 9. 6” x 9. 6” (Micro ATX), 12” x 9. 6” (ATX) I/O Port PSU Fan Support Radiator Support Clearance 1 x USB 3. 0, 2 x USB 2. 0, 1 x HD Audio, PS-TTP-0600 NNFANU-1 Front: 3 x 120 mm or 2 x 120 mm or 1 x 120 mm 2 x 140 mm or 1 x 140 mm 2 x 200 mm or 1 x 200 mm Top: 2 x 120 mm or 1 x 120 mm 2 x 140 mm or 1 x 140 mm Rear: 1 x 120 mm, Front: 1 x 360 mm or 1 x 240 mm or 1 x 120 mm 1 x 280 mm or 1 x 140 mm Top: 1 x 240 mm or 1 x 120 mm Rear: 1 x 120 mm CPU cooler height limitation: 150 mm PSU length limitation: 160 mm(With HDD Rack) 　　　　　 200 mm(Without HDD Rack) VGA length limitation: 300 mm RAM height limitation: 60 mm(With radiator series)

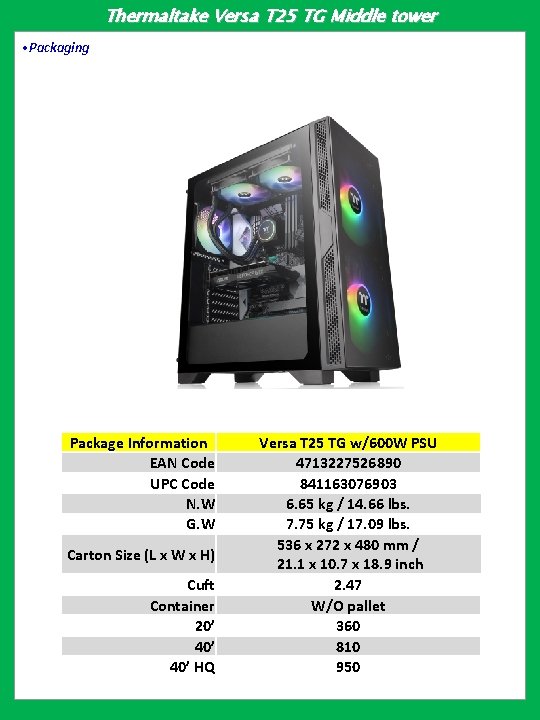

Thermaltake Versa T 25 TG Middle tower • Packaging Package Information EAN Code UPC Code N. W G. W Carton Size (L x W x H) Cuft Container 20’ 40’ HQ Versa T 25 TG w/600 W PSU 4713227526890 841163076903 6. 65 kg / 14. 66 lbs. 7. 75 kg / 17. 09 lbs. 536 x 272 x 480 mm / 21. 1 x 10. 7 x 18. 9 inch 2. 47 W/O pallet 360 810 950

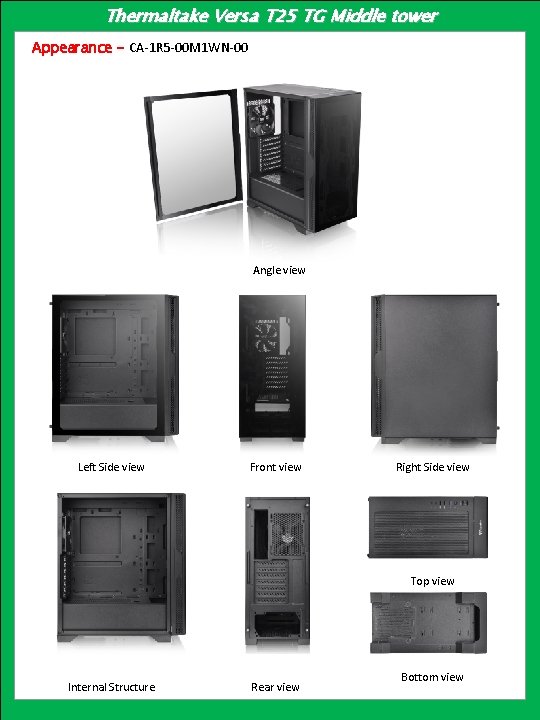

Thermaltake Versa T 25 TG Middle tower Appearance - CA-1 R 5 -00 M 1 WN-00 Angle view Left Side view Front view Right Side view Top view Internal Structure Rear view Bottom view

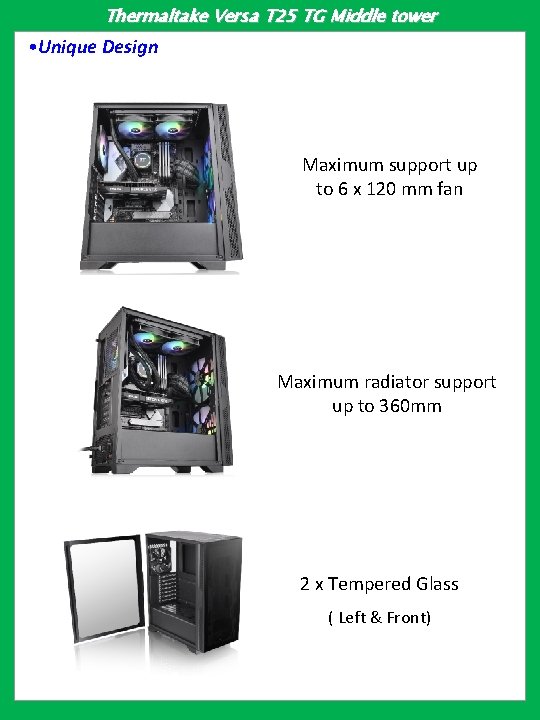

Thermaltake Versa T 25 TG Middle tower • Unique Design Maximum support up to 6 x 120 mm fan Maximum radiator support up to 360 mm 2 x Tempered Glass ( Left & Front)

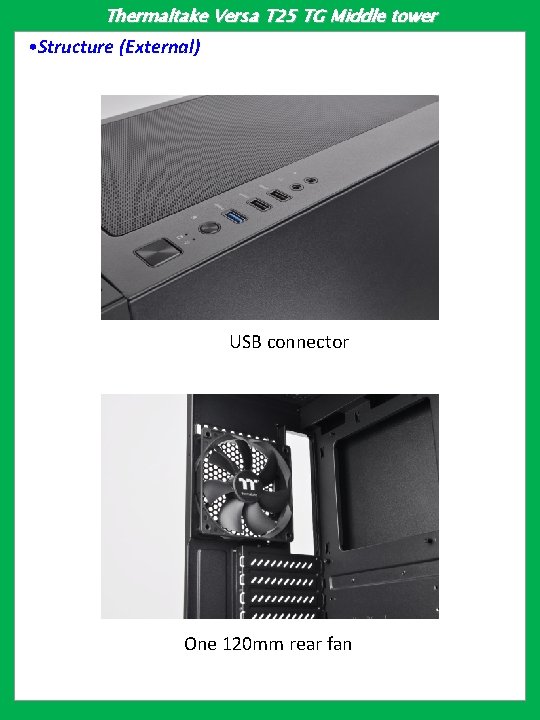

Thermaltake Versa T 25 TG Middle tower • Structure (External) USB connector One 120 mm rear fan

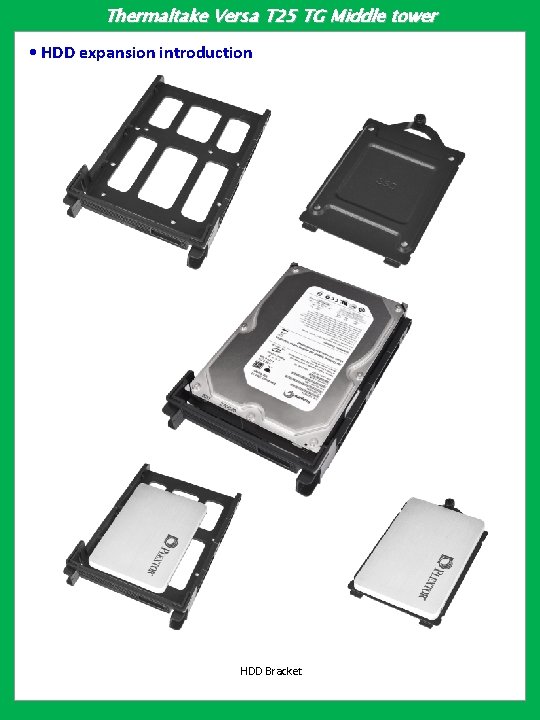

Thermaltake Versa T 25 TG Middle tower • HDD expansion introduction HDD Bracket

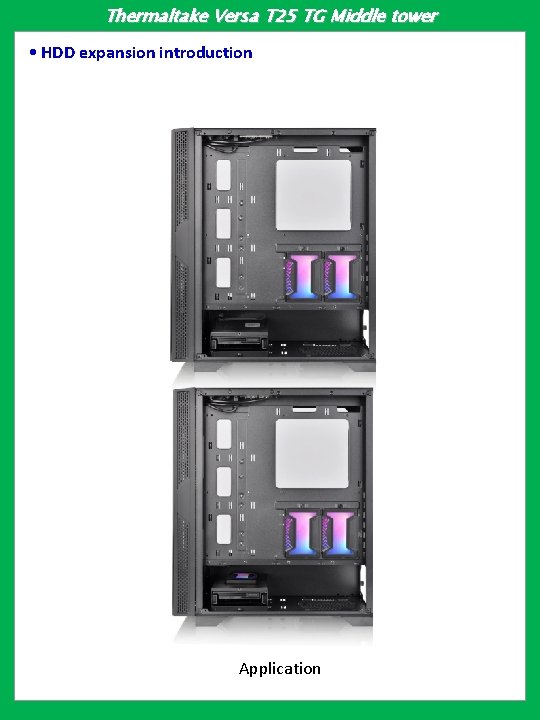

Thermaltake Versa T 25 TG Middle tower • HDD expansion introduction Application

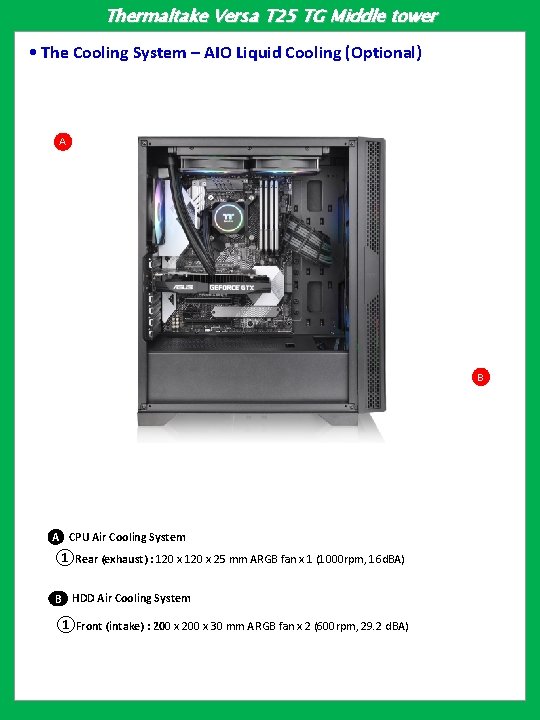

Thermaltake Versa T 25 TG Middle tower • The Cooling System – AIO Liquid Cooling (Optional) A B A CPU Air Cooling System ①Rear (exhaust) : 120 x 25 mm ARGB fan x 1 (1000 rpm, 16 d. BA) B HDD Air Cooling System ①Front (intake) : 200 x 30 mm ARGB fan x 2 (600 rpm, 29. 2 d. BA)

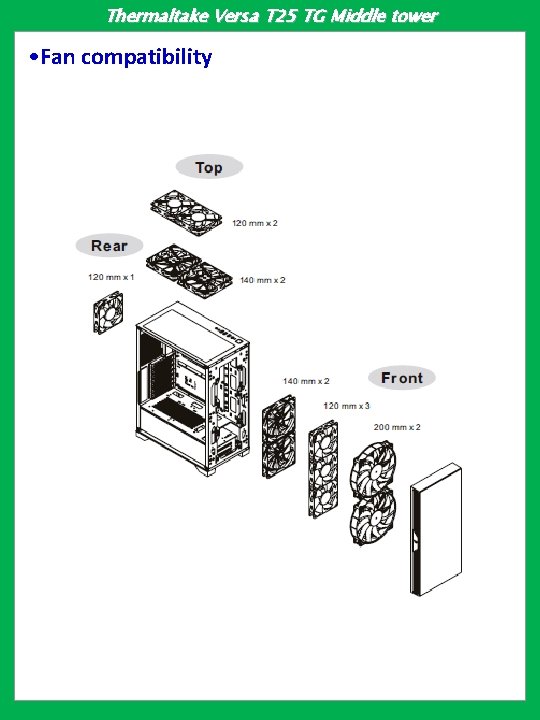

Thermaltake Versa T 25 TG Middle tower • Fan compatibility

Thermaltake Versa T 25 TG Middle tower • Radiator compatibility

Thermaltake Versa T 25 TG Middle tower • Compatibility List Fan Compatibility List 120 mm 3 2 1 Front Top Rear 140 mm 2 2 - 200 mm 2 - Thermaltake Compatible Fan PURE FAN Series Riing FAN Series 120 mm 140 mm 200 mm ● ● ● Radiator Compatibility List 120 mm 240 mm 360 mm 140 mm 280 mm 420 mm ● ● ● ● - Front Top Rear All-in-One Compatibility List (Water 3. 0 and Floe series) Front Top Rear Performer Pro ● ● ● 240 Series ● ● - 360 Series ● - 140 Series ● - 280 Series ● -
