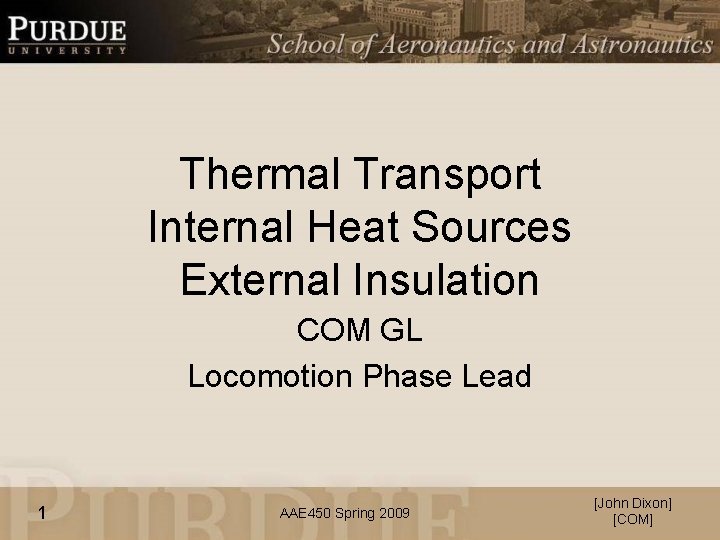

Thermal Transport Internal Heat Sources External Insulation COM GL Locomotion Phase Lead 1 AAE

Thermal Transport Internal Heat Sources External Insulation COM GL Locomotion Phase Lead 1 AAE 450 Spring 2009 [John Dixon] [COM]

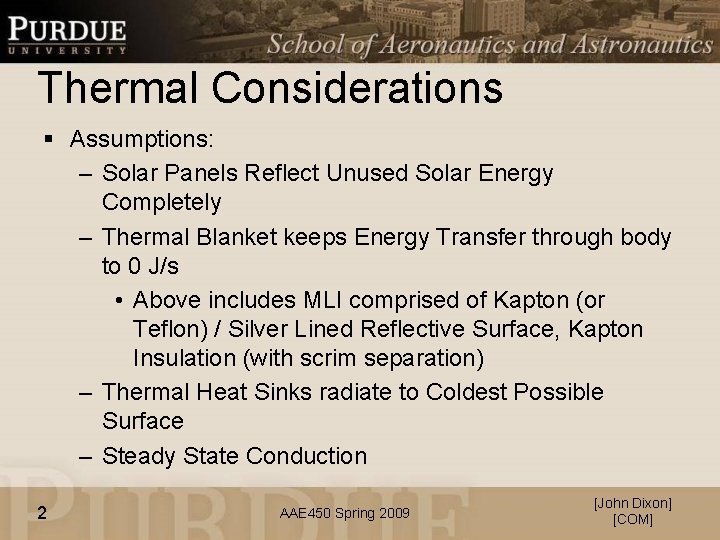

Thermal Considerations § Assumptions: – Solar Panels Reflect Unused Solar Energy Completely – Thermal

Thermal Considerations § Assumptions: – Solar Panels Reflect Unused Solar Energy Completely – Thermal Blanket keeps Energy Transfer through body to 0 J/s • Above includes MLI comprised of Kapton (or Teflon) / Silver Lined Reflective Surface, Kapton Insulation (with scrim separation) – Thermal Heat Sinks radiate to Coldest Possible Surface – Steady State Conduction 2 AAE 450 Spring 2009 [John Dixon] [COM]

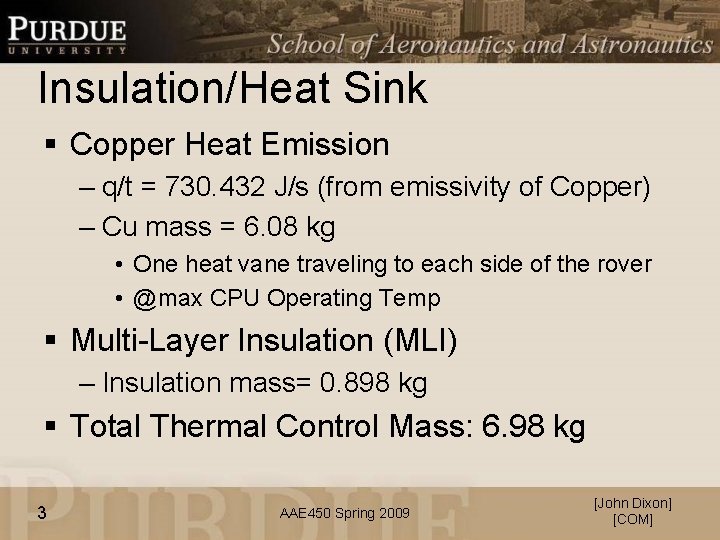

Insulation/Heat Sink § Copper Heat Emission – q/t = 730. 432 J/s (from emissivity

Insulation/Heat Sink § Copper Heat Emission – q/t = 730. 432 J/s (from emissivity of Copper) – Cu mass = 6. 08 kg • One heat vane traveling to each side of the rover • @max CPU Operating Temp § Multi-Layer Insulation (MLI) – Insulation mass= 0. 898 kg § Total Thermal Control Mass: 6. 98 kg 3 AAE 450 Spring 2009 [John Dixon] [COM]

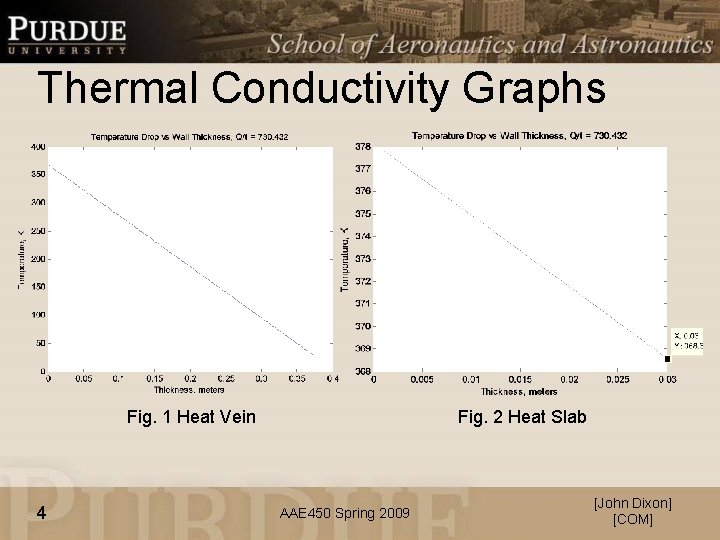

Thermal Conductivity Graphs Fig. 1 Heat Vein 4 Fig. 2 Heat Slab AAE 450

Thermal Conductivity Graphs Fig. 1 Heat Vein 4 Fig. 2 Heat Slab AAE 450 Spring 2009 [John Dixon] [COM]

Copper Sink Properties § Copper Slab – 0. 03 m thick X 0. 065

Copper Sink Properties § Copper Slab – 0. 03 m thick X 0. 065 m wide X 0. 08 m long – Volume: 0. 000156 m^3 § Copper Vein – 0. 02 m height X 0. 065 m wide X [0. 001: 0. 372]m thick – Volume(max distance) = 0. 000677 m^3 AAE 450 Spring 2009 [John Dixon] [COM]

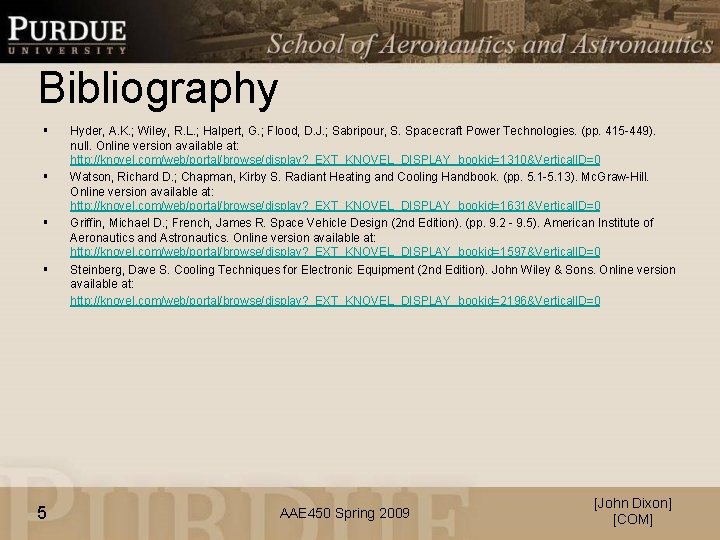

Bibliography § § 5 Hyder, A. K. ; Wiley, R. L. ; Halpert, G.
