Thermal Spray Powders Special Capabilities Powder Mfg Gas

Thermal Spray Powders

Special Capabilities / Powder Mfg. • Gas atomization – MCr. Al. Ys, metal alloys, superalloys & braze powders • Sintering – Carbide and ceramic powders • Casting – Carbide and ceramic powders • Composite/Agglomerate – TBC, metal alloy & carbide powders • Physical Blending – Cr 2 C 3 -Ni. Cr & others • APT Technology – Chromium and tungsten based

Atomization • • Prepare raw materials Vacuum induction melt Pour molten metal Break molten metal into droplets and rapidly solidify (atomize) • Collect powder Induction Furnace Atomization “Close-up” Collection Bucket Melt Chamber

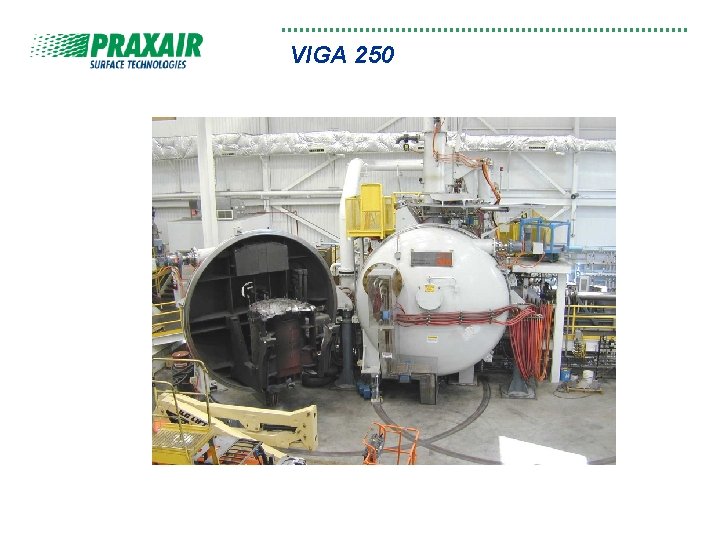

VIGA 250

Sintering • Procedure – Mix raw materials – Place in furnace – Program furnace cycle (heating & cooling) – Sinter – Breakdown sintered mass Sinter: to cause to become a coherent mass by heating without melting Composition A Composition B Composition C

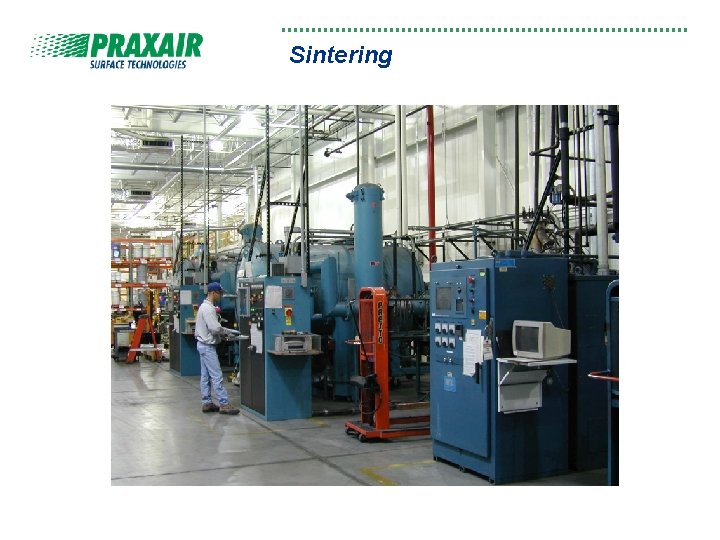

Sintering

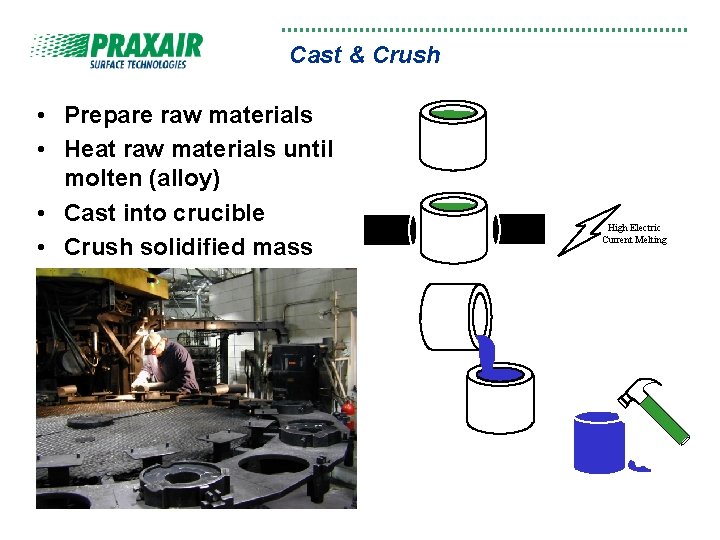

Cast & Crush • Prepare raw materials • Heat raw materials until molten (alloy) • Cast into crucible • Crush solidified mass High Electric Current Melting

Composite / Agglomerated • Mix raw materials into a liquid chemical suspension • “Atomize” or drive-off binders to form agglomerates • Collect dry agglomerated powder Organic Binder Composition A Composition B

Thermal Barrier Coatings

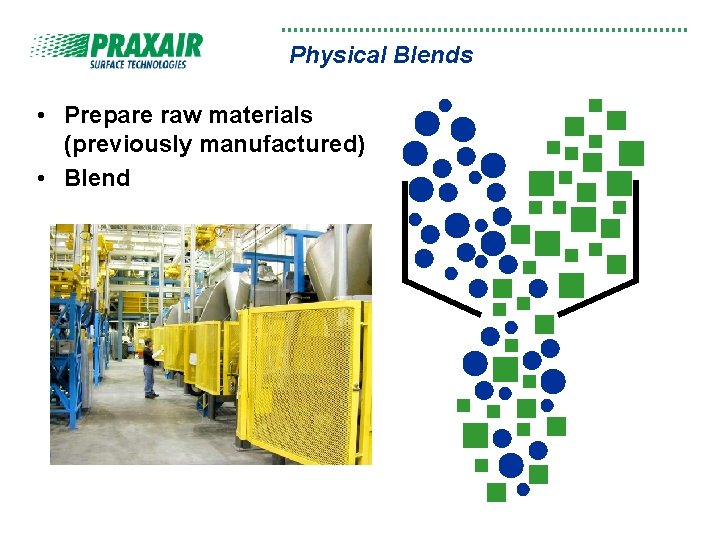

Physical Blends • Prepare raw materials (previously manufactured) • Blend

W-APT Powders W-121 W-124 W-129 1350 1 1256 2 W 40 36 34 81 4. 5 Cr 36 48 45 4 28 Co 20 12 10 61 Ni 18 2. 5 C 4 4 3. 6 5. 2 1. 3

Particle Size Distribution BRAZING/ADH HVOF-HV HVOF-JP HVOF-JK LASER HVOF-DJ PLASMA PTA 180µ 80 mesh LPPS 125µ 120 mesh 150µ 100 mesh 90µ 170 mesh 106µ 140 mesh 63µ 230 mesh 75µ 200 mesh 45µ 325 mesh 53µ 270 mesh 22µ 38µ 400 mesh 16µ 11µ 5µ

Operational Excellence
