Thermal Spray Coating Application Presented by Dean Hooks

Thermal Spray Coating Application Presented by: Dean Hooks, Thermion

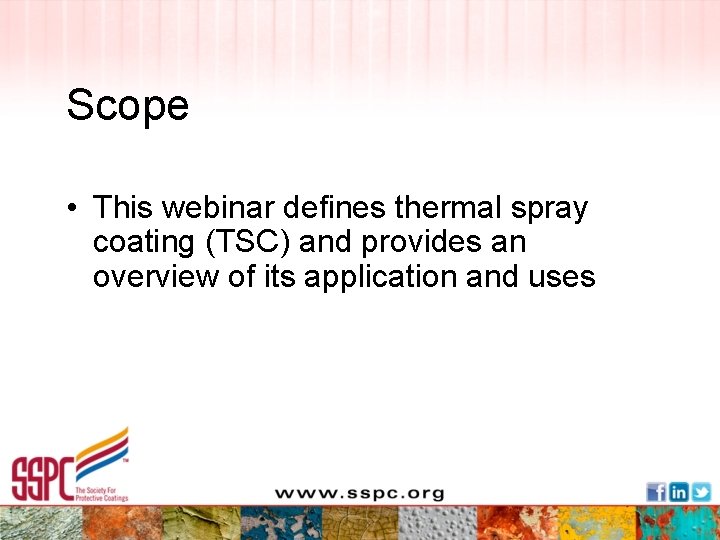

Scope • This webinar defines thermal spray coating (TSC) and provides an overview of its application and uses

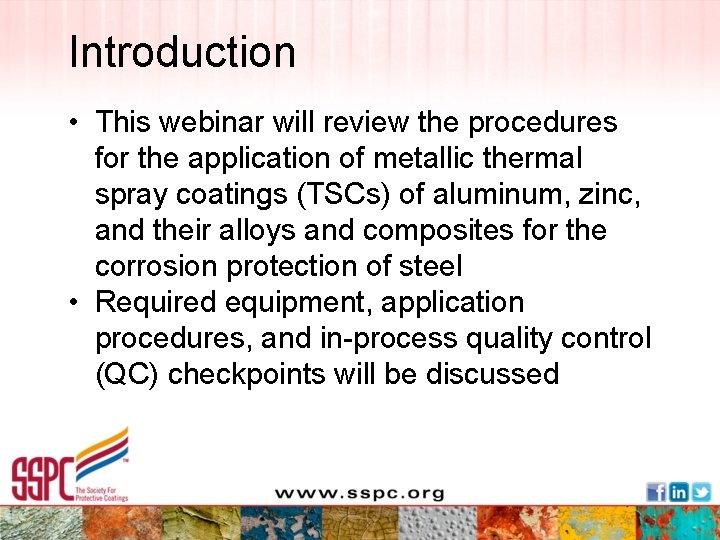

Introduction • This webinar will review the procedures for the application of metallic thermal spray coatings (TSCs) of aluminum, zinc, and their alloys and composites for the corrosion protection of steel • Required equipment, application procedures, and in-process quality control (QC) checkpoints will be discussed

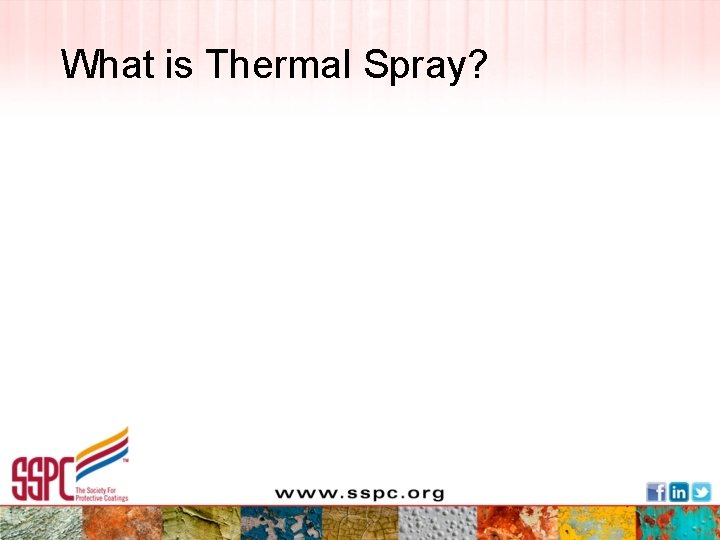

What is Thermal Spray?

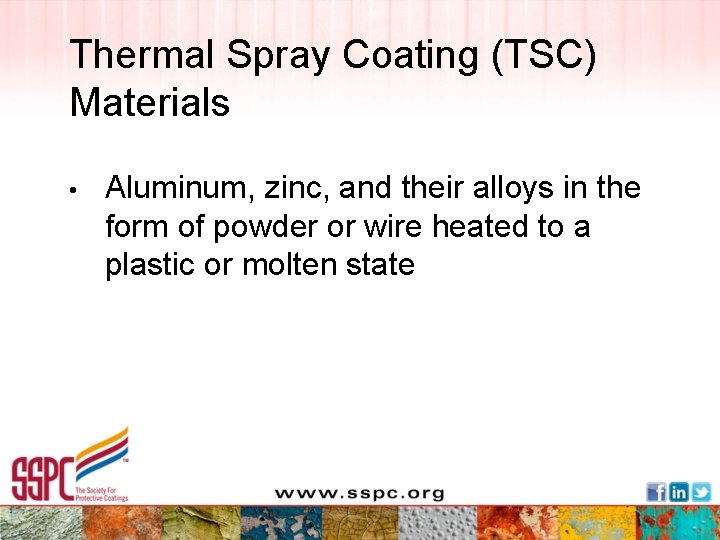

Thermal Spray Coating (TSC) Materials • Aluminum, zinc, and their alloys in the form of powder or wire heated to a plastic or molten state

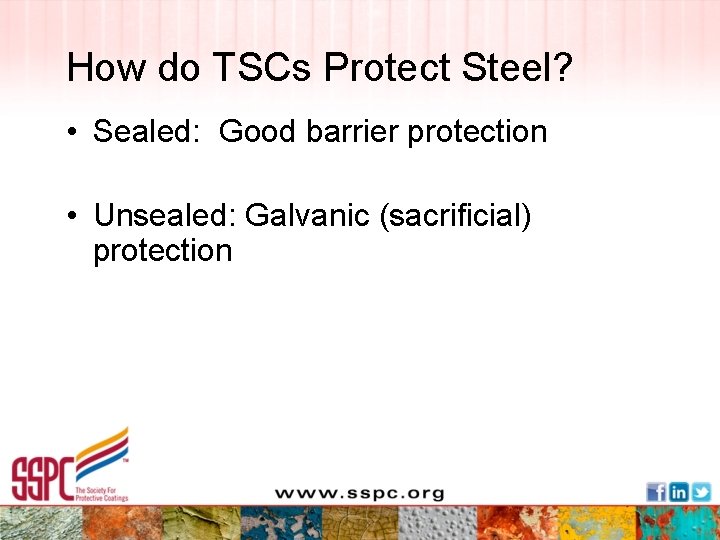

How do TSCs Protect Steel? • Sealed: Good barrier protection • Unsealed: Galvanic (sacrificial) protection

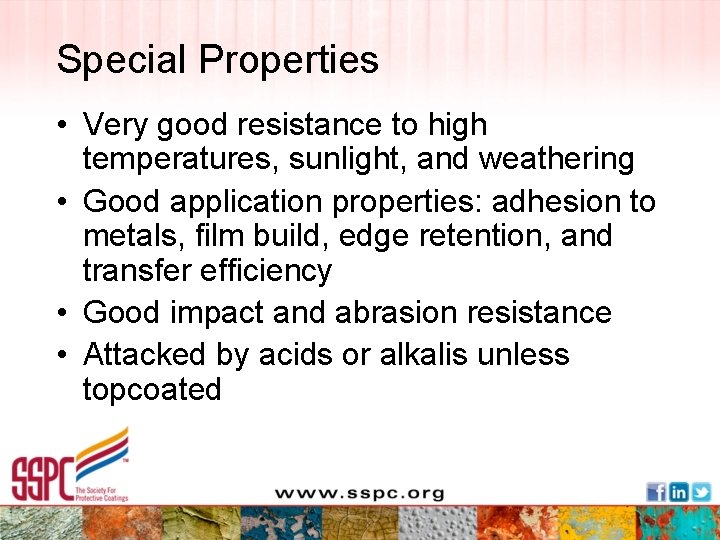

Special Properties • Very good resistance to high temperatures, sunlight, and weathering • Good application properties: adhesion to metals, film build, edge retention, and transfer efficiency • Good impact and abrasion resistance • Attacked by acids or alkalis unless topcoated

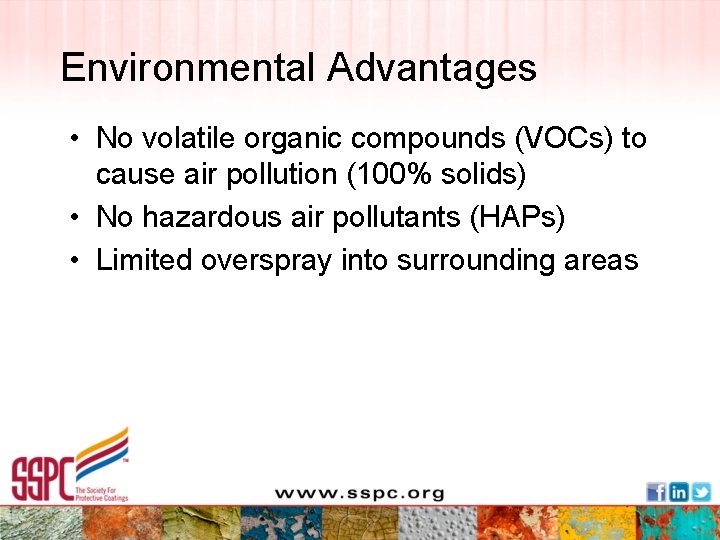

Environmental Advantages • No volatile organic compounds (VOCs) to cause air pollution (100% solids) • No hazardous air pollutants (HAPs) • Limited overspray into surrounding areas

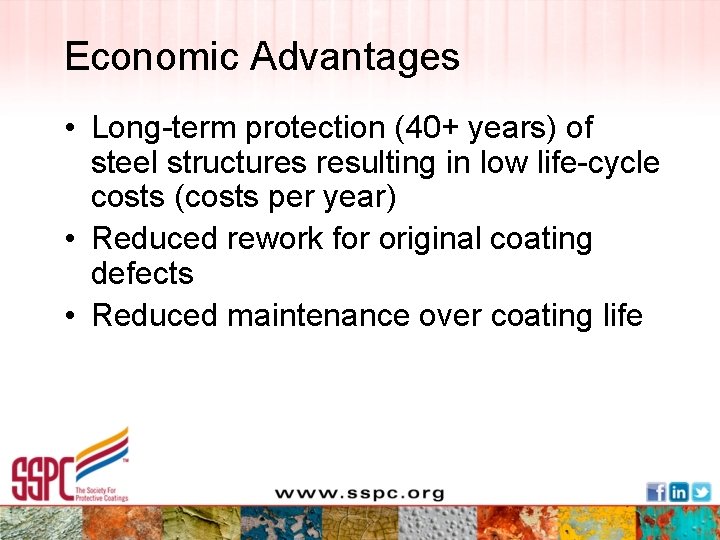

Economic Advantages • Long-term protection (40+ years) of steel structures resulting in low life-cycle costs (costs per year) • Reduced rework for original coating defects • Reduced maintenance over coating life

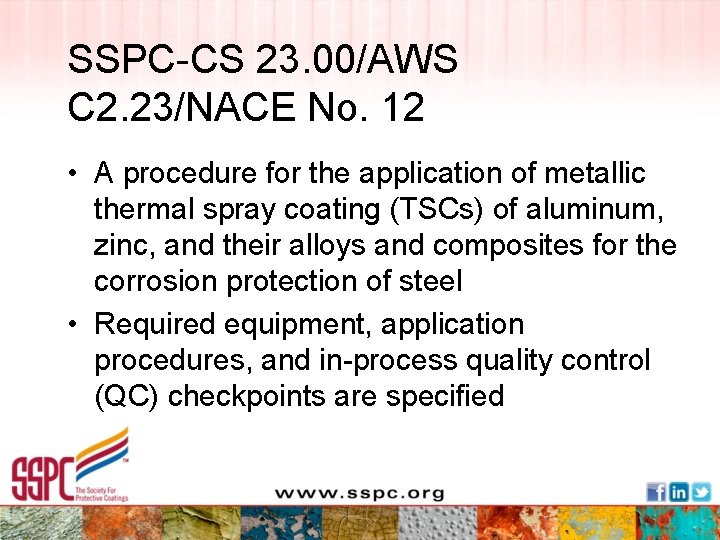

SSPC-CS 23. 00/AWS C 2. 23/NACE No. 12 • A procedure for the application of metallic thermal spray coating (TSCs) of aluminum, zinc, and their alloys and composites for the corrosion protection of steel • Required equipment, application procedures, and in-process quality control (QC) checkpoints are specified

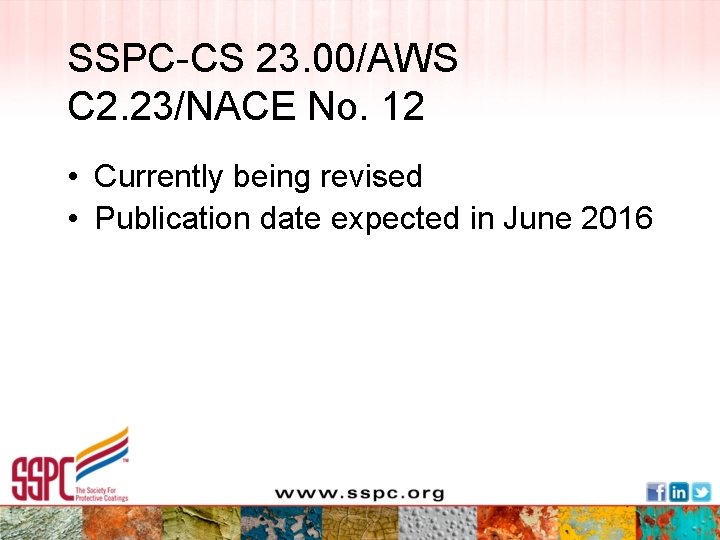

SSPC-CS 23. 00/AWS C 2. 23/NACE No. 12 • Currently being revised • Publication date expected in June 2016

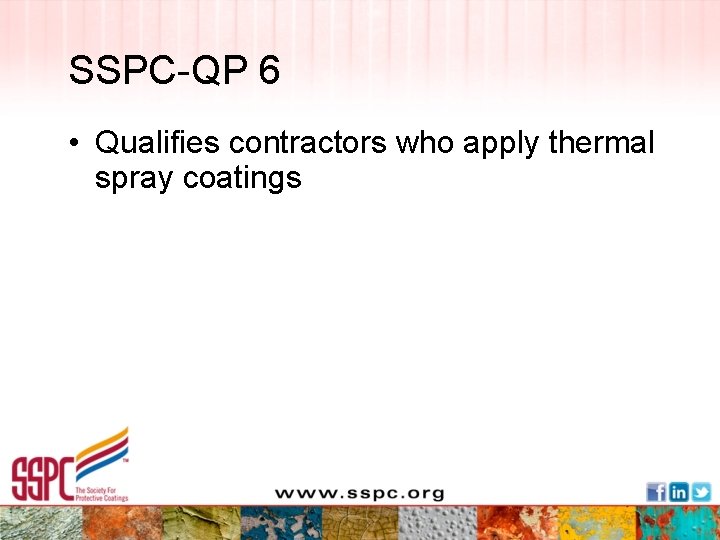

SSPC-QP 6 • Qualifies contractors who apply thermal spray coatings

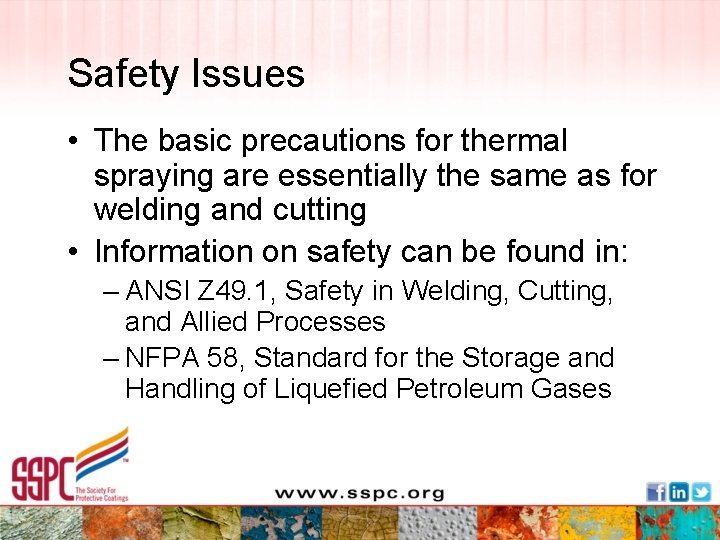

Safety Issues • The basic precautions for thermal spraying are essentially the same as for welding and cutting • Information on safety can be found in: – ANSI Z 49. 1, Safety in Welding, Cutting, and Allied Processes – NFPA 58, Standard for the Storage and Handling of Liquefied Petroleum Gases

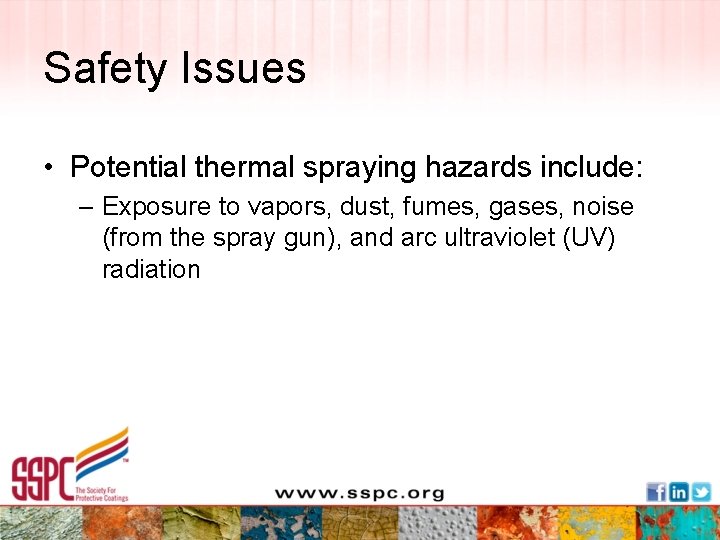

Safety Issues • Potential thermal spraying hazards include: – Exposure to vapors, dust, fumes, gases, noise (from the spray gun), and arc ultraviolet (UV) radiation

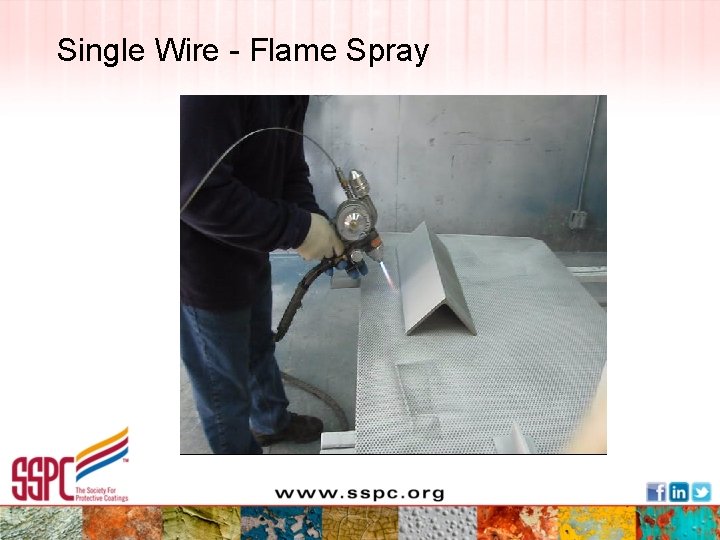

Single Wire - Flame Spray

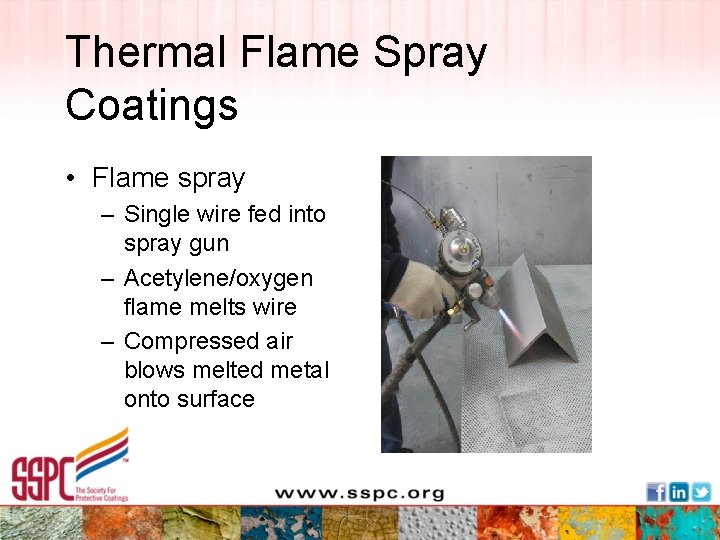

Thermal Flame Spray Coatings • Flame spray – Single wire fed into spray gun – Acetylene/oxygen flame melts wire – Compressed air blows melted metal onto surface

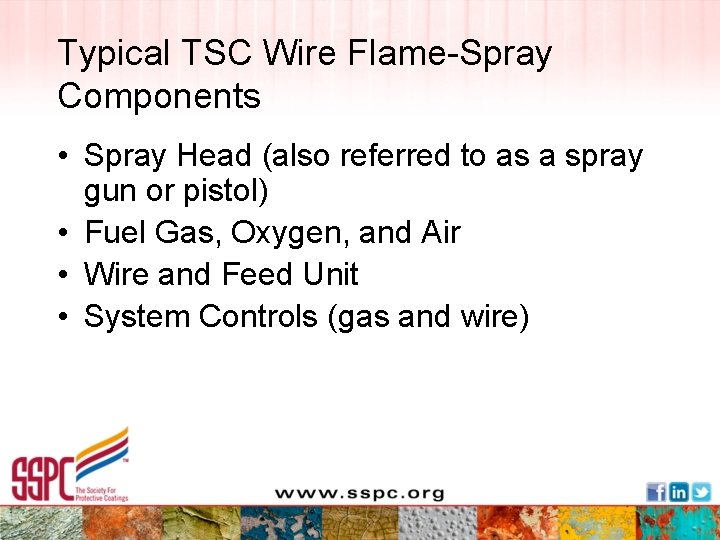

Typical TSC Wire Flame-Spray Components • Spray Head (also referred to as a spray gun or pistol) • Fuel Gas, Oxygen, and Air • Wire and Feed Unit • System Controls (gas and wire)

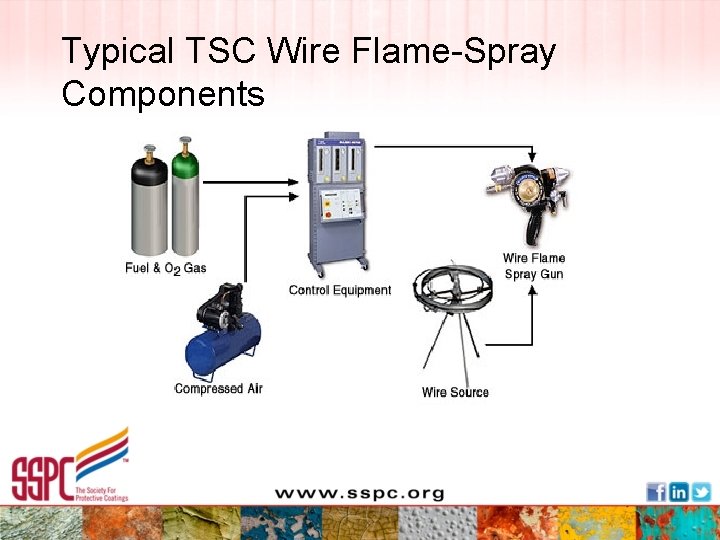

Typical TSC Wire Flame-Spray Components

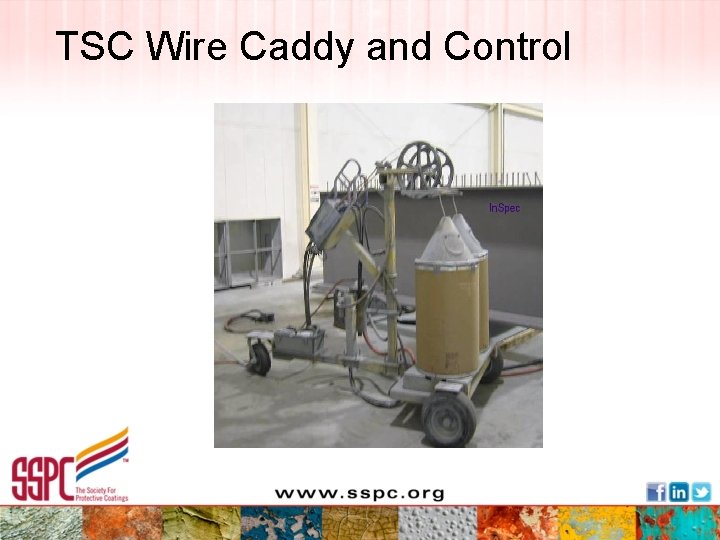

TSC Wire Caddy and Control

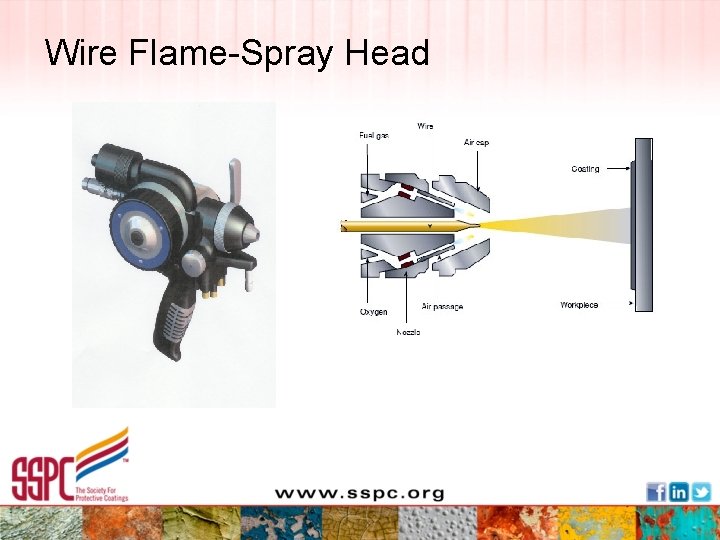

Wire Flame-Spray Head

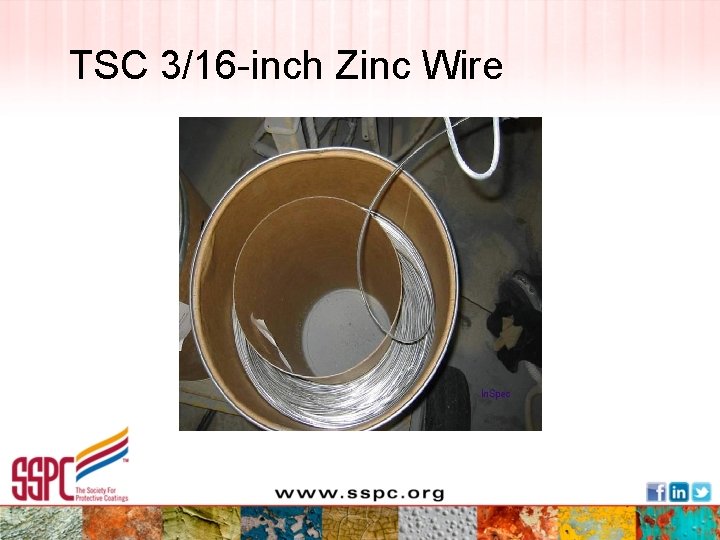

TSC 3/16 -inch Zinc Wire

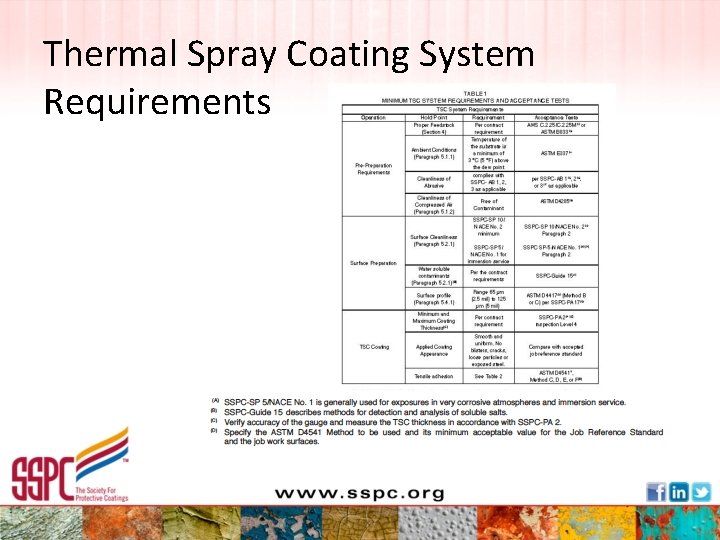

Thermal Spray Coating System Requirements

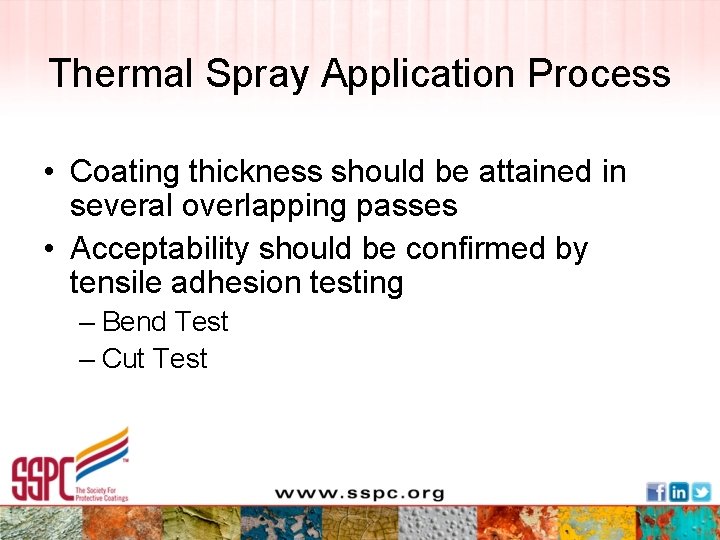

Thermal Spray Application Process • Coating thickness should be attained in several overlapping passes • Acceptability should be confirmed by tensile adhesion testing – Bend Test – Cut Test

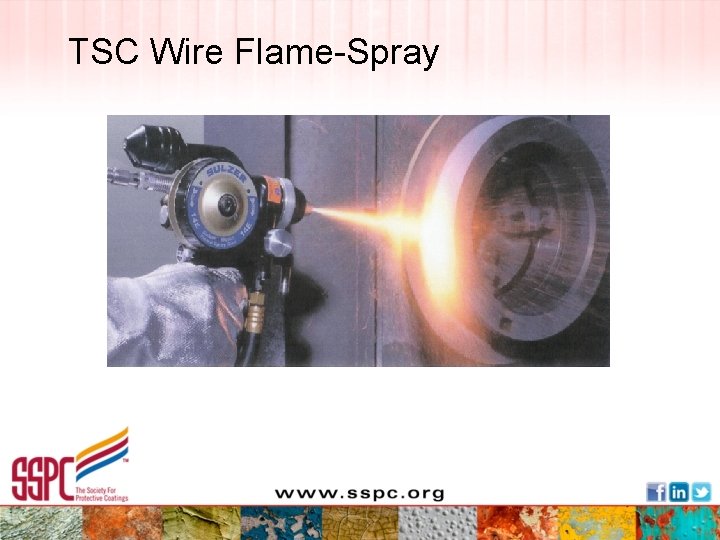

TSC Wire Flame-Spray

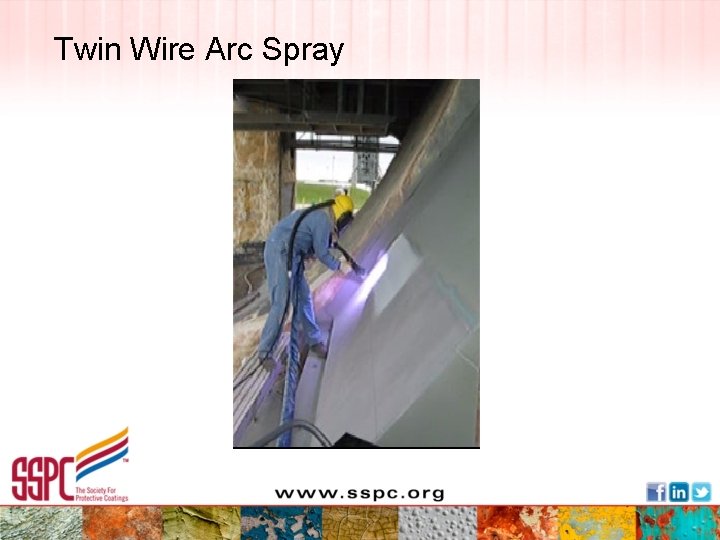

Twin Wire Arc Spray

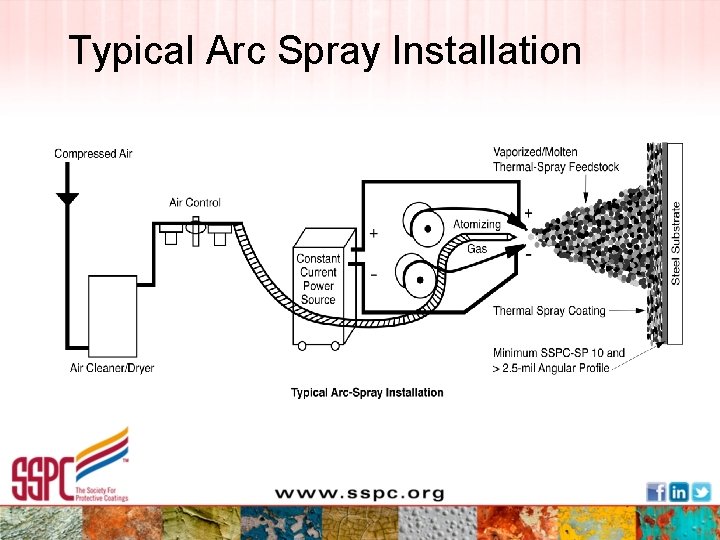

Typical Arc Spray Installation

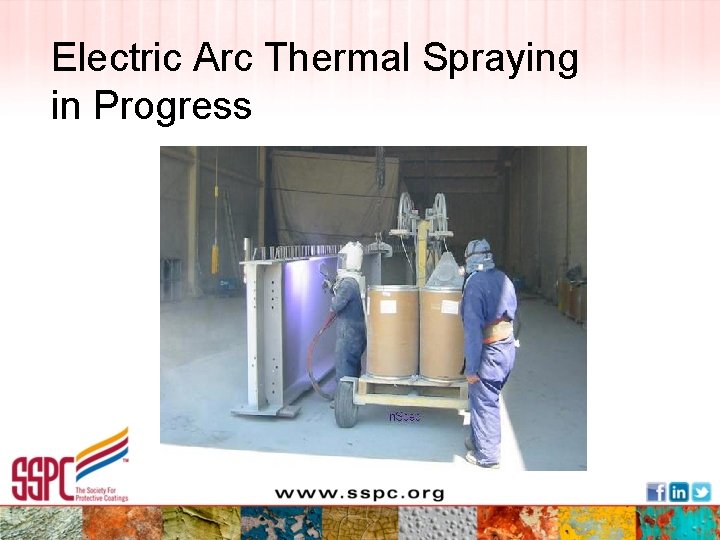

Electric Arc Thermal Spraying in Progress

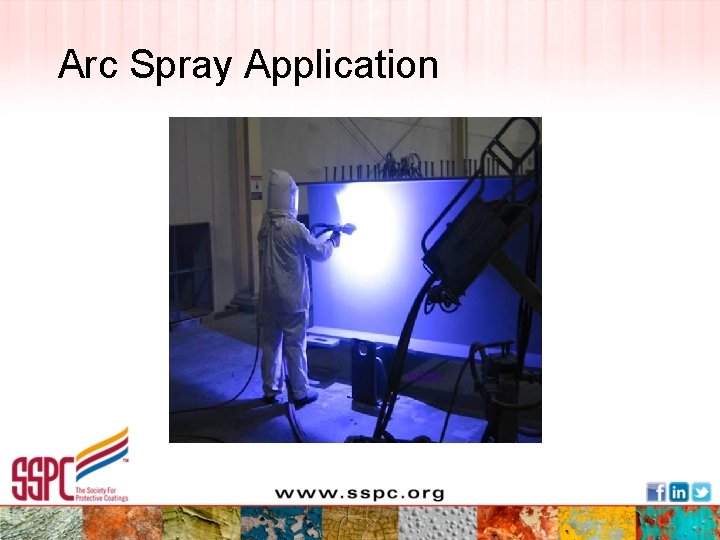

Arc Spray Application

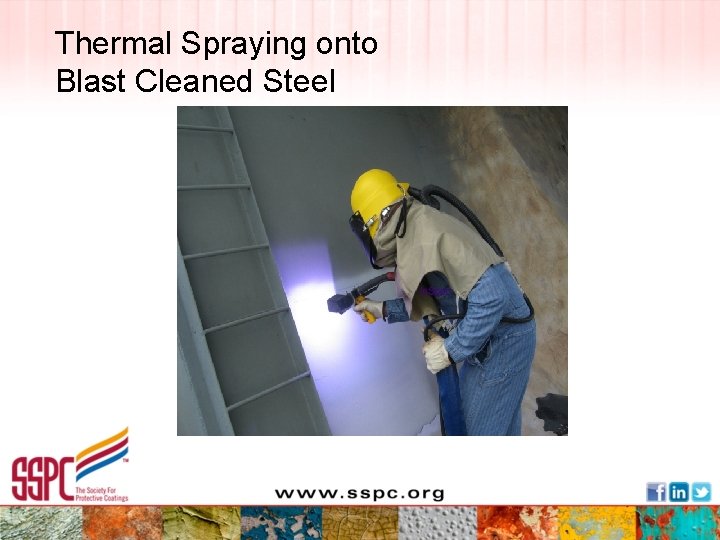

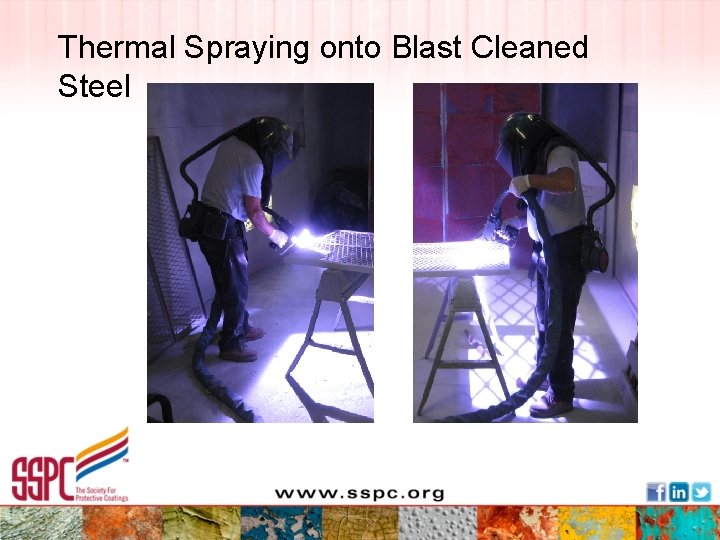

Thermal Spraying onto Blast Cleaned Steel

Thermal Spraying onto Blast Cleaned Steel

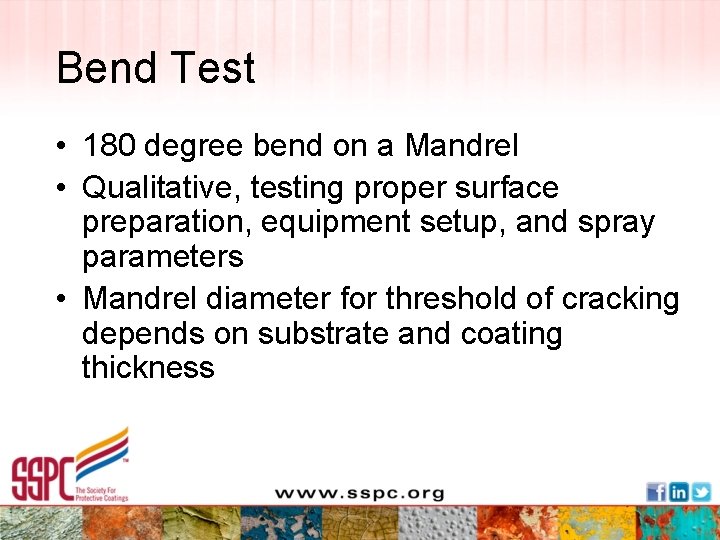

Bend Test • 180 degree bend on a Mandrel • Qualitative, testing proper surface preparation, equipment setup, and spray parameters • Mandrel diameter for threshold of cracking depends on substrate and coating thickness

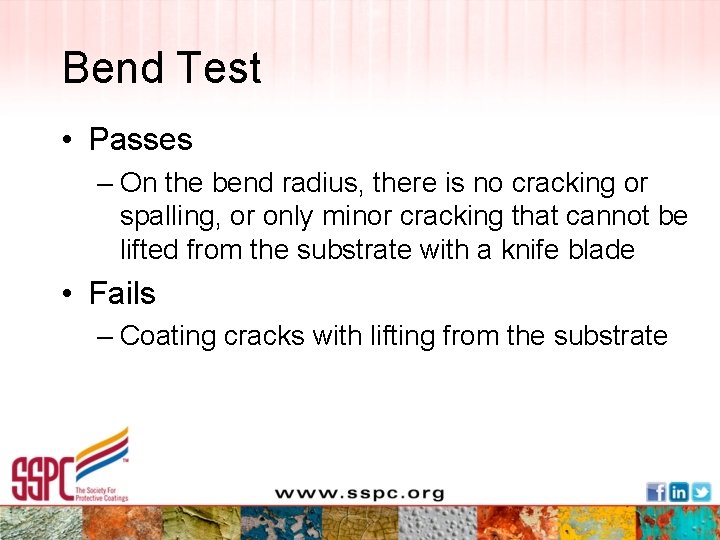

Bend Test • Passes – On the bend radius, there is no cracking or spalling, or only minor cracking that cannot be lifted from the substrate with a knife blade • Fails – Coating cracks with lifting from the substrate

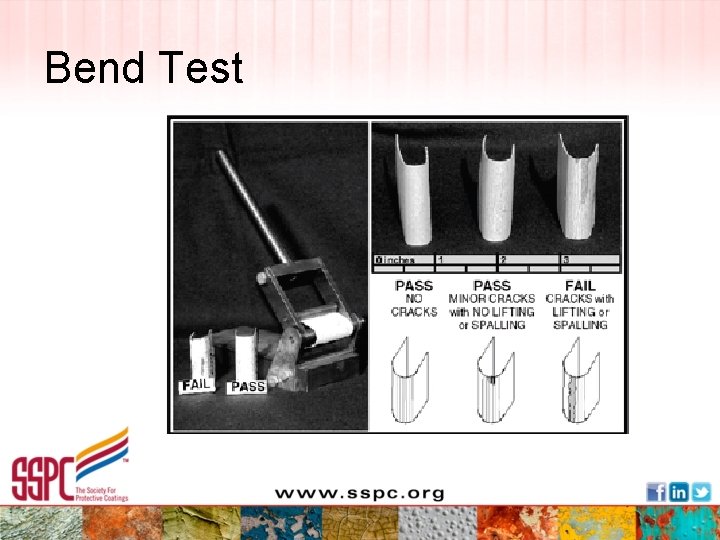

Bend Test

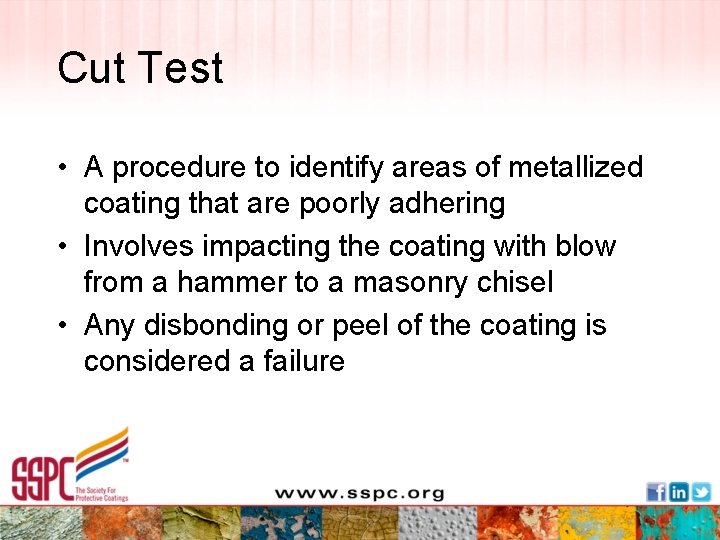

Cut Test • A procedure to identify areas of metallized coating that are poorly adhering • Involves impacting the coating with blow from a hammer to a masonry chisel • Any disbonding or peel of the coating is considered a failure

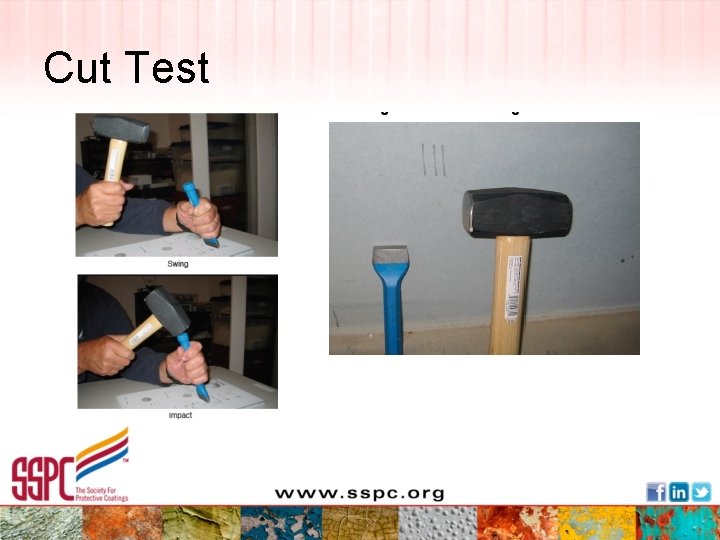

Cut Test

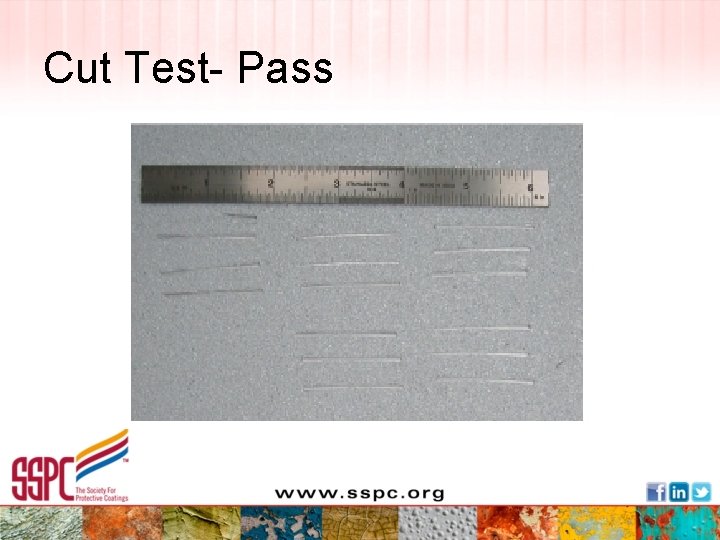

Cut Test- Pass

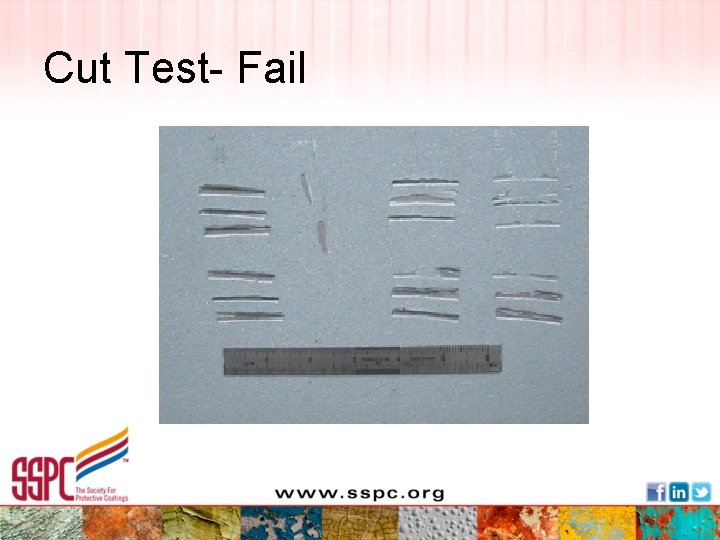

Cut Test- Fail

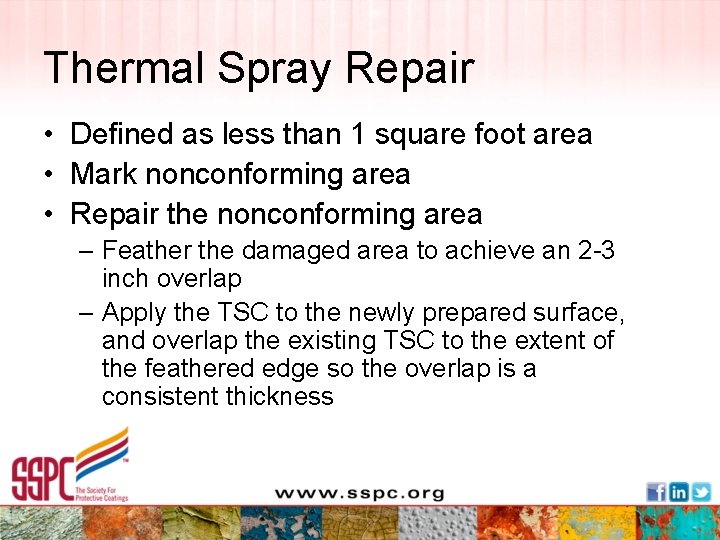

Thermal Spray Repair • Defined as less than 1 square foot area • Mark nonconforming area • Repair the nonconforming area – Feather the damaged area to achieve an 2 -3 inch overlap – Apply the TSC to the newly prepared surface, and overlap the existing TSC to the extent of the feathered edge so the overlap is a consistent thickness

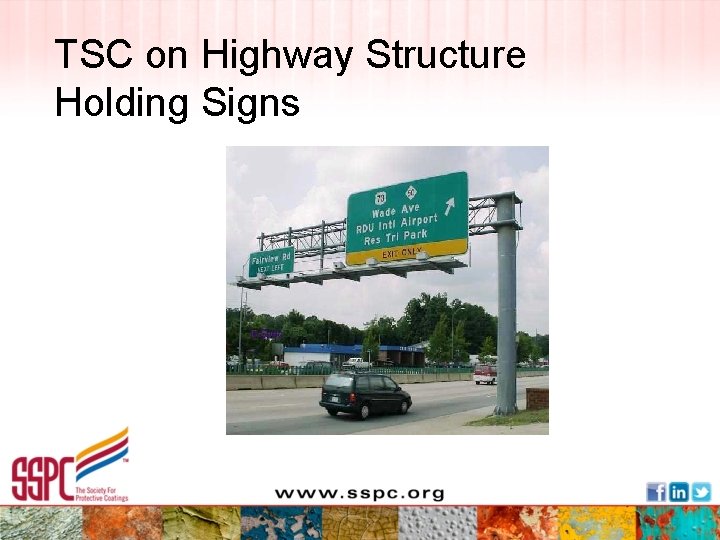

TSC on Highway Structure Holding Signs

TSC on Piling in Immersion Service

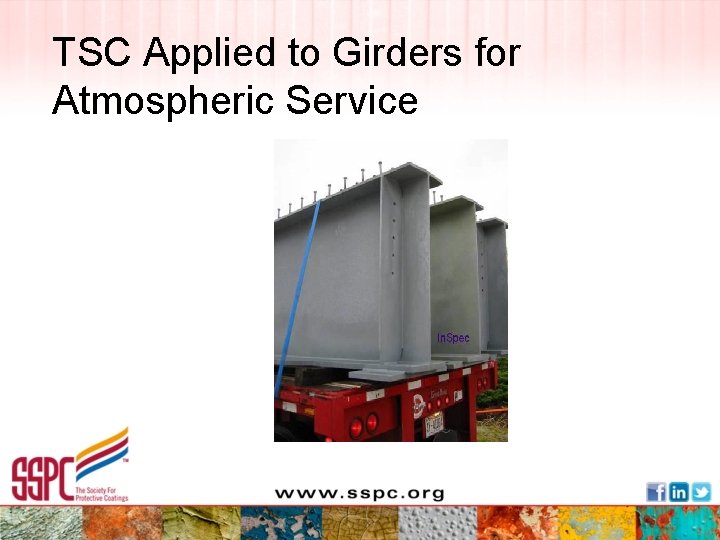

TSC Applied to Girders for Atmospheric Service

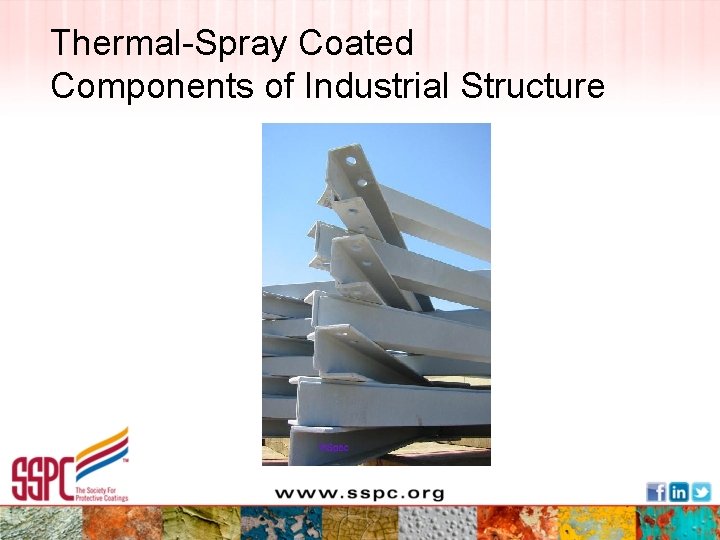

Thermal-Spray Coated Components of Industrial Structure

Questions?
