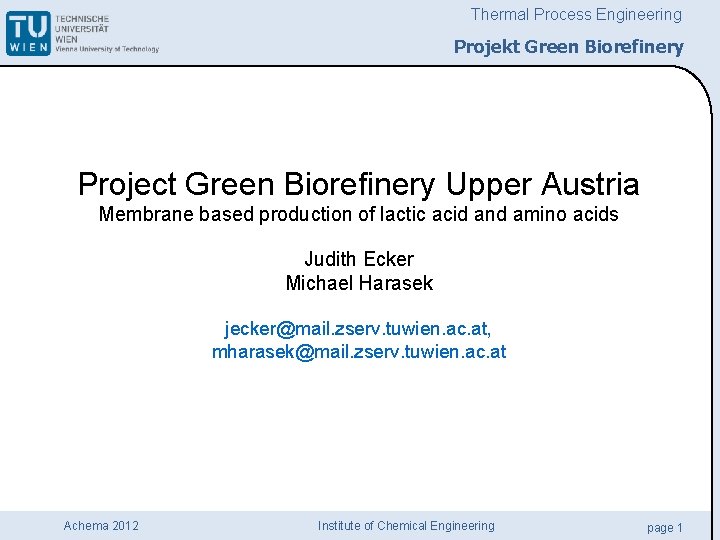

Thermal Process Engineering Projekt Green Biorefinery Project Green Biorefinery Upper Austria Membrane based production of lactic acid and amino acids Judith Ecker Michael Harasek jecker@mail. zserv. tuwien. ac. at, mharasek@mail. zserv. tuwien. ac. at Achema 2012 Institute of Chemical Engineering page 1

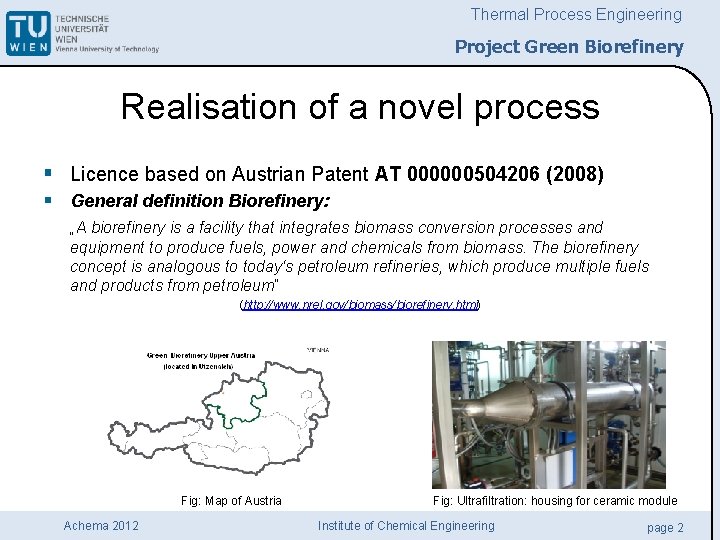

Thermal Process Engineering Project Green Biorefinery Realisation of a novel process § Licence based on Austrian Patent AT 000000504206 (2008) § General definition Biorefinery: „A biorefinery is a facility that integrates biomass conversion processes and equipment to produce fuels, power and chemicals from biomass. The biorefinery concept is analogous to today‘s petroleum refineries, which produce multiple fuels and products from petroleum“ (http: //www. nrel. gov/biomass/biorefinery. html) Fig: Map of Austria Achema 2012 Fig: Ultrafiltration: housing for ceramic module Institute of Chemical Engineering page 2

Thermal Process Engineering Project Green Biorefinery Definition of Green Biorefinery Upper Austria Integrative system for the utilisation of grass silage juice to gain different valuable products such as proteins (solution), amino acids (solution or powder), lactic acid (solution) and energy. Realisation § Intelligent combination of membrane based downstream technologies and ion exchanger § Complex process § Continuous procedure § Water re-using (closed water cycle) Achema 2012 Fig: Flowsheet, Lacitc acid concentrated in the NF permeates, Amino Acids enriched in the NF retenates Institute of Chemical Engineering page 3

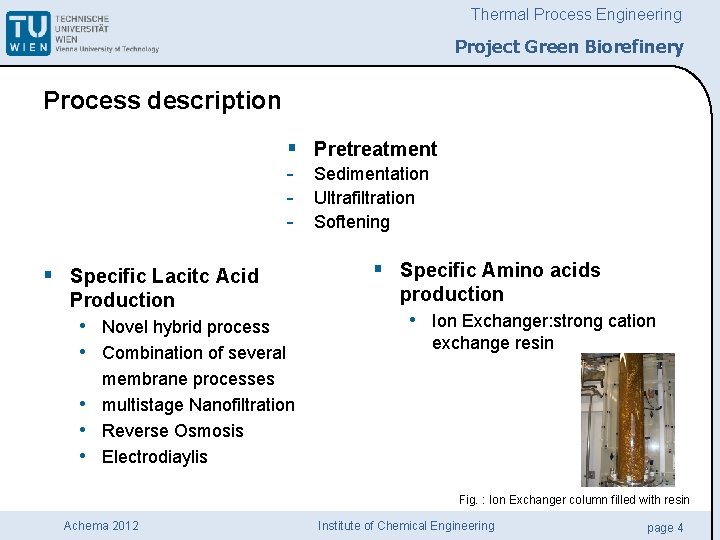

Thermal Process Engineering Project Green Biorefinery Process description § Pretreatment - Sedimentation - Ultrafiltration - Softening § Specific Lacitc Acid Production • Novel hybrid process • Combination of several • • • § Specific Amino acids production • Ion Exchanger: strong cation exchange resin membrane processes multistage Nanofiltration Reverse Osmosis Electrodiaylis Fig. : Ion Exchanger column filled with resin Achema 2012 Institute of Chemical Engineering page 4

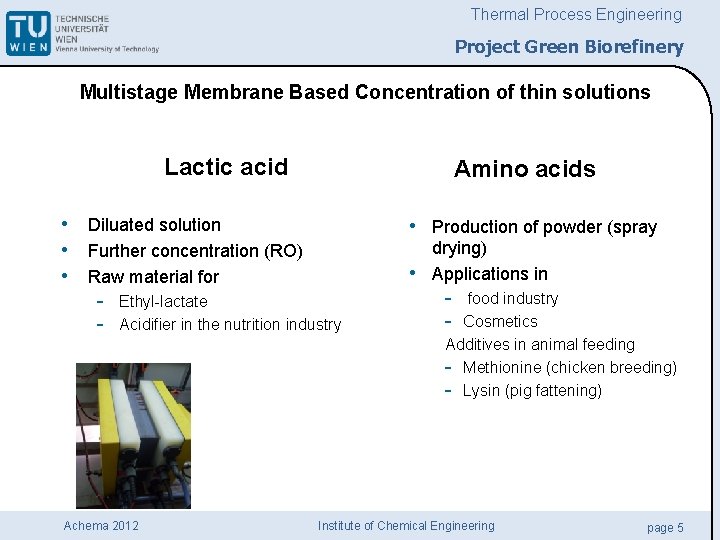

Thermal Process Engineering Project Green Biorefinery Multistage Membrane Based Concentration of thin solutions Lactic acid Amino acids • Diluated solution • Further concentration (RO) • Raw material for - Ethyl-lactate - Acidifier in the nutrition industry • Production of powder (spray • drying) Applications in - food industry - Cosmetics Additives in animal feeding - Methionine (chicken breeding) - Lysin (pig fattening) Achema 2012 Institute of Chemical Engineering page 5

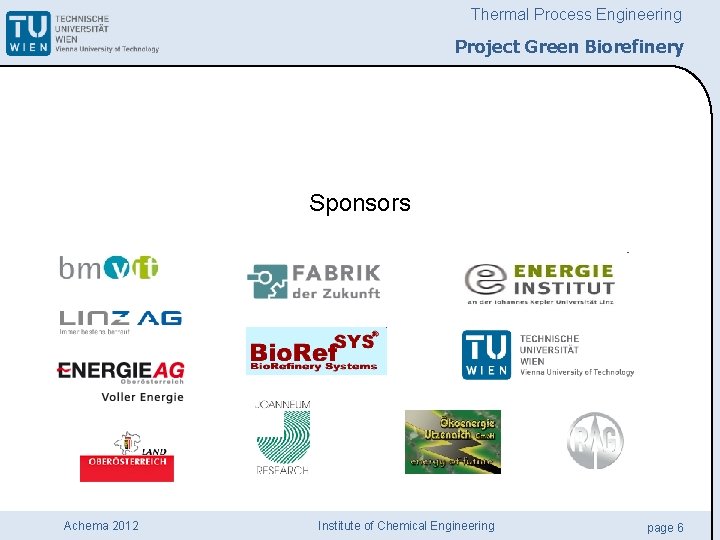

Thermal Process Engineering Project Green Biorefinery Sponsors Achema 2012 Institute of Chemical Engineering page 6
