Thermal Integrity Profiling of Concrete Deep Foundations Data

Thermal Integrity Profiling of Concrete Deep Foundations Data Analysis Session 4

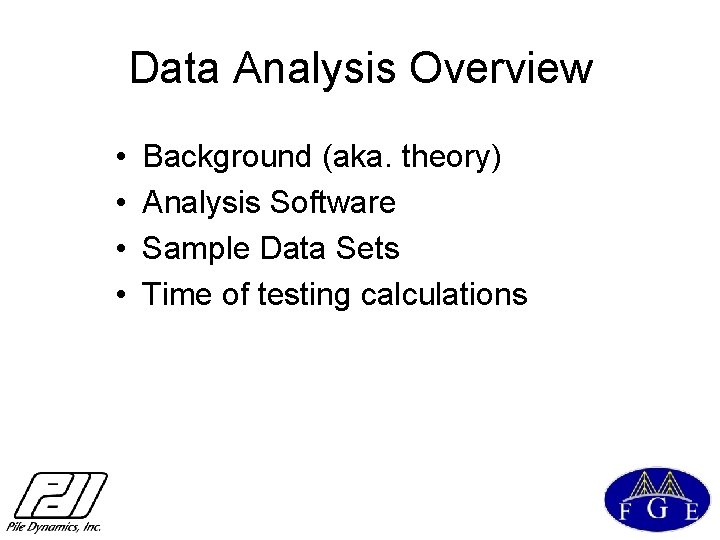

Data Analysis Overview • • Background (aka. theory) Analysis Software Sample Data Sets Time of testing calculations

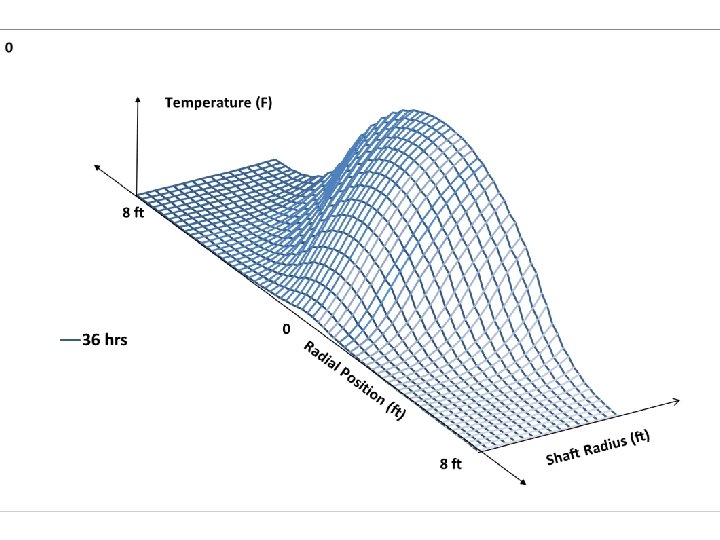

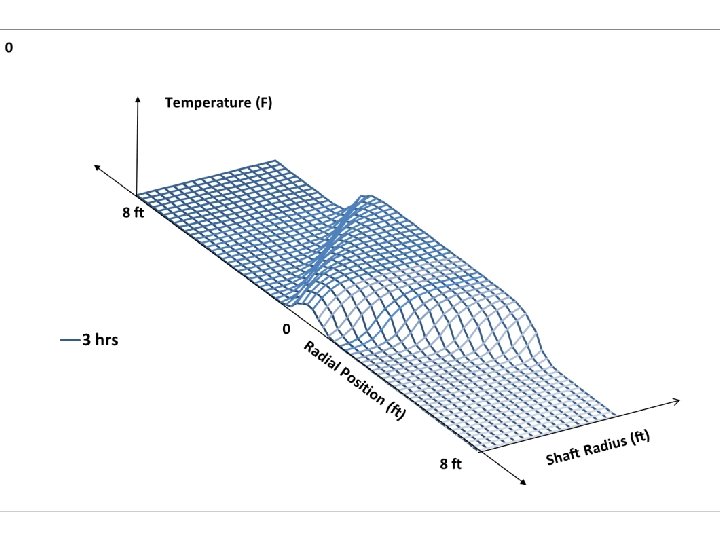

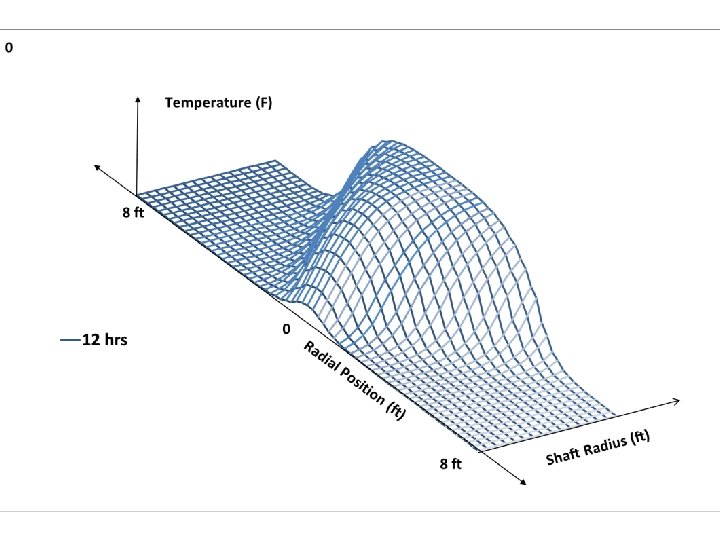

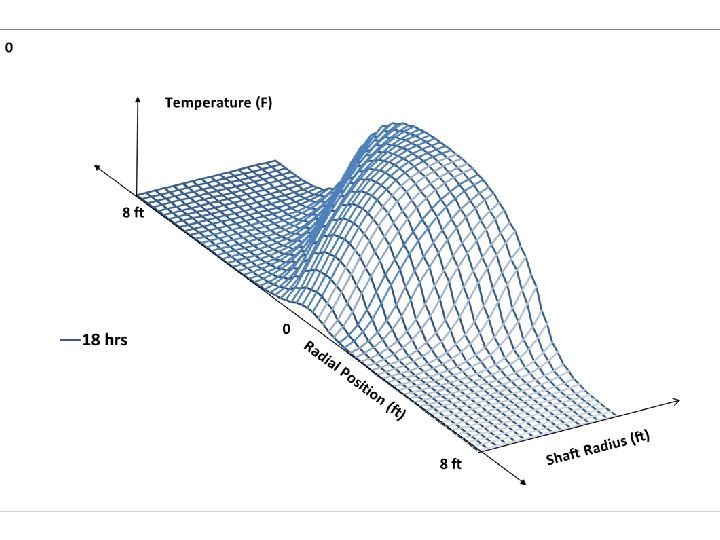

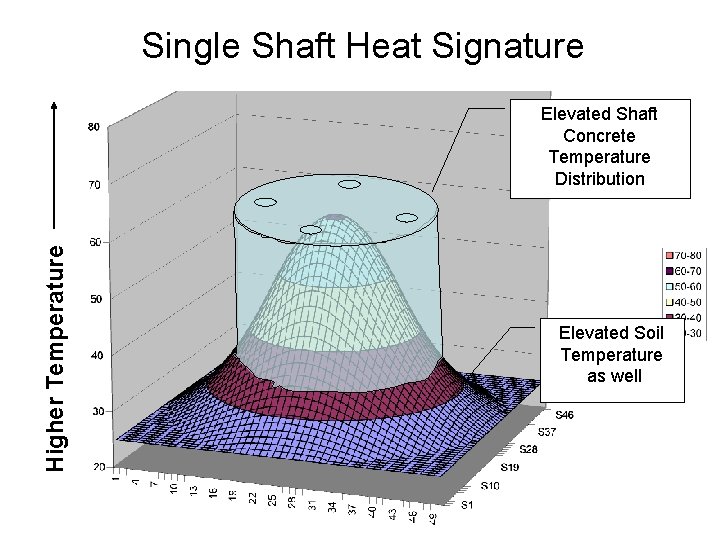

Single Shaft Heat Signature Higher Temperature Elevated Shaft Concrete Temperature Distribution Elevated Soil Temperature as well

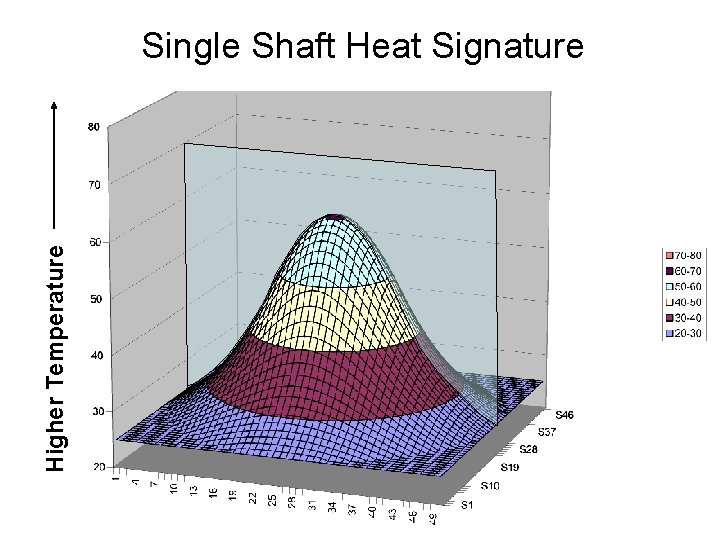

Higher Temperature Single Shaft Heat Signature

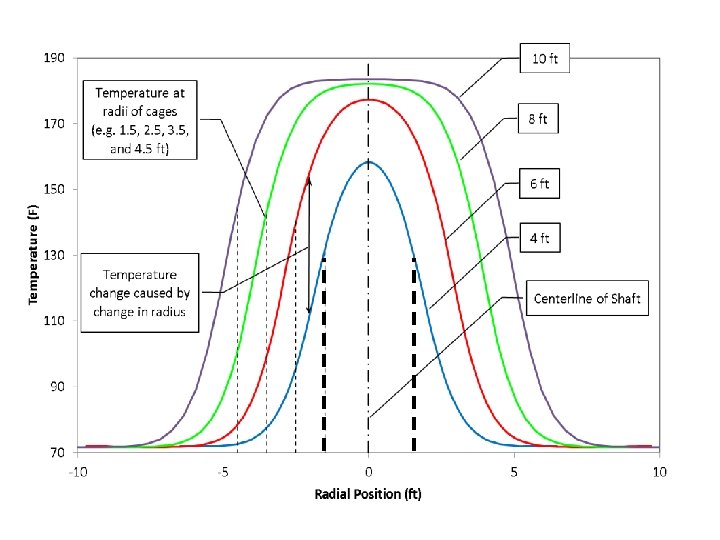

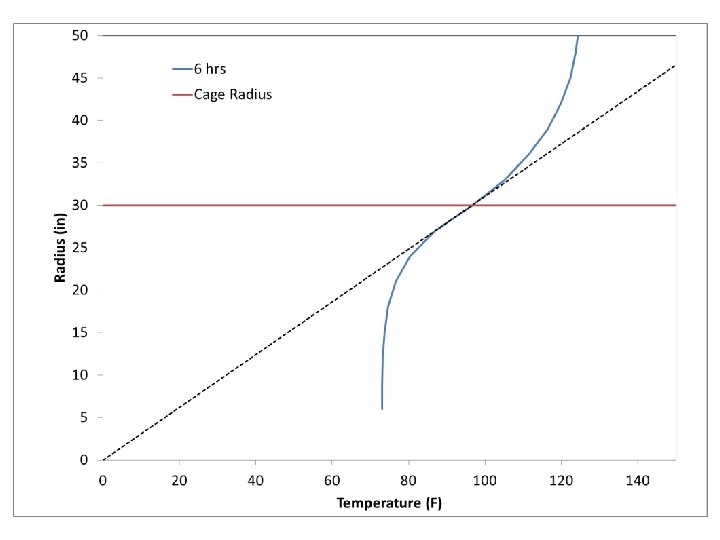

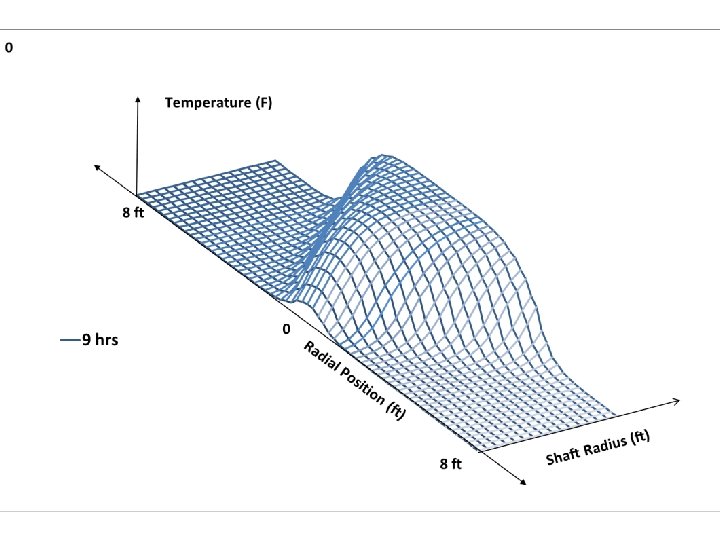

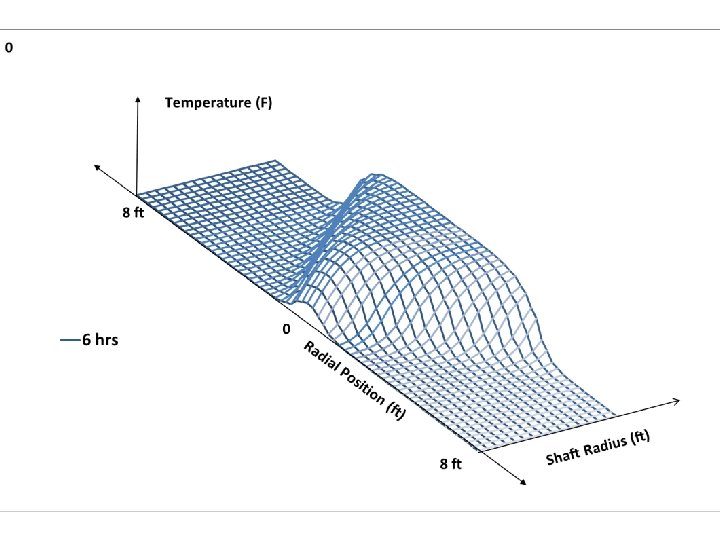

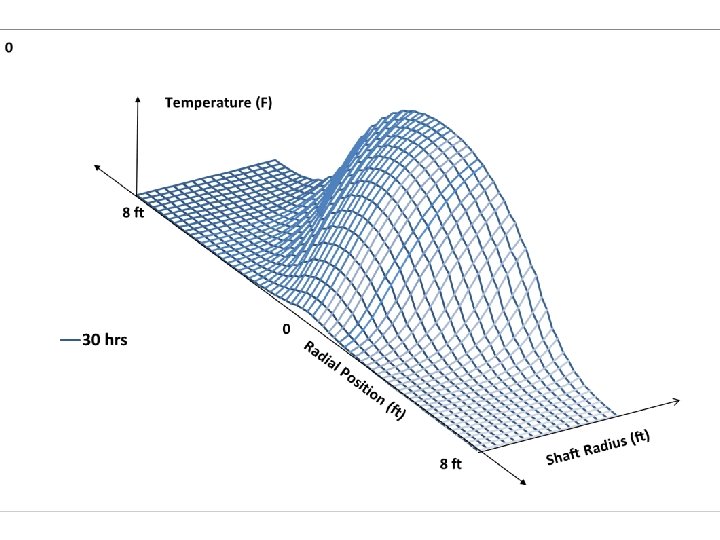

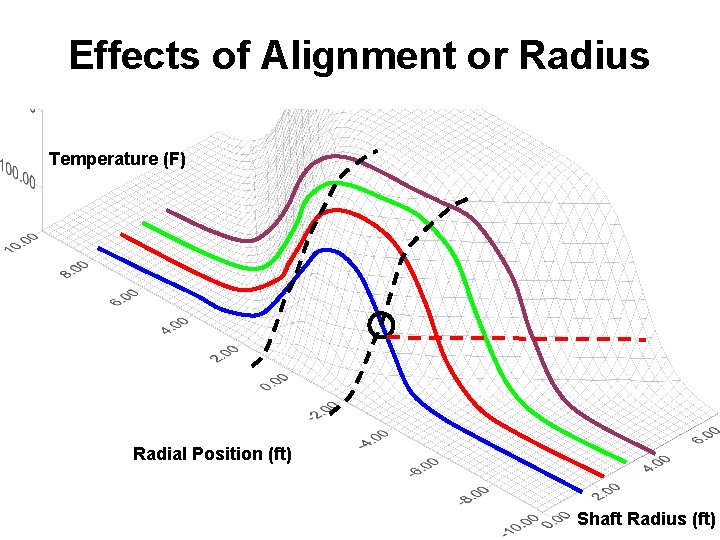

Effects of Alignment or Radius Temperature (F) Radial Position (ft) Shaft Radius (ft)

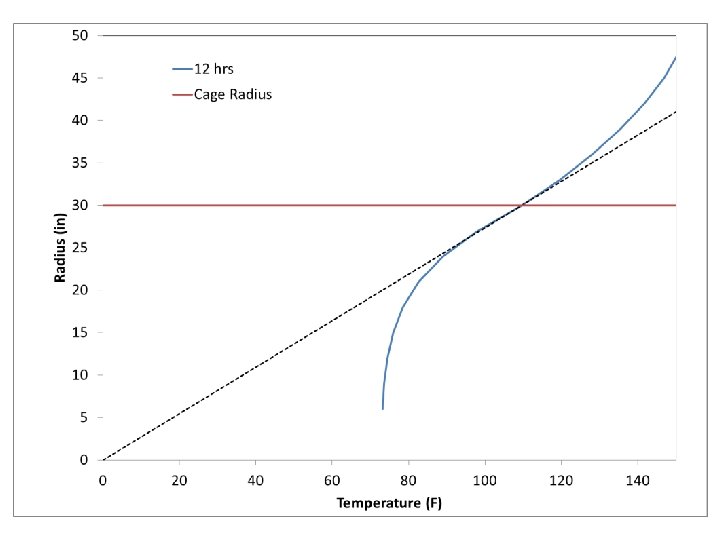

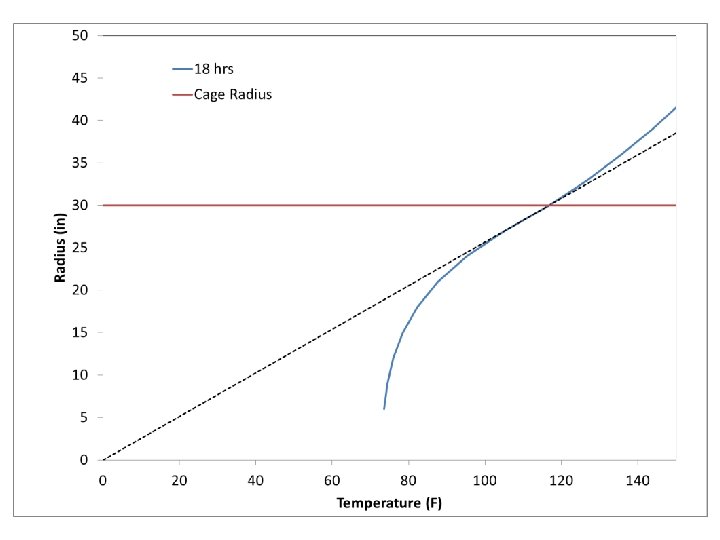

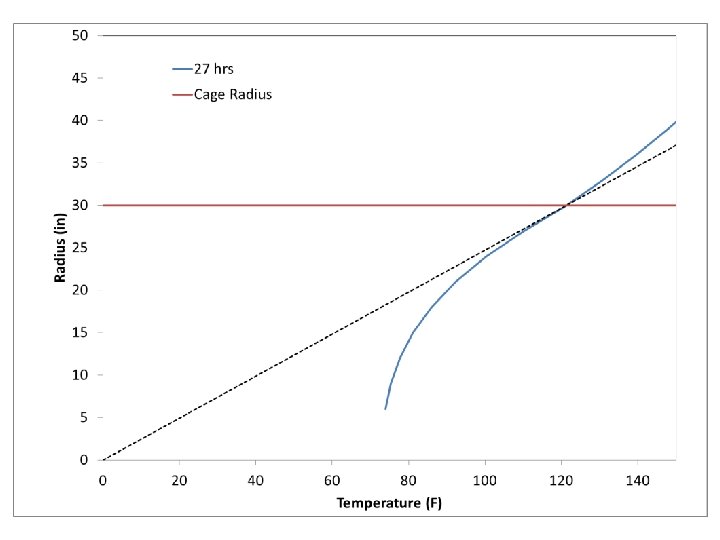

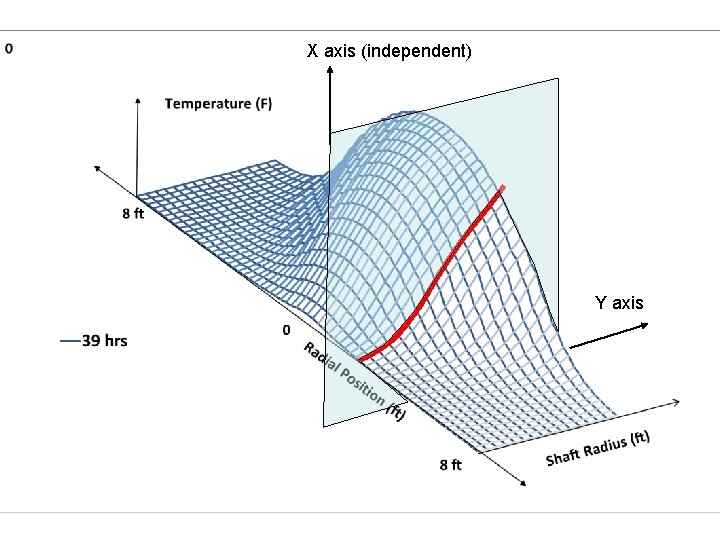

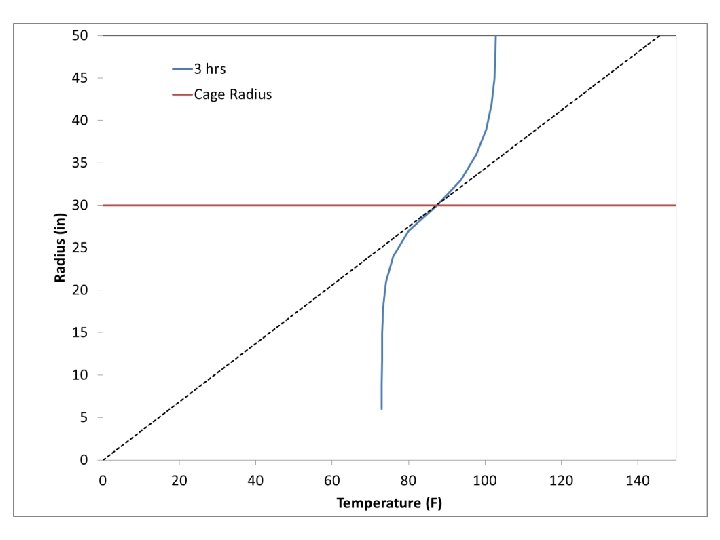

X axis (independent) Y axis

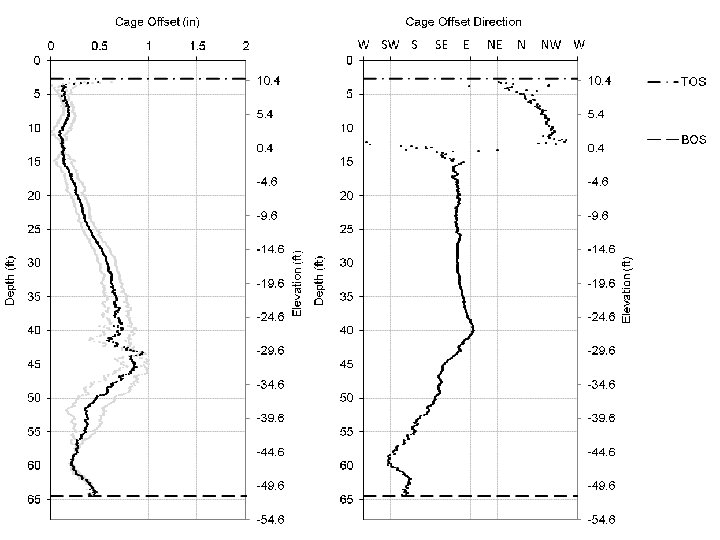

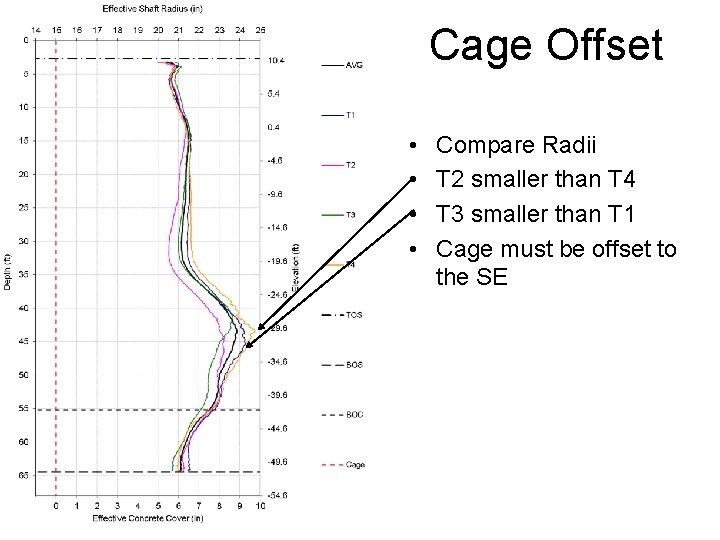

Cage Offset • • Compare Radii T 2 smaller than T 4 T 3 smaller than T 1 Cage must be offset to the SE

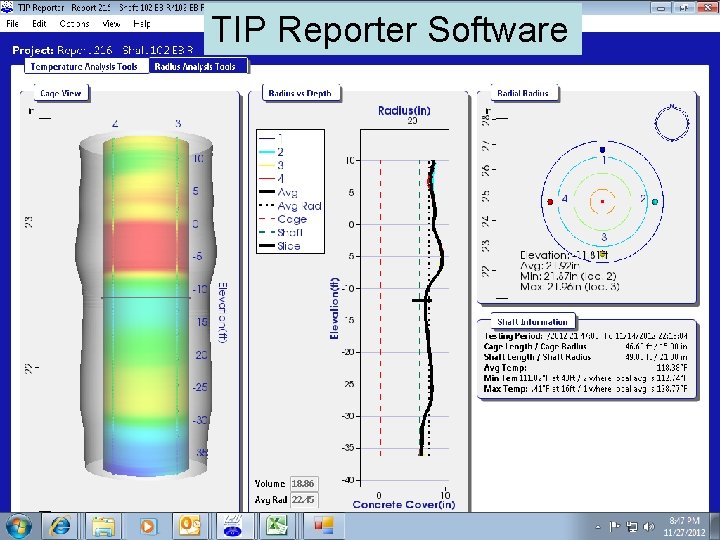

TIP Reporter Software

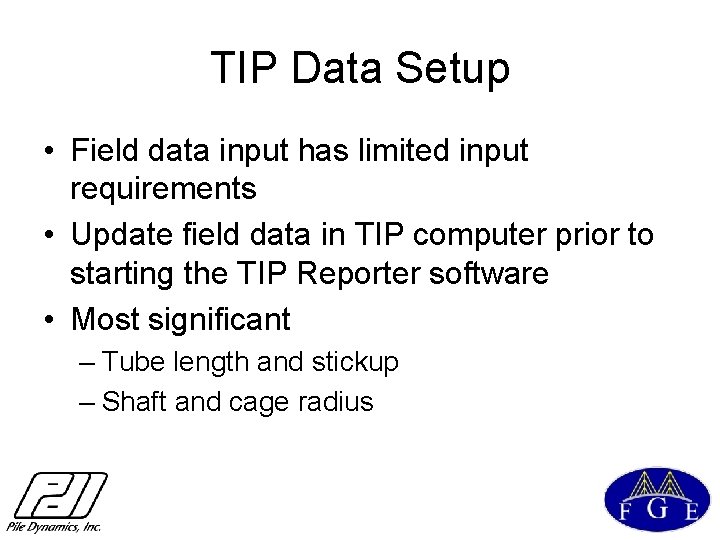

TIP Data Setup • Field data input has limited input requirements • Update field data in TIP computer prior to starting the TIP Reporter software • Most significant – Tube length and stickup – Shaft and cage radius

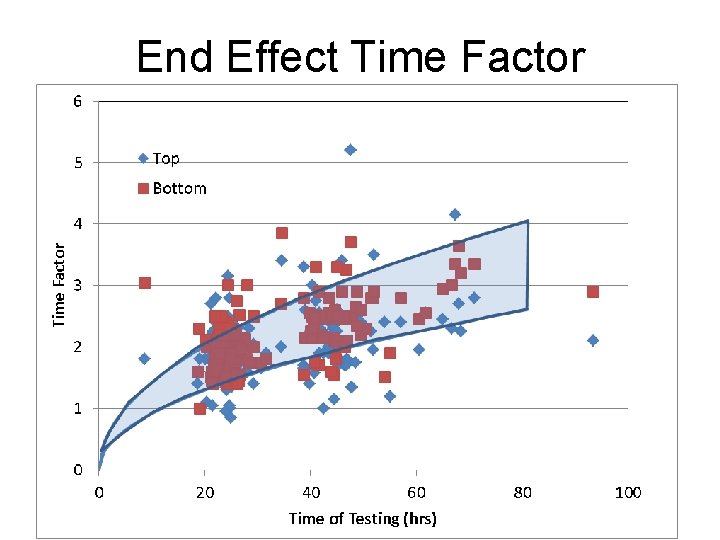

End Effect Time Factor

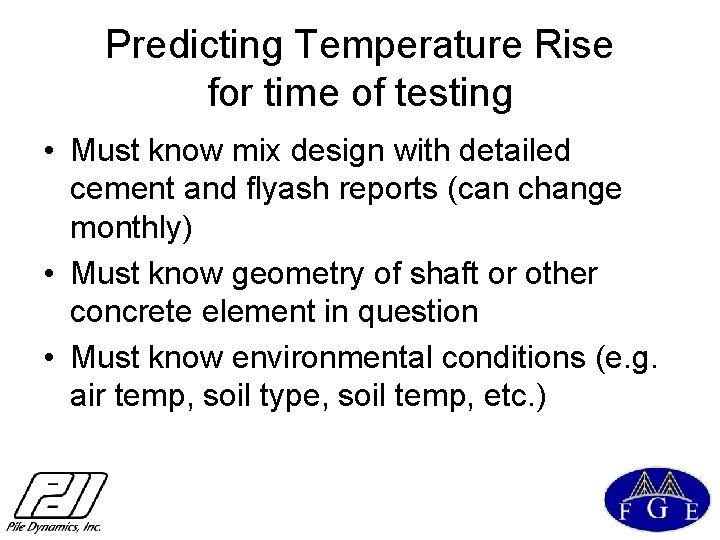

Predicting Temperature Rise for time of testing • Must know mix design with detailed cement and flyash reports (can change monthly) • Must know geometry of shaft or other concrete element in question • Must know environmental conditions (e. g. air temp, soil type, soil temp, etc. )

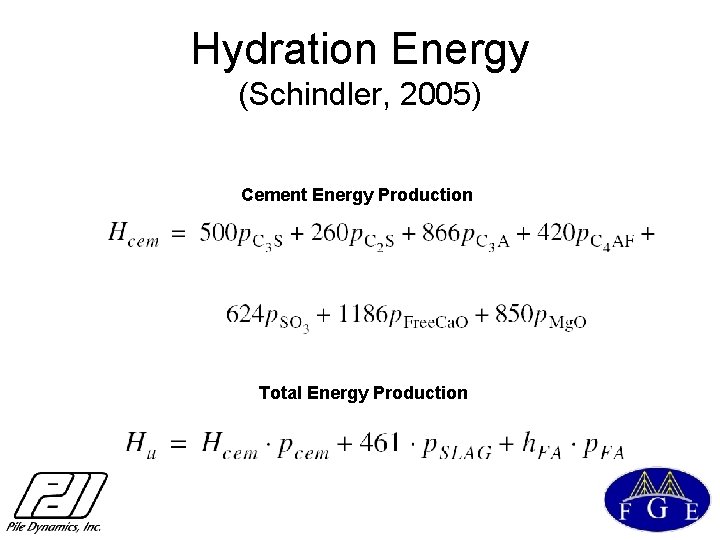

Hydration Energy (Schindler, 2005) Cement Energy Production Total Energy Production

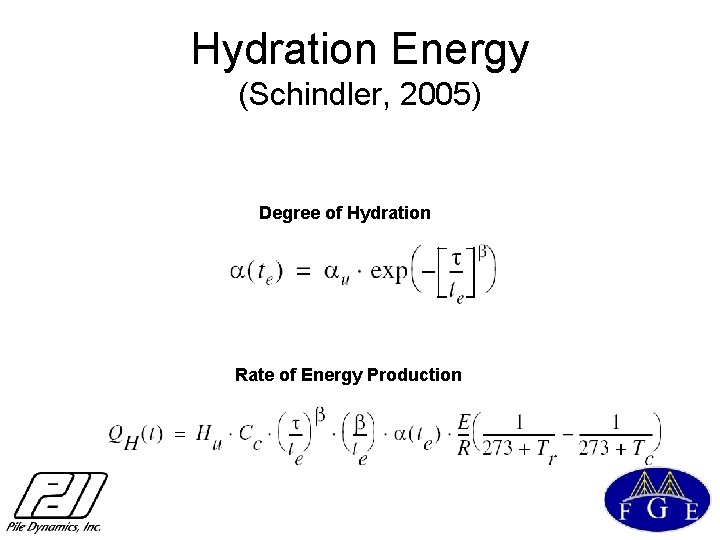

Hydration Energy (Schindler, 2005) Degree of Hydration Rate of Energy Production

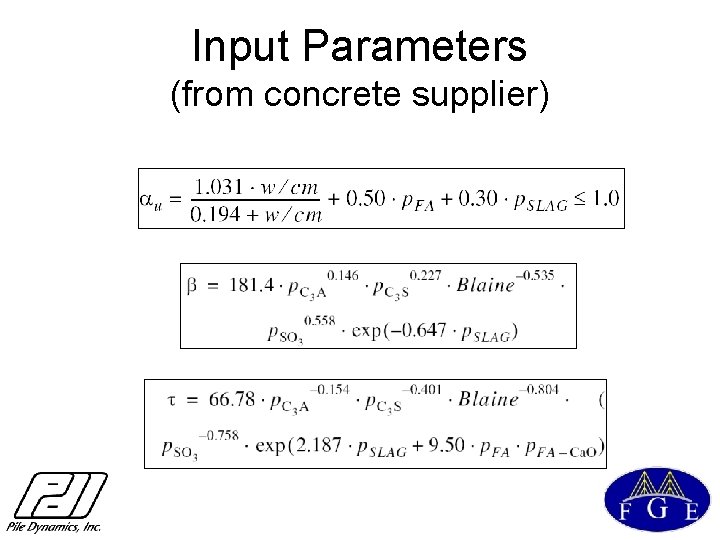

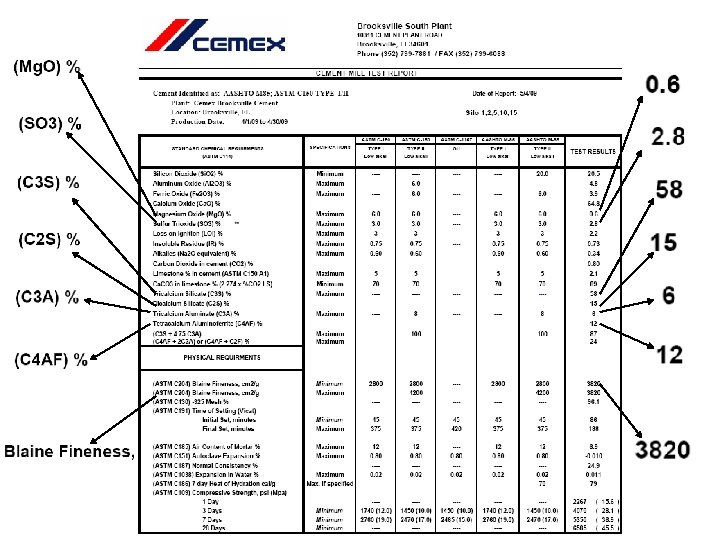

Input Parameters (from concrete supplier)

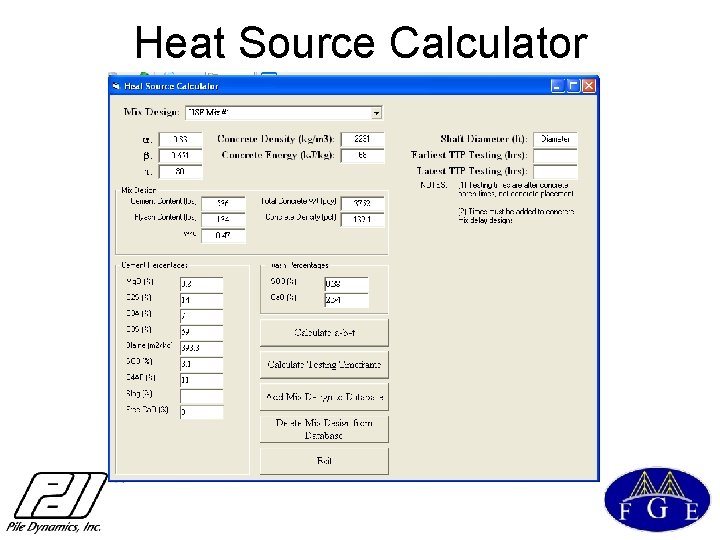

Heat Source Calculator
