ECAP Pre-finished Thermal Insultaing panel Suitable for wall and ceiling application ECAP: prefinished thermal insulating board Rev. 2008 -01 -20

Thermal insulating board Panel structure Cement based smooting mortar Anchor-dowel site Built-in in the smoothing mortar thickness Anchor-dowel site built. -in in the smoothing mortar thickness with pre-cut net Fiberglass net Whithin the smoothing mortar ECAP: prefinished thermal insulating board

Thermal insulating board Panel structure • smooth edge • Ecap L in synterized EPS - class 100 ʎD 0, 035 W/mk • Ecap L GT in synterized EPS - class 100 additivated with grafite ʎD 0, 031 W/mk • mm. 600 x 1200 = m 2 0, 72 • thickness from 30 mm to 200 mm ECAP: prefinished thermal insulating board

Panel structure No smoothing mortar on the edges to facilitate the plastering and to avoid mechanical tensions between boards Cement based smoothing mortar • thickness: mm. 2, 5 - 3 • weight: approx. 1400 kg/m 3 • granulometry: mm. 0, 6 • water vapour diffusion - µ: approx. 50 • thermal conductivity - ʎD: 0, 8 W/mk ECAP: prefinished thermal insulating board

Panel structure n° 3 anchor-dowel sites each board suitable Anchor-dowel sites Built-in in the smoothing mortar thickness • anchor dowels head don’t exceed the mortar surface level ECAP: prefinished thermal insulating board

Panel structure Anchor-dowel site Built-in in the smoothing mortar thickness with pre-cut net n° 2 each board diameter suitable to fit the anchor-dowel head ECAP: prefinished thermal insulating board

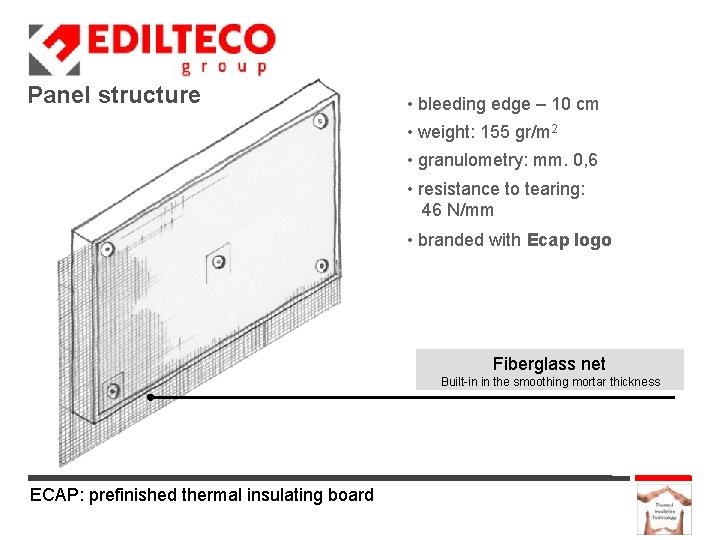

Panel structure • bleeding edge – 10 cm • weight: 155 gr/m 2 • granulometry: mm. 0, 6 • resistance to tearing: 46 N/mm • branded with Ecap logo Fiberglass net Built-in in the smoothing mortar thickness ECAP: prefinished thermal insulating board

Palletization Carton box with description, packed on a pallet, thermal wrapping protection Number of boards depend on the thickness Manual of pose included ECAP: prefinished thermal insulating board

Applications 1. Ceiling thermal insulation 2. External wall thermal insulation 3. Elimination of thermal bridges 4. Internal wall thermal insulation ECAP: prefinished thermal insulating board

Advantages: application time Comparison with “traditional system” Example: Thermal insulation with EPS board on a 2 store house wall (70 m 2) with a team of 3 workers ECAP: prefinished thermal insulating board

Advantages: application time DAY “TRADITIONAL SYSTEM” ECAP 1 • Positioning of the starting profile • Gluing of the boards • Fixing of the anchor-dowels • Grouting or Finishing 2 Waiting for drying of the glue Waiting for the drying of the finishing 3 • Fixing of the anchor-dowels • Application of the first coat of the smoothing mortar and net fixing Application of the primer for the coloured finishing mortar 4 Waiting for drying of the first coat Coloured finishing mortar application (END) 5 Application of the second coat of the smoothing mortar 6 Waiting for the drying of the second coat of the smoothing mortar 7 8 Primer for coloured finsihing mortat 9 Coloured finishing mortar (END) ECAP: prefinished thermal insulating board

Advantages: application time TRADITIONAL SYSTEM ECAP Productivity: Productivity 8, 08 m 2/day/person 14, 32 m 2/day/person Comparison with Traditional system +77% m 2/day/person -55% days to finish the job ECAP: prefinished thermal insulating board

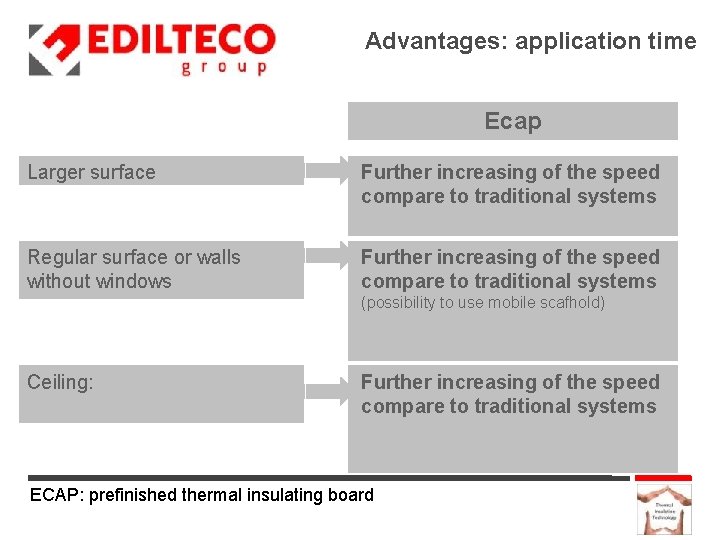

Advantages: application time Ecap Larger surface Further increasing of the speed compare to traditional systems Regular surface or walls without windows Further increasing of the speed compare to traditional systems (possibility to use mobile scafhold) Ceiling: Further increasing of the speed compare to traditional systems ECAP: prefinished thermal insulating board

Advantages: technical features EPS “grafite” (Ecap GT): The built-in finishing protects the EPS from the sun rays and allows its application also in very sunny conditions. It avoids the necessity to cover the scafhold to have the shadow. Protects the board during the stocking period. ECAP: prefinished thermal insulating board
