There but not there: expand procedures in ALEPH 500 MELI Conference 2007 Presenter: Yoel Kortick

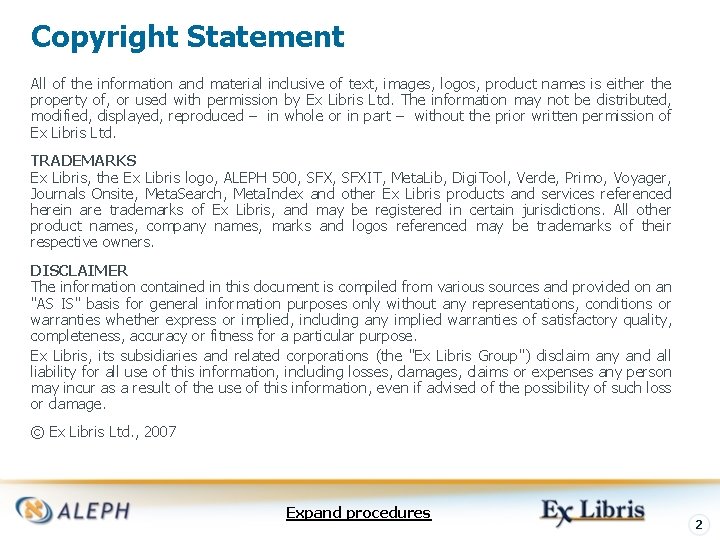

Copyright Statement All of the information and material inclusive of text, images, logos, product names is either the property of, or used with permission by Ex Libris Ltd. The information may not be distributed, modified, displayed, reproduced – in whole or in part – without the prior written permission of Ex Libris Ltd. TRADEMARKS Ex Libris, the Ex Libris logo, ALEPH 500, SFXIT, Meta. Lib, Digi. Tool, Verde, Primo, Voyager, Journals Onsite, Meta. Search, Meta. Index and other Ex Libris products and services referenced herein are trademarks of Ex Libris, and may be registered in certain jurisdictions. All other product names, company names, marks and logos referenced may be trademarks of their respective owners. DISCLAIMER The information contained in this document is compiled from various sources and provided on an "AS IS" basis for general information purposes only without any representations, conditions or warranties whether express or implied, including any implied warranties of satisfactory quality, completeness, accuracy or fitness for a particular purpose. Ex Libris, its subsidiaries and related corporations (the "Ex Libris Group") disclaim any and all liability for all use of this information, including losses, damages, claims or expenses any person may incur as a result of the use of this information, even if advised of the possibility of such loss or damage. © Ex Libris Ltd. , 2007 Expand procedures 2
Note Records appearing in this presentation from Library of Congress or other libraries may have been slightly altered for the purposes of this presentation and should not be considered as “official” records as they appear in the original library. Records appearing in this presentation do not necessarily conform to the strictest of MARC standards and should not be considered as such. Expand procedures 3
Why are there expand procedures ? Libraries may want to display information from the non-bibliographic databases together with the linked bibliographic record. Libraries may want to reconstruct bibliographic data into new fields in the bibliographic record for display purposes. Both of the above may also be done for indexing purposes. Expand procedures 4
How does the expand work ? ALEPH enables the installation to "expand" information from one database (library) record to another one record and back to the same record within the same database (library). This is possible because there are links between the records in the various databases. Expand procedures 5
How does the expand work? The "expand" function works with the tab_expand table located in the library's tab directory. Every library has such a table, although it is the bibliographic library that uses the table the most. The tab_expand table defines three aspects: 1. The system function in which the expand program works. 2. The expand program that defines which data from the record can be expanded. 3. Additional parameters for the expand program, if required. Expand procedures 6
How does the expand work? The tab_expand table uses a combination of expand menus and expand procedures to accomplished the desired expand routine. For a full description of all menus and procedures see the indexing chapter of the System Librarian Guide “Expand routines” section In this presentation we will show the use and “effects” of selected menus and procedures. Expand procedures 7
From where is data expanded ? As explained in the next slide, fields may be expanded into the bibliographic record from: The bibliographic record and back into the bibliographic record in a different format expand_doc_fix_abbreviation expand_doc_bib_type The AUT record expand_doc_bib_acc_ref The ADAM digital object expand_doc_bib_z 403 The HOL record expand_doc_bib_loc_usm The item record expand_doc_bib_loc_usm Expand procedures 8
From where is data expanded? BIB Record Expand procedure AUT Record ADAM Digital Object Expand procedure HOL Record Items Expand procedures 9
For example (one of six( MARC fields BIB Record From bibliographic record back to bibliographic record Expand procedure expand_doc_fix_abbreviation Abbreviated text fields Expand procedures 10
For example (two of six( MARC fields From bibliographic record back to bibliographic record Expand procedure expand_doc_type BIB Record Type of record fields Expand procedures 11
For example (three of six( BIB Record From AUT record to bibliographic record Words from non preferred terms Expand procedure expand_doc_bib_acc_ref AUT Record Expand procedures 12
For example (four of six( Digital object From ADAM digital object to bibliographic record Expand procedure expand_doc_bib_z 403 BIB Record Digital object title Expand procedures 13
For example (five of six( From items to bibliographic record BIB Record SBL $$a (sub library) PST $$d (status) PST $$c (collection) PST $$o (material type) Expand procedure expand_doc_bib_loc_usm Item A Sublibrary DOWNT Item status 01 Material Type CD ROM Item B Sublibrary MAIN Item status 01 Material Type FILM Expand procedures Item B Sublibrary MAIN Item status 01 Material Type FILM 14
For example (six of six( BIB Record LOC $$b (sub library) LOC $$c(collection) LOC $$h (call number) From HOL record to bibliographic record LOC $$o (material type) Expand procedure expand_doc_bib_loc_usm HOL Record 852 field Expand procedures 15
Table of contents Each of the subjects below is a hyperlink which may be clicked in order to arrive to an explanation of the specific procedure The “Expand Procedures” link at the bottom of each slide will return to this page expand_doc_fix_abbreviation expand_doc_type expand_doc_bib_acc_ref expand_doc_bib_z 403 expand_doc_bib_loc_usm Expand procedures 16
expand_doc_fix_abbreviation Expand procedures 17
expand_doc_fix_abbreviation The expand_doc_fix_abbreviation program is used to change abbreviations into full text. The routine can be used to replace any text string in a record with a different text string. There are two options : A new duplicate field is added to the record with the non-abbreviated form of the text. The abbreviated form of the text is changed into full text in the original field. Expand procedures 18
expand_doc_fix_abbreviation First we will define as follows in tab_abbrev Original text Additional new text ! 1 2 3 4 !!!!!-!-!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! 2#### Y 1 st first 2#### Y 2 nd second 2#### Y 3 rd third 2#### Y 4 th fourth 2#### Y 5 th fifth 2#### Y Center Centre 2#### Y center centre Note that this is case sensitive Expand procedures 19

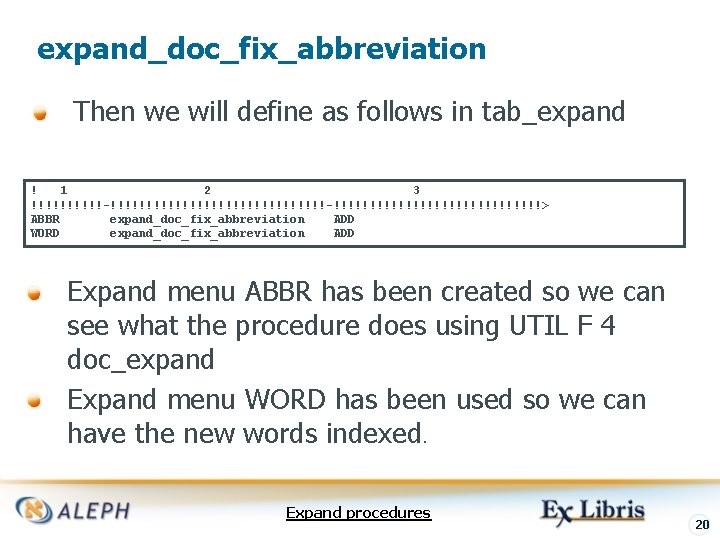

expand_doc_fix_abbreviation Then we will define as follows in tab_expand ! 1 2 3 !!!!!!!!!!-!!!!!!!!!!!!!!!!!!!!!!!!!> ABBR expand_doc_fix_abbreviation ADD WORD expand_doc_fix_abbreviation ADD Expand menu ABBR has been created so we can see what the procedure does using UTIL F 4 doc_expand Expand menu WORD has been used so we can have the new words indexed. Expand procedures 20
expand_doc_fix_abbreviation We have this record, system number 50786: Expand procedures 21

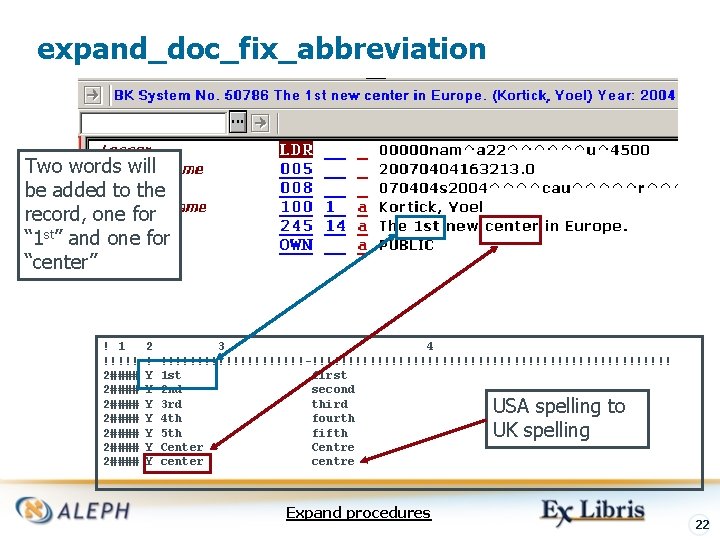

expand_doc_fix_abbreviation Two words will be added to the record, one for “ 1 st” and one for “center” ! 1 2 3 4 !!!!!-!-!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! 2#### Y 1 st first 2#### Y 2 nd second 2#### Y 3 rd third 2#### Y 4 th fourth 2#### Y 5 th fifth 2#### Y Center Centre 2#### Y center centre USA spelling to UK spelling Expand procedures 22
expand_doc_fix_abbreviation enter file name (or q to exit) doc_expand Enter expand_menu [No Expand]: ABBR Load: /exlibris/aleph/a 18_1/alephe/unicode_case ENTER DOC NUMBER : 50786 -------------------------------Load: /exlibris/aleph/a 18_1/alephe/tab 100 -------------------------------Load: /exlibris/aleph/a 18_1/usm 01/tab 100 Reading doc : 000050786 Load: /tmp/utf_files/exlibris/aleph/a 18_1/usm 01/tab_expand Load: /tmp/utf_files/exlibris/aleph/a 18_1/usm 01/tab_abbrev FMT L BK LDR L 00000 nam^a 22^^^^^^u^4500 005 L 20070404163213. 0 008 L 070404 s 2004^^^^cau^^^^^r^^^^^000^0^eng^d 1001 L $$a. Kortick, Yoel 24514 L $$a. The 1 st new center in Europe. OWN L $$a. PUBLIC 24514 L $$a. The first new centre in Europe. Original field Added field In the Added field 1 st became first and center became centre Expand procedures 23
expand_doc_fix_abbreviation We also have the expand_doc_fix_abbreviation in tab_expand WORD expand menu ! 1 2 3 !!!!!!!!!!-!!!!!!!!!!!!!!!!!!!!!!!!!> ABBR expand_doc_fix_abbreviation ADD WORD expand_doc_fix_abbreviation ADD In this way the words of the new field will be indexed Expand procedures 24
expand_doc_fix_abbreviation We search for the words “first” and “centre”, neither of which are in the actual data: Expand procedures 25
expand_doc_fix_abbreviation And we find the record which has “ 1 st” and “center”, neither of which are in the actual data: “first” and “centre”, are there (in the indexed words) but not there (in the actual data). Data has “ 1 st” and “center” Expand procedures 26
expand_doc_type Expand procedures 27
expand_doc_type This Expand procedure can be used to create a new field according to the specifications defined in a configuration table. The name of the configuration table is also a parameter that must be defined in the parameters column of the tab_expand table. In default setup this table is called tab_type_config. eng. Expand procedures 28
expand_doc_type This Expand procedure, together with the corresponding configuration table, can be used to create a new field TYP which states the “type” or “format” of record. The new field is based on the contents of specific positions of field(s) present in the record (for example, a combination of the LDR and the 008 field) Specific words which might be present in specific fields Whether or not specific fields exist Expand procedures 29
expand_doc_type BIB Record Data leaves the bibliographic record, undergoes the expand procedure, and then returns to the bibliographic record. Expand procedure expand_doc_type Expand procedures 30
expand_doc_type Virtual field “TYP” In this example we will show the virtual fields TYP are created How the virtual fields may be used for indexing purposes Expand procedures 31
expand_doc_type In the table tab_type_config. eng the system librarian may define whether a field, or position of a field, matches (or does not match) a certain value. For a full description of the table see the table header and the systems librarian guide, chapter on indexing, section “Expand-related tables” Here we will show several examples and discuss column 6 Expand procedures 32
expand_doc_type Column 6 the table tab_type_config. eng is used to define the match criteria in relation to the contents of the subfield or the fixed field positions defined in column 5. The following are the available options: EQUAL and N-EQUAL EXIST and N-EXIST MATCH and N-MATCH Expand procedures 33
expand_doc_type Usage of column 6 parameters : EQUAL (N-EQUAL) - checks for direct match EXIST (N-EXIST) - checks if the field exists without checking the field contents. For example, if a record has a 027 MARC 21 field, then the record is a technical report (contents are irrelevant. ( MATCH (N-MATCH) - checks for a match that is not case-sensitive. Use [] to enclose multiple values to match on. Expand procedures 34
expand_doc_type Here we have “expand_doc_type” in tab_expand with three different Expand Menus 1. TYPE (home made so we can see the procedure via UTIL F 4 doc_expand) 2. WORD (for word building procedures) 3. WEB-FULL (for web OPAC full view) TYPE WORD WEB-FULL expand_doc_type tab_type_config We add TYP to tab 11_word and send it to WRD index TYP a 03 Expand procedures WRD 35
expand_doc_type In our examples we will create an expanded field TYP which will be visible in full view of web OPAC because we have this line in edit_doc_999. eng: ! 1 1 1 !1 2 3 4 5 6 7 8 9 0 11 2 13 4 15 16 !!-!!!!!-!-!!!!!-!-!-!!!!!!!!!!-!-!-!!!!!-!-!!-!! ## TYP## D LRecord Format Y E Expand procedures 36
expand_doc_type We will now create a virtual field TYP based on pos. 6 of the LDR field. Position 6 of the LDR field describes the type of record. A full description of position 6 of the LDR field may be found at http: //www. loc. gov/marc/bibliographic and click on "Leader" Expand procedures 37
expand_doc_type Partial list from http: //www. loc. gov/marc/bibliographic/ecbdldrd. html Expand procedures 38
expand_doc_type Based on the meaning of pos 6 of the LDR field we will now set up the table tab_type_config. lng to create corresponding TYP fields. In this case we will use the EQUAL parameter in column 6 We will say “If position 6 of LDR field is EQUAL to value in position 7 then create TYP field with text of position 3. Expand procedures 39
expand_doc_type tab_type_config. eng In the highlighted line we say “If pos. 6 of LDR is e then make TYP field with text Cartographic Material” ! 1 2 3 4 5 6 7 !!!!!-!!-!!!!!!!!!!!!!!!-!!!!!!!!!!-!!!!!!!!!!!! TYP Notated music LDR F 06 -01 EQUAL c TYP Manuscript notated music LDR F 06 -01 EQUAL d TYP Cartographic material LDR F 06 -01 EQUAL e TYP Manuscript cartographic materi LDR F 06 -01 EQUAL f TYP Projected medium LDR F 06 -01 EQUAL g TYP Nonmusical sound recording LDR F 06 -01 EQUAL i TYP Musical sound recording LDR F 06 -01 EQUAL j TYP Two-dimensional graphic LDR F 06 -01 EQUAL k TYP Computer file LDR F 06 -01 EQUAL m TYP Kit LDR F 06 -01 EQUAL o TYP Mixed material LDR F 06 -01 EQUAL p TYP Three-dimensional artifact LDR F 06 -01 EQUAL r Expand procedures 40
expand_doc_type We have this record Pos. 06 of LDR field is e Expand procedures 41
expand_doc_type If we view this record via UTIL F 4 doc_expand using TYPE (the expand menu we created for this purpose) then we will see a new field TYP The new field TYP Is not part of the actual data in the record (Z 00 Oracle table) Is created via the expand procedure Is based on the contents of pos. 06 of the LDR field Expand procedures 42
expand_doc_type FMT LDR 001 005 007 008 010 020 05000 08200 1102 24514 250 255 260 300 504 500 650 0 OWN SID TYP L L L L L L L MP 00000 nem^^2200385^^^4500 EXL 01 -000048933 20070508072215. 0 ad^canzn 870224 s 1987^^^^vtu^^^^^^^e^^^^^eng^^ $$a 87050303 $$a 096067389 X (pbk. ) : $$c$11. 95 $$a. G 1226. E 63$$b. N 6 1987 $$a 912/. 17991755$$219 $$a. Northern Cartographic, Inc. $$a. The atlas of Vermont trout ponds. $$a 2 nd ed. $$a. Scales differ. $$a. Burlington, Vt. : $$b. Northern Cartographic, $$cc 1987. $$a 1 atlas (174 p. ) : $$bill. , maps (some col. ) ; $$c 22 cm. $$a"Illustrated by Dick Leyden"--Cover. $$a. Bibliography: p. 168 -169. $$a. Includes index. $$a. Trout fishing$$z. Vermont$$x. Maps. $$a. Fishing$$x. Access roads$$z. Vermont$$x. Maps. $$a. Lakes$$z. Vermont$$x. Maps. $$a. Ponds$$z. Vermont$$x. Maps. $$a. EXLYOEL $$a. Z 39$$b. LOC $$a. Cartographic material Expand procedures 43
expand_doc_type We sent TYP top WRD index via tab 11_word so now we can search for the record via the WORD index Expand procedures 44

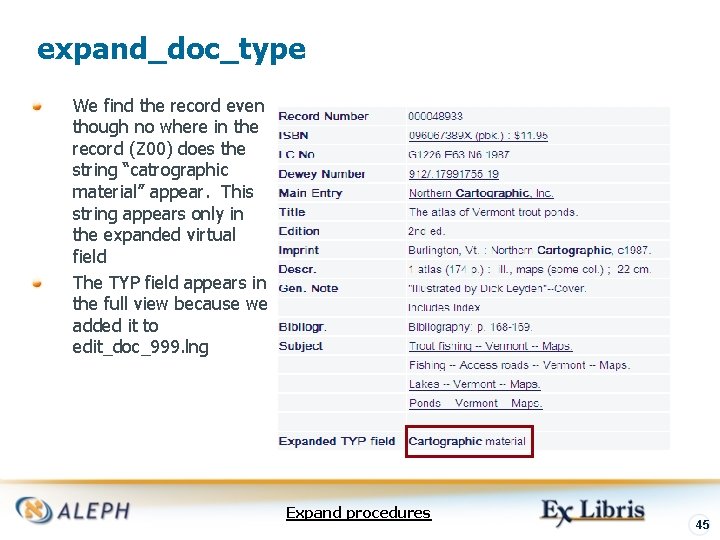

expand_doc_type We find the record even though no where in the record (Z 00) does the string “catrographic material” appear. This string appears only in the expanded virtual field The TYP field appears in the full view because we added it to edit_doc_999. lng Expand procedures 45
expand_doc_type We will now do an example of tab_type_config. lng configuration using the EXIST parameter ! 1 2 3 4 5 6 7 !!!!!-!!-!!!!!!!!!!!!!!!-!!!!!!!!!!-!!!!!!!!!!!! TYP Dissertation 502## EXIST TYP Electronic Resource 856## EXIST This means: If field 502 exists in record then create TYP field with text Dissertation If field 856 exists in record then create TYP field with text Electronic Resource Expand procedures 46
expand_doc_type We have this record Has 502 field Expand procedures 47
expand_doc_type Via UTIL F 4 doc_expand on procedure TYPE we see the new field: FMT LDR 001 005 008 020 041 090 1001 24510 260 300 440 0 502 61020 650 0 OWN SID TYP L L L L L BK 00000 nam^^2200289^a^4500 EXL 01 -000048934 20070508081012. 0 070508 s 1984^^^^^^r^^^^^000^0^eng^d $$a 0262181150 $$a. ENG $$a 005. 13 REP $$a. Reps, Thomas W. $$q(Thomas William) $$a. Generating language-based environments /$$c. Thomas W. Reps. $$a. Cambridge, MA : $$b. MIT Press, $$cc 1984. $$a 138 p. : $$bill. $$a. ACM doctoral dissertation award ; $$v 1983 $$a"Thesis (Ph. D. )--Cornell University, 1983"--t. p. verso (CIP) $$a. Cornell University$$x. Dissertations (Ph. D. ) $$a. Programming languages (Electronic computers) $$a. Text editors (Computer programs) $$a. EXLYOEL $$a. Z 39$$b. ULI $$a. Dissertation Expand procedures 48
expand_doc_type If we search for the word Dissertation… We find the record… Expand procedures 49
expand_doc_type The TYP field appears in the full view because we added it to edit_doc_999. lng Expand procedures 50

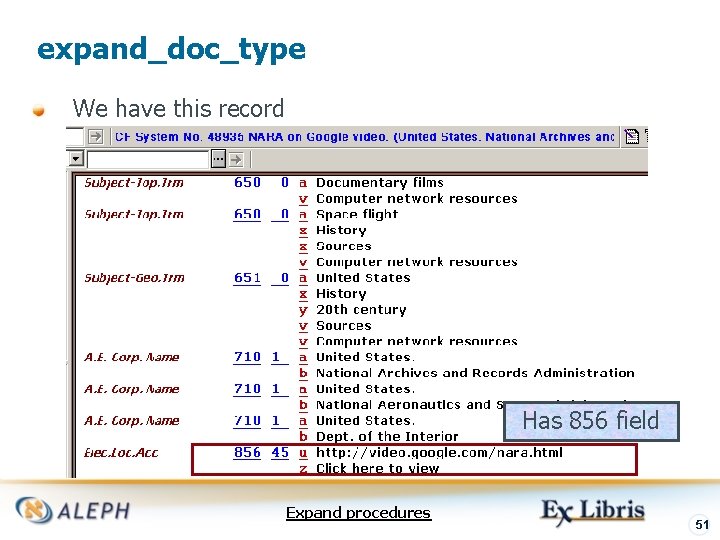

expand_doc_type We have this record Has 856 field Expand procedures 51

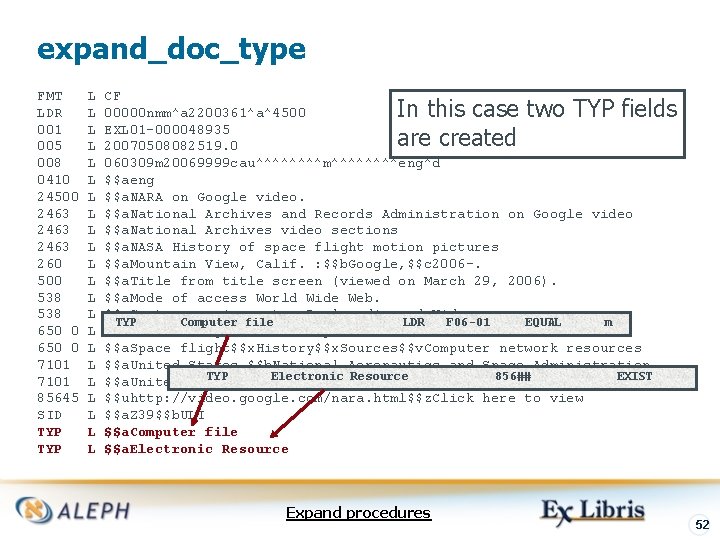

expand_doc_type FMT LDR 001 005 008 0410 24500 2463 260 500 538 650 0 7101 85645 SID TYP L L L L L L CF 00000 nmm^a 2200361^a^4500 EXL 01 -000048935 20070508082519. 0 060309 m 20069999 cau^^^^m^^^^eng^d $$aeng $$a. NARA on Google video. $$a. National Archives and Records Administration on Google video $$a. National Archives video sections $$a. NASA History of space flight motion pictures $$a. Mountain View, Calif. : $$b. Google, $$c 2006 -. $$a. Title from title screen (viewed on March 29, 2006). $$a. Mode of access World Wide Web. $$a. System requirememts: Real audio and Video programs. TYP Computer file LDR F 06 -01 EQUAL m $$a. Documentary films$$v. Computer network resources $$a. Space flight$$x. History$$x. Sources$$v. Computer network resources $$a. United States. $$b. National Aeronautics and Space Administration TYP Electronic Resource 856## EXIST $$a. United States. $$b. Dept. of the Interior $$uhttp: //video. google. com/nara. html$$z. Click here to view $$a. Z 39$$b. ULI $$a. Computer file $$a. Electronic Resource In this case two TYP fields are created Expand procedures 52

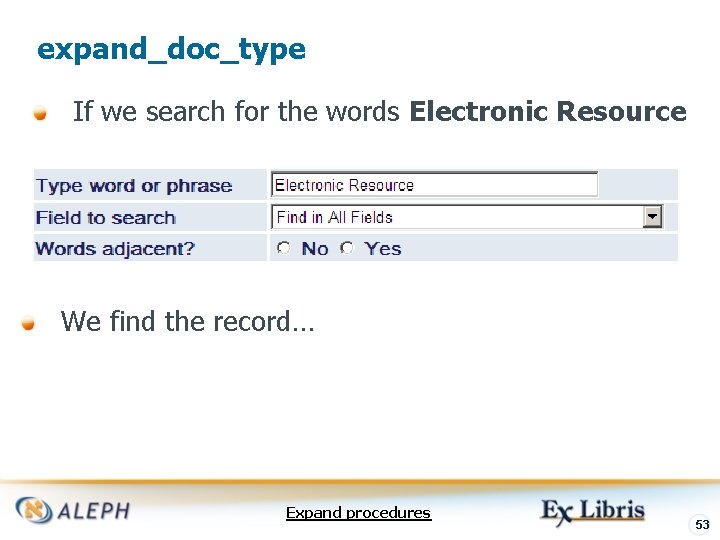

expand_doc_type If we search for the words Electronic Resource We find the record… Expand procedures 53
expand_doc_type The words we searched for appear only in the expanded field Expand procedures 54
expand_doc_type We will now do an example of tab_type_config. lng configuration using the MATCH parameter ! 1 2 3 4 5 6 7 !!!!!-!!-!!!!!!!!!!!!!!!-!!!!!!!!!!-!!!!!!!!!!!! TYP Thesis 500## a MATCH *thesis* *theses* This means: If field 500 exists in record and has either thesis or theses in sub field a then create TYP field with text Thesis Expand procedures 55
expand_doc_type We have this record Has thesis in sub field a of 500 field Expand procedures 56
expand_doc_type Via UTIL F 4 doc_expand on procedure TYPE we see the new field: FMT LDR 001 005 008 010 040 05000 1300 24510 260 300 440 0 500 504 7001 SID TYP L L L L L BK 00000 cam^^22002411^^4500 EXL 01 -000048941 20070508095545. 0 050407 s 1969^^^^enka^^^^^b^^^^000^0^eng^^ $$a 76437254 $$a. DLC$$c. DLC$$d. DLC $$a. PR 2110$$b. A 1 1969 $$a. Patience (Middle English poem) $$a. Patience; /$$cedited by J. J. Anderson. $$a. Manchester, $$a. New York, : $$b. Manchester U. P. ; $$b. Barnes and Noble, $$c 1969. $$aviii, 112 p. : $$billus. ; $$c 18 cm. $$a. Old and Middle English texts $$a. Based on thesis, Univ. of Adelaide. $$a. English and Middle English. $$a. Bibliography: p. 24 -29. $$a. Anderson, J. J. , $$eed. $$a. Z 39$$b. LOC $$a. Thesis Expand procedures 57
expand_doc_type Here is the record in full view Expand procedures 58

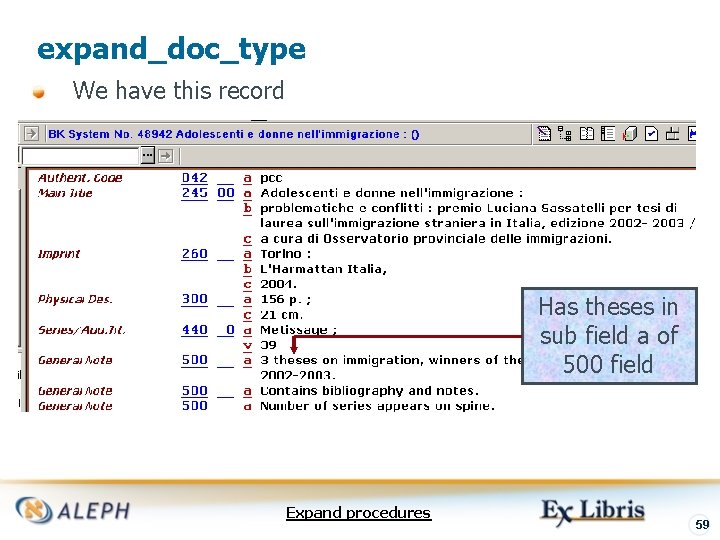

expand_doc_type We have this record Has theses in sub field a of 500 field Expand procedures 59
expand_doc_type Via UTIL F 4 doc_expand on procedure TYPE we see the new field: FMT LDR 001 005 008 010 020 24500 260 300 440 500 504 505 TYP L BK L 00000 cam^^22002774 a^4500 L EXL 01 -000048942 L 20070508110443. 0 L 040705 s 2004^^^^it^^^^^^^b^^^^000^0^ita^d L $$a 2005455520 L $$a 8888684662 L $$a. Adolescenti e donne nell'immigrazione : $$bproblematiche e conflitti : premio Luciana Sassatelli per tesi di laurea sull'immigrazione straniera in Italia, edizione 2002 - 2003 /$$ca cura di Osservatorio provinciale delle immigrazioni. L $$a. Torino : $$b. L'Harmattan Italia, $$c 2004. L $$a 156 p. ; $$c 21 cm. 0 L $$a. Metissage ; $$v 39 L $$a 3 theses on immigration, winners of the Luciana Sassatelli prize, 2002 -2003. L $$a. Contains bibliography and notes. L $$a. Number of series appears on spine. L $$a. Includes bibliographical references. SID L $$a. Z 39$$b. LOC L $$a. Thesis Expand procedures 60
expand_doc_type Now we search for the record: Actual word from title Virtual word (not in actual document) Expand procedures 61
expand_doc_type The record is found even though no where in the record does the word “Thesis” appear. Expand procedures 62
expand_doc_type There but not there The words from the TYP field are there (indexed with the bibliographic record and appearing in full view) but not there (in the actual bibliographic record data Z 00( Expand procedures 63
expand_doc_bib_acc_ref Expand procedures 64
expand_doc_bib_acc_ref In this example we will show the use of the menu WORD and the procedure expand_doc_bib_acc_ref in $data_tab/tab_expand of the bibliographic library. ! 1 2 3 !!!!!!!!!!-!!!!!!!!!!!!!!!!!!!!!!!!!> WORD expand_doc_bib_accref Expand Menu Expand Procedure Expand procedures 65
expand_doc_bib_acc_ref is an expand procedure which “expands” the related authority heading into the bibliographic heading WORD menu is used when words are created in the index Thus for example the words of a non preferred term may be indexed with a record which contains the preferred term Expand procedures 66
expand_doc_bib_acc_ref BIB Record Expand procedure expand_doc_bib_acc_ref with menu WORD AUT Record Expand procedures 67
expand_doc_bib_acc_ref If we search database USM 01 for the word “grilling… ” Expand procedures 68
expand_doc_bib_acc_ref We find system number 50752 even though the word “grilling” does not appear in the record: Expand procedures 69
expand_doc_bib_acc_ref If we search database USM 01 for word from author “kimbell… ” Expand procedures 70
expand_doc_bib_acc_ref We find system number 50752 even though the word “kimbell” does not appear in the record: Expand procedures 71
expand_doc_bib_acc_ref “Kimbell” and “grilling” are not words in record with system number 50752 even though we found this record when searching for these words. Expand procedures 72
expand_doc_bib_acc_ref System number 50752 contains library of congress subject heading “Barbecue cookery” Added entry surname “Griffiths, Joan” Expand procedures 73
expand_doc_bib_acc_ref Both headings have related authority records Expand procedures 74
expand_doc_bib_acc_ref library of congress author heading “Griffiths, Joan” is linked to authority record with word “Kimbell ” 50008 in USM 10 50752 in USM 01 Expand procedures 75

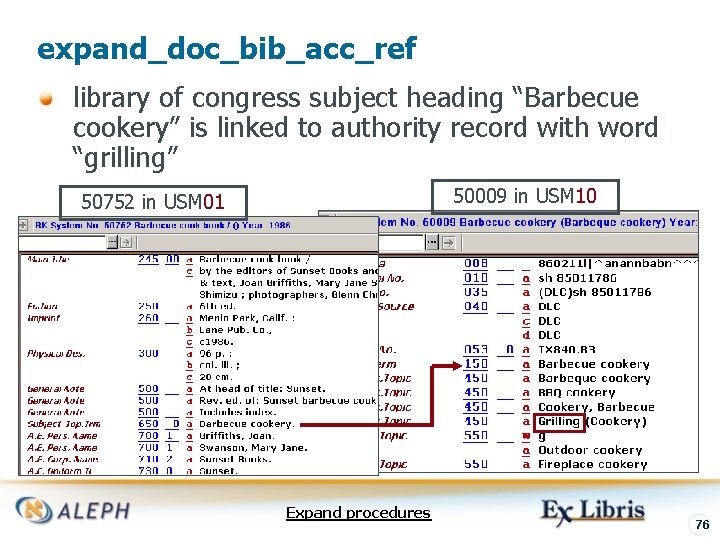

expand_doc_bib_acc_ref library of congress subject heading “Barbecue cookery” is linked to authority record with word “grilling” 50009 in USM 10 50752 in USM 01 Expand procedures 76
expand_doc_bib_acc_ref 50008 in USM 10 50009 in USM 10 We searched for “Kimbell” and “Grilling” Expand procedures 77

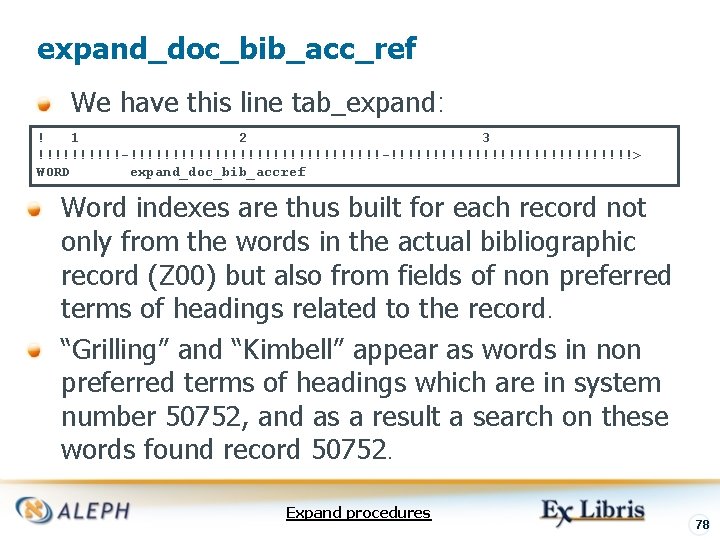

expand_doc_bib_acc_ref We have this line tab_expand: ! 1 2 3 !!!!!!!!!!-!!!!!!!!!!!!!!!!!!!!!!!!!> WORD expand_doc_bib_accref Word indexes are thus built for each record not only from the words in the actual bibliographic record (Z 00) but also from fields of non preferred terms of headings related to the record. “Grilling” and “Kimbell” appear as words in non preferred terms of headings which are in system number 50752, and as a result a search on these words found record 50752. Expand procedures 78
expand_doc_bib_acc_ref There but not there The words from the non preferred term are there (indexed with the bibliographic record) but not there (in the actual bibliographic record( Expand procedures 79
expand_doc_bib_z 403 Expand procedures 80

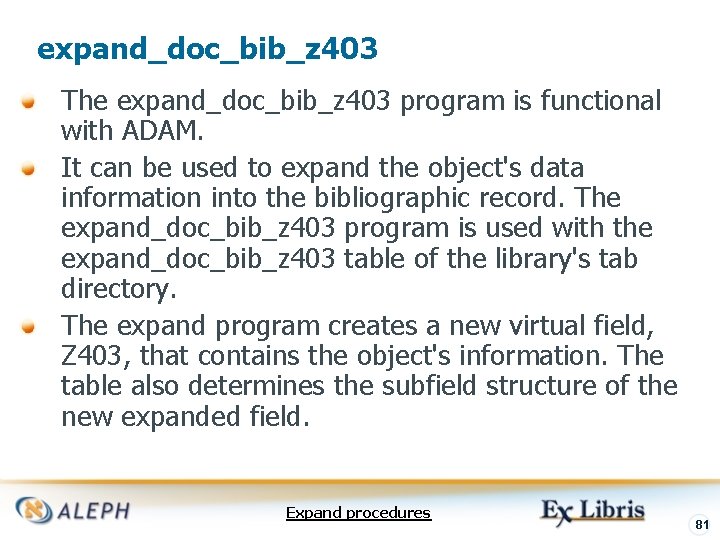

expand_doc_bib_z 403 The expand_doc_bib_z 403 program is functional with ADAM. It can be used to expand the object's data information into the bibliographic record. The expand_doc_bib_z 403 program is used with the expand_doc_bib_z 403 table of the library's tab directory. The expand program creates a new virtual field, Z 403, that contains the object's information. The table also determines the subfield structure of the new expanded field. Expand procedures 81

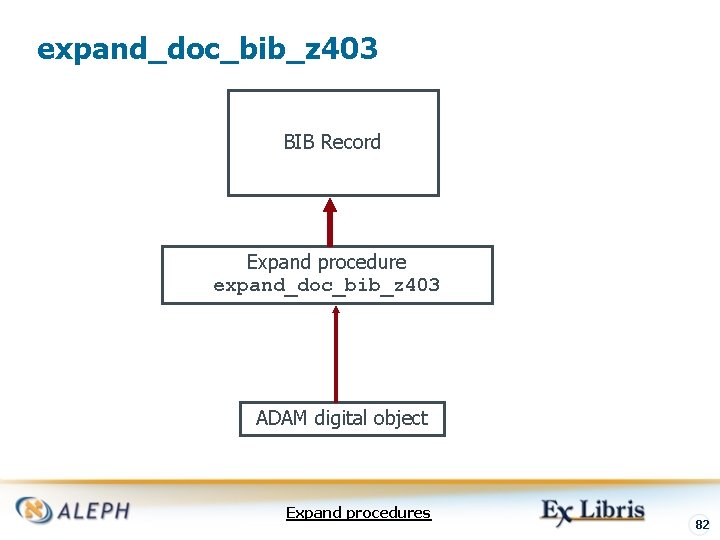

expand_doc_bib_z 403 BIB Record Expand procedure expand_doc_bib_z 403 ADAM digital object Expand procedures 82
expand_doc_bib_z 403 Here is an example of the expand_doc_bib_z 403 table in the bibliographic library's tab directory. ! 2 3 4 5 !-!!!!!!!!!!!!!!!!!!-!-!!!!!-! # z 403 -title y space X # z 403 -sub-library l space Y # Z 403 -usage-type t space N Now we will see how it works, with examples Expand procedures 83
expand_doc_bib_z 403 Bibliographic record system number 50765 has title “Classic TV pictures”. It has object which is type view with object title “Full Cast of Gilligan's Island with autographs“ Expand procedures 84
expand_doc_bib_z 403 Bibliographic record system number 50774 has title “And then they were stranded”. It has object which is type view with object title “First season opening show title“. Expand procedures 85
expand_doc_bib_z 403 Bibliographic record system number 50776 has title “That's the day we became the Brady Bunch. ”. It has object which is type view with object title “Bobby Brady in 1969 series“. Expand procedures 86
expand_doc_bib_z 403 Bibliographic record system number 50777 has title “Sam the butcher”. It has object which is type view with object title “Brady family portrait 1970“. Expand procedures 87
expand_doc_bib_z 403 System number 50765 in web Expand procedures 88
expand_doc_bib_z 403 System number 50774 in web Expand procedures 89
expand_doc_bib_z 403 System number 50776 in web Expand procedures 90

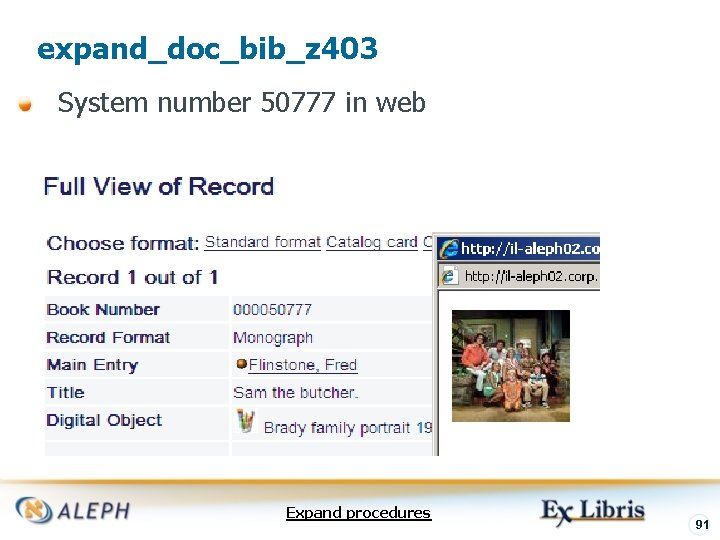

expand_doc_bib_z 403 System number 50777 in web Expand procedures 91
expand_doc_bib_z 403 Now using expand_doc_bib_z 403 we will build a new access for end users to browse in the web. This new access will be the title of the diogital object The bibliographic record does not contain the title of the digital object, thus it must be expanded from the digital object to the bibliographic record Let’s first see what the expand_doc_bib_z 403 does by making a new expand menu which will include only expand_doc_bib_z 403. This way we will be able to view our records via UTIL F 4 doc_expand to see what happens. Expand procedures 92
expand_doc_bib_z 403 Here we have a made a new expand menu in tab_expand table called ADAM which does only expand_doc_bib_z 403 ! 1 2 3 !!!!!!!!!!-!!!!!!!!!!!!!!!!!!!!!!!!!> ADAM expand_doc_bib_z 403 Expand procedures 93
expand_doc_bib_z 403 Here is system number 50765 viewed using expand menu ADAM Bibliographic record title Expanded Object title Expand procedures 94
expand_doc_bib_z 403 The virtual field Z 403 is made according to the expand_doc_bib_z 403 table in the bibliographic library's tab directory. ! 2 3 4 5 !-!!!!!!!!!!!!!!!!!!-!-!!!!!-! # z 403 -title y space X # z 403 -sub-library l space Y # Z 403 -usage-type t space N Expand procedures 95
expand_doc_bib_z 403 The object title “Full Cast of Gilligan's Island with autographs” is not part of the bibliographic record: The object title “Full Cast of Gilligan's Island with autographs” appears with the bibliographic record when expand procedure expand_doc_bib_z 403 is used. Expand procedures 96
expand_doc_bib_z 403 We will now make this object title “browsable” for end users The expand menu ACC is used for creating headings when manage_02 (create headings Service) is run or when a record is updated in the GUI. Thus, we will now put expand_doc_bib_z 403 together with ACC: ! 1 2 3 !!!!!!!!!!-!!!!!!!!!!!!!!!!!!!!!!!!!> ACC expand_doc_bib_z 403 Expand procedures 97

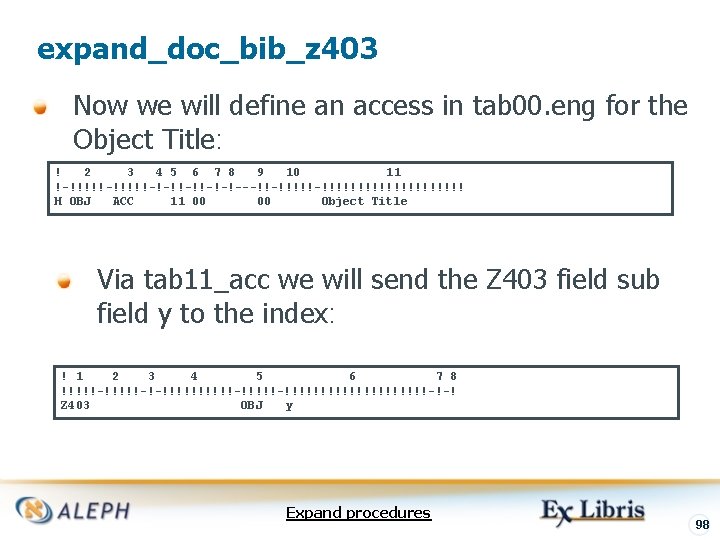

expand_doc_bib_z 403 Now we will define an access in tab 00. eng for the Object Title: ! 2 3 4 5 6 7 8 9 10 11 !-!!!!!-!-!!-!!-!-!---!!-!!!!!!!!!!!! H OBJ ACC 11 00 00 Object Title Via tab 11_acc we will send the Z 403 field sub field y to the index: ! 1 2 3 4 5 6 7 8 !!!!!-!-!!!!!-!!!!!!!!!!!!!-!-! Z 403 OBJ y Expand procedures 98
expand_doc_bib_z 403 And then we will make the new access browsable via the web and the GUI: $data_tab/pc_tab_sear. eng ! 2 3 4 5 !!--!!!!!!!!!!-!-!!!!!!!!!!!!!!!-!!!!! SC USM 01 L ADAM Object title OBJ WEB: $alephe_root/www_f_eng/scan-include-2 <option value=OBJ $$5000 -S"OBJ">Digital Object Title</option> Or WEB: $alephe_root/www_f_eng/find-e-code-include <option value=SCAN_OBJ $$FXX-S"SCAN_OBJ">Browse >Digital Object Title</option> Expand procedures 99
expand_doc_bib_z 403 User browses for and finds object title “Brady family portrait 1970 “ Expand procedures 100
expand_doc_bib_z 403 In the previous slide a browse for “Brady family portrait 1970” finds system number 50777. “Brady family portrait 1970 “ appears no where in the document: Expand procedures 101
expand_doc_bib_z 403 The object title has been “expanded” to the document from the object and then indexed Expand procedures 102
expand_doc_bib_z 403 Expand procedures 103
expand_doc_bib_z 403 There but not there The object title is there (indexed with the bibliographic record) but not there (in the actual data( Expand procedures 104
expand_doc_bib_z 403 We will now add the object title to a printout format of the service “columnar printout (print 08”( In order for an expand procedure to be included in the print-08 service it should be added to tab_expand in the PRINT-COL Expand Menu. Expand procedures 105
expand_doc_bib_z 403 Here is the header explanation for PRINT-COL Expand Menu in tab_expand table: ! PRINT-COL - p_print_08_a - columnar printout (Service) Here is the expand procedure in tab_expand table: ! 1 2 3 !!!!!!!!!!-!!!!!!!!!!!!!!!!!!!!!!!!!> PRINT-COL expand_doc_bib_z 403 Expand procedures 106
expand_doc_bib_z 403 The table $data_tab/rep_tab_short. eng states which fields are printed via the service print-08. Here we can specify the Z 403 virtual field and desired sub fields (because it was included in the PRINT-COL menu of tab_expand: ( 006 006 006 L L L Doc. No. SYS Author 1#### Document Title 245## Digital Object Title Z 403#y Digital Object Usage Z 403#t 010 025 030 029 006 02 03 02 02 02 C 01 C 01 ----- Y Format 006 Expand procedures 107
expand_doc_bib_z 403 The format made in rep_tab_short. eng is then added to $aleph_root/pc_b_eng/p-print-08. xml In our example it was format 006 <cbitem> <value>006</value> <display> Document no. | Author | Document Title| Digital Object Title | Digital Object Usage </display> </cbitem> Expand procedures 108
expand_doc_bib_z 403 Now we can run print-08 with our new format which takes advantage of the expanded fields Expand procedures 109

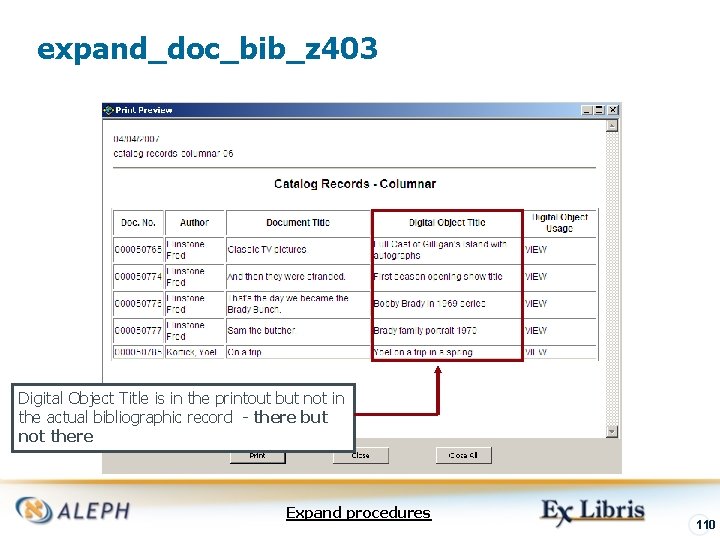

expand_doc_bib_z 403 Digital Object Title is in the printout but not in the actual bibliographic record - there but not there Expand procedures 110
expand_doc_bib_z 403 There but not there The object title is there (displaying in format with the bibliographic record) but not there (in the actual bibliographic data Z 00 table( Expand procedures 111
expand_doc_bib_loc_usm Expand procedures 112
expand_doc_bib_loc_usm The expand procedure expand_doc_bib_loc_usm might appear as follows in $data_tab/tab_expand: ! 1 2 3 !!!!!!!!!!-!!!!!!!!!!!!!!!!!!!!!!!!!> U 39 -DOC expand_doc_bib_loc_usm WORD expand_doc_bib_loc_usm ACC expand_doc_bib_loc_usm INDEX expand_doc_bib_loc_usm SORT-DOC expand_doc_bib_loc_usm WEB-FULL expand_doc_bib_loc_usm WEB-BRIEF expand_doc_bib_loc_usm WEB-FULL-1 expand_doc_bib_loc_usm GUI-BRIEF expand_doc_bib_loc_usm CREATE-Z 13 expand_doc_bib_loc_usm PRINT-COL expand_doc_bib_loc_usm PRINT-CAT expand_doc_bib_loc_usm TAB 33 -DOC expand_doc_bib_loc_usm Z 39_SERVER expand_doc_bib_loc_usm RET expand_doc_bib_loc_usm SECTION 1 expand_doc_bib_loc_usm EXPORT-03 expand_doc_bib_loc_usm Z 39_HOL expand_doc_bib_loc_usm WEB-MAIL expand_doc_bib_loc_usm PUBLISH expand_doc_bib_loc_usm Expand procedures 113
expand_doc_bib_loc_usm 1. 2. 3. 4. 1. 2. 3. The expand_doc_bib_loc_usm program builds four fields: SBL LOC STS PST Fields are built from: the Z 30 (item record) the Z 16 (subscription record) the 852 field (location) of the holdings record Expand procedures 114
expand_doc_bib_loc_usm Often the fields which are built via the expand_doc_bib_loc_usm program are referred to as “virtual” fields. They have a specific structure (sub fields) and may be used in a variety of ways depending on the expand menu with which they are used. Expand procedures 115
expand_doc_bib_loc_usm BIB Record Expand procedure expand_doc_bib_loc_usm with multiple menus Z 30 item Record HOL Record Z 16 Subscription Expand procedures 116
expand_doc_bib_loc_usm Virtual field “SBL” The SBL field has no indicators and one subfield (a) which contains the sub library code. Expand procedures 117
expand_doc_bib_loc_usm Virtual field “LOC” The LOC has first indicator 0 -8 depending on the call number type. The second indicator is blank. It also has these sub fields: $b [sublibrary code] $c [collection code] $h [call number] if call number type is 0 -3 or 6 -8. $j [call number] if call number type is 4. $l [call number] if call number type is 5. $o [material type]. Expand procedures 118
expand_doc_bib_loc_usm Virtual field “STS” The STS field has no indicators and one subfield (a) which contains the item status code. Expand procedures 119
expand_doc_bib_loc_usm Virtual field “PST” – part 1 1 st indicator: call number type (0 -8). 2 nd indicator: undefined, contains a blank. Expand procedures 120
expand_doc_bib_loc_usm Virtual field “PST” – part 2 $$0 [origin of the PST field]. If the field originates from an item record, then the subfield contains Z 30 ($$0 Z 30). If the field originates from a holdings record, then the subfield contains HOL ($$0 HOL). $$1 [unique identifier of the record of origin] If the field originates from an item record, then the subfield contains the system number of the linked administrative record and the item sequence number (for example, $$11000005921000010). Format: <Z 30 -DOC-NUMBER> <Z 30 ITEM-SEQUENCE> If the field originates from a holdings record, then the subfield contains the holdings library code and the system number of the holdings record (for example, $$1 USM 60 -000001909). Format: <library code>60; holdings system number> Expand procedures 121
expand_doc_bib_loc_usm Virtual field “PST” – part 3 $$b [sublibrary code]. $$c [collection code]. $$d [item status] if there is no item process status. $$e [item process status] if there is an item process status in the item record. $$f [temporary location flag]. If the sublibrary, collection and call number information are temporary (the Temporary Location box is checked), then the subfield contains Y ($$f. Y). If the location is not temporary, then the subfield contains N ($$f. N). Expand procedures 122

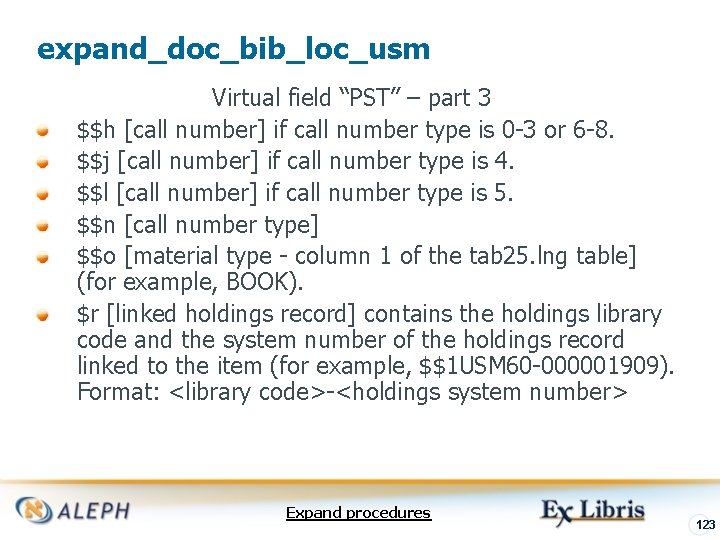

expand_doc_bib_loc_usm Virtual field “PST” – part 3 $$h [call number] if call number type is 0 -3 or 6 -8. $$j [call number] if call number type is 4. $$l [call number] if call number type is 5. $$n [call number type] $$o [material type - column 1 of the tab 25. lng table] (for example, BOOK). $r [linked holdings record] contains the holdings library code and the system number of the holdings record linked to the item (for example, $$1 USM 60 -000001909). Format: <library code>-<holdings system number> Expand procedures 123
expand_doc_bib_loc_usm Virtual field “PST” – part 4 $y [copy number] $$3 [material type - display form: column 3 of the tab 25. lng table] (for example, Book). $$4 [sublibrary name] $$5 [collection name] $$6 [item loan status - display form] $$7 [item process status - display form] Expand procedures 124
expand_doc_bib_loc_usm We have system number 50756 in USM 01 Expand procedures 125
expand_doc_bib_loc_usm 50756 in USM 01 is connected to HOL record 50487 in USM 60 Expand procedures 126
expand_doc_bib_loc_usm 50487 in USM 60 is connected to item barcode 50756 -10 in USM 50 Expand procedures 127
expand_doc_bib_loc_usm The administrative record in USM 50 is 50756 Expand procedures 128

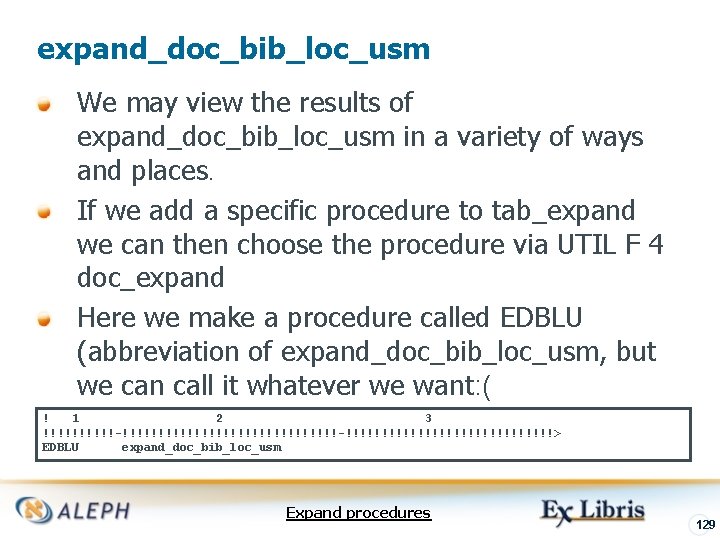

expand_doc_bib_loc_usm We may view the results of expand_doc_bib_loc_usm in a variety of ways and places. If we add a specific procedure to tab_expand we can then choose the procedure via UTIL F 4 doc_expand Here we make a procedure called EDBLU (abbreviation of expand_doc_bib_loc_usm, but we can call it whatever we want: ( ! 1 2 3 !!!!!!!!!!-!!!!!!!!!!!!!!!!!!!!!!!!!> EDBLU expand_doc_bib_loc_usm Expand procedures 129
expand_doc_bib_loc_usm From UTIL F 4 in USM 01 we will choose “doc_expand” and choose expand procedure EDBLU and system number 50756 Expand procedures 130
expand_doc_bib_loc_usm From UTIL F 4 in USM 01 we will choose “doc_expand” and choose expand procedure EDBLU and system number 50756 Expand procedures 131
expand_doc_bib_loc_usm The bibliographic fields are presented as well as the expanded (virtual) fields as created by the specific fix routine: Virtual fields Expand procedures 132
expand_doc_bib_loc_usm The item (z 30) information: Expand procedures 133

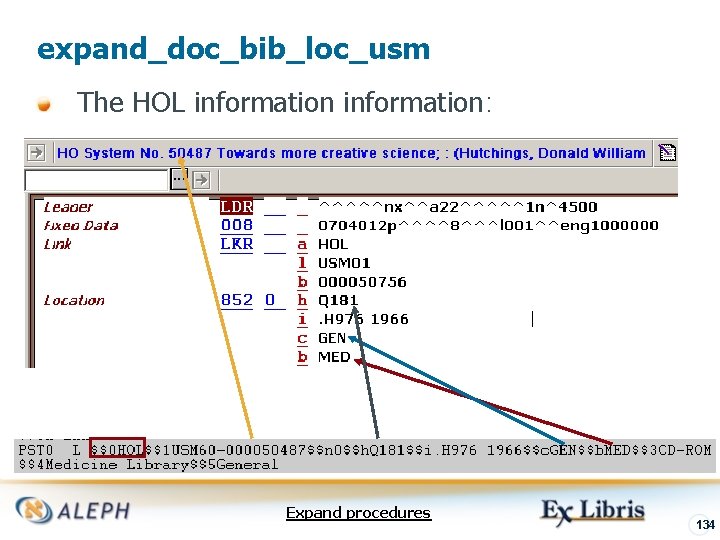

expand_doc_bib_loc_usm The HOL information: Expand procedures 134
expand_doc_bib_loc_usm And if we remove the item process status from the record… Expand procedures 135
expand_doc_bib_loc_usm The we also get item status information: Expand procedures 136
expand_doc_bib_loc_usm The fields created via expand_doc_bib_loc_usm can be used for both display and indexing purposes. Here is a sample of such fields. Notice tab 11_word uses the virtual fields and sub fields: $data_tab/tab 00. eng H H WSL WICOL WIMTY WICOP W-014 W-030 W-031 W-032 00 00 02 00 00 00 W-Sublibrary W-Word from Item Collection W-Word from Item Material Type W-Word from Item Copy Status $data_tab/tab 11_word SBL PST## c o d 01 03 03 03 Expand procedures WSL WICOL WIMTY WICOP 137
expand_doc_bib_loc_usm In order to be able to index the expanded fields built via expand_doc_bib_loc_usm, the expand procedure must appear with the WORD expand menu in tab_expand: ! 1 2 3 !!!!!!!!!!-!!!!!!!!!!!!!!!!!!!!!!!!!> WORD expand_doc_bib_loc_usm The WORD expand menu is used to create words via manage_01 (service to update word index) and via ue_01 (when item is updated in the GUI) Expand procedures 138
expand_doc_bib_loc_usm In the next slide we will search for the indexes which have been built via the expanded fields: WSL Word from Sublibrary WICOL Word from Item Collection WIMTY Word from Item Material Type WICOP Word from Item Copy Status Via these indexes it is possible to retrieve bibliographic records based on connected items. Expand procedures 139
expand_doc_bib_loc_usm Here we have retrieved bibliographic records via the indexes which are built from “expanded” item information Expand procedures 140
expand_doc_bib_loc_usm Similarly, it is possible to build logical bases according to the indexes which are built from expanded fields. Here is an example of a base built according to WSL (Word from Sub Library( ! 1 2 3 4 5 6 7 8 9 !!!!!!!!!!-!-!!!!!!!!!!-!!!!!-!!!!!-!-!!!!!> MED Medicine Library USM 01 Y wsl=med Expand procedures 141
expand_doc_bib_loc_usm There but not there The Word from Sub Library is there (indexed with the bibliographic record) but not there (in the actual data. ( Expand procedures 142
