Therapeutic equipments UnitIV Therapeutic equipments Need of Physiological

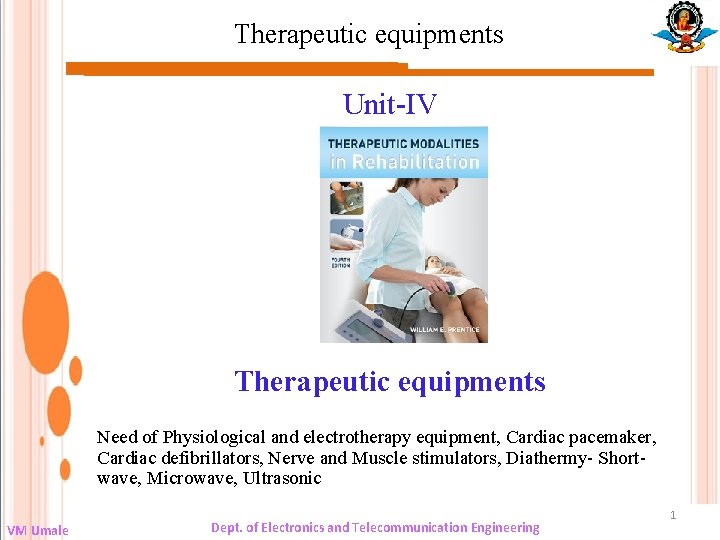

![Therapeutic equipments Unit-IV Therapeutic equipments Need of Physiological and electrotherapy equipment, Cardiac pacemaker, Cardiac Therapeutic equipments Unit-IV Therapeutic equipments Need of Physiological and electrotherapy equipment, Cardiac pacemaker, Cardiac](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-1.jpg)
![Unit-IV: Therapeutic equipments v Need of physiological equipments and Electrotherapy equipments v Nerve and Unit-IV: Therapeutic equipments v Need of physiological equipments and Electrotherapy equipments v Nerve and](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-2.jpg)
![Lecture-23 Physiotherapy v. Need of physiological equipments v. Need of Electrotherapy equipments VM Umale Lecture-23 Physiotherapy v. Need of physiological equipments v. Need of Electrotherapy equipments VM Umale](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-3.jpg)
![Lecture-23 Physiotherapy v. Need of physiological equipments Physiotherapy Physical stimulus in the form of Lecture-23 Physiotherapy v. Need of physiological equipments Physiotherapy Physical stimulus in the form of](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-4.jpg)
![Physiotherapy: when the HF energy is utilized to get physical stimulus in the form Physiotherapy: when the HF energy is utilized to get physical stimulus in the form](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-5.jpg)
![ØMerits of physiotherapy- ü No discomfort and skin burns even before adequate heat has ØMerits of physiotherapy- ü No discomfort and skin burns even before adequate heat has](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-6.jpg)

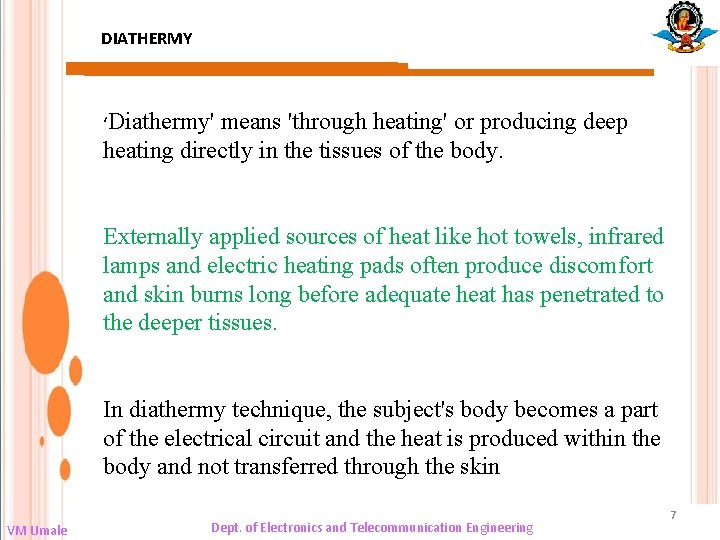

![DIATHERMY ‘Diathermy' means 'through heating' or producing deep heating directly in the tissues of DIATHERMY ‘Diathermy' means 'through heating' or producing deep heating directly in the tissues of](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-7.jpg)

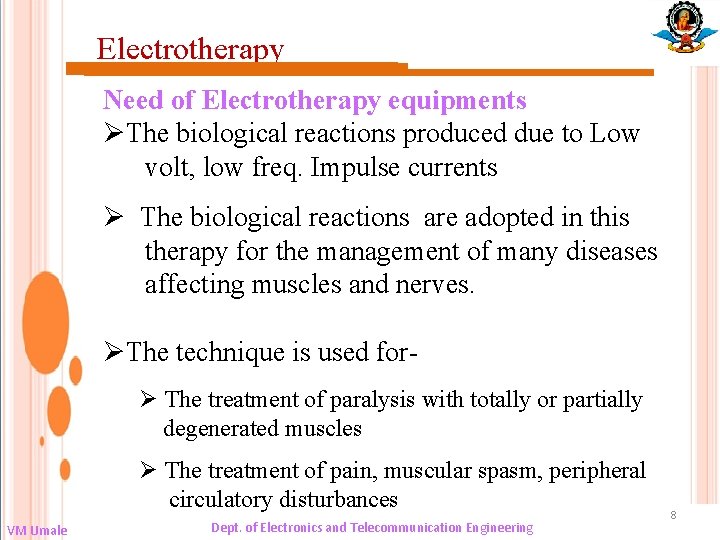

![Electrotherapy Need of Electrotherapy equipments ØThe biological reactions produced due to Low volt, low Electrotherapy Need of Electrotherapy equipments ØThe biological reactions produced due to Low volt, low](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-8.jpg)

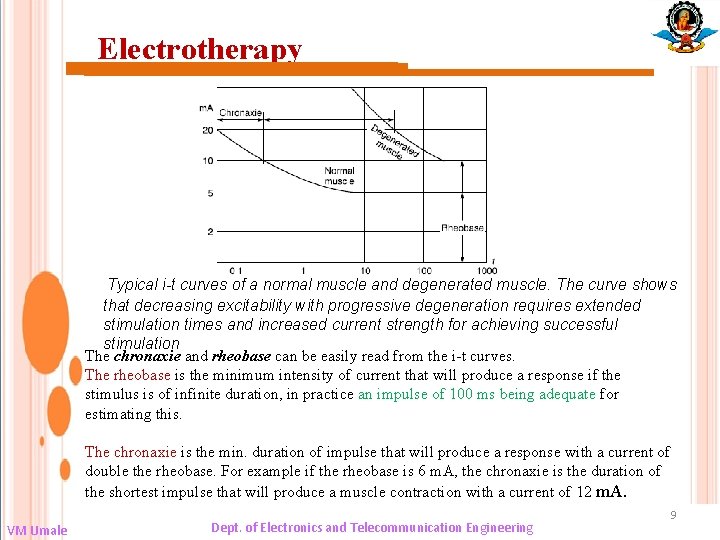

![Electrotherapy Typical i-t curves of a normal muscle and degenerated muscle. The curve shows Electrotherapy Typical i-t curves of a normal muscle and degenerated muscle. The curve shows](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-9.jpg)
![Electrotherapy Ø Different types of current impulses used in electrotherapy Ø Galvanic current Ø Electrotherapy Ø Different types of current impulses used in electrotherapy Ø Galvanic current Ø](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-10.jpg)
![Electrotherapy: Current waveforms normally employed in electrodiagnosis and electrotherapy: (1) galvanic (2) Faradic (3) Electrotherapy: Current waveforms normally employed in electrodiagnosis and electrotherapy: (1) galvanic (2) Faradic (3)](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-11.jpg)

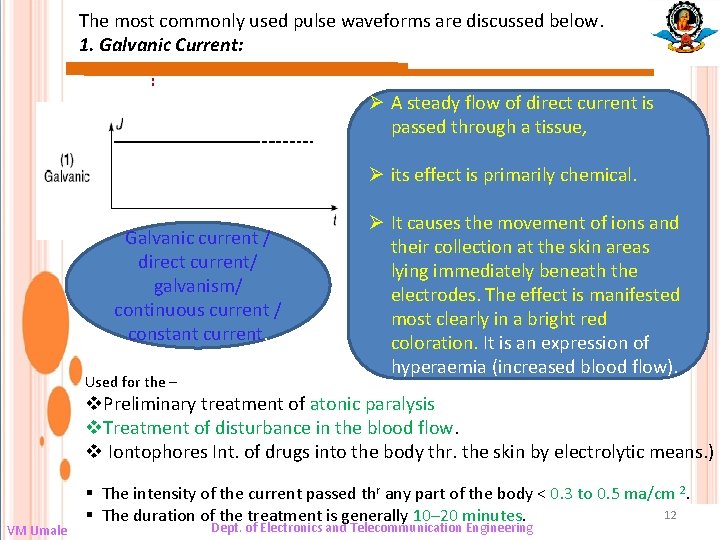

![The most commonly used pulse waveforms are discussed below. 1. Galvanic Current: : Ø The most commonly used pulse waveforms are discussed below. 1. Galvanic Current: : Ø](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-12.jpg)
![The most commonly used pulse waveforms are discussed below. 2. Faradic Current: Faradic: Current: The most commonly used pulse waveforms are discussed below. 2. Faradic Current: Faradic: Current:](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-13.jpg)
![The most commonly used pulse waveforms are discussed below. 3. Surged Faradic Current: : The most commonly used pulse waveforms are discussed below. 3. Surged Faradic Current: :](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-14.jpg)

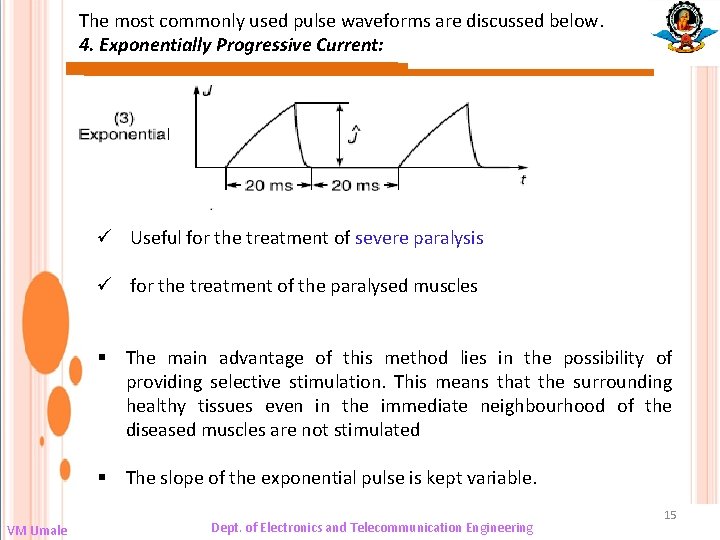

![The most commonly used pulse waveforms are discussed below. 4. Exponentially Progressive Current: : The most commonly used pulse waveforms are discussed below. 4. Exponentially Progressive Current: :](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-15.jpg)
![Other type of pulse Biphasic Stimulation: : § The cell recovery from the effect Other type of pulse Biphasic Stimulation: : § The cell recovery from the effect](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-16.jpg)

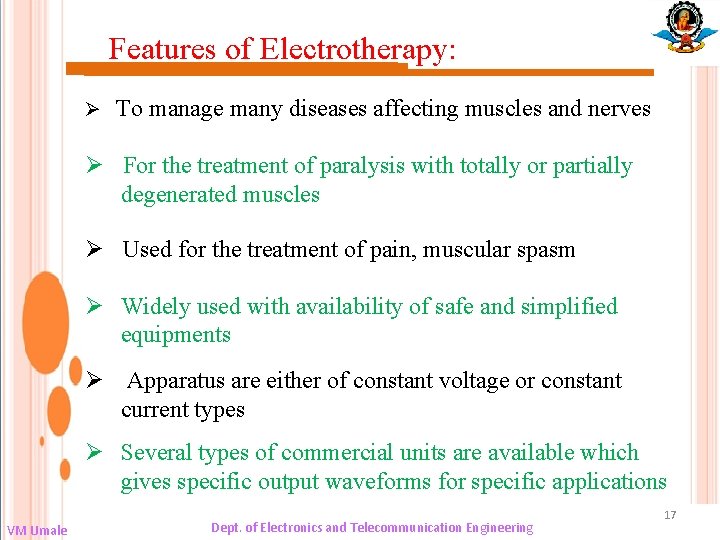

![Features of Electrotherapy: Ø To manage many diseases affecting muscles and nerves Ø For Features of Electrotherapy: Ø To manage many diseases affecting muscles and nerves Ø For](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-17.jpg)
![Cont…. . Ø Devices produce output current waveforms to cover the whole range of Cont…. . Ø Devices produce output current waveforms to cover the whole range of](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-18.jpg)
![Stimulators Ø Stimulators refers to an external influence Ø Electrical, mechanical or chemical Ø Stimulators Ø Stimulators refers to an external influence Ø Electrical, mechanical or chemical Ø](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-19.jpg)

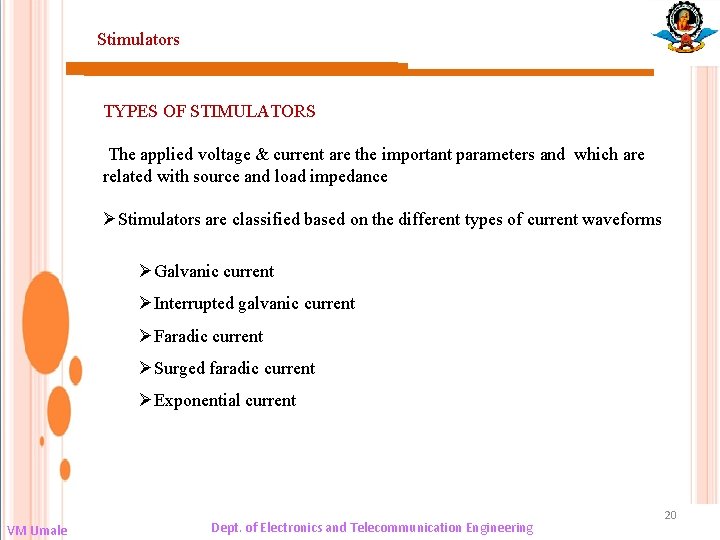

![Stimulators TYPES OF STIMULATORS The applied voltage & current are the important parameters and Stimulators TYPES OF STIMULATORS The applied voltage & current are the important parameters and](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-20.jpg)
![Electrotherapy The typical specifications of an electro-diagnostic therapy unit are as follows: Galvanic current Electrotherapy The typical specifications of an electro-diagnostic therapy unit are as follows: Galvanic current](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-21.jpg)
![Stimulators 1. Versatile electro diagnostic therapeutic stimulator it covers whole range of electro diagnostic Stimulators 1. Versatile electro diagnostic therapeutic stimulator it covers whole range of electro diagnostic](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-22.jpg)
![Stimulators BLOCK DIAGRAM – 2. Nerve stimulator- VM Umale Dept. of Electronics and Telecommunication Stimulators BLOCK DIAGRAM – 2. Nerve stimulator- VM Umale Dept. of Electronics and Telecommunication](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-23.jpg)
![Stimulators Other stimulators 3. Transcutaneous electrical Nerve stimulator(TENS) Transcutaneous electrical nerve stimulation (TENS) therapy Stimulators Other stimulators 3. Transcutaneous electrical Nerve stimulator(TENS) Transcutaneous electrical nerve stimulation (TENS) therapy](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-24.jpg)
![Stimulators TENS therapy can be used to treat both chronic (long lasting) and acute Stimulators TENS therapy can be used to treat both chronic (long lasting) and acute](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-25.jpg)
![Stimulators Other stimulators 4. Spinal cord stimulator 5. Magnetic stimulator 6. Bladder stimulator 7. Stimulators Other stimulators 4. Spinal cord stimulator 5. Magnetic stimulator 6. Bladder stimulator 7.](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-26.jpg)
![Therapeutic Devices : THANKS A LOT VM Umale Dept. of Electronics and Telecommunication Engineering Therapeutic Devices : THANKS A LOT VM Umale Dept. of Electronics and Telecommunication Engineering](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-27.jpg)
![Unit-IV: Therapeutic equipments v VM Umale Diathermy Dept. of Electronics and Telecommunication Engineering 28 Unit-IV: Therapeutic equipments v VM Umale Diathermy Dept. of Electronics and Telecommunication Engineering 28](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-28.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-29.jpg)

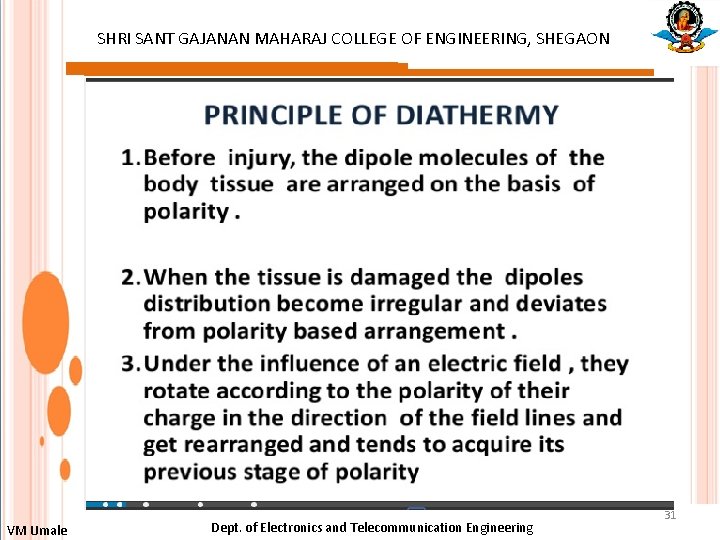

![Cont… Ø In diathermy technique, the subject's body becomes a part of the electrical Cont… Ø In diathermy technique, the subject's body becomes a part of the electrical](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-30.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-31.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-32.jpg)

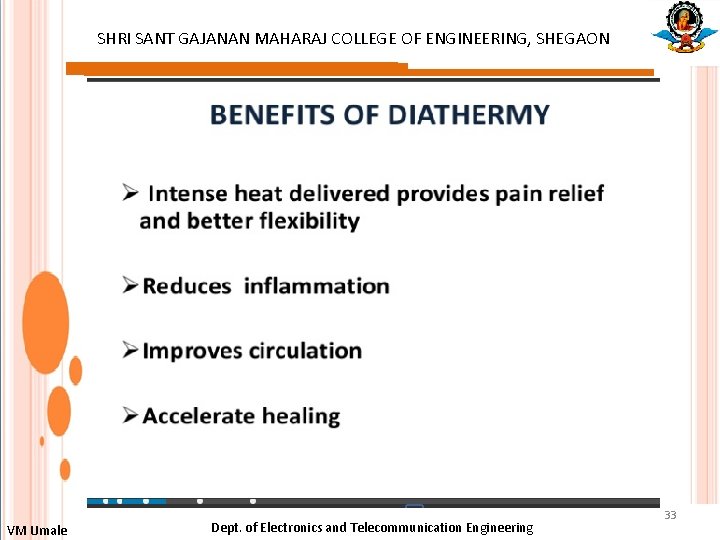

![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-33.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON Advantages of Diathermy: 1. Considerable penetration SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON Advantages of Diathermy: 1. Considerable penetration](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-34.jpg)
![Unit-IV: Therapeutic equipments v Diathermy v Short wave Diathermy v Microwave Diathermy v Ultrasonic Unit-IV: Therapeutic equipments v Diathermy v Short wave Diathermy v Microwave Diathermy v Ultrasonic](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-35.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-36.jpg)
![Unit-IV: Therapeutic equipments v Diathermy v Short wave Diathermy VM Umale Dept. of Electronics Unit-IV: Therapeutic equipments v Diathermy v Short wave Diathermy VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-37.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : O/P of RF Osc. Ckt SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : O/P of RF Osc. Ckt](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-38.jpg)

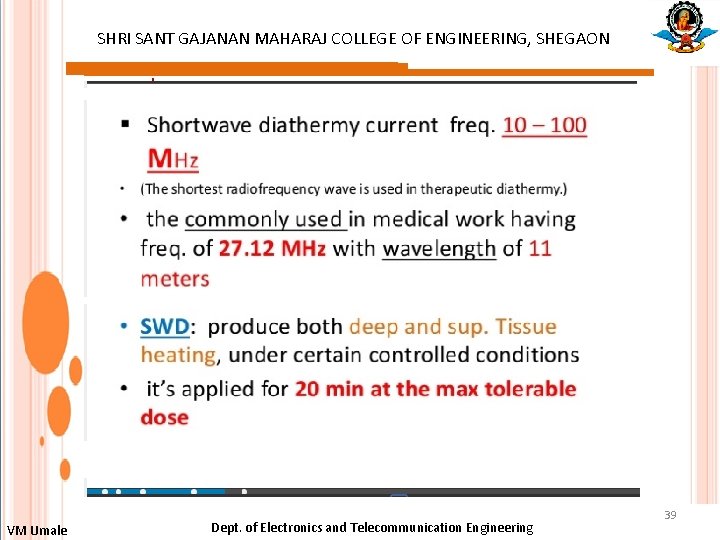

![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-39.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-40.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : Power Supply RF Oscillator Monitor SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : Power Supply RF Oscillator Monitor](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-41.jpg)
![SHORT-WAVE DIATHERMY § An Oscillating Circuit(HF Ckt) § A patient Circuit Tank circuit + SHORT-WAVE DIATHERMY § An Oscillating Circuit(HF Ckt) § A patient Circuit Tank circuit +](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-42.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-43.jpg)

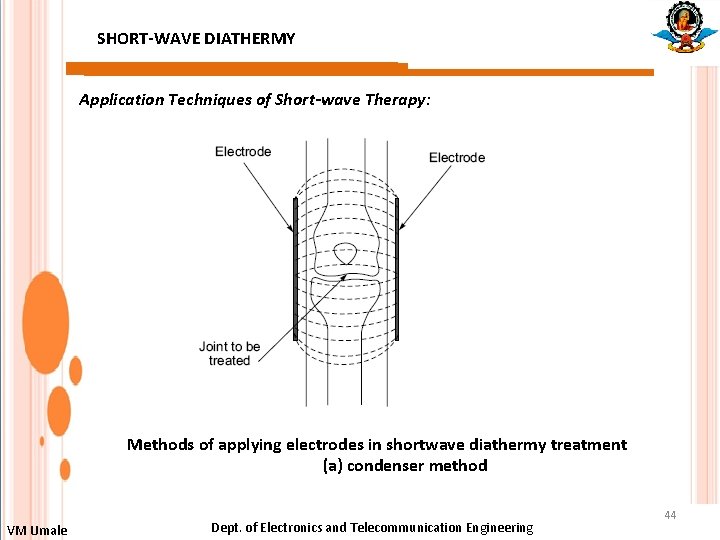

![SHORT-WAVE DIATHERMY Application Techniques of Short-wave Therapy: Methods of applying electrodes in shortwave diathermy SHORT-WAVE DIATHERMY Application Techniques of Short-wave Therapy: Methods of applying electrodes in shortwave diathermy](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-44.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-45.jpg)
![SHORT-WAVE DIATHERMY Application Techniques of Short-wave Therapy: Methods of applying electrodes in shortwave diathermy SHORT-WAVE DIATHERMY Application Techniques of Short-wave Therapy: Methods of applying electrodes in shortwave diathermy](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-46.jpg)

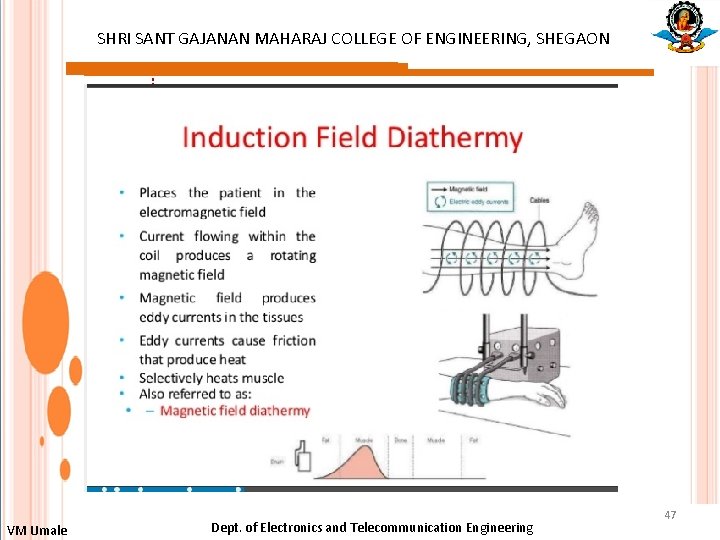

![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-47.jpg)

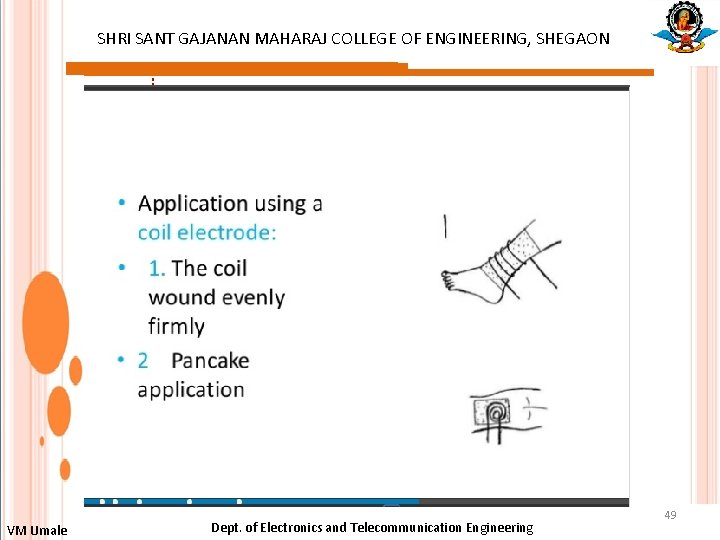

![SHORT-WAVE DIATHERMY Application Techniques of Short-wave Therapy: Methods of applying electrodes in shortwave diathermy SHORT-WAVE DIATHERMY Application Techniques of Short-wave Therapy: Methods of applying electrodes in shortwave diathermy](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-48.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-49.jpg)
![SHORT-WAVE DIATHERMY Application Techniques of Short-wave Therapy: Methods of applying electrodes in shortwave diathermy SHORT-WAVE DIATHERMY Application Techniques of Short-wave Therapy: Methods of applying electrodes in shortwave diathermy](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-50.jpg)
![Pulsed Shortwave Therapy Peak power vs mean power in a pulsed shortwave therapy machine Pulsed Shortwave Therapy Peak power vs mean power in a pulsed shortwave therapy machine](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-51.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-52.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-53.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-54.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-55.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-56.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-57.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-58.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-59.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-60.jpg)

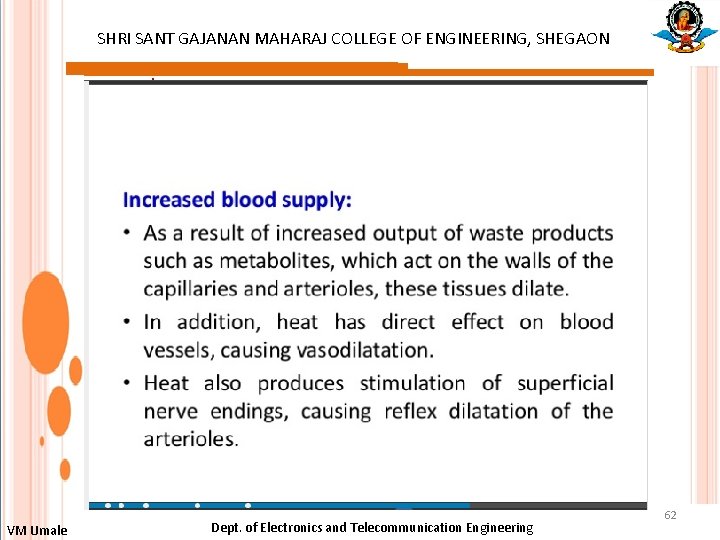

![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-61.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-62.jpg)

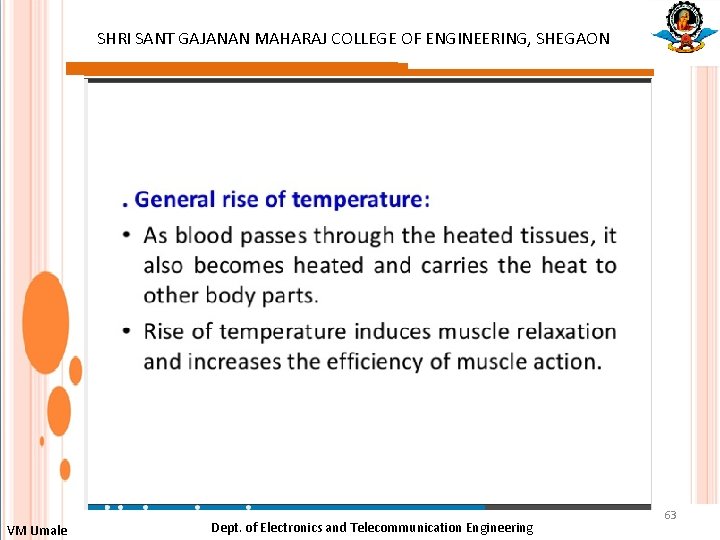

![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-63.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-64.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-65.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-66.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-67.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-68.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-69.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-70.jpg)

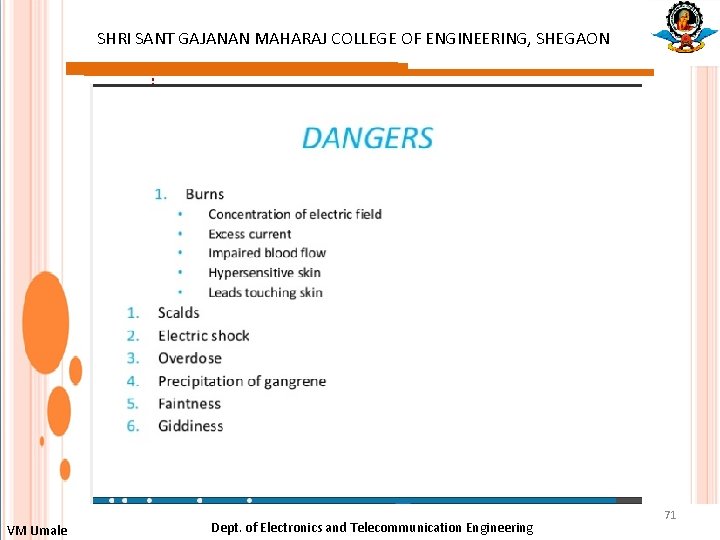

![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-71.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON 2. Microwave Diathermy: VM Umale Dept. SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON 2. Microwave Diathermy: VM Umale Dept.](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-72.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON 2. Microwave Diathermy: VM Umale Dept. SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON 2. Microwave Diathermy: VM Umale Dept.](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-73.jpg)
![MICROWAVE DIATHERMY Set up of a Microwave Diathermy Unit: Set up of a microwave MICROWAVE DIATHERMY Set up of a Microwave Diathermy Unit: Set up of a microwave](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-74.jpg)
![2. Microwave Diathermy: Simple Block Diagram: VM Umale Dept. of Electronics and Telecommunication Engineering 2. Microwave Diathermy: Simple Block Diagram: VM Umale Dept. of Electronics and Telecommunication Engineering](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-75.jpg)
![2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 76 2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 76](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-76.jpg)

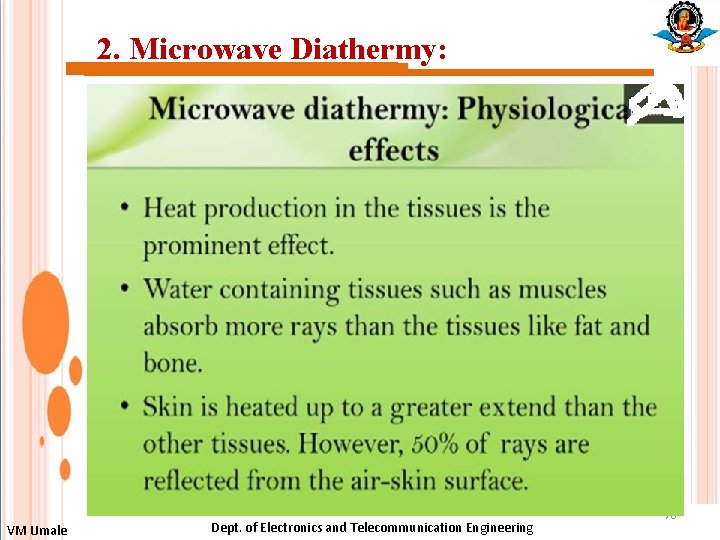

![2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 77 2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 77](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-77.jpg)
![2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 78 2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 78](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-78.jpg)
![MICROWAVE DIATHERMY Schematic Diagram of a Microwave Diathermy Unit: The magnetron--Cylindrical cathode surrounded by MICROWAVE DIATHERMY Schematic Diagram of a Microwave Diathermy Unit: The magnetron--Cylindrical cathode surrounded by](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-79.jpg)

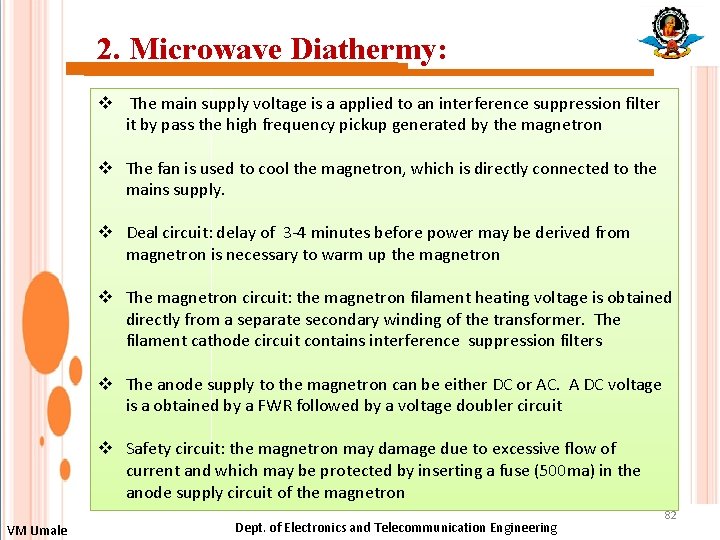

![2. Microwave Diathermy: v The main supply voltage is a applied interference suppression filter 2. Microwave Diathermy: v The main supply voltage is a applied interference suppression filter](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-80.jpg)
![2. Microwave Diathermy: v The magnetron consists of cylindrical cathode surrounded by anode structure 2. Microwave Diathermy: v The magnetron consists of cylindrical cathode surrounded by anode structure](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-81.jpg)
![2. Microwave Diathermy: v The main supply voltage is a applied to an interference 2. Microwave Diathermy: v The main supply voltage is a applied to an interference](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-82.jpg)
![2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 83 2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 83](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-83.jpg)
![2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 84 2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 84](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-84.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-85.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-86.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-87.jpg)
![2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 88 2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 88](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-88.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-89.jpg)

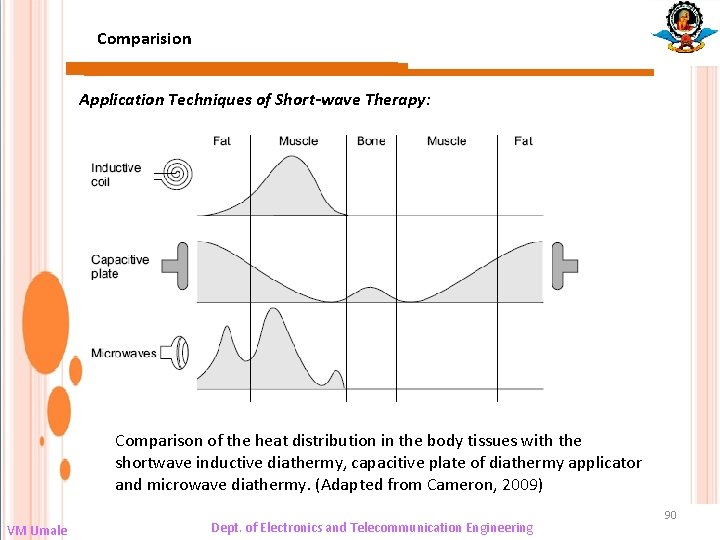

![Comparision Application Techniques of Short-wave Therapy: Comparison of the heat distribution in the body Comparision Application Techniques of Short-wave Therapy: Comparison of the heat distribution in the body](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-90.jpg)
![ULTRASONIC THERAPY UNIT An ultrasonic therapy unit Block Diagram The output of the osc. ULTRASONIC THERAPY UNIT An ultrasonic therapy unit Block Diagram The output of the osc.](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-91.jpg)

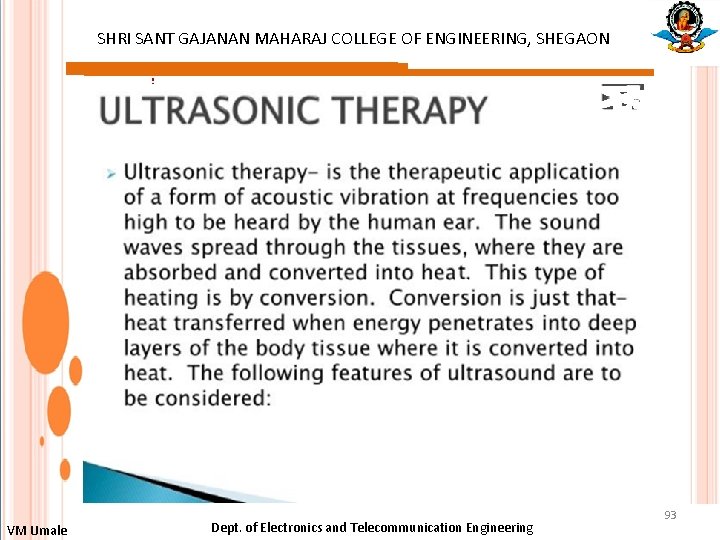

![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON The thermal effects of ultrasound are SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON The thermal effects of ultrasound are](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-92.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-93.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-94.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : 1 VM Umale Dept. of SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : 1 VM Umale Dept. of](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-95.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : 2 VM Umale Dept. of SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : 2 VM Umale Dept. of](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-96.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : 3 VM Umale Dept. of SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : 3 VM Umale Dept. of](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-97.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : 1 VM Umale Dept. of SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : 1 VM Umale Dept. of](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-98.jpg)
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : 2 VM Umale Dept. of SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : 2 VM Umale Dept. of](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-99.jpg)
![ULTRASONIC DIATHERMY Application Techniques Ultrasonic therapy in use VM Umale Dept. of Electronics and ULTRASONIC DIATHERMY Application Techniques Ultrasonic therapy in use VM Umale Dept. of Electronics and](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-100.jpg)

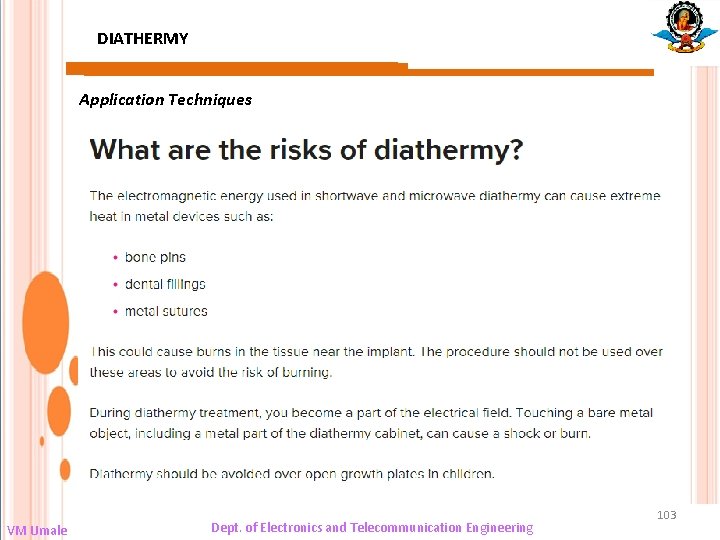

![DIATHERMY Application Techniques VM Umale Dept. of Electronics and Telecommunication Engineering 101 DIATHERMY Application Techniques VM Umale Dept. of Electronics and Telecommunication Engineering 101](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-101.jpg)
![DIATHERMY Application Techniques VM Umale Dept. of Electronics and Telecommunication Engineering 102 DIATHERMY Application Techniques VM Umale Dept. of Electronics and Telecommunication Engineering 102](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-102.jpg)
![DIATHERMY Application Techniques VM Umale Dept. of Electronics and Telecommunication Engineering 103 DIATHERMY Application Techniques VM Umale Dept. of Electronics and Telecommunication Engineering 103](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-103.jpg)
![DIATHERMY Application Techniques VM Umale Dept. of Electronics and Telecommunication Engineering 104 DIATHERMY Application Techniques VM Umale Dept. of Electronics and Telecommunication Engineering 104](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-104.jpg)
![Therapeutic Devices : THANKS A LOT VM Umale Dept. of Electronics and Telecommunication Engineering Therapeutic Devices : THANKS A LOT VM Umale Dept. of Electronics and Telecommunication Engineering](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-105.jpg)
![Therapeutic Devices CARDIAC PACEMAKER Necessity of CARDIAC PACEMAKER NSR: Normal sinus rhythm In abnormal Therapeutic Devices CARDIAC PACEMAKER Necessity of CARDIAC PACEMAKER NSR: Normal sinus rhythm In abnormal](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-106.jpg)
![CARDIAC PACEMAKER : Pacemaker pulses followed by QRS complex of the heart VM Umale CARDIAC PACEMAKER : Pacemaker pulses followed by QRS complex of the heart VM Umale](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-107.jpg)
![CARDIAC PACEMAKER Types of CARDIAC PACEMAKER Based on Implantation or location. External Cardiac Pacemaker CARDIAC PACEMAKER Types of CARDIAC PACEMAKER Based on Implantation or location. External Cardiac Pacemaker](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-108.jpg)
![CARDIAC PACEMAKER : A pacemaker basically consists of two parts: VM Umale (i) An CARDIAC PACEMAKER : A pacemaker basically consists of two parts: VM Umale (i) An](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-109.jpg)
![CARDIAC PACEMAKER : (iv)The electrode : Can be in the form of bipolar or CARDIAC PACEMAKER : (iv)The electrode : Can be in the form of bipolar or](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-110.jpg)
![CARDIAC PACEMAKER : Block diagram of external pacemaker VM Umale Dept. of Electronics and CARDIAC PACEMAKER : Block diagram of external pacemaker VM Umale Dept. of Electronics and](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-111.jpg)
![CARDIAC PACEMAKER : Impulses from three different types of pacemakers as seen on oscilloscope: CARDIAC PACEMAKER : Impulses from three different types of pacemakers as seen on oscilloscope:](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-112.jpg)
![CARDIAC PACEMAKER : The implantable pacemaker placed inside the human body VM Umale Dept. CARDIAC PACEMAKER : The implantable pacemaker placed inside the human body VM Umale Dept.](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-113.jpg)
![CARDIAC PACEMAKER : Various pacing modalities in demand pacemakers (a) ventricular demand inhibited : CARDIAC PACEMAKER : Various pacing modalities in demand pacemakers (a) ventricular demand inhibited :](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-114.jpg)
![CARDIAC PACEMAKER : Various pacing modalities in demand pacemakers (c) atrial synchronous (ventricular inhibited), CARDIAC PACEMAKER : Various pacing modalities in demand pacemakers (c) atrial synchronous (ventricular inhibited),](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-115.jpg)

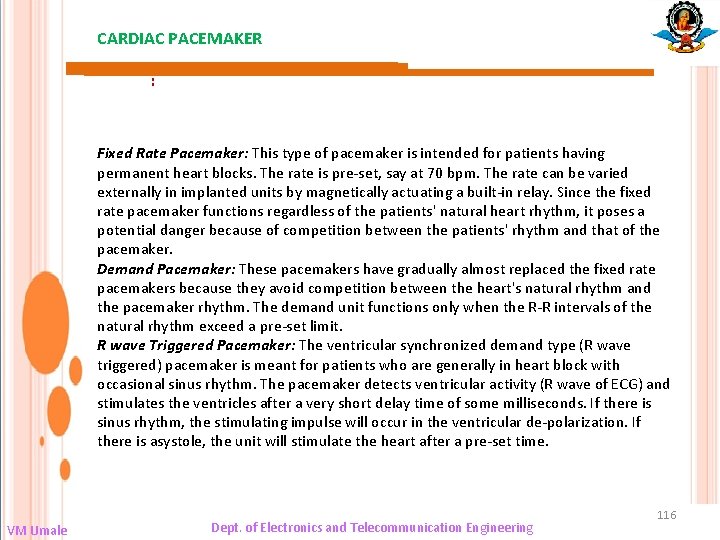

![CARDIAC PACEMAKER : Fixed Rate Pacemaker: This type of pacemaker is intended for patients CARDIAC PACEMAKER : Fixed Rate Pacemaker: This type of pacemaker is intended for patients](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-116.jpg)
![CARDIAC PACEMAKER : Ventricular Inhibited or R Wave Blocked Pacemaker: The ventricular inhibited type CARDIAC PACEMAKER : Ventricular Inhibited or R Wave Blocked Pacemaker: The ventricular inhibited type](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-117.jpg)
![CARDIAC PACEMAKER : Block diagram of a ventricular synchronous demand pacemaker VM Umale Dept. CARDIAC PACEMAKER : Block diagram of a ventricular synchronous demand pacemaker VM Umale Dept.](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-118.jpg)
![CARDIAC PACEMAKER : Magnetic—an electromagnet placed on the surface of the body establishes a CARDIAC PACEMAKER : Magnetic—an electromagnet placed on the surface of the body establishes a](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-119.jpg)

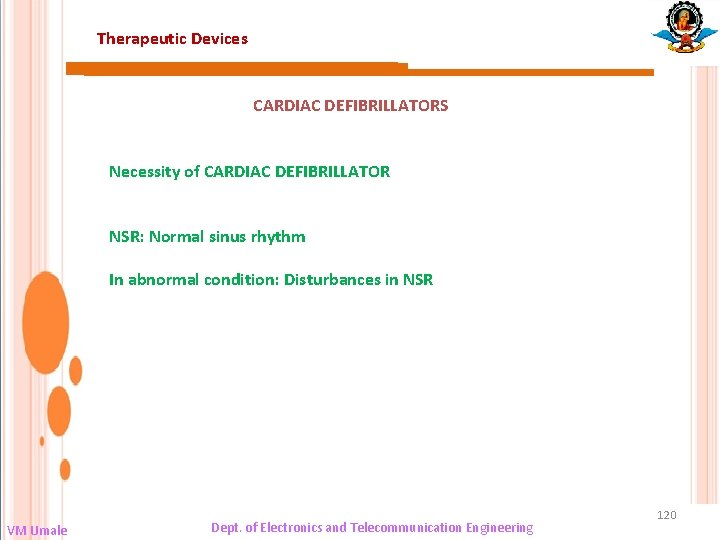

![Therapeutic Devices CARDIAC DEFIBRILLATORS Necessity of CARDIAC DEFIBRILLATOR NSR: Normal sinus rhythm In abnormal Therapeutic Devices CARDIAC DEFIBRILLATORS Necessity of CARDIAC DEFIBRILLATOR NSR: Normal sinus rhythm In abnormal](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-120.jpg)
![CARDIAC DEFIBRILLATORS �Defibrillator is a device that deliver a therapeutic dose of electrical energy CARDIAC DEFIBRILLATORS �Defibrillator is a device that deliver a therapeutic dose of electrical energy](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-121.jpg)
![CARDIAC DEFIBRILLATORS VM Umale Dept. of Electronics and Telecommunication Engineering 122 CARDIAC DEFIBRILLATORS VM Umale Dept. of Electronics and Telecommunication Engineering 122](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-122.jpg)
![CARDIAC DEFIBRILLATORS Defibrillation is a common treatment for life threatening Cardiac dysrhythmias, Ventricular fibrillation, CARDIAC DEFIBRILLATORS Defibrillation is a common treatment for life threatening Cardiac dysrhythmias, Ventricular fibrillation,](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-123.jpg)

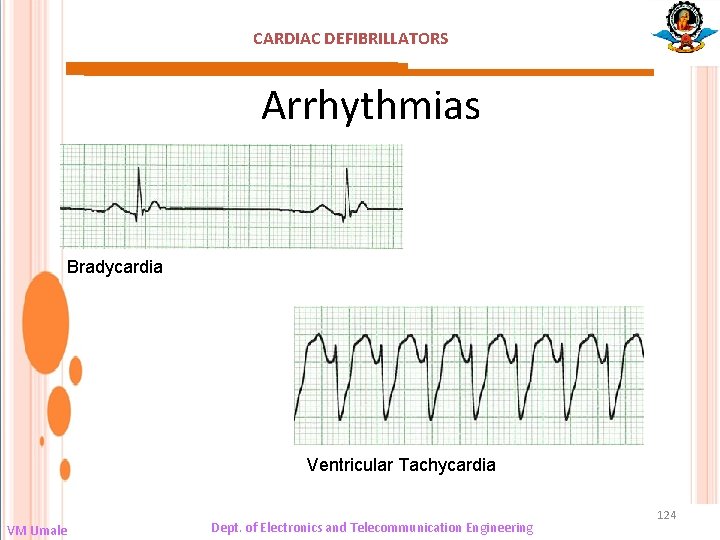

![CARDIAC DEFIBRILLATORS Arrhythmias Bradycardia Ventricular Tachycardia VM Umale Dept. of Electronics and Telecommunication Engineering CARDIAC DEFIBRILLATORS Arrhythmias Bradycardia Ventricular Tachycardia VM Umale Dept. of Electronics and Telecommunication Engineering](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-124.jpg)
![v. Ventricular fibrillation is a serious cardiac emergency resulting from asynchronous contraction of the v. Ventricular fibrillation is a serious cardiac emergency resulting from asynchronous contraction of the](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-125.jpg)

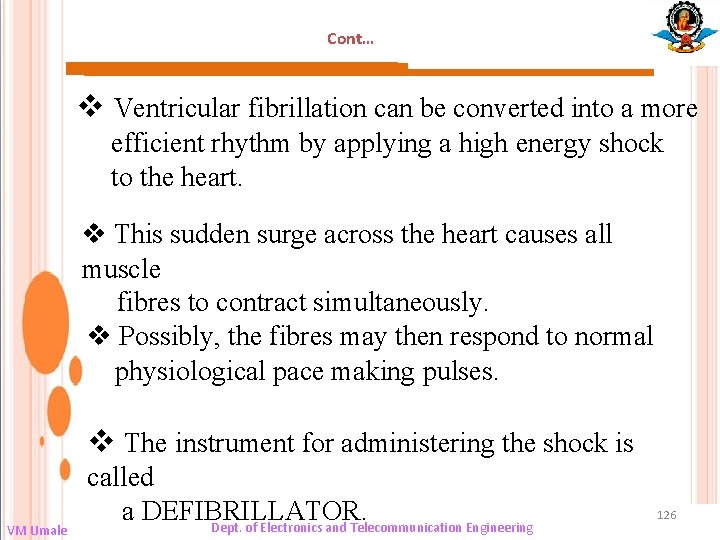

![Cont… v Ventricular fibrillation can be converted into a more efficient rhythm by applying Cont… v Ventricular fibrillation can be converted into a more efficient rhythm by applying](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-126.jpg)
![Defibrillation is performed to correct lifethreatening fibrillations of the heart, which could result in Defibrillation is performed to correct lifethreatening fibrillations of the heart, which could result in](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-127.jpg)
![v Energy storage capacitor is charged at relatively slow rate from AC line. v v Energy storage capacitor is charged at relatively slow rate from AC line. v](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-128.jpg)

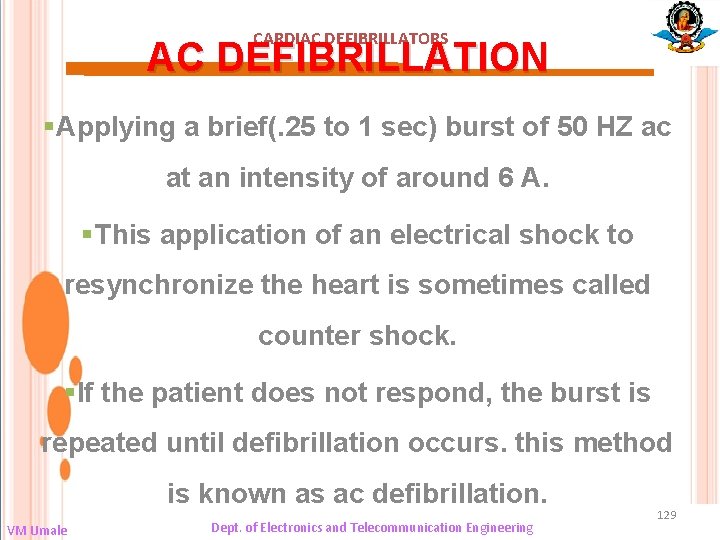

![CARDIAC DEFIBRILLATORS AC DEFIBRILLATION §Applying a brief(. 25 to 1 sec) burst of 50 CARDIAC DEFIBRILLATORS AC DEFIBRILLATION §Applying a brief(. 25 to 1 sec) burst of 50](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-129.jpg)

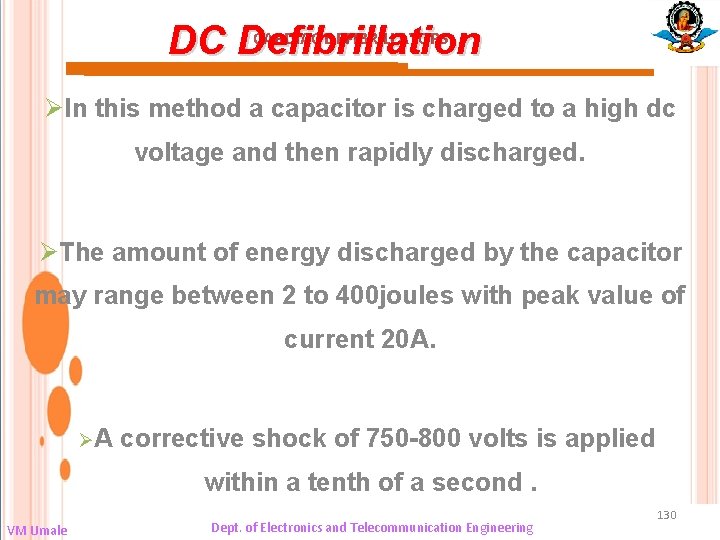

![CARDIAC DEFIBRILLATORS DC Defibrillation ØIn this method a capacitor is charged to a high CARDIAC DEFIBRILLATORS DC Defibrillation ØIn this method a capacitor is charged to a high](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-130.jpg)
![CIRCUIT OF DC DEFIBRILLATOR VM Umale Dept. of Electronics and Telecommunication Engineering 131 CIRCUIT OF DC DEFIBRILLATOR VM Umale Dept. of Electronics and Telecommunication Engineering 131](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-131.jpg)

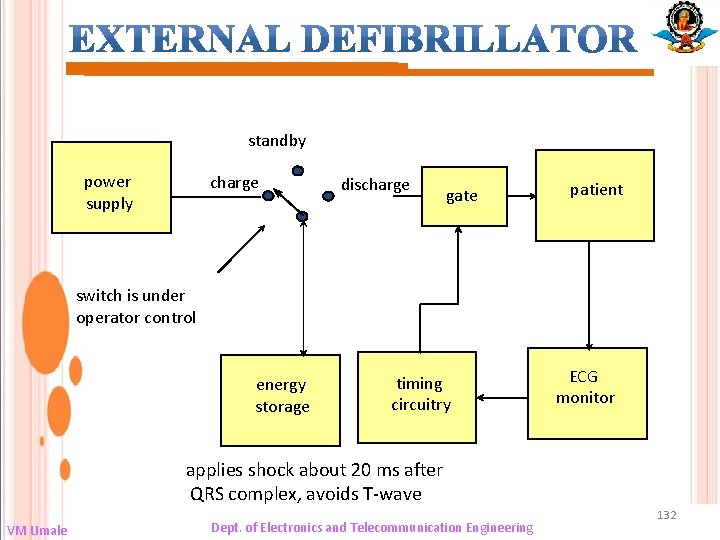

![standby power supply charge discharge gate patient switch is under operator control energy storage standby power supply charge discharge gate patient switch is under operator control energy storage](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-132.jpg)
![PRINCIPLE OF DEFIBRILLATOR Energy storage capacitor is charged at relatively slow rate from AC PRINCIPLE OF DEFIBRILLATOR Energy storage capacitor is charged at relatively slow rate from AC](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-133.jpg)
![Cont…. . The discharge resistance which the patient represents is roughly a ohmic resistance Cont…. . The discharge resistance which the patient represents is roughly a ohmic resistance](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-134.jpg)
![Manual external defibrillator Electrodes placed directly around the heart area of chest. Higher Voltage Manual external defibrillator Electrodes placed directly around the heart area of chest. Higher Voltage](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-135.jpg)

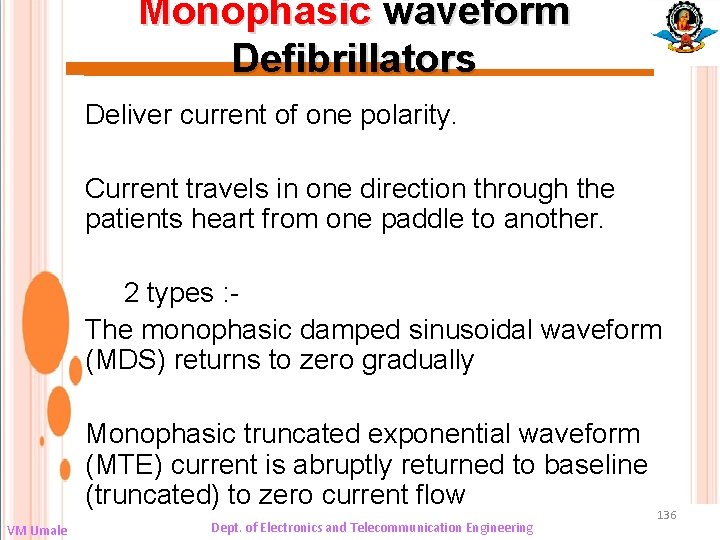

![Monophasic waveform Defibrillators Deliver current of one polarity. Current travels in one direction through Monophasic waveform Defibrillators Deliver current of one polarity. Current travels in one direction through](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-136.jpg)
![CARDIAC DEFIBRILLATORS MDS v/s MTE wave form VM Umale Dept. of Electronics and Telecommunication CARDIAC DEFIBRILLATORS MDS v/s MTE wave form VM Umale Dept. of Electronics and Telecommunication](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-137.jpg)

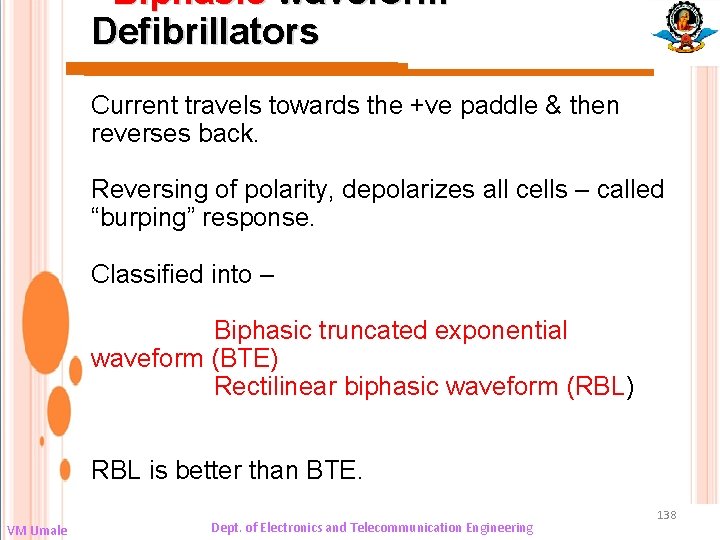

![Biphasic waveform Defibrillators Current travels towards the +ve paddle & then reverses back. Reversing Biphasic waveform Defibrillators Current travels towards the +ve paddle & then reverses back. Reversing](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-138.jpg)
![Biphasic truncated exponential waveform (BTE) v/s Rectilinear biphasic waveform (RLB) RBL VM Umale BTE Biphasic truncated exponential waveform (BTE) v/s Rectilinear biphasic waveform (RLB) RBL VM Umale BTE](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-139.jpg)

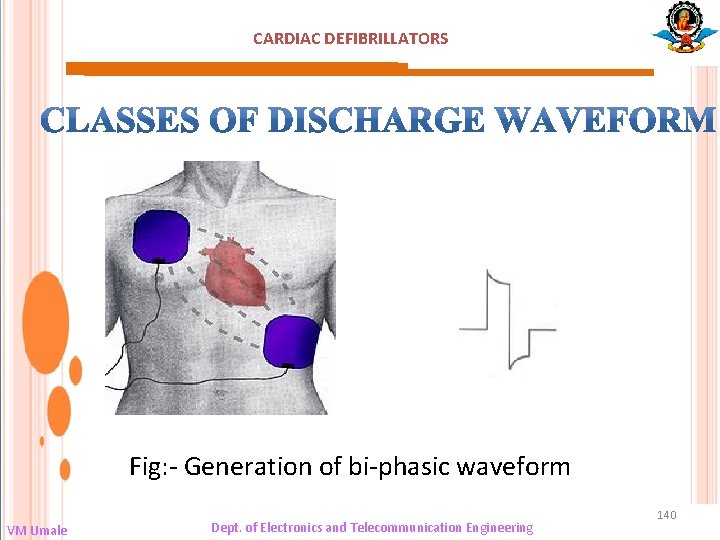

![CARDIAC DEFIBRILLATORS Fig: - Generation of bi-phasic waveform VM Umale Dept. of Electronics and CARDIAC DEFIBRILLATORS Fig: - Generation of bi-phasic waveform VM Umale Dept. of Electronics and](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-140.jpg)
![Advantages of Biphasic over Monophasic Less power – Less trauma – Less battery. Defibrillation Advantages of Biphasic over Monophasic Less power – Less trauma – Less battery. Defibrillation](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-141.jpg)
![Types of Defibrillators 1. Manual external defibrillator 2. Manual internal defibrillator 3. Semi-Automated External Types of Defibrillators 1. Manual external defibrillator 2. Manual internal defibrillator 3. Semi-Automated External](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-142.jpg)

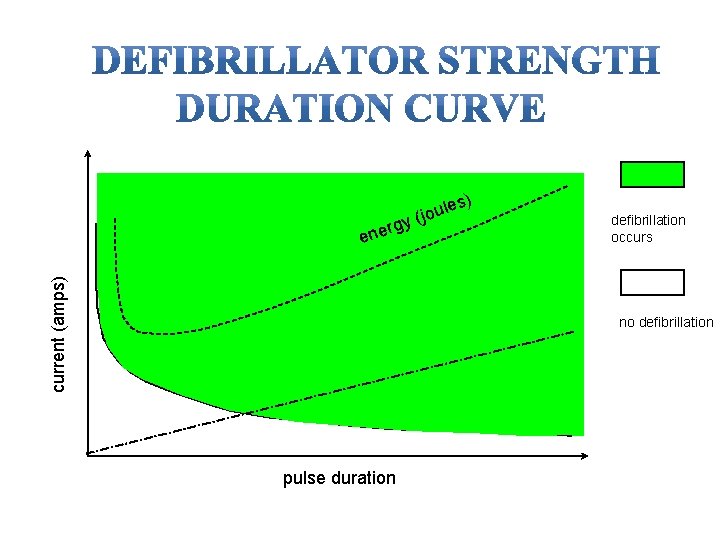

![) current (amps) rgy e n e ge char pulse duration les (jou bs) ) current (amps) rgy e n e ge char pulse duration les (jou bs)](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-143.jpg)
![• minimum defibrillation energy occurs for pulse durations of 3 - 10 ms • minimum defibrillation energy occurs for pulse durations of 3 - 10 ms](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-144.jpg)
![• operator selects energy delivered: 50 -360 joules, depends on: – intrinsic characteristics • operator selects energy delivered: 50 -360 joules, depends on: – intrinsic characteristics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-145.jpg)
![Higher voltages are required for external defibrillation than for internal defibrillation. A corrective shock Higher voltages are required for external defibrillation than for internal defibrillation. A corrective shock](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-146.jpg)

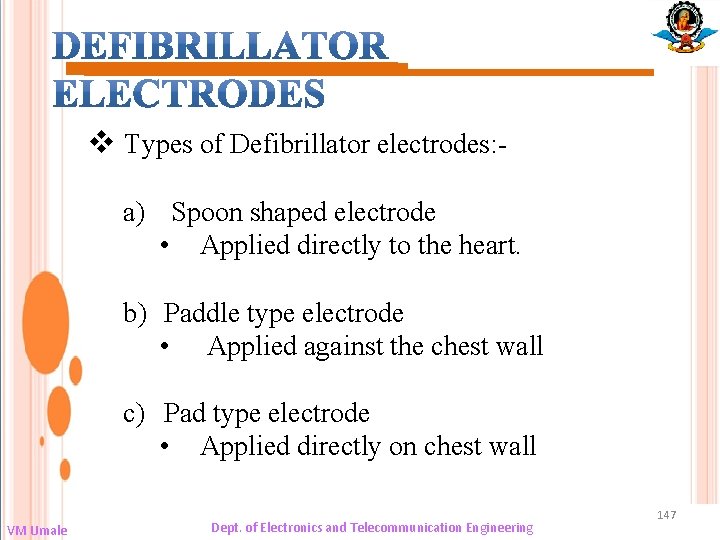

![v Types of Defibrillator electrodes: a) Spoon shaped electrode • Applied directly to the v Types of Defibrillator electrodes: a) Spoon shaped electrode • Applied directly to the](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-147.jpg)
![VM Umale Dept. of Electronics and Telecommunication Engineering 148 VM Umale Dept. of Electronics and Telecommunication Engineering 148](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-148.jpg)
![Fig. - Pad electrode VM Umale Dept. of Electronics and Telecommunication Engineering 149 Fig. - Pad electrode VM Umale Dept. of Electronics and Telecommunication Engineering 149](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-149.jpg)
![Anterior electrode pad Apex electrode pad Fig: anterior –apex scheme of electrode placement VM Anterior electrode pad Apex electrode pad Fig: anterior –apex scheme of electrode placement VM](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-150.jpg)
![a) Internal defibrillator • Electrodes placed directly to the heart • e. g. . a) Internal defibrillator • Electrodes placed directly to the heart • e. g. .](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-151.jpg)
![• F o r e a c h VM Umale m i n • F o r e a c h VM Umale m i n](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-152.jpg)
![v AED is a portable electronic device that automatically diagnoses the ventricular fibrillation in v AED is a portable electronic device that automatically diagnoses the ventricular fibrillation in](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-153.jpg)
![Therapeutic Devices : A VM Umale Dept. of Electronics and Telecommunication Engineering 154 Therapeutic Devices : A VM Umale Dept. of Electronics and Telecommunication Engineering 154](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-154.jpg)
- Slides: 154
![Therapeutic equipments UnitIV Therapeutic equipments Need of Physiological and electrotherapy equipment Cardiac pacemaker Cardiac Therapeutic equipments Unit-IV Therapeutic equipments Need of Physiological and electrotherapy equipment, Cardiac pacemaker, Cardiac](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-1.jpg)
Therapeutic equipments Unit-IV Therapeutic equipments Need of Physiological and electrotherapy equipment, Cardiac pacemaker, Cardiac defibrillators, Nerve and Muscle stimulators, Diathermy- Shortwave, Microwave, Ultrasonic VM Umale Dept. of Electronics and Telecommunication Engineering 1
![UnitIV Therapeutic equipments v Need of physiological equipments and Electrotherapy equipments v Nerve and Unit-IV: Therapeutic equipments v Need of physiological equipments and Electrotherapy equipments v Nerve and](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-2.jpg)
Unit-IV: Therapeutic equipments v Need of physiological equipments and Electrotherapy equipments v Nerve and muscle stimulators v Cardiac pacemakers v Cardiac defibrillators v Diathermy v Short wave Diathermy v Microwave Diathermy v Ultrasonic diathermy VM Umale Dept. of Electronics and Telecommunication Engineering 2
![Lecture23 Physiotherapy v Need of physiological equipments v Need of Electrotherapy equipments VM Umale Lecture-23 Physiotherapy v. Need of physiological equipments v. Need of Electrotherapy equipments VM Umale](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-3.jpg)
Lecture-23 Physiotherapy v. Need of physiological equipments v. Need of Electrotherapy equipments VM Umale Dept. of Electronics and Telecommunication Engineering 3
![Lecture23 Physiotherapy v Need of physiological equipments Physiotherapy Physical stimulus in the form of Lecture-23 Physiotherapy v. Need of physiological equipments Physiotherapy Physical stimulus in the form of](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-4.jpg)
Lecture-23 Physiotherapy v. Need of physiological equipments Physiotherapy Physical stimulus in the form of heat i. ii. Ø Simple heat radiation Application of high frequency Shortwave therapy Microwave Ultrasonic wave Principle of HF heat therapya) dipole molecules of the body are placed randomly b) they rotate or align according to the polarity of their charge in the direction of the field lines VM Umale Dept. of Electronics and Telecommunication Engineering 4
![Physiotherapy when the HF energy is utilized to get physical stimulus in the form Physiotherapy: when the HF energy is utilized to get physical stimulus in the form](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-5.jpg)
Physiotherapy: when the HF energy is utilized to get physical stimulus in the form of heat than that sort of physiotherapy is referred as thermotherapy ØMerits of physiotherapy- VM Umale ü Considerable penetration of heat as compared with simple heat applications. ü Uniform heating of deeper lying tissues i. e deep heating directly in the tissues of the body. ( Muscles, bones, internal organs) ü No burning of skin, No injury, Non traumatic Dept. of Electronics and Telecommunication Engineering 5
![ØMerits of physiotherapy ü No discomfort and skin burns even before adequate heat has ØMerits of physiotherapy- ü No discomfort and skin burns even before adequate heat has](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-6.jpg)
ØMerits of physiotherapy- ü No discomfort and skin burns even before adequate heat has penetrated to the deeper tissues like conventional techniques such as hot towels, IR lamps, heating pads ü Treatment can be controlled precisely by controlling amount of heat to be required. ü Permits localization of the heat to the region that has to be treated ü HF energy for heating is obtained by various equipments ü HF of 3 -30000 MHz(27. 12 MHz, 11 m) VM Umale Dept. of Electronics and Telecommunication Engineering 6
![DIATHERMY Diathermy means through heating or producing deep heating directly in the tissues of DIATHERMY ‘Diathermy' means 'through heating' or producing deep heating directly in the tissues of](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-7.jpg)
DIATHERMY ‘Diathermy' means 'through heating' or producing deep heating directly in the tissues of the body. Externally applied sources of heat like hot towels, infrared lamps and electric heating pads often produce discomfort and skin burns long before adequate heat has penetrated to the deeper tissues. In diathermy technique, the subject's body becomes a part of the electrical circuit and the heat is produced within the body and not transferred through the skin VM Umale Dept. of Electronics and Telecommunication Engineering 7
![Electrotherapy Need of Electrotherapy equipments ØThe biological reactions produced due to Low volt low Electrotherapy Need of Electrotherapy equipments ØThe biological reactions produced due to Low volt, low](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-8.jpg)
Electrotherapy Need of Electrotherapy equipments ØThe biological reactions produced due to Low volt, low freq. Impulse currents Ø The biological reactions are adopted in this therapy for the management of many diseases affecting muscles and nerves. ØThe technique is used forØ The treatment of paralysis with totally or partially degenerated muscles Ø The treatment of pain, muscular spasm, peripheral circulatory disturbances VM Umale Dept. of Electronics and Telecommunication Engineering 8
![Electrotherapy Typical it curves of a normal muscle and degenerated muscle The curve shows Electrotherapy Typical i-t curves of a normal muscle and degenerated muscle. The curve shows](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-9.jpg)
Electrotherapy Typical i-t curves of a normal muscle and degenerated muscle. The curve shows that decreasing excitability with progressive degeneration requires extended stimulation times and increased current strength for achieving successful stimulation The chronaxie and rheobase can be easily read from the i-t curves. The rheobase is the minimum intensity of current that will produce a response if the stimulus is of infinite duration, in practice an impulse of 100 ms being adequate for estimating this. The chronaxie is the min. duration of impulse that will produce a response with a current of double the rheobase. For example if the rheobase is 6 m. A, the chronaxie is the duration of the shortest impulse that will produce a muscle contraction with a current of 12 m. A. VM Umale Dept. of Electronics and Telecommunication Engineering 9
![Electrotherapy Ø Different types of current impulses used in electrotherapy Ø Galvanic current Ø Electrotherapy Ø Different types of current impulses used in electrotherapy Ø Galvanic current Ø](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-10.jpg)
Electrotherapy Ø Different types of current impulses used in electrotherapy Ø Galvanic current Ø Interrupted Galvanic current Ø Faradic current Ø Surging or faradic surge currents Ø Exponentially progressive current Ø Biphasic stimulation VM Umale Dept. of Electronics and Telecommunication Engineering 10
![Electrotherapy Current waveforms normally employed in electrodiagnosis and electrotherapy 1 galvanic 2 Faradic 3 Electrotherapy: Current waveforms normally employed in electrodiagnosis and electrotherapy: (1) galvanic (2) Faradic (3)](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-11.jpg)
Electrotherapy: Current waveforms normally employed in electrodiagnosis and electrotherapy: (1) galvanic (2) Faradic (3) Exponential (4) Rectangular pulse with adjustable slope (5) Surged Faradic. VM Umale Dept. of Electronics and Telecommunication Engineering 11
![The most commonly used pulse waveforms are discussed below 1 Galvanic Current Ø The most commonly used pulse waveforms are discussed below. 1. Galvanic Current: : Ø](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-12.jpg)
The most commonly used pulse waveforms are discussed below. 1. Galvanic Current: : Ø A steady flow of direct current is passed through a tissue, Ø its effect is primarily chemical. Galvanic current / direct current/ galvanism/ continuous current / constant current. Used for the – Ø It causes the movement of ions and their collection at the skin areas lying immediately beneath the electrodes. The effect is manifested most clearly in a bright red coloration. It is an expression of hyperaemia (increased blood flow). v. Preliminary treatment of atonic paralysis v. Treatment of disturbance in the blood flow. v Iontophores Int. of drugs into the body thr. the skin by electrolytic means. ) VM Umale § The intensity of the current passed thr any part of the body < 0. 3 to 0. 5 ma/cm 2. 12 § The duration of the treatment is generally 10– 20 minutes. Dept. of Electronics and Telecommunication Engineering
![The most commonly used pulse waveforms are discussed below 2 Faradic Current Faradic Current The most commonly used pulse waveforms are discussed below. 2. Faradic Current: Faradic: Current:](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-13.jpg)
The most commonly used pulse waveforms are discussed below. 2. Faradic Current: Faradic: Current: ü It is a sequence of pulses with a defined shape and current intensity ü The pulse duration is about 1 ms with a triangular waveform ü Interval = 20 msec ü Duration of about 20 minutes. § It acts upon muscle tissue and upon the motor nerves to produce muscle contractions. § There is no ion transfer and consequently, no chemical effect. VM Umale § Used for the treatment of muscle weakness after lengthy immobilization § Used in Disuse atrophy. Dept. of Electronics and Telecommunication Engineering 13
![The most commonly used pulse waveforms are discussed below 3 Surged Faradic Current The most commonly used pulse waveforms are discussed below. 3. Surged Faradic Current: :](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-14.jpg)
The most commonly used pulse waveforms are discussed below. 3. Surged Faradic Current: : Surging Current: The resulting shape of the current waveform is called a surging current when The peak current intensity applied to the patient increases and decreases rhythmically along with the rate of increase and decrease of the peak amplitude is slow Application of the Faradic surge current – ü The treatment of functional paralysis. ü The treatment of spasm and pain. The surge rate is usually from 6 -60 surges/min. in most of the inst. The ratio of interval to the duration of the surging is also adjustable so that graded exercise may be administered VM Umale Dept. of Electronics and Telecommunication Engineering 14
![The most commonly used pulse waveforms are discussed below 4 Exponentially Progressive Current The most commonly used pulse waveforms are discussed below. 4. Exponentially Progressive Current: :](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-15.jpg)
The most commonly used pulse waveforms are discussed below. 4. Exponentially Progressive Current: : ü Useful for the treatment of severe paralysis ü for the treatment of the paralysed muscles § The main advantage of this method lies in the possibility of providing selective stimulation. This means that the surrounding healthy tissues even in the immediate neighbourhood of the diseased muscles are not stimulated § The slope of the exponential pulse is kept variable. VM Umale Dept. of Electronics and Telecommunication Engineering 15
![Other type of pulse Biphasic Stimulation The cell recovery from the effect Other type of pulse Biphasic Stimulation: : § The cell recovery from the effect](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-16.jpg)
Other type of pulse Biphasic Stimulation: : § The cell recovery from the effect of a stimulus current can be hastened by the passage of a lower intensity current of opposing polarity over a longer period so that the net quantity of electricity is zero. § Combination of positive and negative pulses is called biphasic stimulation. § The stimulating pulse may be followed by a pulse of opposite polarity of onetenth the amplitude and 10 times the width. § Biphasic stimulation also helps to neutralize the polarization of the recording electrodes in case silver-silver chloride electrodes are not used. This means that there are no electrolytic effects, nor are any macroscopic changes affecting either the skin or the electrodes observed. § Also, there is reduced muscle fatigue, since each current pulse is immediately followed by an opposite current phase of the same magnitude. § The stimulation current intensity required during treatment is less as compared with monophasic currents. VM Umale Dept. of Electronics and Telecommunication Engineering 16
![Features of Electrotherapy Ø To manage many diseases affecting muscles and nerves Ø For Features of Electrotherapy: Ø To manage many diseases affecting muscles and nerves Ø For](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-17.jpg)
Features of Electrotherapy: Ø To manage many diseases affecting muscles and nerves Ø For the treatment of paralysis with totally or partially degenerated muscles Ø Used for the treatment of pain, muscular spasm Ø Widely used with availability of safe and simplified equipments Ø Apparatus are either of constant voltage or constant current types Ø Several types of commercial units are available which gives specific output waveforms for specific applications VM Umale Dept. of Electronics and Telecommunication Engineering 17
![Cont Ø Devices produce output current waveforms to cover the whole range of Cont…. . Ø Devices produce output current waveforms to cover the whole range of](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-18.jpg)
Cont…. . Ø Devices produce output current waveforms to cover the whole range of electro-diagnostic and therapeutic possibilities Ø VM Umale Modern electro-therapy units are up/uc controlled with automatic self test, automatic settings of the basic programs and also possible to indicate operating errors on the visual display Dept. of Electronics and Telecommunication Engineering 18
![Stimulators Ø Stimulators refers to an external influence Ø Electrical mechanical or chemical Ø Stimulators Ø Stimulators refers to an external influence Ø Electrical, mechanical or chemical Ø](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-19.jpg)
Stimulators Ø Stimulators refers to an external influence Ø Electrical, mechanical or chemical Ø All cells are sensitive to some degree to artificial electrical stimulation(Cells may depolarized and repolarised) Ø The physiological action of stimulation depends on the passage of current across the cell membrane ØStimulators are the devicesØ To stimulate innervated, denervated muscles and nerves Ø For the treatment of paralysis with totally or partially denervated muscles Ø For the treatment of pain, muscular spasms and peripheral circulatory disturbances VM Umale Dept. of Electronics and Telecommunication Engineering 19
![Stimulators TYPES OF STIMULATORS The applied voltage current are the important parameters and Stimulators TYPES OF STIMULATORS The applied voltage & current are the important parameters and](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-20.jpg)
Stimulators TYPES OF STIMULATORS The applied voltage & current are the important parameters and which are related with source and load impedance ØStimulators are classified based on the different types of current waveforms ØGalvanic current ØInterrupted galvanic current ØFaradic current ØSurged faradic current ØExponential current VM Umale Dept. of Electronics and Telecommunication Engineering 20
![Electrotherapy The typical specifications of an electrodiagnostic therapy unit are as follows Galvanic current Electrotherapy The typical specifications of an electro-diagnostic therapy unit are as follows: Galvanic current](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-21.jpg)
Electrotherapy The typical specifications of an electro-diagnostic therapy unit are as follows: Galvanic current up to 80 m. A, ripple less than 0. 5% as constant current or surging current with adjustable surge frequency from 6 to 30 surges per minute Exponentially progressive current pulse sequences with continuously variable pulse duration from 0. 01 to 1000 ms and independently adjustable interval duration of 1 to 10, 000 ms. The pulse form can be set continuously between triangular and rectangular forms; Faradic surging current with 25 surges per minute, up to 80 m. A. Precision and constancy of the values set better than ± 10%; peak current measurement facility. Constant current circuit, both poles earth-free. VM Umale Dept. of Electronics and Telecommunication Engineering 21
![Stimulators 1 Versatile electro diagnostic therapeutic stimulator it covers whole range of electro diagnostic Stimulators 1. Versatile electro diagnostic therapeutic stimulator it covers whole range of electro diagnostic](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-22.jpg)
Stimulators 1. Versatile electro diagnostic therapeutic stimulator it covers whole range of electro diagnostic and therapeutic possibilities BLOCK DIAGRAM – Schematic diagram of a diagnostic/therapeutic stimulating unit VM Umale Dept. of Electronics and Telecommunication Engineering 22
![Stimulators BLOCK DIAGRAM 2 Nerve stimulator VM Umale Dept of Electronics and Telecommunication Stimulators BLOCK DIAGRAM – 2. Nerve stimulator- VM Umale Dept. of Electronics and Telecommunication](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-23.jpg)
Stimulators BLOCK DIAGRAM – 2. Nerve stimulator- VM Umale Dept. of Electronics and Telecommunication Engineering 23
![Stimulators Other stimulators 3 Transcutaneous electrical Nerve stimulatorTENS Transcutaneous electrical nerve stimulation TENS therapy Stimulators Other stimulators 3. Transcutaneous electrical Nerve stimulator(TENS) Transcutaneous electrical nerve stimulation (TENS) therapy](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-24.jpg)
Stimulators Other stimulators 3. Transcutaneous electrical Nerve stimulator(TENS) Transcutaneous electrical nerve stimulation (TENS) therapy involves the use of low-voltage electric currents to treat pain. Electrodes or mediums for electricity to travel to the body, placed on the body at the site of pain deliver electricity that travels through the nerve fibers. The electric currents block the pain receptors from being sent from the nerves to the brain. A patient will receive a small, battery operated TENS machine to use at home. In most cases, a doctor, physical therapist, or acupuncturist adjusts the machine to the correct settings. The provider shows the patient how to use the machine before sending him or her home with the TENS device. VM Umale Dept. of Electronics and Telecommunication Engineering 24
![Stimulators TENS therapy can be used to treat both chronic long lasting and acute Stimulators TENS therapy can be used to treat both chronic (long lasting) and acute](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-25.jpg)
Stimulators TENS therapy can be used to treat both chronic (long lasting) and acute (short-term) pain. The most common conditions that TENS therapy is used to treat are: ü Osteoporosis-related joint, bone, or muscle problems ü Fibromyalgia-related joint, bone, or muscle problems ü Tendinitis (muscle tissue inflammation) ü Bursitis (inflammation of the fluid-filled pads that cushion the joints) ü Neck pain ü Labor pain ü Cancer pain VM Umale Dept. of Electronics and Telecommunication Engineering 25
![Stimulators Other stimulators 4 Spinal cord stimulator 5 Magnetic stimulator 6 Bladder stimulator 7 Stimulators Other stimulators 4. Spinal cord stimulator 5. Magnetic stimulator 6. Bladder stimulator 7.](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-26.jpg)
Stimulators Other stimulators 4. Spinal cord stimulator 5. Magnetic stimulator 6. Bladder stimulator 7. Cerebellar stimulator VM Umale Dept. of Electronics and Telecommunication Engineering 26
![Therapeutic Devices THANKS A LOT VM Umale Dept of Electronics and Telecommunication Engineering Therapeutic Devices : THANKS A LOT VM Umale Dept. of Electronics and Telecommunication Engineering](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-27.jpg)
Therapeutic Devices : THANKS A LOT VM Umale Dept. of Electronics and Telecommunication Engineering 27
![UnitIV Therapeutic equipments v VM Umale Diathermy Dept of Electronics and Telecommunication Engineering 28 Unit-IV: Therapeutic equipments v VM Umale Diathermy Dept. of Electronics and Telecommunication Engineering 28](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-28.jpg)
Unit-IV: Therapeutic equipments v VM Umale Diathermy Dept. of Electronics and Telecommunication Engineering 28
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-29.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 29
![Cont Ø In diathermy technique the subjects body becomes a part of the electrical Cont… Ø In diathermy technique, the subject's body becomes a part of the electrical](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-30.jpg)
Cont… Ø In diathermy technique, the subject's body becomes a part of the electrical circuit and the heat is produced within the body and not transferred through the skin Ø Draw back of externally applied sources of heat like hot towels, infrared lamps and electric heating pads often produce discomfort and skin burns long before adequate heat has penetrated to the deeper tissues, get eliminated in diathermy technique VM Umale Dept. of Electronics and Telecommunication Engineering 30
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-31.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 31
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-32.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 32
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-33.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 33
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON Advantages of Diathermy 1 Considerable penetration SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON Advantages of Diathermy: 1. Considerable penetration](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-34.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON Advantages of Diathermy: 1. Considerable penetration of heat as compare to conventional techniques 2. Deeper lying tissues, muscles, bones, internal organs gets uniform heat 3. The treatment can be controlled precisely 4. Careful placement of the electrodes permits the localization of the heat to the region to be treated 5. The amount of heat can be closely adjusted by means of circuit parameters 6. HF currents do not stimulate motor/sensory nerves, nor they produce any muscle contraction 7. No discomfort is caused to the subject. VM Umale Dept. of Electronics and Telecommunication Engineering 34
![UnitIV Therapeutic equipments v Diathermy v Short wave Diathermy v Microwave Diathermy v Ultrasonic Unit-IV: Therapeutic equipments v Diathermy v Short wave Diathermy v Microwave Diathermy v Ultrasonic](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-35.jpg)
Unit-IV: Therapeutic equipments v Diathermy v Short wave Diathermy v Microwave Diathermy v Ultrasonic diathermy VM Umale Dept. of Electronics and Telecommunication Engineering 35
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-36.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 36
![UnitIV Therapeutic equipments v Diathermy v Short wave Diathermy VM Umale Dept of Electronics Unit-IV: Therapeutic equipments v Diathermy v Short wave Diathermy VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-37.jpg)
Unit-IV: Therapeutic equipments v Diathermy v Short wave Diathermy VM Umale Dept. of Electronics and Telecommunication Engineering 37
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON OP of RF Osc Ckt SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : O/P of RF Osc. Ckt](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-38.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : O/P of RF Osc. Ckt 27. 12 MHz, 11 m, 20 min Continuous, pulsed VM Umale Dept. of Electronics and Telecommunication Engineering 38
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-39.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 39
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-40.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 40
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON Power Supply RF Oscillator Monitor SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : Power Supply RF Oscillator Monitor](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-41.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : Power Supply RF Oscillator Monitor Control Panel Isolation Transformer To patient electrodes RF energy heats the tissues and promotes healing of injured tissues and inflammations VM Umale Dept. of Electronics and Telecommunication Engineering 41
![SHORTWAVE DIATHERMY An Oscillating CircuitHF Ckt A patient Circuit Tank circuit SHORT-WAVE DIATHERMY § An Oscillating Circuit(HF Ckt) § A patient Circuit Tank circuit +](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-42.jpg)
SHORT-WAVE DIATHERMY § An Oscillating Circuit(HF Ckt) § A patient Circuit Tank circuit + Ve FB Patient’s resonator ckt Simplified circuit diagram of a short wave diathermy unit § Intensity of Current regulates by Controlling-1. Anode Voltage(4 KV), 2. Filament I (ma), 3. adj. the grid bias thr Rg, 4. adj. position of the resonator coil wrt the osc. coil VM Umale Dept. of Electronics and Telecommunication Engineering 42
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-43.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 43
![SHORTWAVE DIATHERMY Application Techniques of Shortwave Therapy Methods of applying electrodes in shortwave diathermy SHORT-WAVE DIATHERMY Application Techniques of Short-wave Therapy: Methods of applying electrodes in shortwave diathermy](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-44.jpg)
SHORT-WAVE DIATHERMY Application Techniques of Short-wave Therapy: Methods of applying electrodes in shortwave diathermy treatment (a) condenser method VM Umale Dept. of Electronics and Telecommunication Engineering 44
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-45.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 45
![SHORTWAVE DIATHERMY Application Techniques of Shortwave Therapy Methods of applying electrodes in shortwave diathermy SHORT-WAVE DIATHERMY Application Techniques of Short-wave Therapy: Methods of applying electrodes in shortwave diathermy](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-46.jpg)
SHORT-WAVE DIATHERMY Application Techniques of Short-wave Therapy: Methods of applying electrodes in shortwave diathermy treatment (c )Shortwave diathermy (with capacitive electrodes) in use VM Umale Dept. of Electronics and Telecommunication Engineering 46
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-47.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 47
![SHORTWAVE DIATHERMY Application Techniques of Shortwave Therapy Methods of applying electrodes in shortwave diathermy SHORT-WAVE DIATHERMY Application Techniques of Short-wave Therapy: Methods of applying electrodes in shortwave diathermy](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-48.jpg)
SHORT-WAVE DIATHERMY Application Techniques of Short-wave Therapy: Methods of applying electrodes in shortwave diathermy treatment (a) Inductive method VM Umale Dept. of Electronics and Telecommunication Engineering 48
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-49.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 49
![SHORTWAVE DIATHERMY Application Techniques of Shortwave Therapy Methods of applying electrodes in shortwave diathermy SHORT-WAVE DIATHERMY Application Techniques of Short-wave Therapy: Methods of applying electrodes in shortwave diathermy](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-50.jpg)
SHORT-WAVE DIATHERMY Application Techniques of Short-wave Therapy: Methods of applying electrodes in shortwave diathermy treatment (d) Inductive heating by a coil housed in a drum. VM Umale Dept. of Electronics and Telecommunication Engineering 50
![Pulsed Shortwave Therapy Peak power vs mean power in a pulsed shortwave therapy machine Pulsed Shortwave Therapy Peak power vs mean power in a pulsed shortwave therapy machine](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-51.jpg)
Pulsed Shortwave Therapy Peak power vs mean power in a pulsed shortwave therapy machine Pulsed shortwave diathermy machine with monode applicator VM Umale Dept. of Electronics and Telecommunication Engineering 51
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-52.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 52
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-53.jpg)

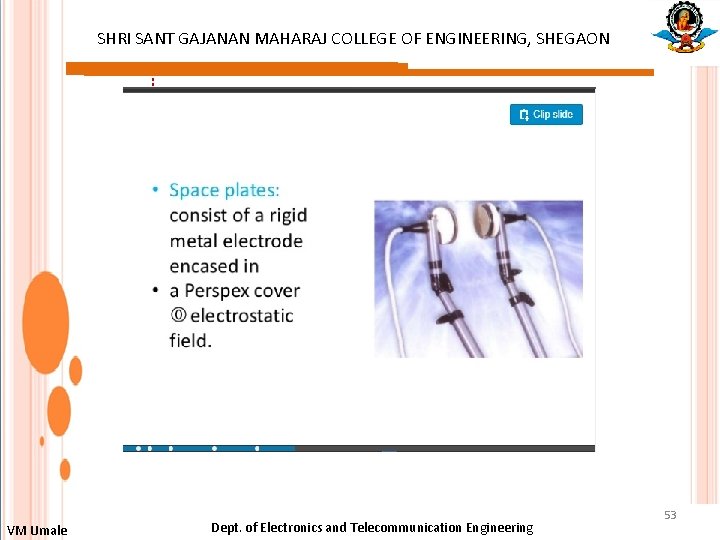

SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 53
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-54.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 54
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-55.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 55
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-56.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 56
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-57.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 57
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-58.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 58
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-59.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 59
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-60.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 60
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-61.jpg)

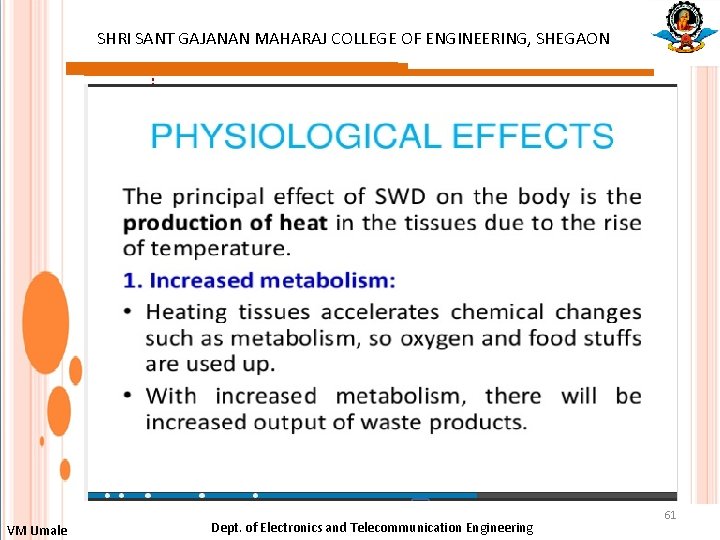

SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 61
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-62.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 62
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-63.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 63
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-64.jpg)

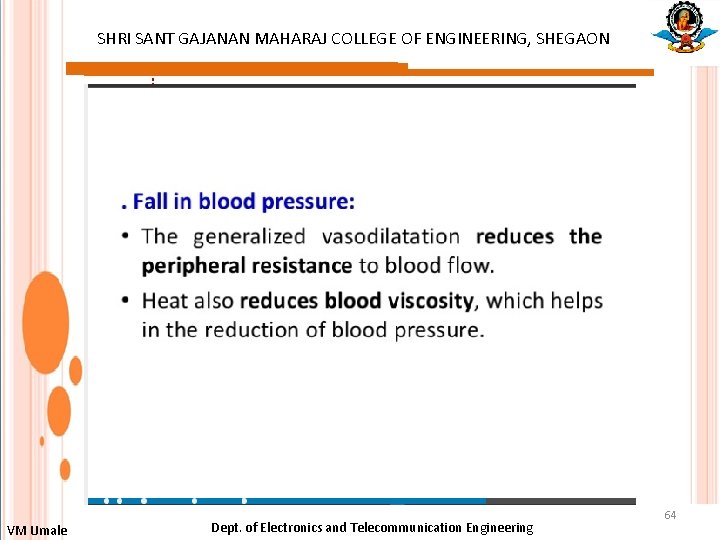

SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 64
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-65.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 65
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-66.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 66
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-67.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 67
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-68.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 68
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-69.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 69
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-70.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 70
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-71.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 71
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON 2 Microwave Diathermy VM Umale Dept SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON 2. Microwave Diathermy: VM Umale Dept.](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-72.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON 2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 72
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON 2 Microwave Diathermy VM Umale Dept SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON 2. Microwave Diathermy: VM Umale Dept.](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-73.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON 2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 73
![MICROWAVE DIATHERMY Set up of a Microwave Diathermy Unit Set up of a microwave MICROWAVE DIATHERMY Set up of a Microwave Diathermy Unit: Set up of a microwave](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-74.jpg)
MICROWAVE DIATHERMY Set up of a Microwave Diathermy Unit: Set up of a microwave diathermy VM Umale Dept. of Electronics and Telecommunication Engineering 74
![2 Microwave Diathermy Simple Block Diagram VM Umale Dept of Electronics and Telecommunication Engineering 2. Microwave Diathermy: Simple Block Diagram: VM Umale Dept. of Electronics and Telecommunication Engineering](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-75.jpg)
2. Microwave Diathermy: Simple Block Diagram: VM Umale Dept. of Electronics and Telecommunication Engineering 75
![2 Microwave Diathermy VM Umale Dept of Electronics and Telecommunication Engineering 76 2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 76](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-76.jpg)
2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 76
![2 Microwave Diathermy VM Umale Dept of Electronics and Telecommunication Engineering 77 2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 77](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-77.jpg)
2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 77
![2 Microwave Diathermy VM Umale Dept of Electronics and Telecommunication Engineering 78 2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 78](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-78.jpg)
2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 78
![MICROWAVE DIATHERMY Schematic Diagram of a Microwave Diathermy Unit The magnetronCylindrical cathode surrounded by MICROWAVE DIATHERMY Schematic Diagram of a Microwave Diathermy Unit: The magnetron--Cylindrical cathode surrounded by](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-79.jpg)
MICROWAVE DIATHERMY Schematic Diagram of a Microwave Diathermy Unit: The magnetron--Cylindrical cathode surrounded by anode, -- Resonator systems by means of a coupling loop circuit diagram of a microwave diathermy -- the central conductor of a v The output power of a magnetron depends upon : 1. anode voltage, coaxial output 2. magnetic field, 3. magnitude and phase of the ZL to which the tube through magnetron o/p power is delivered, Efficiency of magnetron is 40 -60 % 79 a glass seal to Dept. of Electronics and Telecommunication Engineering VM Umale
![2 Microwave Diathermy v The main supply voltage is a applied interference suppression filter 2. Microwave Diathermy: v The main supply voltage is a applied interference suppression filter](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-80.jpg)
2. Microwave Diathermy: v The main supply voltage is a applied interference suppression filter it by p high frequency pickup generated by t magnetron v The fan is used to cool the magnetron directly connected to the mains supp v Deal circuit: delay of 3 -4 minutes bef power may be derived from magnetro necessary to warm up the magnetron v The magnetron circuit: the magnetron heating voltage is obtained directly fr separate secondary winding of the transformer. The filament cathode ci contains interference suppression filt v The anode supply to the magnetron c either DC or AC. A DC voltage is a obt a FWR followed by a voltage doubler VM Umale v Safety circuit: the magnetron may dam to excessive flow of current and whic protected by inserting a fuse (500 ma) anode supply circuit of the magnetron 80 Dept. of Electronics and Telecommunication Engineering
![2 Microwave Diathermy v The magnetron consists of cylindrical cathode surrounded by anode structure 2. Microwave Diathermy: v The magnetron consists of cylindrical cathode surrounded by anode structure](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-81.jpg)
2. Microwave Diathermy: v The magnetron consists of cylindrical cathode surrounded by anode structure that contains cavities opening into the cathode-anode space by means of slots v The output energy is derived from the resonator systems by means of a coupling loop v The energy picked up on the coupling loop is carried out of the magnetron of the central conductor of a coaxial output tube through a glass seal to a director v Director consist of a radiating element of antenna and reflector witch directs the energy for application the patient v The output power of a magnetron depends upon 1. anode voltage, 2. magnetic field, 3. magnitude and phase of the load impedance to which the magnetron output power is delivered v Efficiency of magnetron is 40 -60 % VM Umale Dept. of Electronics and Telecommunication Engineering 81
![2 Microwave Diathermy v The main supply voltage is a applied to an interference 2. Microwave Diathermy: v The main supply voltage is a applied to an interference](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-82.jpg)
2. Microwave Diathermy: v The main supply voltage is a applied to an interference suppression filter it by pass the high frequency pickup generated by the magnetron v The fan is used to cool the magnetron, which is directly connected to the mains supply. v Deal circuit: delay of 3 -4 minutes before power may be derived from magnetron is necessary to warm up the magnetron v The magnetron circuit: the magnetron filament heating voltage is obtained directly from a separate secondary winding of the transformer. The filament cathode circuit contains interference suppression filters v The anode supply to the magnetron can be either DC or AC. A DC voltage is a obtained by a FWR followed by a voltage doubler circuit v Safety circuit: the magnetron may damage due to excessive flow of current and which may be protected by inserting a fuse (500 ma) in the anode supply circuit of the magnetron VM Umale Dept. of Electronics and Telecommunication Engineering 82
![2 Microwave Diathermy VM Umale Dept of Electronics and Telecommunication Engineering 83 2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 83](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-83.jpg)
2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 83
![2 Microwave Diathermy VM Umale Dept of Electronics and Telecommunication Engineering 84 2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 84](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-84.jpg)
2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 84
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-85.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 85
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-86.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 86
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-87.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 87
![2 Microwave Diathermy VM Umale Dept of Electronics and Telecommunication Engineering 88 2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 88](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-88.jpg)
2. Microwave Diathermy: VM Umale Dept. of Electronics and Telecommunication Engineering 88
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-89.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 89
![Comparision Application Techniques of Shortwave Therapy Comparison of the heat distribution in the body Comparision Application Techniques of Short-wave Therapy: Comparison of the heat distribution in the body](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-90.jpg)
Comparision Application Techniques of Short-wave Therapy: Comparison of the heat distribution in the body tissues with the shortwave inductive diathermy, capacitive plate of diathermy applicator and microwave diathermy. (Adapted from Cameron, 2009) VM Umale Dept. of Electronics and Telecommunication Engineering 90
![ULTRASONIC THERAPY UNIT An ultrasonic therapy unit Block Diagram The output of the osc ULTRASONIC THERAPY UNIT An ultrasonic therapy unit Block Diagram The output of the osc.](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-91.jpg)
ULTRASONIC THERAPY UNIT An ultrasonic therapy unit Block Diagram The output of the osc. can be controlled by: 1. Using a transformer with a primary winding having multi-tapped windings and switching the same as per requirement; 2. Controlling the firing angle of a triac placed in the primary circuit of the transformer, and thereby varying the output of the transformer. Dosage Control: The dosage can be controlled by varying any of the following variables. Frequency of ultrasound; Intensity of ultrasound; or Duration of the exposure. VM Umale Dept. of Electronics and Telecommunication Engineering 91
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON The thermal effects of ultrasound are SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON The thermal effects of ultrasound are](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-92.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON The thermal effects of ultrasound are dependant on the 1. The amount of energy absorbed 2. The length of time of the ultrasound application 3. Frequency of the ultrasound generator 4. Ultrasonic generator are constructed on the piezo-electric effect 5. High frequency of 0. 75 – 3 Mhz current is applied to a crystal Dose control The doses can be controlled by varying any of the following 1. Frequency of ultrasound 2. Intensity of ultrasound 3. Duration of the exposur Out power of an ultrasonic diathermy can be continuously varied between 0 -3 watt/cm 2 Application technique 1. The probe can be put in direct contact with body through a couplet provided the part to be treaded is sufficiently smooth and un injured 2. Incase of logh area is to be treated, the probe is moved up and down and for small area it is given a circular motion. VM Umale Dept. of Electronics and Telecommunication Engineering 92
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-93.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 93
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON VM Umale Dept of Electronics SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-94.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : VM Umale Dept. of Electronics and Telecommunication Engineering 94
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON 1 VM Umale Dept of SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : 1 VM Umale Dept. of](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-95.jpg)

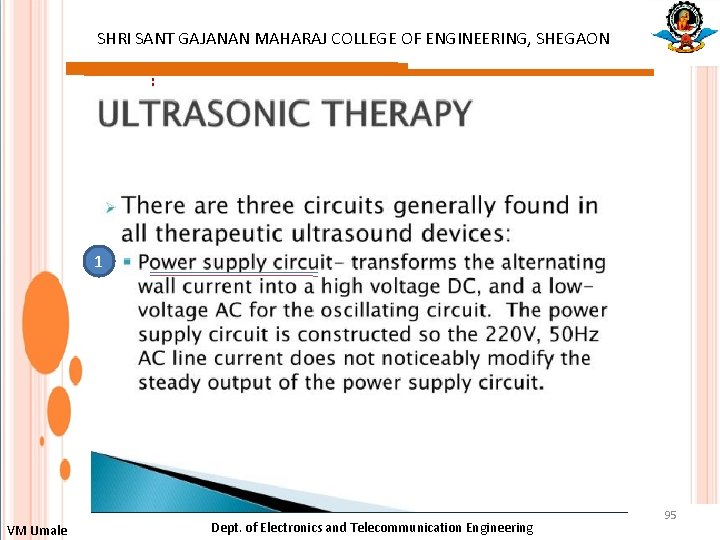

SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : 1 VM Umale Dept. of Electronics and Telecommunication Engineering 95
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON 2 VM Umale Dept of SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : 2 VM Umale Dept. of](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-96.jpg)

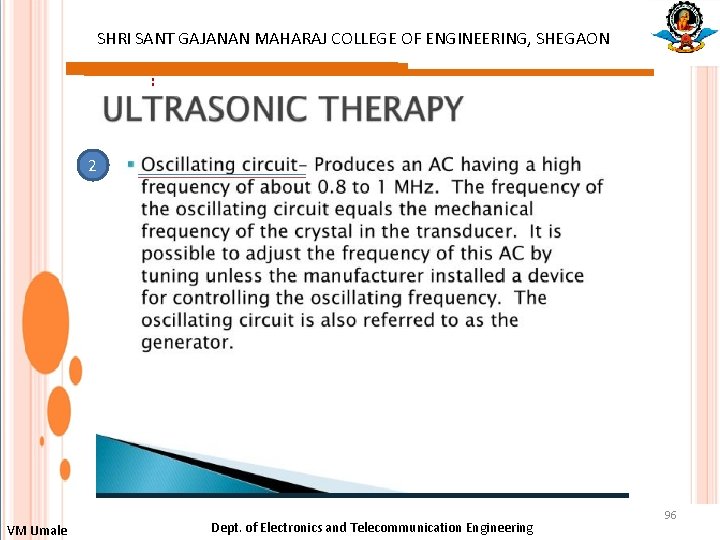

SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : 2 VM Umale Dept. of Electronics and Telecommunication Engineering 96
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON 3 VM Umale Dept of SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : 3 VM Umale Dept. of](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-97.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : 3 VM Umale Dept. of Electronics and Telecommunication Engineering 97
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON 1 VM Umale Dept of SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : 1 VM Umale Dept. of](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-98.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : 1 VM Umale Dept. of Electronics and Telecommunication Engineering 98
![SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING SHEGAON 2 VM Umale Dept of SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : 2 VM Umale Dept. of](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-99.jpg)
SHRI SANT GAJANAN MAHARAJ COLLEGE OF ENGINEERING, SHEGAON : 2 VM Umale Dept. of Electronics and Telecommunication Engineering 99
![ULTRASONIC DIATHERMY Application Techniques Ultrasonic therapy in use VM Umale Dept of Electronics and ULTRASONIC DIATHERMY Application Techniques Ultrasonic therapy in use VM Umale Dept. of Electronics and](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-100.jpg)
ULTRASONIC DIATHERMY Application Techniques Ultrasonic therapy in use VM Umale Dept. of Electronics and Telecommunication Engineering 100
![DIATHERMY Application Techniques VM Umale Dept of Electronics and Telecommunication Engineering 101 DIATHERMY Application Techniques VM Umale Dept. of Electronics and Telecommunication Engineering 101](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-101.jpg)
DIATHERMY Application Techniques VM Umale Dept. of Electronics and Telecommunication Engineering 101
![DIATHERMY Application Techniques VM Umale Dept of Electronics and Telecommunication Engineering 102 DIATHERMY Application Techniques VM Umale Dept. of Electronics and Telecommunication Engineering 102](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-102.jpg)
DIATHERMY Application Techniques VM Umale Dept. of Electronics and Telecommunication Engineering 102
![DIATHERMY Application Techniques VM Umale Dept of Electronics and Telecommunication Engineering 103 DIATHERMY Application Techniques VM Umale Dept. of Electronics and Telecommunication Engineering 103](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-103.jpg)
DIATHERMY Application Techniques VM Umale Dept. of Electronics and Telecommunication Engineering 103
![DIATHERMY Application Techniques VM Umale Dept of Electronics and Telecommunication Engineering 104 DIATHERMY Application Techniques VM Umale Dept. of Electronics and Telecommunication Engineering 104](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-104.jpg)
DIATHERMY Application Techniques VM Umale Dept. of Electronics and Telecommunication Engineering 104
![Therapeutic Devices THANKS A LOT VM Umale Dept of Electronics and Telecommunication Engineering Therapeutic Devices : THANKS A LOT VM Umale Dept. of Electronics and Telecommunication Engineering](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-105.jpg)
Therapeutic Devices : THANKS A LOT VM Umale Dept. of Electronics and Telecommunication Engineering 105
![Therapeutic Devices CARDIAC PACEMAKER Necessity of CARDIAC PACEMAKER NSR Normal sinus rhythm In abnormal Therapeutic Devices CARDIAC PACEMAKER Necessity of CARDIAC PACEMAKER NSR: Normal sinus rhythm In abnormal](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-106.jpg)
Therapeutic Devices CARDIAC PACEMAKER Necessity of CARDIAC PACEMAKER NSR: Normal sinus rhythm In abnormal condition: Disturbances in NSR Either temporary or permanent failure in natural pacemaker( SA Node) Arrhythmia Bradycardia Tachycardia Heart Block I degree III degree VM Umale Dept. of Electronics and Telecommunication Engineering 106
![CARDIAC PACEMAKER Pacemaker pulses followed by QRS complex of the heart VM Umale CARDIAC PACEMAKER : Pacemaker pulses followed by QRS complex of the heart VM Umale](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-107.jpg)
CARDIAC PACEMAKER : Pacemaker pulses followed by QRS complex of the heart VM Umale Dept. of Electronics and Telecommunication Engineering 107
![CARDIAC PACEMAKER Types of CARDIAC PACEMAKER Based on Implantation or location External Cardiac Pacemaker CARDIAC PACEMAKER Types of CARDIAC PACEMAKER Based on Implantation or location. External Cardiac Pacemaker](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-108.jpg)
CARDIAC PACEMAKER Types of CARDIAC PACEMAKER Based on Implantation or location. External Cardiac Pacemaker Internal (Implantable) Cardiac Pacemaker Programmable Cardiac Pacemaker Based on pacing modescompetitive Non-Competitive Based on output impulse waveform. Constant current type Constant Voltage type limited current constant voltage type VM Umale Dept. of Electronics and Telecommunication Engineering 108
![CARDIAC PACEMAKER A pacemaker basically consists of two parts VM Umale i An CARDIAC PACEMAKER : A pacemaker basically consists of two parts: VM Umale (i) An](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-109.jpg)
CARDIAC PACEMAKER : A pacemaker basically consists of two parts: VM Umale (i) An electronic unit- Pulse generator Generates stimulating impulses of controlled rate and amplitude i. e. The impulse-forming circuit determines. The frequency and duration of the impulses. This is usually a multi-vibrator circuit with adjustable rate and fixed pulse width. The output circuit determines the shape and amplitude of the impulse. (ii) Patient Circuit: (iii) The lead -Carries the electrical pulses from the pulse generator to the heart. -Includes the termination which connects to the pulse generator and the insulated conductors, -Interface with electrodes and terminate within the heart. Dept. of Electronics and Telecommunication Engineering 109
![CARDIAC PACEMAKER ivThe electrode Can be in the form of bipolar or CARDIAC PACEMAKER : (iv)The electrode : Can be in the form of bipolar or](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-110.jpg)
CARDIAC PACEMAKER : (iv)The electrode : Can be in the form of bipolar or unipolar system. In the bipolar system, two electrodes are placed on the heart for myocardial stimulation. In the unipolar system, one electrode is placed on the heart and the other electrode is positioned elsewhere in the body. The waveforms used for pacing: Round-topped rectangular pulses. Duration 1– 3 ms Rates 50 -150 pulses/minute(adjustable). VM Umale Dept. of Electronics and Telecommunication Engineering 110
![CARDIAC PACEMAKER Block diagram of external pacemaker VM Umale Dept of Electronics and CARDIAC PACEMAKER : Block diagram of external pacemaker VM Umale Dept. of Electronics and](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-111.jpg)
CARDIAC PACEMAKER : Block diagram of external pacemaker VM Umale Dept. of Electronics and Telecommunication Engineering 111
![CARDIAC PACEMAKER Impulses from three different types of pacemakers as seen on oscilloscope CARDIAC PACEMAKER : Impulses from three different types of pacemakers as seen on oscilloscope:](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-112.jpg)
CARDIAC PACEMAKER : Impulses from three different types of pacemakers as seen on oscilloscope: (a) constant current type pacemaker (b) current limited voltage pacemaker (c) voltage pacemaker VM Umale Dept. of Electronics and Telecommunication Engineering 112
![CARDIAC PACEMAKER The implantable pacemaker placed inside the human body VM Umale Dept CARDIAC PACEMAKER : The implantable pacemaker placed inside the human body VM Umale Dept.](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-113.jpg)
CARDIAC PACEMAKER : The implantable pacemaker placed inside the human body VM Umale Dept. of Electronics and Telecommunication Engineering 113
![CARDIAC PACEMAKER Various pacing modalities in demand pacemakers a ventricular demand inhibited CARDIAC PACEMAKER : Various pacing modalities in demand pacemakers (a) ventricular demand inhibited :](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-114.jpg)
CARDIAC PACEMAKER : Various pacing modalities in demand pacemakers (a) ventricular demand inhibited : VVI (b) A-V sequential VM Umale Dept. of Electronics and Telecommunication Engineering 114
![CARDIAC PACEMAKER Various pacing modalities in demand pacemakers c atrial synchronous ventricular inhibited CARDIAC PACEMAKER : Various pacing modalities in demand pacemakers (c) atrial synchronous (ventricular inhibited),](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-115.jpg)

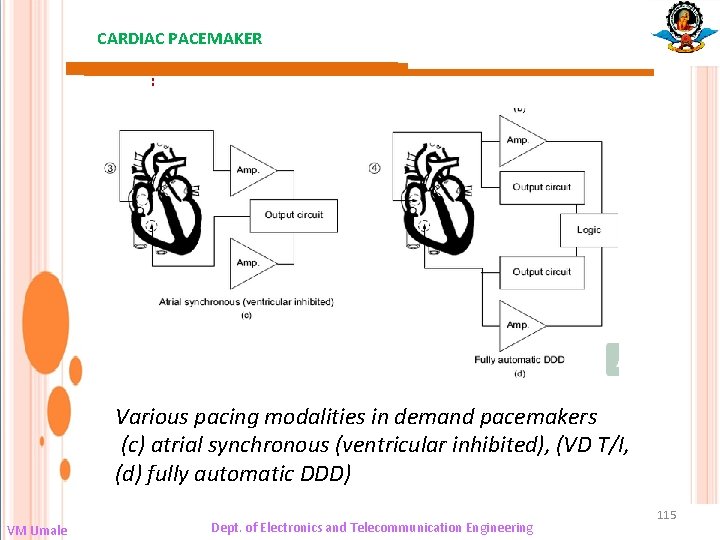

CARDIAC PACEMAKER : Various pacing modalities in demand pacemakers (c) atrial synchronous (ventricular inhibited), (VD T/I, (d) fully automatic DDD) VM Umale Dept. of Electronics and Telecommunication Engineering 115
![CARDIAC PACEMAKER Fixed Rate Pacemaker This type of pacemaker is intended for patients CARDIAC PACEMAKER : Fixed Rate Pacemaker: This type of pacemaker is intended for patients](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-116.jpg)
CARDIAC PACEMAKER : Fixed Rate Pacemaker: This type of pacemaker is intended for patients having permanent heart blocks. The rate is pre-set, say at 70 bpm. The rate can be varied externally in implanted units by magnetically actuating a built-in relay. Since the fixed rate pacemaker functions regardless of the patients' natural heart rhythm, it poses a potential danger because of competition between the patients' rhythm and that of the pacemaker. Demand Pacemaker: These pacemakers have gradually almost replaced the fixed rate pacemakers because they avoid competition between the heart's natural rhythm and the pacemaker rhythm. The demand unit functions only when the R-R intervals of the natural rhythm exceed a pre-set limit. R wave Triggered Pacemaker: The ventricular synchronized demand type (R wave triggered) pacemaker is meant for patients who are generally in heart block with occasional sinus rhythm. The pacemaker detects ventricular activity (R wave of ECG) and stimulates the ventricles after a very short delay time of some milliseconds. If there is sinus rhythm, the stimulating impulse will occur in the ventricular de-polarization. If there is asystole, the unit will stimulate the heart after a pre-set time. VM Umale Dept. of Electronics and Telecommunication Engineering 116
![CARDIAC PACEMAKER Ventricular Inhibited or R Wave Blocked Pacemaker The ventricular inhibited type CARDIAC PACEMAKER : Ventricular Inhibited or R Wave Blocked Pacemaker: The ventricular inhibited type](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-117.jpg)
CARDIAC PACEMAKER : Ventricular Inhibited or R Wave Blocked Pacemaker: The ventricular inhibited type (R wave blocked) pacemaker is meant for patients who generally have sinus rhythm with occasional heart block. The circuitry detects spontaneous R wave potentials at the electrodes and the pacemaker provides a stimulus to the heart after pre-set asystole. However, in the case of ventricular activity, the R-wave does not trigger the output circuit of the pacemaker but blocks the output circuit and no stimulation impulse is given to the heart. Atrial Triggered Pacemaker: This is a R wave triggered or atrial triggered pacemaker. The pacemaker detects the atrial de-polarization and starts the pulse forming circuits after a delay so that the impulse to the ventricles is delivered after a suitable PR interval. The major advantage of this pacemaker is its ability to provide maximum augmentation of cardiac output at changing atrial rates to meet various physiological requirements. Dual Chamber Pacemakers: These devices are capable of treating the majority of those patients who suffer from diseases of the sino-atrial node by providing atrial stimulation whenever needed. In these devices, both the atria and the ventricles are sensed and stimulated as needed while maintaining proper synchronization of the upper and lower chambers. Rate–adaptive features available with dual chamber pacemakers include the automatic adjustment of stimulus intensity and gains for the various sensing channels. VM Umale Dept. of Electronics and Telecommunication Engineering 117
![CARDIAC PACEMAKER Block diagram of a ventricular synchronous demand pacemaker VM Umale Dept CARDIAC PACEMAKER : Block diagram of a ventricular synchronous demand pacemaker VM Umale Dept.](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-118.jpg)
CARDIAC PACEMAKER : Block diagram of a ventricular synchronous demand pacemaker VM Umale Dept. of Electronics and Telecommunication Engineering 118
![CARDIAC PACEMAKER Magnetican electromagnet placed on the surface of the body establishes a CARDIAC PACEMAKER : Magnetic—an electromagnet placed on the surface of the body establishes a](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-119.jpg)
CARDIAC PACEMAKER : Magnetic—an electromagnet placed on the surface of the body establishes a magnetic field which penetrates the skin and operates the pacemaker's reed switch, Radio-frequency waves—the information can be transmitted over high frequency electromagnetic waves which are received inside the body by an antenna. The antenna is usually in the shape of a coil housed within the pacemaker, Acoustic-ultrasonic pressure waves from a suitable transducer placed over the skin, can penetrate the human body. They are received by a suitable receiver in the pacemaker which carries out the desired function. Functional block diagram of programming interface VM Umale Dept. of Electronics and Telecommunication Engineering 119
![Therapeutic Devices CARDIAC DEFIBRILLATORS Necessity of CARDIAC DEFIBRILLATOR NSR Normal sinus rhythm In abnormal Therapeutic Devices CARDIAC DEFIBRILLATORS Necessity of CARDIAC DEFIBRILLATOR NSR: Normal sinus rhythm In abnormal](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-120.jpg)
Therapeutic Devices CARDIAC DEFIBRILLATORS Necessity of CARDIAC DEFIBRILLATOR NSR: Normal sinus rhythm In abnormal condition: Disturbances in NSR VM Umale Dept. of Electronics and Telecommunication Engineering 120
![CARDIAC DEFIBRILLATORS Defibrillator is a device that deliver a therapeutic dose of electrical energy CARDIAC DEFIBRILLATORS �Defibrillator is a device that deliver a therapeutic dose of electrical energy](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-121.jpg)
CARDIAC DEFIBRILLATORS �Defibrillator is a device that deliver a therapeutic dose of electrical energy (electric shock) to the affected heart (fibrillated heart or other shockable rhythm) to force the heart to produce more normal cardiac rhythm. VM Umale Dept. of Electronics and Telecommunication Engineering 121
![CARDIAC DEFIBRILLATORS VM Umale Dept of Electronics and Telecommunication Engineering 122 CARDIAC DEFIBRILLATORS VM Umale Dept. of Electronics and Telecommunication Engineering 122](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-122.jpg)
CARDIAC DEFIBRILLATORS VM Umale Dept. of Electronics and Telecommunication Engineering 122
![CARDIAC DEFIBRILLATORS Defibrillation is a common treatment for life threatening Cardiac dysrhythmias Ventricular fibrillation CARDIAC DEFIBRILLATORS Defibrillation is a common treatment for life threatening Cardiac dysrhythmias, Ventricular fibrillation,](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-123.jpg)
CARDIAC DEFIBRILLATORS Defibrillation is a common treatment for life threatening Cardiac dysrhythmias, Ventricular fibrillation, Pulse less ventricular tachycardia. VM Umale Dept. of Electronics and Telecommunication Engineering 123
![CARDIAC DEFIBRILLATORS Arrhythmias Bradycardia Ventricular Tachycardia VM Umale Dept of Electronics and Telecommunication Engineering CARDIAC DEFIBRILLATORS Arrhythmias Bradycardia Ventricular Tachycardia VM Umale Dept. of Electronics and Telecommunication Engineering](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-124.jpg)
CARDIAC DEFIBRILLATORS Arrhythmias Bradycardia Ventricular Tachycardia VM Umale Dept. of Electronics and Telecommunication Engineering 124
![v Ventricular fibrillation is a serious cardiac emergency resulting from asynchronous contraction of the v. Ventricular fibrillation is a serious cardiac emergency resulting from asynchronous contraction of the](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-125.jpg)
v. Ventricular fibrillation is a serious cardiac emergency resulting from asynchronous contraction of the heart muscles. v Due to ventricular fibrillation, there is an irregular rapid heart rhythm. Fig. Ventricular fibrillation VM Umale Fig. Normal heart beat Dept. of Electronics and Telecommunication Engineering 125
![Cont v Ventricular fibrillation can be converted into a more efficient rhythm by applying Cont… v Ventricular fibrillation can be converted into a more efficient rhythm by applying](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-126.jpg)
Cont… v Ventricular fibrillation can be converted into a more efficient rhythm by applying a high energy shock to the heart. v This sudden surge across the heart causes all muscle fibres to contract simultaneously. v Possibly, the fibres may then respond to normal physiological pace making pulses. v The instrument for administering the shock is VM Umale called a DEFIBRILLATOR. Dept. of Electronics and Telecommunication Engineering 126
![Defibrillation is performed to correct lifethreatening fibrillations of the heart which could result in Defibrillation is performed to correct lifethreatening fibrillations of the heart, which could result in](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-127.jpg)

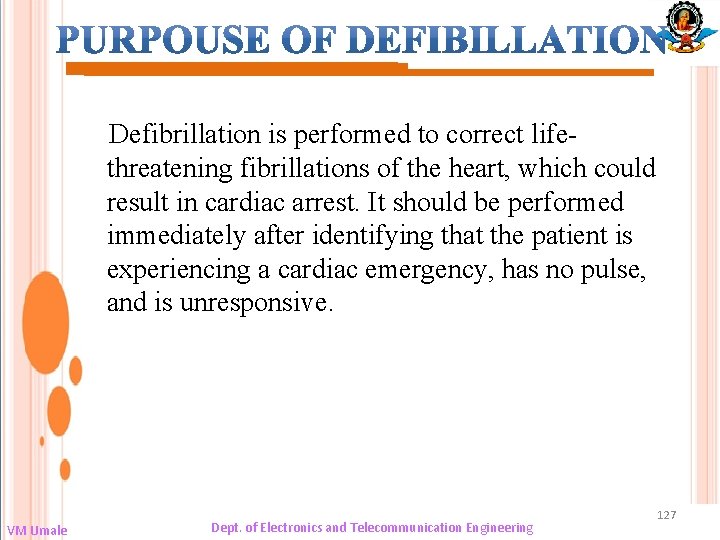

Defibrillation is performed to correct lifethreatening fibrillations of the heart, which could result in cardiac arrest. It should be performed immediately after identifying that the patient is experiencing a cardiac emergency, has no pulse, and is unresponsive. VM Umale Dept. of Electronics and Telecommunication Engineering 127
![v Energy storage capacitor is charged at relatively slow rate from AC line v v Energy storage capacitor is charged at relatively slow rate from AC line. v](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-128.jpg)
v Energy storage capacitor is charged at relatively slow rate from AC line. v Energy stored in capacitor is then delivered at a relatively rapid rate to chest of the patient. v Simple arrangement involve the discharge of capacitor energy through the patient’s own resistance. VM Umale Dept. of Electronics and Telecommunication Engineering 128
![CARDIAC DEFIBRILLATORS AC DEFIBRILLATION Applying a brief 25 to 1 sec burst of 50 CARDIAC DEFIBRILLATORS AC DEFIBRILLATION §Applying a brief(. 25 to 1 sec) burst of 50](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-129.jpg)
CARDIAC DEFIBRILLATORS AC DEFIBRILLATION §Applying a brief(. 25 to 1 sec) burst of 50 HZ ac at an intensity of around 6 A. §This application of an electrical shock to resynchronize the heart is sometimes called counter shock. §If the patient does not respond, the burst is repeated until defibrillation occurs. this method is known as ac defibrillation. VM Umale Dept. of Electronics and Telecommunication Engineering 129
![CARDIAC DEFIBRILLATORS DC Defibrillation ØIn this method a capacitor is charged to a high CARDIAC DEFIBRILLATORS DC Defibrillation ØIn this method a capacitor is charged to a high](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-130.jpg)
CARDIAC DEFIBRILLATORS DC Defibrillation ØIn this method a capacitor is charged to a high dc voltage and then rapidly discharged. ØThe amount of energy discharged by the capacitor may range between 2 to 400 joules with peak value of current 20 A. ØA corrective shock of 750 -800 volts is applied within a tenth of a second. VM Umale Dept. of Electronics and Telecommunication Engineering 130
![CIRCUIT OF DC DEFIBRILLATOR VM Umale Dept of Electronics and Telecommunication Engineering 131 CIRCUIT OF DC DEFIBRILLATOR VM Umale Dept. of Electronics and Telecommunication Engineering 131](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-131.jpg)
CIRCUIT OF DC DEFIBRILLATOR VM Umale Dept. of Electronics and Telecommunication Engineering 131
![standby power supply charge discharge gate patient switch is under operator control energy storage standby power supply charge discharge gate patient switch is under operator control energy storage](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-132.jpg)
standby power supply charge discharge gate patient switch is under operator control energy storage timing circuitry ECG monitor applies shock about 20 ms after QRS complex, avoids T-wave VM Umale Dept. of Electronics and Telecommunication Engineering 132
![PRINCIPLE OF DEFIBRILLATOR Energy storage capacitor is charged at relatively slow rate from AC PRINCIPLE OF DEFIBRILLATOR Energy storage capacitor is charged at relatively slow rate from AC](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-133.jpg)
PRINCIPLE OF DEFIBRILLATOR Energy storage capacitor is charged at relatively slow rate from AC line. Energy stored in capacitor is then delivered at a relatively rapid rate to chest of the patient. Simple arrangement involve the discharge of capacitor energy through the patient’s own resistance. VM Umale Dept. of Electronics and Telecommunication Engineering 133
![Cont The discharge resistance which the patient represents is roughly a ohmic resistance Cont…. . The discharge resistance which the patient represents is roughly a ohmic resistance](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-134.jpg)
Cont…. . The discharge resistance which the patient represents is roughly a ohmic resistance of 50 – 100 ohms for a typical electrode size of 80 cm 2. The particular wave form is called “Lown” wave form. The pulse width of this waveform is 10 ms. VM Umale Dept. of Electronics and Telecommunication Engineering 134
![Manual external defibrillator Electrodes placed directly around the heart area of chest Higher Voltage Manual external defibrillator Electrodes placed directly around the heart area of chest. Higher Voltage](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-135.jpg)
Manual external defibrillator Electrodes placed directly around the heart area of chest. Higher Voltage required than internal defibrillator. Classified as Monophasic Biphasic VM Umale Dept. of Electronics and Telecommunication Engineering 135
![Monophasic waveform Defibrillators Deliver current of one polarity Current travels in one direction through Monophasic waveform Defibrillators Deliver current of one polarity. Current travels in one direction through](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-136.jpg)
Monophasic waveform Defibrillators Deliver current of one polarity. Current travels in one direction through the patients heart from one paddle to another. 2 types : The monophasic damped sinusoidal waveform (MDS) returns to zero gradually Monophasic truncated exponential waveform (MTE) current is abruptly returned to baseline (truncated) to zero current flow VM Umale Dept. of Electronics and Telecommunication Engineering 136
![CARDIAC DEFIBRILLATORS MDS vs MTE wave form VM Umale Dept of Electronics and Telecommunication CARDIAC DEFIBRILLATORS MDS v/s MTE wave form VM Umale Dept. of Electronics and Telecommunication](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-137.jpg)
CARDIAC DEFIBRILLATORS MDS v/s MTE wave form VM Umale Dept. of Electronics and Telecommunication Engineering 137
![Biphasic waveform Defibrillators Current travels towards the ve paddle then reverses back Reversing Biphasic waveform Defibrillators Current travels towards the +ve paddle & then reverses back. Reversing](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-138.jpg)
Biphasic waveform Defibrillators Current travels towards the +ve paddle & then reverses back. Reversing of polarity, depolarizes all cells – called “burping” response. Classified into – Biphasic truncated exponential waveform (BTE) Rectilinear biphasic waveform (RBL) RBL is better than BTE. VM Umale Dept. of Electronics and Telecommunication Engineering 138
![Biphasic truncated exponential waveform BTE vs Rectilinear biphasic waveform RLB RBL VM Umale BTE Biphasic truncated exponential waveform (BTE) v/s Rectilinear biphasic waveform (RLB) RBL VM Umale BTE](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-139.jpg)
Biphasic truncated exponential waveform (BTE) v/s Rectilinear biphasic waveform (RLB) RBL VM Umale BTE Dept. of Electronics and Telecommunication Engineering 139
![CARDIAC DEFIBRILLATORS Fig Generation of biphasic waveform VM Umale Dept of Electronics and CARDIAC DEFIBRILLATORS Fig: - Generation of bi-phasic waveform VM Umale Dept. of Electronics and](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-140.jpg)
CARDIAC DEFIBRILLATORS Fig: - Generation of bi-phasic waveform VM Umale Dept. of Electronics and Telecommunication Engineering 140
![Advantages of Biphasic over Monophasic Less power Less trauma Less battery Defibrillation Advantages of Biphasic over Monophasic Less power – Less trauma – Less battery. Defibrillation](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-141.jpg)
Advantages of Biphasic over Monophasic Less power – Less trauma – Less battery. Defibrillation more effective at low energy. Fewer burns. Less myocardial damage. 1 st shock success rate in cardiac arrest due to shockable rhythm – Monophasic 60% Biphasic increases to 90% VM Umale Dept. of Electronics and Telecommunication Engineering 141
![Types of Defibrillators 1 Manual external defibrillator 2 Manual internal defibrillator 3 SemiAutomated External Types of Defibrillators 1. Manual external defibrillator 2. Manual internal defibrillator 3. Semi-Automated External](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-142.jpg)
Types of Defibrillators 1. Manual external defibrillator 2. Manual internal defibrillator 3. Semi-Automated External Defibrillator 4. Automated external defibrillator (AED) 5. Implantable cardioverter-defibrillator (ICD) {automatic internal cardiac defibrillator (AICD)} 6. VM Umale Wearable cardiac defibrillator Dept. of Electronics and Telecommunication Engineering 142
![current amps rgy e n e ge char pulse duration les jou bs ) current (amps) rgy e n e ge char pulse duration les (jou bs)](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-143.jpg)
) current (amps) rgy e n e ge char pulse duration les (jou bs) m o l u (co defibrillation occurs no defibrillation
![minimum defibrillation energy occurs for pulse durations of 3 10 ms • minimum defibrillation energy occurs for pulse durations of 3 - 10 ms](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-144.jpg)
• minimum defibrillation energy occurs for pulse durations of 3 - 10 ms (for most pulse shapes). • pulse amplitude in tens of amperes (few thousand volts). VM Umale Dept. of Electronics and Telecommunication Engineering 144
![operator selects energy delivered 50 360 joules depends on intrinsic characteristics • operator selects energy delivered: 50 -360 joules, depends on: – intrinsic characteristics](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-145.jpg)
• operator selects energy delivered: 50 -360 joules, depends on: – intrinsic characteristics of patient – patient’s disease – duration of arrhythmia – patient’s age – type of arrhythmia (more energy required for v. fib. ) VM Umale Dept. of Electronics and Telecommunication Engineering 145
![Higher voltages are required for external defibrillation than for internal defibrillation A corrective shock Higher voltages are required for external defibrillation than for internal defibrillation. A corrective shock](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-146.jpg)
Higher voltages are required for external defibrillation than for internal defibrillation. A corrective shock of 750 -800 volts is applied within a tenth of a second. That is the same voltage as 500 -533 no of AA batteries! VM Umale Dept. of Electronics and Telecommunication Engineering 146
![v Types of Defibrillator electrodes a Spoon shaped electrode Applied directly to the v Types of Defibrillator electrodes: a) Spoon shaped electrode • Applied directly to the](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-147.jpg)
v Types of Defibrillator electrodes: a) Spoon shaped electrode • Applied directly to the heart. b) Paddle type electrode • Applied against the chest wall c) Pad type electrode • Applied directly on chest wall VM Umale Dept. of Electronics and Telecommunication Engineering 147
![VM Umale Dept of Electronics and Telecommunication Engineering 148 VM Umale Dept. of Electronics and Telecommunication Engineering 148](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-148.jpg)
VM Umale Dept. of Electronics and Telecommunication Engineering 148
![Fig Pad electrode VM Umale Dept of Electronics and Telecommunication Engineering 149 Fig. - Pad electrode VM Umale Dept. of Electronics and Telecommunication Engineering 149](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-149.jpg)
Fig. - Pad electrode VM Umale Dept. of Electronics and Telecommunication Engineering 149
![Anterior electrode pad Apex electrode pad Fig anterior apex scheme of electrode placement VM Anterior electrode pad Apex electrode pad Fig: anterior –apex scheme of electrode placement VM](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-150.jpg)
Anterior electrode pad Apex electrode pad Fig: anterior –apex scheme of electrode placement VM Umale Dept. of Electronics and Telecommunication Engineering 150
![a Internal defibrillator Electrodes placed directly to the heart e g a) Internal defibrillator • Electrodes placed directly to the heart • e. g. .](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-151.jpg)

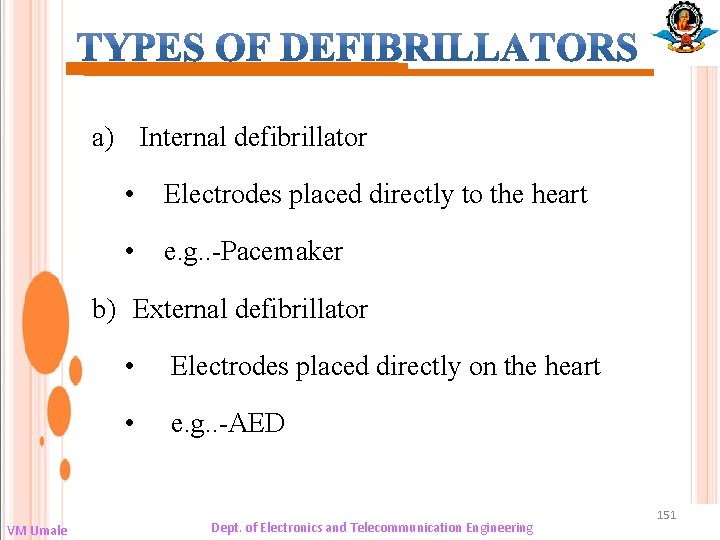

a) Internal defibrillator • Electrodes placed directly to the heart • e. g. . -Pacemaker b) External defibrillator VM Umale • Electrodes placed directly on the heart • e. g. . -AED Dept. of Electronics and Telecommunication Engineering 151
![F o r e a c h VM Umale m i n • F o r e a c h VM Umale m i n](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-152.jpg)
• F o r e a c h VM Umale m i n u Vc = capacitor voltage Dept. of Electronics and Telecommunication Engineering 152
![v AED is a portable electronic device that automatically diagnoses the ventricular fibrillation in v AED is a portable electronic device that automatically diagnoses the ventricular fibrillation in](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-153.jpg)
v AED is a portable electronic device that automatically diagnoses the ventricular fibrillation in a patient. v Automatic refers to the ability to autonomously analyse the patient's condition. v AED is a type of external defibrillation process. v AEDs require self-adhesive electrodes instead of hand held paddles. v The AED uses voice prompts, lights and text messages to tell the rescuer what steps have to take next. VM Umale Dept. of Electronics and Telecommunication Engineering 153
![Therapeutic Devices A VM Umale Dept of Electronics and Telecommunication Engineering 154 Therapeutic Devices : A VM Umale Dept. of Electronics and Telecommunication Engineering 154](https://slidetodoc.com/presentation_image_h2/48908aedb74f0097a1d38ecb60f67e7a/image-154.jpg)
Therapeutic Devices : A VM Umale Dept. of Electronics and Telecommunication Engineering 154
Microwave diathermy block diagram
Unitiv
Equipments needed in basketball
Biomedical equipment maintenance checklist
Dilip material handling equipments
Test tube function
Condition monitoring of electrical equipments
Hand tools and small equipment
Definition of structural adaptation
What factors influence satiety?
Apa yang dimaksud motivasi perjalanan wisata
Physiological population density
Larynx funtion
Stroke volume pdhpe
Drug antagonism
Discontinuous variation
Physiological significance of canal system in sycon
Physical factors affecting sports performance
Physiological disorders of onion
Physiological needs according to maslow
Physiological buffer system
Properties of nerve
Physiological standing
Slow growth cities ap human geography
Unit 14 learning aim d health and social care
Physiological adaptation
Physiological population density
Unit 14 physiological disorders assignment 1
Papez circuit
Btec level 3 health and social care unit 14 coursework
Physiological perspective
Physiological density
Hemosideriuria
Unit 14 physiological disorders and their care
Physiological needs according to maslow
Indications of microwave diathermy
Physiological arousal theory
Physiological arousal
Physiological state
Physiological adaptation example
Arithmetic population density
Sjctrichy
Types of cell injury
Reading is a physiological process
Red kangaroo behavioural adaptations
Stark mck
Vertical jaw relation definition
Egypt physiological density
Adaptation example
Physiological density
Example of formal region
Joint play grading scale
Hydrophytes plants
Unit 14 physiological disorders
Unit 14 assignment 2 health and social care
Effects of electric current on human body
Physiological context
Tasmanian devil physiological adaptations
Function of testes
Module 2 physiological factors
Example of buffer
A l washburn swallowed a balloon
Incentive theory
Masolow
Define primary and secondary motives
Forameni
Elephant behavioral adaptations
Physiological changes in puberty
Dvi aortic valve
Major physiological anions
Physiological adaptations examples
Aron ralston motivation
Physiological effects of irr
Factors affecting oxygen administration
Physiological buffer system
Noise occurs when communicators apply
Physiological psychology
Physiological influences on food choices include
The james lange theory
Physiological factors in design
Ion pair transport of drugs
Physiological disorders of strawberry
Maturity indices of mango
Importance of physiological indicators
Physiological adaptation of a dog
Beaver behavioral adaptations
Examples of physical adaptations
Physiological arousal
Physiological needs
Why is artificial selection used
Faradic coil ppt
Physiological activity
Physiological barriers to communication
High arithmetic density
Therapeutic outcome study
Support services career pathway
Examples of physical incompatibility
Therapeutic recreation outcome model
Traingle of care
Roger verbeeck
Therapeutic communication types
Outline one therapeutic use of stem cells
Transport technician healthcare pathway
Therapeutic window
Potency vs efficacy
High therapeutic index
Therapeutic services examples
Therapeutic exercise chapter 1 mcqs
Therapeutic diet for fever
Therapeutic recreation program sydney
Therapeutic value of play
What is habilitative exercise?
Therapeutic index
7 rights of medication administration in order
What is therapeutic equivalence?
Therapeutic story writing starters
Therapeutic interview
Therapeutic window
Therapeutic window
Why is a high therapeutic index better
Therapeutic optimism
Classification of therapeutic exercise
Therapeutic exercise definition
High therapeutic index
Roots and fruits behaviour
Therapeutic drift
Caries stabilization
Kelly chaplin
Komunikasi non terapeutik
Quantal dose
Reproductive vs therapeutic cloning
Craniotabies
Techniques of therapeutic communication
Faradic current
Therapeutic orientations
Intentional relationship model
Therapeutic communication techniques
Ichaemic
Narrow therapeutic index drugs
Association for applied and therapeutic humor
Be intentional in relationships
Therapeutic privilege
Therapeutic communication techniques
Therapeutic communication introduction
Btpb
Therapeutic drift
Therapeutic index
Define therapeutic index
Multicultural therapeutic communication skills
Therapeutic dialogue
Principles of therapeutic exercise
Introduction of milieu therapy
Types of chemical incompatibility
Penyakit masyarakat sasaran bintibluh
Therapeutic photography exercises
