Theory of Brushless Permanent Magnet Motor Design Reference

Theory of Brushless Permanent Magnet Motor Design Reference: (Brushless Permanent Magnet Motor Design) Dr. Duane Hanselman. 2 nd. Edition.

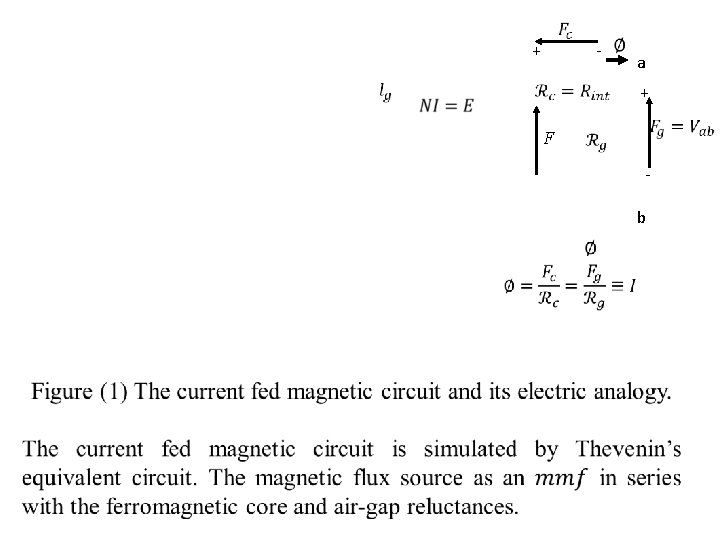

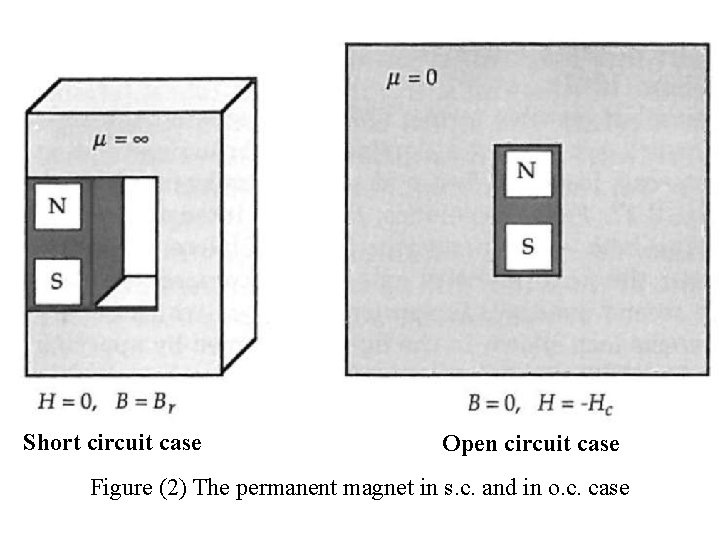

Short circuit case Open circuit case Figure (2) The permanent magnet in s. c. and in o. c. case

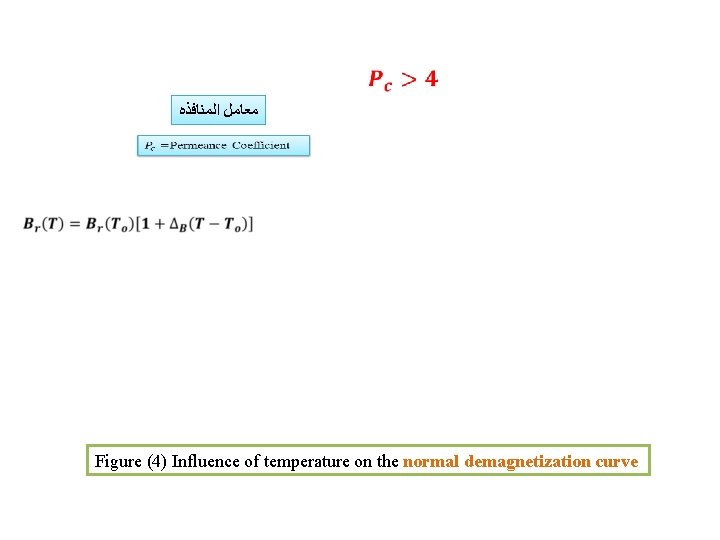

ﻣﻌﺎﻣﻞ ﺍﻟﻤﻨﺎﻓﺬﻩ Figure (4) Influence of temperature on the normal demagnetization curve

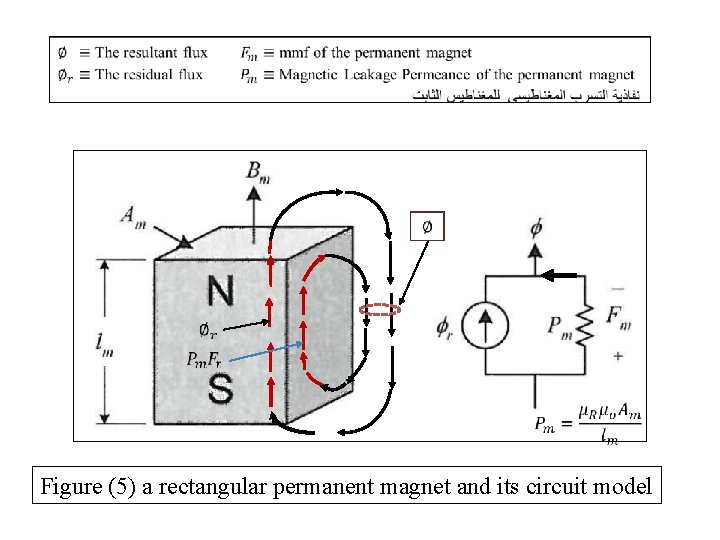

Figure (5) a rectangular permanent magnet and its circuit model

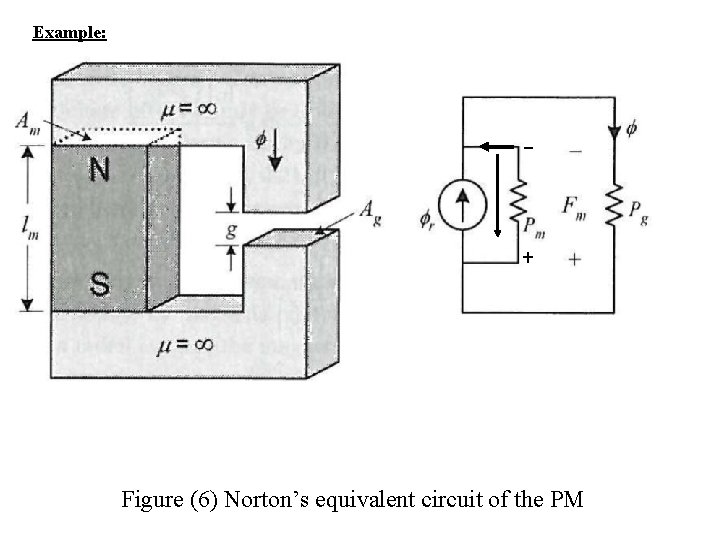

Example: + Figure (6) Norton’s equivalent circuit of the PM

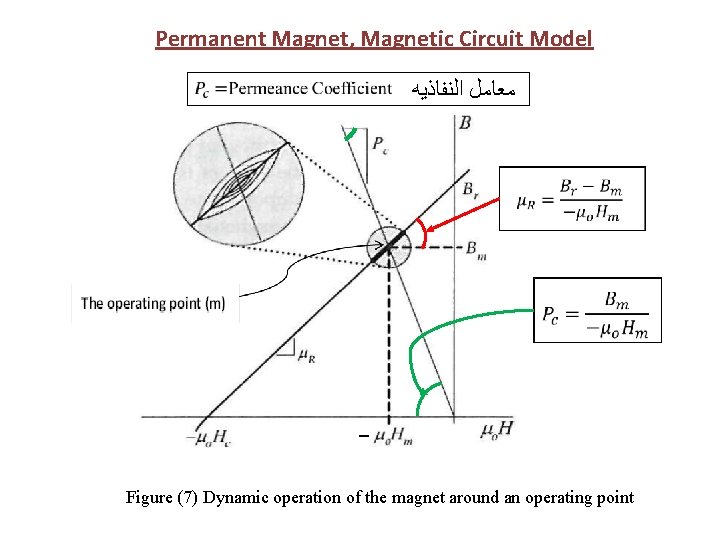

Permanent Magnet, Magnetic Circuit Model ﻣﻌﺎﻣﻞ ﺍﻟﻨﻔﺎﺫﻳﻪ _ Figure (7) Dynamic operation of the magnet around an operating point

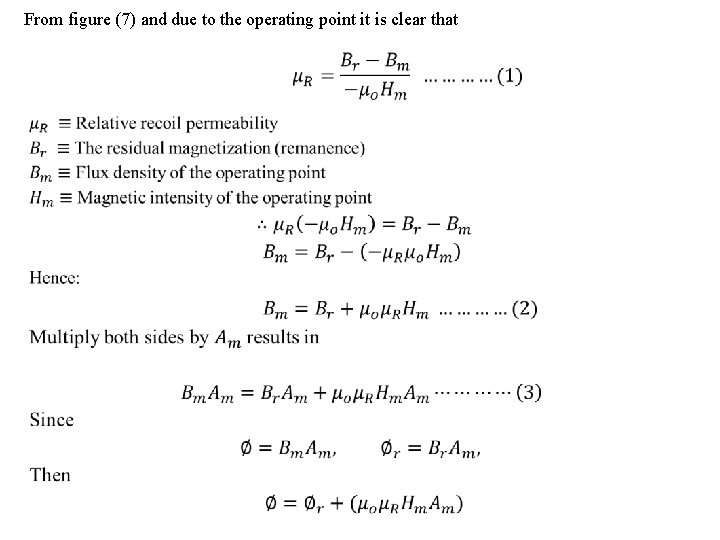

From figure (7) and due to the operating point it is clear that

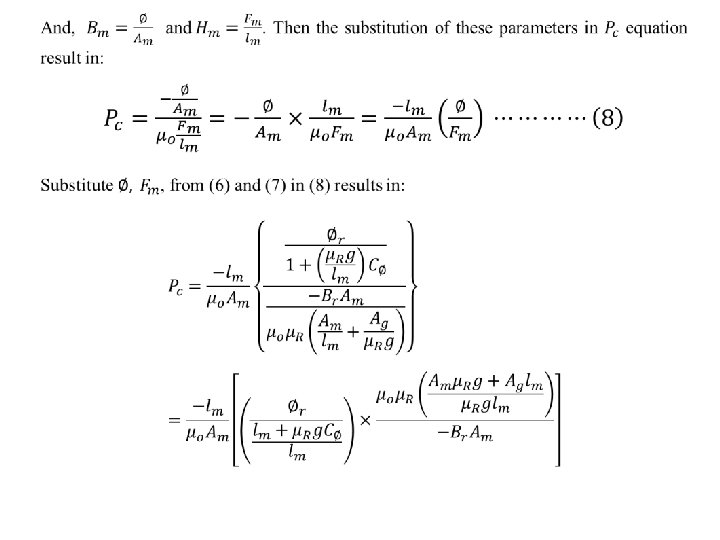

Figure (8)

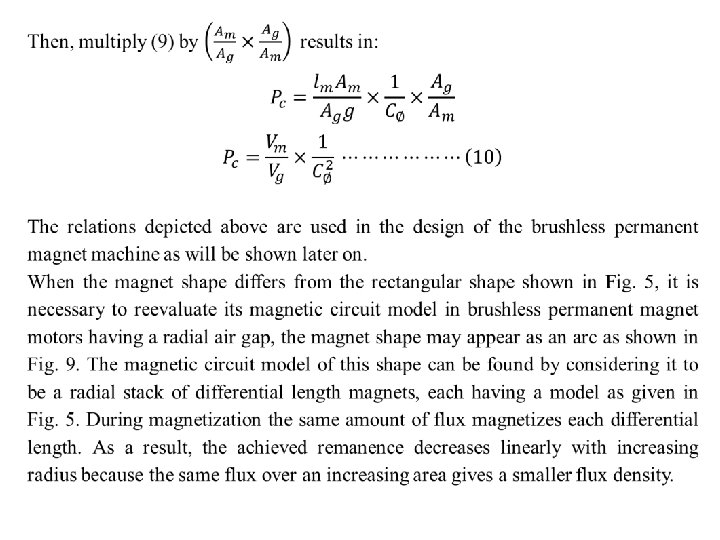

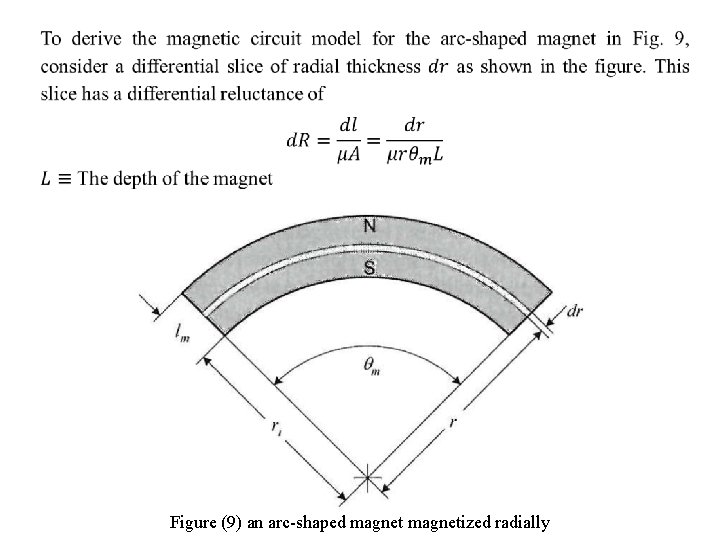

Figure (9) an arc-shaped magnetized radially

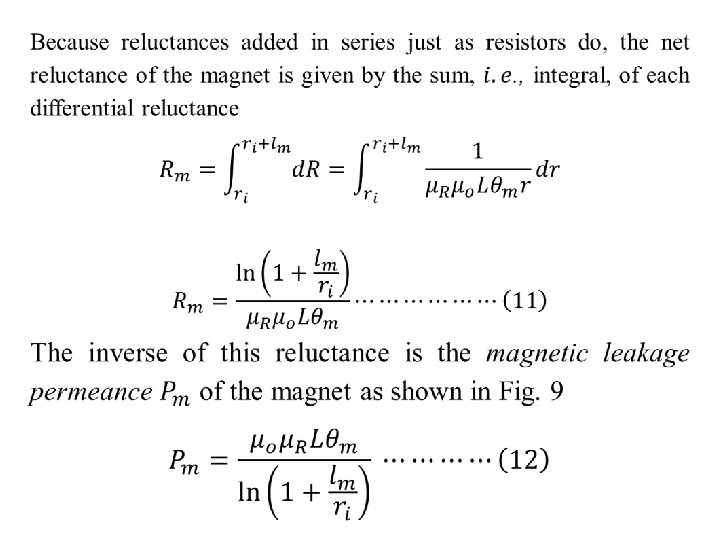

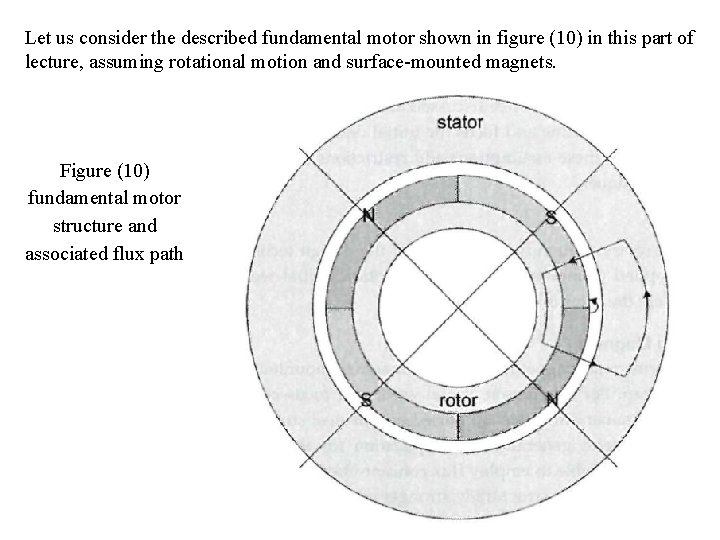

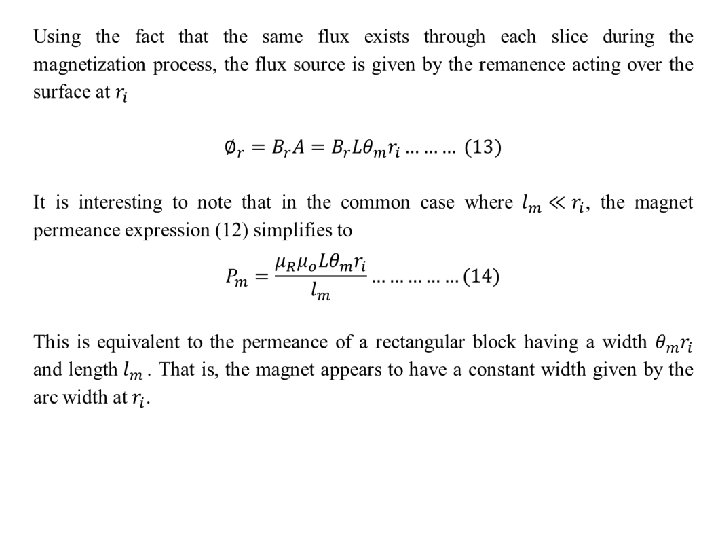

Let us consider the described fundamental motor shown in figure (10) in this part of lecture, assuming rotational motion and surface-mounted magnets. Figure (10) fundamental motor structure and associated flux path

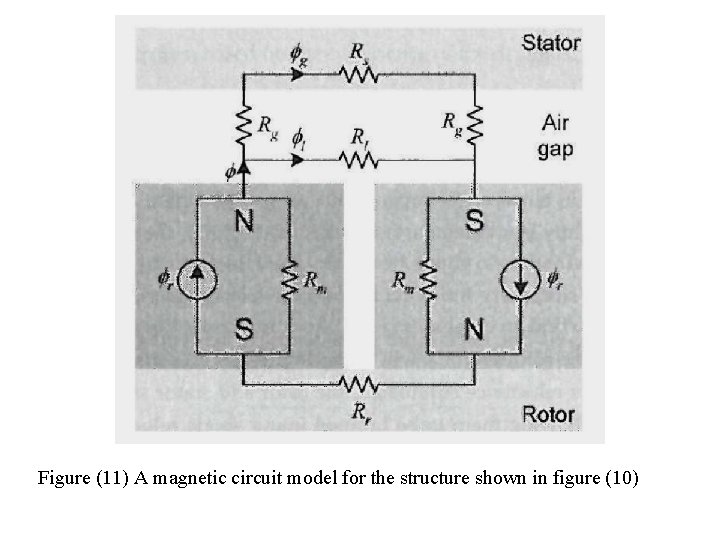

Figure (11) A magnetic circuit model for the structure shown in figure (10)

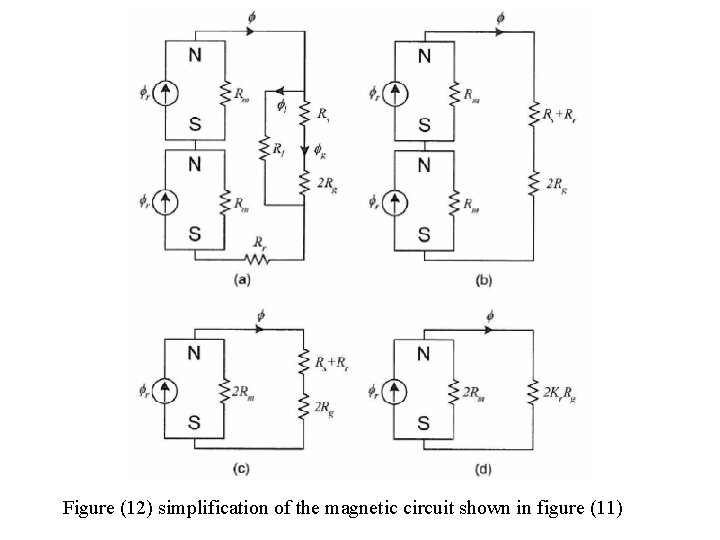

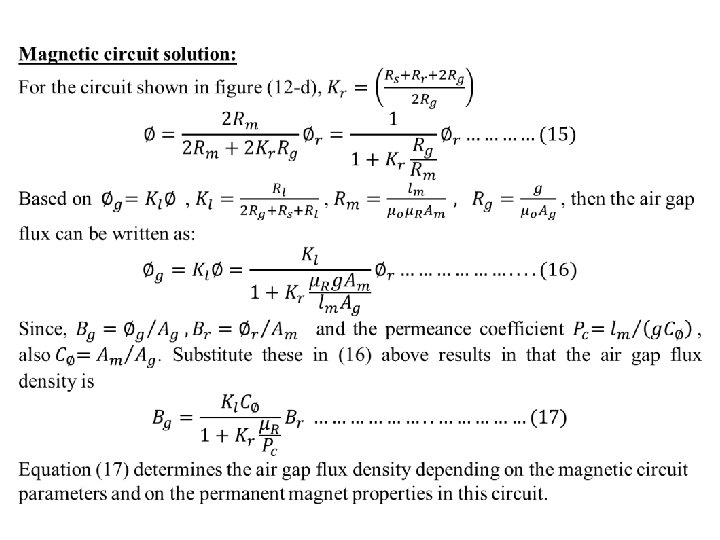

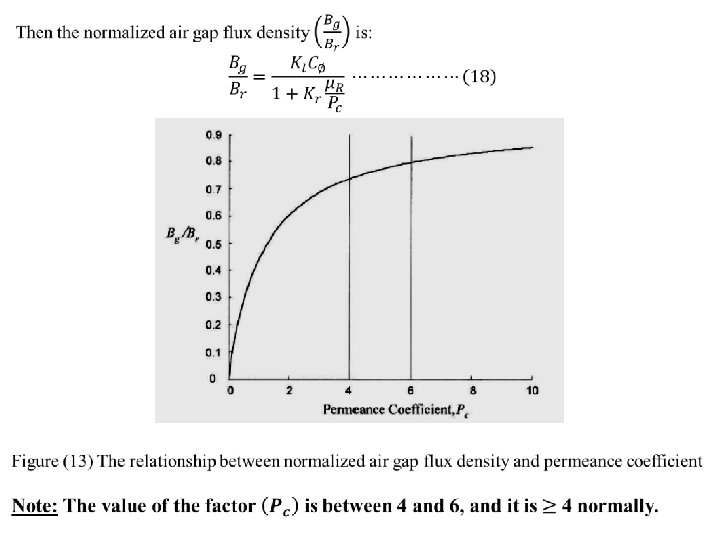

Figure (12) simplification of the magnetic circuit shown in figure (11)
