Theoretical and Computational Aspects of Cohesive Zone Modeling NAMAS CHANDRA Department of Mechanical Engineering FAMU-FSU College of Engineering Florida State University Tallahassee, Fl-32310 AMML

What is CZM and why is it important q In the study of solids and design of nano/micro/macro structures, thermomechanical behavior is modeled through constitutive equations. q Typically is a continuous function of and their history. q Design is limited by a maximum value of a given parameter ( ) at any local point. q What happens beyond that condition is the realm of ‘fracture’, ‘damage’, and ‘failure’ mechanics. q CZM offers an alternative way to view and failure in materials. AMML

Fracture/Damage theories to model failure 1. Fracture Mechanics - 1. Linear solutions leads to singular fields-difficult to evaluate 2. Fracture criteria based on 3. Non-linear domain- solutions are not unique 4. Additional criteria are required for crack initiation and propagation 2. Basic breakdown of the principles of mechanics of continuous media 3. Damage mechanics 1. can effectively reduce the strength and stiffness of the material in an average sense, but cannot create new surface AMML

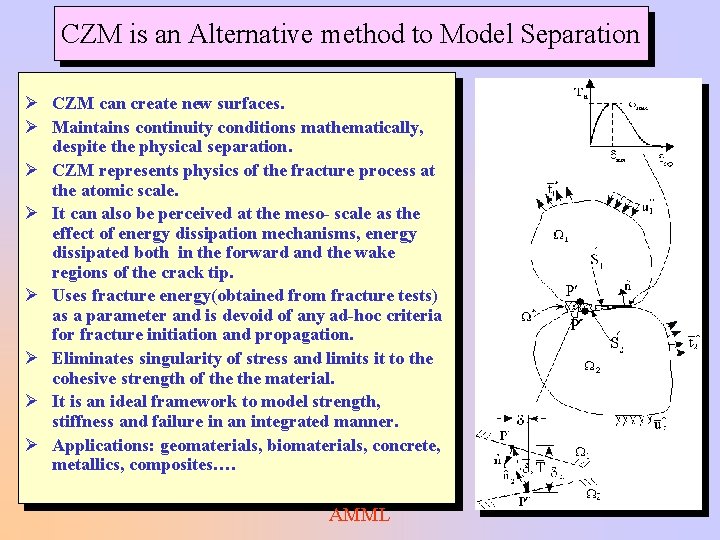

CZM is an Alternative method to Model Separation Ø CZM can create new surfaces. Ø Maintains continuity conditions mathematically, despite the physical separation. Ø CZM represents physics of the fracture process at the atomic scale. Ø It can also be perceived at the meso- scale as the effect of energy dissipation mechanisms, energy dissipated both in the forward and the wake regions of the crack tip. Ø Uses fracture energy(obtained from fracture tests) as a parameter and is devoid of any ad-hoc criteria for fracture initiation and propagation. Ø Eliminates singularity of stress and limits it to the cohesive strength of the material. Ø It is an ideal framework to model strength, stiffness and failure in an integrated manner. Ø Applications: geomaterials, biomaterials, concrete, metallics, composites…. AMML

AMML

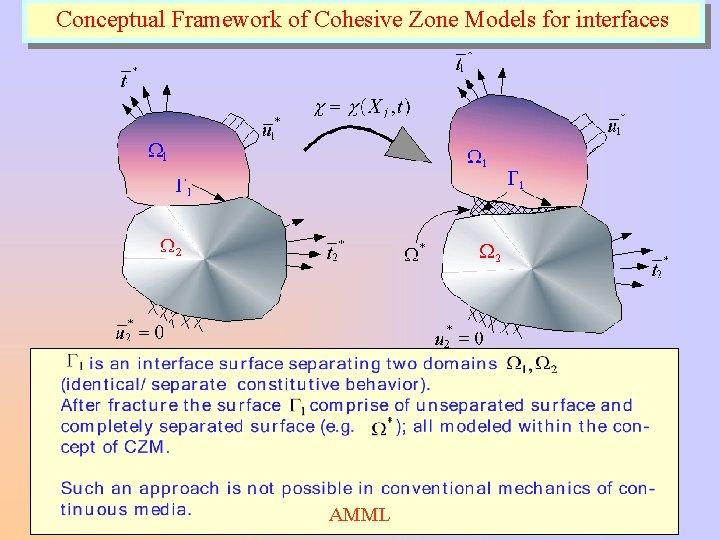

Conceptual Framework of Cohesive Zone Models for interfaces AMML

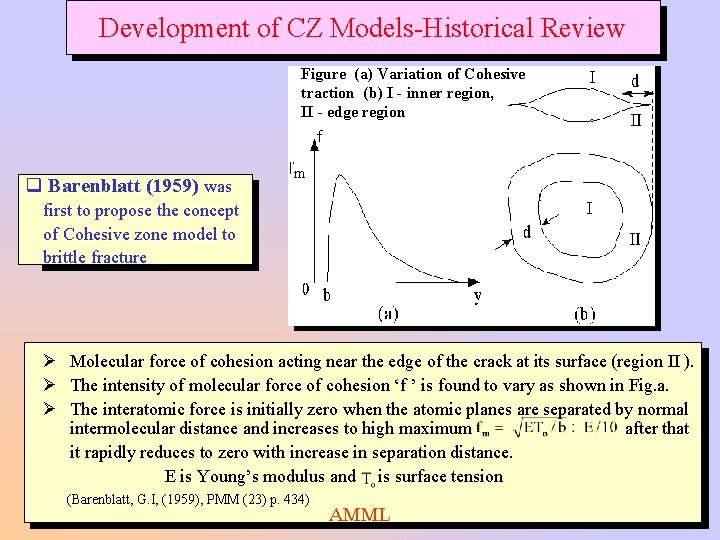

Development of CZ Models-Historical Review Figure (a) Variation of Cohesive traction (b) I - inner region, II - edge region q Barenblatt (1959) was first to propose the concept of Cohesive zone model to brittle fracture Ø Molecular force of cohesion acting near the edge of the crack at its surface (region II ). Ø The intensity of molecular force of cohesion ‘f ’ is found to vary as shown in Fig. a. Ø The interatomic force is initially zero when the atomic planes are separated by normal intermolecular distance and increases to high maximum after that it rapidly reduces to zero with increase in separation distance. E is Young’s modulus and is surface tension (Barenblatt, G. I, (1959), PMM (23) p. 434) AMML

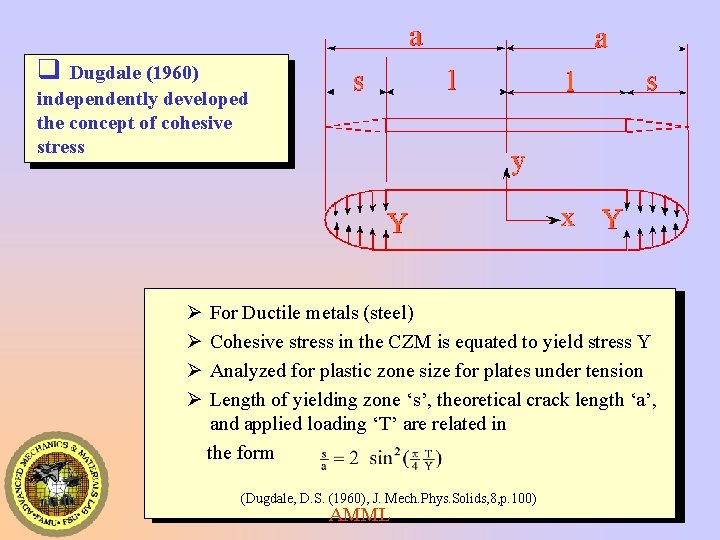

q Dugdale (1960) independently developed the concept of cohesive stress Ø Ø For Ductile metals (steel) Cohesive stress in the CZM is equated to yield stress Y Analyzed for plastic zone size for plates under tension Length of yielding zone ‘s’, theoretical crack length ‘a’, and applied loading ‘T’ are related in the form (Dugdale, D. S. (1960), J. Mech. Phys. Solids, 8, p. 100) AMML

Phenomenological Models q The theory of CZM is based on sound principles. q However implementation of model for practical problems grew exponentially for practical problems with use of FEM and advent of fast computing. q Model has been recast as a phenomenological one for a number of systems and boundary value problems. q The phenomenological models can model the separation process but not the effect of atomic discreteness. Hillerborg etal. 1976 Ficticious Grujicic, 1999, fracture behacrack model; concrete vior of polycrystalline; bicrystals Bazant etal. 1983 crack band Costanzo etal; 1998, dynamic fr. theory; concrete Ghosh 2000, Interfacial debo. Morgan etal. 1997 earthquake nding; composites rupture propagation; geomaterial Rahulkumar 2000 viscoelastic Planas etal, 1991, concrete fracture; polymers Eisenmenger, 2001, stone fragm. Liechti 2001 Mixed-mode, timeentation squeezing" by evanescent depend. rubber/metal debonding waves; brittle-bio materials Ravichander, 2001, fatigue Amruthraj etal. , 1995, composites AMML Tevergaard 1992 particle-matrix interface debonding Tvergaard etal 1996 elasticplastic solid : ductile frac. ; metals Brocks 2001 crack growth in sheet metal Camacho &ortiz; 1996, impact Dollar; 1993 Interfacial debonding ceramic-matrix comp Lokhandwalla 2000, urinary stones; biomaterials

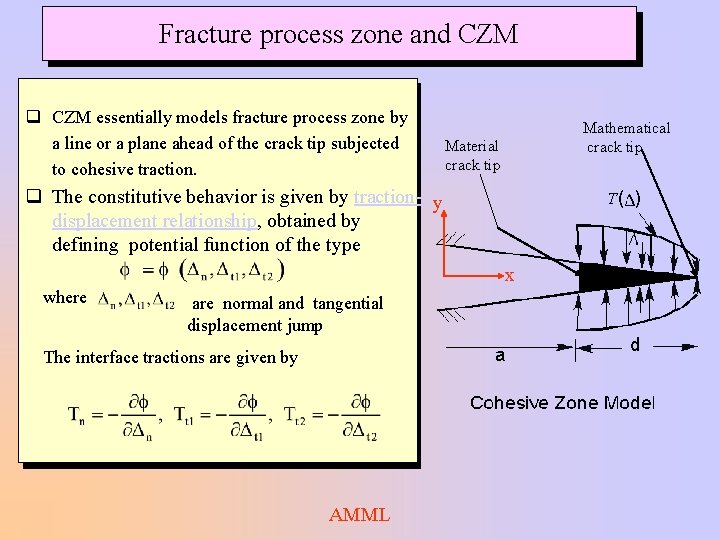

Fracture process zone and CZM q CZM essentially models fracture process zone by a line or a plane ahead of the crack tip subjected to cohesive traction. Mathematical crack tip Material crack tip q The constitutive behavior is given by traction- y displacement relationship, obtained by defining potential function of the type x where are normal and tangential displacement jump The interface tractions are given by AMML

AMML

AMML

Critical Issues in the application of CZM to interface models • What is the relationship between the physics/mechanics of the separation process and shape of CZM? (There as many shapes/equations as there are number of interface problems solved!) • What is the relationship between CZM and fracture mechanics of brittle, semi-brittle and ductile materials? • What is the role of scaling parameter in the fidelity of CZM to model interface behavior? • What is the physical significance of - Shape of the curve C - tmax and interface strength - Separation distance sep and COD? - Area under the curve, work of fracture, fracture toughness G (local and global) AMML

Motivation for studying CZM is an excellent tool with sound theoretical basis and computational ease. Lacks proper mechanics and physics based analysis and evaluation. Already widely used in fracture/fragmentation/failure critical issues addressed here Scales- What range of CZM parameters are valid? v. MPa or GPa for the traction v. J or KJ for cohesive energy vnm or for separation displacement What is the effect of plasticity in the bounding material on the fracture processes Energy- Energy characteristics during fracture process and how energy flows in to the cohesive zone. AMML Importance of shape of CZM

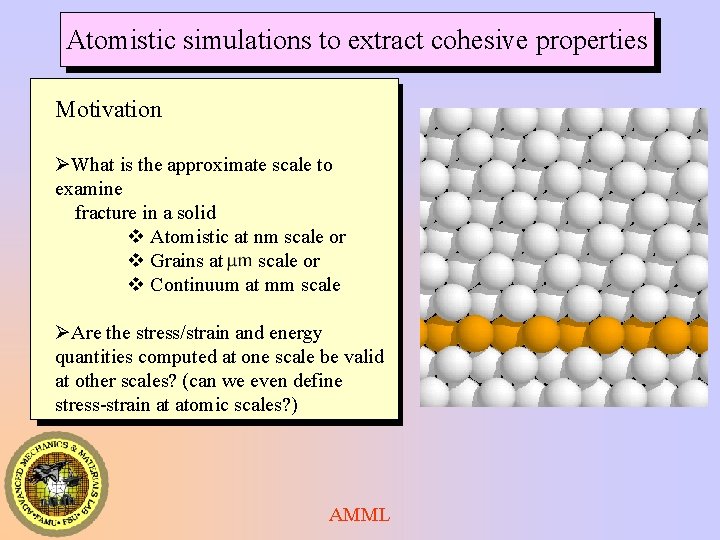

Atomistic simulations to extract cohesive properties Motivation ØWhat is the approximate scale to examine fracture in a solid v Atomistic at nm scale or v Grains at scale or v Continuum at mm scale ØAre the stress/strain and energy quantities computed at one scale be valid at other scales? (can we even define stress-strain at atomic scales? ) AMML

Embedded Atom Method Energy Functions (D. J. Oh and R. A. Johnson, 1989 , Atomic Simulation of Materials, Edts: V Vitek and D. J. Srolovitz, p 233) 233 The total internal energy of the crystal where and Internal energy associated with atom i Embedded Energy of atom i. Contribution to electron density of ith atom and jth atom. Two body central potential between ith atom and jth atom. AMML

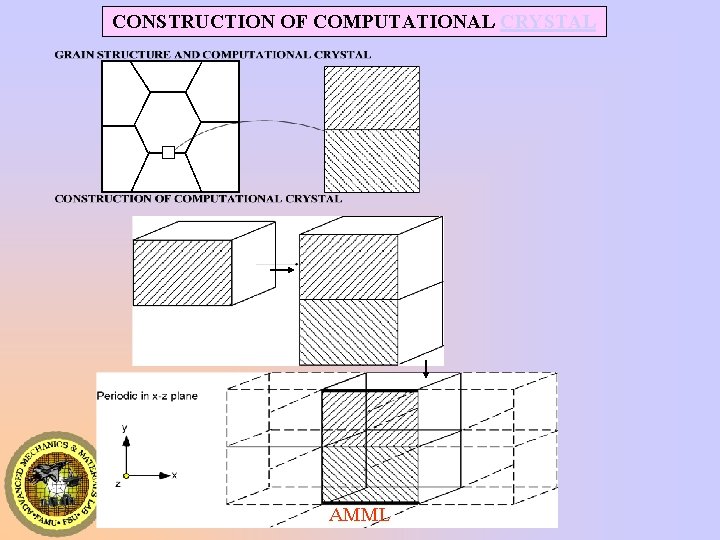

CONSTRUCTION OF COMPUTATIONAL CRYSTAL AMML

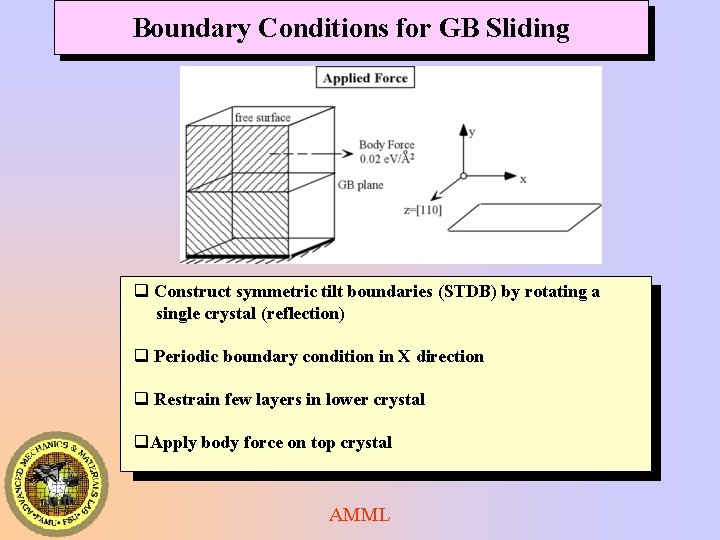

Boundary Conditions for GB Sliding q Construct symmetric tilt boundaries (STDB) by rotating a single crystal (reflection) q Periodic boundary condition in X direction q Restrain few layers in lower crystal q. Apply body force on top crystal AMML

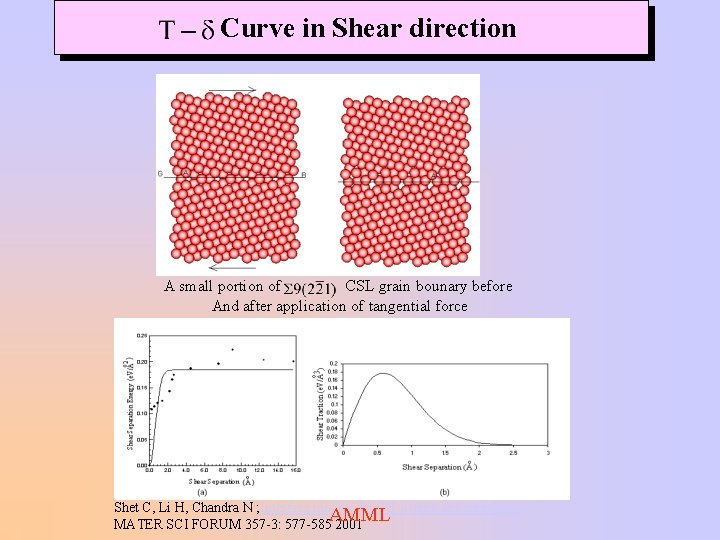

Curve in Shear direction A small portion of CSL grain bounary before And after application of tangential force Shet C, Li H, Chandra N ; Interface models for GB sliding and migration AMML MATER SCI FORUM 357 -3: 577 -585 2001

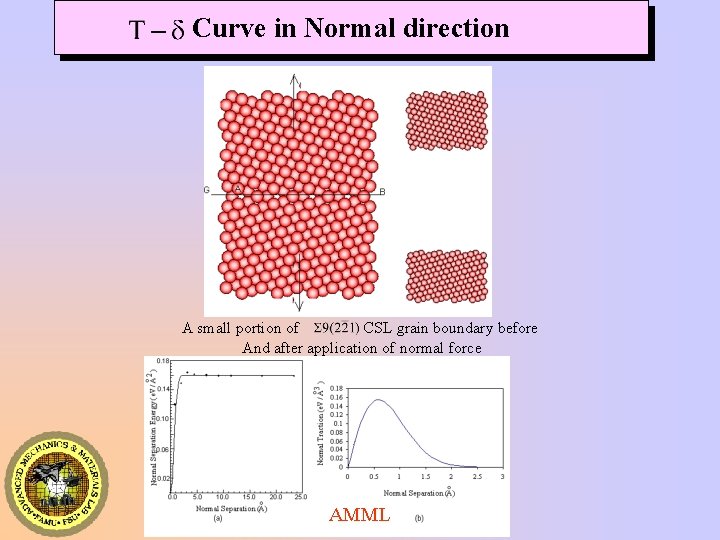

Curve in Normal direction A small portion of CSL grain boundary before And after application of normal force AMML

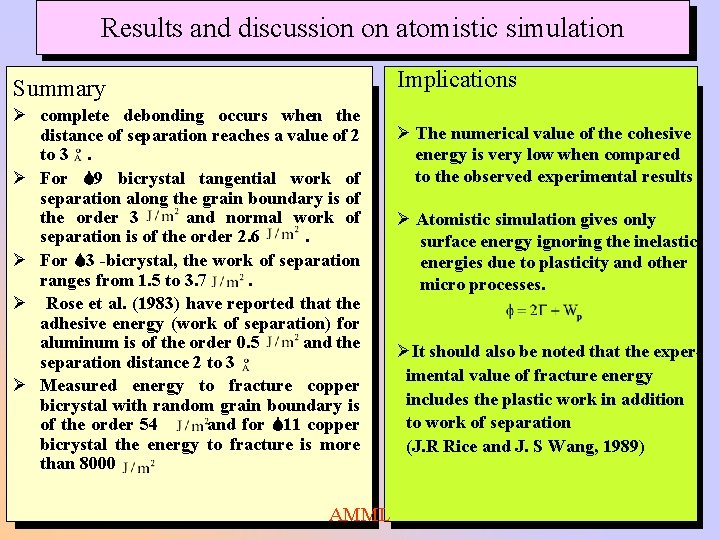

Results and discussion on atomistic simulation Implications Summary Ø complete debonding occurs when the distance of separation reaches a value of 2 to 3. Ø For 9 bicrystal tangential work of separation along the grain boundary is of the order 3 and normal work of separation is of the order 2. 6. Ø For 3 -bicrystal, the work of separation ranges from 1. 5 to 3. 7. Ø Rose et al. (1983) have reported that the adhesive energy (work of separation) for aluminum is of the order 0. 5 and the separation distance 2 to 3 Ø Measured energy to fracture copper bicrystal with random grain boundary is of the order 54 and for 11 copper bicrystal the energy to fracture is more than 8000 AMML Ø The numerical value of the cohesive energy is very low when compared to the observed experimental results Ø Atomistic simulation gives only surface energy ignoring the inelastic energies due to plasticity and other micro processes. ØIt should also be noted that the experimental value of fracture energy includes the plastic work in addition to work of separation (J. R Rice and J. S Wang, 1989)

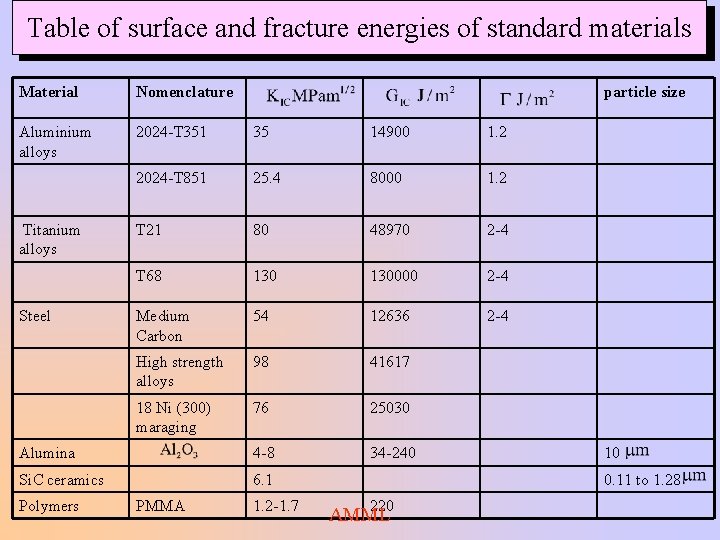

Table of surface and fracture energies of standard materials Material Nomenclature Aluminium alloys 2024 -T 351 35 14900 1. 2 2024 -T 851 25. 4 8000 1. 2 T 21 80 48970 2 -4 T 68 130000 2 -4 Medium Carbon 54 12636 2 -4 High strength alloys 98 41617 18 Ni (300) maraging 76 25030 Alumina 4 -8 34 -240 Si. C ceramics 6. 1 Titanium alloys Steel Polymers PMMA particle size 1. 2 -1. 7 10 0. 11 to 1. 28 220 AMML

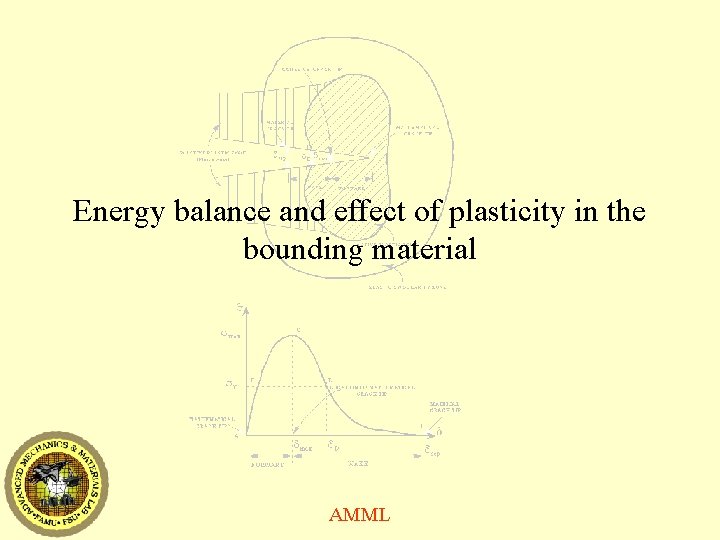

Energy balance and effect of plasticity in the bounding material AMML

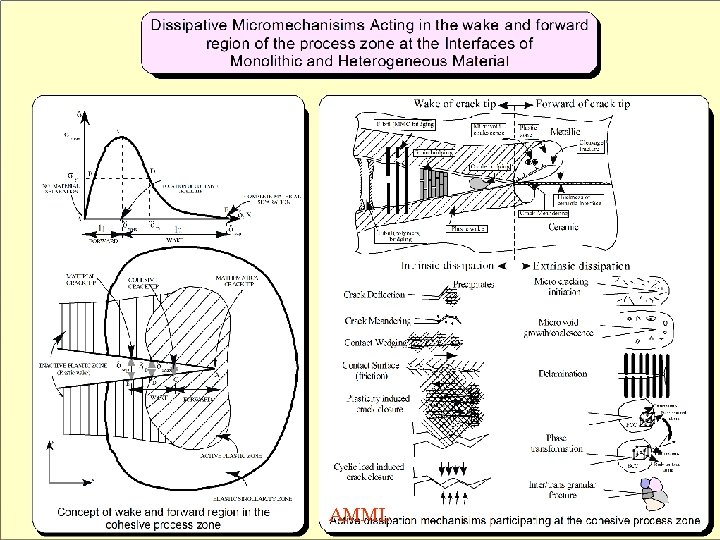

Motivation Ø It is perceived that CZM represents the physical separation process. Ø As seen from atomistics, fracture process comprises mostly of inelastic dissipative energies. Ø There are many inelastic dissipative process specific to each material system; some occur within FPZ, and some in the bounding material. Ø How the energy flow takes place under the external loading within the cohesive zone and neighboring bounding material near the crack tip? ØWhat is the spatial distribution of plastic energy? ØIs there a link between micromechanics processes of the material and curve. AMML

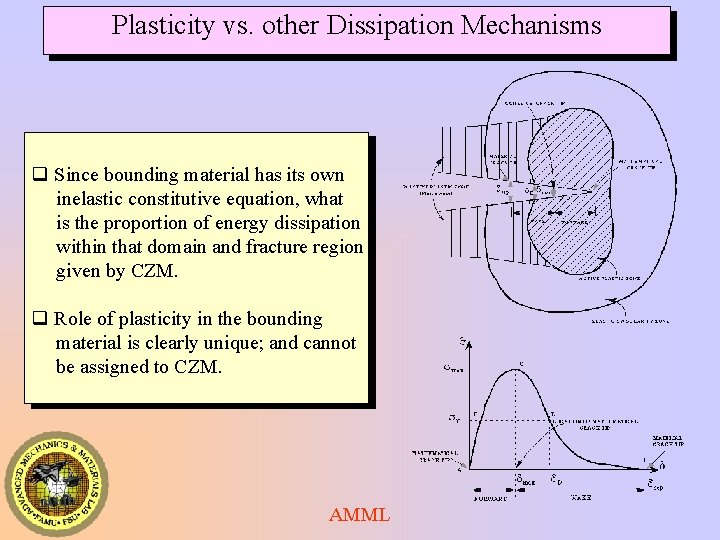

Plasticity vs. other Dissipation Mechanisms q Since bounding material has its own inelastic constitutive equation, what is the proportion of energy dissipation within that domain and fracture region given by CZM. q Role of plasticity in the bounding material is clearly unique; and cannot be assigned to CZM. AMML

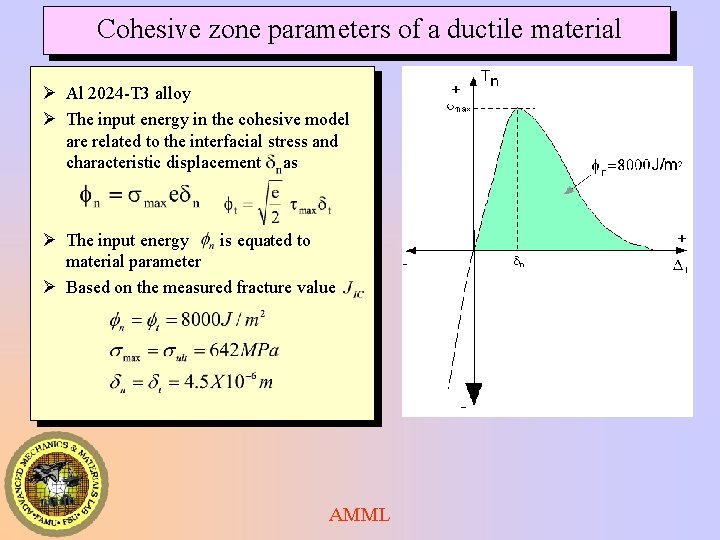

Cohesive zone parameters of a ductile material Ø Al 2024 -T 3 alloy Ø The input energy in the cohesive model are related to the interfacial stress and characteristic displacement as Ø The input energy is equated to material parameter Ø Based on the measured fracture value AMML

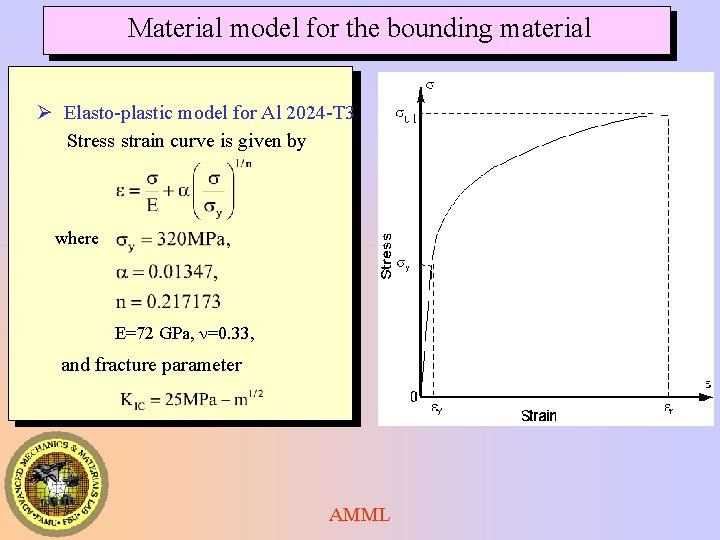

Material model for the bounding material Ø Elasto-plastic model for Al 2024 -T 3 Stress strain curve is given by where E=72 GPa, =0. 33, and fracture parameter AMML

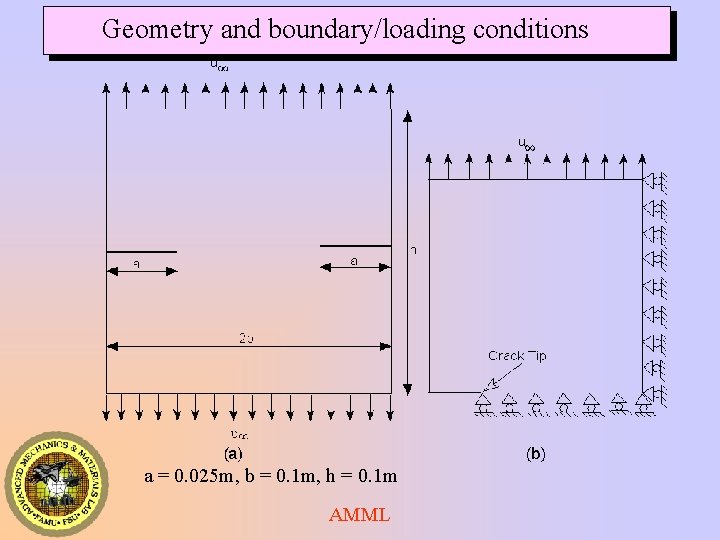

Geometry and boundary/loading conditions a = 0. 025 m, b = 0. 1 m, h = 0. 1 m AMML

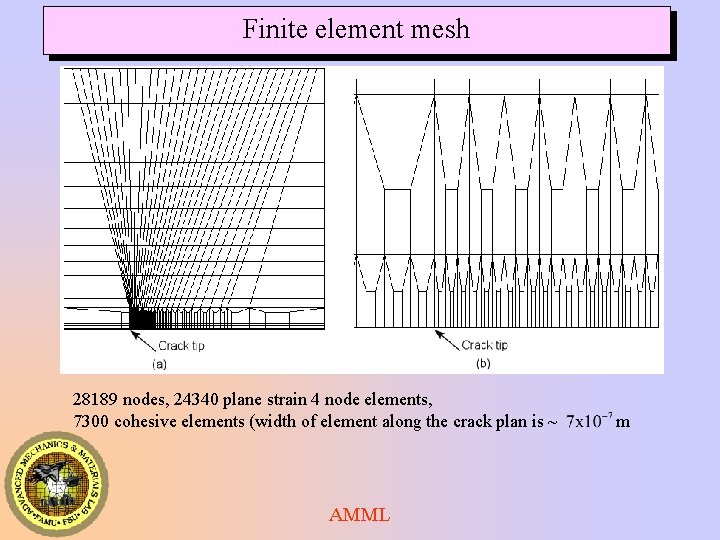

Finite element mesh 28189 nodes, 24340 plane strain 4 node elements, 7300 cohesive elements (width of element along the crack plan is ~ m AMML

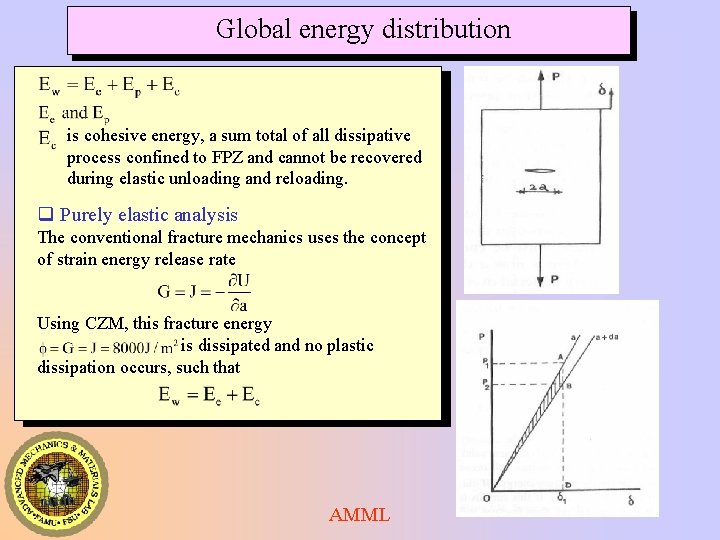

Global energy distribution are confined to bounding material is cohesive energy, a sum total of all dissipative process confined to FPZ and cannot be recovered during elastic unloading and reloading. q Purely elastic analysis The conventional fracture mechanics uses the concept of strain energy release rate Using CZM, this fracture energy is dissipated and no plastic dissipation occurs, such that AMML

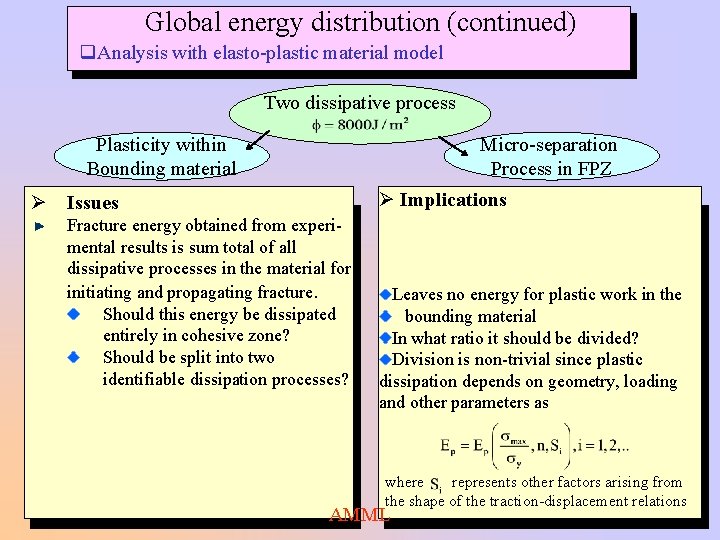

Global energy distribution (continued) q. Analysis with elasto-plastic material model Two dissipative process Plasticity within Bounding material Micro-separation Process in FPZ Ø Implications Ø Issues Fracture energy obtained from experimental results is sum total of all dissipative processes in the material for initiating and propagating fracture. Should this energy be dissipated entirely in cohesive zone? Should be split into two identifiable dissipation processes? Leaves no energy for plastic work in the bounding material In what ratio it should be divided? Division is non-trivial since plastic dissipation depends on geometry, loading and other parameters as where represents other factors arising from the shape of the traction-displacement relations AMML

What are the key CZM parameters that govern the energetics? q in cohesive zone dictates the stress level achievable in the bounding material. q Yield in the bounding material depends on its yield strength and its post yield (hardening characteristics. q Thus plays a crucial role in determining plasticity in the bounding material, shape of the fracture process zone and energy distribution. (other parameters like shape may also be important) AMML

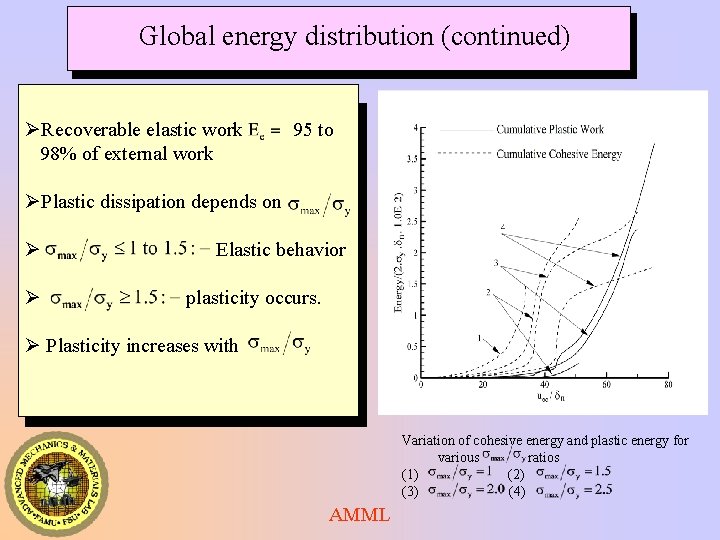

Global energy distribution (continued) ØRecoverable elastic work 95 to 98% of external work ØPlastic dissipation depends on Ø Elastic behavior Ø plasticity occurs. Ø Plasticity increases with Variation of cohesive energy and plastic energy for various ratios (1) (2) (3) (4) AMML

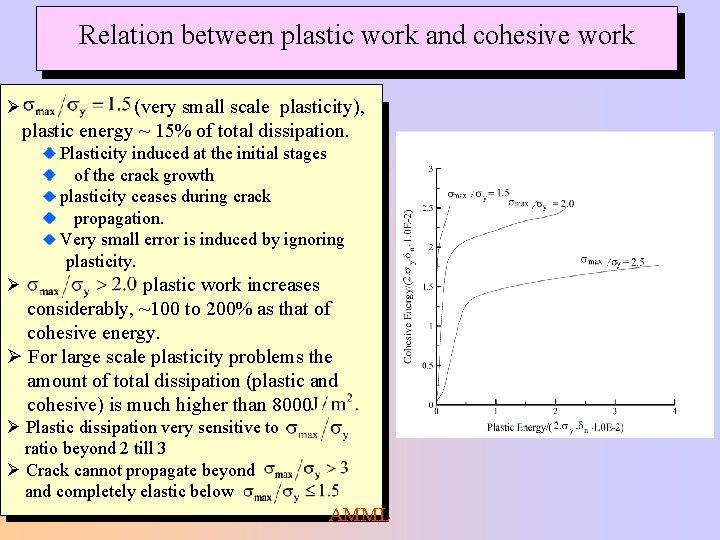

Relation between plastic work and cohesive work Ø (very small scale plasticity), plastic energy ~ 15% of total dissipation. Plasticity induced at the initial stages of the crack growth plasticity ceases during crack propagation. Very small error is induced by ignoring plasticity. Ø plastic work increases considerably, ~100 to 200% as that of cohesive energy. Ø For large scale plasticity problems the amount of total dissipation (plastic and cohesive) is much higher than 8000 Ø Plastic dissipation very sensitive to ratio beyond 2 till 3 Ø Crack cannot propagate beyond and completely elastic below AMML

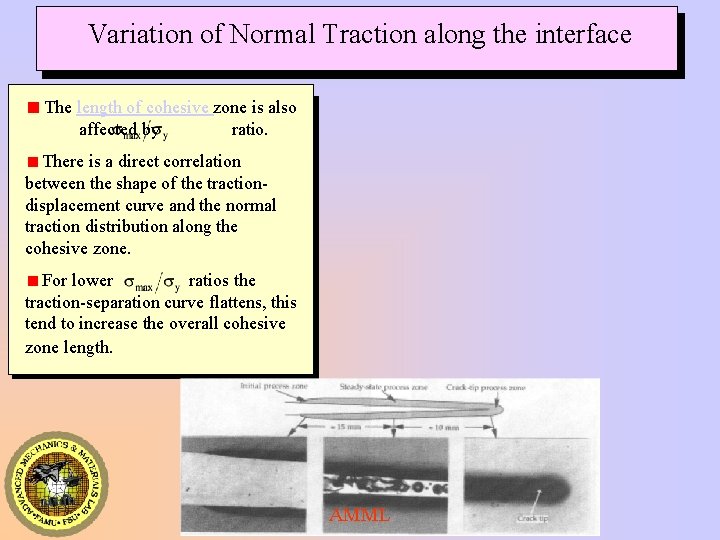

Variation of Normal Traction along the interface The length of cohesive zone is also affected by ratio. There is a direct correlation between the shape of the tractiondisplacement curve and the normal traction distribution along the cohesive zone. For lower ratios the traction-separation curve flattens, this tend to increase the overall cohesive zone length. AMML

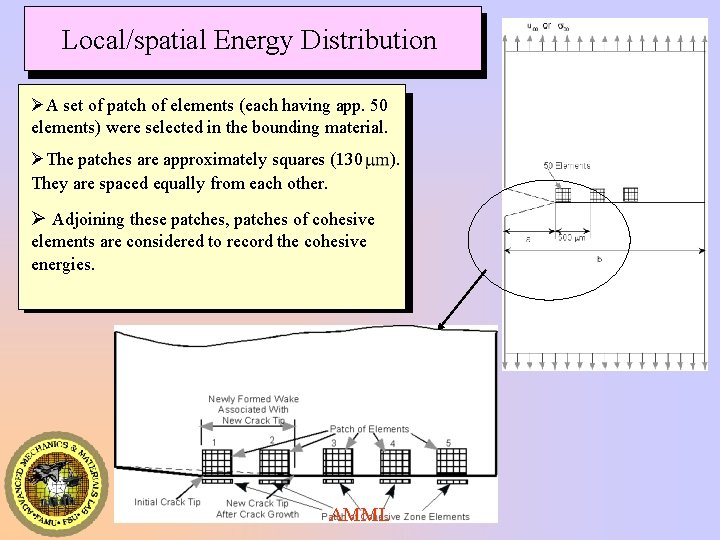

Local/spatial Energy Distribution ØA set of patch of elements (each having app. 50 elements) were selected in the bounding material. ØThe patches are approximately squares (130 ). They are spaced equally from each other. Ø Adjoining these patches, patches of cohesive elements are considered to record the cohesive energies. AMML

Variation of Cohesive Energy The cohesive energy in the patch increases up to point C (corresponding to in Figure ) after which the crack tip is presumed to advance. The energy consumed by the cohesive elements at this stage is approximately 1/7 of the total cohesive energy for the present CZM. Once the point C is crossed, the patch of elements fall into the wake region. The rate of cohesive zone energy absorption depends on the slope of the curve and the rate at which elastic unloading and plastic dissipation takes place in the adjoining material. The curves flattens out once the entire cohesive energy is dissipated within a given zone. The variation of Cohesive Energy in the Wake and Forward region as the crack propagates. The numbers indicate the Cohesive Element Patch numbers Falling Just Below the binding element patches AMML

Variation of Elastic Energy ØConsiderable elastic energy is built up till the peak of curve is reached after which the crack tip advances. ØAfter passing C, the cohesive elements near the crack tip are separated and the elements in this patch becomes a part of the wake. ØAt this stage, the values of normal traction reduces following the downward slope of curve following which the stress in the patch reduces accompanied by reduction in elastic strain energy. Ø The reduction in elastic strain energy is used up in dissipating cohesive energy to those cohesive elements adjoining this patch. ØThe initial crack tip is inherently sharp leading to high levels of stress fields due to which higher energy for patch 1 ØCrack tip blunts for advancing crack tip leading to a lower levels of stress, resulting in reduced energy level in other patches. AMML Variation of Elastic Energy in Various Patch of Elements as a Function of Crack Extension. The numbers indicate Patch numbers starting from Initial Crack Tip

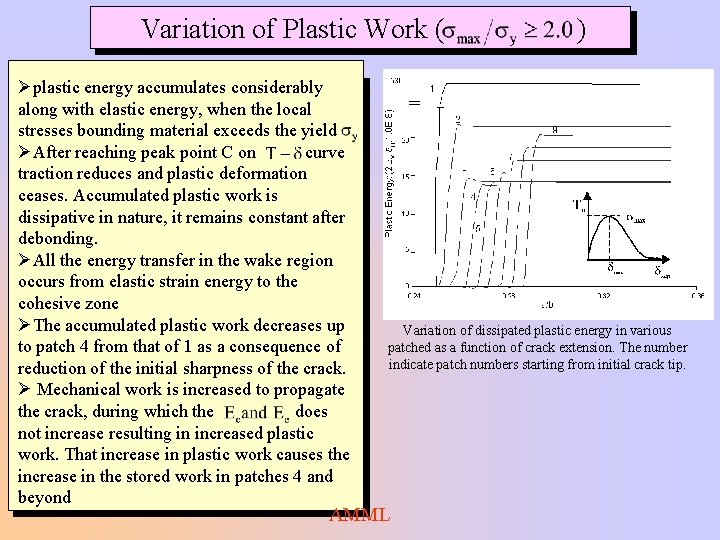

Variation of Plastic Work ( ) Øplastic energy accumulates considerably along with elastic energy, when the local stresses bounding material exceeds the yield ØAfter reaching peak point C on curve traction reduces and plastic deformation ceases. Accumulated plastic work is dissipative in nature, it remains constant after debonding. ØAll the energy transfer in the wake region occurs from elastic strain energy to the cohesive zone ØThe accumulated plastic work decreases up to patch 4 from that of 1 as a consequence of reduction of the initial sharpness of the crack. Ø Mechanical work is increased to propagate the crack, during which the does not increase resulting in increased plastic work. That increase in plastic work causes the increase in the stored work in patches 4 and beyond Variation of dissipated plastic energy in various patched as a function of crack extension. The number indicate patch numbers starting from initial crack tip. AMML

Variation of Plastic Work ( ) Ø , there is no plastic dissipation. Ø plastic work is induced only in the first patch of element Ø No plastic dissipation during crack growth place in the forward region Ø Initial sharp crack tip profile induces high levels of stress and hence plasticity in bounding material. Ø During crack propagation, tip blunts resulting reduced level of stresses leading to reduced elastic energies and no plasticity condition. Variation of Plastic work and Elastic work in various patch of elements along the interface for the case of . The numbers indicates the energy in various patch of AMML elements starting from the crack tip.

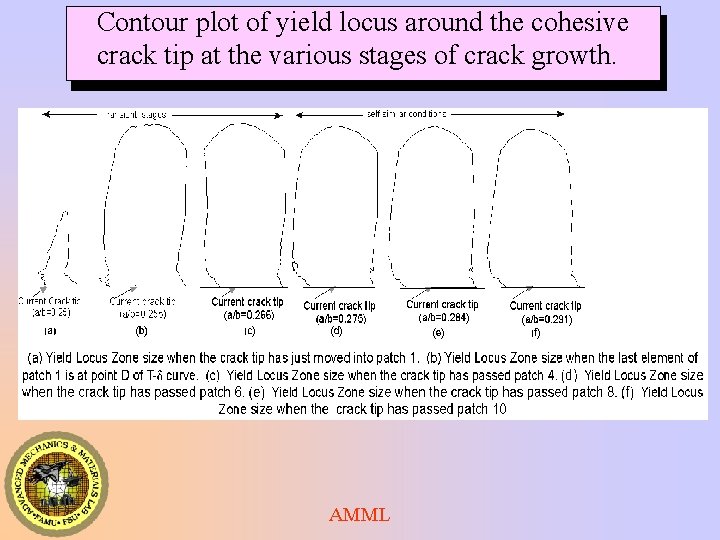

Contour plot of yield locus around the cohesive crack tip at the various stages of crack growth. AMML

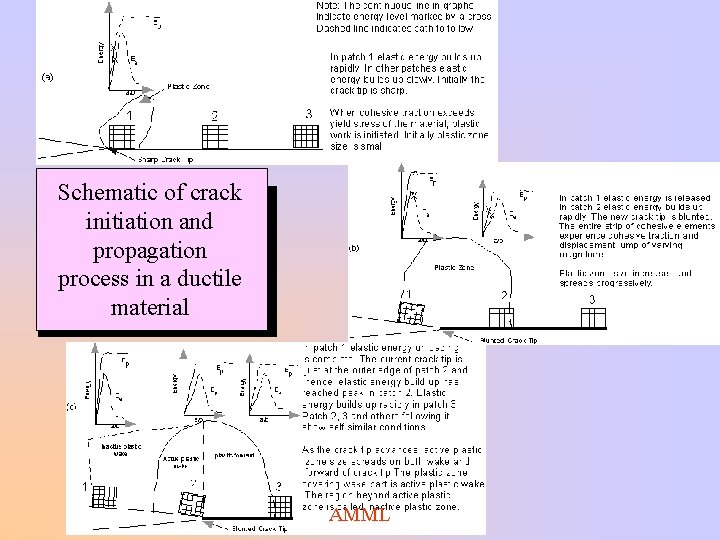

Schematic of crack initiation and propagation process in a ductile material AMML

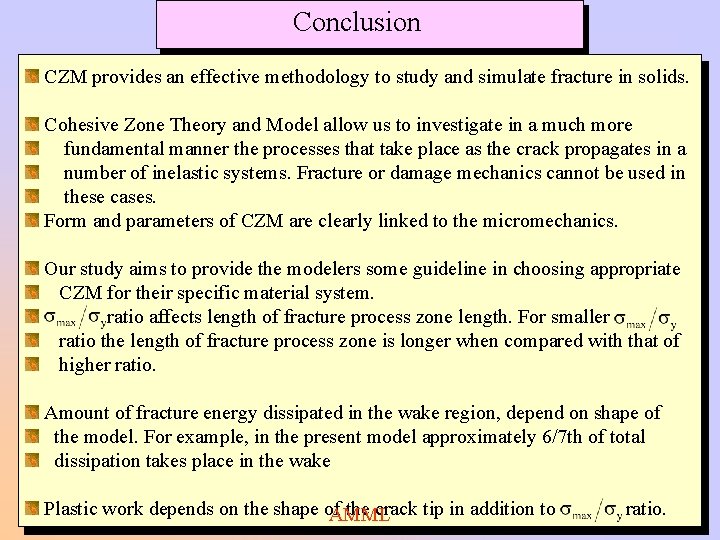

Conclusion CZM provides an effective methodology to study and simulate fracture in solids. Cohesive Zone Theory and Model allow us to investigate in a much more fundamental manner the processes that take place as the crack propagates in a number of inelastic systems. Fracture or damage mechanics cannot be used in these cases. Form and parameters of CZM are clearly linked to the micromechanics. Our study aims to provide the modelers some guideline in choosing appropriate CZM for their specific material system. ratio affects length of fracture process zone length. For smaller ratio the length of fracture process zone is longer when compared with that of higher ratio. Amount of fracture energy dissipated in the wake region, depend on shape of the model. For example, in the present model approximately 6/7 th of total dissipation takes place in the wake Plastic work depends on the shape of the crack tip in addition to ratio. AMML

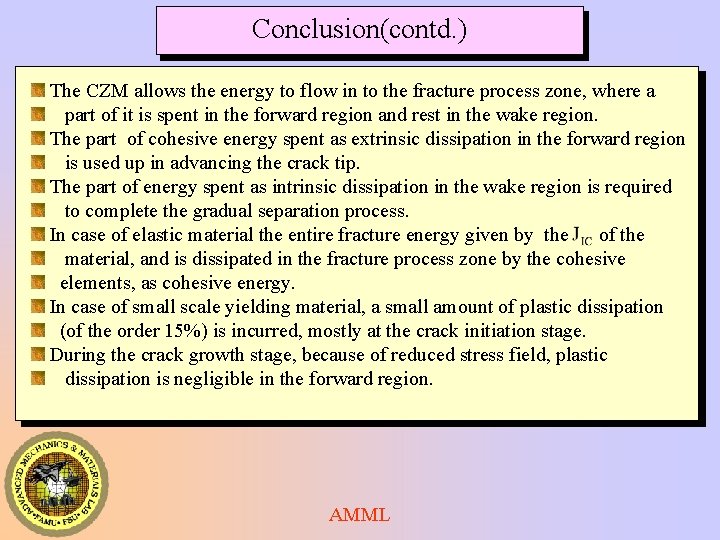

Conclusion(contd. ) The CZM allows the energy to flow in to the fracture process zone, where a part of it is spent in the forward region and rest in the wake region. The part of cohesive energy spent as extrinsic dissipation in the forward region is used up in advancing the crack tip. The part of energy spent as intrinsic dissipation in the wake region is required to complete the gradual separation process. In case of elastic material the entire fracture energy given by the of the material, and is dissipated in the fracture process zone by the cohesive elements, as cohesive energy. In case of small scale yielding material, a small amount of plastic dissipation (of the order 15%) is incurred, mostly at the crack initiation stage. During the crack growth stage, because of reduced stress field, plastic dissipation is negligible in the forward region. AMML
