THEMIS-ASI Data Products
THEMIS Data Products and Access Eric Donovan – ASI Data Products Banff – March 29 2006
THEMIS Data Products and Access Eric Donovan – ASI Data Products Banff – March 29 2006
THEMIS Data Products and Access Eric Donovan – ASI Data Products Banff – March 29 2006
THEMIS Data Products and Access At Site or RT with “backfill” 1. 2. 3. 4. 5. 6. 7. PGM file: 20 images/minute (256 X 2) with headers + overall header Thumbnail: 32 X 32, 1 byte deep, 3 second cadence High-resolution keogram (one hour): 6 second cadence, 256 pixel, 2 bytes deep High-resolution keogram (one day): 1 minute cadence, 256 pixels, 2 bytes deep Hourly montages: 1 hour at 1 minute cadence, 384 X 640, 2 bytes deep Daily montage: 24 hours at 10 minute cadence, 768 X 768, 2 bytes deep One minute averages, 256 X 2 At UCalgary 1. 2. 3. 4. 5. Mosaics (geomagnetic grid) – 20 second cadence jpegs & pngs CDF File 1 – 6 second cadence, 32 X 1, 20 sites, 24 hours (12 MB/file) CDF File 2 – 5 minute cadence, 256 X 265 X 2, 20 sites, one hour (31 MB/file) Medium-resolution keograms (128 X 720 X 2) for GAIA browser Low resolution keogram: 720 X 32 X 1 THEMIS-ASI Browser (GAIA-Type Browser for THEMIS Only) 1. 2. 3. Browser tools Summary data Data-base Eric Donovan – ASI Data Products Banff – March 29 2006

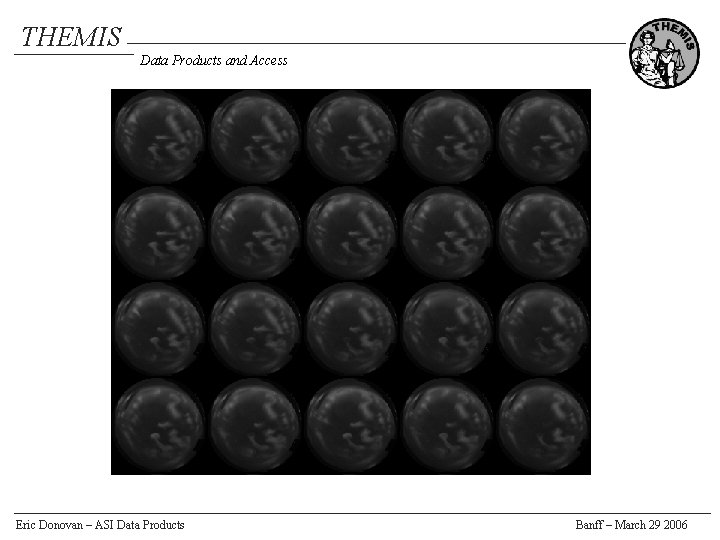

THEMIS Data Products and Access At Site or RT with “backfill” 1. PGM file: 20 images/minute (256 X 2) with headers + overall header 20051228_1258_whit_themis 07_full. pgm Eric Donovan – ASI Data Products Banff – March 29 2006
THEMIS Data Products and Access Eric Donovan – ASI Data Products Banff – March 29 2006
THEMIS Data Products and Access At Site or RT with “backfill” 1. PGM file: 20 images/minute (256 X 2) with headers + overall header 20051228_1258_whit_themis 07_full. pgm Eric Donovan – ASI Data Products Banff – March 29 2006
THEMIS ASI Mosaics Eric Donovan – ASI Data Products Banff – March 29 2006
THEMIS GAIA Eric Donovan – ASI Data Products Banff – March 29 2006
THEMIS GAIA Steering Committee • Eric Donovan • Kirsti Kauristie • Stephen Mende • Joran Moen • Farideh Honary • Ingrid Sandal Data sharing agreements Data policy Rules of the Road All Funding Relationship to agencies Relationship to other programs Work package definition Work package management GAIA Legacy Project • Brian Jackel • Fred Sigernes • FMI rep • UAGI rep Eric Donovan – ASI Data Products GAIA Working Group • Emma Spanswick ** • Mikko Syrjäsuo ** • Brian Jackel • Steve Marple ** • Noora Partamies • Sanna Mäkinen • Dirk Lummerzheim • Andrew Kavanagh • Dag Lorentzen • Fred Sigernes Work package definition Work package execution Scripting Data Formats Mirror Sites Legacy Progect GAIA Membership Indicate “brownie” points • GSC + GWG + • Kazuo Shiokawa • Hans Stenbaek-Nelson • Al Weatherwax • Rick Doe • Marton Blixt • Matthieu Muerant • Trondsen • Jim Wild • Martin Connors • Fokke Creutzberg • Leroy Cogger • Nikolai Ostgaard • Scott Palo Data provision Liason to other Vx. Os Beta-testing Legacy Project Banff – March 29 2006

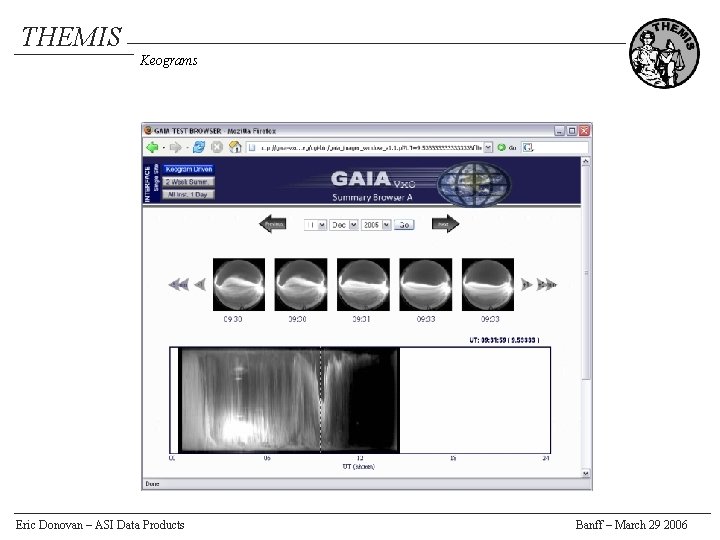

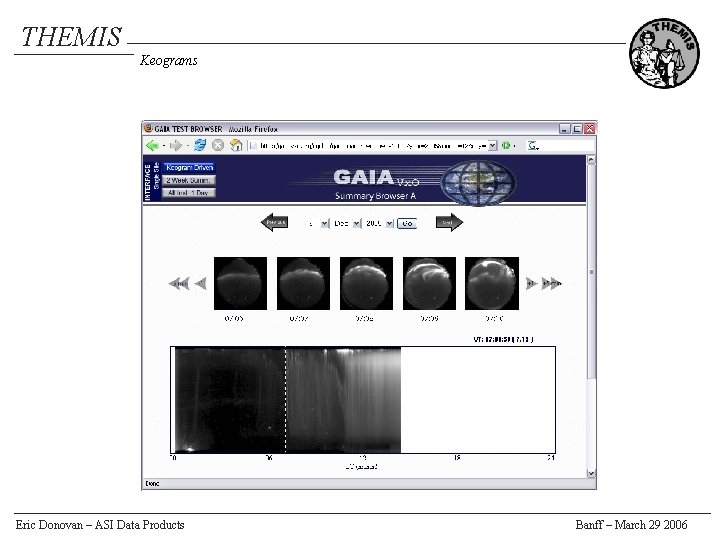

THEMIS Keograms Eric Donovan – ASI Data Products Banff – March 29 2006
THEMIS Keograms Eric Donovan – ASI Data Products Banff – March 29 2006
THEMIS Keograms Eric Donovan – ASI Data Products Banff – March 29 2006
THEMIS Keograms Eric Donovan – ASI Data Products Banff – March 29 2006
THEMIS Keograms Eric Donovan – ASI Data Products Banff – March 29 2006
THEMIS Keograms Eric Donovan – ASI Data Products Banff – March 29 2006
THEMIS Keograms Eric Donovan – ASI Data Products Banff – March 29 2006
THEMIS Keograms Eric Donovan – ASI Data Products Banff – March 29 2006
THEMIS Keograms Eric Donovan – ASI Data Products Banff – March 29 2006
THEMIS Keograms Eric Donovan – ASI Data Products Banff – March 29 2006
THEMIS Keograms Eric Donovan – ASI Data Products Banff – March 29 2006
THEMIS Keograms Eric Donovan – ASI Data Products Banff – March 29 2006
THEMIS ASI Mosaics Eric Donovan – ASI Data Products Banff – March 29 2006
THEMIS Data Products and Access At Site or RT with “backfill” 1. PGM file: 20 images/minute (256 X 2) with headers + overall header Raw Data 2. 6 MB/file 1200 files/hour ~8 hours/day 365 days/year ~10 TB/year Eric Donovan – ASI Data Products Banff – March 29 2006
THEMIS Data Products and Access At Site or RT with “backfill” Eric Donovan – ASI Data Products Image 20 - Header Image 2 - Header Image 1 PGM file: 20 images/minute (256 X 2) with headers + overall header Image 1 - Header File Header 1. Banff – March 29 2006
THEMIS Data Products and Access At Site or RT with “backfill” 1. PGM file: 20 images/minute (256 X 2) with headers + overall header Eric Donovan – ASI Data Products Banff – March 29 2006
THEMIS Data Products and Access At Site or RT with “backfill” 1. PGM file: 20 images/minute (256 X 2) with headers + overall header Eric Donovan – ASI Data Products Banff – March 29 2006
