THEMIS FM 1 INSTRUMENT SUITE PRE-SHIP REVIEW (PSR) ELECTROSTATIC ANALYSER (ESA) Charles Carlson University of California - Berkeley FM 1 Instrument Suite Pre-Ship Review (PSR) ESA-1 UCB, September 21, 2005

Outline • Summary of ESA Status at FM 1 PSR • FM 1 Configuration by SN • End-Item Data Package, Summary and To. C • Final Test and Cal Results vs. Requirement Fulfillment • PFRs • FM 1 Open Items FM 1 Instrument Suite Pre-Ship Review (PSR) ESA-2 UCB, September 21, 2005

ESA Status at FM 1 PSR • Requirements and Design: – – • Procurement: – • No major changes to Requirements or Design since M-CDR No RFAs from previous reviews outstanding All procurement is complete. Assembly and Test: – – – – 5 ESA mechanical assemblies complete 6 sets of High Voltage power supplies complete and tested 6 HV mother boards assembled and tested with HV supplies 12 anodes (6 sets) assembled and tested with MCPs 5 Preamp boards complete; 3 tested in complete units 5 HV Interface boards complete; 3 tested in complete units FM 1 -FM 3 assembled and calibrated 6 LVPS built and tested FM 1 Instrument Suite Pre-Ship Review (PSR) ESA-3 UCB, September 21, 2005

FM 1 Configuration • • • HVI S/N 001, ACTEL Version 7 HV Motherboard S/N 001 A HVN S/N 004 HVP S/N 016 Preamp S/N 007, ACTEL Version 7 THAN Anode S/N 102, MCP set #30 TLAN Anode S/N 106, MCP set #15 LVPS S/N 037 Analyzer Mechanical Assembly S/N 001 FM 1 Instrument Suite Pre-Ship Review (PSR) ESA-4 UCB, September 21, 2005

FM 1 EIDP: Electrical THEMIS ESA FM 1 (BINDER #25): • Includes THEMIS Coat and Stake Log, Mixing Records, Assembly Instructions, Schematics, Board Layouts, Repair/Rework Instructions, Inspection Reports, Bill of Materials and Magnetics Test Procedures (LVPS and HVPS only) for: • Mother Board • Sweep I/F Board • Pre-Amp Board • HVPS and HVNS Boards • LVPS Board (assembled and tested at SWRI) • Anodes THAN and TLAN FM 1 Instrument Suite Pre-Ship Review (PSR) ESA-5 UCB, September 21, 2005

FM 1 EIDP: Mechanical THEMIS ESA FM 1 (BINDER #26): • List of Mechanical Assembly Procedures • Assembly Records • Assembly Report Sheet • Vibration Test Procedure and Report • Mechanical Drawing Tree • Master As-Built Mechanical Drawings FM 1 Instrument Suite Pre-Ship Review (PSR) ESA-6 UCB, September 21, 2005

ESA Requirements ESA Mission Requirements Fulfillment: • FM 1 MR fulfillment noted in THEMIS Verification Matrix (see MSE Presentation) • Integrated ESA and component parts compliant with mission requirements FM 1 Instrument Suite Pre-Ship Review (PSR) ESA-7 UCB, September 21, 2005

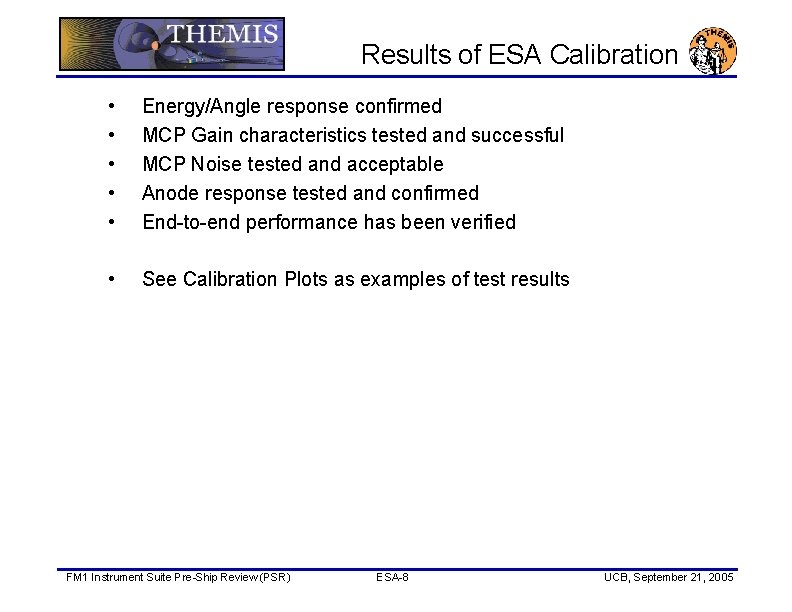

Results of ESA Calibration • • • Energy/Angle response confirmed MCP Gain characteristics tested and successful MCP Noise tested and acceptable Anode response tested and confirmed End-to-end performance has been verified • See Calibration Plots as examples of test results FM 1 Instrument Suite Pre-Ship Review (PSR) ESA-8 UCB, September 21, 2005

ESA PFR Status FM 1 Instrument Suite Pre-Ship Review (PSR) ESA-9 UCB, September 21, 2005

PFR Status • ESA PFR List: • All ESA PFRs have been Closed FM 1 Instrument Suite Pre-Ship Review (PSR) ESA-10 UCB, September 21, 2005

Open Items FM 1 Instrument Suite Pre-Ship Review (PSR) ESA-11 UCB, September 21, 2005

Open Items • ESA Final Calibration still to be done • ESA calibration confirmation after Environmental Testing FM 1 Instrument Suite Pre-Ship Review (PSR) ESA-12 UCB, September 21, 2005
