THE YERSINIA YSCYOP TYPE III WEAPONRY G R

THE YERSINIA YSC-YOP ‘TYPE III’ WEAPONRY G. R. Cornelis, 2002. Nature Reviews in Molecular Cell Biology 3: 742 -752.

TYPE III SECRETION n What is it? n Why is it important? n Who does it?

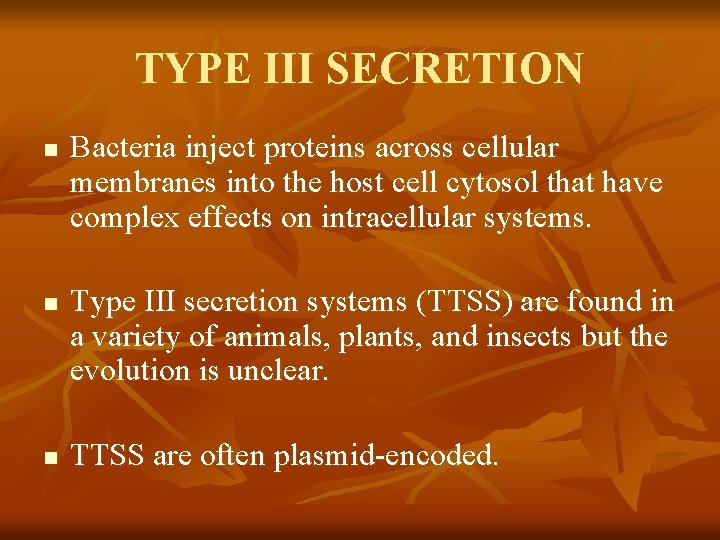

TYPE III SECRETION n n n Bacteria inject proteins across cellular membranes into the host cell cytosol that have complex effects on intracellular systems. Type III secretion systems (TTSS) are found in a variety of animals, plants, and insects but the evolution is unclear. TTSS are often plasmid-encoded.

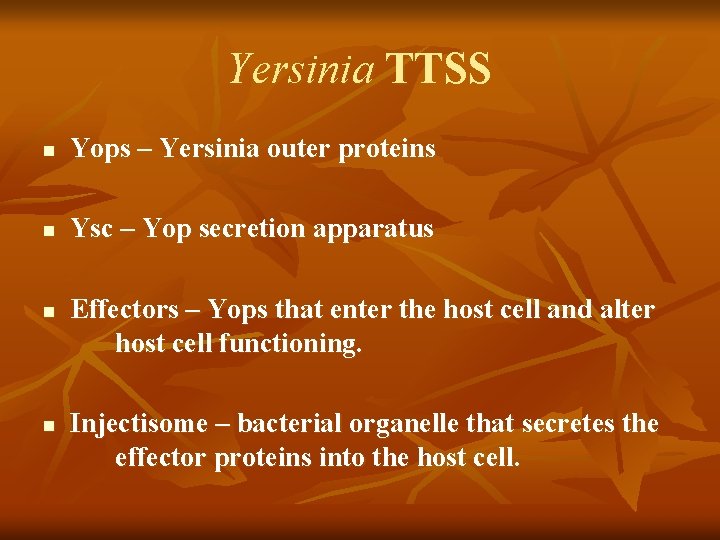

Yersinia TTSS n Yops – Yersinia outer proteins n Ysc – Yop secretion apparatus n n Effectors – Yops that enter the host cell and alter host cell functioning. Injectisome – bacterial organelle that secretes the effector proteins into the host cell.

Yersinia TTSS Overview n n Yersinia adhere to cell surface and deliver Yops into host cell cytosol with injectisome. Yops functions: n n n 1) cytoskeletal effects interfere with phagocytosis. 2) inhibit production of cytokines, chemokines, and adhesion molecules. Yersinia are better able to survive and multiply in lymphoid tissues by using the TTSS.

Yops n Translocator Yops: n n Yop. B, Yop. D, Lcr. V form the pore for delivery. Effector Yops: n n n Yop. H, Yop. E, Yop. T, Ypk. A/Yop. O – cytoskeletal disturbances, inhibition of phagocytosis. Yop. P – downregulation of inflammatory response. Yop. M – function uncertain.

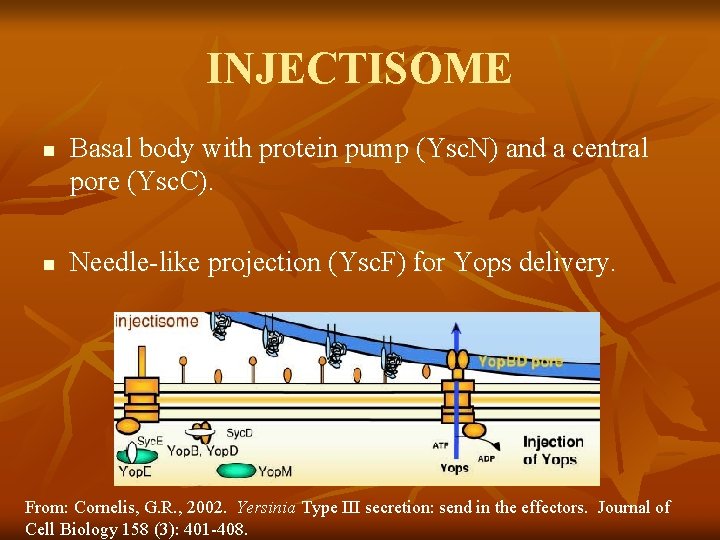

INJECTISOME n n Basal body with protein pump (Ysc. N) and a central pore (Ysc. C). Needle-like projection (Ysc. F) for Yops delivery. From: Cornelis, G. R. , 2002. Yersinia Type III secretion: send in the effectors. Journal of Cell Biology 158 (3): 401 -408.

INJECTISOME n n Translocator Yop. B, Yop. D, Lcr. V are required to form pores for cell delivery. Some Yops require chaperone proteins. Yop. N, Tye. A, Lcr. G plug the injectisome channel before Yops delivery to cell. Cell adhesion required for injectisome function.

INJECTISOME n n n Does the injectisome ‘needle’ pierce the host cell membrane, retract, or break down? Maybe translocator Yops destabilize host cell membranes after adhesion to allow piercing? Once the pore is formed, even non-effector proteins can be delivered to the host cell!

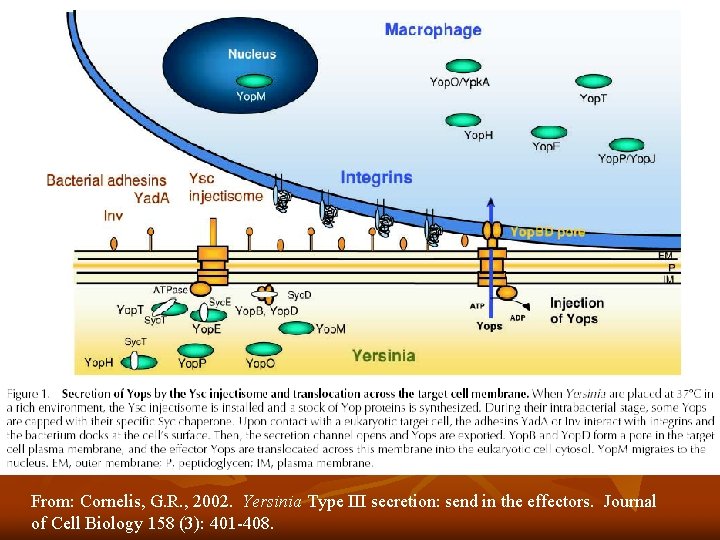

From: Cornelis, G. R. , 2002. Yersinia Type III secretion: send in the effectors. Journal of Cell Biology 158 (3): 401 -408.

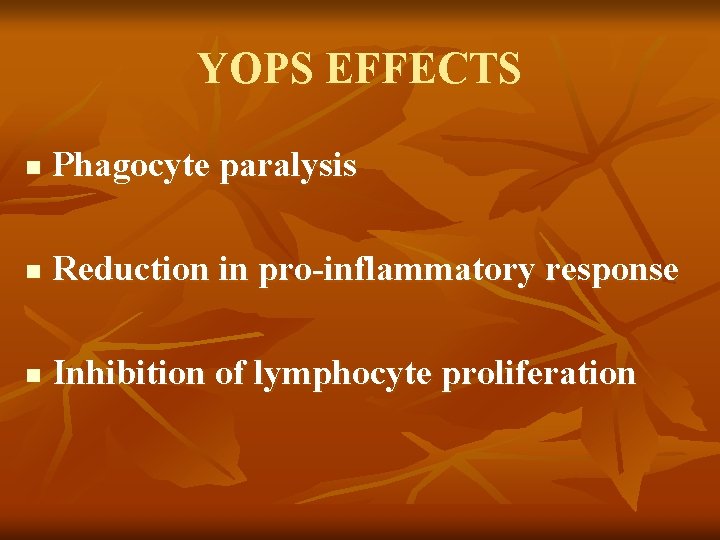

YOPS EFFECTS n Phagocyte paralysis n Reduction in pro-inflammatory response n Inhibition of lymphocyte proliferation

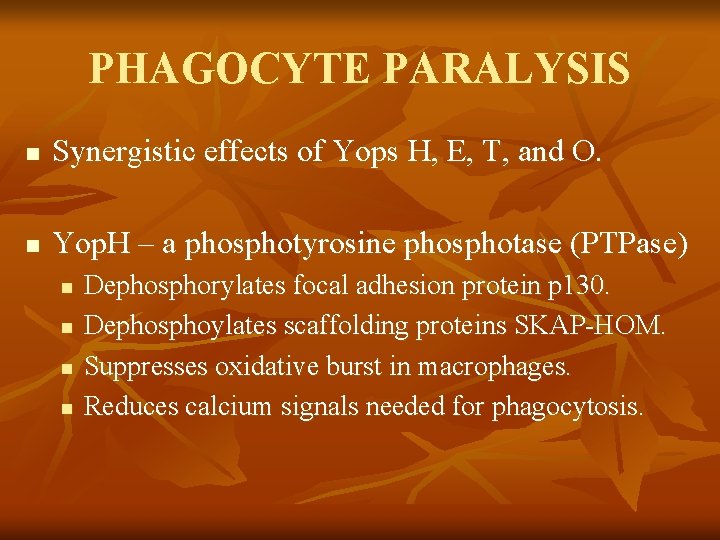

PHAGOCYTE PARALYSIS n Synergistic effects of Yops H, E, T, and O. n Yop. H – a phosphotyrosine phosphotase (PTPase) n n Dephosphorylates focal adhesion protein p 130. Dephosphoylates scaffolding proteins SKAP-HOM. Suppresses oxidative burst in macrophages. Reduces calcium signals needed for phagocytosis.

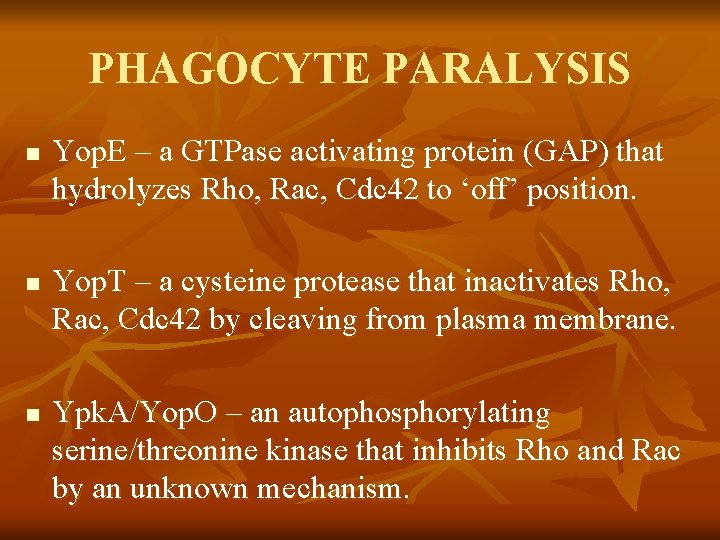

PHAGOCYTE PARALYSIS n n n Yop. E – a GTPase activating protein (GAP) that hydrolyzes Rho, Rac, Cdc 42 to ‘off’ position. Yop. T – a cysteine protease that inactivates Rho, Rac, Cdc 42 by cleaving from plasma membrane. Ypk. A/Yop. O – an autophosphorylating serine/threonine kinase that inhibits Rho and Rac by an unknown mechanism.

From: Cornelis, G. R. , 2002. Yersinia Type III secretion: send in the effectors. Journal of Cell

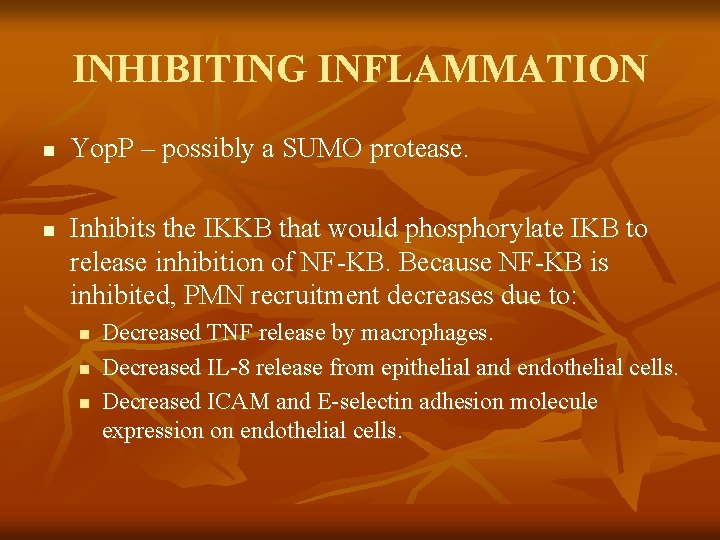

INHIBITING INFLAMMATION n n Yop. P – possibly a SUMO protease. Inhibits the IKKB that would phosphorylate IKB to release inhibition of NF-KB. Because NF-KB is inhibited, PMN recruitment decreases due to: n n n Decreased TNF release by macrophages. Decreased IL-8 release from epithelial and endothelial cells. Decreased ICAM and E-selectin adhesion molecule expression on endothelial cells.

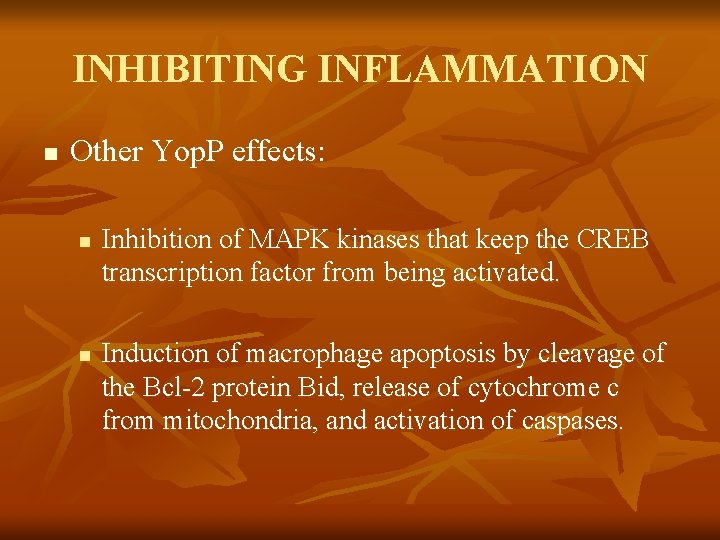

INHIBITING INFLAMMATION n Other Yop. P effects: n n Inhibition of MAPK kinases that keep the CREB transcription factor from being activated. Induction of macrophage apoptosis by cleavage of the Bcl-2 protein Bid, release of cytochrome c from mitochondria, and activation of caspases.

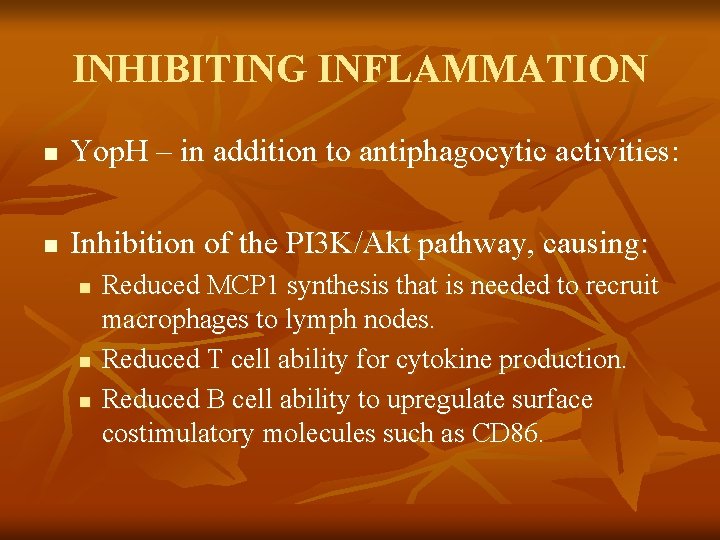

INHIBITING INFLAMMATION n Yop. H – in addition to antiphagocytic activities: n Inhibition of the PI 3 K/Akt pathway, causing: n n n Reduced MCP 1 synthesis that is needed to recruit macrophages to lymph nodes. Reduced T cell ability for cytokine production. Reduced B cell ability to upregulate surface costimulatory molecules such as CD 86.

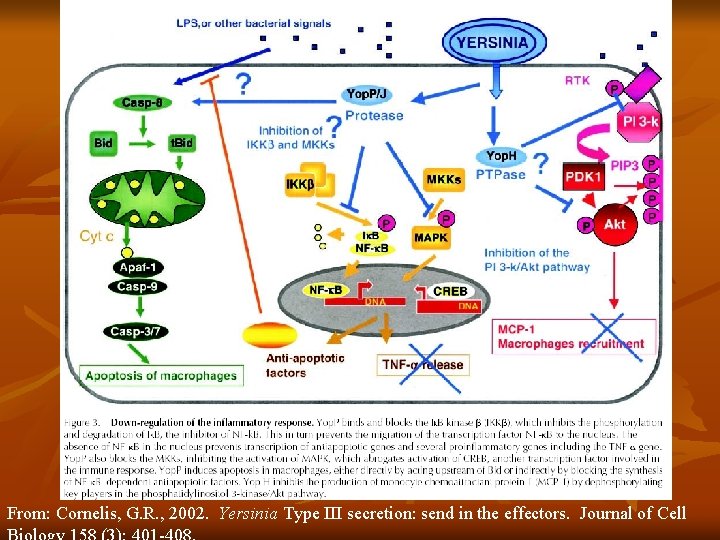

From: Cornelis, G. R. , 2002. Yersinia Type III secretion: send in the effectors. Journal of Cell

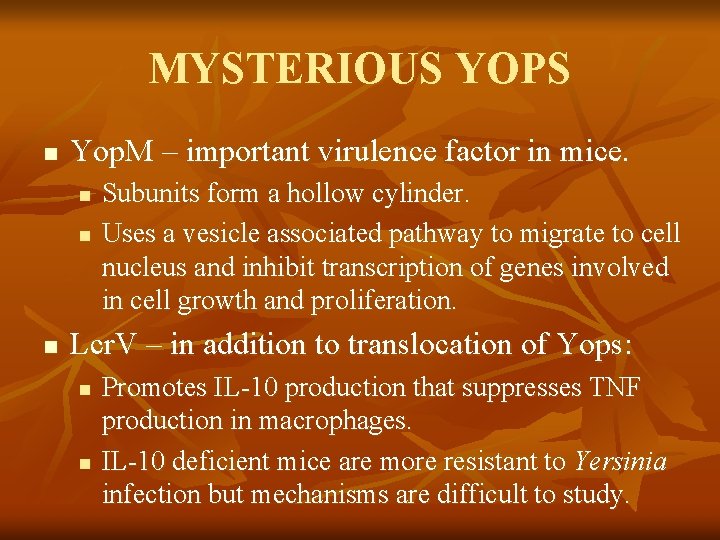

MYSTERIOUS YOPS n Yop. M – important virulence factor in mice. n n n Subunits form a hollow cylinder. Uses a vesicle associated pathway to migrate to cell nucleus and inhibit transcription of genes involved in cell growth and proliferation. Lcr. V – in addition to translocation of Yops: n n Promotes IL-10 production that suppresses TNF production in macrophages. IL-10 deficient mice are more resistant to Yersinia infection but mechanisms are difficult to study.

From: Cornelis, G. R. , 2002. Yersinia Type III secretion: send in the effectors. Journal of Cell Biology 158 (3): 401 -408.

CONCLUSIONS n Translocator Yops – B, D, Lcr. V. n Effector Yops – Yop H, E, T, O, P, M. n Yersinia Ysc-Yop TTSS has complex effects: n n n Inhibition of phagocytosis. Reduced recruitment of PMNs and macrophages. Inhibition of lymphocyte proliferation.
