The VFC You Dont Know Yang VFC PTL
- Slides: 19
The VF-C You Don’t Know Yang VF-C PTL June 20 th , 2018

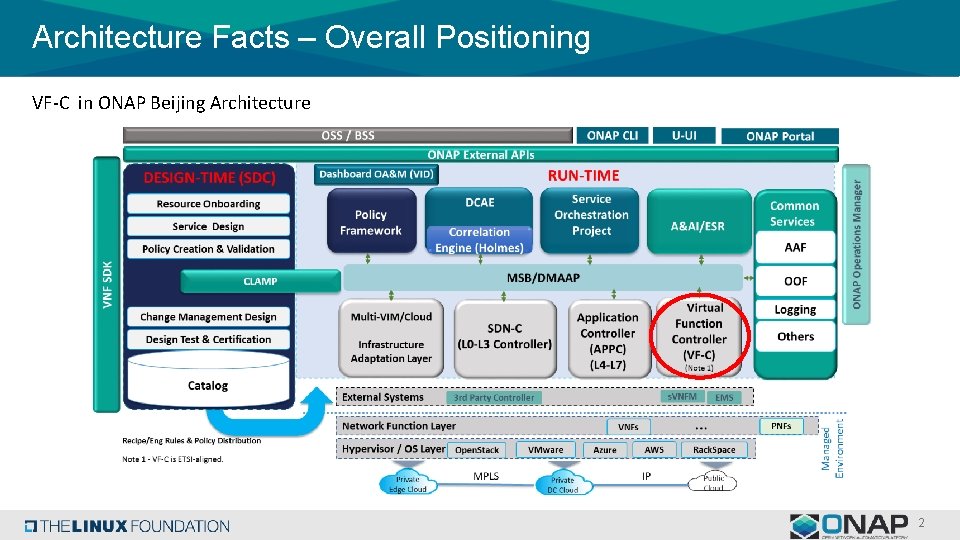

Architecture Facts – Overall Positioning VF-C in ONAP Beijing Architecture 2
Architecture Facts – Overall Positioning VF-C mapping to ETSI NFV-MANO Architecture VF-C provides an ETSI NFV compliant NFV-O function, generic VNFM , NS/VNF Catalog, NFV Instances DB NFV Orchestrator(NFVO) 3
Architecture Facts – SVNFM Integration for Vo. LTE Use Case In Vo. LTE Use Case, VF-C integrated with three vendor’s VNFMs NFVO VNFM Driver A VNFM Driver B Define the VNFM Driver Northbound APIs VNFM X VNFM B Vendor VNFM Driver x VIM Vendor VNF 4
Architecture Facts – GVNFM Integration for CPE Use Case GVNFM Driver layer to make the design flexible NFVO GVNFM Driver GVNFM simple VNF Simple VNF Opensource VNF VIM 5
Architecture Facts – Direct Mode VIM Integration Support direct mode via Multi. Cloud NFVO 1 Grant Request GVNFM 2 Grant Response 3 Resource Request Multi. Cloud Open. Source VNF Opensource VNF Siimple VNF VIM VIM 6
Architecture Facts – Indirect Mode VIM Integration Support indirect mode via VIM-Proxy NFVO VIM-Proxy 1 Grant Request 4 Resource Request 2 Grant Response VNFM A 3 Resource Request Multi. Cloud VNFM B VNFM C Vendor VNF VIM VIM 7
Architecture Facts – Close Loop Integration DCAE Onset Clear DMaa. P ③ ④ Holmes Policy DMaa. P VNF Fault VES Collector VM Fault ⑤ Restart VNF Fault Correlation ② EMS Driver does: 1. Collect VNF FCAPs from vendor EMS 2. Translate FCAPS data into VES format 3. Report Data to VES Collector 8 Action Execution VF-C NS LCM EMS Driver Integration with Policy to execute policy action ⑥ VNF Fault ① Vendor EMS 7 VNF VNF 8
Inside View of VF-C Architecture Network service life cycle management Unified NS/VNF package storage Indirect Mode Vim Proxy Unified Workflow APIs EMS FCAPS collection VNF life cycle management 9
Modeling Facts – Unique RT Project Supporting R 2 VNFD UUI VNF Requirements R 2 ONAP VNF CSAR VNFSDK VVP VNF CSAR Heat Template Simple REST APIs HOT Flow TOSCA Flow VID SO A&AI SDC VNF CSAR VF-C APP-C Multi. Vim SDN-C
Modeling Facts – Providing Flexibility in VNFD for SVNFM topology_template: node_templates: VNF: type: tosca. nodes. nfv. VNF properties: descriptor_id: cscf_si_onap cscf: type: tosca. nodes. nfv. Vdu. Compute properties: name: cscf description: . . oam. Cpdeth 1: type: tosca. nodes. nfv. Vdu. Cp properties: layer_protocol: [ ipv 4 ] description: External connection point requirements: lb. Cpdeth 1: type: tosca. nodes. nfv. Vdu. Cp properties: layer_protocol: [ ipv 4 ] description: External connection point requirements: ………… Unified VNFD VNFM Driver A VNFM A SVNFD VNFM Driver B VNFM B SVNFD Vendor VNFM Driver x VNFM X SVNFD VIM Vendor VNFSDK
Relations to Other ONAP Project ONAP A&AI Common services SO Inventory UUI Inventory Data CURD SDC Policy NS LCM NFVO NS/VNF package VNFM Driver GVNFM Report. FCAPS DCAE Create/Del/. . VL Multi-VIMl Create/Del/. . Virtural resource Opensource VNF EMS Driver Simple VNF Create/Del/. . VNF Vendor’s VNFM Vendor VNF Collect. FCAPS VNF Vendor’s EMS Opensource VNF VIMs Vendor VNF 12
Relations to Other ONAP Project – Overlapping? Complementing! SO (Heat ) VF-C (Tosca) Function VNF Creation VNF Instantiation VNF Termination VNF Deletion SO APP-C (Heat) VNF Scaling Note: Different template VF-C Service Orchestration E 2 E Service Orchestration Network Service Orchestration Function APPC VF-C Resource Configuration Ansible、Chef、Rest. Conf etc Rely on third-party EMS to do service configuration Note: Different Orchestration Scope Note: Different configuration solution 13

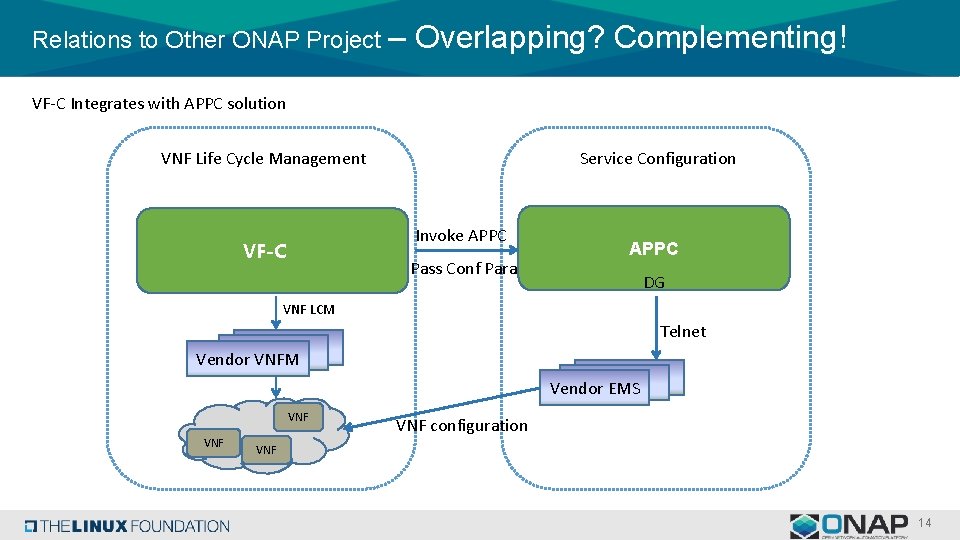

Relations to Other ONAP Project – Overlapping? Complementing! VF-C Integrates with APPC solution VNF Life Cycle Management Service Configuration Invoke APPC VF-C Pass Conf Para APPC DG VNF LCM Telnet Vendor VNFM Vendor EMS VNF VNF configuration VNF 14
Commercial Solution on the way 15
Use Case:Vo. LTE Deployment based on ONAP Amsterdam Preparation 1、Resources: City. A-Core DC 01 v. TAS v. I/SCSCF v. PCRF v. HSS v. MME • Hardware/VIM software ready; • 4 logical VIMs ready • DC interconnection ready; 2、VNF Commercial Products: City. B-Edge DC 01 City. C-Edge DC 01 City. D-Edge DC 01 v. SBC v. SPGW • 华为:PCRF, HSS, SBC • 中兴:MME, SPGW • 诺基亚:I/S-CSCF, TAS 3、Network Planing: • Core DC deploy control plane NE: CSCF、TAS、 PCRF、HSS、MME; • v. IMS v. EPC 3 Edge DC deploy data plane NE: SBC、SPGW;
Main Features For Vo. LTE Case Demo – Overview Key features: Model Design, Service Deployment, Control-loop (Auto-healing)、Fault/Performance Collection。 Model Design Service Deployment • • • VNF Onboarding NS Design • • Instantiation Termination • • Alarm Correlation Policy Mapping Triger Healing Vo. LTE v. SBC v. PCSCF v. I/SCSCF v. TAS IMS Vo. LTE v. SPGW v. EPDG v. PCRF v. HSS v. MME EPC VNF Instantiation VNF Destruction FCAPS Control-loop Auto Healing • • Fault Collection Performance KPI collection
s Thanks
VF-C APIs SO Policy UUI Os-Ma-nfvo NFVO Package NSVNF Package ( VNFD) ( NSD) Instantiate Terminate NFVO Northbound APIs • Reference ETSI SOL 005 Os-Ma-nfvo • Currently, NFVO Support NS Lifecycle Management including NS instantiate, scale, heal, query and terminate Scale Operate Heal Or- Vnfm Driver SVNFM Vi-Vnfm Or-Vi VNF Package ( VNFD) GVNFM Driver EMS Multi-Cloud Vi-Vnfm NFVI&VIM NFVO southbound APIs • Reference ETSI SOL 003 Or-Vnfm • Currently, support VNF lifecycle Management including VNF deploy, scale, heal, query and terminate Note: GVNFM only supports VNF deploy and terminate, will support more operation in future release 19
