The Use of Inferential Statistics in Ships’ Stability Analysis 69 th Annual International Conference on Mass Properties Engineering May 26, 2010 Michael Diggs, Melissa Cooley & David Hansch Naval Architects

Purpose of Damage Stability Analysis • Produce a family of allowable KG curves to provide an overall assessment of stability • Demonstrate that the ship meets vulnerability or recoverability requirements • Provide technical guidance to ship designers for areas where improvements can be made • Ensure that damage stability performance is not degraded during ship design and construction 2

Traditional Approach to Damage Stability • Navy Ships – Deterministic approach • Uses engineering judgment to analyze the worst cases • Commercial Ships – Safety of Life at Sea (SOLAS) and International Maritime Organization (IMO) probability studies • Provides an attained subdivision index Useful and important but does not answer What if…? 3

What if…? • Captain asks, “How likely am I to withstand a certain type of damage? • Requirement written in percentage – Ship able to survive grounding X% of time. – Ship able to perform it’s mission X% of time after damage. Traditional approach does not address these questions – Would have to analyze all cases to determine a passing percentage – Does not allow you to determine the actual KG value to survive damage a certain percentage of time. Must use statistics 4

Statistical Options Two statistical options exist • Bernoulli Trial – Results from this approach are binomial, all damage cases are either pass or fail – Case KG is compared to Ship’s KG limit – Calculate Percentage at Ship’s KG limit – Requires a large sample size • Inferential Statistics – a mathematical method that employs probability theory for inferring the properties of a population from the analysis of a sample taken from that population 5

Advantages of Inferential Statistics • Uses the required KG of each case to predict the population of required KGs • Allows a smaller sample size • Allows greater flexibility in determining the percentage of cases which will pass for a given KG 6

Assumptions / Sources of Uncertainty Assumptions • A Gaussian or normal distribution of the population of required KGs • The analyzed sample is randomly selected from the population Sources of Uncertainty • Population may not be truly Gaussian • The sample mean and standard deviation are not exactly the population mean and standard deviation 7

Estimating the Population from a Sample • The sample mean and standard deviation provide estimates for the population mean and standard deviation • Confidence Intervals are attached to these estimates to yield the range of values within which the population mean and standard deviation are likely to reside 8

Validating the Assumption of a Normal Distribution • The validity of the inference to the population can be assessed using a Chi-Square Goodness of Fit Test 9

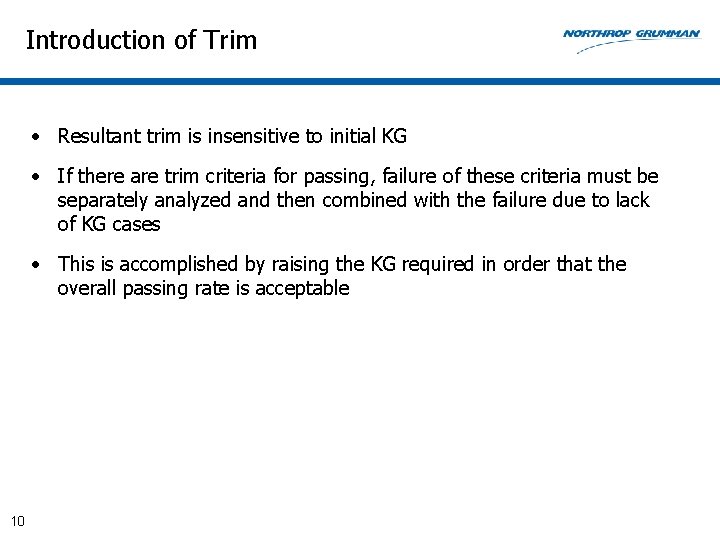

Introduction of Trim • Resultant trim is insensitive to initial KG • If there are trim criteria for passing, failure of these criteria must be separately analyzed and then combined with the failure due to lack of KG cases • This is accomplished by raising the KG required in order that the overall passing rate is acceptable 10

Differences between Inferential Statistics Analysis and the SOLAS Probabilistic Analysis • This inferential statistics analysis considers passing the criteria to provide 100% likelihood of survival while SOLAS determines survival probability for individual cases • The SOLAS method requires analysis of every location on the ship while the inferential statistics method allows for a sample of damage locations to be used • SOLAS method provides an Attained Subdivision Index which is comparable to other ships while the inferential statistics method presented provides a likelihood of survival for a given KG or a KG required for a given likelihood of survival 11

Conclusions • Inferential Statistics is another tool for analyzing damage stability • For ships of complex subdivision this tool reduces the amount of calculations required to determine the likelihood of survival 12
