The Urinary System The Urinary System Paired kidneys

The Urinary System

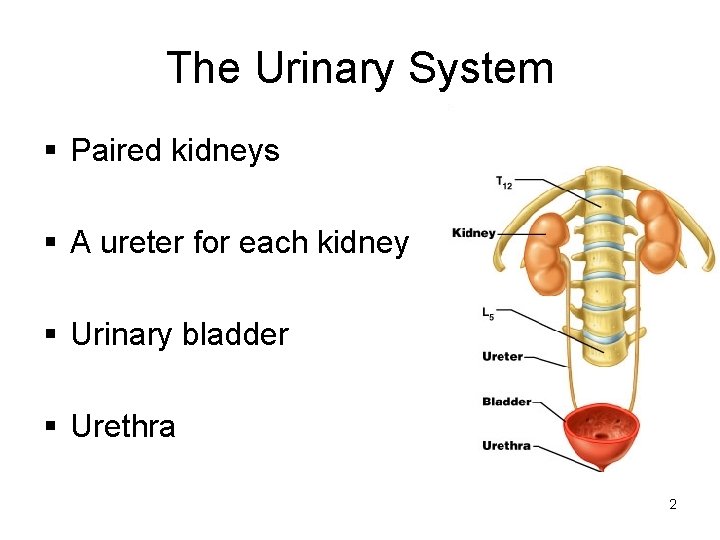

The Urinary System § Paired kidneys § A ureter for each kidney § Urinary bladder § Urethra 2

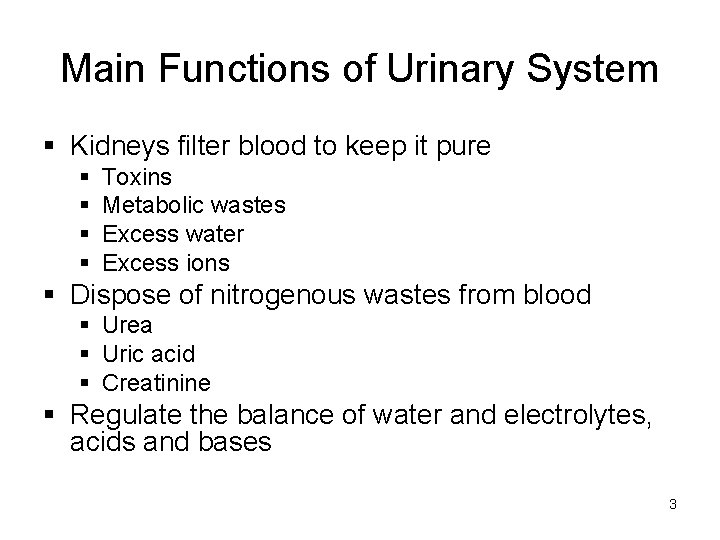

Main Functions of Urinary System § Kidneys filter blood to keep it pure § § Toxins Metabolic wastes Excess water Excess ions § Dispose of nitrogenous wastes from blood § Urea § Uric acid § Creatinine § Regulate the balance of water and electrolytes, acids and bases 3

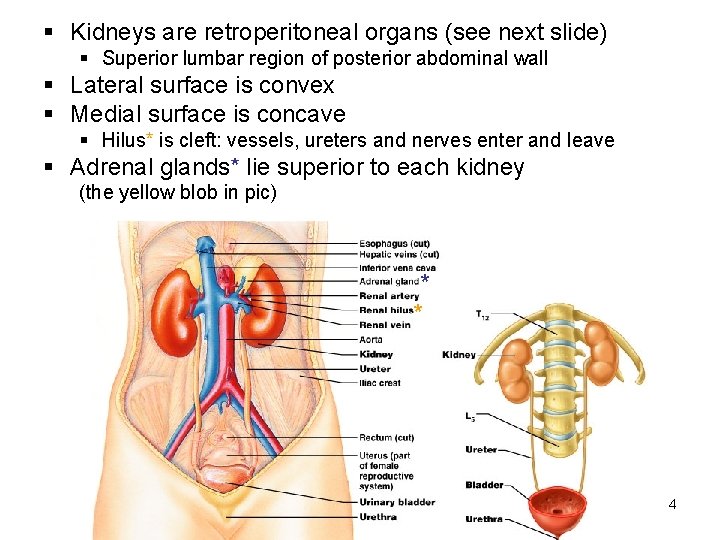

§ Kidneys are retroperitoneal organs (see next slide) § Superior lumbar region of posterior abdominal wall § Lateral surface is convex § Medial surface is concave § Hilus* is cleft: vessels, ureters and nerves enter and leave § Adrenal glands* lie superior to each kidney (the yellow blob in pic) * * 4

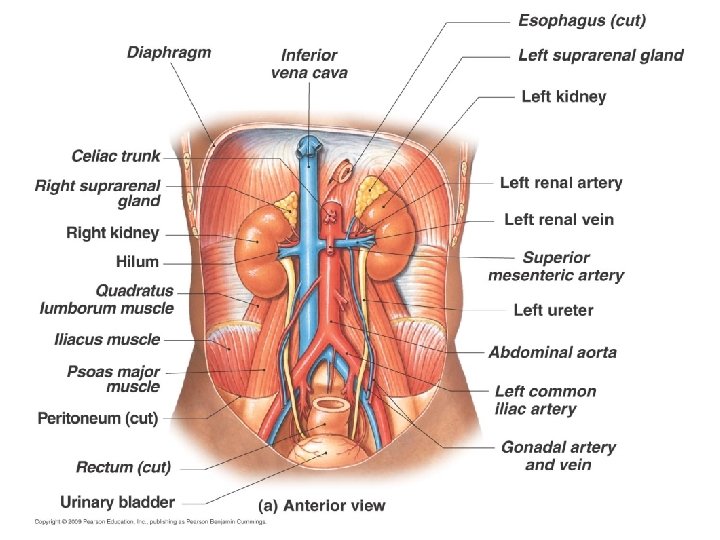

5

6

Note layers of adipose (fat), capsule, fascia Transverse sections show retroperitoneal position of kidneys Note also: liver, aorta muscles on CT 7

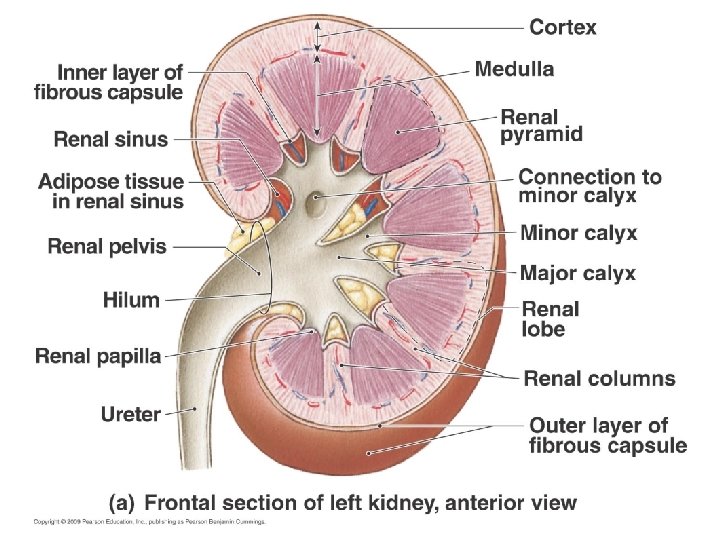

8

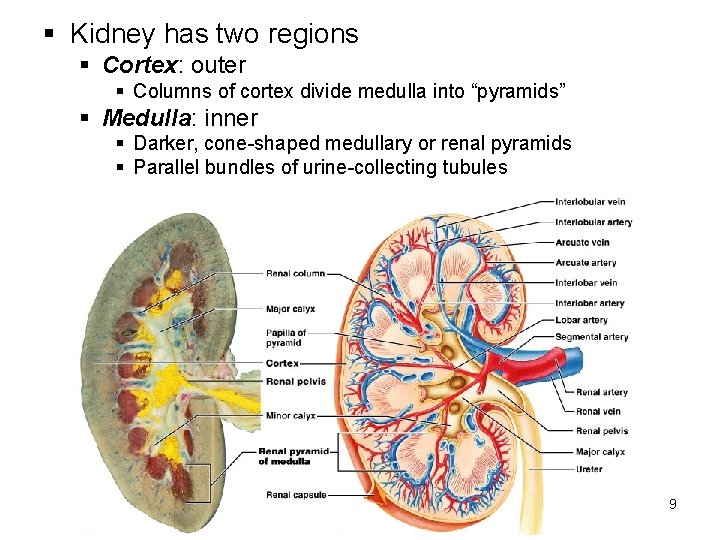

§ Kidney has two regions § Cortex: outer § Columns of cortex divide medulla into “pyramids” § Medulla: inner § Darker, cone-shaped medullary or renal pyramids § Parallel bundles of urine-collecting tubules 9

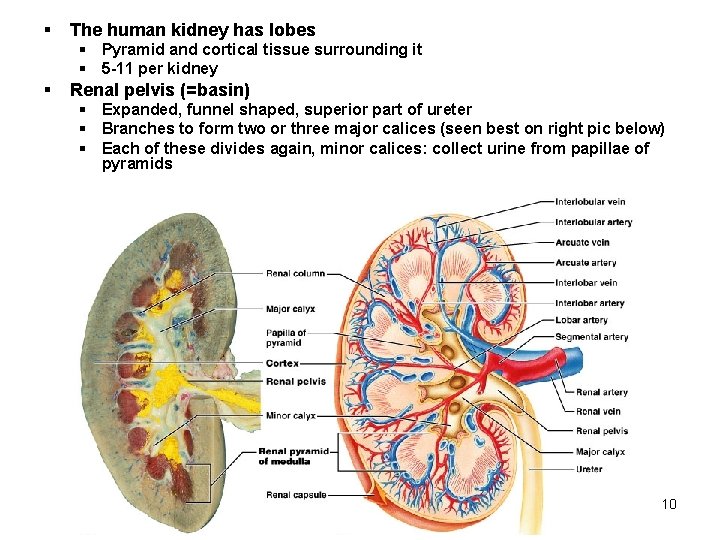

§ The human kidney has lobes § Pyramid and cortical tissue surrounding it § 5 -11 per kidney § Renal pelvis (=basin) § Expanded, funnel shaped, superior part of ureter § Branches to form two or three major calices (seen best on right pic below) § Each of these divides again, minor calices: collect urine from papillae of pyramids 10

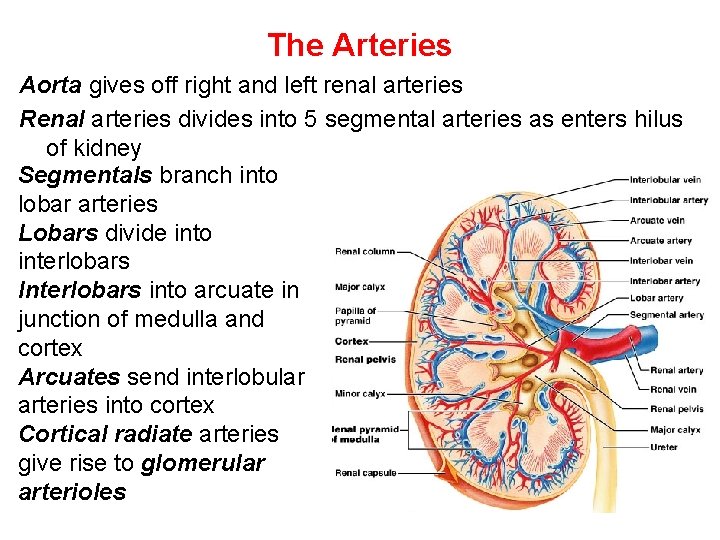

The Arteries Aorta gives off right and left renal arteries Renal arteries divides into 5 segmental arteries as enters hilus of kidney Segmentals branch into lobar arteries Lobars divide into interlobars Interlobars into arcuate in junction of medulla and cortex Arcuates send interlobular arteries into cortex Cortical radiate arteries give rise to glomerular arterioles 11

Vasculature of the kidney § The glomerular capillary bed is unusual in having arterioles going both to it and away from it (afferent and efferent), instead of a vein going away as most § It is also unusual in having two capillary beds in series (one following the other) 12

§ Uriniferous tubule is the main structural and functional unit To left is a single, generalized uriniferous tubule More than a million of these tubules act together to form the urine Three main mechanisms a. Glomerular filtration b. Tubular reabsorption c. Tubular secretion Two major parts 1. A urine-forming nephron 2. A collecting duct which concentrates urine by removing water from it 13

Outline § Uriniferous tubule (anatomical unit forming urine) § Nephron § Renal corpuscle (in cortex) – Glomerulus (tuft of capillaries) – Glomerular (Bowman’s) capsule § Tubular section – Proximal convoluted tubule – Loop of Henle – Distal convoluted tubule § Collecting duct 14

Understand at least this much: Filtration a. Fluid is squeezed out of the glomerular capillary bed Resorption b. Most nutrients, water ad essential ions are returned to the blood of the peritubular capillaries Secretion c. Moves additional undesirable molecules into tubule from blood of peritubular capillaries 15

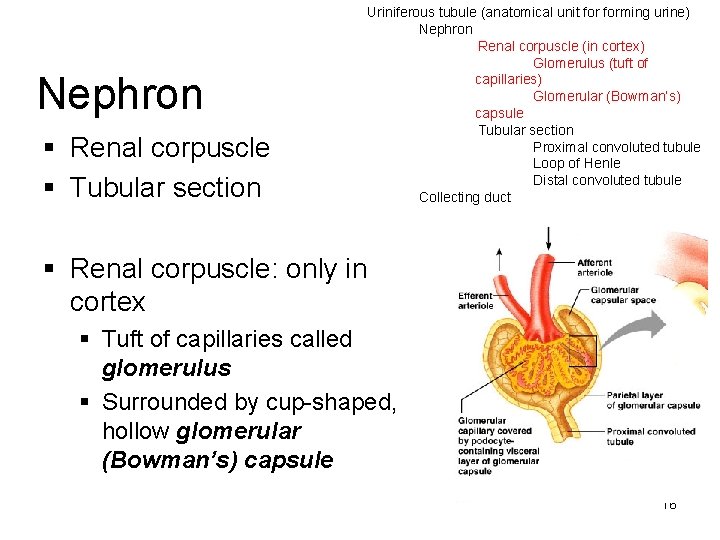

Nephron § Renal corpuscle § Tubular section Uriniferous tubule (anatomical unit forming urine) Nephron Renal corpuscle (in cortex) Glomerulus (tuft of capillaries) Glomerular (Bowman’s) capsule Tubular section Proximal convoluted tubule Loop of Henle Distal convoluted tubule Collecting duct § Renal corpuscle: only in cortex § Tuft of capillaries called glomerulus § Surrounded by cup-shaped, hollow glomerular (Bowman’s) capsule 16

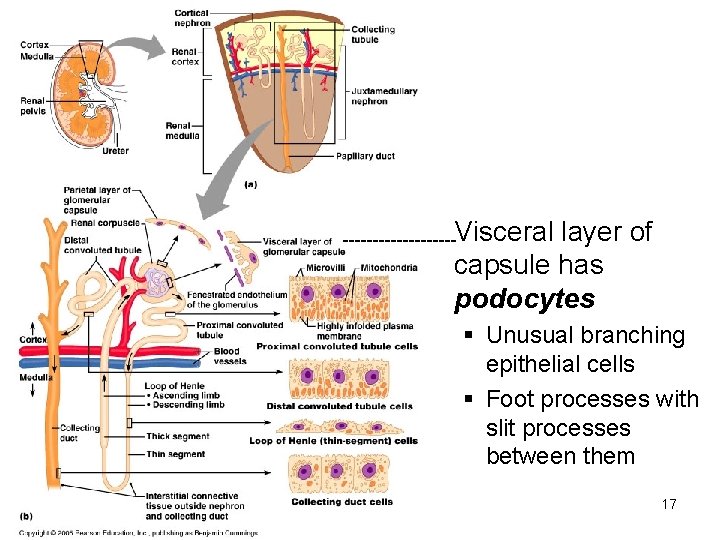

(refer to this pic as we go) ----------Visceral layer of capsule has podocytes § Unusual branching epithelial cells § Foot processes with slit processes between them 17

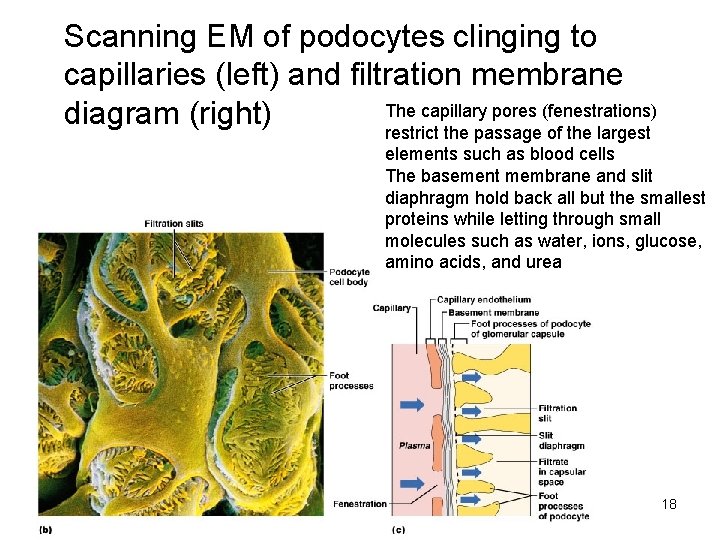

Scanning EM of podocytes clinging to capillaries (left) and filtration membrane The capillary pores (fenestrations) diagram (right) restrict the passage of the largest elements such as blood cells The basement membrane and slit diaphragm hold back all but the smallest proteins while letting through small molecules such as water, ions, glucose, amino acids, and urea 18

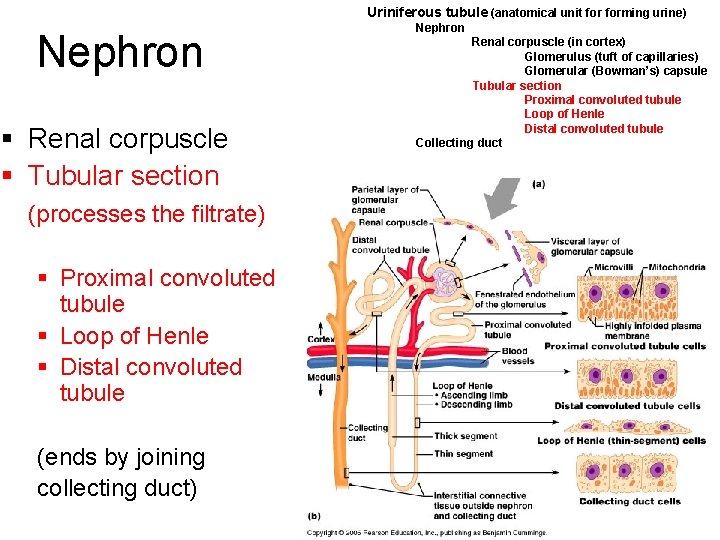

Uriniferous tubule (anatomical unit forming urine) Nephron § Renal corpuscle § Tubular section Nephron Renal corpuscle (in cortex) Glomerulus (tuft of capillaries) Glomerular (Bowman’s) capsule Tubular section Proximal convoluted tubule Loop of Henle Distal convoluted tubule Collecting duct (processes the filtrate) § Proximal convoluted tubule § Loop of Henle § Distal convoluted tubule (ends by joining collecting duct) 19

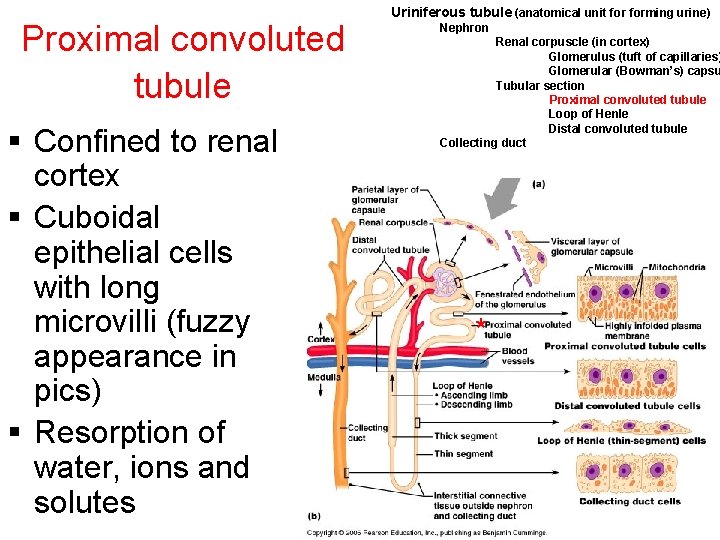

Proximal convoluted tubule § Confined to renal cortex § Cuboidal epithelial cells with long microvilli (fuzzy appearance in pics) § Resorption of water, ions and solutes Uriniferous tubule (anatomical unit forming urine) Nephron Renal corpuscle (in cortex) Glomerulus (tuft of capillaries) Glomerular (Bowman’s) capsu Tubular section Proximal convoluted tubule Loop of Henle Distal convoluted tubule Collecting duct * 20

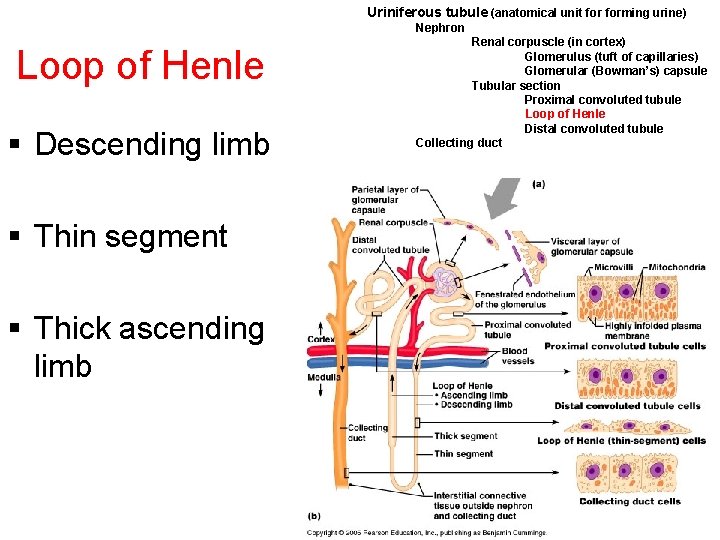

Uriniferous tubule (anatomical unit forming urine) Nephron Loop of Henle § Descending limb Renal corpuscle (in cortex) Glomerulus (tuft of capillaries) Glomerular (Bowman’s) capsule Tubular section Proximal convoluted tubule Loop of Henle Distal convoluted tubule Collecting duct § Thin segment § Thick ascending limb 21

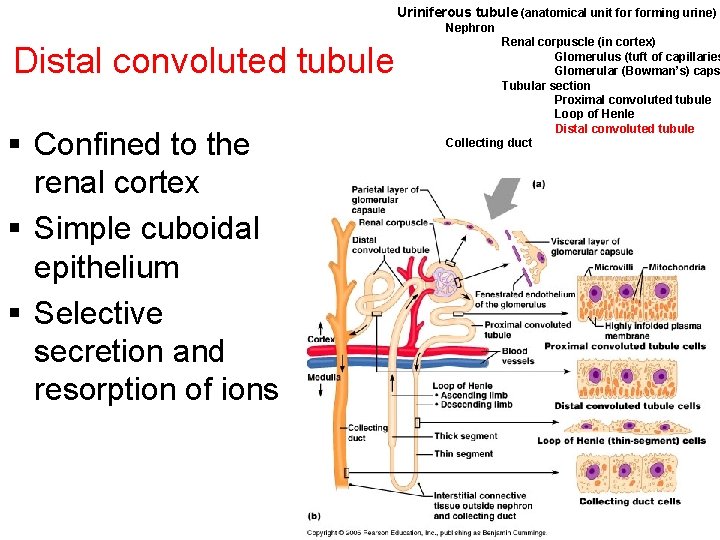

Uriniferous tubule (anatomical unit forming urine) Nephron Distal convoluted tubule § Confined to the renal cortex § Simple cuboidal epithelium § Selective secretion and resorption of ions Renal corpuscle (in cortex) Glomerulus (tuft of capillaries Glomerular (Bowman’s) caps Tubular section Proximal convoluted tubule Loop of Henle Distal convoluted tubule Collecting duct 22

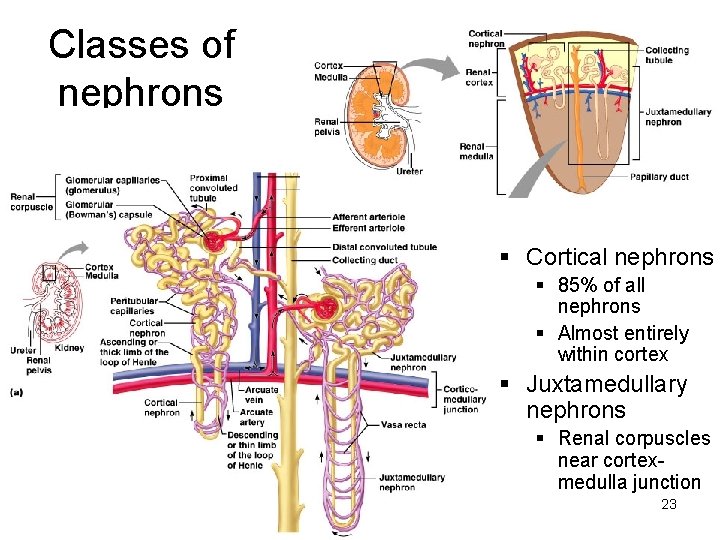

Classes of nephrons § Cortical nephrons § 85% of all nephrons § Almost entirely within cortex § Juxtamedullary nephrons § Renal corpuscles near cortexmedulla junction 23

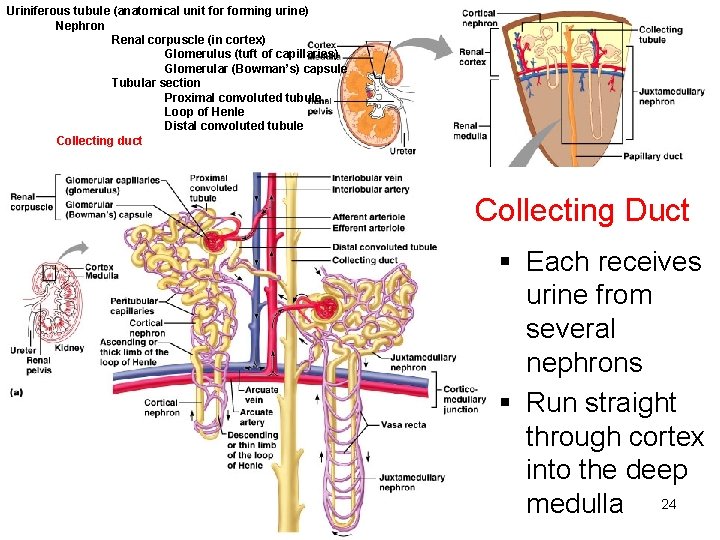

Uriniferous tubule (anatomical unit forming urine) Nephron Renal corpuscle (in cortex) Glomerulus (tuft of capillaries) Glomerular (Bowman’s) capsule Tubular section Proximal convoluted tubule Loop of Henle Distal convoluted tubule Collecting duct Collecting Ducts Collecting Duct § Each receives urine from several nephrons § Run straight through cortex into the deep medulla 24

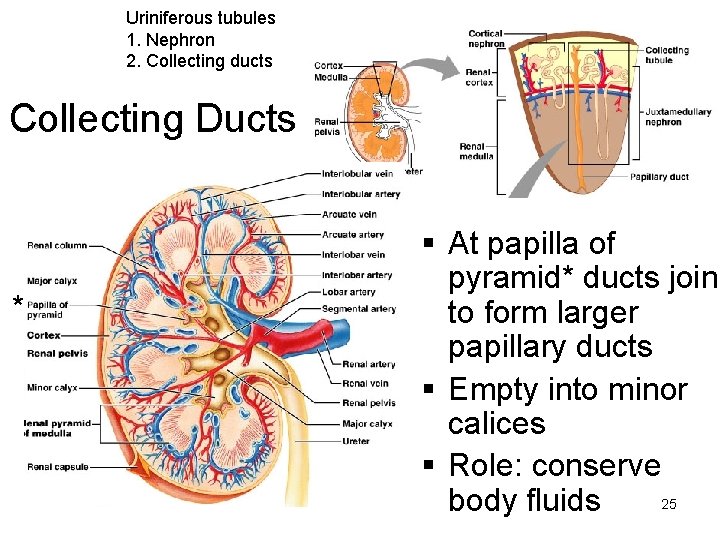

Uriniferous tubules 1. Nephron 2. Collecting ducts Collecting Ducts * § At papilla of pyramid* ducts join to form larger papillary ducts § Empty into minor calices § Role: conserve 25 body fluids

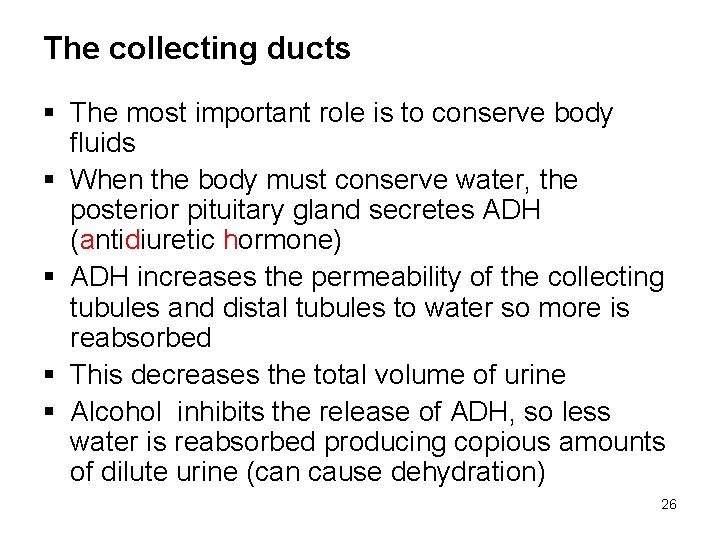

The collecting ducts § The most important role is to conserve body fluids § When the body must conserve water, the posterior pituitary gland secretes ADH (antidiuretic hormone) § ADH increases the permeability of the collecting tubules and distal tubules to water so more is reabsorbed § This decreases the total volume of urine § Alcohol inhibits the release of ADH, so less water is reabsorbed producing copious amounts of dilute urine (can cause dehydration) 26

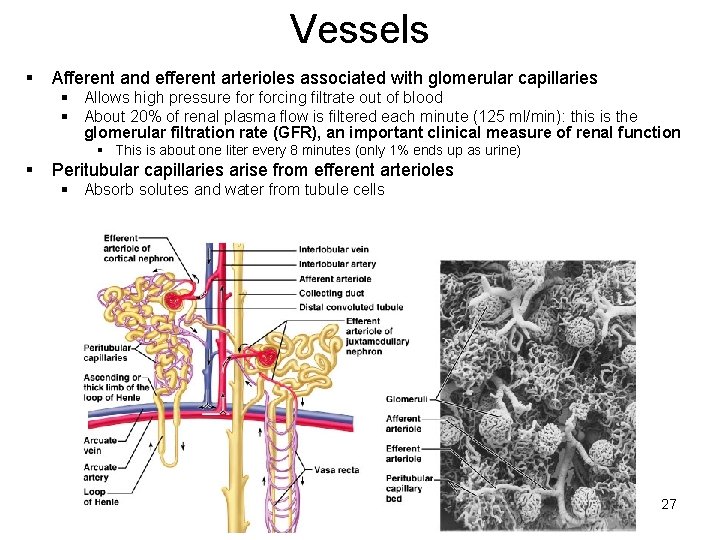

Vessels § Afferent and efferent arterioles associated with glomerular capillaries § Allows high pressure forcing filtrate out of blood § About 20% of renal plasma flow is filtered each minute (125 ml/min): this is the glomerular filtration rate (GFR), an important clinical measure of renal function § This is about one liter every 8 minutes (only 1% ends up as urine) § Peritubular capillaries arise from efferent arterioles § Absorb solutes and water from tubule cells 27

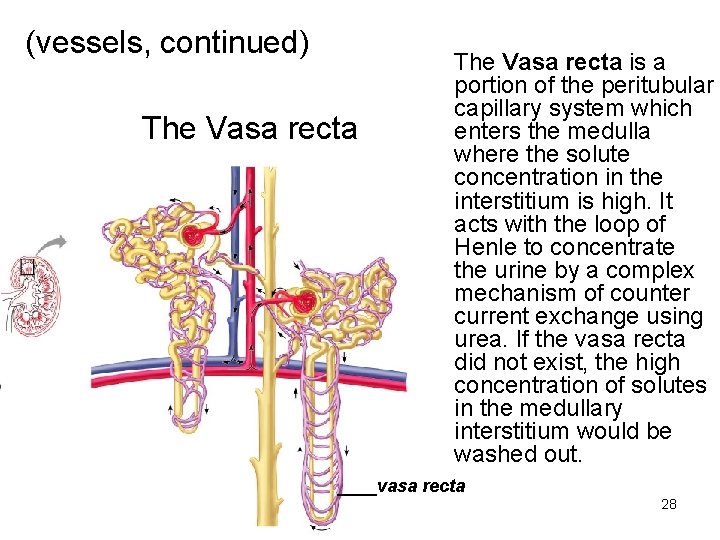

(vessels, continued) The Vasa recta is a portion of the peritubular capillary system which enters the medulla where the solute concentration in the interstitium is high. It acts with the loop of Henle to concentrate the urine by a complex mechanism of counter current exchange using urea. If the vasa recta did not exist, the high concentration of solutes in the medullary interstitium would be washed out. ____vasa recta 28

Histology 29

30

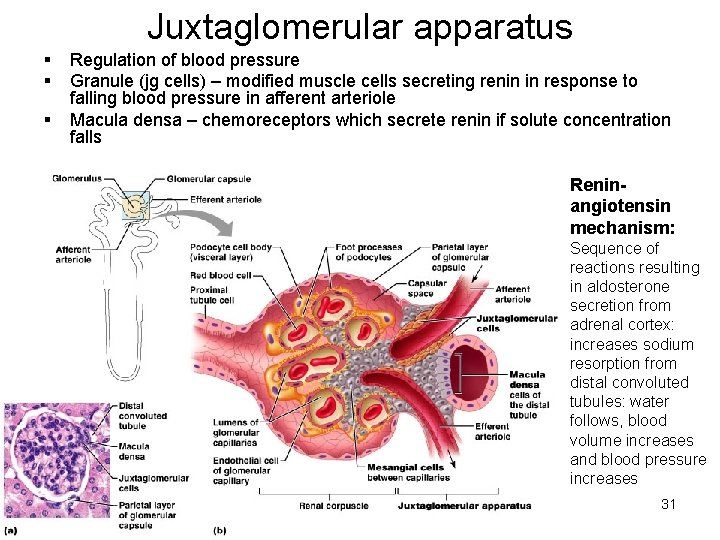

Juxtaglomerular apparatus § § § Regulation of blood pressure Granule (jg cells) – modified muscle cells secreting renin in response to falling blood pressure in afferent arteriole Macula densa – chemoreceptors which secrete renin if solute concentration falls Reninangiotensin mechanism: Sequence of reactions resulting in aldosterone secretion from adrenal cortex: increases sodium resorption from distal convoluted tubules: water follows, blood volume increases and blood pressure increases 31

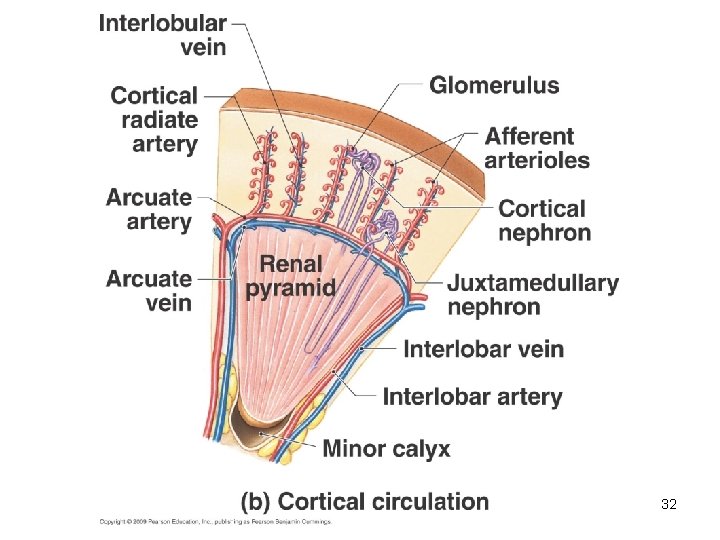

32

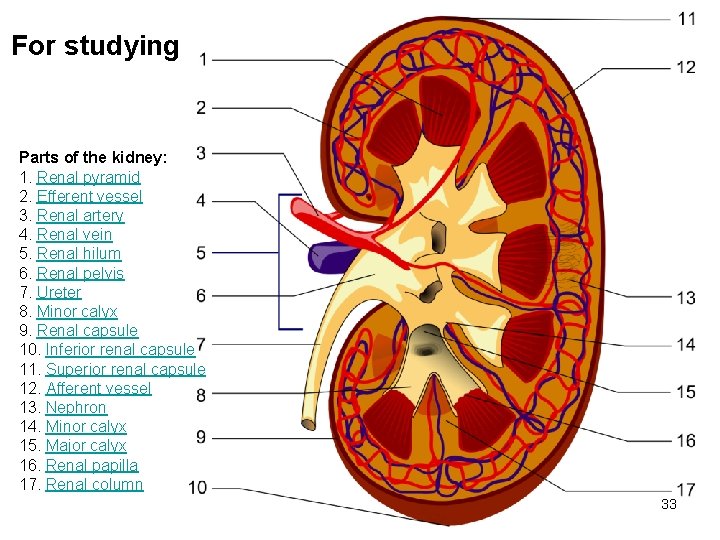

For studying Parts of the kidney: 1. Renal pyramid 2. Efferent vessel 3. Renal artery 4. Renal vein 5. Renal hilum 6. Renal pelvis 7. Ureter 8. Minor calyx 9. Renal capsule 10. Inferior renal capsule 11. Superior renal capsule 12. Afferent vessel 13. Nephron 14. Minor calyx 15. Major calyx 16. Renal papilla 17. Renal column 33

The Ureters § Slender tubes about 25 cm (10 “) long leaving each renal pelvis § One for each kidney carrying urine to the bladder § Descend retroperitonealy and cross pelvic brim § Enter posterolateral corners of bladder § Run medially within posterior bladder wall before opening into interior § This oblique entry helps prevent backflow of urine 34

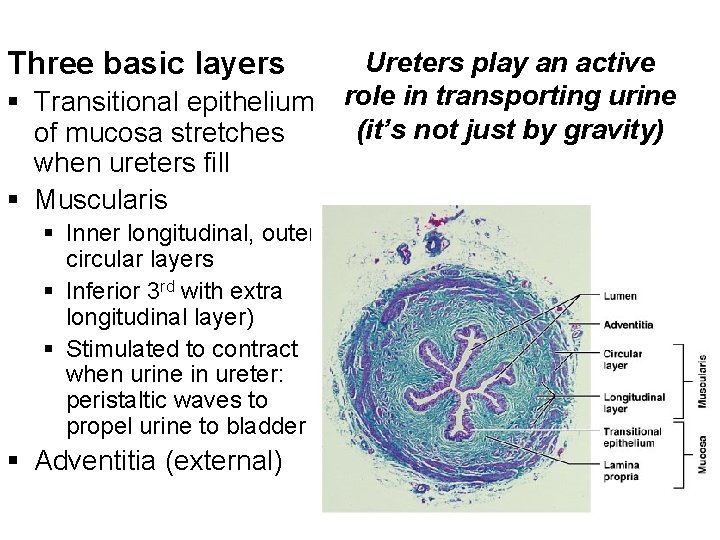

Three basic layers § Transitional epithelium of mucosa stretches when ureters fill § Muscularis Ureters play an active role in transporting urine (it’s not just by gravity) § Inner longitudinal, outer circular layers § Inferior 3 rd with extra longitudinal layer) § Stimulated to contract when urine in ureter: peristaltic waves to propel urine to bladder § Adventitia (external) 35

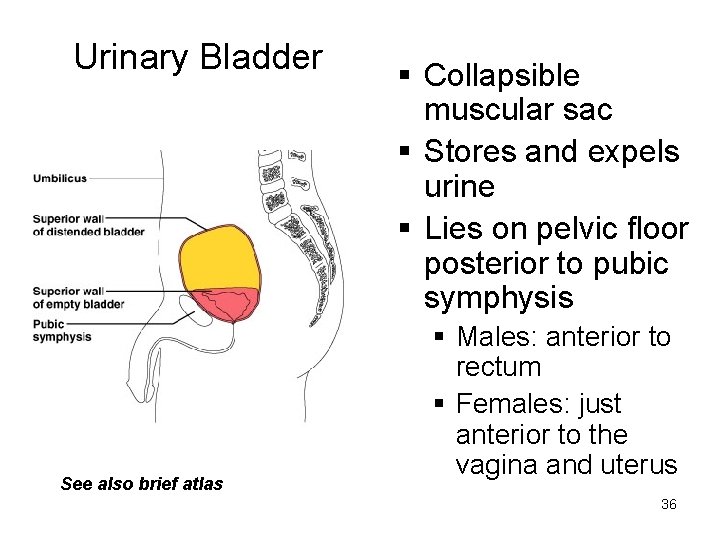

Urinary Bladder See also brief atlas § Collapsible muscular sac § Stores and expels urine § Lies on pelvic floor posterior to pubic symphysis § Males: anterior to rectum § Females: just anterior to the vagina and uterus 36

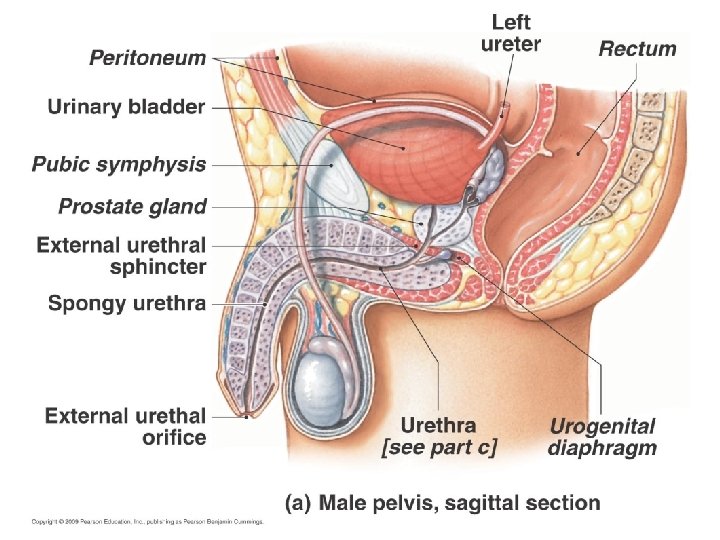

37

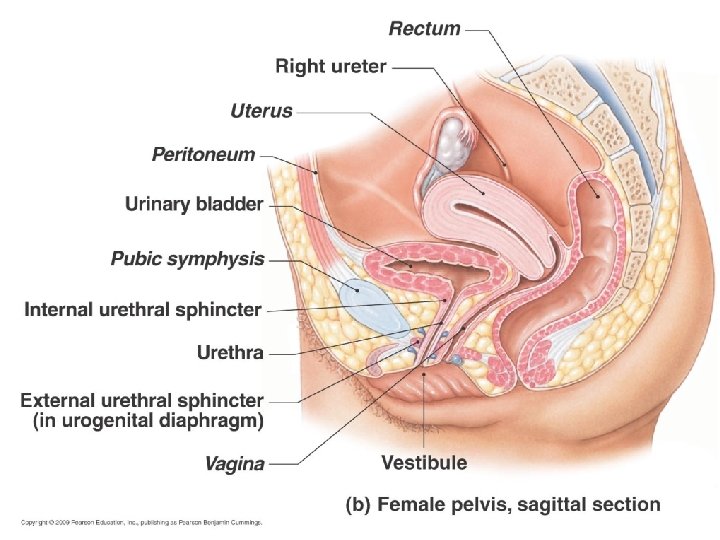

38

39

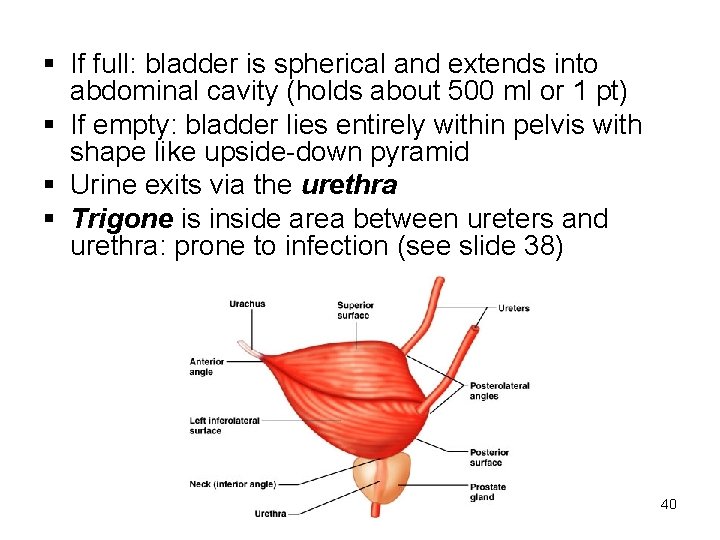

§ If full: bladder is spherical and extends into abdominal cavity (holds about 500 ml or 1 pt) § If empty: bladder lies entirely within pelvis with shape like upside-down pyramid § Urine exits via the urethra § Trigone is inside area between ureters and urethra: prone to infection (see slide 38) 40

Bladder wall has three layers (same as ureters) § Mucosa with distensible transitional epithelium and lamnia propria (can stretch) § Thick muscularis called the detrusor muscle § 3 layers of highly intermingled smooth muscle § Squeezes urine out § Fibrous adventitia 41

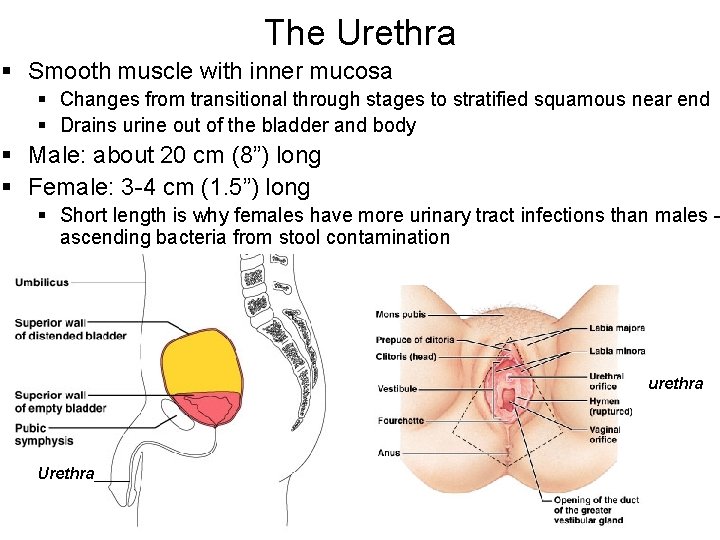

The Urethra § Smooth muscle with inner mucosa § Changes from transitional through stages to stratified squamous near end § Drains urine out of the bladder and body § Male: about 20 cm (8”) long § Female: 3 -4 cm (1. 5”) long § Short length is why females have more urinary tract infections than males ascending bacteria from stool contamination urethra Urethra____ 42

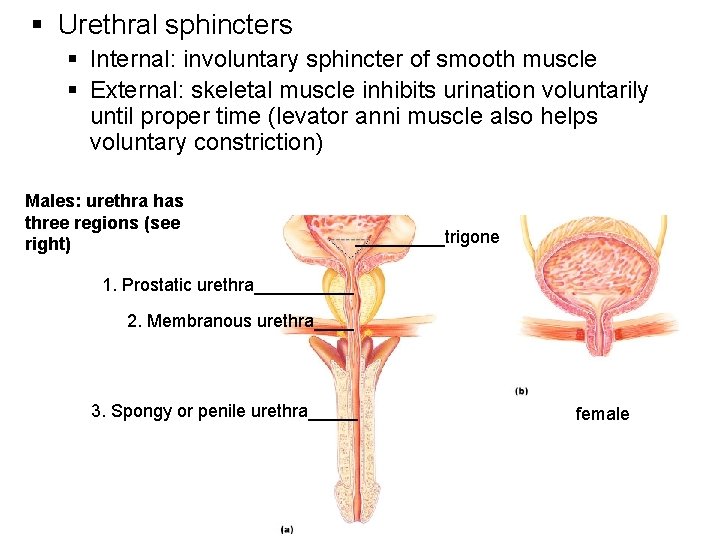

§ Urethral sphincters § Internal: involuntary sphincter of smooth muscle § External: skeletal muscle inhibits urination voluntarily until proper time (levator anni muscle also helps voluntary constriction) Males: urethra has three regions (see right) _____trigone 1. Prostatic urethra_____ 2. Membranous urethra____ 3. Spongy or penile urethra_____ female 43

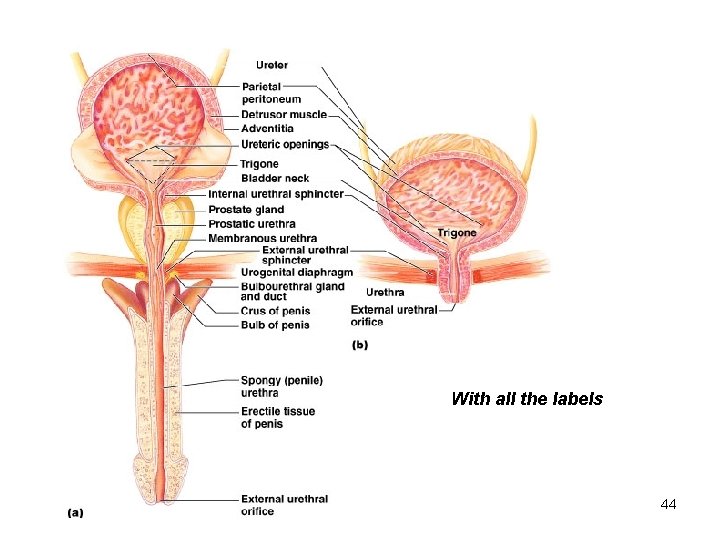

With all the labels 44

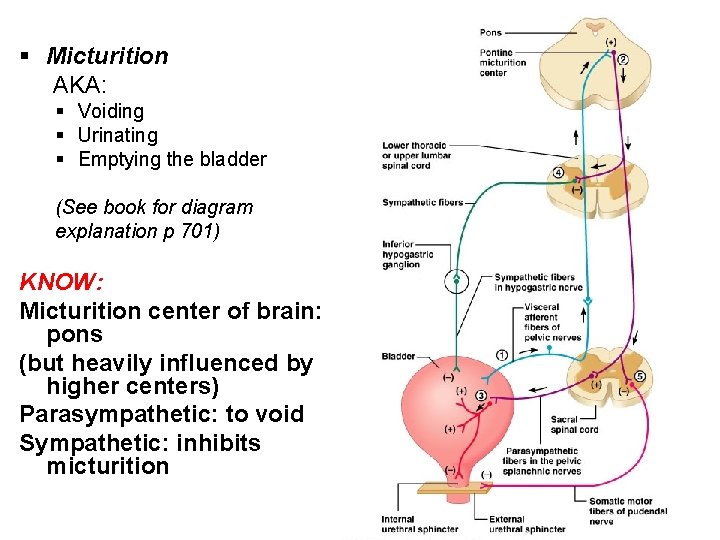

§ Micturition AKA: § Voiding § Urinating § Emptying the bladder (See book for diagram explanation p 701) KNOW: Micturition center of brain: pons (but heavily influenced by higher centers) Parasympathetic: to void Sympathetic: inhibits micturition 45
