The Two-Stroke Engine A two-stroke engine is a combustion engine that completes thermodynamic cycle in two movements of the piston( one revolution of the crankshaft)
The two-stroke cycle 1 - combined power and Exhaust stroke as the piston moves down. 2 - induction and compression as it moves up again.
The two strokes are : 1 - compression stroke , which start by closing the inlet and exhaust ports. 2 - power or expansion stroke, which start by firing and the inlet and exhaust are still closed.

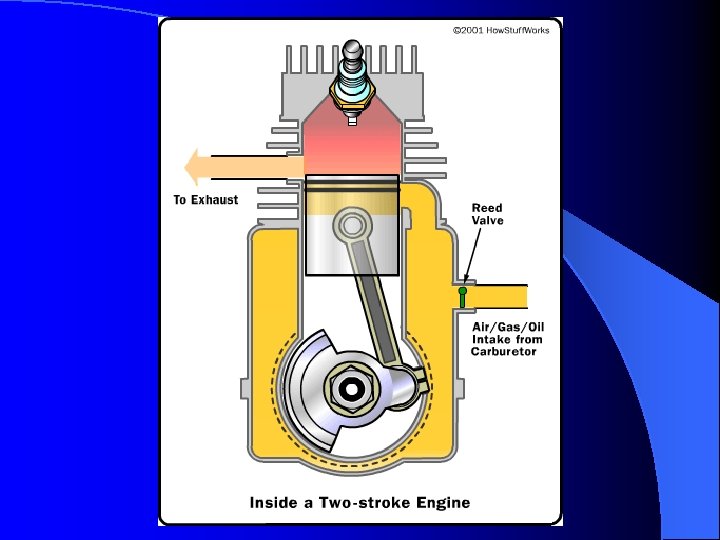

Mode of operation of the two-stroke engine 1 - The compression and fuel intake The fuel/air mixture is first drawn into the crankcase by the vacuum that is created during the upward At the top of the stroke, the spark plug ignites the fuel mixture. The burning fuel expands, driving the piston downward stroke of the piston.
Mode of operation of the two-stroke engine 2 - Power Stroke As the piston finally bottoms out, the intake port is uncovered. The piston's movement has pressurized the mixture in the crankcase, so it rushes into the cylinder, displacing the remaining exhaust gases and filling the cylinder with a fresh charge of fuel, as shown here:
loop scavening

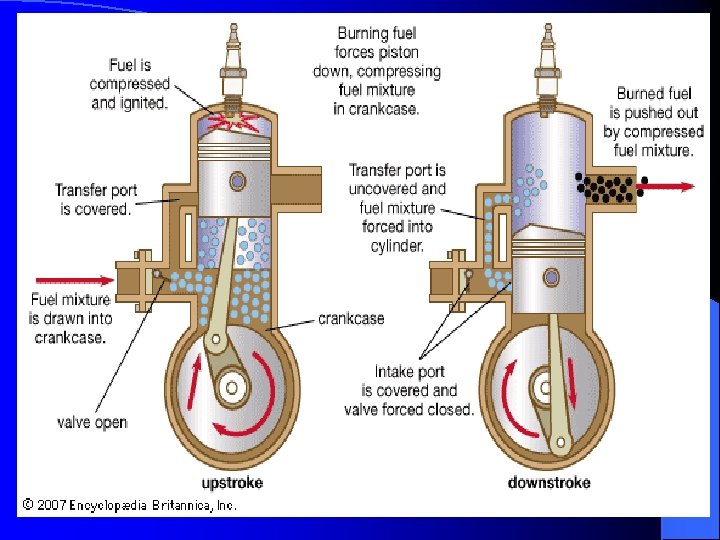

The principle of the way the 2 -stroke engine works: 1 - Intake 2 -Crankcase compression
3 - Transfer/Exhaust 4 - Compression
5 - Power
Advantages Of Two-Sroke Engines Disadvantages of the Two-stroke 1 - Two-stroke engines do not 1 - Two-stroke engines don't last have valves, which simplifies nearly as long as four-stroke their construction and lowers enginesdue to the lack of their weight. lubrication system. 2 - Two-stroke engines fire once 2 - Two-stroke oil is expensive every revolution. This gives two -stroke engines a significant 3 - Two-stroke engines do not power boost. . use fuelefficiently 3 - Two-stroke engines can work 4 - Two-stroke engines in any orientation, which can be produce a lot of pollution. important in something like a chainsaw.
Comparison between two stroke and four stroke engine The Two-Stroke Engine The Four-Stroke Engine 1 - the complete cycle requires one revolutions of the crankshaft to complete. 1 - the complete cycle requires two revolutions of the crankshaft to complete. 2 - Higher (theoretically twice) because of 2 - Lowe rpower because of one stroke in two one stroke every revolutions.
Two-stroke Parts 1 - Piston The piston performs the following functions : (1) Forms a movable gas-tight plug to confine the charge in the cylinder. (2) Transmits to the connecting rod the forces generated by combustion of the charge. (3) Forms a guide and a bearing for the small end of the connecting rod.
Piston Materials * Pistons are made of aluminum in small engines or cast iron in . larger slower- speed engine * Aluminium alloy pistons almost used in all modern engines because : the aluminium alloy is of 1 -lower strength than cast iron , 2 - the light weight of this material 3 - its higher Coefficient of thermal expansion 4 - The thermal conductivity of aluminium is about three times that of iron. this , enables aluminium pistons to run at temperatures about 200°C lower than castiron ones.

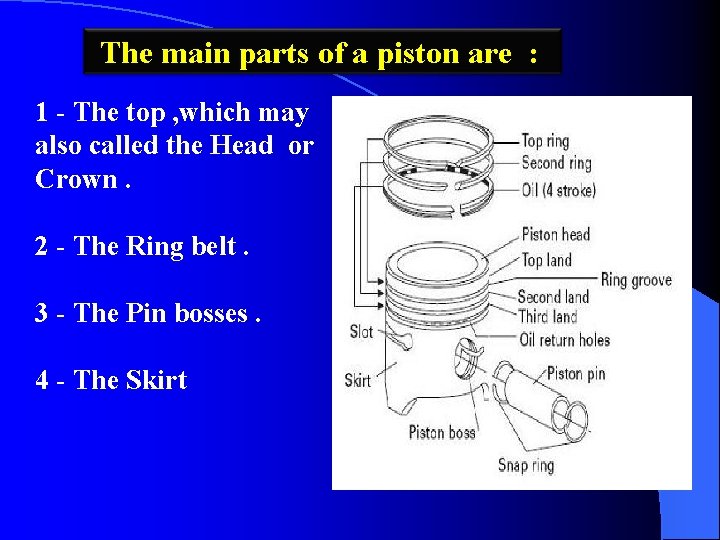

The main parts of a piston are : 1 - The top , which may also called the Head or Crown. 2 - The Ring belt. 3 - The Pin bosses. 4 - The Skirt
2 - Piston rings The main functions of piston rings are : (1) To form a pressure seal, preventing blow-by of the gases, including combustion products at high temperatures. (2) Control of the flow of oil in enough quantity to the skirt and to the rings themselves, while preventing excessive amounts from entering the combustion chamber. (3) The transfer of heat from the piston to the . cylinder walls
The piston ring of an internal combustion engine must be designed with sufficient heat resistance to withstand exposure to high . temperature gas

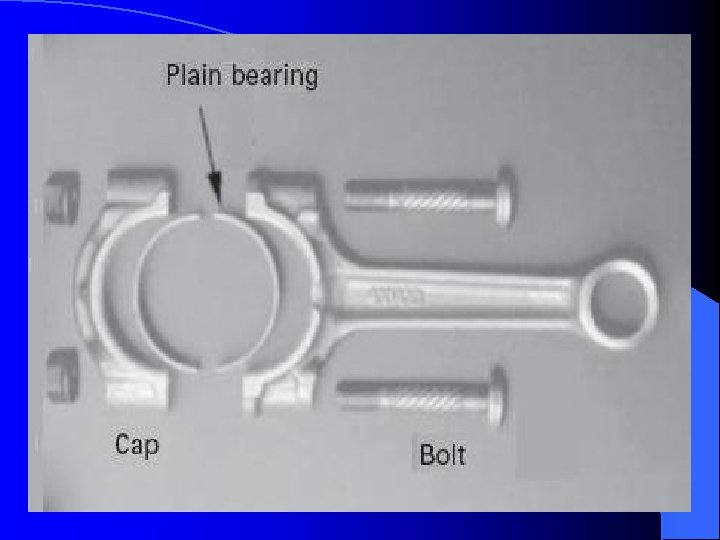

3 -Connecting * The crankshaft connecting rod: mechanism transforms reciprocative motion to rotational motion. * There are bearing portions at both ends, the piston side is called the small end, and The crankshaft side, the big end. * The bearing portions receive load from the . weight of the piston and the conneting rod
connecting rod materials * The connecting rod , usually a steel or alloy forging ( though sometimes aluminum in small engines ). : Problems that connecting rod face 1 - failure of the bearings , the conneting rod should be made as light as possible. 2 - Buckling , the rod portion usually has an I-beam shape because of the high rigidity-to-weight ratio of this shape.

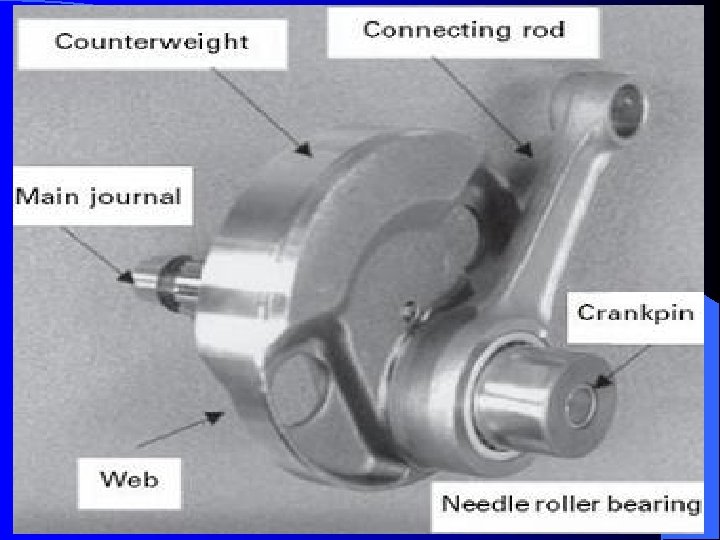

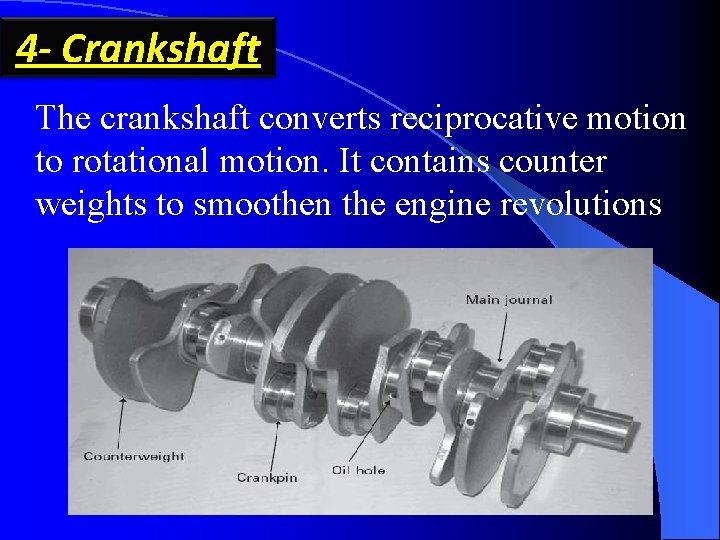

4 - Crankshaft The crankshaft converts reciprocative motion to rotational motion. It contains counter weights to smoothen the engine revolutions
types of crankshaft There are two types of crankshaft , 1 - The monolithic type used for multi-cylinder engines, 2 - the assembled type fabricated from separate Elements which is mainly used for motorcycles. The type of crankshaft determines what kind of Connecting rods are used.
Crankshaft Materials Most of crankshaft has been a steel forging , nodular cast iron crankshafts are also accepted normal practice in automotive engines. the crankshaft is. supported in www. howautowork. com/part_1/ch_1/Engine_bearing_2 The strength of the shaft depends primarily on that 5. html of the material from which it is made.

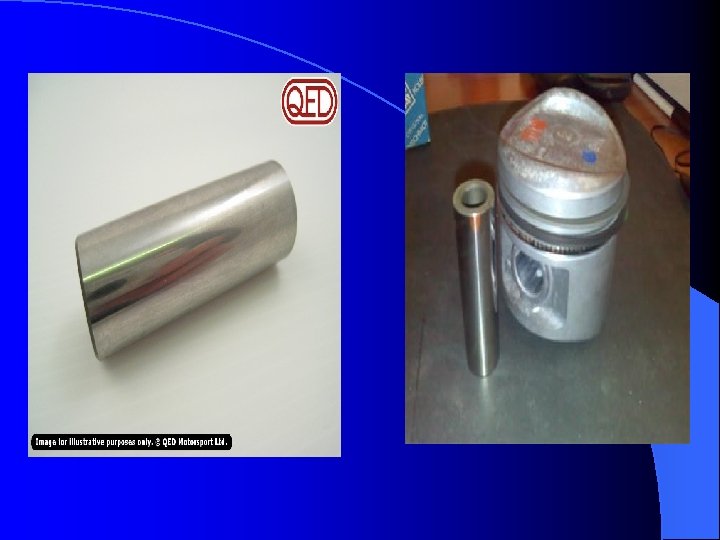

5 -Gudgeon pin connects the piston to the connecting rod and provides a bearing for the connecting rod to pivot upon as the piston moves.
6 - flywheel The flywheel is fastened to rear of the crankshaft. The energy imparted to it during the power stroke is sufficient to keep the crankshaft turning through the idle strokes until it receives another impulse thus producing asmooth running engine.

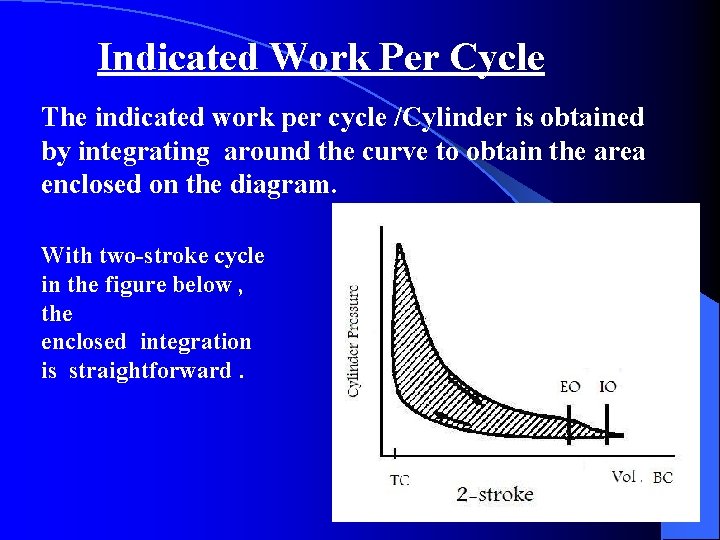

Indicated Work Per Cycle The indicated work per cycle /Cylinder is obtained by integrating around the curve to obtain the area enclosed on the diagram. With two-stroke cycle in the figure below , the enclosed integration is straightforward.
Mean Effective Pressure (MEP). It is a fictitious pressure that, if it acted on the piston during the entire power stroke, would produce the same amount of net work as. that produced during the actual cycle Wnet = MEP * Piston area * Stroke = MEP * Displacement volume Wnet MEP = -------- Vmax - Vmin
