THE TROUBLESHOOTING THEORY 902 Exam Given a scenario

THE TROUBLESHOOTING THEORY 902 Exam: Given a scenario, explain the troubleshooting theory MM Video 3: 35

COMPUTER PROBLEMS Troubleshooting computer problems is a part of the computer technician’s role Every day there will be new problems to solve 2 Before you can fix a computer problem, you need to identify its cause Expert troubleshooters use a systematic method to solve any computer problem Then ensure the steps you take successfully resolve the problem Following this approach helps identify and resolve problems as efficiently as possible

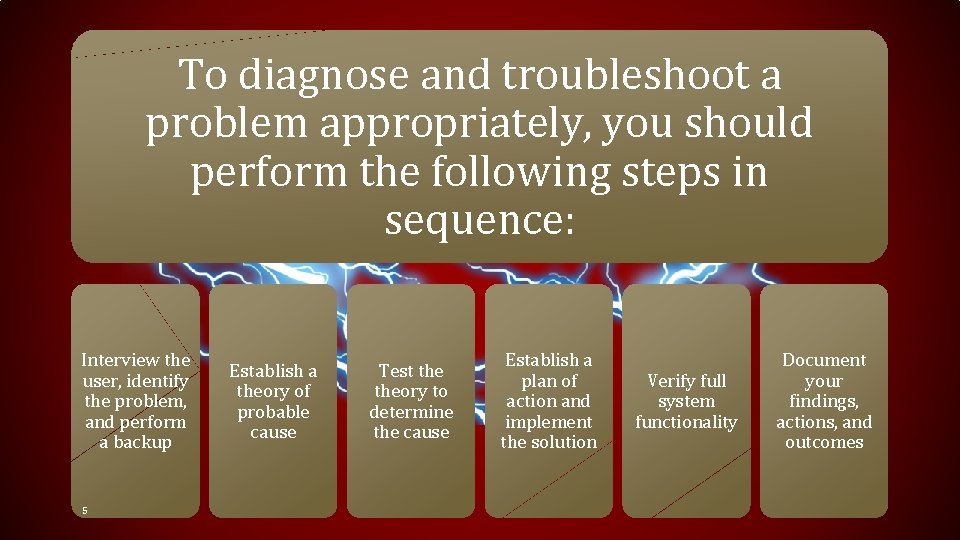

To diagnose and troubleshoot a problem appropriately, you should perform the following steps in sequence: Interview the user, identify the problem, and perform a backup 5 Establish a theory of probable cause Test theory to determine the cause Establish a plan of action and implement the solution Verify full system functionality Document your findings, actions, and outcomes

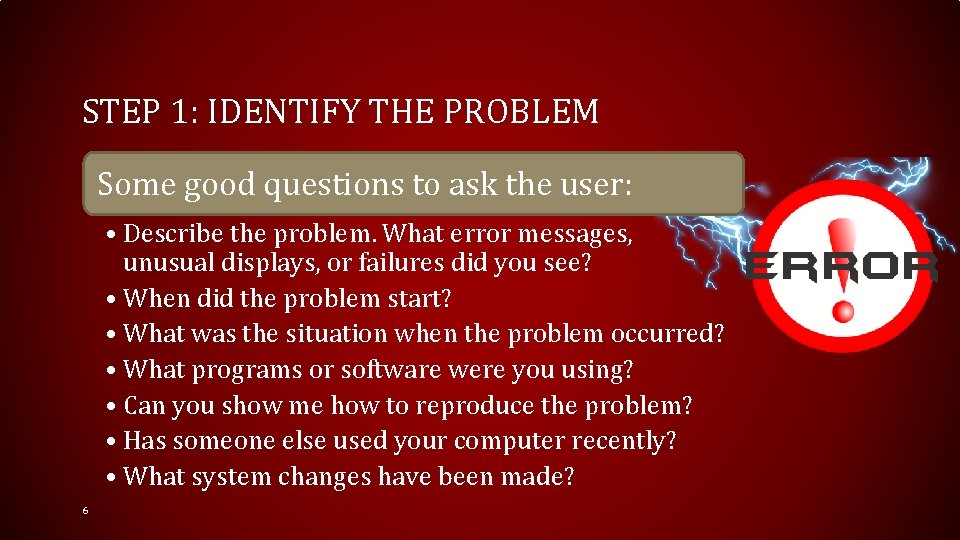

STEP 1: IDENTIFY THE PROBLEM Some good questions to ask the user: • Describe the problem. What error messages, unusual displays, or failures did you see? • When did the problem start? • What was the situation when the problem occurred? • What programs or software were you using? • Can you show me how to reproduce the problem? • Has someone else used your computer recently? • What system changes have been made? 6

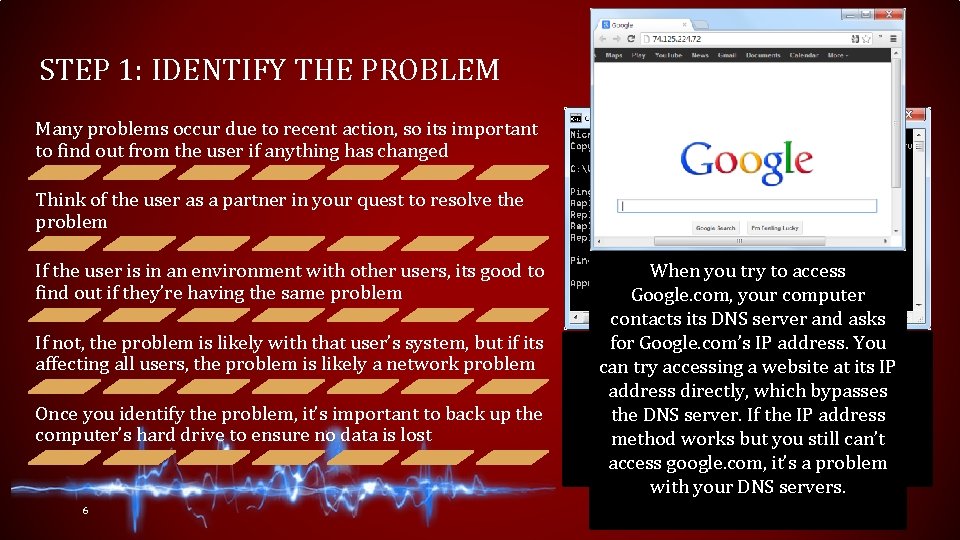

STEP 1: IDENTIFY THE PROBLEM Many problems occur due to recent action, so its important to find out from the user if anything has changed Think of the user as a partner in your quest to resolve the problem If the user is in an environment with other users, its good to find out if they’re having the same problem If not, the problem is likely with that user’s system, but if its affecting all users, the problem is likely a network problem Once you identify the problem, it’s important to back up the computer’s hard drive to ensure no data is lost 6 When you try to access Google. com, your computer contacts its DNS server and asks address. You If for you. Google. com’s see packet. IPloss (in other can try accessing a website at its IP words, the web server didn’t addressifdirectly, which bypasses respond to one. Ifor of the DNS server. themore IP address method youthis still can’t packetsworks you but sent), can access google. com, it’s problem. a problem indicate a network with your DNS servers.

STEP 1: IDENTIFY THE PROBLEM When restarting a computer or when a computer is switched on, it runs a power on self test (POST) POST is a useful tool for determining problems with system hardware A good practice is to restart a computer so it’s in a clean state before troubleshooting further If the POST detects a problem, the BIOS may give you a visual message or audio response (beep codes) 8 If the POST completes successfully, you’ll need to gather more info from the user

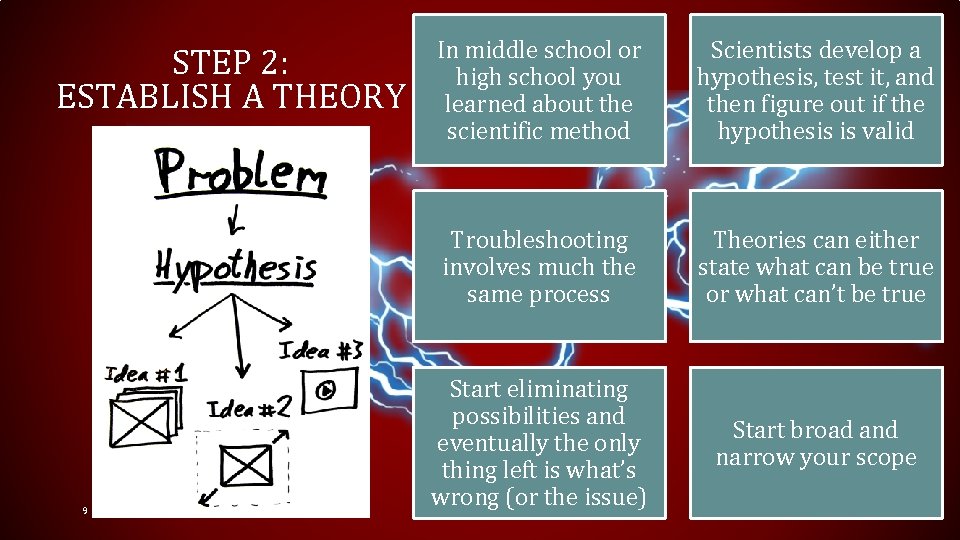

STEP 2: ESTABLISH A THEORY 9 In middle school or high school you learned about the scientific method Scientists develop a hypothesis, test it, and then figure out if the hypothesis is valid Troubleshooting involves much the same process Theories can either state what can be true or what can’t be true Start eliminating possibilities and eventually the only thing left is what’s wrong (or the issue) Start broad and narrow your scope

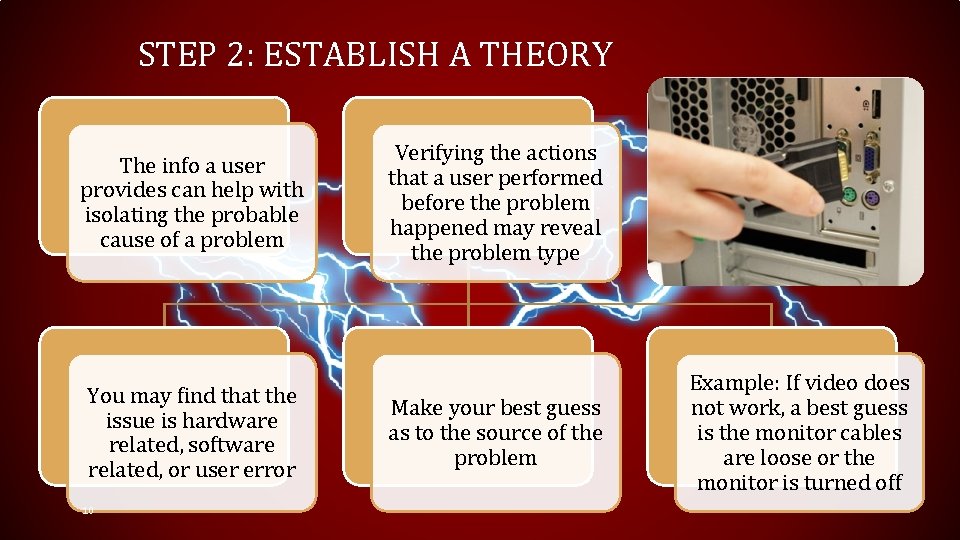

STEP 2: ESTABLISH A THEORY The info a user provides can help with isolating the probable cause of a problem You may find that the issue is hardware related, software related, or user error 10 Verifying the actions that a user performed before the problem happened may reveal the problem type Make your best guess as to the source of the problem Example: If video does not work, a best guess is the monitor cables are loose or the monitor is turned off

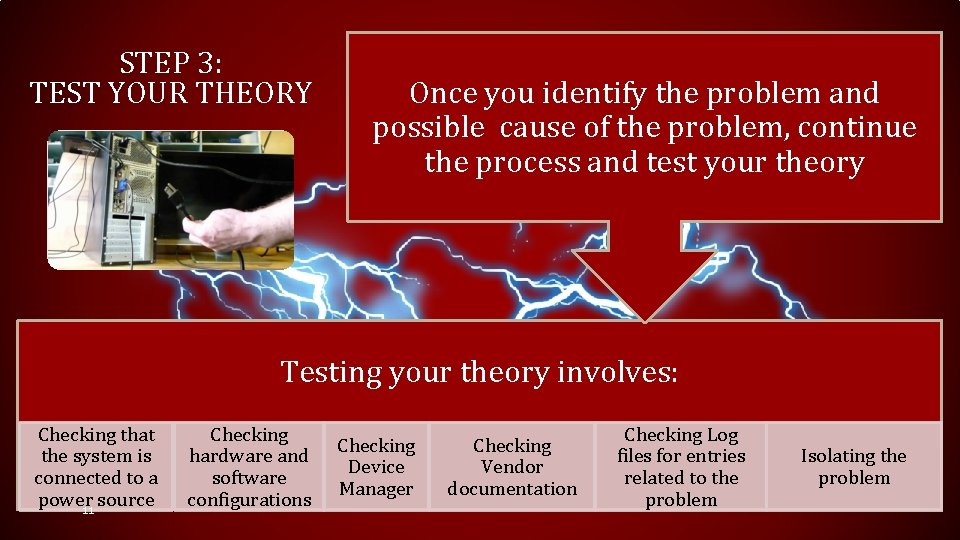

STEP 3: TEST YOUR THEORY Once you identify the problem and possible cause of the problem, continue the process and test your theory Testing your theory involves: Checking that the system is connected to a power source 11 Checking hardware and software configurations Checking Device Manager Checking Vendor documentation Checking Log files for entries related to the problem Isolating the problem

CHECK THE POWER SOURCE CHECK HARDWARE & SOFTWARE You should ensure the power supply is connected and turned on If a hardware problem is suspected ensure that the specific hardware is connected should be a first step Power cables can become disconnected without the user realizing it and checking for obvious causes saves a lot of time 10 If a software problem is suspected check that the proper software and device drivers are installed

CHECK DEVICE MANAGER CHECK VENDOR DOCUMENTATION Use Device Manager to check for conflicts between hardware devices and other problems with hardware Vendor documentation often includes a list of problem symptoms and related fixes Devices with an exclamation or found under other devices indicate that the device is conflicting with other hardware or the drivers for the device are not installed properly 12 Explanations can usually be found for status lights, indicators, and other visual clues that can help in the troubleshooting process

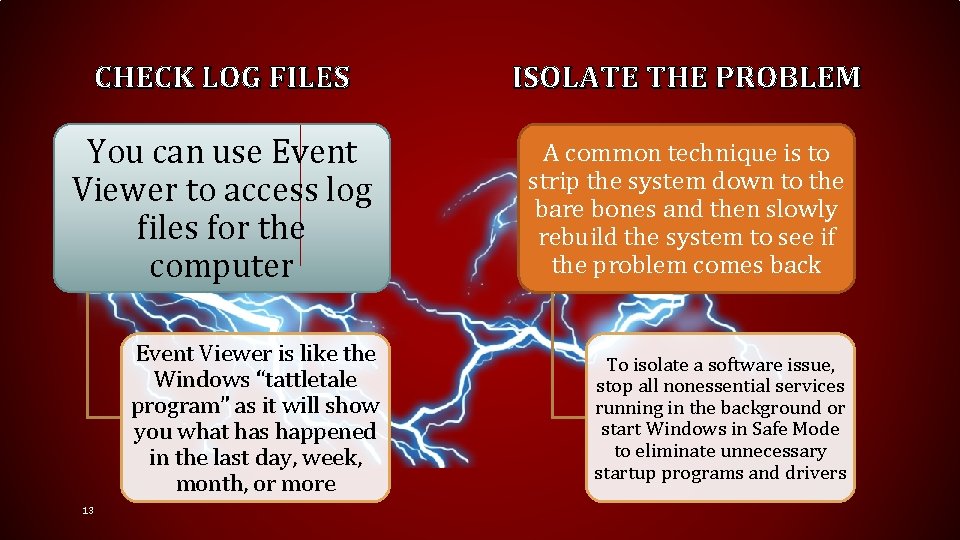

CHECK LOG FILES ISOLATE THE PROBLEM You can use Event Viewer to access log files for the computer A common technique is to strip the system down to the bare bones and then slowly rebuild the system to see if the problem comes back Event Viewer is like the Windows “tattletale program” as it will show you what has happened in the last day, week, month, or more 13 To isolate a software issue, stop all nonessential services running in the background or start Windows in Safe Mode to eliminate unnecessary startup programs and drivers

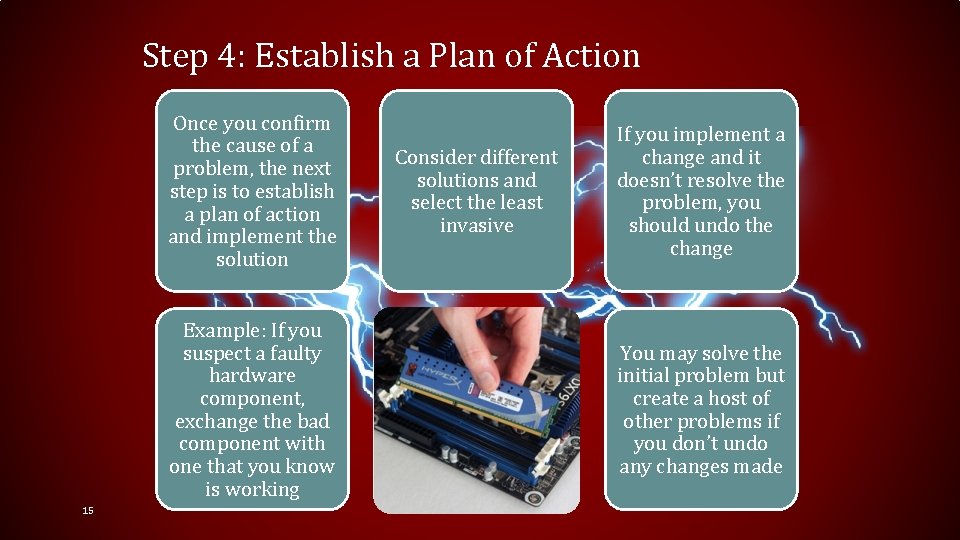

Step 4: Establish a Plan of Action Once you confirm the cause of a problem, the next step is to establish a plan of action and implement the solution Example: If you suspect a faulty hardware component, exchange the bad component with one that you know is working 15 Consider different solutions and select the least invasive If you implement a change and it doesn’t resolve the problem, you should undo the change You may solve the initial problem but create a host of other problems if you don’t undo any changes made

Step 5: Verify full system functionality Once you implement a solution, restart the system and verify full system functionality 16 • It’s important to test the whole system, rather than only the hardware or software you’ve fixed or replaced • This ensures there has been no adverse effects on other parts of the system • Have the user check everything and verify functionality as well • Ask yourself this question: Could this problem have been prevented? • If so, instruct the user on what to do (set Windows to automatically install updates, advise on proper cooling)

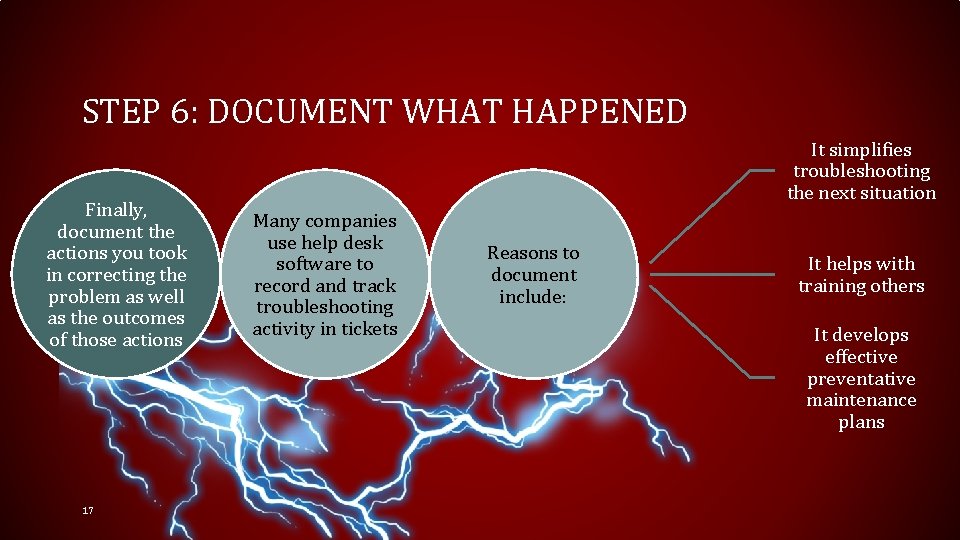

STEP 6: DOCUMENT WHAT HAPPENED Finally, document the actions you took in correcting the problem as well as the outcomes of those actions 17 It simplifies troubleshooting the next situation Many companies use help desk software to record and track troubleshooting activity in tickets Reasons to document include: It helps with training others It develops effective preventative maintenance plans
