The Theory for Gradient Chromatography Revisited by Jan Ståhlberg Academy of Chromatography www. academyofchromatography. com

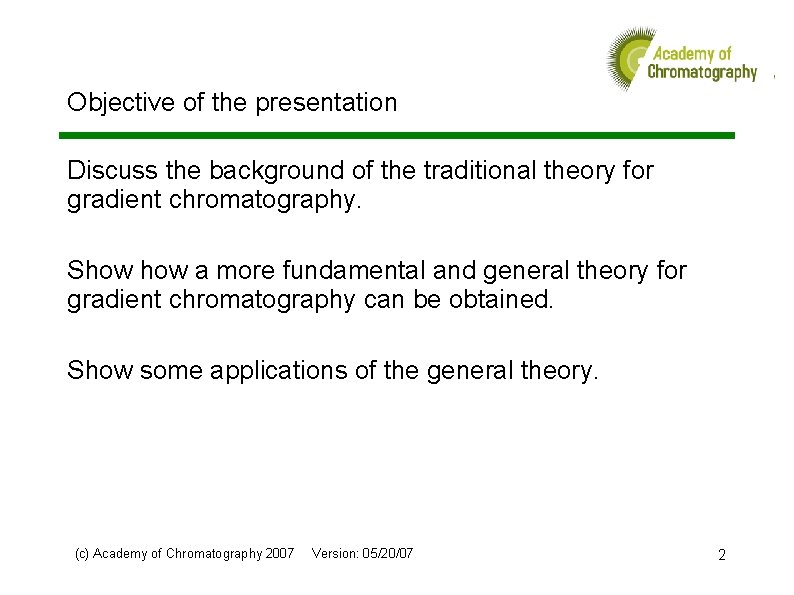

Objective of the presentation Discuss the background of the traditional theory for gradient chromatography. Show a more fundamental and general theory for gradient chromatography can be obtained. Show some applications of the general theory. (c) Academy of Chromatography 2007 Version: 05/20/07 2

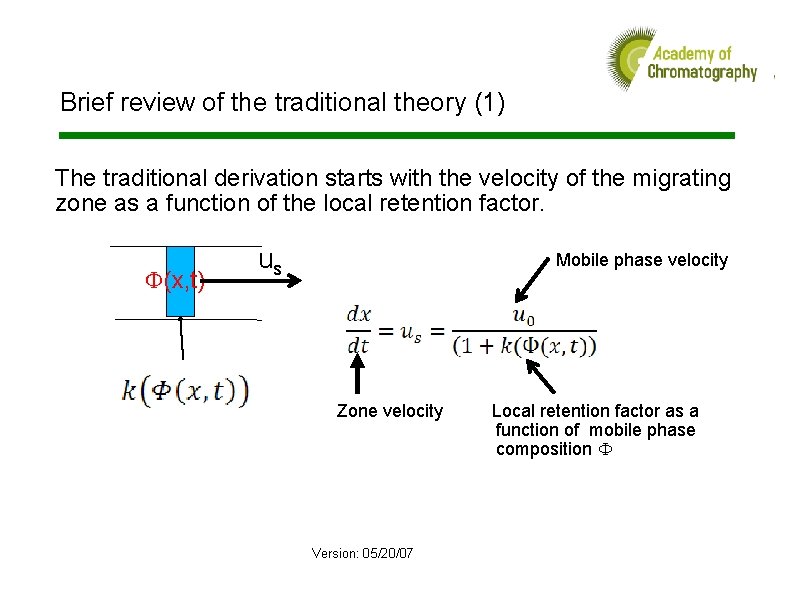

Brief review of the traditional theory (1) The traditional derivation starts with the velocity of the migrating zone as a function of the local retention factor. F(x, t) us Mobile phase velocity Zone velocity Local retention factor as a function of mobile phase composition F Version: 05/20/07

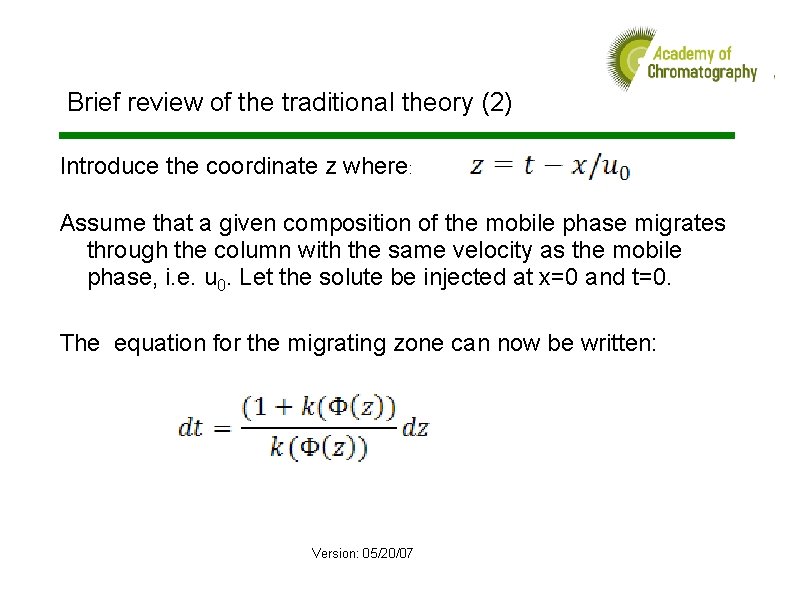

Brief review of the traditional theory (2) Introduce the coordinate z where: Assume that a given composition of the mobile phase migrates through the column with the same velocity as the mobile phase, i. e. u 0. Let the solute be injected at x=0 and t=0. The equation for the migrating zone can now be written: Version: 05/20/07

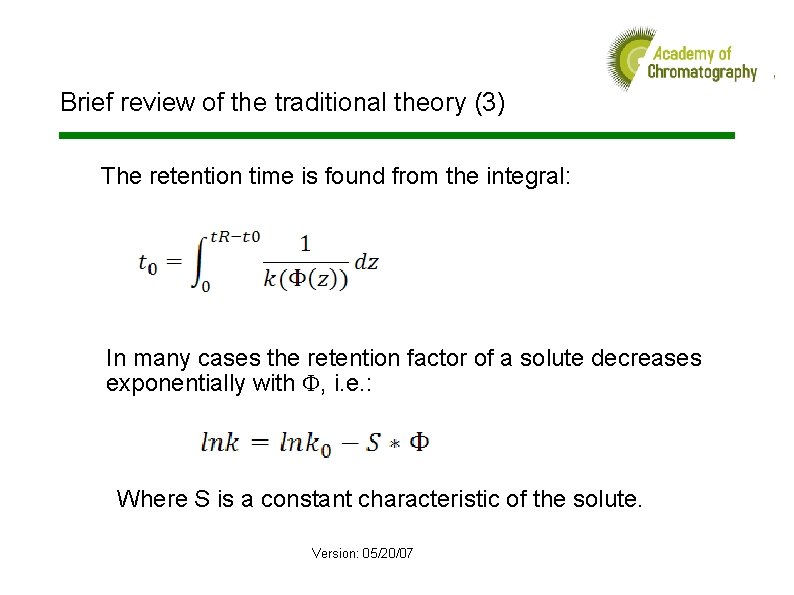

Brief review of the traditional theory (3) The retention time is found from the integral: In many cases the retention factor of a solute decreases exponentially with F, i. e. : Where S is a constant characteristic of the solute. Version: 05/20/07

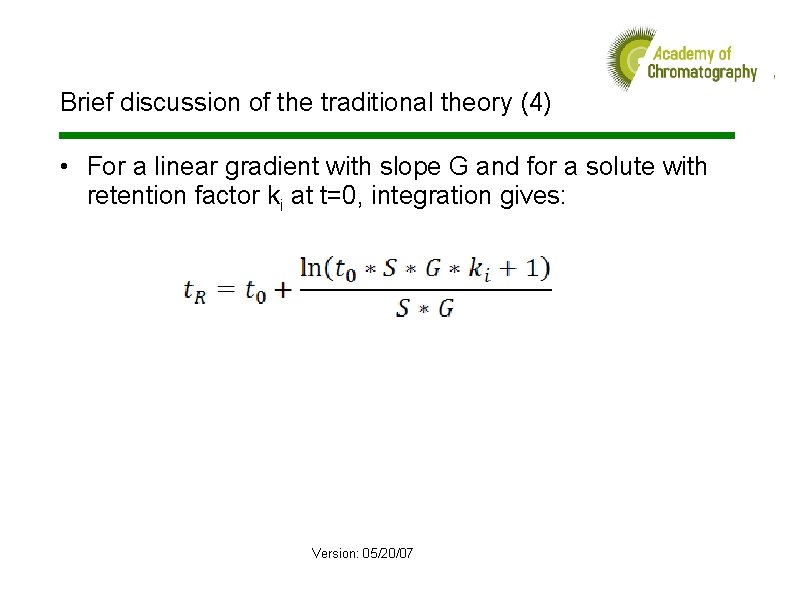

Brief discussion of the traditional theory (4) • For a linear gradient with slope G and for a solute with retention factor ki at t=0, integration gives: Version: 05/20/07

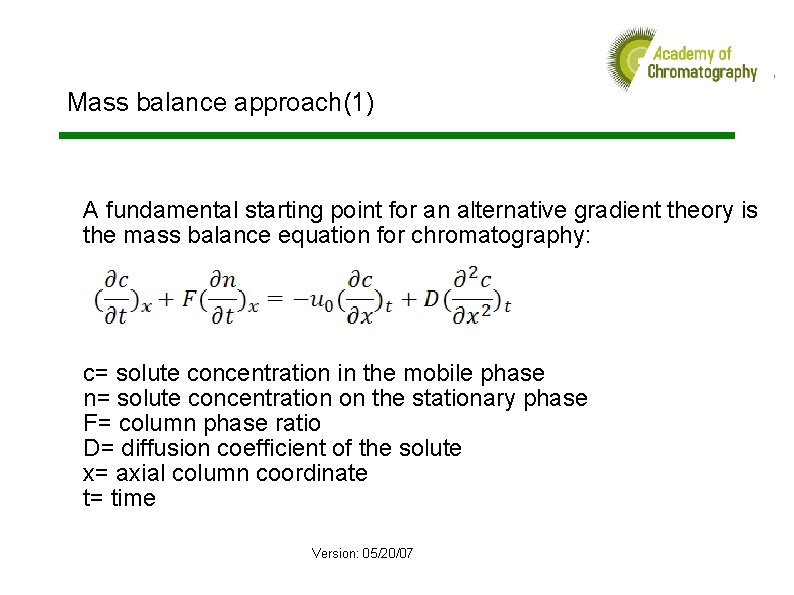

Mass balance approach(1) A fundamental starting point for an alternative gradient theory is the mass balance equation for chromatography: c= solute concentration in the mobile phase n= solute concentration on the stationary phase F= column phase ratio D= diffusion coefficient of the solute x= axial column coordinate t= time Version: 05/20/07

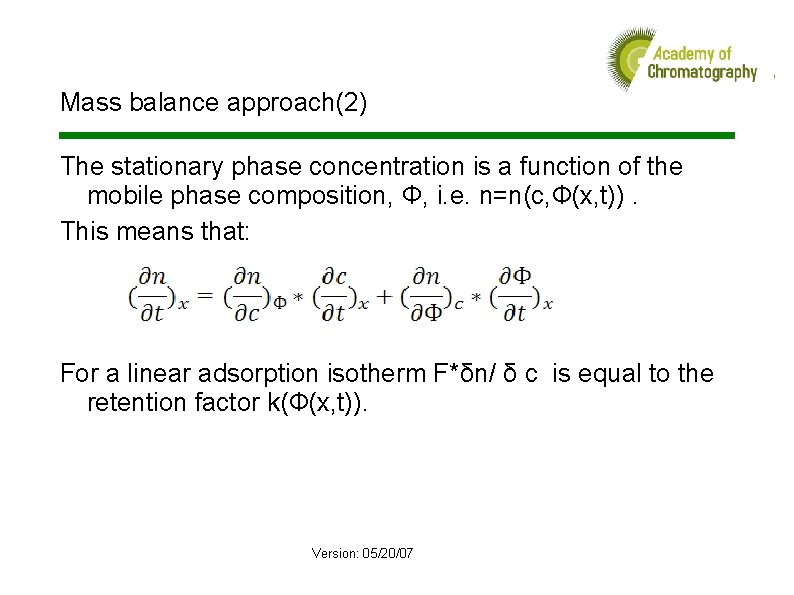

Mass balance approach(2) The stationary phase concentration is a function of the mobile phase composition, Φ, i. e. n=n(c, Ф(x, t)). This means that: For a linear adsorption isotherm F*δn/ δ c is equal to the retention factor k(Ф(x, t)). Version: 05/20/07

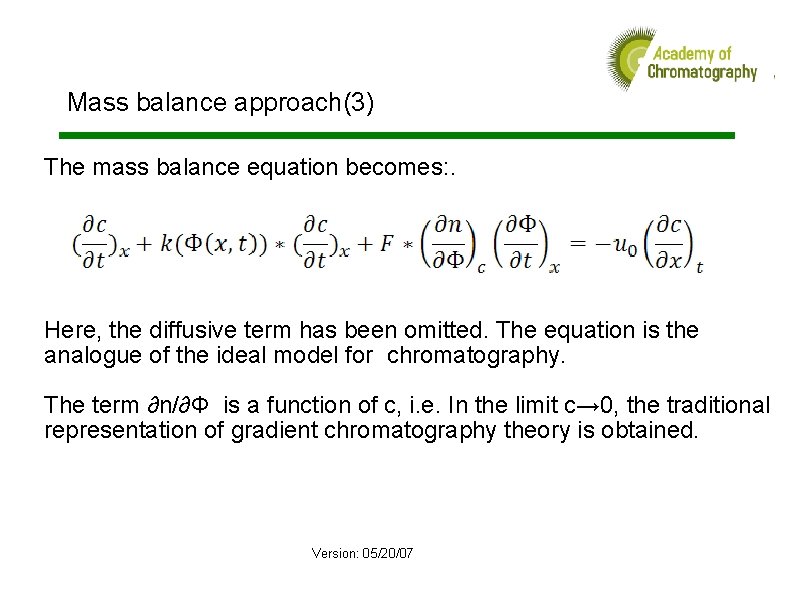

Mass balance approach(3) The mass balance equation becomes: . Here, the diffusive term has been omitted. The equation is the analogue of the ideal model for chromatography. The term ∂n/∂Φ is a function of c, i. e. In the limit c→ 0, the traditional representation of gradient chromatography theory is obtained. Version: 05/20/07

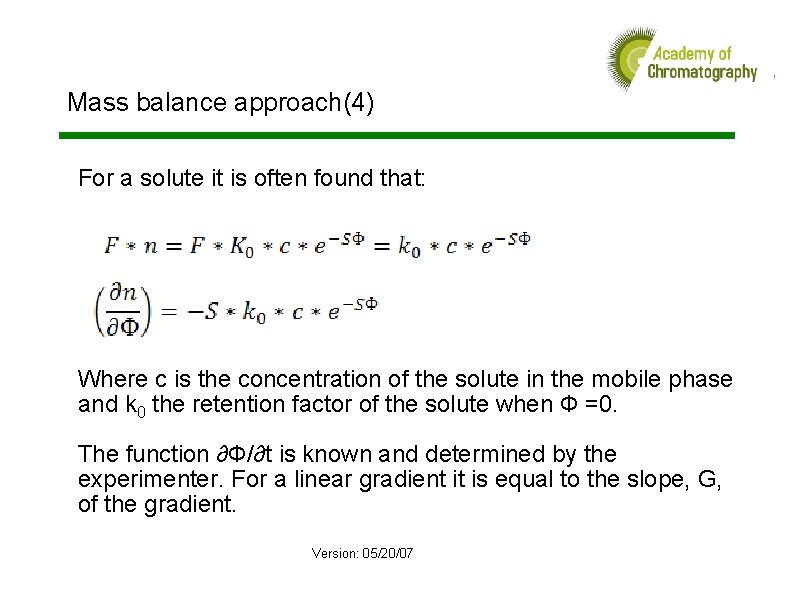

Mass balance approach(4) For a solute it is often found that: Where c is the concentration of the solute in the mobile phase and k 0 the retention factor of the solute when Ф =0. The function ∂Ф/∂t is known and determined by the experimenter. For a linear gradient it is equal to the slope, G, of the gradient. Version: 05/20/07

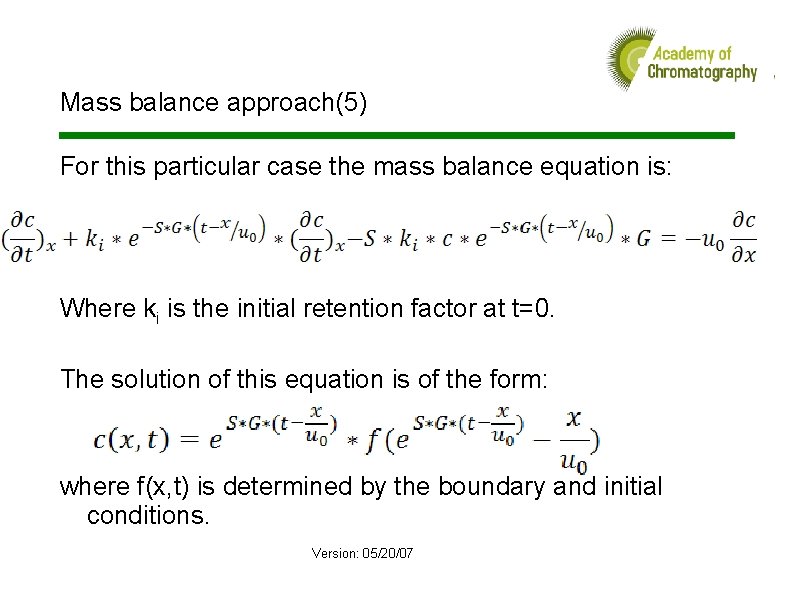

Mass balance approach(5) For this particular case the mass balance equation is: Where ki is the initial retention factor at t=0. The solution of this equation is of the form: where f(x, t) is determined by the boundary and initial conditions. Version: 05/20/07

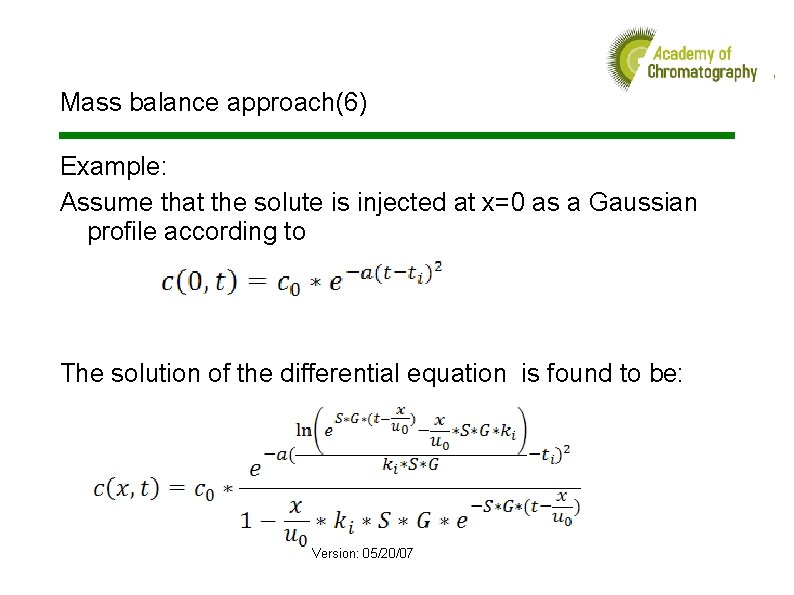

Mass balance approach(6) Example: Assume that the solute is injected at x=0 as a Gaussian profile according to The solution of the differential equation is found to be: Version: 05/20/07

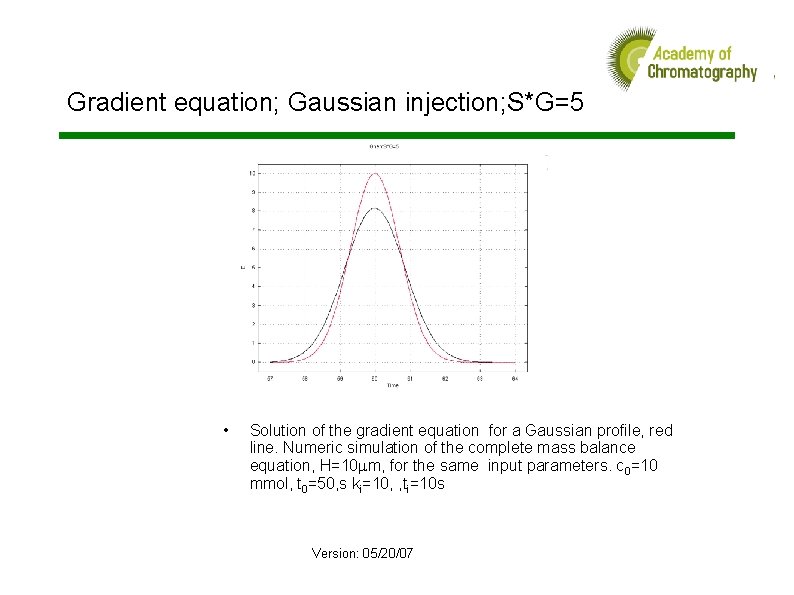

Gradient equation; Gaussian injection; S*G=5 • Solution of the gradient equation for a Gaussian profile, red line. Numeric simulation of the complete mass balance equation, H=10 mm, for the same input parameters. c 0=10 mmol, t 0=50, s ki=10, , ti=10 s Version: 05/20/07

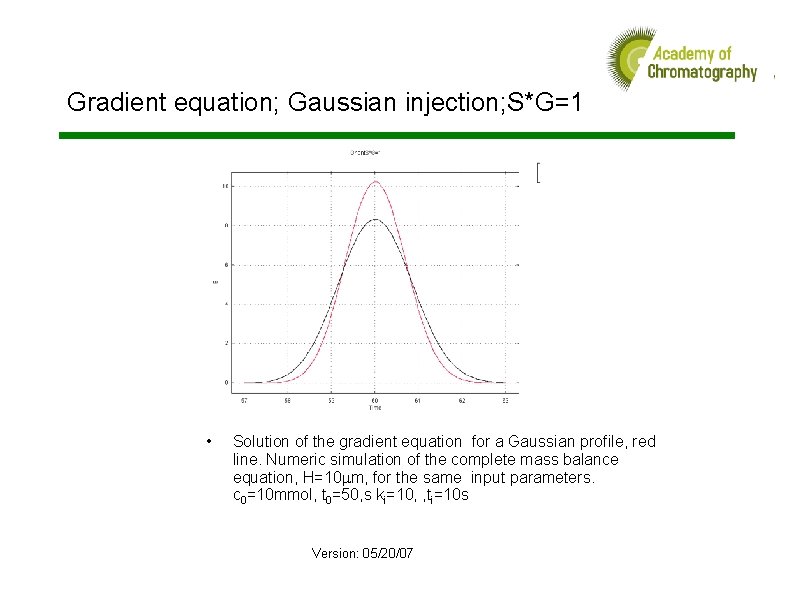

Gradient equation; Gaussian injection; S*G=1 • Solution of the gradient equation for a Gaussian profile, red line. Numeric simulation of the complete mass balance equation, H=10 mm, for the same input parameters. c 0=10 mmol, t 0=50, s ki=10, , ti=10 s Version: 05/20/07

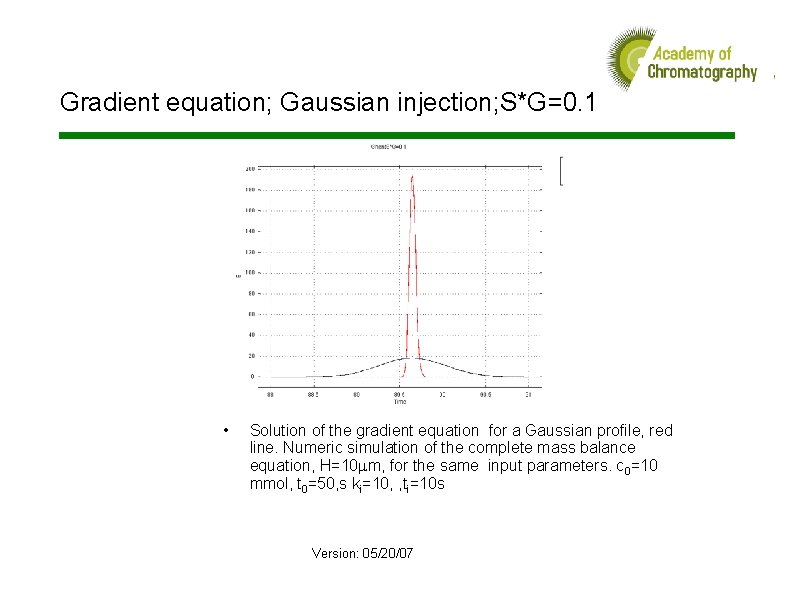

Gradient equation; Gaussian injection; S*G=0. 1 • Solution of the gradient equation for a Gaussian profile, red line. Numeric simulation of the complete mass balance equation, H=10 mm, for the same input parameters. c 0=10 mmol, t 0=50, s ki=10, , ti=10 s Version: 05/20/07

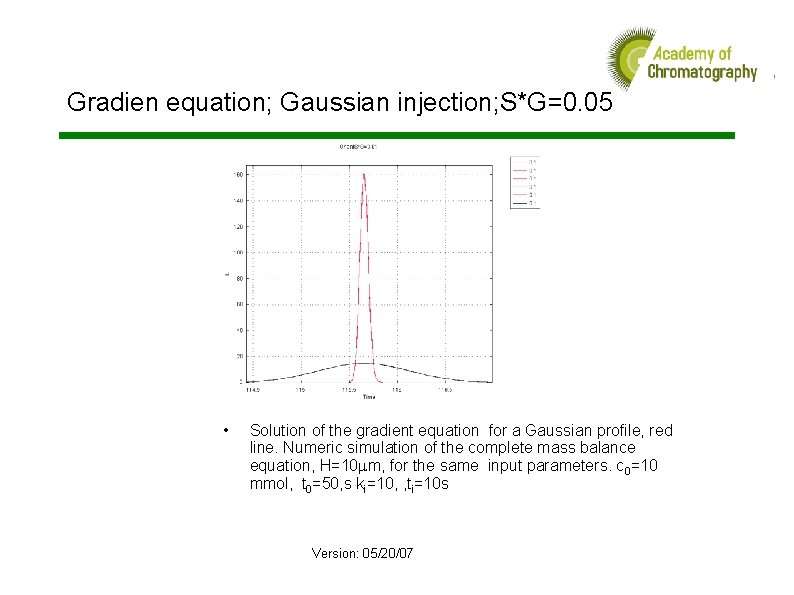

Gradien equation; Gaussian injection; S*G=0. 05 • Solution of the gradient equation for a Gaussian profile, red line. Numeric simulation of the complete mass balance equation, H=10 mm, for the same input parameters. c 0=10 mmol, t 0=50, s ki=10, , ti=10 s Version: 05/20/07

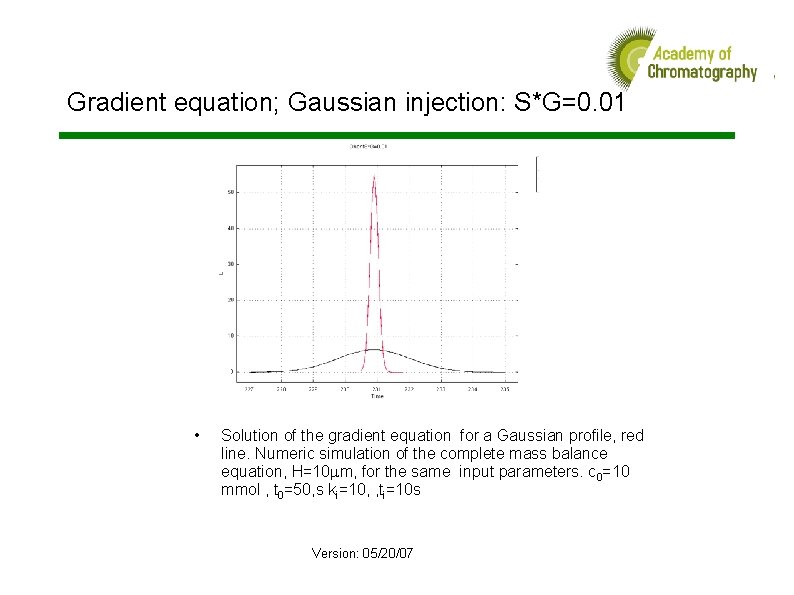

Gradient equation; Gaussian injection: S*G=0. 01 • Solution of the gradient equation for a Gaussian profile, red line. Numeric simulation of the complete mass balance equation, H=10 mm, for the same input parameters. c 0=10 mmol , t 0=50, s ki=10, , ti=10 s Version: 05/20/07

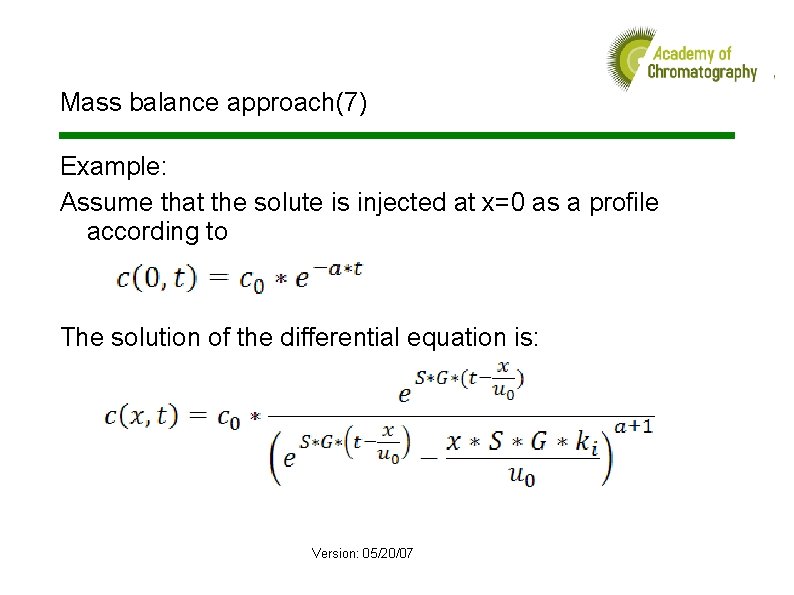

Mass balance approach(7) Example: Assume that the solute is injected at x=0 as a profile according to The solution of the differential equation is: Version: 05/20/07

Mass balance approach(8) Example: Assume that the solute concentration is constant and independent of time. The solution of the differential equation is: Version: 05/20/07

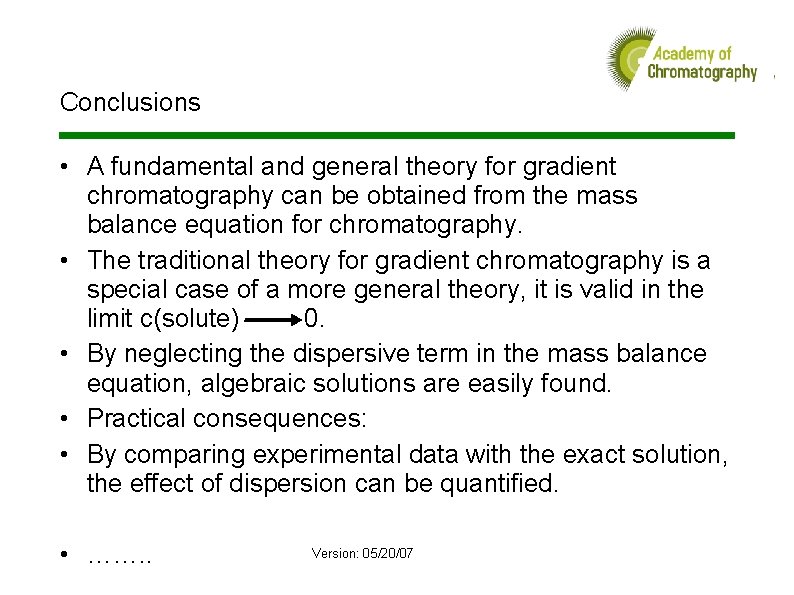

Conclusions • A fundamental and general theory for gradient chromatography can be obtained from the mass balance equation for chromatography. • The traditional theory for gradient chromatography is a special case of a more general theory, it is valid in the limit c(solute) 0. • By neglecting the dispersive term in the mass balance equation, algebraic solutions are easily found. • Practical consequences: • By comparing experimental data with the exact solution, the effect of dispersion can be quantified. • ……. . Version: 05/20/07
