The TELNET protocol

TELNET vs. telnet • TELNET is a protocol that provides “a general, bi-directional, eight-bit byte oriented communications facility”. • telnet is a program that supports the TELNET protocol over TCP. • Many application protocols are built upon the TELNET protocol.

The TELNET Protocol • • TCP connection data and control over the same connection. Network Virtual Terminal negotiated options

NVT - Network Virtual Terminal • intermediate representation of a generic terminal. • provides a standard language for communication of terminal control functions.

Negotiated Options • All NVT’s support a minimal set of capabilities. • Some terminals have more capabilities than the minimal set. • The 2 endpoints negotiate a set of mutually acceptable options (character set, echo mode, etc).

Negotiated Options • The protocol for requesting optional features is well defined and includes rules for eliminating possible negotiation “loops”. • The set of options is not part of the TELNET protocol, so that new terminal features can be incorporated without changing the TELNET protocol.

Control Functions • TELNET includes support for a series of control functions commonly supported by servers. • This provides a uniform mechanism for communication of (the supported) control functions.

Control Functions • Interrupt Process (IP) – suspend/abort process. • Abort Output (AO) – process can complete, but send no more output to user’s terminal. • Are You There (AYT) – check to see if system is still running. • Erase Character (EC) – delete last character sent – typically used to edit keyboard input. • Erase Line (EL) – delete all input in current line.

Command Structure • All TELNET commands and data flow through the same TCP connection. • Commands start with a special character called the Interpret as Command escape character (IAC). e. g. IAC, <type of operation>, <option> • The IAC code is 255. • If a 255 is sent as data - it must be followed by another 255.

Commands cont. • Each receiver must look at each byte that arrives and look for IAC. • If IAC is found and the next byte is IAC - a single byte is presented to the application/terminal (a 255). • If IAC is followed by any other code - the TELNET layer interprets this as a command.

Option negotiation Sender Sent Receiver Responds Implication WILL DO The sender would like to use a certain option if the receiver can handle it. The receiver says it can support the option. Option is now in effect WILL DONT The sender would like to use a certain option if the receiver can handle it. The receiver says it cannot support the option. Option is not in effect. DO WILL The sender requests that the receiver use a certain option. The receiver says it can support the option. Option is now in effect. DO WONT The sender requests that the receiver use a certain option. The receiver says it cannot support the option. Option is not in effect. WONT DONT The sender will not use a certain option. Option disabled. DONT is only valid response. DONT WONT The sender requests that the receiver does not use a certain option. Option disabled. WONT is only valid response.

Playing with TELNET • You can use the telnet program to play with the TELNET protocol. • telnet is a generic TCP client. • Not all TCP servers talk TELNET (most don't) • Many Unix systems have these servers running (by default): – – echo discard daytime chargen port 7 port 9 port 13 port 19

TELNET & Fingerprinting • Theory of Passive Fingerprinting with Telnet Data suggested that each telnet client has a unique way it negotiates with a telnet daemon. This is even the case between two different telnet clients running on the same source system

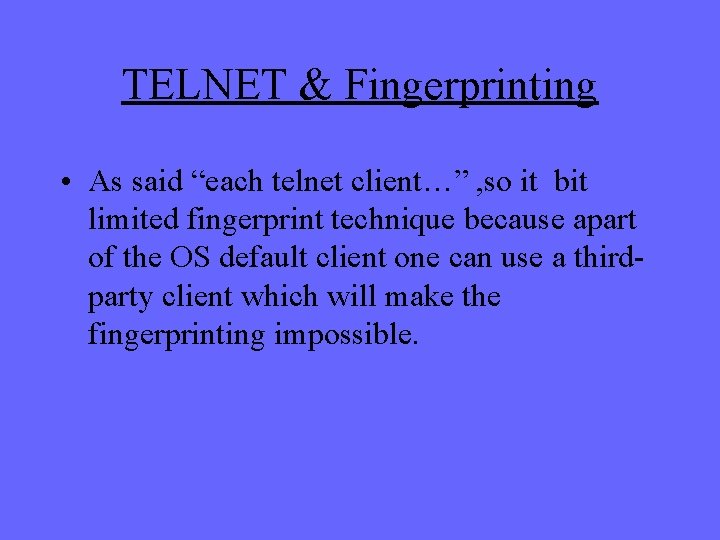

TELNET & Fingerprinting • As said “each telnet client…” , so it bit limited fingerprint technique because apart of the OS default client one can use a thirdparty client which will make the fingerprinting impossible.

Some examples • Free. BSD - specifically the only one that requests Encryption Option, also it uses a Do followed by a Will telnet command on this option. • Linux Mandrake 7. 2 - specifically the options used with the addition option of Will X Display Location • Windows NT 4 - specifically the use of only the Will Terminal Type option • Windows 2000 - specifically the use of the two options, Will Terminal Type and Will Negotiate about Window Size

Some points to consider • What telnet command options wont a client accept ? • How does the telnet client respond to multiply requests ? (e. g. the Cisco client seems to send a separate response (i. e. packet) for each telnet command option requested). • Can we fingerprint telnet clients by defaults in sub-options. i. e. default Window Sizes (Negotiate about Window Size option), or Terminal Speed?

References • • http: //www. sans. org/resources/idfaq/fingerp_telnet. php http: //www. ietf. org/rfc 854. txt http: //www. ietf. org/rfc 855. txt http: //www. scit. wlv. ac. uk/~jphb/comms/telnet. html
