Telnet n Telnet date back to late 1960 s is generally consider the first network application. – There are several RFCs are listed at the end of the lecture. n Uses a client/server model to define a standard way in which to interact with a remote system. – The telnet protocol is the basis for many protocols » FTP, HTTP, SMTP, NTTP just to name a few. n They don’t open a telnet connection, just use the protocol. Netprog: TELNET 2
Telnet (2) n While telnet should be a very simple protocol, it’s not. – It has to deal with all communications methods that different terminal and computers use. – It ensures compatibility between the terminal types and computers and still allow the special features used. Netprog: TELNET 3
TELNET vs. telnet n TELNET is a protocol that provides “a general, bi-directional, eight-bit byte oriented communications facility”. n telnet is a program that supports the TELNET protocol over TCP. Netprog: TELNET 4
The TELNET Protocol TCP connection n data and control over the same connection. n Network Virtual Terminal n negotiated options n Netprog: TELNET 5
Network Virtual Terminal n All communications uses a standard terminal called NVT – The client takes input, translates into NVT sends it to the server, which translates to the representation that the computer uses. – Special Telnet commands are interspersed with the data to perform the functions needed to for the operation of the protocol Netprog: TELNET 6
Network Virtual Terminal Server Process NVT TCP Netprog: TELNET 7

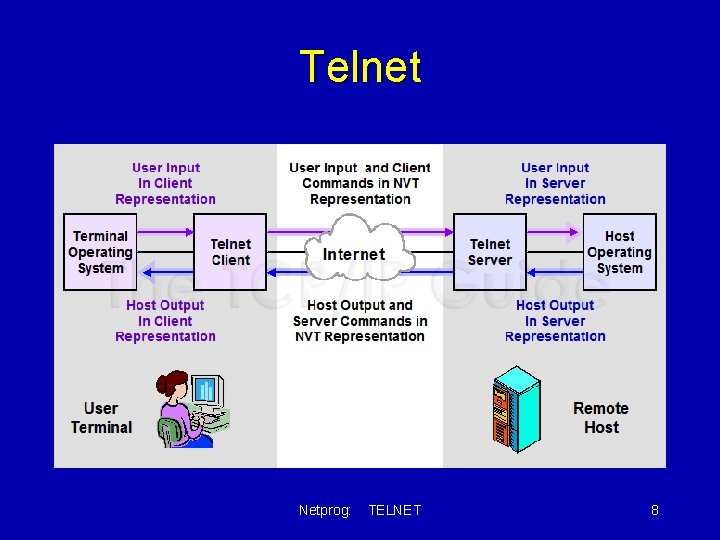

Telnet Netprog: TELNET 8
NVT ASCII Control Codes n Three mandatory codes – 0, Null » No operation, no effect on output – 10, Line Feed » Moves printer to the next line, keep same print position – 13, Carriage Return » Moves the printer to the left margin of the current line Netprog: TELNET 9
NVT ASCII Control Codes(2) n Optional Codes – 7, Bell – 8, Back Space » Move the print position one character to the left – 9, Horizontal tab – 11, Vertical Tab » devices negotiate to agree on tab stops – 12, Form Feed » next page or clear the screen and put cursor at the top Netprog: TELNET 10
NVT ASCII Control Codes(3) n End of line marker – Since different computers use different standards for the end of line marker, – CR+LF is defined as the end of line marker. Netprog: TELNET 11
Negotiated Options All NVTs support a minimal set of capabilities. n Some terminals have more capabilities than the minimal set. n The 2 endpoints negotiate a set of mutually acceptable options (character set, echo mode, etc). n Netprog: TELNET 12
Negotiated Options The protocol for requesting optional features is well defined and includes rules for eliminating possible negotiation “loops”. n The set of options is not part of the TELNET protocol, so that new terminal features can be incorporated without changing the TELNET protocol. n Netprog: TELNET 13
Option examples n Line mode vs. character mode n echo modes n character set (EBCDIC vs. ASCII) Netprog: TELNET 14
Control Functions n TELNET includes support for a series of control functions commonly supported by servers. n This provides a uniform mechanism for communication of (the supported) control functions. Netprog: TELNET 15

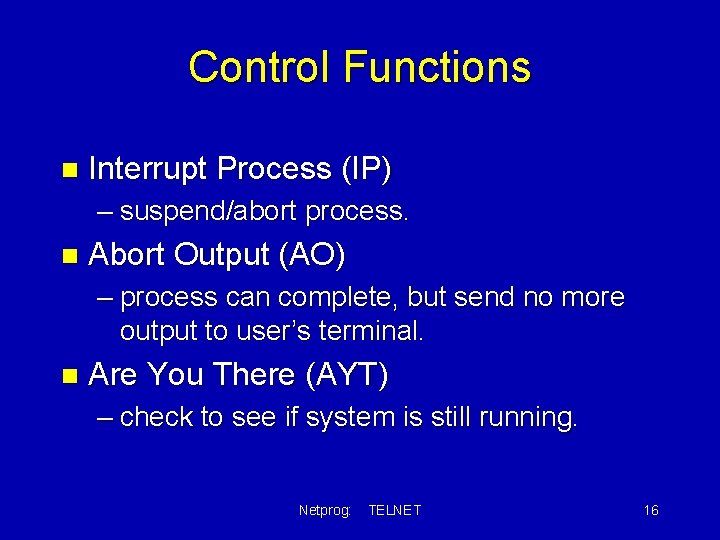

Control Functions n Interrupt Process (IP) – suspend/abort process. n Abort Output (AO) – process can complete, but send no more output to user’s terminal. n Are You There (AYT) – check to see if system is still running. Netprog: TELNET 16
More Control Functions n Erase Character (EC) – delete last character sent – typically used to edit keyboard input. n Erase Line (EL) – delete all input in current line. Netprog: TELNET 17
Command Structure All TELNET commands and data flow through the same TCP connection. n Commands start with a special character called the Interpret as Command escape character (IAC). n The IAC code is 255. n If a 255 is sent as data - it must be followed by another 255. n Netprog: TELNET 18
Looking for Commands Each receiver must look at each byte that arrives and look for IAC. n If IAC is found and the next byte is IAC a single byte is presented to the application/terminal (a 255). n If IAC is followed by any other code the TELNET layer interprets this as a command. n Netprog: TELNET 19
commands n WILL option (to Enable an option) – Response is either » DO option, indicate agreement and enable option » DONT option, initiator must not use the option. n WONT option (to disable option) – Response must be » DONT option, option is disabled. Netprog: TELNET 20
Command Codes IP n AO n AYT n EC n EL n 243 244 245 246 247 WILL n WON’T n DON’T n IAC n Netprog: TELNET 251 252 253 254 255 21
Telnet Options n When a option needs more parameters – Use SB (subnegotiation) and SE (end subnegotiation )command n Example: negotiate the terminal type – (IAC is interpret as command) n n IAC WILL Terminal-type IAC DO Terminal-type IAC SB terminal-type SEND IAC SE IAC SB TERINAL-TYPE IS <type> IAC SE Netprog: TELNET 22

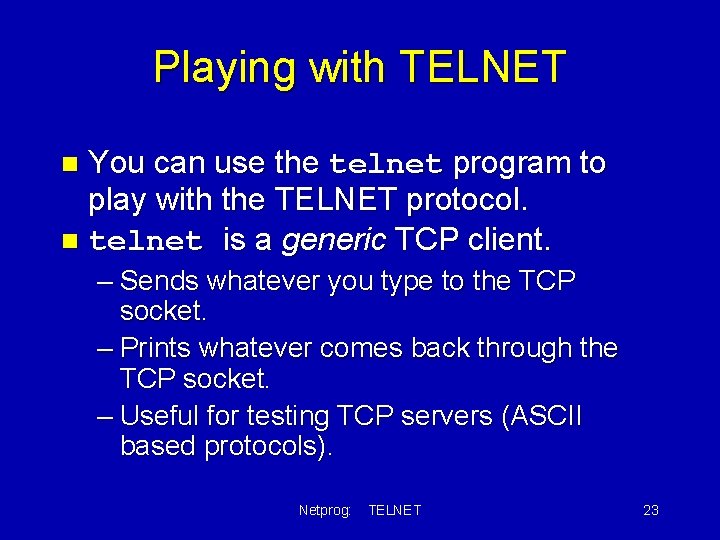

Playing with TELNET You can use the telnet program to play with the TELNET protocol. n telnet is a generic TCP client. n – Sends whatever you type to the TCP socket. – Prints whatever comes back through the TCP socket. – Useful for testing TCP servers (ASCII based protocols). Netprog: TELNET 23
Some TCP Servers you can play with n Many Unix systems have these servers running (by default): – echo – discard – daytime – chargen port 7 port 9 port 13 port 19 Netprog: TELNET 24
telnet hostname port > telnet rcs. rpi. edu 7 Trying 128. 113. 33. . . Connected to cortez. sss. rpi. edu (128. 113. 33). Escape character is '^]'. Hi dave stop it ^] telnet> quit Connection closed. Netprog: TELNET 25
telnet vs. TCP n Not all TCP servers talk TELNET (most don't) n You can use the telnet program to play with these servers, but the fancy commands won't do anything. – type ^], then "help" for a list of fancy TELNET stuff you can do in telnet. Netprog: TELNET 26
RFCs The first RFC specifically defining Telnet was RFC 97, First Cut at a Proposed Telnet Protocol, published in February 1971. n Telnet Protocol Specification, was published as RFC 854 in May 1983. n Telnet Option Specifications, RFC 855 n Netprog: TELNET 27
