THE SPRING NUCLEUS: A MICROKERNEL FOR OBJECTS M. Hamilton and P. Kougiouris Sun Microsystems Laboratories

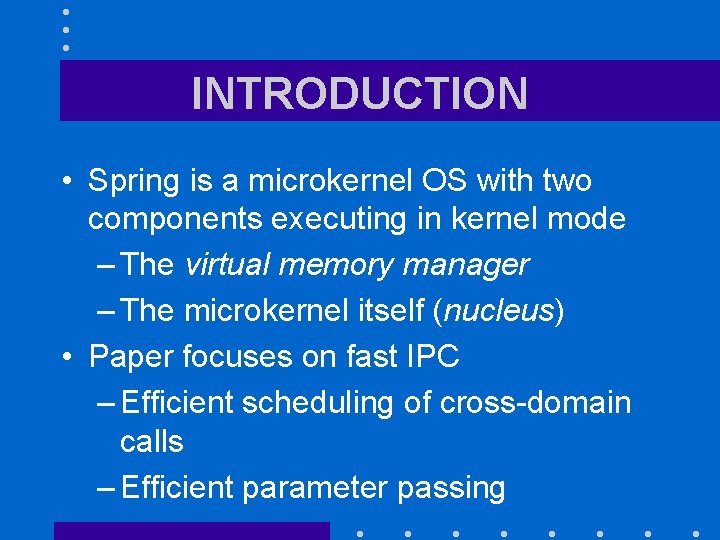

INTRODUCTION • Spring is a microkernel OS with two components executing in kernel mode – The virtual memory manager – The microkernel itself (nucleus) • Paper focuses on fast IPC – Efficient scheduling of cross-domain calls – Efficient parameter passing
Spring IPC Model • Spring provides to its users: - Secure access to services: through kernel-managed capabilities - Easy recovery in the presence of client or server crashes - A highly efficient IPC mechanism particularly when the number of arguments is small
DOORS (I) • Basic IPC mechanism in Spring • Can be passed between domains • Associated with each door are – The address of an entry point in the target domain and – An integer datum that can specify an individual object in the target domain

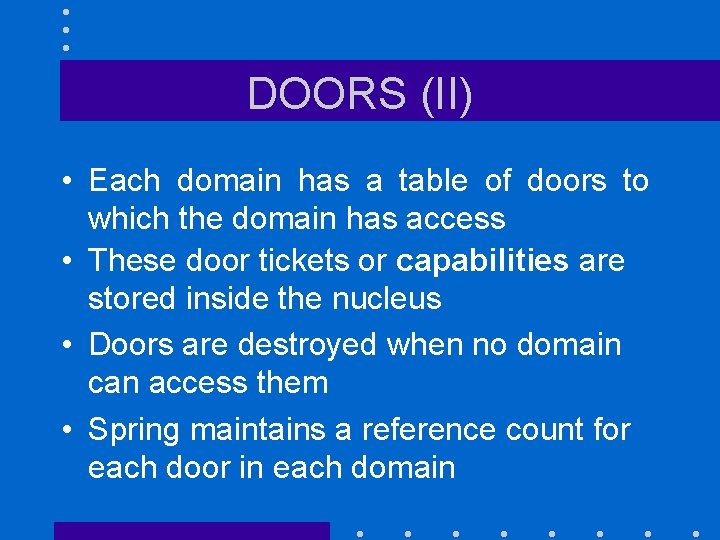

DOORS (II) • Each domain has a table of doors to which the domain has access • These door tickets or capabilities are stored inside the nucleus • Doors are destroyed when no domain can access them • Spring maintains a reference count for each door in each domain
Spring Thread Model (I) • Spring treats the thread issuing a cross -domain call and all downstream threads as a single scheduling entity Domain Kernel

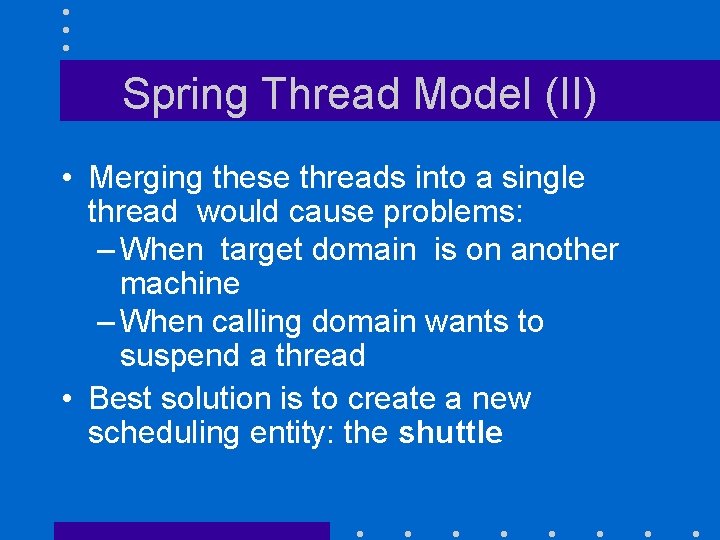

Spring Thread Model (II) • Merging these threads into a single thread would cause problems: – When target domain is on another machine – When calling domain wants to suspend a thread • Best solution is to create a new scheduling entity: the shuttle
SHUTTLES • Single scheduling entities grouping all threads that are involved in a crossdomain call • Applications can explicitly create pools of server threads • Whenever the nucleus executes a cross -domain call, it tries to find an idle thread within the target domain

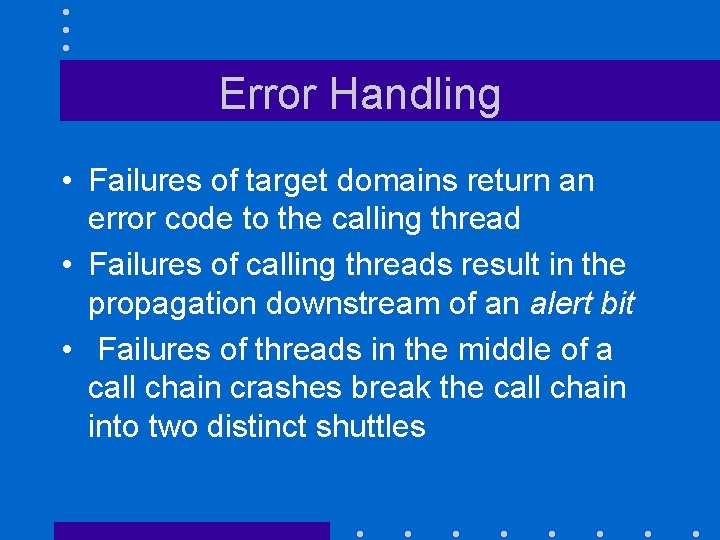

Error Handling • Failures of target domains return an error code to the calling thread • Failures of calling threads result in the propagation downstream of an alert bit • Failures of threads in the middle of a call chain crashes break the call chain into two distinct shuttles

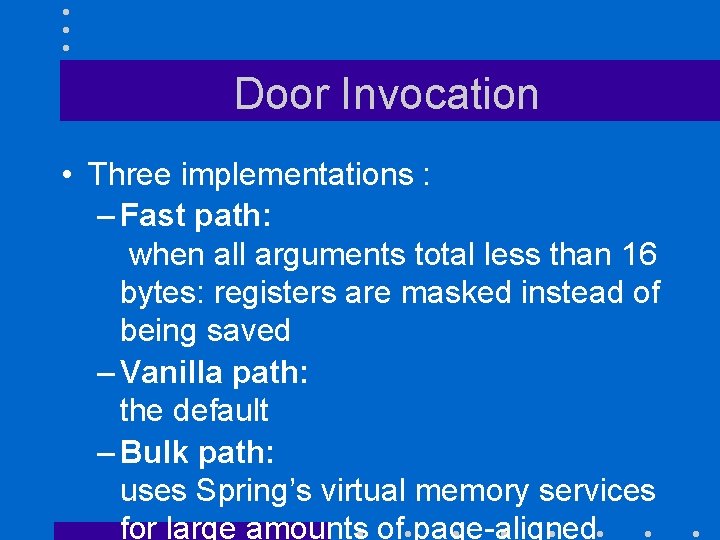

Door Invocation • Three implementations : – Fast path: when all arguments total less than 16 bytes: registers are masked instead of being saved – Vanilla path: the default – Bulk path: uses Spring’s virtual memory services for large amounts of page-aligned

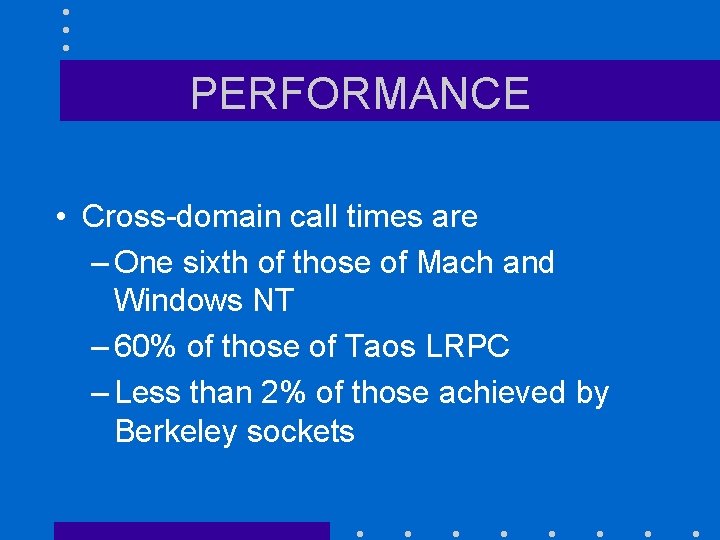

PERFORMANCE • Cross-domain call times are – One sixth of those of Mach and Windows NT – 60% of those of Taos LRPC – Less than 2% of those achieved by Berkeley sockets

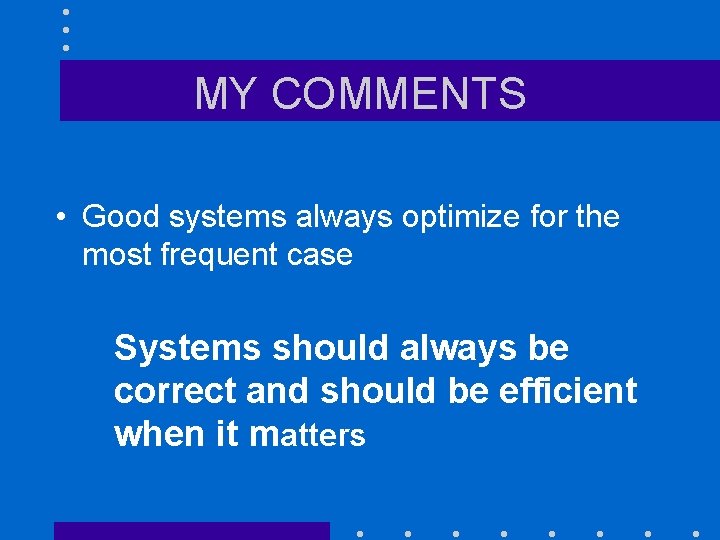

MY COMMENTS • Good systems always optimize for the most frequent case Systems should always be correct and should be efficient when it matters
