The SPACI Activity in Grid and the GRel

The SPACI Activity in Grid and the GRel. C Experience (Southern Partnership for Advanced Computational Infrastructures) Prof. Giovanni Aloisio

The SPACI Grid (Southern Partnership for Advanced Computational Infrastractures) Un. Iversità di Lecce CNR-Napoli Center for Research for Parallel Computing and Supercomputers Resp. Scientifico Prof. Almerico Murli Uni. Na Uni. Le Uni. Cal Uni. Le Center for Advanced Computing Technologies ISUFI & NNL Resp. Scientifico Prof. Giovanni Aloisio Uni. Cal Un. Iversità della Calabria Center of Excellence for High Performance Computing Resp. Scientifico Prof. Lucio Grandinetti

SPACI Consortium (27 Febbraio 2004) v University of Lecce v University of Calabria v. Hewlett Packard Italy v Spaci s. r. l.

SEPAC Grid Southern European Partnership for Advanced Computing Uni. Zurich ETH Compu. Lab ETH CSCS CILEA Uni. Na • Italian nodes – SPACI – CILEA (Milan) • Swiss nodes – ETH (Zurich) – CSCS (Lugano) – University of Zurich – Computer Lab ETH (Zurich) Uni. Le Uni. Cal Uni. Le

The Southern Grid Lecce Cosenza Catania SPACI will connect to other Supercomputing Centers recently funded by MIUR (PON Avviso 1575)

Euro Mediterranean Center for Climate Changes Consortium Partners ASI - Agenzia Spaziale Italiana CIRA - Centro Italiano Ricerche Aerospaziali FEEM - Fondazione Eni Enrico Mattei INGV - Istituto Nazionale di Geofisica e Vulcanologia UNILE - Università di Lecce CVR - Corsorzio Venezia Ricerca UNISANNIO - Università del Sannio Associate Centers CENTRO INTERNAZIONALE DI FISICA TEORICA ABDUS SALAM ISTITUTO NAZIONALE DI OCEANOGRAFIA E DI GEOFISICA SPERIMENTALE - OGS ISTITUTO AGRONOMICO MEDITERRANEO DI BARI (IAMB) SOUTHERN PARTNERSHIP FOR ADVANCED COMPUTATIONAL INFRASTRUCTURES UNIVERSITÀ DELLA TUSCIA -Dipart. Scienze dell'Amb. Forest. e delle Risorse (DISAFRI) CRMPA - CENTRO DI RICERCA IN MATEMATICA PURA E APPLICATA WHO - WORLD HEALTH ORGANIZATION MIUR- FISR Fondo Integrativo Speciale Ricerca - Bando 2001

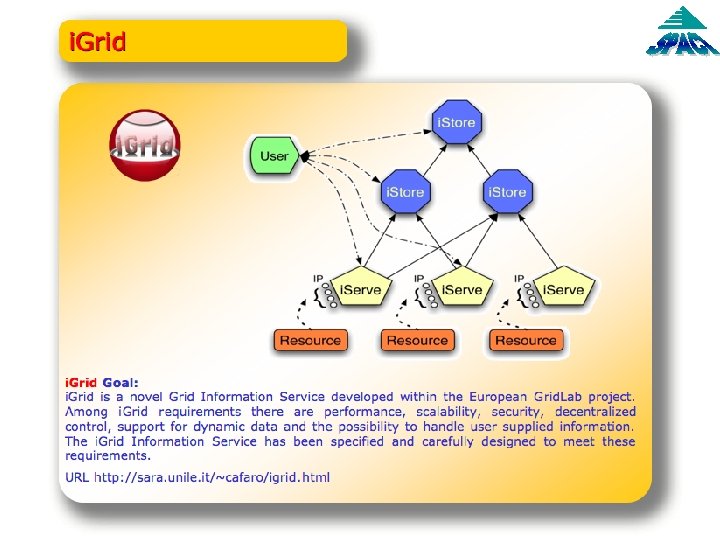

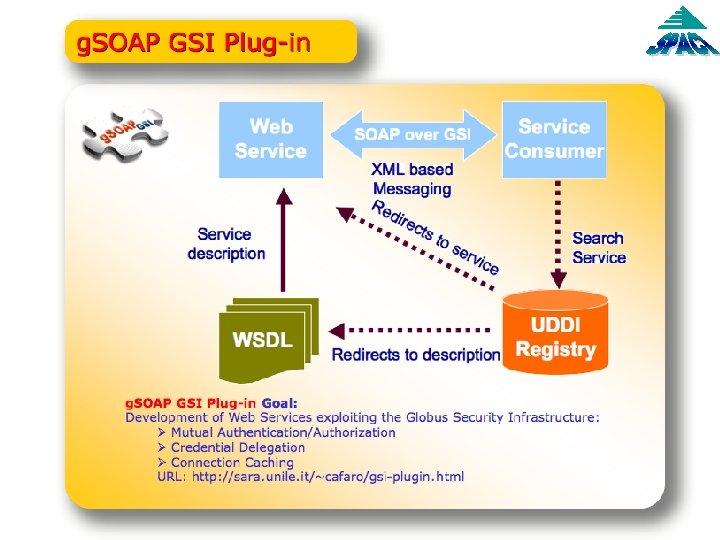

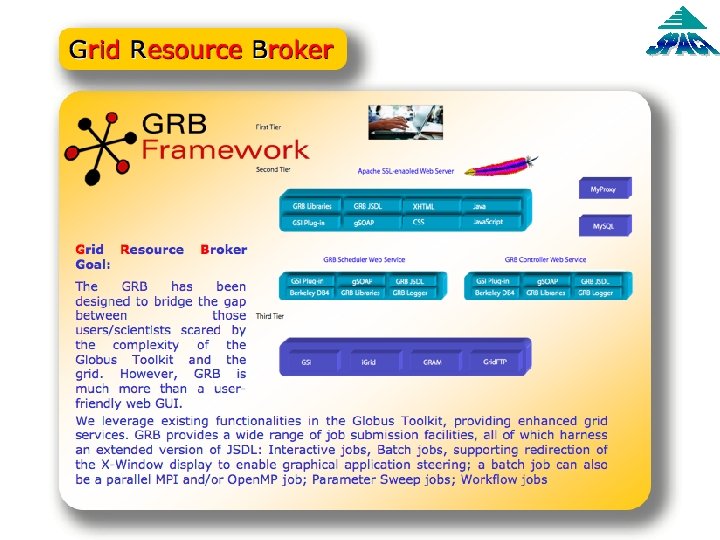

SPACI Activities Grid Technology development • Access to Grid Environment (GRB Portal) • Information Service (i. Grid) • Security (plugin GSI) • Grid Data Management (GRel. C) Applications development • Bioinformatics, EOS, Finance, etc.

SPACI Activity within EGEE project • Porting of LCG Middleware on IA 64 Architecture • IA 64 Support for the EGEE User Community • Support within the Italian Central Management Team • Extended concept of “Porting” Porting doesn’t just involve code fixes but also: – – Modifications to configuration scripts (e. g. Yaim) Setting up a build and test infrastructure Generating appropriate installation procedures on target Patch management when fixes can’t be integrated in standard releases

SPACI & EGEE: LCG on IA 64 SPACI Activities on IA 64 • Easy LCG installation, configuration and patch on IA 64 • Supported Components: all LCG components • Documentation, Download, Support, News, etc. • Test on RX 2600 and XC 6000 • Support for Italian VO (INFNGRID) • Bugs Report Saturday, January 22, 2022 12

SPACI & EGEE: LCG on IA 64 RX 2600 • Automatic Procedure for installation, configuration and patches of LCG on IA 64 nodes • Supported Components: LCG 2. 4. 0: CE, WN, UI, SE, MON, RB e BDII LCG 2. 6. 0: CE, WN, UI, SE, MON, RB e BDII LCG 2. 7. 0: CE, WN, SE, MON • Procedures based on bash scripts • Web site for Automatic Procedure on IA 64 (www. spaci. it/egee) - Info, Download, Support, News, etc. . • SPACI Repository (Cern mirror) XC 6000 • We are testing the automatic procedure on XC 6000 (64 IA 64 Itanium 2 biprocessor nodes), considering XC System Software. Saturday, January 22, 2022 13

SPACI Configuration FARM: Two sites on GOCDB 1 CE running on IA 64 SLC 3. 0. 4 (RX 2600) 7 WNs, running on IA 64 SLC 3. 0. 4 (RX 2600) 1 SE (RX 2600) 1 CE, running on IA 64 (XC System Software) 7 WNs , running on IA 64 (XC System Software) 1 SE, running on IA 64 (XC System Software) SOFTWARE: LCG 2. 7. 0 for IA 64 VOs supported: (atlas, lhcb, cms, alice, dteam, all italian VOs) Ganglia for CE and WNs Monitoring Saturday, January 22, 2022 14

SPACI & LCG Support on IA 64 (SA 1) LCG Support on IA 64 (websites) SPACI Support: www. spaci. it/egee SA 1 Italy: http: //grid-it. cnaf. infn. it/? sa 1 italy CERN: http: //openlab-mu-internal. web. cern. ch/ LCG Support on IA 64 (mailing lists) SPACI Support: grid-prod@sara. unile. it Italian Central Management Team Mailing list Cern: lcg-ia 64 -support
