The Solar System Saturn Jupiter Uranus Neptune Not
- Slides: 63

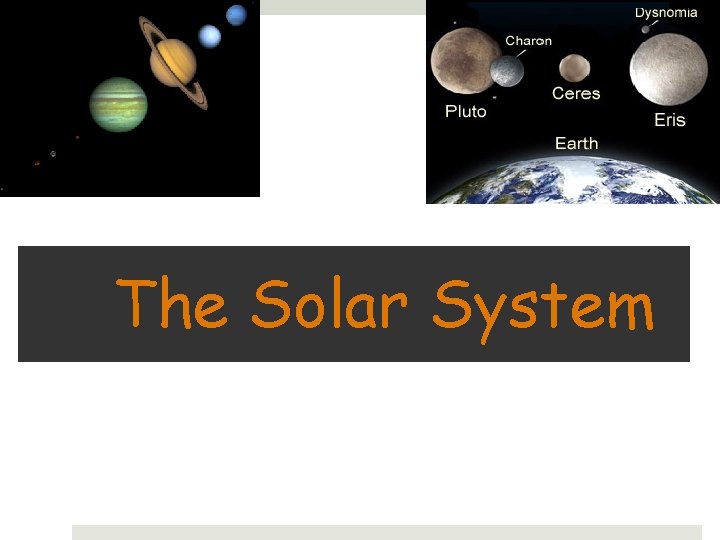

The Solar System
Saturn Jupiter Uranus Neptune Not pictured The dwarf planet Eris Mars Earth Venus Mercury Not pictured, the dwarf planet Ceres Image from http: //www. nineplanets. org/gif/Nine. Planets. jpg 2
Image from http: //www. nineplanets. org/gif/Nine. Planets. jpg 3
Another perspective Renamed Eris Image from http: //media. skyandtelescope. com/images/Twelve. Planets_l. jpg 4
The Inner Planets �Mercury �Venus �Earth �Mars 5
Humans Needs? � Oxygen (Not 100%) � Water � Favorable Temperature � Daily sunlight for photosynthesis � Favorable Atmosphere conditions (little CO 2, no narcotic gases(argon), total pressure around 1 atm) 6
Characteristics of the Inner Planets �Very similar to each other �small �rocky surfaces. �Dense. �NO rings � “Terrestrial planets” because they resemble Earth, “terra-” means “Earth” 7
Mercury �Size- about 38% of Earth’s diameter =4878 km �Distance from sun- about 39% of Earth’s distance=58, 000 km �Surface- thin, hard rocky surface with plains and craters �Atmosphere- thin with sodium and gases 8
Mercury(cont’d) � Can’t support life (no water or oxygen, hot temps) � Moons- none � Rotation- 59 Earth days � Revolution- 0. 24 Earth years � Daytime(sunlit side) temperature 430ºC Nighttime(shaded side) temperature -190ºC 9
Mercury 10
Venus � 95% of Earth’s diameter=12, 104 km � Distance from sun- about 2/3 of Earth’s=108, 000 km from sun � Surface- rocks similar to Earth � Has volcanoes with lava flows 11
Venus (cont’d) � Atmosphere- thick � Mostly carbon dioxide (greenhouse effect is strong) � Clouds partly sulfuric acid � Atmospheric pressure is 90 times heavier than Earth’s and would crush a human � No water � Harsh temperatures and atmosphere 12
Venus (cont’d) � Sometimes called “Earth’s twin” � Retrograde rotation- rotates “backward” from east to west (opposite of Earth) � Rotation=8 Earth months � Revolution=7. 5 Earth months � Moons- None 13
Venus 14
Earth �Size- 12, 756 km diameter �Distance from Sun- 150, 000 km �Surface- Crust is a solid rocky surface, 70% is covered by water �Atmosphere- up to 100 km thick, made up of 78% Nitrogen, 21% Oxygen, 1% other gases 15
Earth �Rotation takes 24 hours �Revolution takes 365. 25 days �Earth has one moon 16
Earth 17
Mars �Size- 53% of Earth’s diameter, it is 6794 km �Distance from Sun- about 1. 5 times distance of Earth � 228, 000 km from sun �Surface-Rocky surface with carbonite rocks high in iron, creating red color �Polar ice caps contain frozen water and carbon dioxide 18
Mars � Atmosphere- Very thin, � Thin clouds Mostly carbon dioxide � 1% of Earth’s atmospheric pressure � Ability to support life- It is possible that primitive bacteria may have lived on Mars or may now live there but none has been found. � Existence of liquid water makes life on Mars a possibility 19
Mars continued �Rotation- 1. 03 Earth days �Revolution- 1. 9 Earth years �Mars has largest volcano in solar system, called Olympus Mons �Moons- 2 20
Mars 21
The Outer Planets �Jupiter �Saturn �Uranus �Neptune �Pluto (a dwarf Planet) 22
Characteristics of The Outer Planets �Jupiter, Saturn, Uranus, Neptune and the dwarf planets Pluto and Eris �Jupiter, Saturn, Uranus, and Neptune are called “Gas Giants” �Larger than Earth � Don’t have solid surfaces �Pluto and Eris are small and rocky, like the terrestrial planets. 23
Characteristics of Gas Giants �Don’t have well-defined surfaces �Deep atmospheres about 75% hydrogen, 24% helium, and 1% other elements �Solid cores of rock, ice, frozen carbon dioxide and other compounds 24
Jupiter �Size- diameter is 11 times Earth’s, It is 142, 800 km �Distance from Sun- 5. 2 times further than Earth. It is 778, 000 km �Surface and atmosphere of gas and liquid it does not have a well-defined surface �Deep atmosphere of about 86 % hydrogen, 14 % helium, and tiny amounts of other substances. 25
Jupiter continued �Lacks water, oxygen and moderate temperatures. �Largest planet in solar system with 300 times the mass of Earth �Rotation- 0. 41 Earth days (fastest) �Revolution- 29 Earth years 26
Jupiter continued �Moons- 67 �Has dark rings �Great Red Spot is storm on Jupiter, twice as big as Earth 27
Jupiter 28
Saturn �Size- About 9. 44 times size of Earth. It is 120, 540 km �Distance from sun- About 9. 5 times distance from sun as Earth. 1, 427, 000 km �Syruplike mixture of helium and hydrogen �Atmosphere of gaseous helium and hydrogen 29
Saturn continued �Lacks water, oxygen, and moderate temperatures �Second largest planet in solar system �Rotation- 0. 43 Earth days �Revolution- 29 Earth years 30
Saturn continued �Moons- 62 �Low density planet, could float in water �Prominent rings- mostly chunks of ice and rocks 31
Saturn 32
Uranus �Size- About 4 times diameter of Earth. It is 51, 200 km �Distance from Sun- About 19 times farther from sun than Earth. It is 2, 871, 000 km 33
Uranus continued �Surface consists of blue-green clouds made up of tiny ice crystals of methane, and rock. �Atmosphere is about 83% hydrogen, 15% helium and 2% methane. 34
Uranus continued � Lacks water, oxygen, and moderate temperatures needed to support life, NO known life � Rotation- 0. 72 Earth days, is retrograde rotation like Venus, and rotates on side � Revolution- 84 Earth years � Moons-27 � Rings- 13 dark rings 35
Uranus 36
Neptune � Size- Almost 4 times diameter of Earth. It is 49, 500 km � Distance from Sun- Almost 30 times farther from sun than Earth. It is 4, 497, 000 km �Composition: Ice and Silicates (rock) with about 15% hydrogen, some water, and a little helium 37
Neptune continued �Atmosphere: hydrogen and helium with a small amount of methane. �Lacks significant water, oxygen, and moderate temperatures 38
Neptune continued �Rotation- 0. 67 Earth days �Revolution- 165 Earth years �Visible clouds in atmosphere �Moons- 13 �Rings-5 39
Neptune 40
Pluto � Size- about 17% of diameter of Earth. It is 2200 km � Distance from sun- more than 39 times farther than Earth. It is 5, 913, 000 kilometers � Rocky, icy surface is very small � Thin atmosphere of methane gas 41
Pluto continued � Lacks water, oxygen, and warmth needed for life. NO known life � Moons- 1 Charon (book), 3 - Charon, Hydra and Nix (web and NASA) � Rotation- 6. 4 Earth days � Revolution- 248 Earth years 42
Pluto 43
The Dwarf Planets �Ceres- new dwarf planet, it was classified as the largest asteroid in the Asteroid Belt (it is between Mars & Jupiter). �Pluto- was classified as a planet, now classified as a dwarf planet �Eris- new dwarf planet, past Pluto it is an icy body near the edge of our solar system. 44
The Dwarf Planets and their Moons 45
Planets and Dwarf Planets compared � Dwarf planets are smaller than planets � Both orbit the Sun � Both are large enough that their gravity pulls them into the shape of a sphere � Planets clear smaller objects out of their orbit. Dwarf planets can not because of their weaker gravity. � Pluto doesn’t dominate it’s orbit due to it’s small mass. Neptune crosses into it’s orbit. 46
Meteorite vs. Meteoroid � Meteoroid = while in space a meteorite is called a meteoroid � Meteorite = a small rock or rocky grain that strikes Earth’s surface
Meteor Sometimes called a “Shooting Star” When a meteorite enters Earth’s atmosphere, friction causes them to burn up, producing a streak of light
Where do they come from? How big are they? � Pieces of rock that broke off other objects � Sizes range from as small as a pebble or as big as a huge boulder
Are they dangerous? � Most meteoroids disintegrate before reaching the earth by burning up in Earth’s atmosphere � Some leave a trail that lasts several minutes � Meteoroids that reach the earth are called meteorites. Large ones can cause damage
Flagstaff, Arizona 49, 000 years ago Meteorite about 150 feet in diameter Weighed 650 pounds Energy = 2. 5 million tons of dynamite 4000 feet wide, 650 feet deep Still visible today Barringer Meteorite Crater
What’s a “Meteor Shower”? � Icy surface of comets heat up as they get closer to the sun. � Debris particles are released. � Occur when Earth passes through the tail or debris of a comet

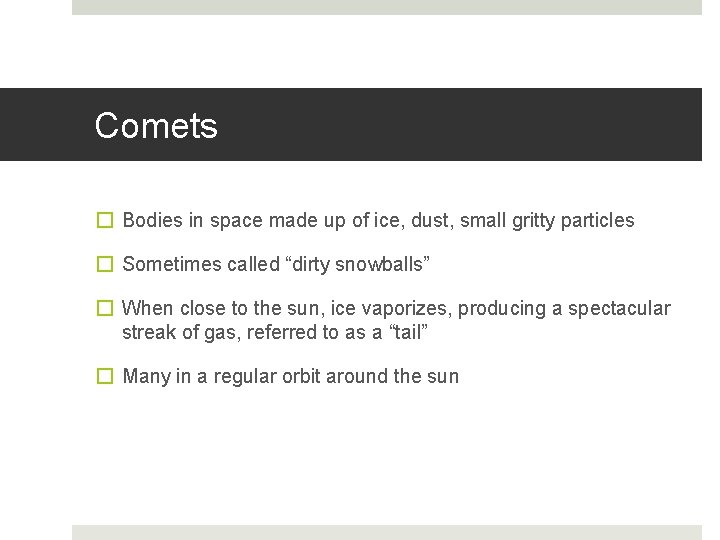

Comets � Bodies in space made up of ice, dust, small gritty particles � Sometimes called “dirty snowballs” � When close to the sun, ice vaporizes, producing a spectacular streak of gas, referred to as a “tail” � Many in a regular orbit around the sun
Comets
Where do comets come from? � Many ordinate in a region called the Oort cloud beyond Pluto � Others originate in the Kuiper Belt beyond Neptune

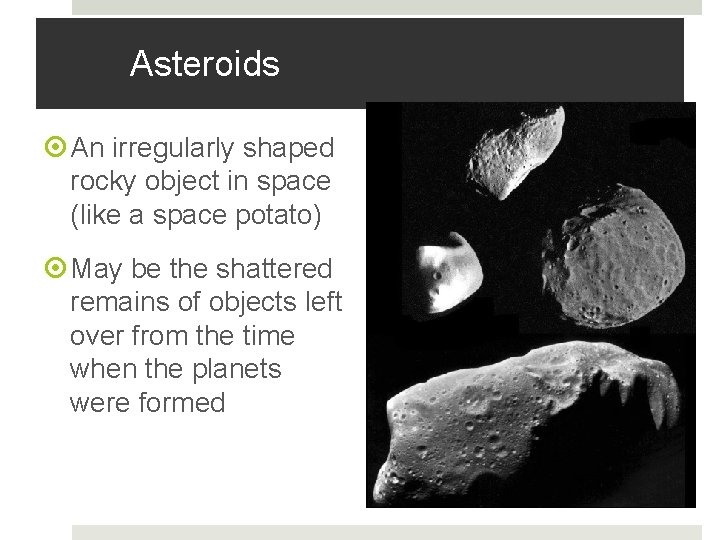

Asteroids An irregularly shaped rocky object in space (like a space potato) May be the shattered remains of objects left over from the time when the planets were formed
How big are asteroids? � Larger than meteoroids � Size ranges from 10 feet across to bigger than a mountain
Asteroids � Most are in a band that orbit the sun between Mars and Jupiter (Asteroid Belt)
Large Asteroid hits Earth 65 Million Years Ago Catastrophic Collision Asteroid 6 to 12 miles in diameter Near the Yucatan Peninsula in the Gulf of Mexico
Large Asteroid hits Earth 65 Million Years Ago � Collision produced an explosion = 100 trillion tons of dynamite � Gouged out a crater about 60 miles in diameter � How would an event like this affect Earth?
What do Scientists Think Happened? � Forests were wiped clean for a distance of 300 to 600 miles in all directions � 300 foot wave struck the coast of Texas � Powerful Earthquakes � Landslides destroyed long stretches of coastline � Debris would cover large parts of North America � Poisonous gases and dust spread over most of the Earth,
What do Scientists Think Happened � Sunlight was blocked for many months � Temperatures plummeted to the freezing point � Not enough sunlight for photosynthesis � Plants died. . . Animals died � Many animals became extinct (including many types of dinosaurs)
The Rise and Fall of Life on Earth Dip around 65 Million years ago?
