The SKELETAL System The framework of 206 bones

The SKELETAL System The framework of 206 bones, ligaments and cartilage.

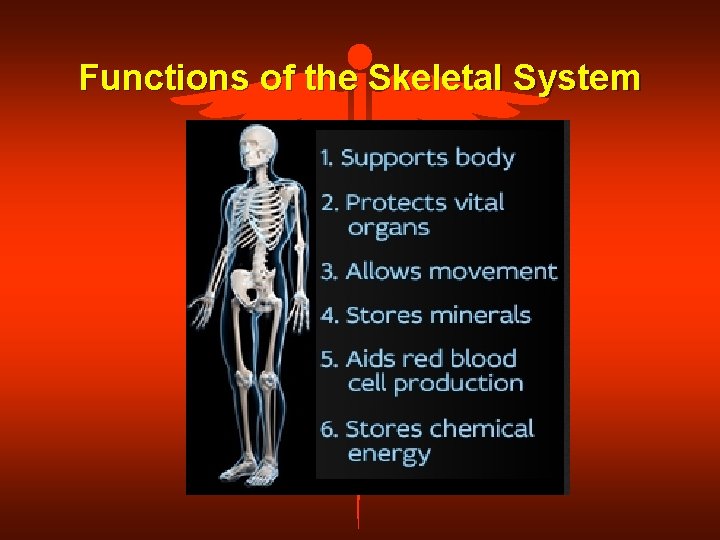

Functions of the Skeletal System

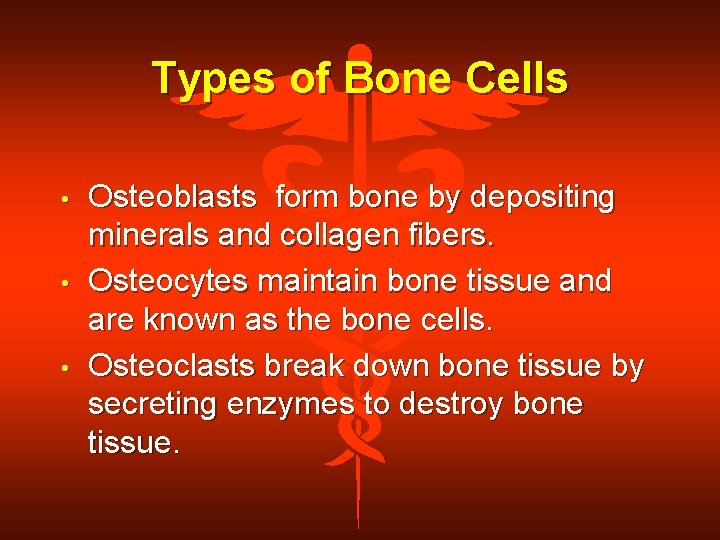

Types of Bone Cells • • • Osteoblasts form bone by depositing minerals and collagen fibers. Osteocytes maintain bone tissue and are known as the bone cells. Osteoclasts break down bone tissue by secreting enzymes to destroy bone tissue.

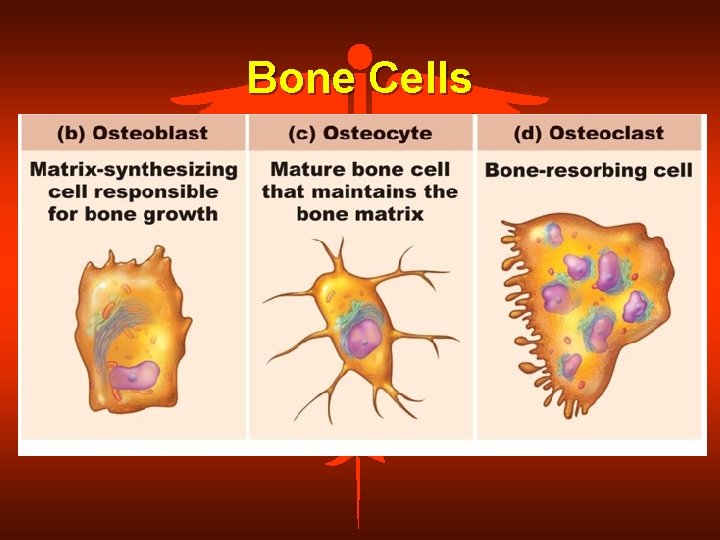

Bone Cells

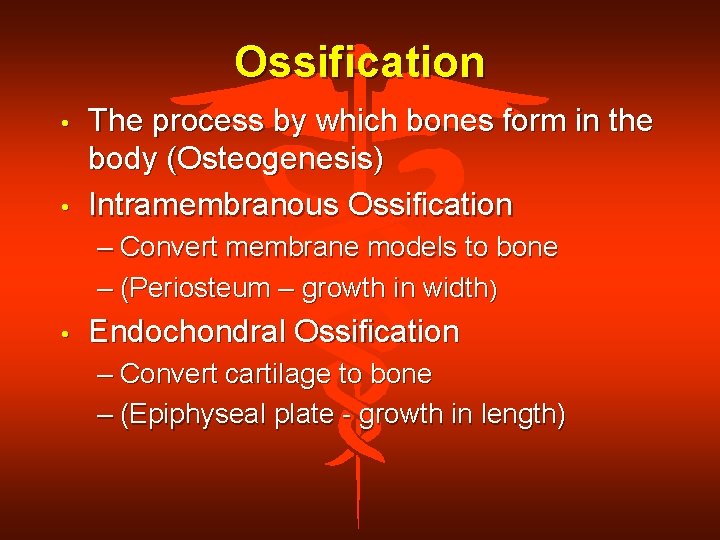

Ossification • • The process by which bones form in the body (Osteogenesis) Intramembranous Ossification – Convert membrane models to bone – (Periosteum – growth in width) • Endochondral Ossification – Convert cartilage to bone – (Epiphyseal plate - growth in length)

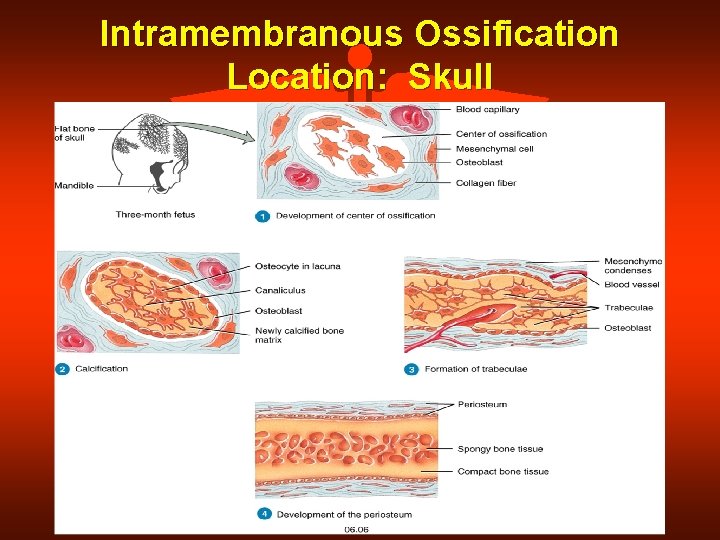

Intramembranous Ossification Location: Skull

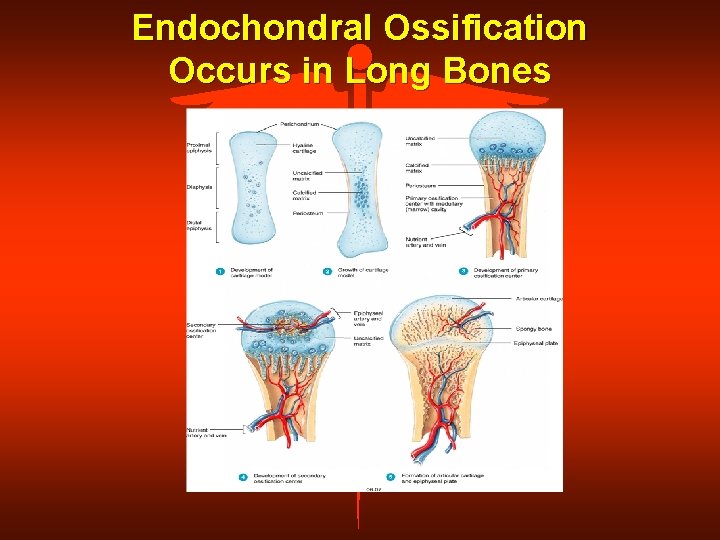

Endochondral Ossification Occurs in Long Bones

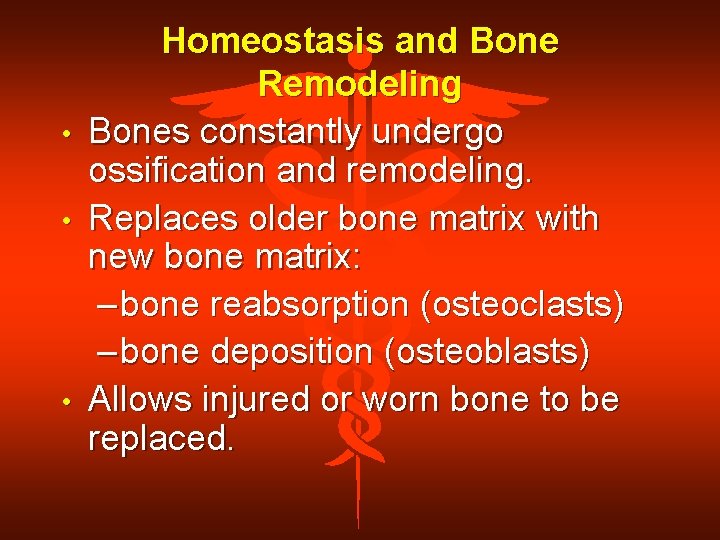

• • • Homeostasis and Bone Remodeling Bones constantly undergo ossification and remodeling. Replaces older bone matrix with new bone matrix: – bone reabsorption (osteoclasts) – bone deposition (osteoblasts) Allows injured or worn bone to be replaced.

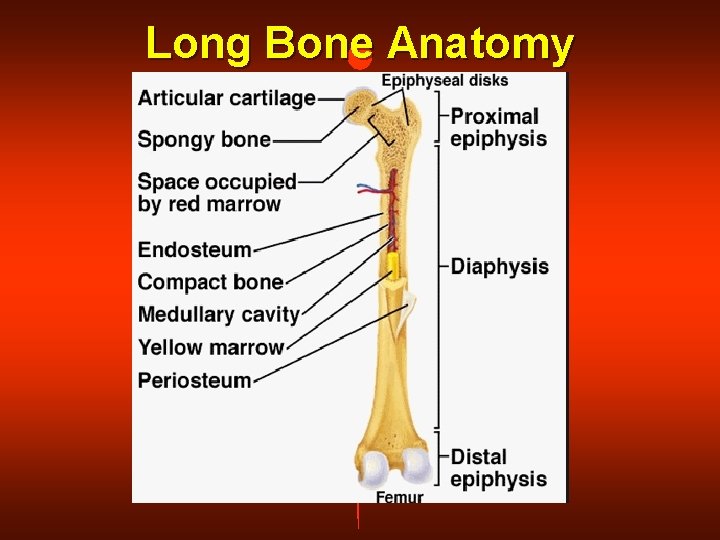

Long Bone Anatomy

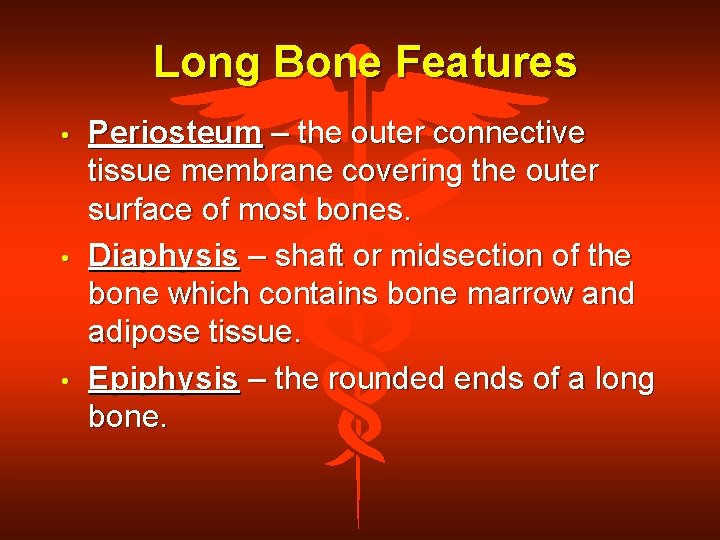

Long Bone Features • • • Periosteum – the outer connective tissue membrane covering the outer surface of most bones. Diaphysis – shaft or midsection of the bone which contains bone marrow and adipose tissue. Epiphysis – the rounded ends of a long bone.

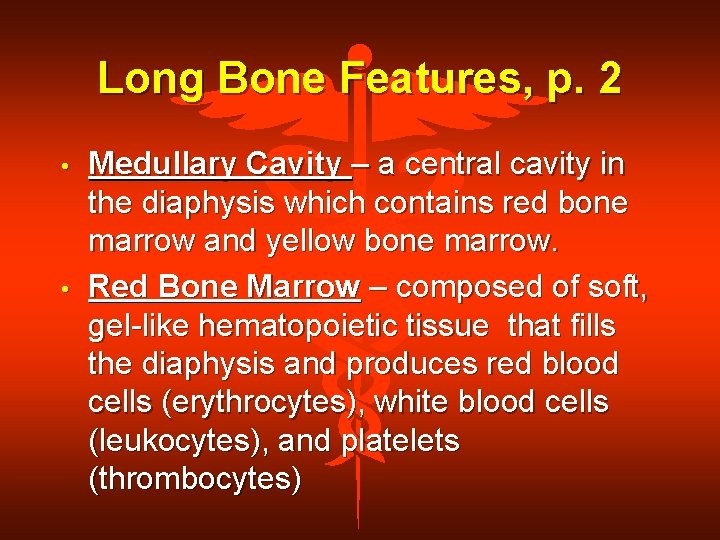

Long Bone Features, p. 2 • • Medullary Cavity – a central cavity in the diaphysis which contains red bone marrow and yellow bone marrow. Red Bone Marrow – composed of soft, gel-like hematopoietic tissue that fills the diaphysis and produces red blood cells (erythrocytes), white blood cells (leukocytes), and platelets (thrombocytes)

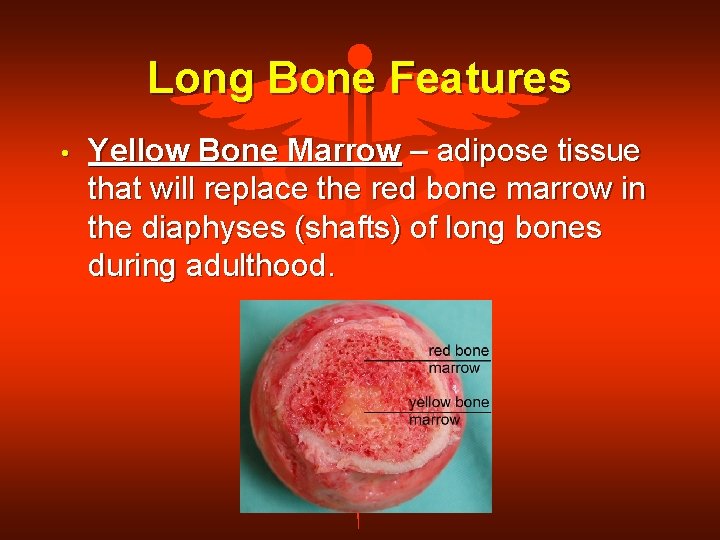

Long Bone Features • Yellow Bone Marrow – adipose tissue that will replace the red bone marrow in the diaphyses (shafts) of long bones during adulthood.

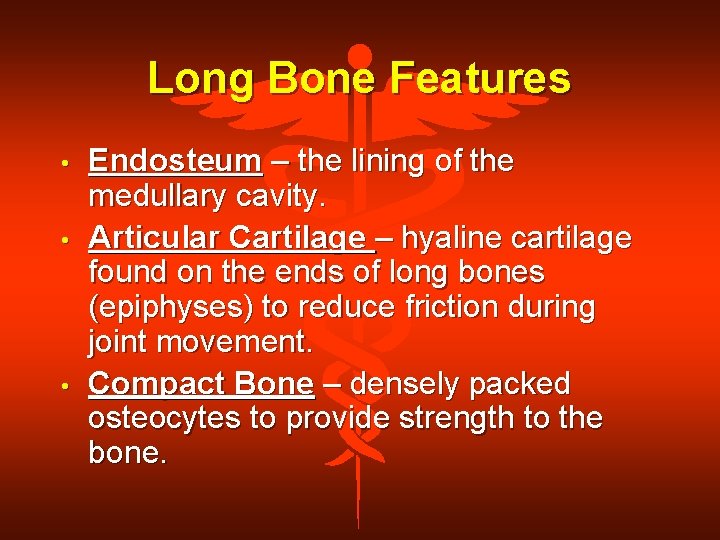

Long Bone Features • • • Endosteum – the lining of the medullary cavity. Articular Cartilage – hyaline cartilage found on the ends of long bones (epiphyses) to reduce friction during joint movement. Compact Bone – densely packed osteocytes to provide strength to the bone.

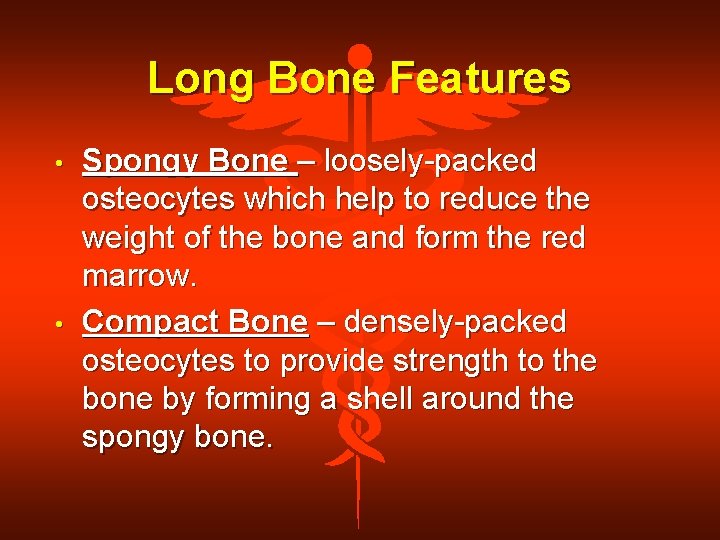

Long Bone Features • • Spongy Bone – loosely-packed osteocytes which help to reduce the weight of the bone and form the red marrow. Compact Bone – densely-packed osteocytes to provide strength to the bone by forming a shell around the spongy bone.

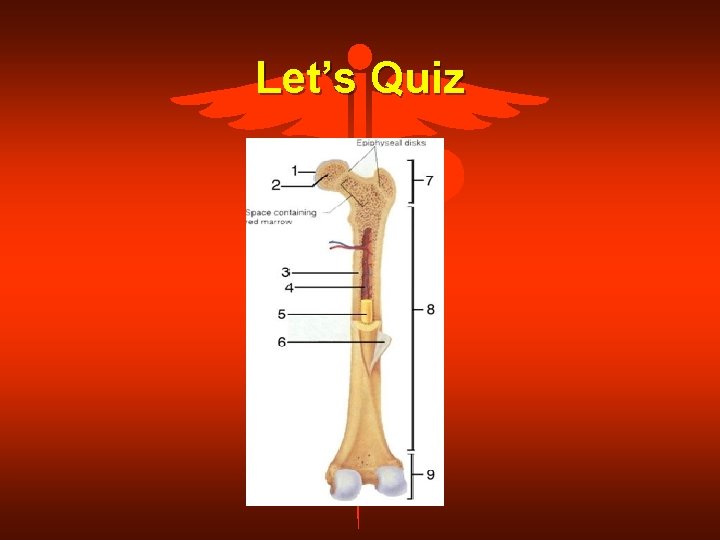

Let’s Quiz

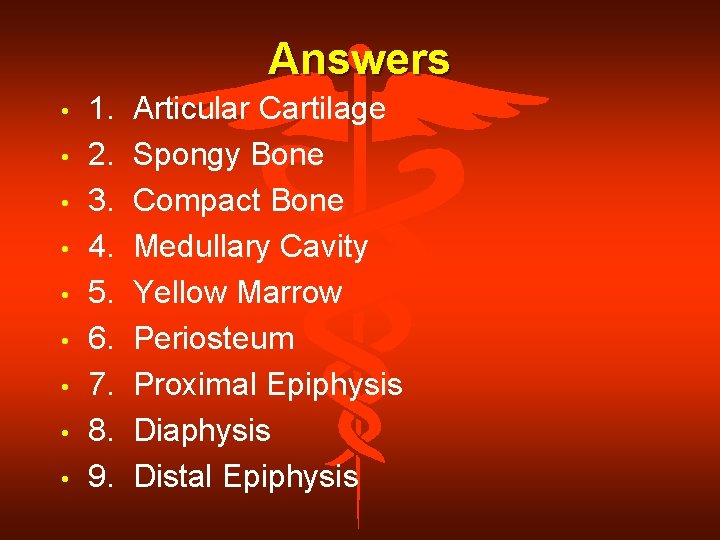

Answers • • • 1. 2. 3. 4. 5. 6. 7. 8. 9. Articular Cartilage Spongy Bone Compact Bone Medullary Cavity Yellow Marrow Periosteum Proximal Epiphysis Diaphysis Distal Epiphysis

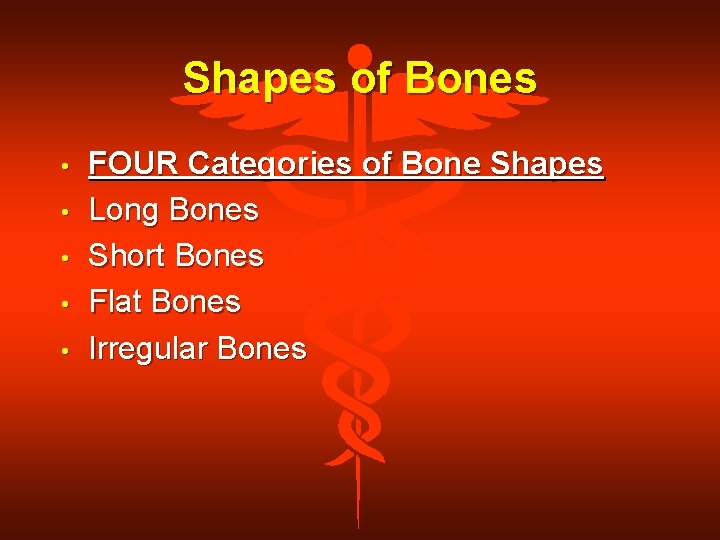

Shapes of Bones • • • FOUR Categories of Bone Shapes Long Bones Short Bones Flat Bones Irregular Bones

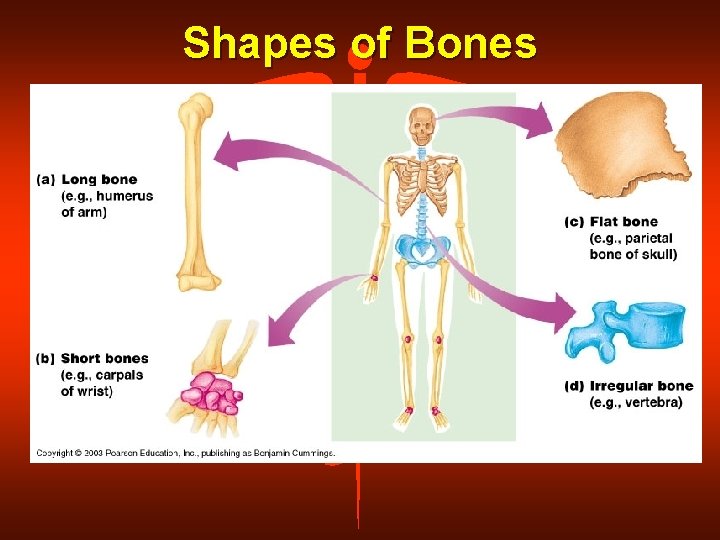

Shapes of Bones

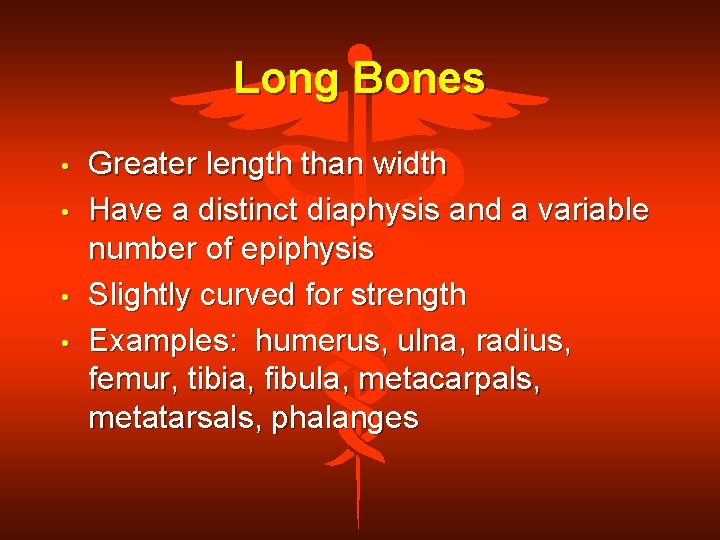

Long Bones • • Greater length than width Have a distinct diaphysis and a variable number of epiphysis Slightly curved for strength Examples: humerus, ulna, radius, femur, tibia, fibula, metacarpals, metatarsals, phalanges

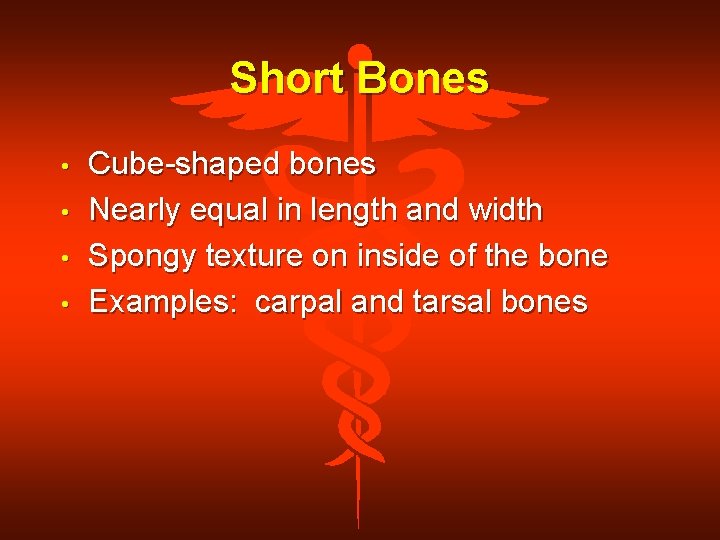

Short Bones • • Cube-shaped bones Nearly equal in length and width Spongy texture on inside of the bone Examples: carpal and tarsal bones

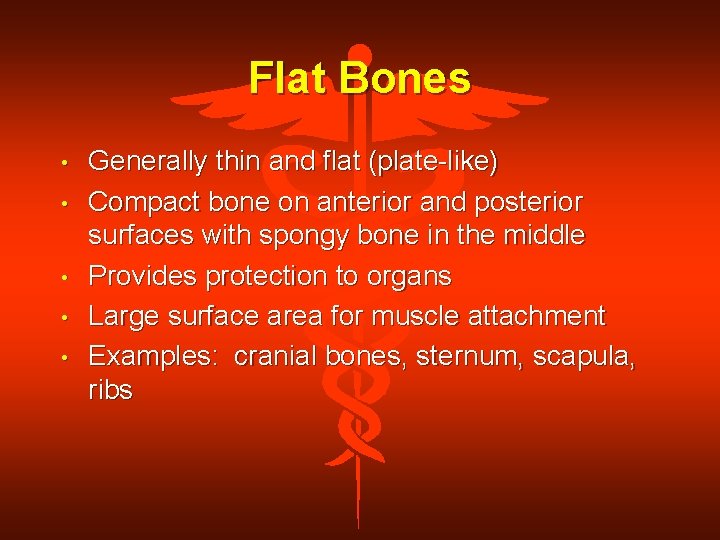

Flat Bones • • • Generally thin and flat (plate-like) Compact bone on anterior and posterior surfaces with spongy bone in the middle Provides protection to organs Large surface area for muscle attachment Examples: cranial bones, sternum, scapula, ribs

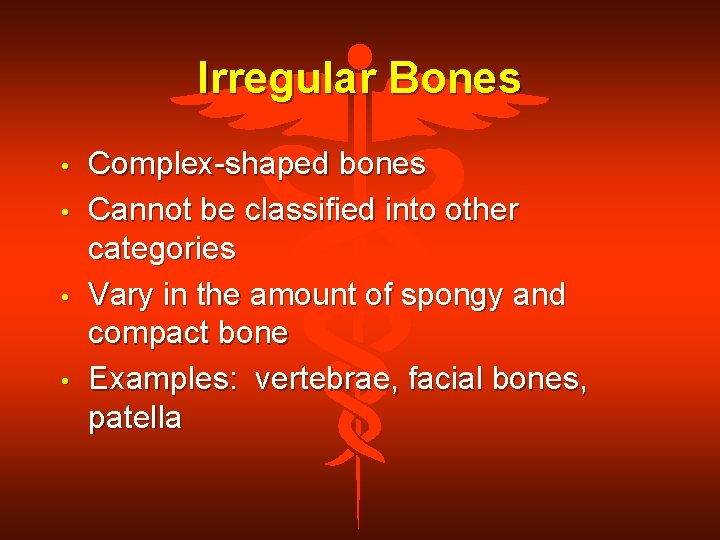

Irregular Bones • • Complex-shaped bones Cannot be classified into other categories Vary in the amount of spongy and compact bone Examples: vertebrae, facial bones, patella

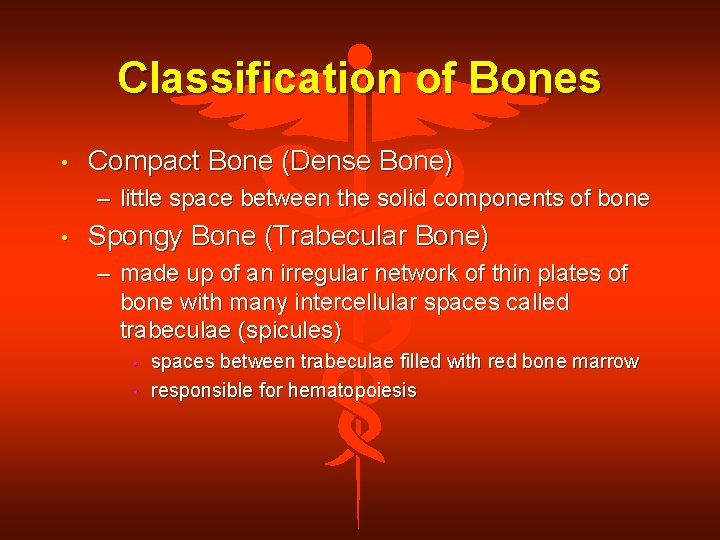

Classification of Bones • Compact Bone (Dense Bone) – little space between the solid components of bone • Spongy Bone (Trabecular Bone) – made up of an irregular network of thin plates of bone with many intercellular spaces called trabeculae (spicules) • • spaces between trabeculae filled with red bone marrow responsible for hematopoiesis

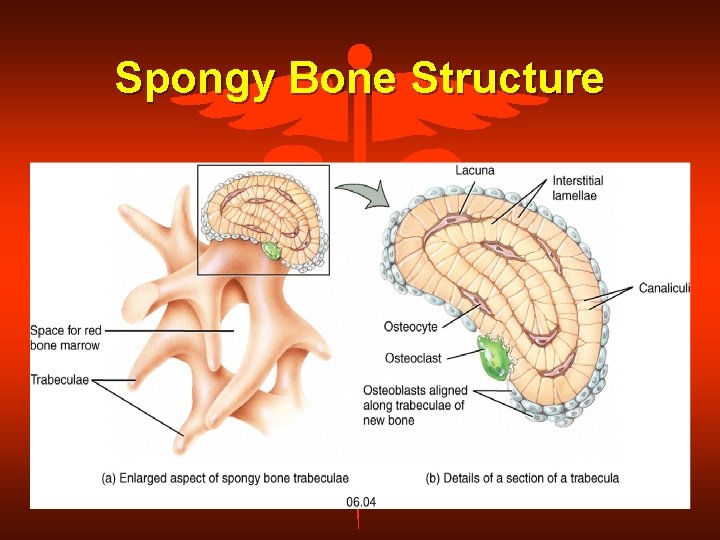

Spongy Bone Structure

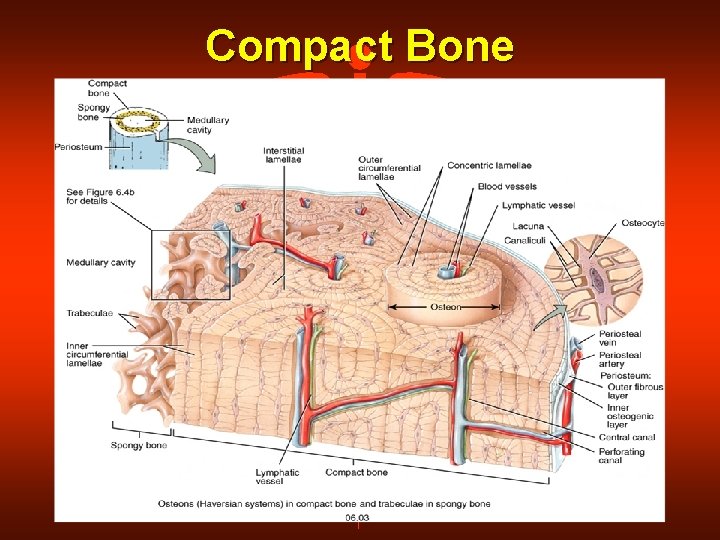

Compact Bone

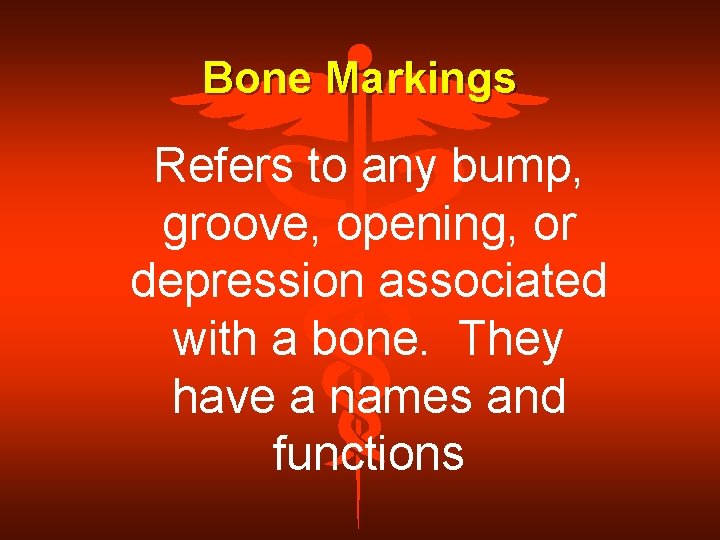

Bone Markings Refers to any bump, groove, opening, or depression associated with a bone. They have a names and functions

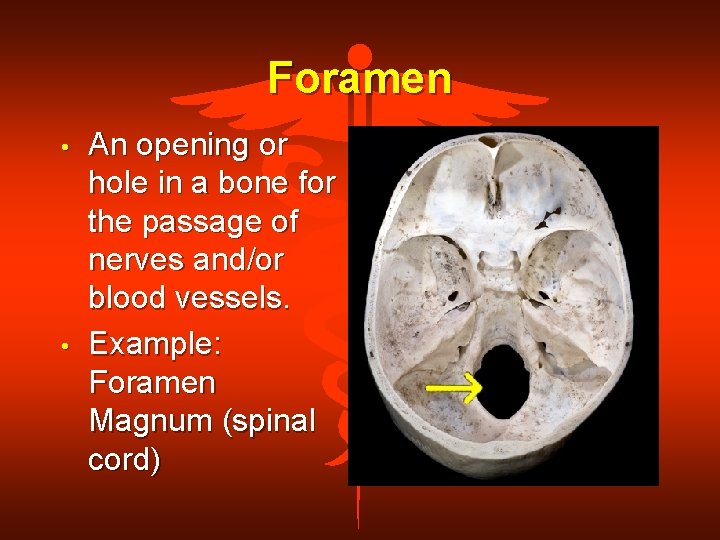

Foramen • • An opening or hole in a bone for the passage of nerves and/or blood vessels. Example: Foramen Magnum (spinal cord)

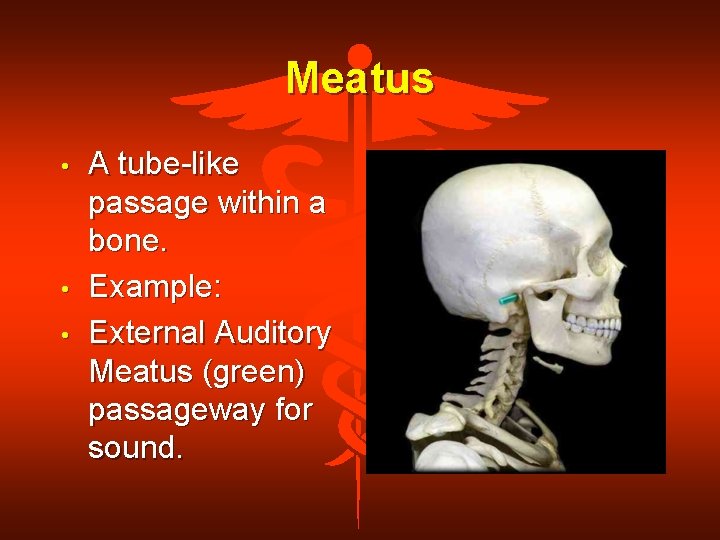

Meatus • • • A tube-like passage within a bone. Example: External Auditory Meatus (green) passageway for sound.

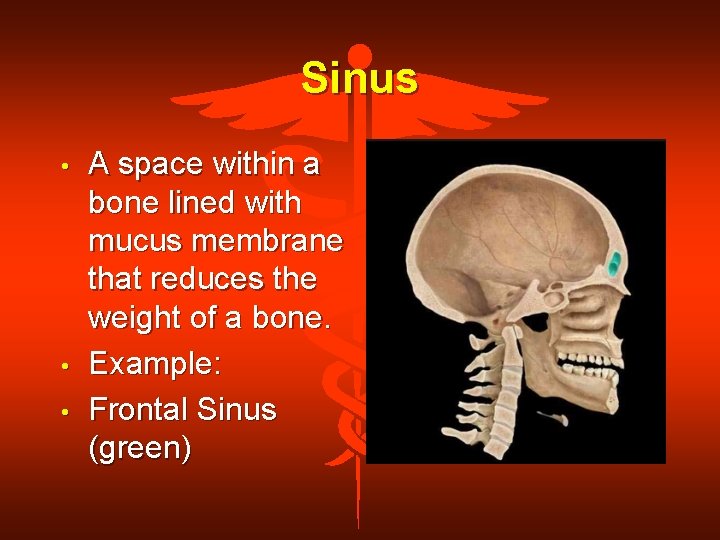

Sinus • • • A space within a bone lined with mucus membrane that reduces the weight of a bone. Example: Frontal Sinus (green)

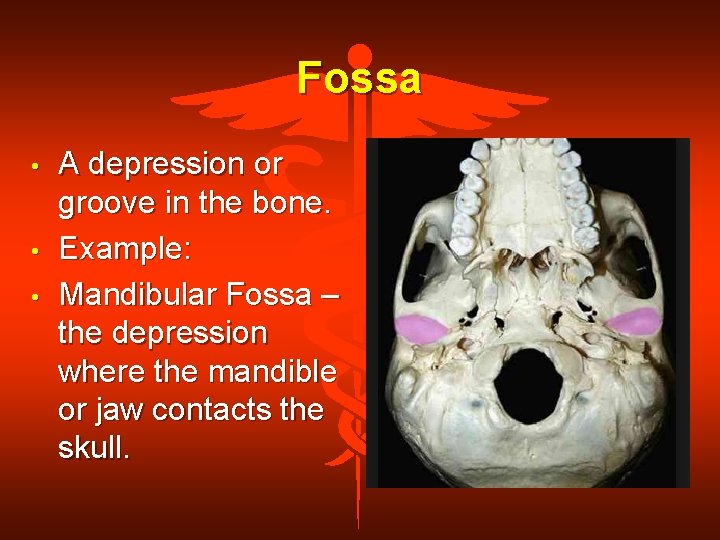

Fossa • • • A depression or groove in the bone. Example: Mandibular Fossa – the depression where the mandible or jaw contacts the skull.

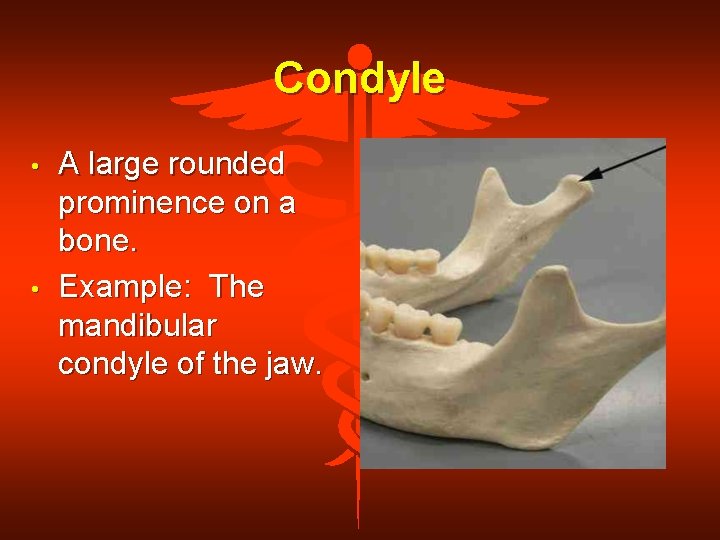

Condyle • • A large rounded prominence on a bone. Example: The mandibular condyle of the jaw.

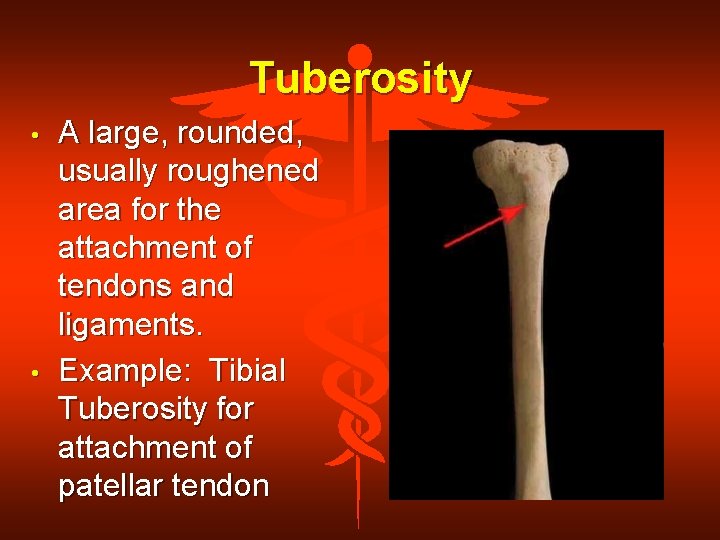

Tuberosity • • A large, rounded, usually roughened area for the attachment of tendons and ligaments. Example: Tibial Tuberosity for attachment of patellar tendon

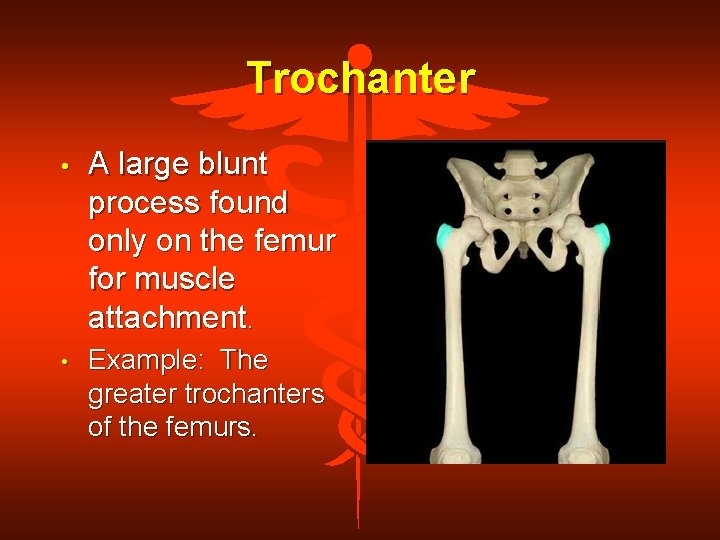

Trochanter • A large blunt process found only on the femur for muscle attachment. • Example: The greater trochanters of the femurs.

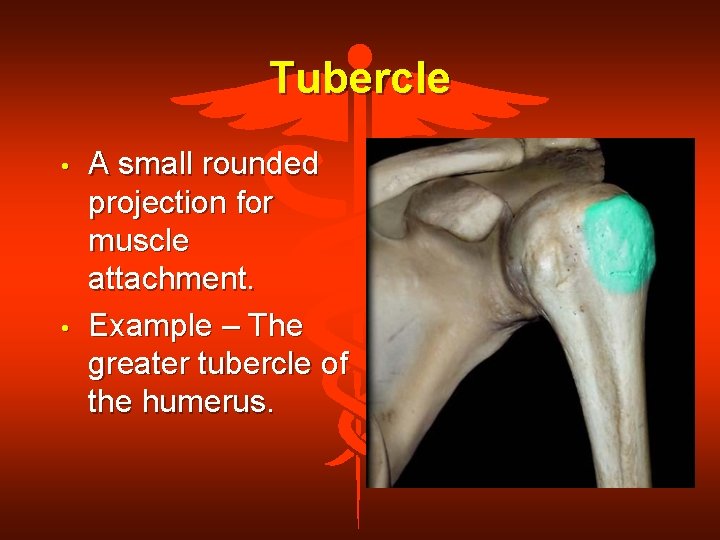

Tubercle • • A small rounded projection for muscle attachment. Example – The greater tubercle of the humerus.

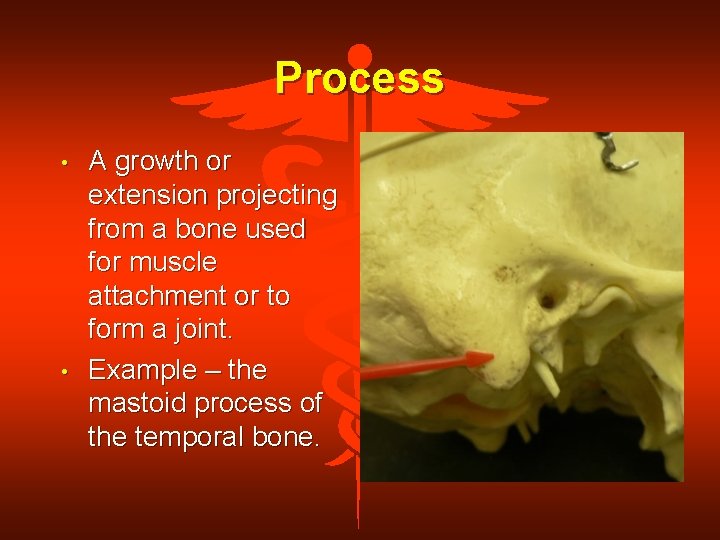

Process • • A growth or extension projecting from a bone used for muscle attachment or to form a joint. Example – the mastoid process of the temporal bone.

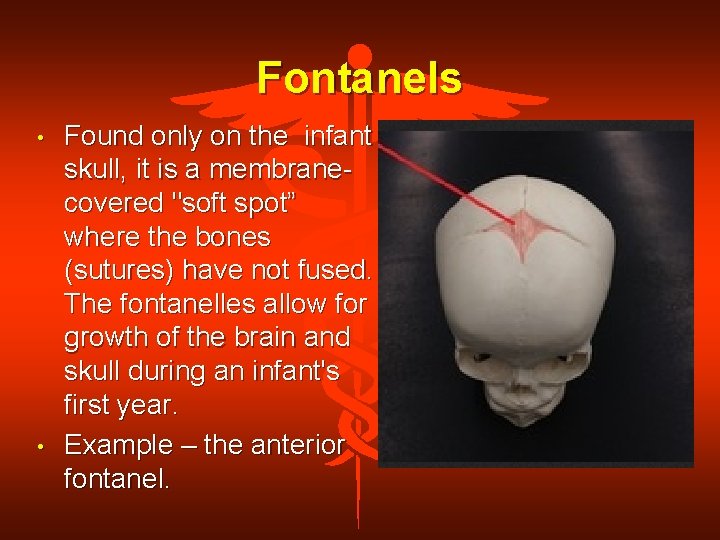

Fontanels • • Found only on the infant skull, it is a membranecovered "soft spot” where the bones (sutures) have not fused. The fontanelles allow for growth of the brain and skull during an infant's first year. Example – the anterior fontanel.

Fontanels – Birth View

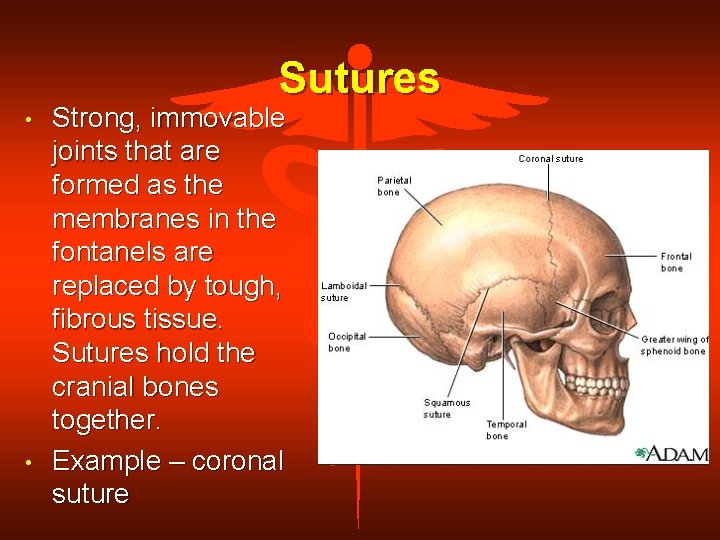

Sutures • • Strong, immovable joints that are formed as the membranes in the fontanels are replaced by tough, fibrous tissue. Sutures hold the cranial bones together. Example – coronal suture

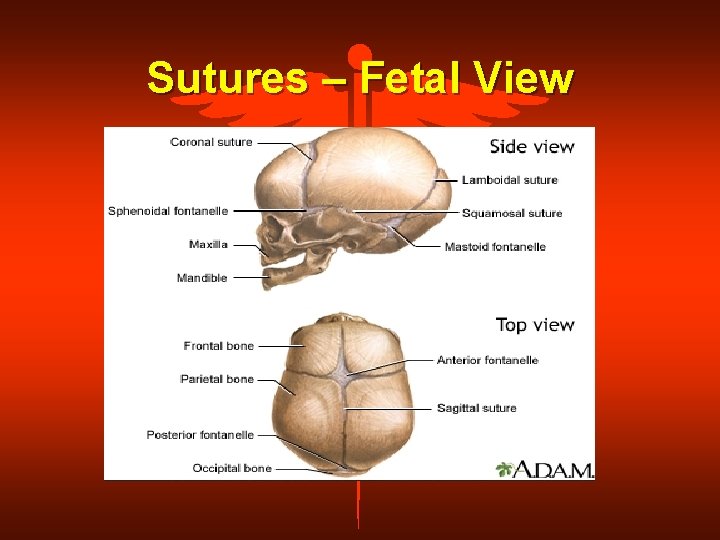

Sutures – Fetal View

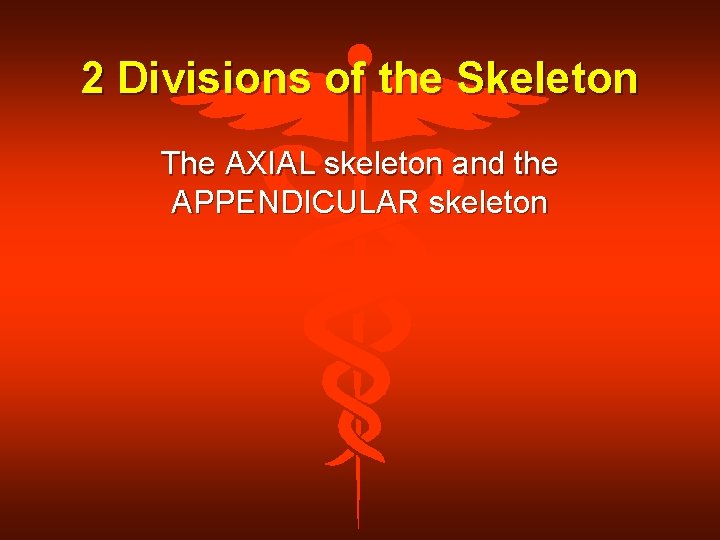

2 Divisions of the Skeleton The AXIAL skeleton and the APPENDICULAR skeleton

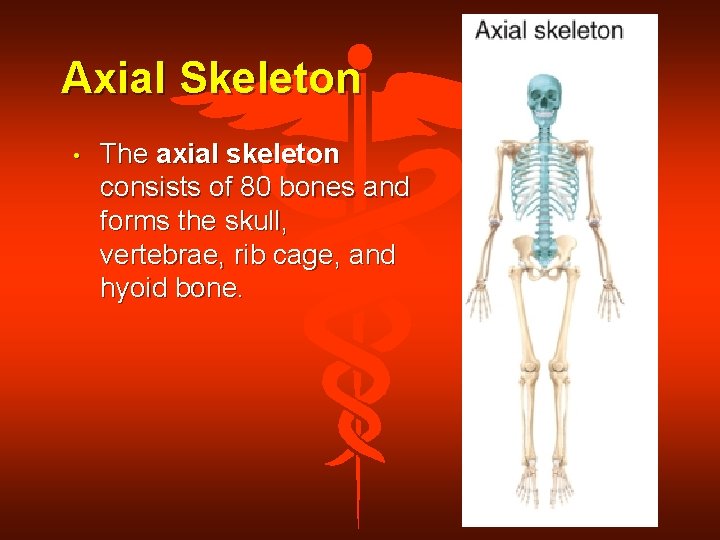

Axial Skeleton • The axial skeleton consists of 80 bones and forms the skull, vertebrae, rib cage, and hyoid bone.

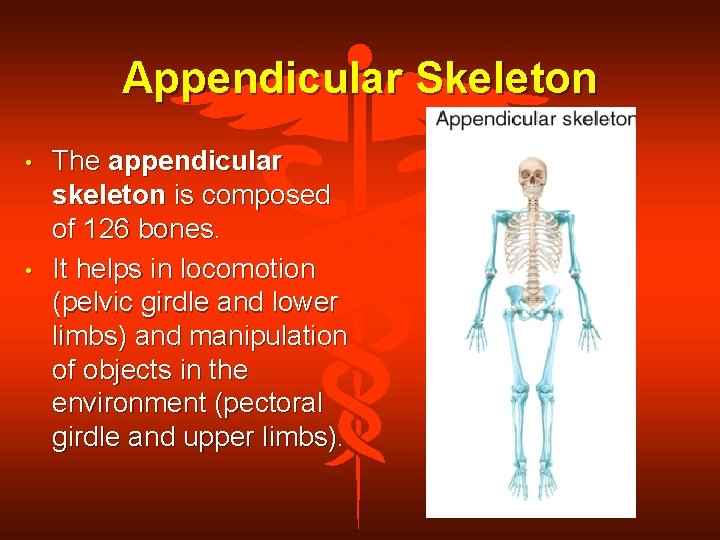

Appendicular Skeleton • • The appendicular skeleton is composed of 126 bones. It helps in locomotion (pelvic girdle and lower limbs) and manipulation of objects in the environment (pectoral girdle and upper limbs).

The Axial Skeleton

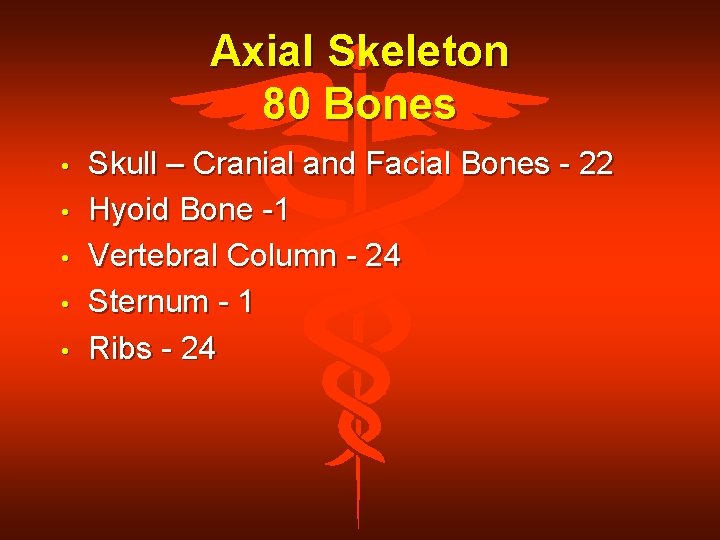

Axial Skeleton 80 Bones • • • Skull – Cranial and Facial Bones - 22 Hyoid Bone -1 Vertebral Column - 24 Sternum - 1 Ribs - 24

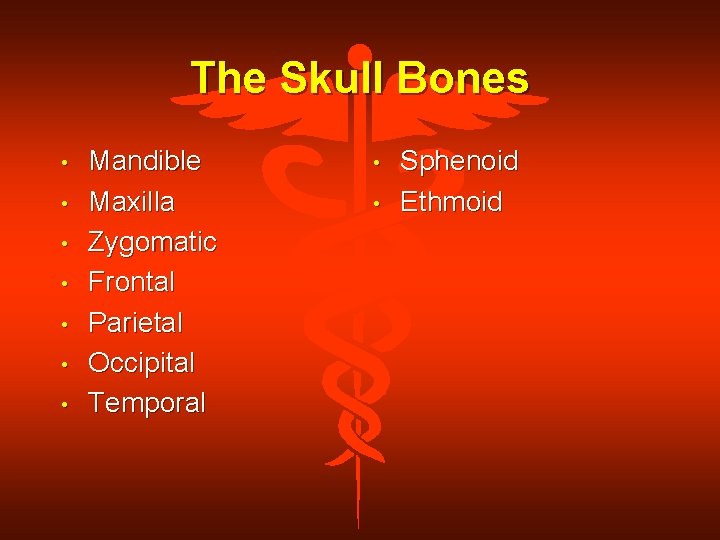

The Skull Bones • • Mandible Maxilla Zygomatic Frontal Parietal Occipital Temporal • • Sphenoid Ethmoid

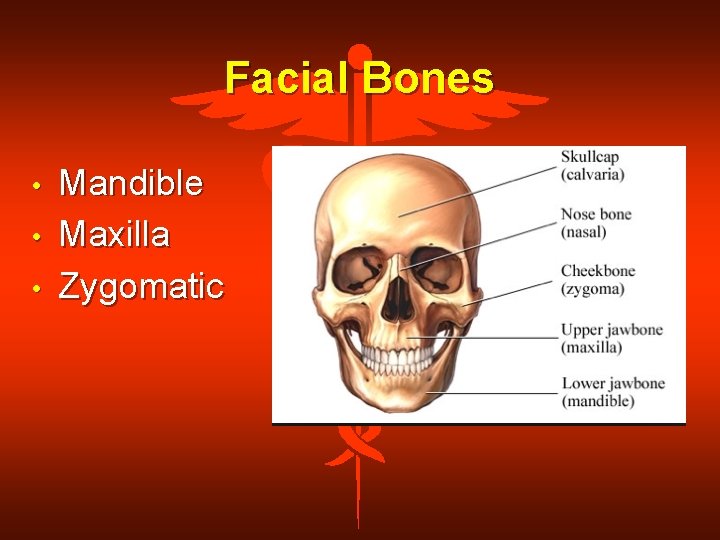

Facial Bones • • • Mandible Maxilla Zygomatic

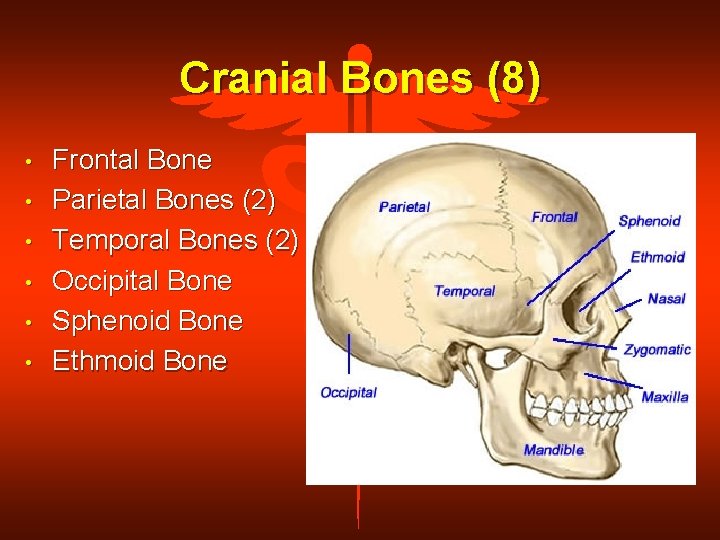

Cranial Bones (8) • • • Frontal Bone Parietal Bones (2) Temporal Bones (2) Occipital Bone Sphenoid Bone Ethmoid Bone

Hyoid Bone • • The hyoid bone is a U-shaped bone found superior to the larynx. It holds the tongue in place and provides for muscle attaachment in the neck.

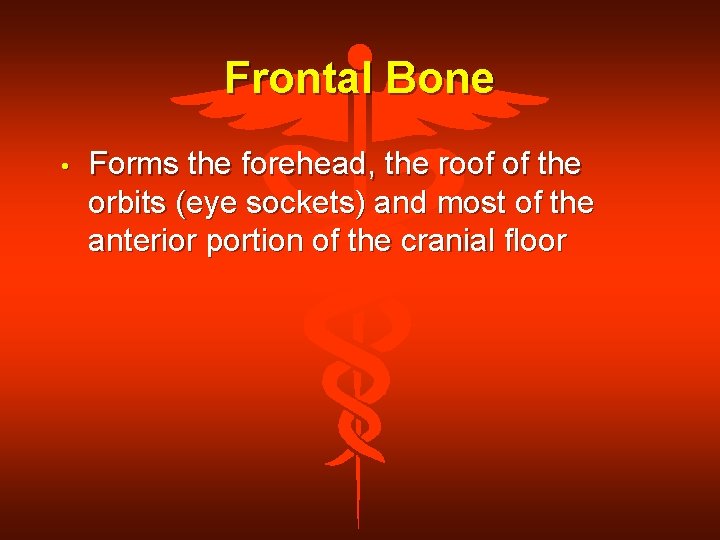

Frontal Bone • Forms the forehead, the roof of the orbits (eye sockets) and most of the anterior portion of the cranial floor

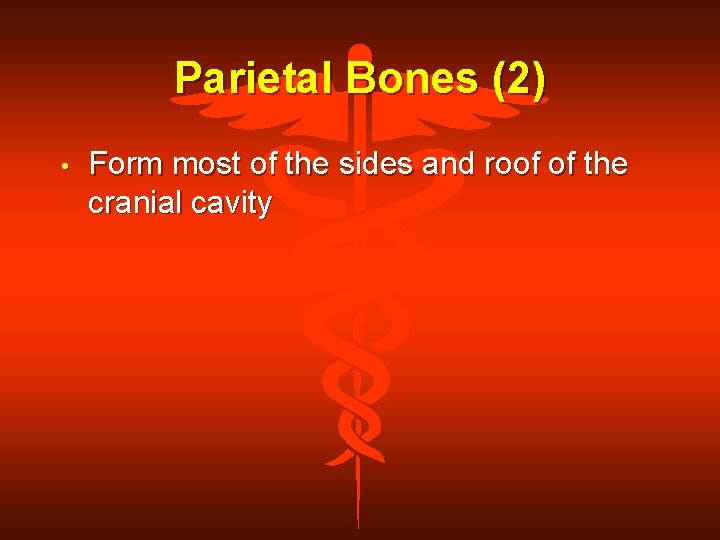

Parietal Bones (2) • Form most of the sides and roof of the cranial cavity

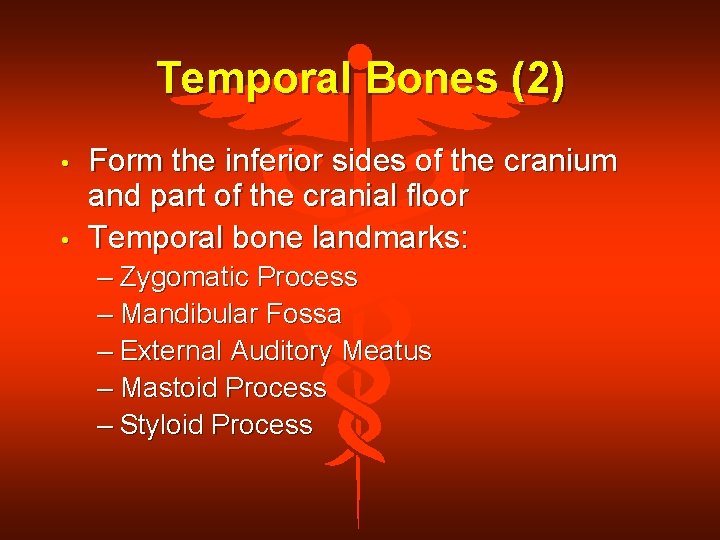

Temporal Bones (2) • • Form the inferior sides of the cranium and part of the cranial floor Temporal bone landmarks: – Zygomatic Process – Mandibular Fossa – External Auditory Meatus – Mastoid Process – Styloid Process

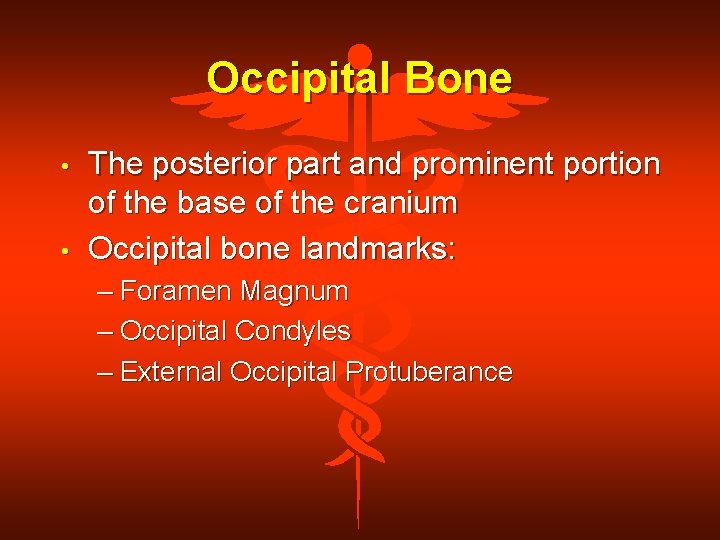

Occipital Bone • • The posterior part and prominent portion of the base of the cranium Occipital bone landmarks: – Foramen Magnum – Occipital Condyles – External Occipital Protuberance

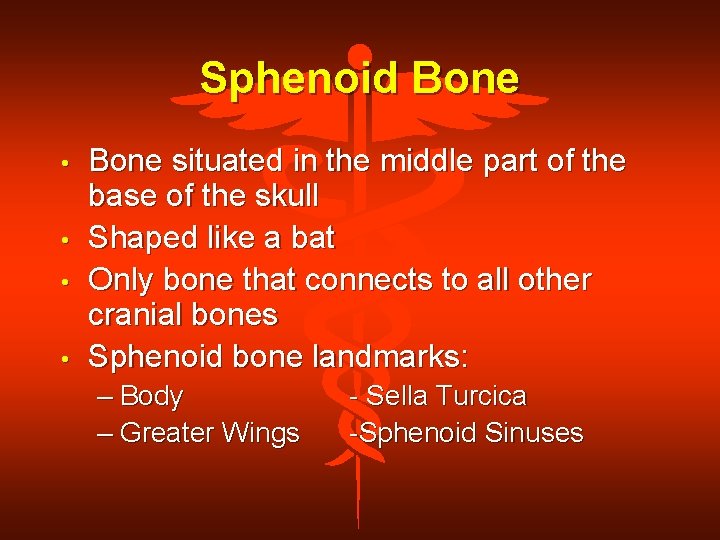

Sphenoid Bone • • Bone situated in the middle part of the base of the skull Shaped like a bat Only bone that connects to all other cranial bones Sphenoid bone landmarks: – Body – Greater Wings - Sella Turcica -Sphenoid Sinuses

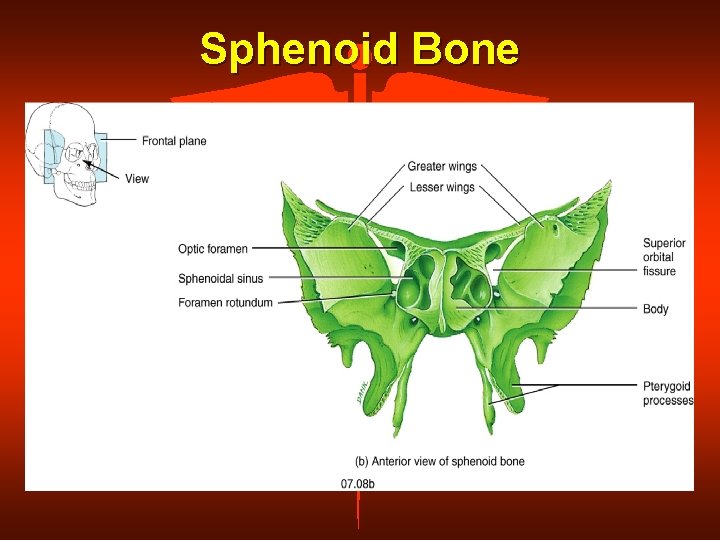

Sphenoid Bone

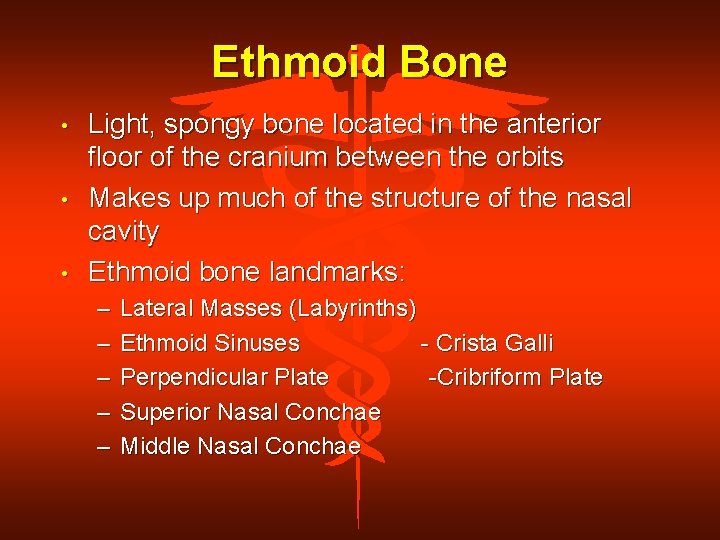

Ethmoid Bone • • • Light, spongy bone located in the anterior floor of the cranium between the orbits Makes up much of the structure of the nasal cavity Ethmoid bone landmarks: – – – Lateral Masses (Labyrinths) Ethmoid Sinuses - Crista Galli Perpendicular Plate -Cribriform Plate Superior Nasal Conchae Middle Nasal Conchae

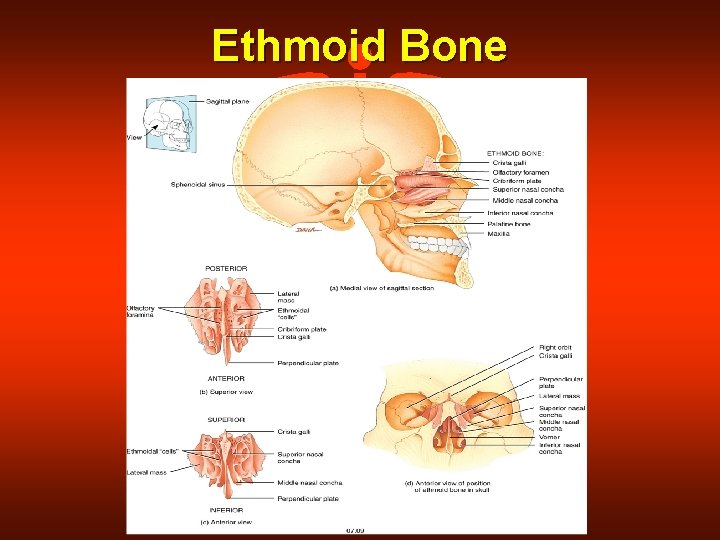

Ethmoid Bone

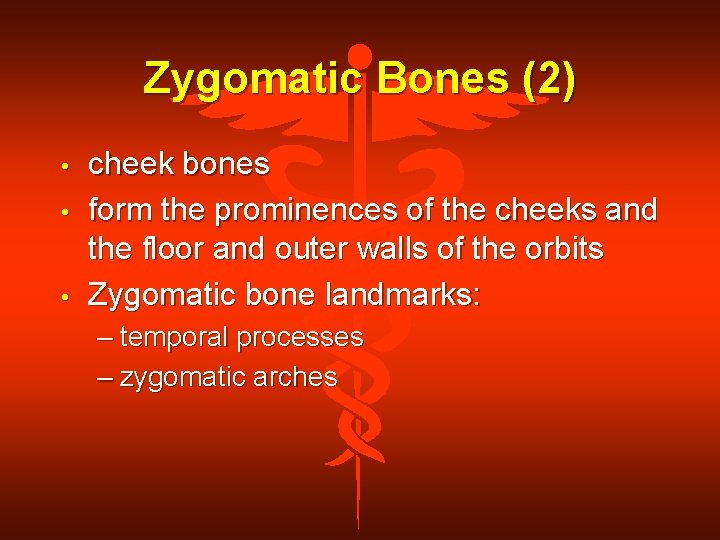

Zygomatic Bones (2) • • • cheek bones form the prominences of the cheeks and the floor and outer walls of the orbits Zygomatic bone landmarks: – temporal processes – zygomatic arches

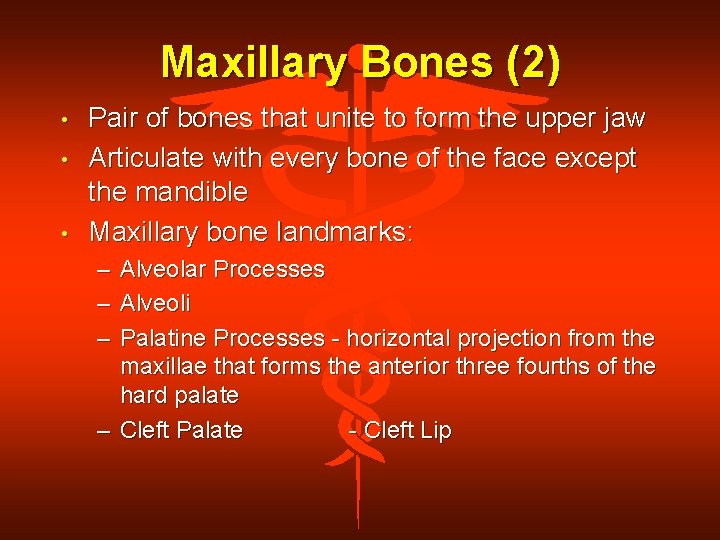

Maxillary Bones (2) • • • Pair of bones that unite to form the upper jaw Articulate with every bone of the face except the mandible Maxillary bone landmarks: – – – Alveolar Processes Alveoli Palatine Processes - horizontal projection from the maxillae that forms the anterior three fourths of the hard palate – Cleft Palate - Cleft Lip

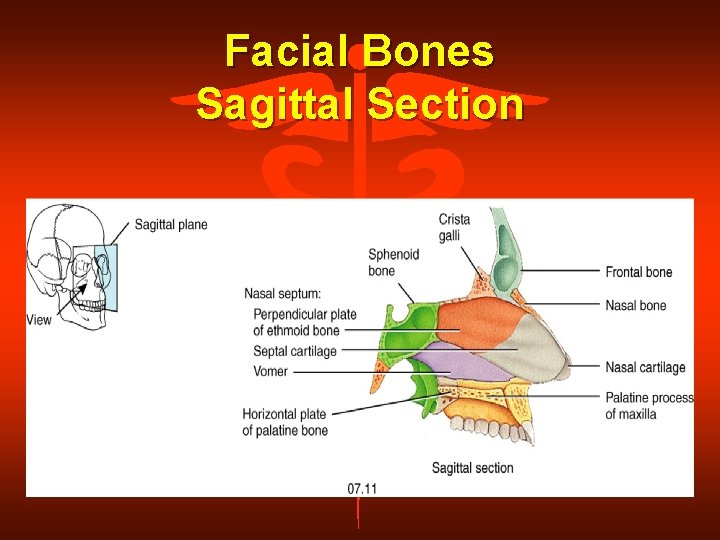

Facial Bones Sagittal Section

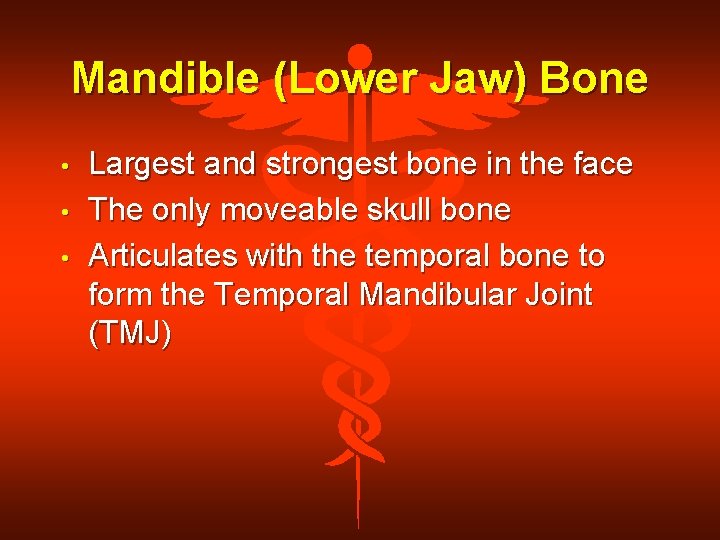

Mandible (Lower Jaw) Bone • • • Largest and strongest bone in the face The only moveable skull bone Articulates with the temporal bone to form the Temporal Mandibular Joint (TMJ)

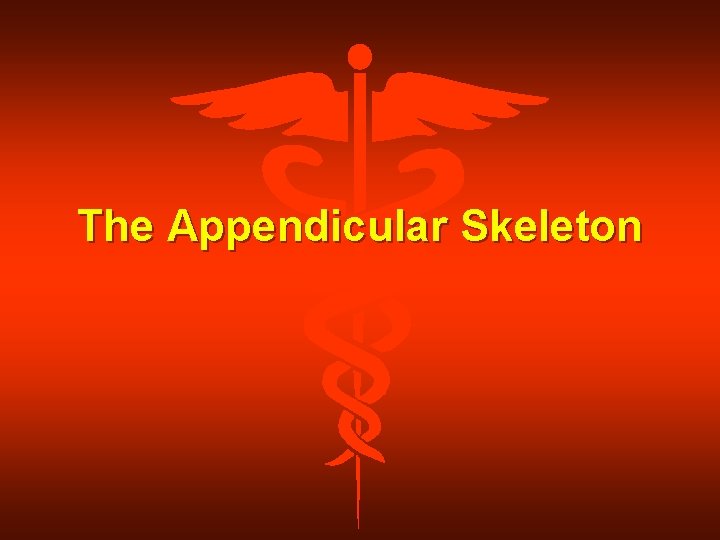

The Appendicular Skeleton

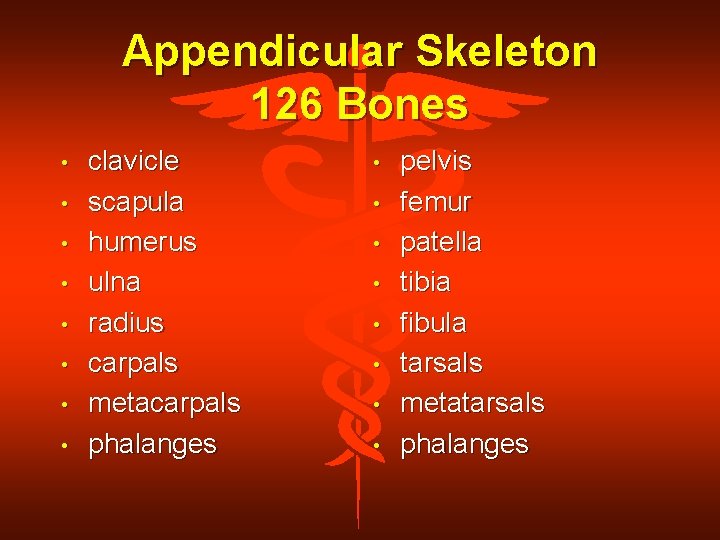

Appendicular Skeleton 126 Bones • • clavicle scapula humerus ulna radius carpals metacarpals phalanges • • pelvis femur patella tibia fibula tarsals metatarsals phalanges

The Pectoral Girdle • • Clavicles (2) (collar bones) Scapulae (2) (shoulder blades)

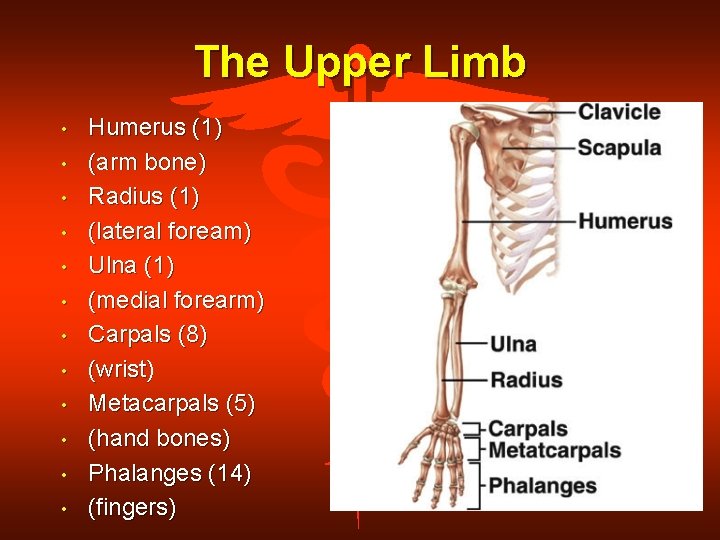

The Upper Limb • • • Humerus (1) (arm bone) Radius (1) (lateral foream) Ulna (1) (medial forearm) Carpals (8) (wrist) Metacarpals (5) (hand bones) Phalanges (14) (fingers)

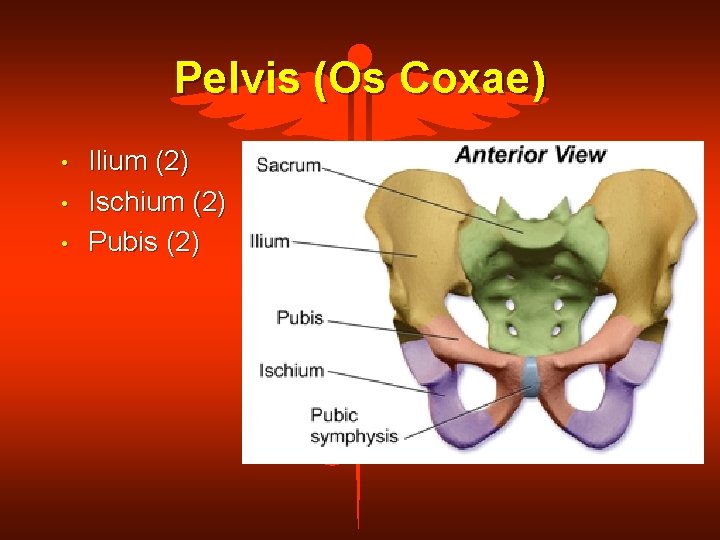

Pelvis (Os Coxae) • • • Ilium (2) Ischium (2) Pubis (2)

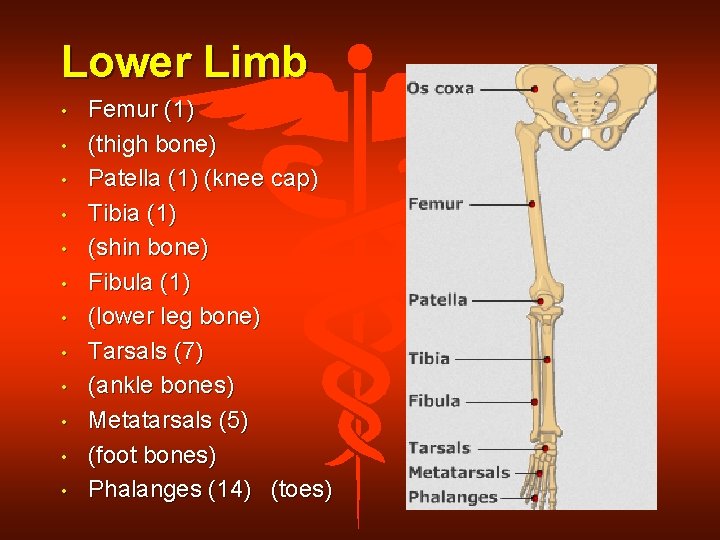

Lower Limb • • • Femur (1) (thigh bone) Patella (1) (knee cap) Tibia (1) (shin bone) Fibula (1) (lower leg bone) Tarsals (7) (ankle bones) Metatarsals (5) (foot bones) Phalanges (14) (toes)

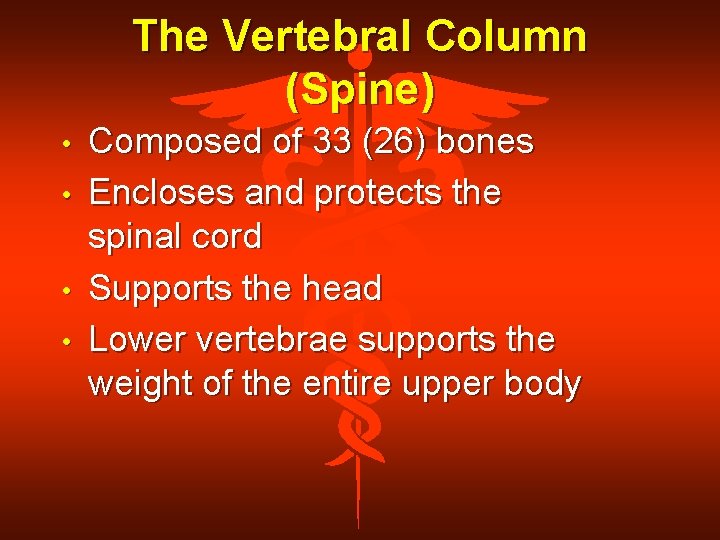

The Vertebral Column (Spine) • • Composed of 33 (26) bones Encloses and protects the spinal cord Supports the head Lower vertebrae supports the weight of the entire upper body

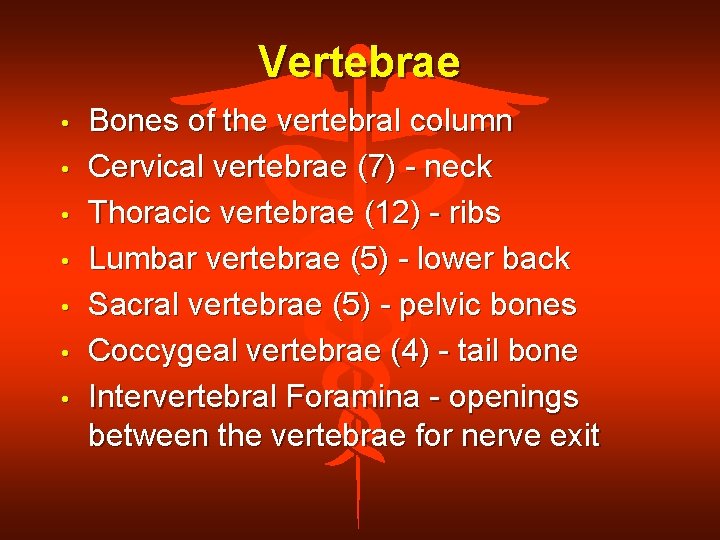

Vertebrae • • Bones of the vertebral column Cervical vertebrae (7) - neck Thoracic vertebrae (12) - ribs Lumbar vertebrae (5) - lower back Sacral vertebrae (5) - pelvic bones Coccygeal vertebrae (4) - tail bone Intervertebral Foramina - openings between the vertebrae for nerve exit

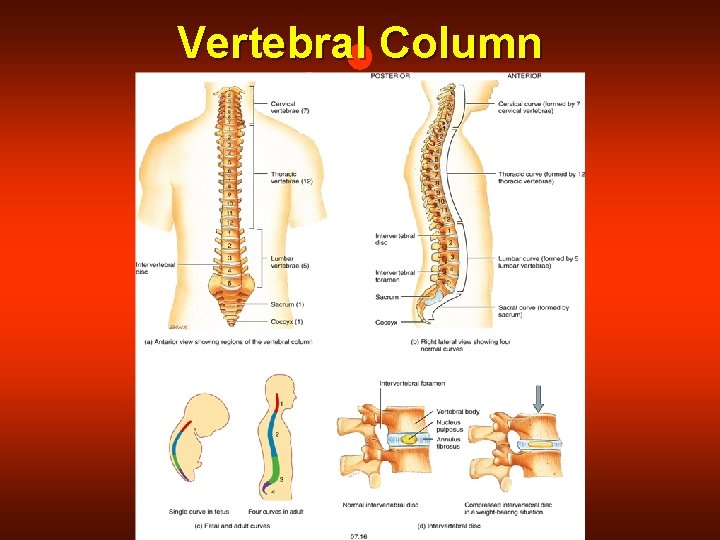

Vertebral Column

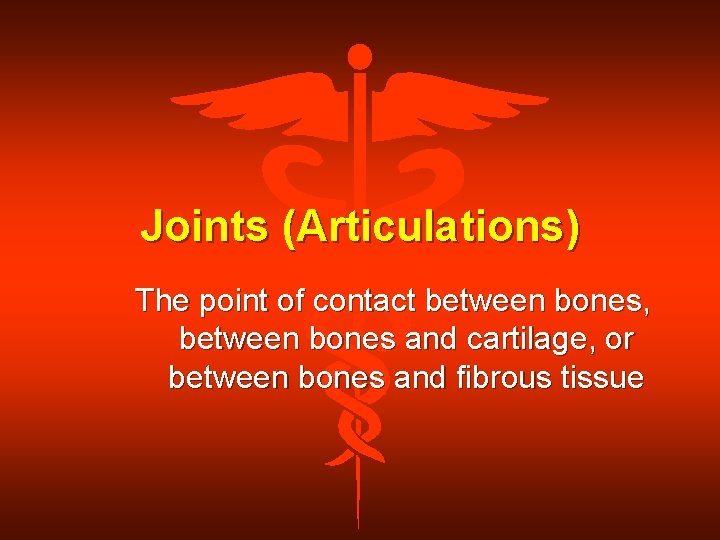

Joints (Articulations) The point of contact between bones, between bones and cartilage, or between bones and fibrous tissue

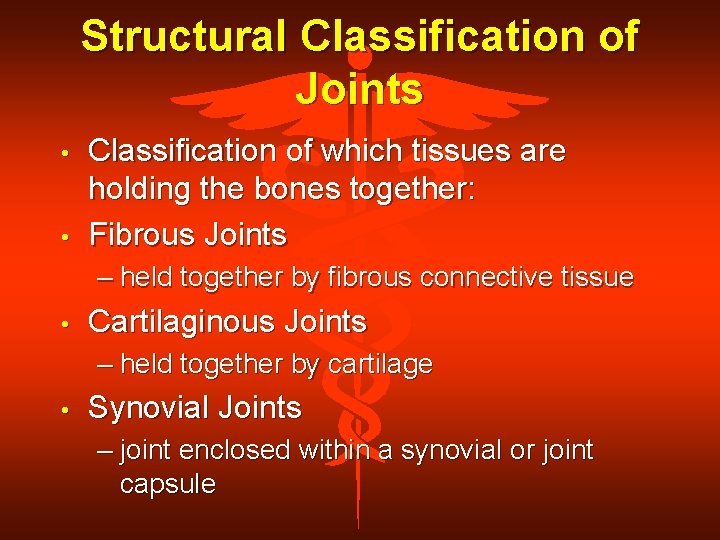

Structural Classification of Joints • • Classification of which tissues are holding the bones together: Fibrous Joints – held together by fibrous connective tissue • Cartilaginous Joints – held together by cartilage • Synovial Joints – joint enclosed within a synovial or joint capsule

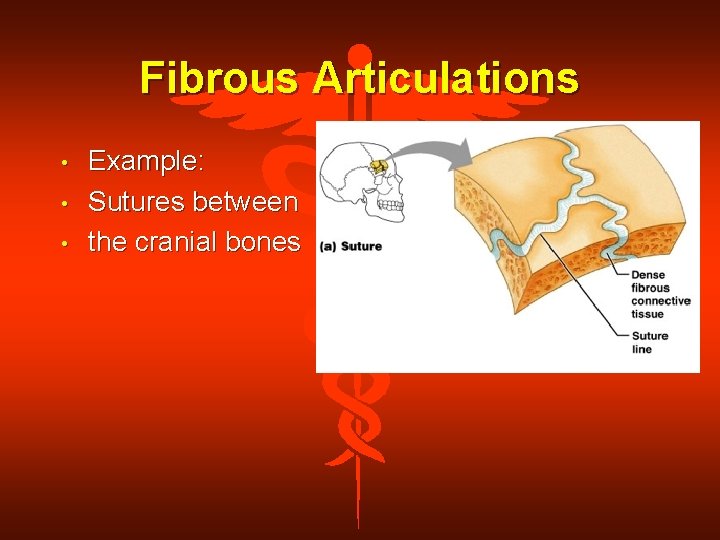

Fibrous Articulations • • • Example: Sutures between the cranial bones

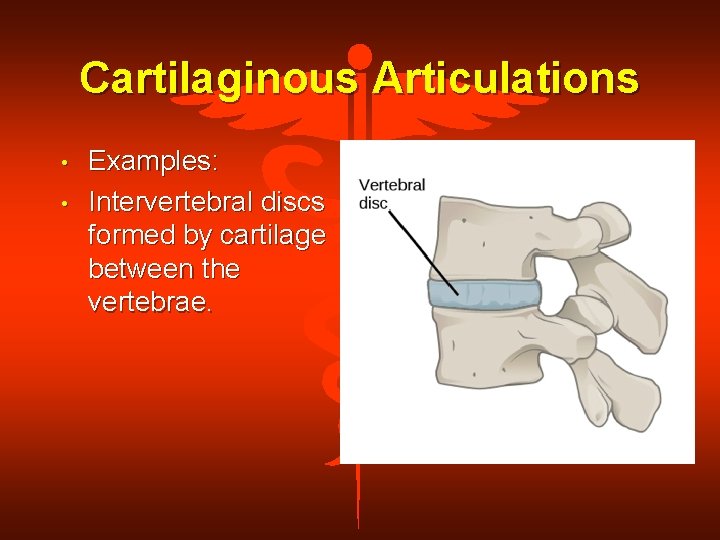

Cartilaginous Articulations • • Examples: Intervertebral discs formed by cartilage between the vertebrae.

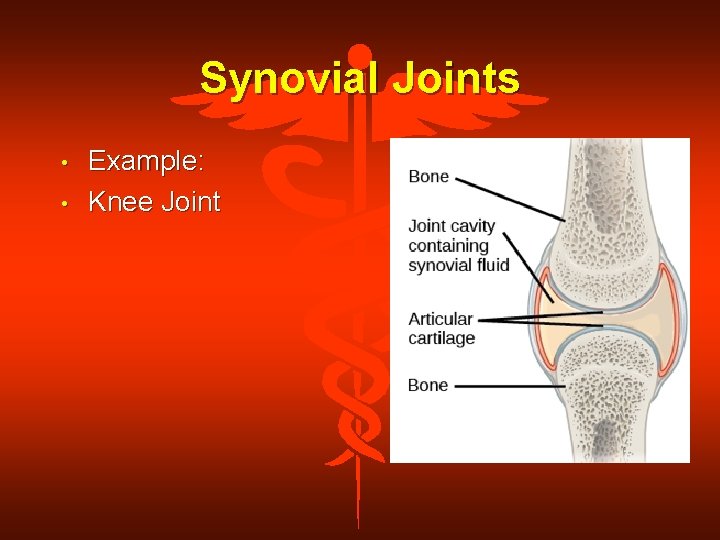

Synovial Joints • • Example: Knee Joint

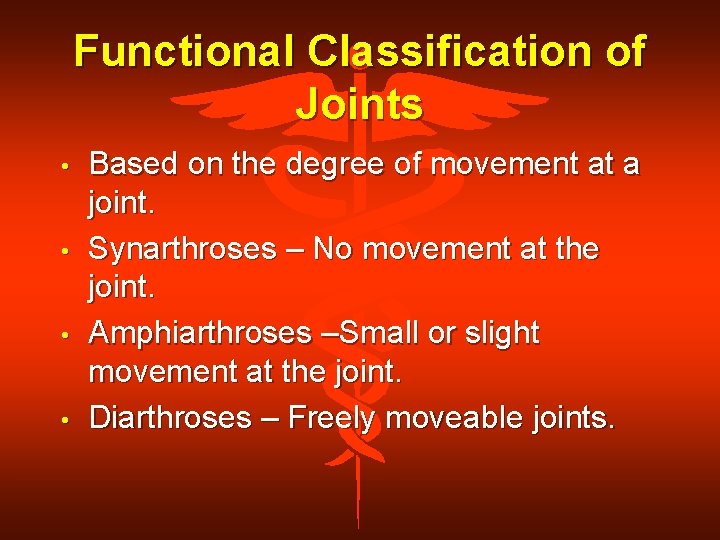

Functional Classification of Joints • • Based on the degree of movement at a joint. Synarthroses – No movement at the joint. Amphiarthroses –Small or slight movement at the joint. Diarthroses – Freely moveable joints.

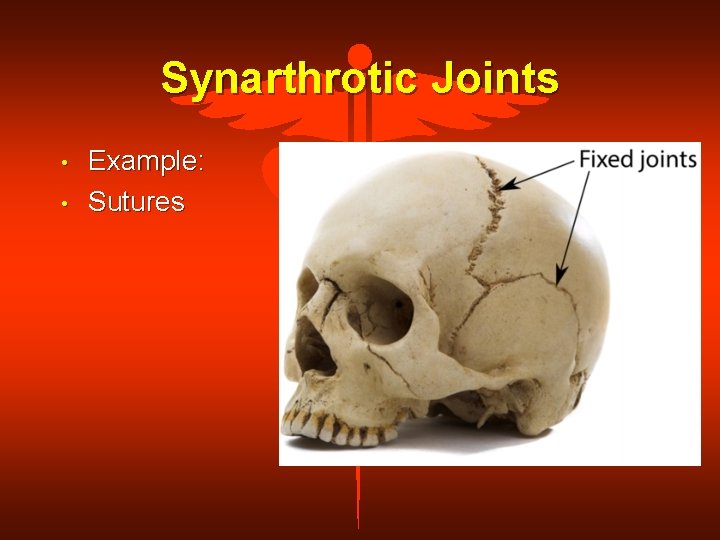

Synarthrotic Joints • • Example: Sutures

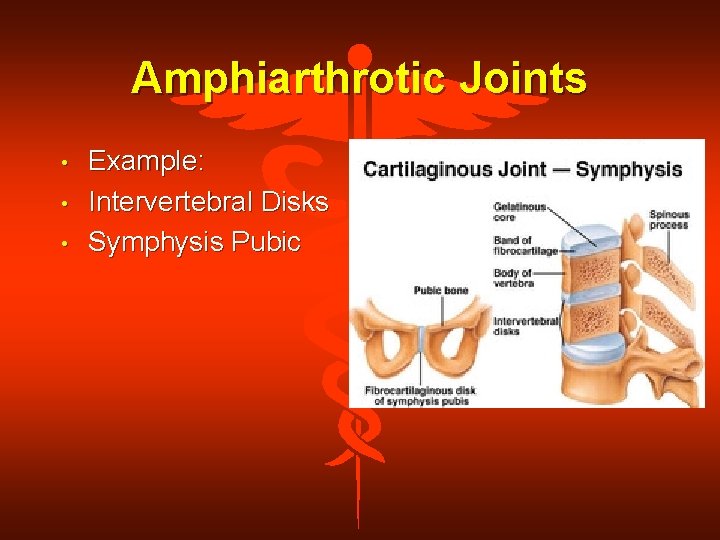

Amphiarthrotic Joints • • • Example: Intervertebral Disks Symphysis Pubic

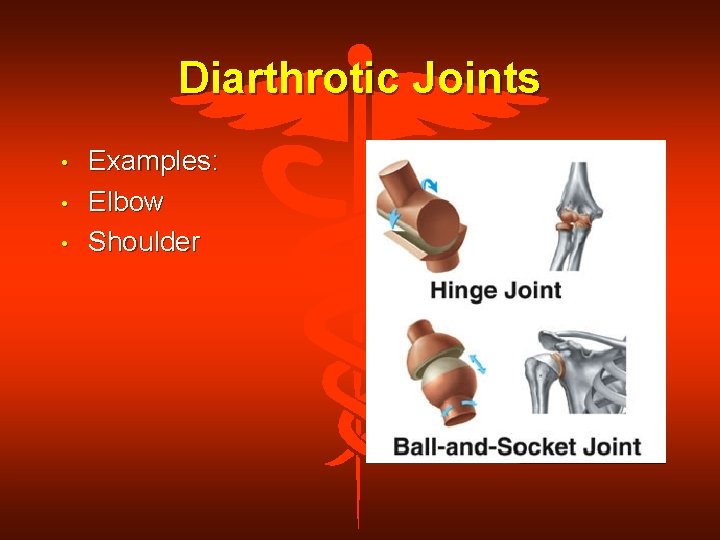

Diarthrotic Joints • • • Examples: Elbow Shoulder

Diseases and Disorders

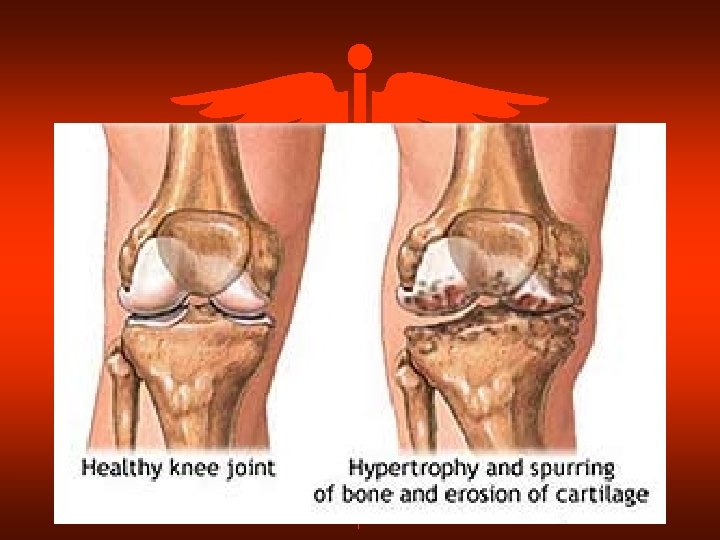

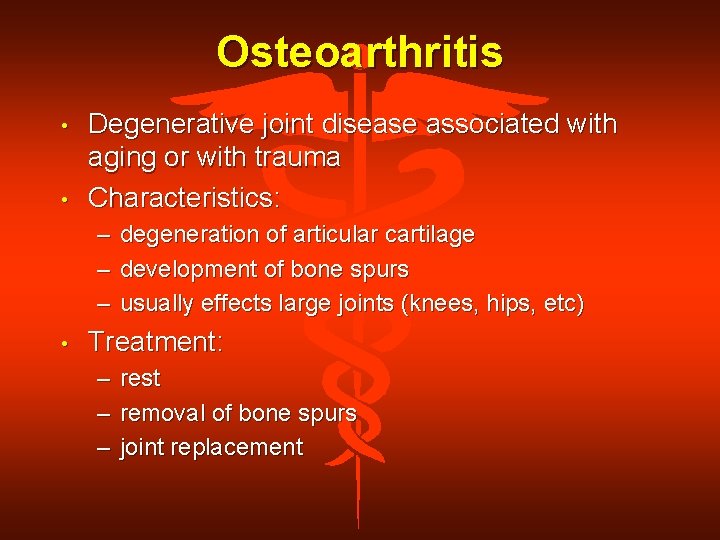

Osteoarthritis • • Degenerative joint disease associated with aging or with trauma Characteristics: – – – • degeneration of articular cartilage development of bone spurs usually effects large joints (knees, hips, etc) Treatment: – – – rest removal of bone spurs joint replacement

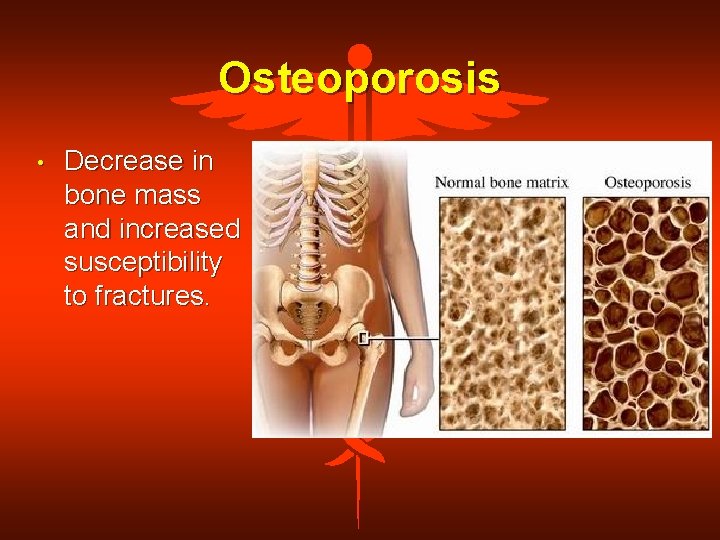

Osteoporosis • Decrease in bone mass and increased susceptibility to fractures.

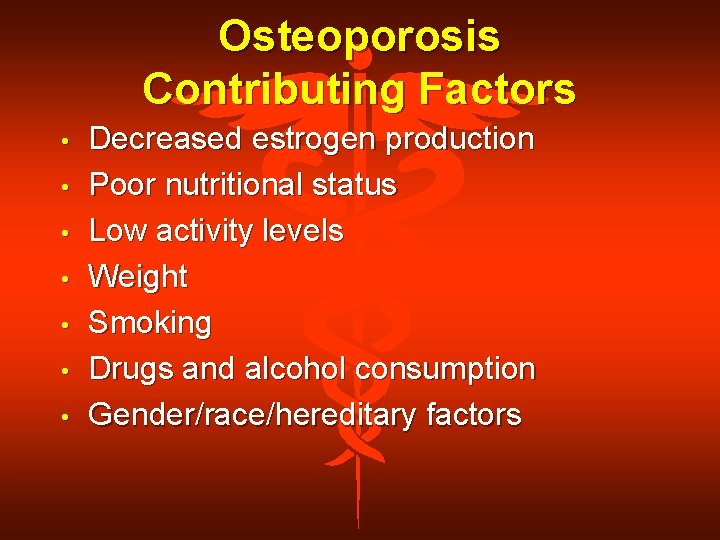

Osteoporosis Contributing Factors • • Decreased estrogen production Poor nutritional status Low activity levels Weight Smoking Drugs and alcohol consumption Gender/race/hereditary factors

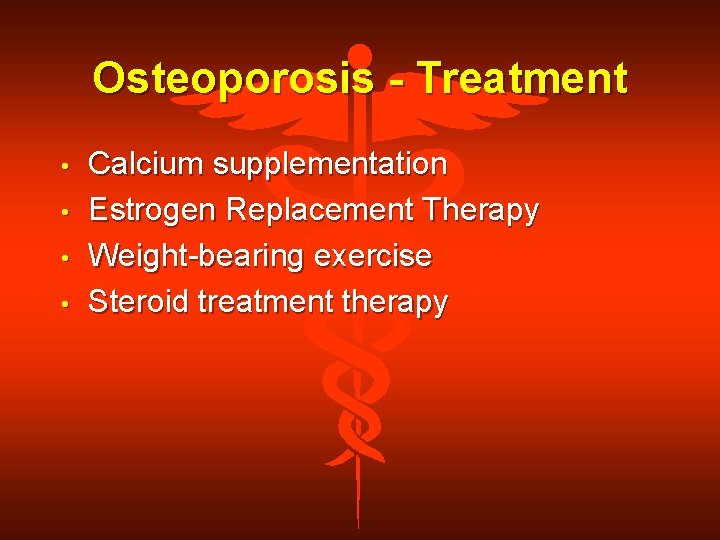

Osteoporosis - Treatment • • Calcium supplementation Estrogen Replacement Therapy Weight-bearing exercise Steroid treatment therapy

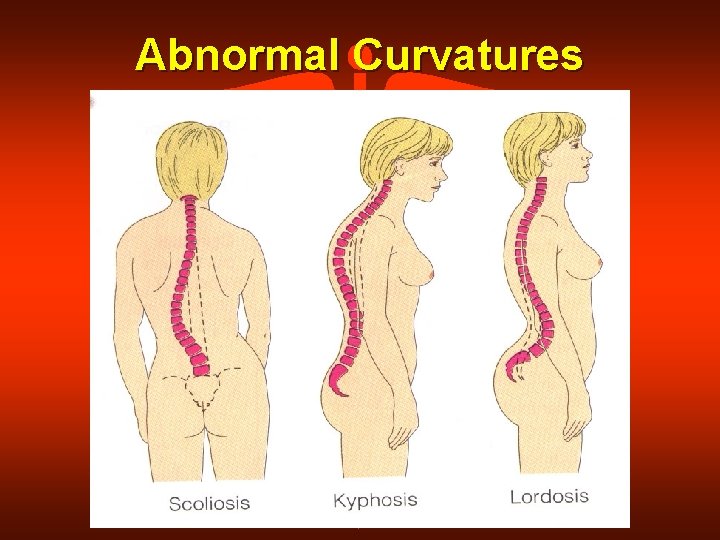

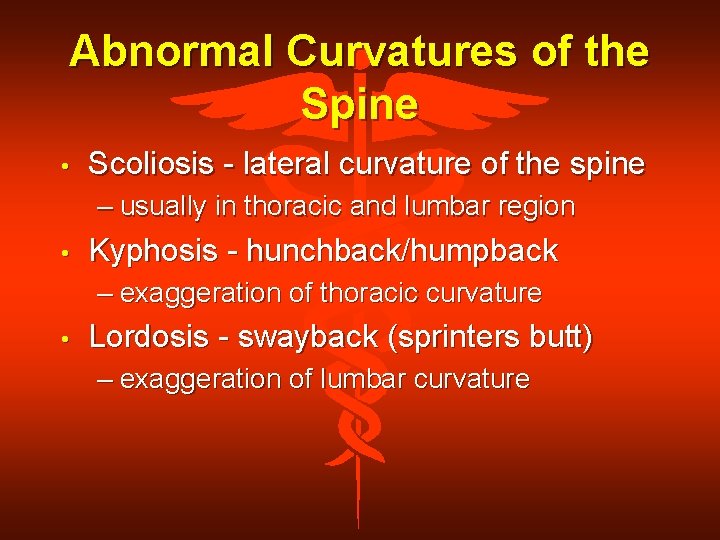

Abnormal Curvatures of the Spine • Scoliosis - lateral curvature of the spine – usually in thoracic and lumbar region • Kyphosis - hunchback/humpback – exaggeration of thoracic curvature • Lordosis - swayback (sprinters butt) – exaggeration of lumbar curvature

Abnormal Curvatures
