The Scalable Virtual Network Senior Design III – Spring Quarter Eric Ridder Sean Stroh

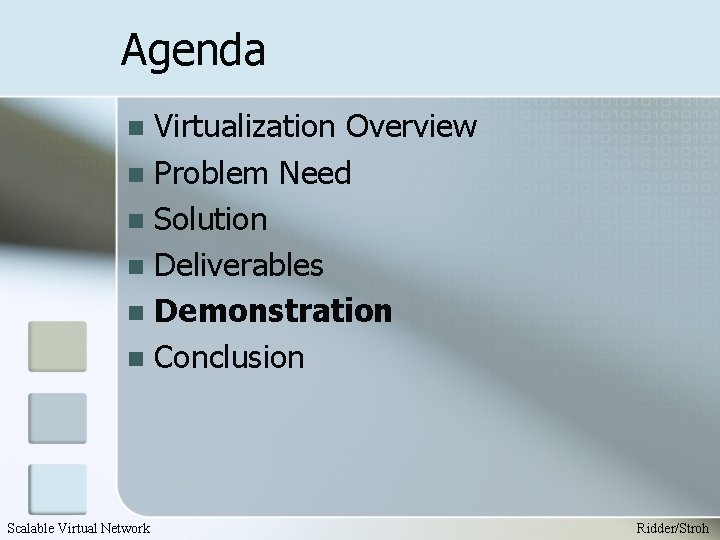

Agenda Virtualization Overview n Problem Need n Solution n Deliverables n Demonstration n Conclusion n Scalable Virtual Network Ridder/Stroh

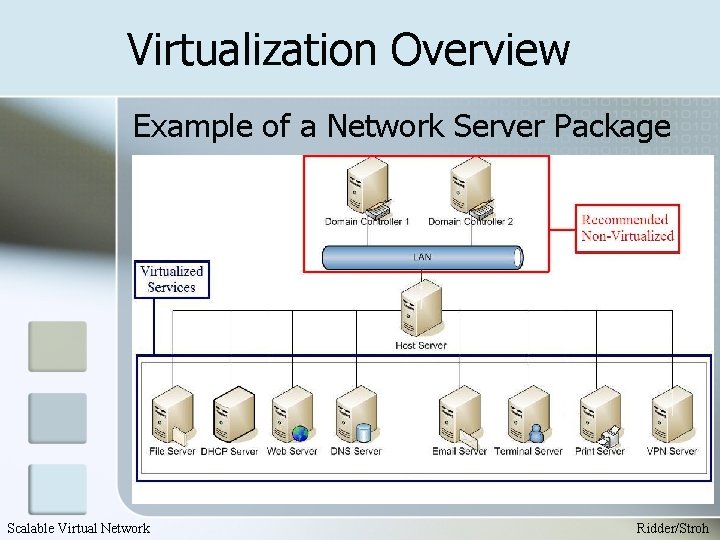

Virtualization Overview Example of a Network Server Package Scalable Virtual Network Ridder/Stroh

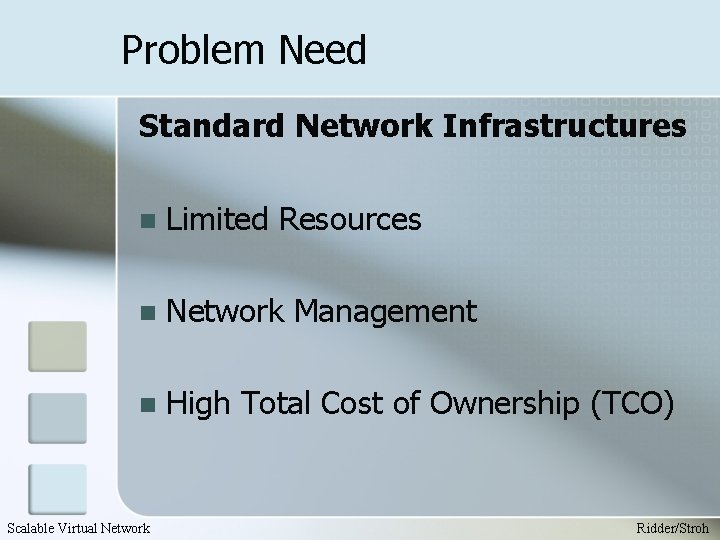

Problem Need Standard Network Infrastructures n Limited Resources n Network Management n High Total Cost of Ownership (TCO) Scalable Virtual Network Ridder/Stroh

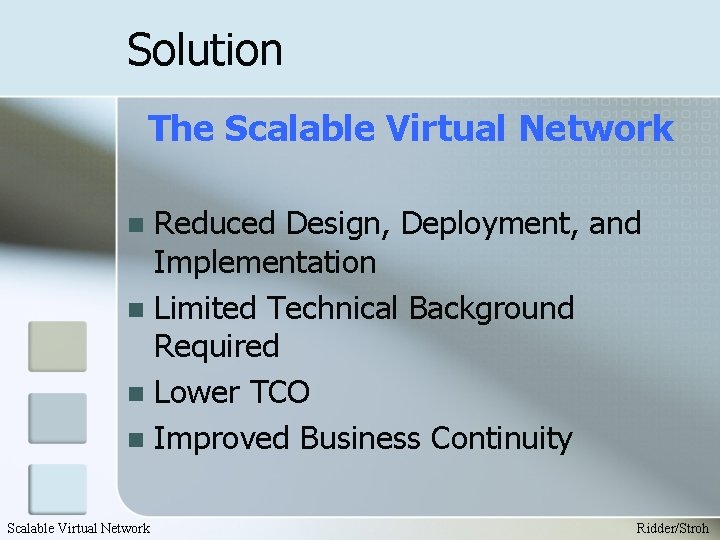

Solution The Scalable Virtual Network Reduced Design, Deployment, and Implementation n Limited Technical Background Required n Lower TCO n Improved Business Continuity n Scalable Virtual Network Ridder/Stroh

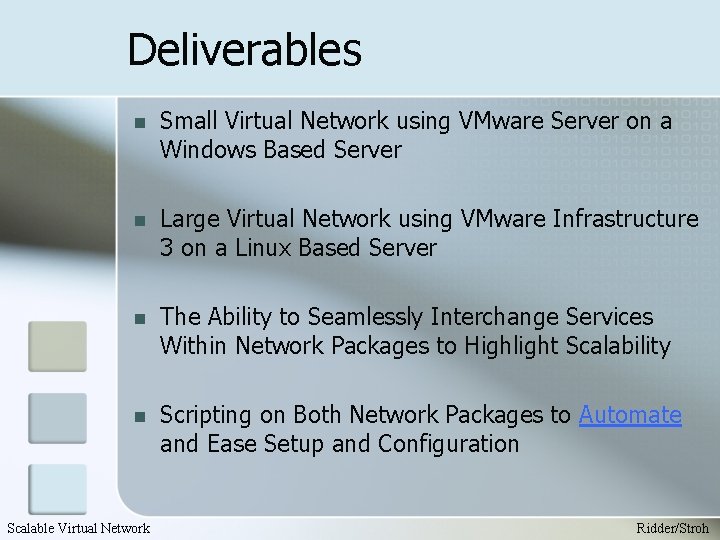

Deliverables n Small Virtual Network using VMware Server on a Windows Based Server n Large Virtual Network using VMware Infrastructure 3 on a Linux Based Server n The Ability to Seamlessly Interchange Services Within Network Packages to Highlight Scalability n Scripting on Both Network Packages to Automate and Ease Setup and Configuration Scalable Virtual Network Ridder/Stroh

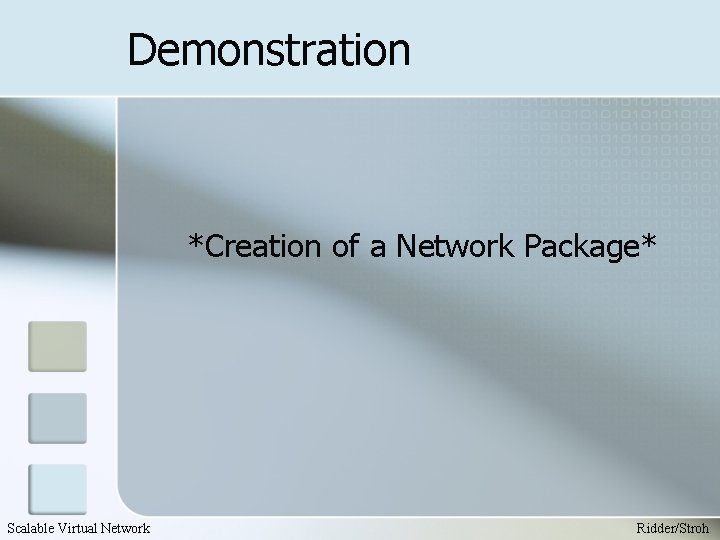

Demonstration *Creation of a Network Package* Scalable Virtual Network Ridder/Stroh

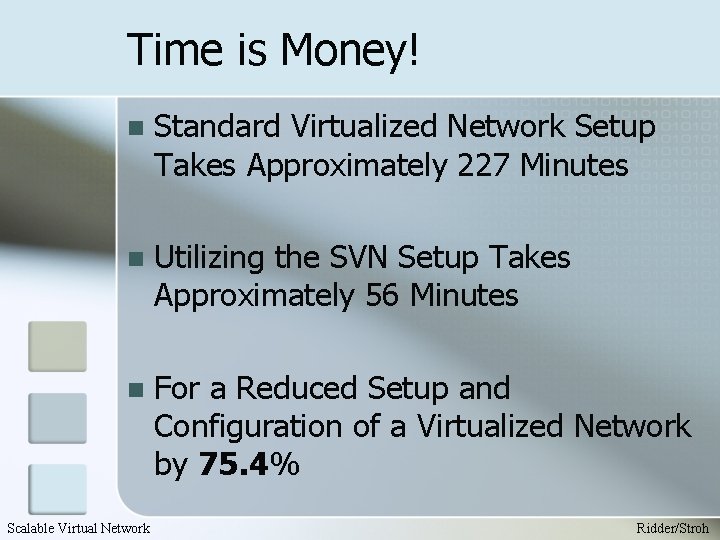

Time is Money! n Standard Virtualized Network Setup Takes Approximately 227 Minutes n Utilizing the SVN Setup Takes Approximately 56 Minutes n For a Reduced Setup and Configuration of a Virtualized Network by 75. 4% Scalable Virtual Network Ridder/Stroh

Thank You for Your Attention Questions? ? ? Scalable Virtual Network Ridder/Stroh
