The results of cementless cups HAP or Ti
- Slides: 85
The results of cementless cups (HAP or Ti) with additional divergent pegs and acetabular reconstruction with graft in failed THA The concept of “migration en bloc” (1993) JL. Lerat, C. Falaise LYON - France EFORT Congress (June 2001 - Rhodes)
Special Cup with pegs for revision 1 st model : «Spring» ( Landanger-Depuy 1993 - 2000 ) • • • Metallic cup ( Ti ). Hydroxyapatite coating 6 holes for 6 pegs fixed with the cup by threading Alumine on polyethylene
1 rst model (alumine on polyethylene) : 128 cases 6 divergent pegs bring usually a good primary stability : 10 and 15 mm (in the majority of the cases) or 20, 25, � 30 mm
The most frequent cause of revision is cemented cups with bone defects corresponding to the amount of cement: 91 cases
Revision of non-cemented cups : 29 cases
Revision of cemented acetabular rings previously used for revision : 4 cases
Material 128 acetabular revisions (11 infected) • 75 complete revisions • • • Previous operations : 1 to 8 Previous surgery : 9. 8 ± 5 years • One surgeon, one technique Females : 88 Mean age : 64. 4 ± 11 Ys Mean follow-up : 4. 6 y ± 1. 7 (1 to 7 y)
Acetabular reconstruction } 93 % • Iliac crest autograft : 85 • Bone from reaming : 33 • Opposite femoral head : 1 Simple prolongation of the posterior incision
Acetabular reconstruction } 93 % • Iliac crest autograft : 85 • Bone from reaming : 33 • Opposite femoral head : 1 • + Allograft : 1 femoral head : 43 2 femoral heads : 4 3 femoral heads : 2 } 38 % • + bone substitute : 6 Iliac crest is grafted : 38 cases
Prolongation of the posterior approach toward the posterior iliac crest
Prolongation of the posterior approach toward the posterior iliac crest Preservation of the vascularisation and inervation of the muscle
Prolongation of the posterior approach toward the posterior iliac crest Preservation of the vascularisation and inervation of the muscle
Prolongation of the posterior approach toward the posterior iliac crest Preservation of the vascularisation and inervation of the muscle
Paprosky : Type I (n = 31) Easy cases : graft into the holes, sufficient contact of the cup with the host bone
Paprosky : Type II (n = 63) A (n = 20) B (n = 22) C (n = 21) • • • The cup may be stabilised between the 2 columns Press-fitting the acetabular component is often possible 1 iliac crest is sufficient
Paprosky : Type II (n = 63) - Autograft into the holes and for the roof reconstruction - Bone is impacted with the « trial cup » - Stabilisation by press-fitting the cup between the 2 columns + 6 pegs
Paprosky : Type III (n = 32) III A (n = 22) III B (n = 10) Massive bone graft is necessary for the reconstruction of : - the centre - the columns - the roof
The reconstruction of a column is made after the cup has been fixed to the host bone and to the graft 1 - Fixation of the component with pegs 2 - Spongious autograft is placed on the HAP coating 3 - The bone block is then fitted on the cup by 1 or 2 pegs (or 1 adjusting srew) inside outside
The use of screws is not recommended usualy Adjusting screws may be used to fit the graft against the cup Or for the primary stabilisation of the cup It is recommended to replace the screws by pegs for definitive fixation
Stability of the implants • • Press-fit alone : 45 Stability attained by the use of pegs : 83 The divergent pegs bring a complementary stability to cup
Stability of the implants 6 years The stabilisation of the cup is obtained with graft incorporation and remodelling under load-bearing conditions
Weight load-bearing Immediate (partial) : 25 4 to 6 weeks : 48 2 to 3 months : 55
Complications • Dislocations (2 first months) : 9 • Trochanteric non-unions : 6 (4 had previous non-unions) • Ossifications : 1 • Infections : 3 (recurrence for 3 of 11 previous infections)
Operation Cup + stem 75 cases • • • Blood loss : 1075 ml ± 883 (100 -4500) Drainage : 650 ml ± 365 (20 -1900) Op time : 192 min ± 60 (90 -345) Cup alone 53 cases • • • Blood loss : 645 ml ± 534 (200 -3400) Drainage : 555 ml ± 293 (20 -1170) Op time : 160 min ± 38 (90 -300)
Diameter of the cups Cases Removed cups : 49. 6 mm + cement New cups : 55. 9 mm Diameter of the cups
Removed cups : The mean diameter of the new cups increases, but the cement is replaced by bone graft Cement Bone graft 49. 6 mm + cement New cups : 55. 9 mm
Evaluation Radiographic measurements • Incorporation /radio lucent line • Stability in the 3 planes - Numerised X-rays - Precise measurements (special software : “Metr. Os” C. Falaise) Functional value • PMA Score (Postel - Merle d'Aubigné)
• Lost for follow-up : 3 • Deceased : 8 • Revisions : 11 • Loosening : 9 • Infection : 2 • Patients reviewed : 102
Results Postel-Merle d’Aubigné score (18 pts) 16. 4 ± 2 / 18 • • Excellent : 69 Good : 29 Fair: 10 Poor : 1 • Impossible to estimate : 27 The results are also influenced by the status of the femur
Results The results are good for the 3 types of Paprosky
Results • Complete healing : 94 • Pain at the iliac crest : 3 • Poor active abduction : 22
Radio lucencies • • None : 87. 7 % Zone I : 3. 3 Zone II : 1. 6 Zone III : 3. 3 Zone I, II : 0. 8 Zone II, III : 1. 6 Zone I, III : 1. 6
Radiological results manual measurements (Failed • cases included) 86 % of the implants are stable at visual examination no migration, no radio-lucent line • Vertical migration 2 to 6 mm : 3 > 6 mm : 5 • Medial migration 2 to 4 mm : 2 > 4 mm : 7 • Verticalisation : 5. 5 % Important displacement : 7 cases Revised by the same cup : 5

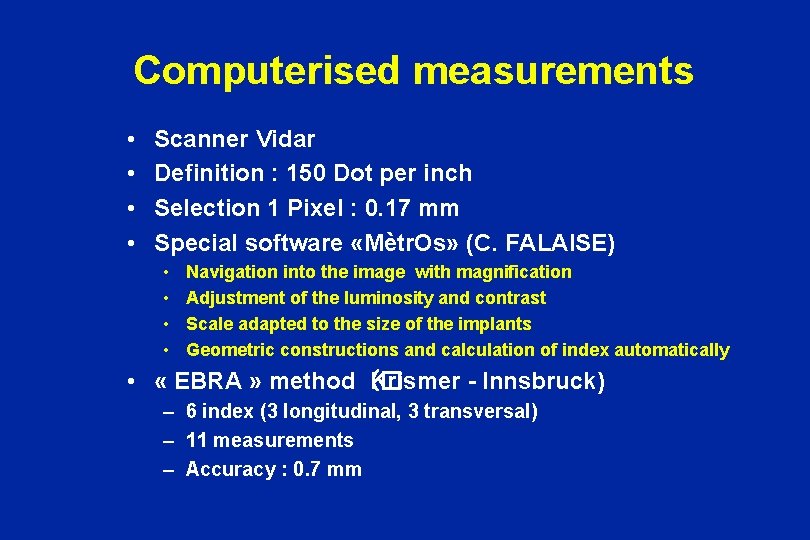

Computerised measurements • • Scanner Vidar Definition : 150 Dot per inch Selection 1 Pixel : 0. 17 mm Special software «Mètr. Os» (C. FALAISE) • • Navigation into the image with magnification Adjustment of the luminosity and contrast Scale adapted to the size of the implants Geometric constructions and calculation of index automatically • « EBRA » method (� Krismer - Innsbruck) – 6 index (3 longitudinal, 3 transversal) – 11 measurements – Accuracy : 0. 7 mm
Computerised measurements Scale adapted to the size of the implants
Computerised measurements 1) Ascension (1 st measurement)
Computerised measurements Ascension (2 d measurement)

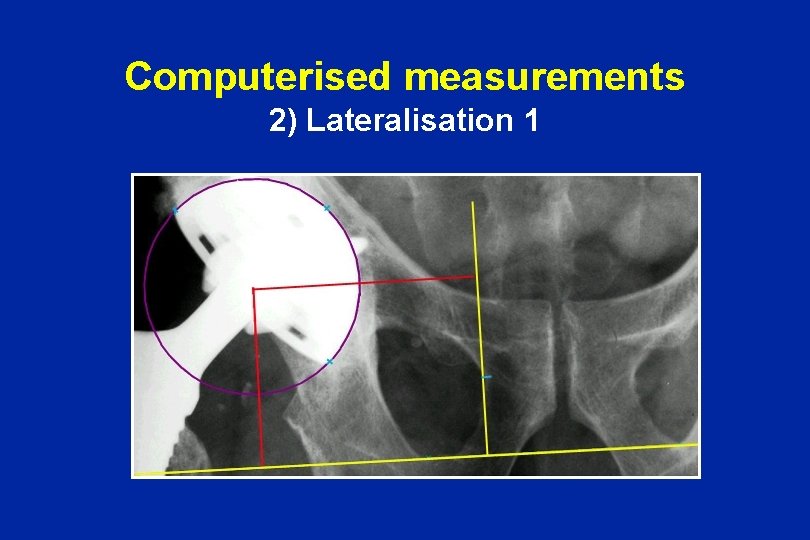

Computerised measurements 2) Lateralisation 1
Computerised measurements Lateralisation 2
Computerised measurements 3) Inclination
Computerised measurements 4) Version sin(a) = Rp/Rc a = sin-1(Rp/Rc)
« EBRA » method • Krismer et coll. 1995 (Innsbruck) • Control of mistakes due to incidence variations • Comparability of 2 films by measuring the position of constant anatomical landmarks • Difference in size = Comparability Index • For an index limited to 3 mm, the precision is ± 0. 7 mm for the experimental model and ± 1 mm in clinical study
Comparability of 2 films by measuring the position of constant anatomical landmarks 6 index (3 longitudinal, 3 transversal) Longitudinal L 1 - 2
Comparability of 2 films by measuring the position of constant anatomical landmarks 6 index (3 longitudinal, 3 transversal) Longitudinal L 2 - 3
Comparability of 2 films by measuring the position of constant anatomical landmarks 6 index (3 longitudinal, 3 transversal) Transversal M 1 - 2
Comparability of 2 films by measuring the position of constant anatomical landmarks 6 index (3 longitudinal, 3 transversal) Transversal M 2 - 3
Computerised measurements Inclination and anteversion of the cups Post-op Inclination : 49° ± 7, 5 Anteversion : 17. 1° ± 9. 9 Follow-up : 4 years Inclination : 48. 7° ± 9. 8 Anteversion : 19. 5° ± 12. 4
Computerised measurements Position of the cup / U ligne Position of the cup / U Hip centre correct : 43 %
Migrations = 45 % with computerised measurements = 14 % visual method (migrations > 3 mm) Literature : maxi 9 % Callaghan 9 % 4 years (JBJS 1985) Kavanagh 9 % 4. 5 years (JBJS 1985) EBRA is the best method to detect migrations (except RSA : roentgen stereophotogrammetry) Ilchmann T. J. Arthroplasty 1992

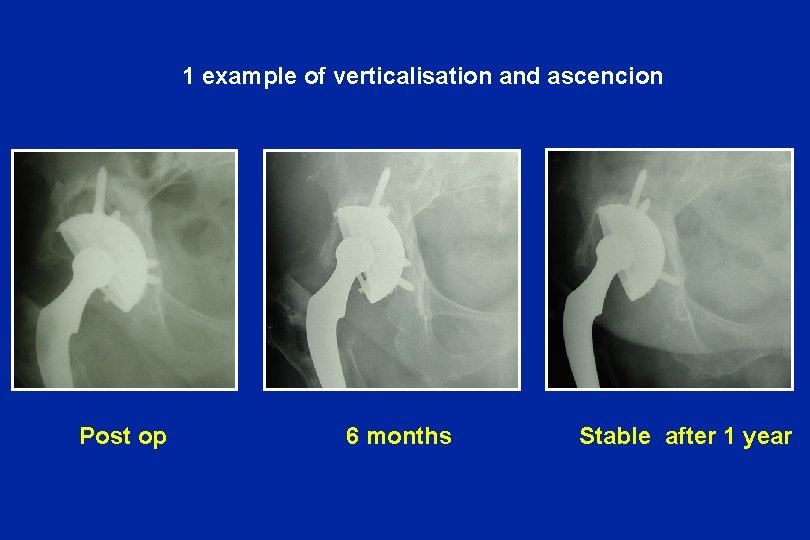

1 example of verticalisation and ascencion Post op 6 months Stable after 1 year
Stable Migration Total type 1 15. 1 9. 2 24. 4 type 2 A 9. 2 5. 9 15. 1 type 2 B 10. 9 5. 0 16. 0 type 2 C 9. 2 7. 6 16. 8 type 3 A 7. 6 10. 9 18. 5 type 3 B 3. 4 5. 0 8. 4
The stability of a cup is achieved by bone remodeling. We consider that a small migration is a normal phenomena (proved by computerised measurements) Postop 1 year Consequences of migation when using screws = wear or screw fracture

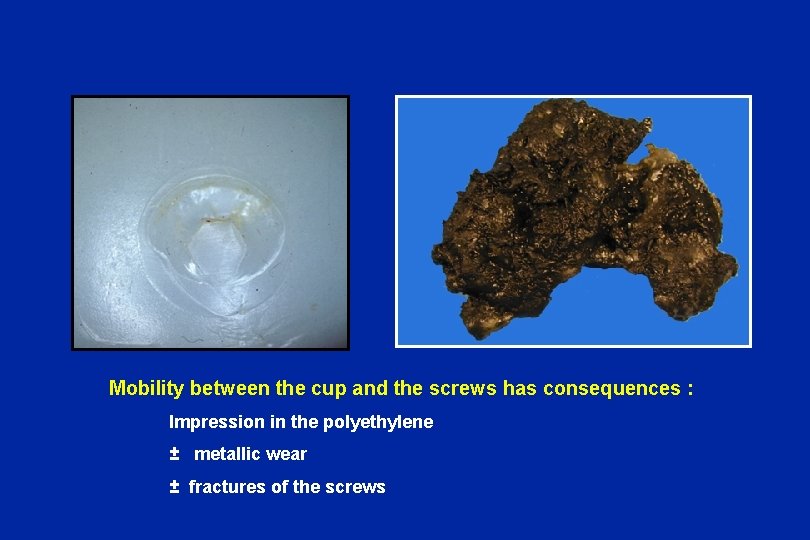

Mobility between the cup and the screws has consequences : Impression in the polyethylene ± metallic wear ± fractures of the screws
The concept of “migration en bloc” The pegs tend to limit the migration of the cup but should this occur, they migrate together in the same direction
5 cups placed with screws failed and they had been revised with a similar cup with pegs Failed revision Only 3 pegs Successfull revision with 6 pegs + 5 years
5 years 5 ans
5 years
6 years

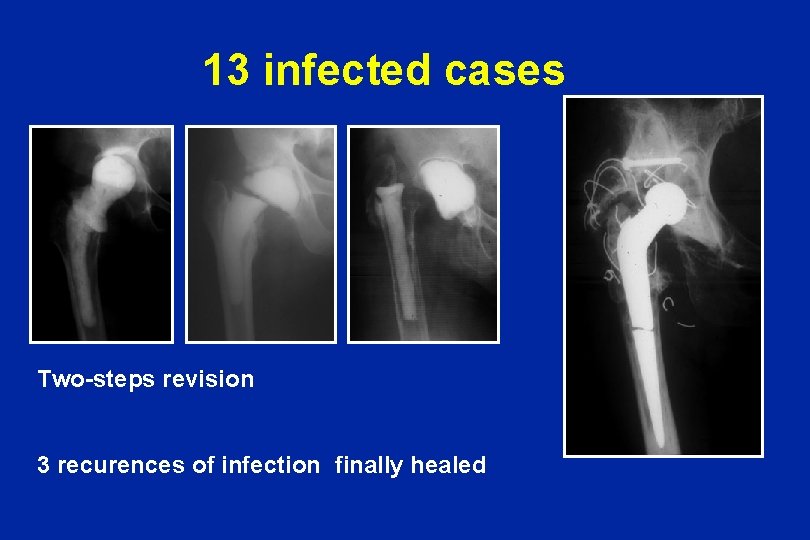

13 infected cases Two-steps revision 3 recurences of infection finally healed

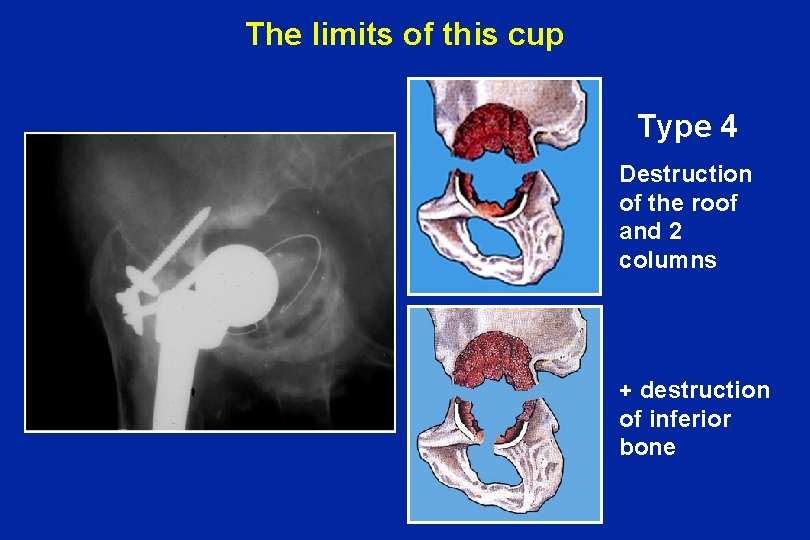

The limits of this cup Type 4 Destruction of the roof and 2 columns + destruction of inferior bone
What can we do for large defects « type 4 » ? Failure of a 1 rst revision using a cemented ring (Kerboul) Protrusio (6 years later)
Granuloma + cement
The host bone and the cancellous bone graft cannot find any possibility of ingrowht on this surface
Wagner’s acetabular ring for revision and massive bone graft Ti-6 Al-7 Nb Protasul TM Cementless and metal on metal
A part of a femoral head is placed in the defect

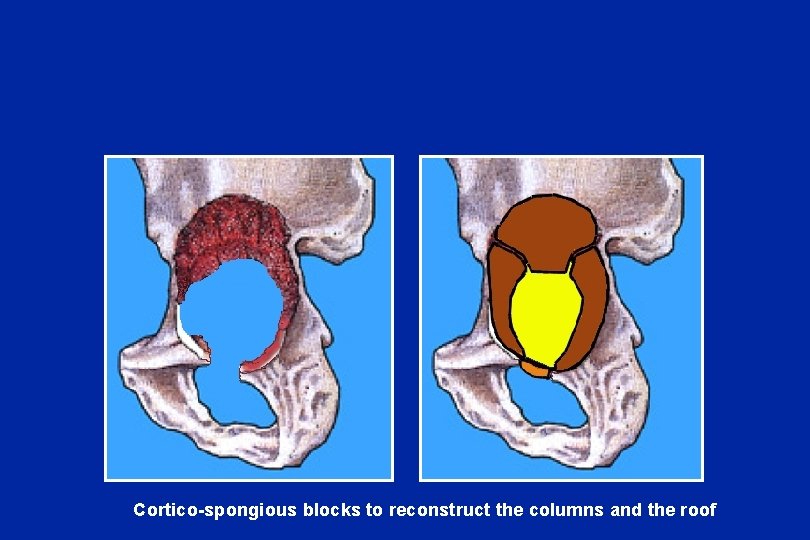

Cortico-spongious blocks to reconstruct the columns and the roof
Spongious morsellised bone (auto and allo graft) cover the precedent graft
The Wagner ’s ring is impacted and fixed with screws
Acetabular reconstruction with 3 femoral heads + 80 cc of morsellised bone graft
The new Wagner’s ring (for type 4) 2 advantages : cementless ( Ti coating for bony integration ) and metal on metal 1 drawback : Migration is bound to happen ( problem with the screws) pegs for future ? ?
Some examples of « Spring » cup Failure of other kinds of revision rings
4 years Failure of other kinds of revision rings
4 previous operations Op. 2 Op. 3 Op. 5 1 iliac crest + 1 femoral head Face + 5 ans Op. 4
7 years Op. 5 1 iliac crest + 1 femoral head
The polyethylene debris are responsible for the loosening of the THA Foreign bodies Granulomas
Acetabular reconstruction is often associated with femoral problems
Polyethylene and metal-back must be eradicated
Polyethylene must be replaced by better materials Alumina on alumina Alumine - polyéthylène Alumine - alumine Metal on metal Zircone - zircone
Cup with pegs 2 d generation (Cedior-Sulzer) - Ti-6 Al-7 Nb Protasul - 7 pegs - Metal / metal (metasul) 54 cases (since 6/2000)
11 months Follow-up < 1 year
Conclusions • Incorporation-stability of the cup : success rate : 96 % in types 1, 2, 3 (follow-up : 1 to 7 years) • Restoration of bony structures : autograft ++ or auto + allograft 10 m
Conclusions • Usefulness of non cemented cups (HAP or Ti) • Interest of the pegs fixed to the cup • Pegs are preferable to screws • Pegs do not interfere with small migration during osteo-integration
