The Respiratory System

Balloon Lab Every person has a different lung capacity. Lung capacity, or how much air your lungs can take in and out, is determined by age, sex and health. Conditions like asthma and emphysema can decrease lung capacity. You can increase your lung capacity by getting plenty of aerobic exercise and eating healthy.

Balloon Lab Problem How much air can each student put in a balloon with one deep breath? Hypothesis Who in your class will have the highest lung capacity? (write your hypothesis under your objective for today)

Balloon Lab Procedure 1. take one balloon and stretch it out 2. take ONE deep breath and blow into the balloon until you cannot blow out anymore. DO NOT TAKE A SECOND BREATH! 3. pinch the top closed so that no air escapes

Balloon Lab Procedure 4. have a partner put the string around the biggest part of the balloon

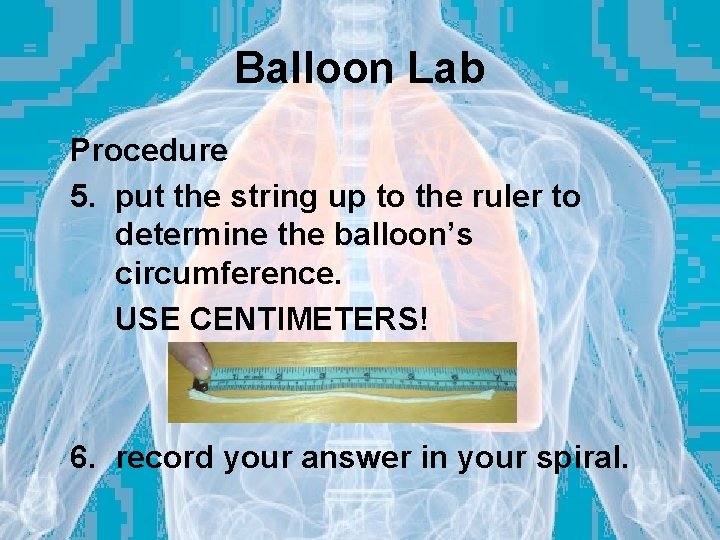

Balloon Lab Procedure 5. put the string up to the ruler to determine the balloon’s circumference. USE CENTIMETERS! 6. record your answer in your spiral.

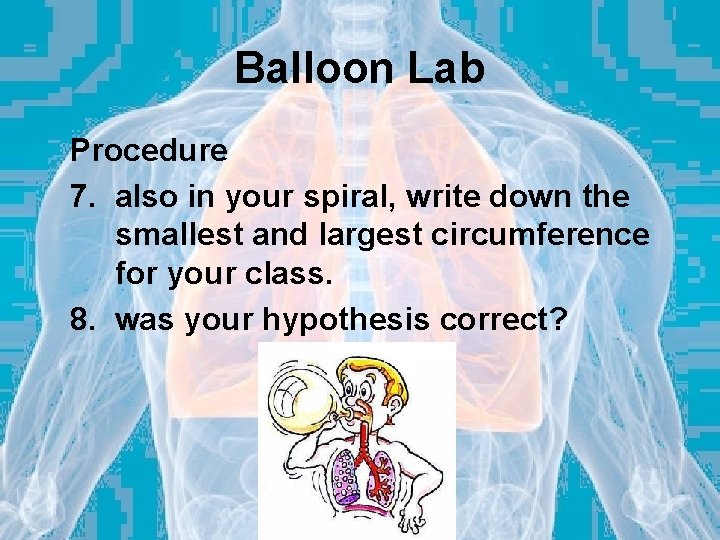

Balloon Lab Procedure 7. also in your spiral, write down the smallest and largest circumference for your class. 8. was your hypothesis correct?

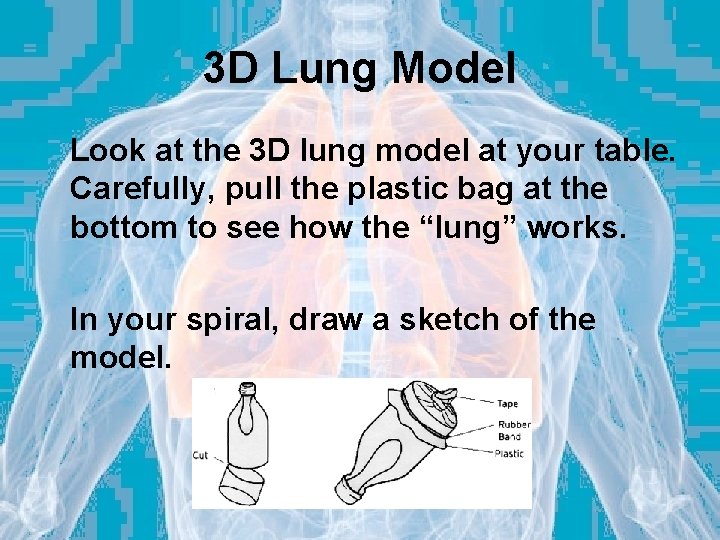

3 D Lung Model Look at the 3 D lung model at your table. Carefully, pull the plastic bag at the bottom to see how the “lung” works. In your spiral, draw a sketch of the model.

Lung Tissue Slide Now using the microscopes. Look at the slide labeled cat lung tissue. In your spiral, diagram what you see.

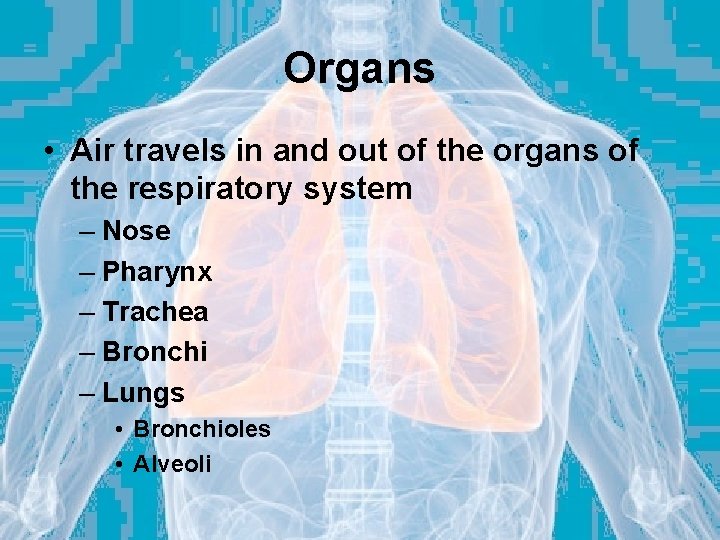

Organs • Air travels in and out of the organs of the respiratory system – Nose – Pharynx – Trachea – Bronchi – Lungs • Bronchioles • Alveoli

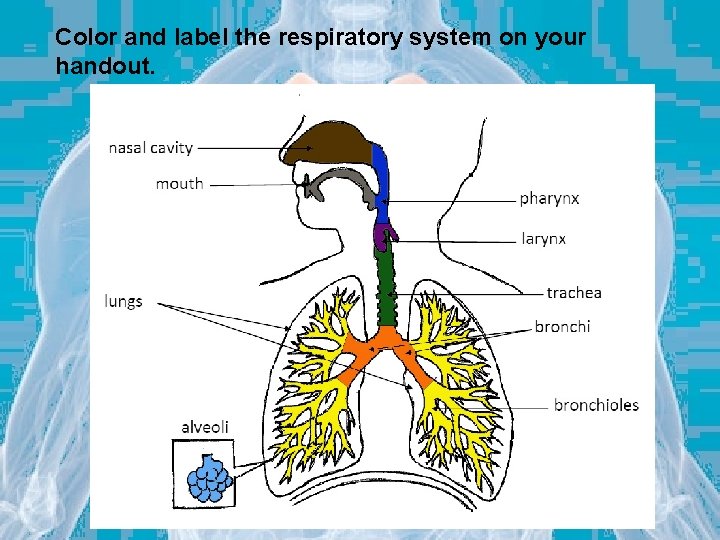

Color and label the respiratory system on your handout.

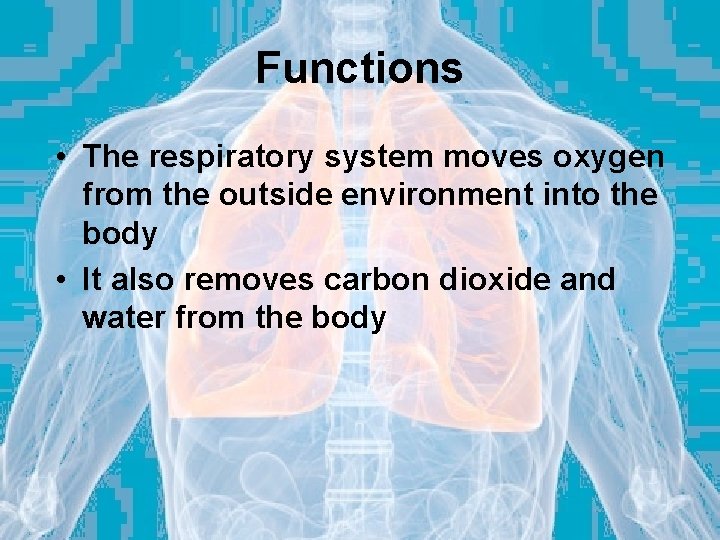

Functions • The respiratory system moves oxygen from the outside environment into the body • It also removes carbon dioxide and water from the body

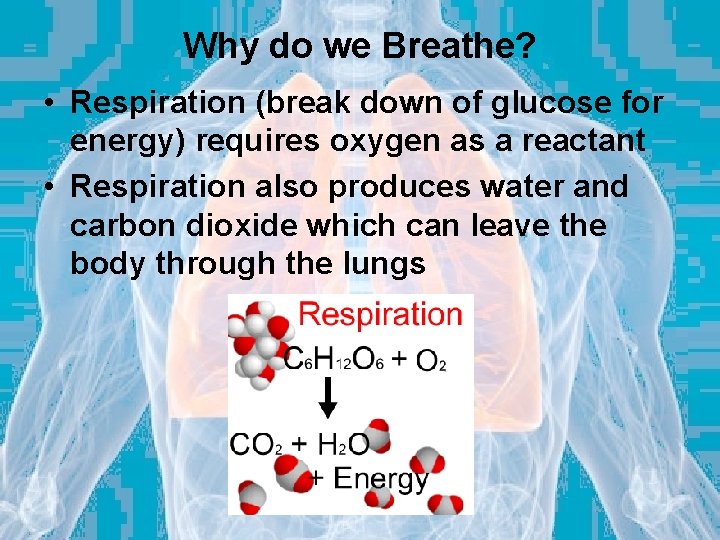

Why do we Breathe? • Respiration (break down of glucose for energy) requires oxygen as a reactant • Respiration also produces water and carbon dioxide which can leave the body through the lungs

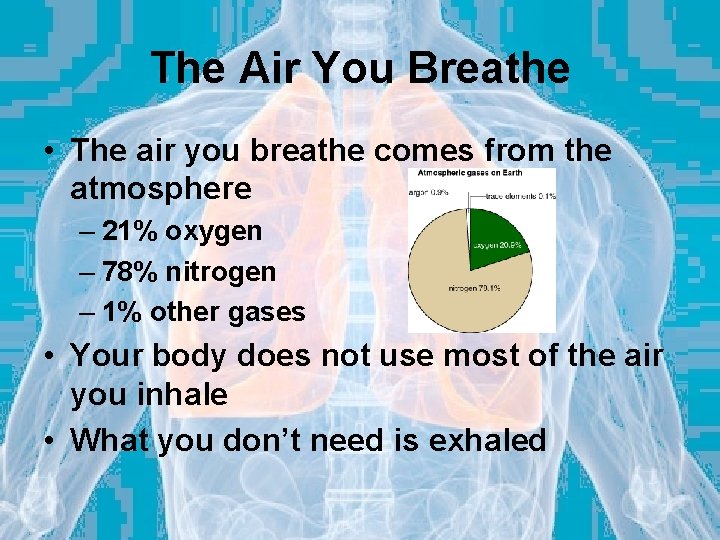

The Air You Breathe • The air you breathe comes from the atmosphere – 21% oxygen – 78% nitrogen – 1% other gases • Your body does not use most of the air you inhale • What you don’t need is exhaled

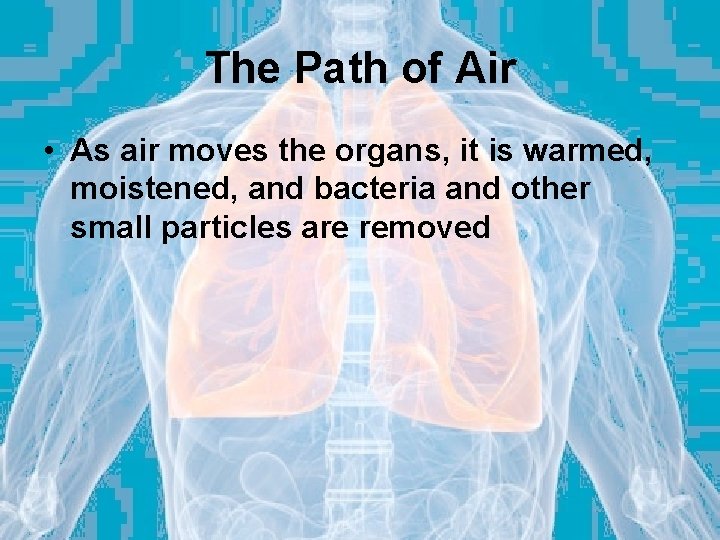

The Path of Air • As air moves the organs, it is warmed, moistened, and bacteria and other small particles are removed

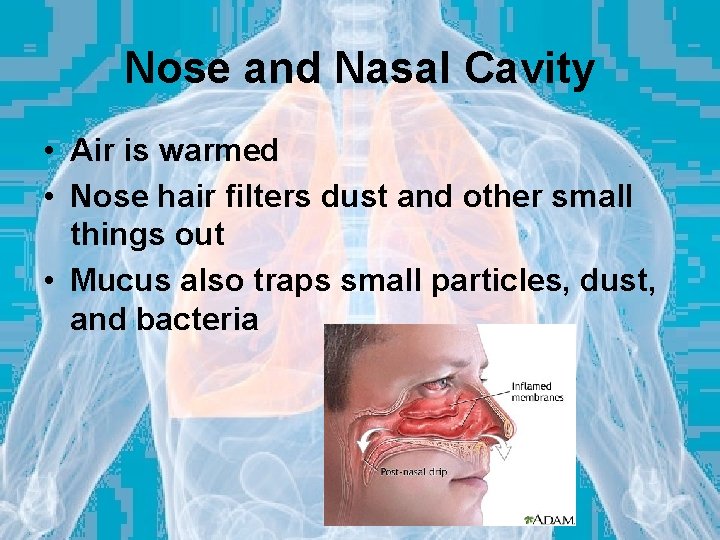

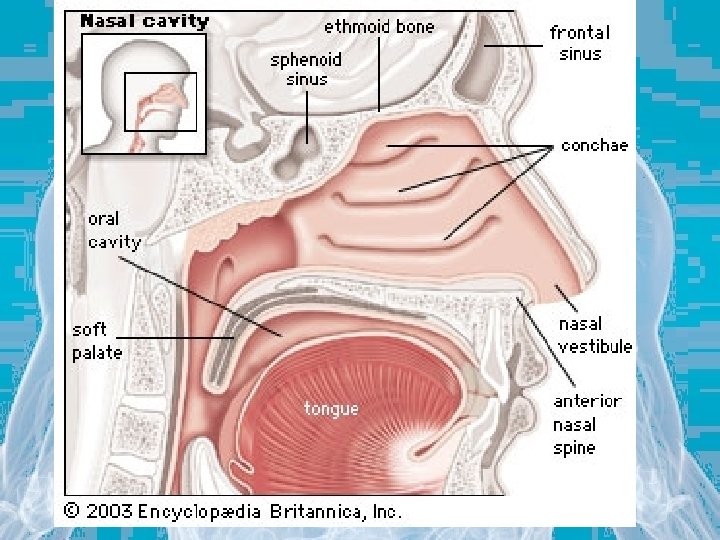

Nose and Nasal Cavity • Air is warmed • Nose hair filters dust and other small things out • Mucus also traps small particles, dust, and bacteria

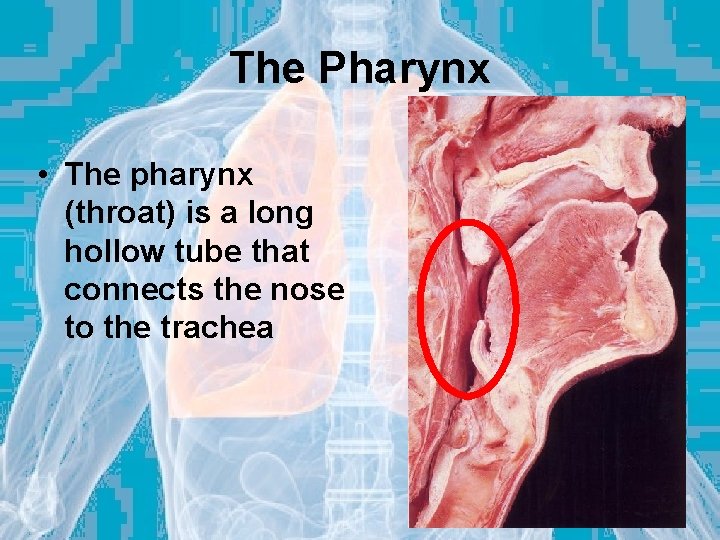

The Pharynx • The pharynx (throat) is a long hollow tube that connects the nose to the trachea

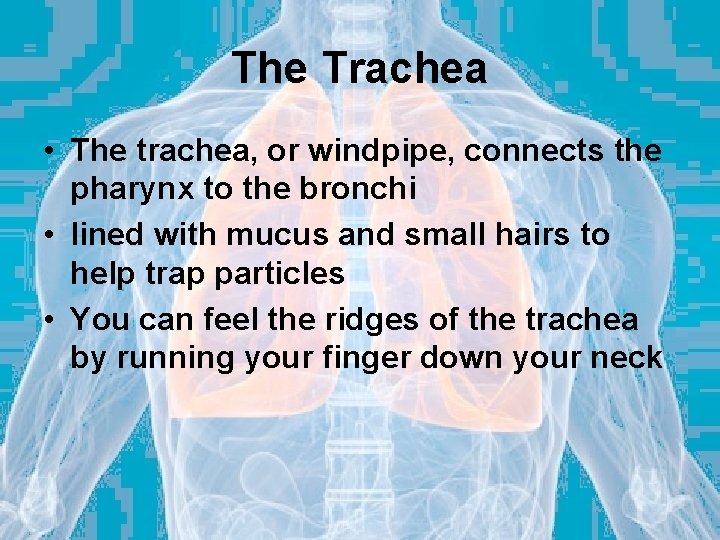

The Trachea • The trachea, or windpipe, connects the pharynx to the bronchi • lined with mucus and small hairs to help trap particles • You can feel the ridges of the trachea by running your finger down your neck

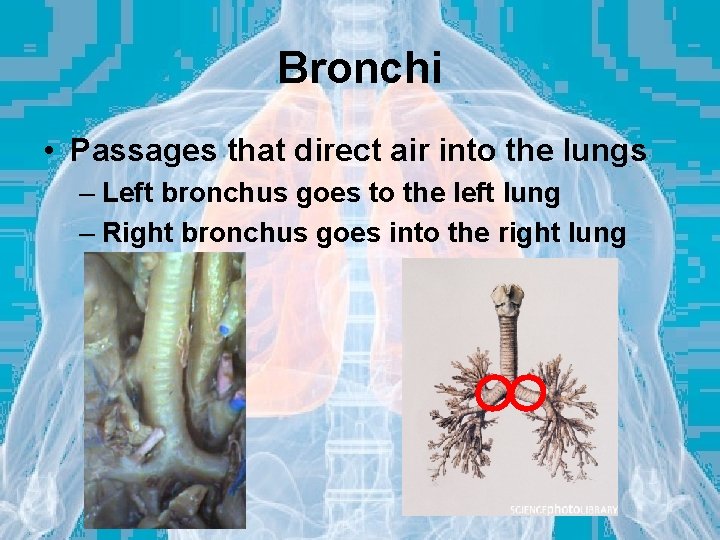

Bronchi • Passages that direct air into the lungs – Left bronchus goes to the left lung – Right bronchus goes into the right lung

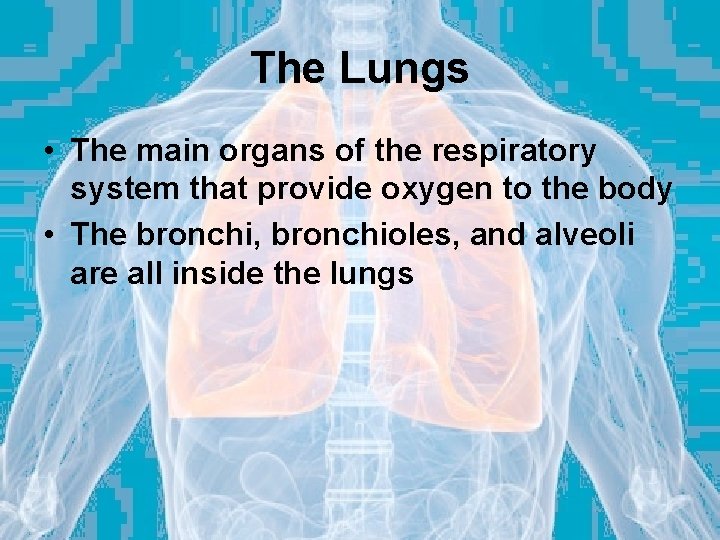

The Lungs • The main organs of the respiratory system that provide oxygen to the body • The bronchi, bronchioles, and alveoli are all inside the lungs

Bronchioles • Smaller branches that come off of the bronchi

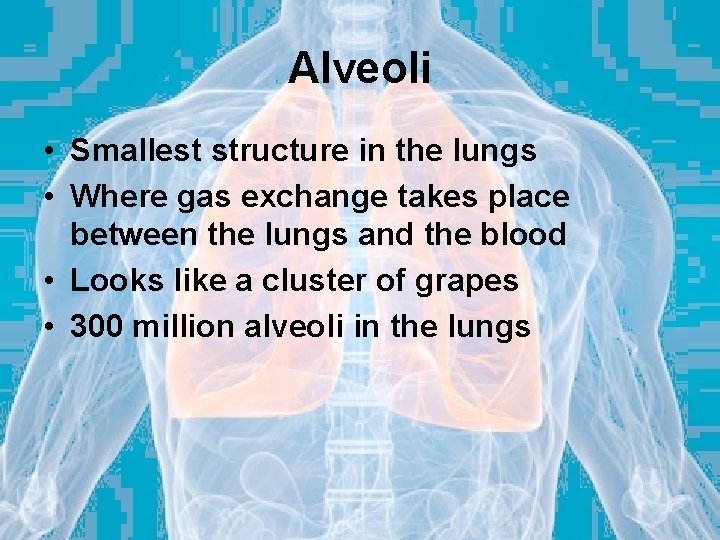

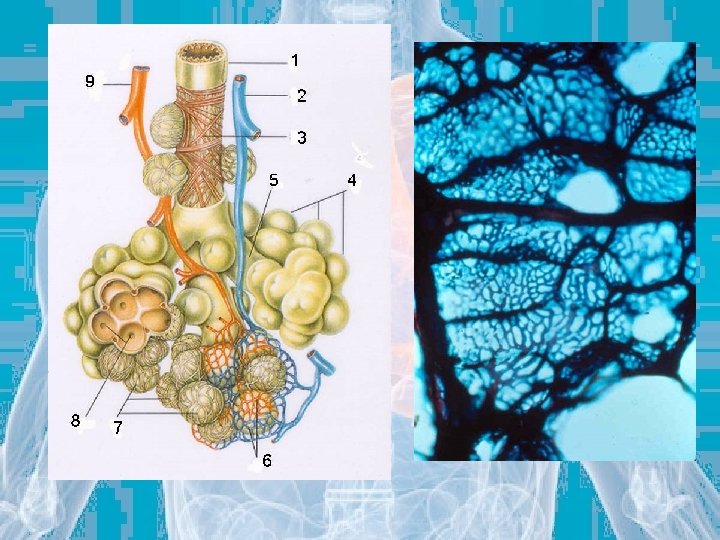

Alveoli • Smallest structure in the lungs • Where gas exchange takes place between the lungs and the blood • Looks like a cluster of grapes • 300 million alveoli in the lungs

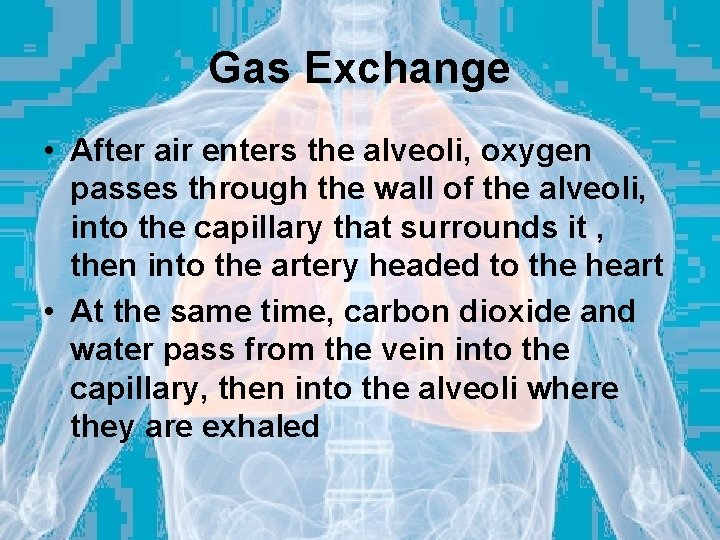

Gas Exchange • After air enters the alveoli, oxygen passes through the wall of the alveoli, into the capillary that surrounds it , then into the artery headed to the heart • At the same time, carbon dioxide and water pass from the vein into the capillary, then into the alveoli where they are exhaled

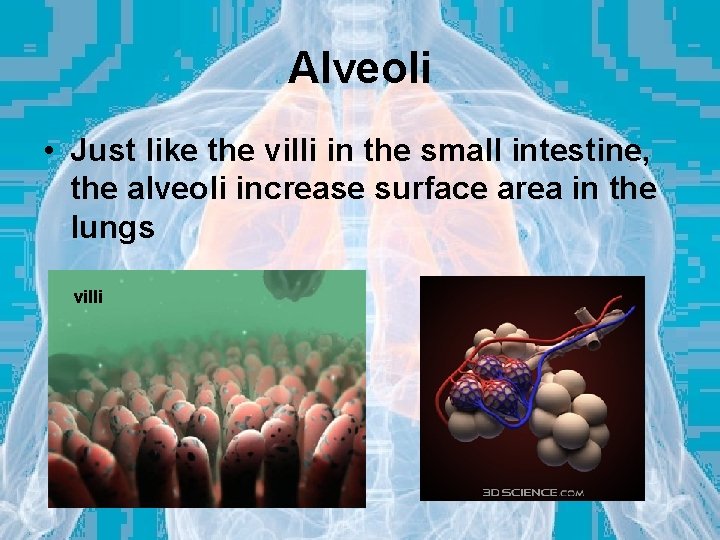

Alveoli • Just like the villi in the small intestine, the alveoli increase surface area in the lungs villi

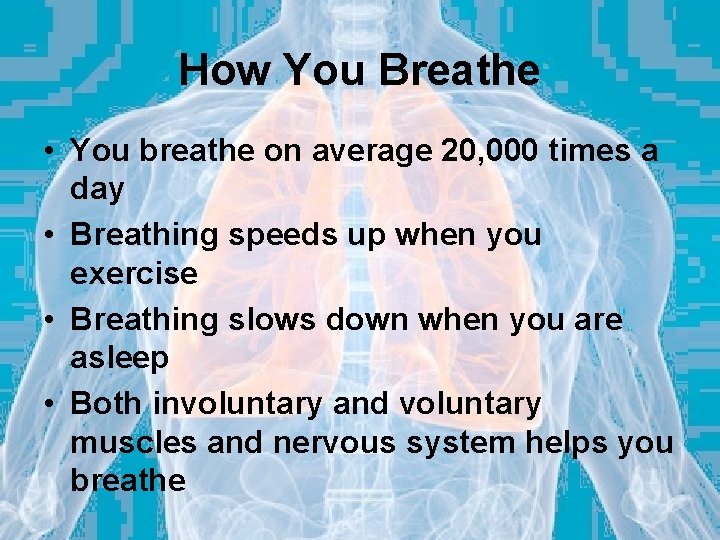

How You Breathe • You breathe on average 20, 000 times a day • Breathing speeds up when you exercise • Breathing slows down when you are asleep • Both involuntary and voluntary muscles and nervous system helps you breathe

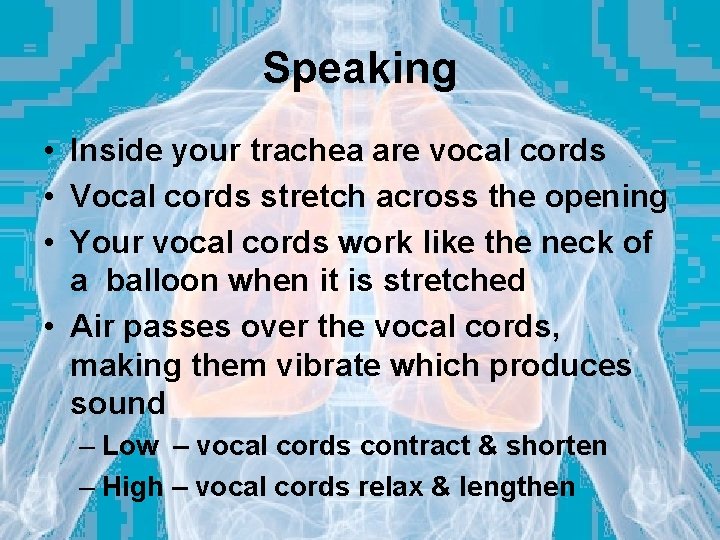

Speaking • Inside your trachea are vocal cords • Vocal cords stretch across the opening • Your vocal cords work like the neck of a balloon when it is stretched • Air passes over the vocal cords, making them vibrate which produces sound – Low – vocal cords contract & shorten – High – vocal cords relax & lengthen

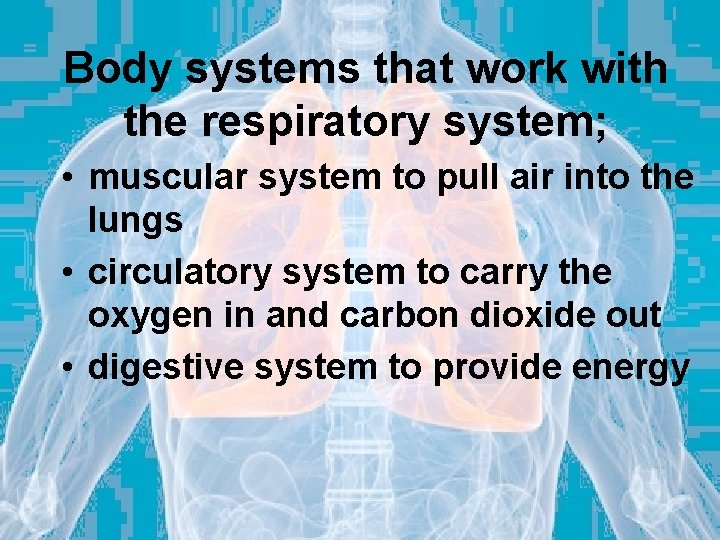

Body systems that work with the respiratory system; • muscular system to pull air into the lungs • circulatory system to carry the oxygen in and carbon dioxide out • digestive system to provide energy
