The Relationship between Tibial IR ROM and Knee

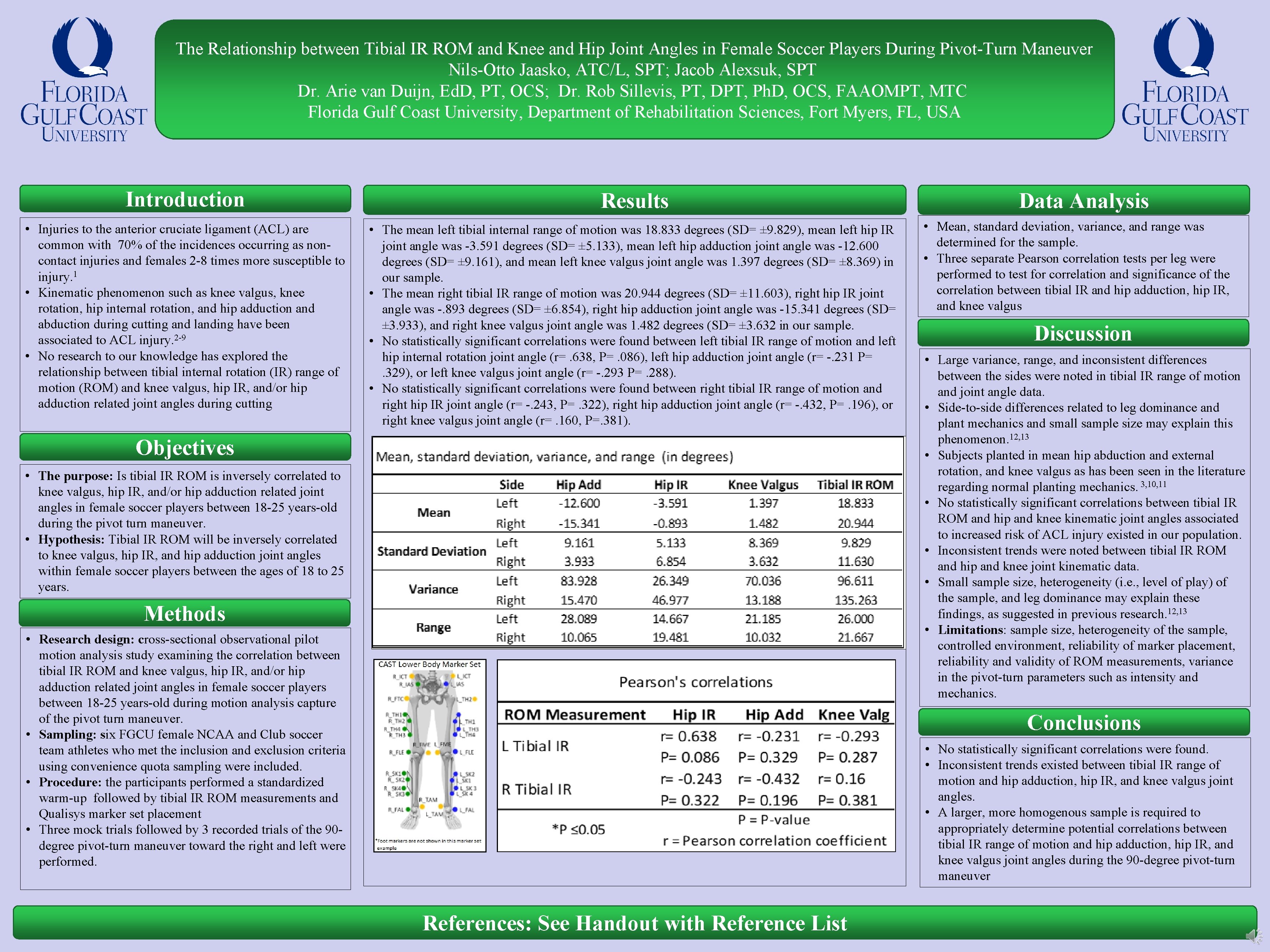

The Relationship between Tibial IR ROM and Knee and Hip Joint Angles in Female Soccer Players During Pivot-Turn Maneuver Nils-Otto Jaasko, ATC/L, SPT; Jacob Alexsuk, SPT Dr. Arie van Duijn, Ed. D, PT, OCS; Dr. Rob Sillevis, PT, DPT, Ph. D, OCS, FAAOMPT, MTC Florida Gulf Coast University, Department of Rehabilitation Sciences, Fort Myers, FL, USA Introduction Results • Injuries to the anterior cruciate ligament (ACL) are common with 70% of the incidences occurring as noncontact injuries and females 2 -8 times more susceptible to injury. 1 • Kinematic phenomenon such as knee valgus, knee rotation, hip internal rotation, and hip adduction and abduction during cutting and landing have been associated to ACL injury. 2 -9 • No research to our knowledge has explored the relationship between tibial internal rotation (IR) range of motion (ROM) and knee valgus, hip IR, and/or hip adduction related joint angles during cutting • The mean left tibial internal range of motion was 18. 833 degrees (SD= ± 9. 829), mean left hip IR joint angle was -3. 591 degrees (SD= ± 5. 133), mean left hip adduction joint angle was -12. 600 degrees (SD= ± 9. 161), and mean left knee valgus joint angle was 1. 397 degrees (SD= ± 8. 369) in our sample. • The mean right tibial IR range of motion was 20. 944 degrees (SD= ± 11. 603), right hip IR joint angle was -. 893 degrees (SD= ± 6. 854), right hip adduction joint angle was -15. 341 degrees (SD= ± 3. 933), and right knee valgus joint angle was 1. 482 degrees (SD= ± 3. 632 in our sample. • No statistically significant correlations were found between left tibial IR range of motion and left hip internal rotation joint angle (r=. 638, P=. 086), left hip adduction joint angle (r= -. 231 P=. 329), or left knee valgus joint angle (r= -. 293 P=. 288). • No statistically significant correlations were found between right tibial IR range of motion and right hip IR joint angle (r= -. 243, P=. 322), right hip adduction joint angle (r= -. 432, P=. 196), or right knee valgus joint angle (r=. 160, P=. 381). Objectives • The purpose: Is tibial IR ROM is inversely correlated to knee valgus, hip IR, and/or hip adduction related joint angles in female soccer players between 18 -25 years-old during the pivot turn maneuver. • Hypothesis: Tibial IR ROM will be inversely correlated to knee valgus, hip IR, and hip adduction joint angles within female soccer players between the ages of 18 to 25 years. Methods • Research design: cross-sectional observational pilot motion analysis study examining the correlation between tibial IR ROM and knee valgus, hip IR, and/or hip adduction related joint angles in female soccer players between 18 -25 years-old during motion analysis capture of the pivot turn maneuver. • Sampling: six FGCU female NCAA and Club soccer team athletes who met the inclusion and exclusion criteria using convenience quota sampling were included. • Procedure: the participants performed a standardized warm-up followed by tibial IR ROM measurements and Qualisys marker set placement • Three mock trials followed by 3 recorded trials of the 90 degree pivot-turn maneuver toward the right and left were performed. Data Analysis • Mean, standard deviation, variance, and range was determined for the sample. • Three separate Pearson correlation tests per leg were performed to test for correlation and significance of the correlation between tibial IR and hip adduction, hip IR, and knee valgus Discussion • Large variance, range, and inconsistent differences between the sides were noted in tibial IR range of motion and joint angle data. • Side-to-side differences related to leg dominance and plant mechanics and small sample size may explain this phenomenon. 12, 13 • Subjects planted in mean hip abduction and external rotation, and knee valgus as has been seen in the literature regarding normal planting mechanics. 3, 10, 11 • No statistically significant correlations between tibial IR ROM and hip and knee kinematic joint angles associated to increased risk of ACL injury existed in our population. • Inconsistent trends were noted between tibial IR ROM and hip and knee joint kinematic data. • Small sample size, heterogeneity (i. e. , level of play) of the sample, and leg dominance may explain these findings, as suggested in previous research. 12, 13 • Limitations: sample size, heterogeneity of the sample, controlled environment, reliability of marker placement, reliability and validity of ROM measurements, variance in the pivot-turn parameters such as intensity and mechanics. Conclusions • No statistically significant correlations were found. • Inconsistent trends existed between tibial IR range of motion and hip adduction, hip IR, and knee valgus joint angles. • A larger, more homogenous sample is required to appropriately determine potential correlations between tibial IR range of motion and hip adduction, hip IR, and knee valgus joint angles during the 90 -degree pivot-turn maneuver References: See Handout with Reference List

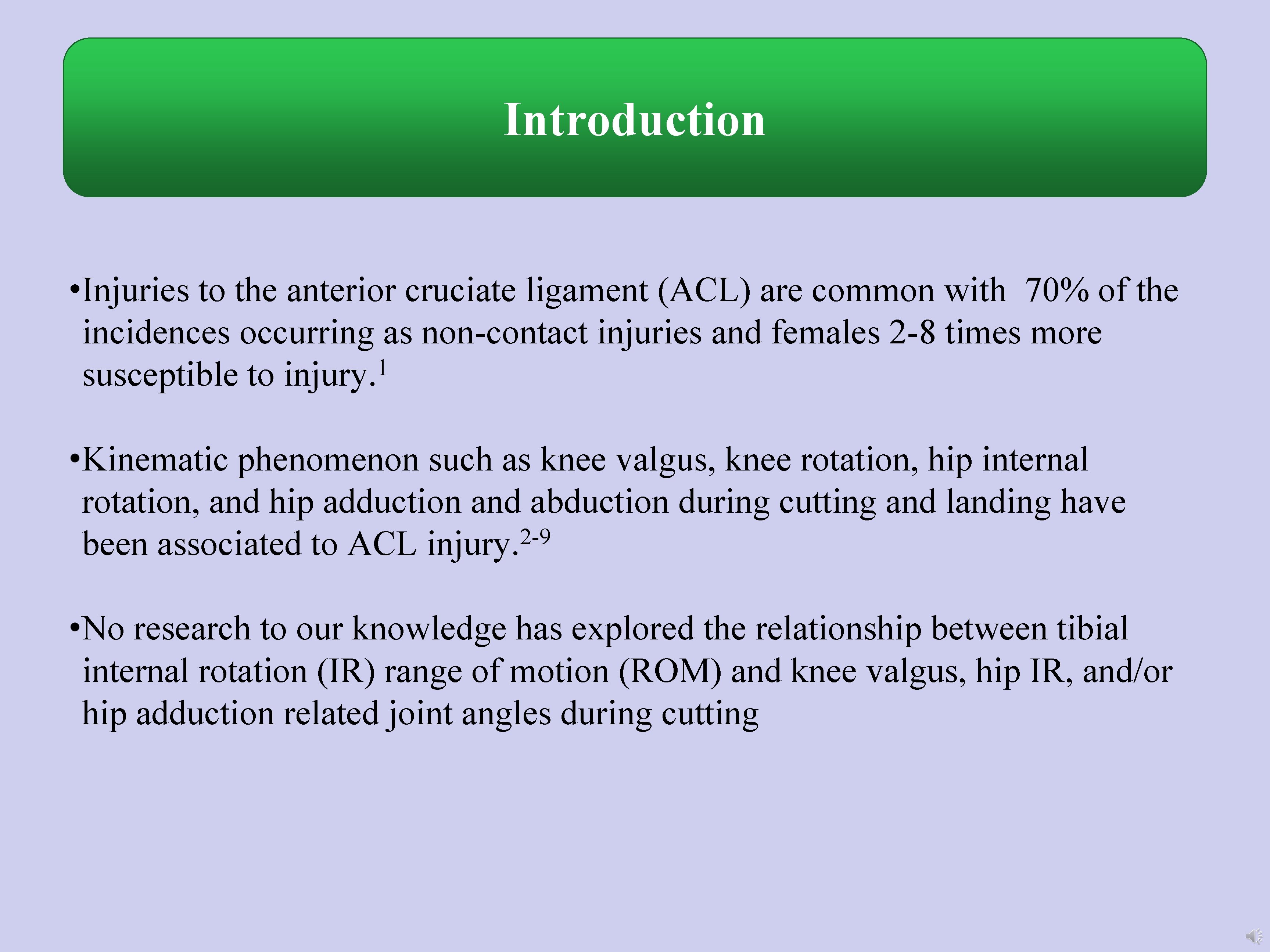

Introduction • Injuries to the anterior cruciate ligament (ACL) are common with 70% of the incidences occurring as non-contact injuries and females 2 -8 times more 1 susceptible to injury. • Kinematic phenomenon such as knee valgus, knee rotation, hip internal rotation, and hip adduction and abduction during cutting and landing have 2 -9 been associated to ACL injury. • No research to our knowledge has explored the relationship between tibial internal rotation (IR) range of motion (ROM) and knee valgus, hip IR, and/or hip adduction related joint angles during cutting

Objectives • The purpose: Is tibial IR ROM is inversely correlated to knee valgus, hip IR, and/or hip adduction related joint angles in female soccer players between 1825 years-old during the pivot turn maneuver. • Hypothesis: Tibial IR ROM will be inversely correlated to knee valgus, hip IR, and hip adduction joint angles within female soccer players between the ages of 18 to 25 years.

Methods • Research design: cross-sectional observational pilot motion analysis study examining the correlation between tibial IR ROM and knee valgus, hip IR, and/or hip adduction related joint angles in female soccer players between 1825 years-old during motion analysis capture of the pivot turn maneuver. • Sampling: six FGCU female NCAA and Club soccer team athletes who met the inclusion and exclusion criteria using convenience quota sampling were included. • Procedure: the participants performed a standardized warm-up followed by tibial IR ROM measurements and Qualisys marker set placement • Three mock trials followed by 3 recorded trials of the 90 -degree pivot-turn maneuver toward the right and left were performed.

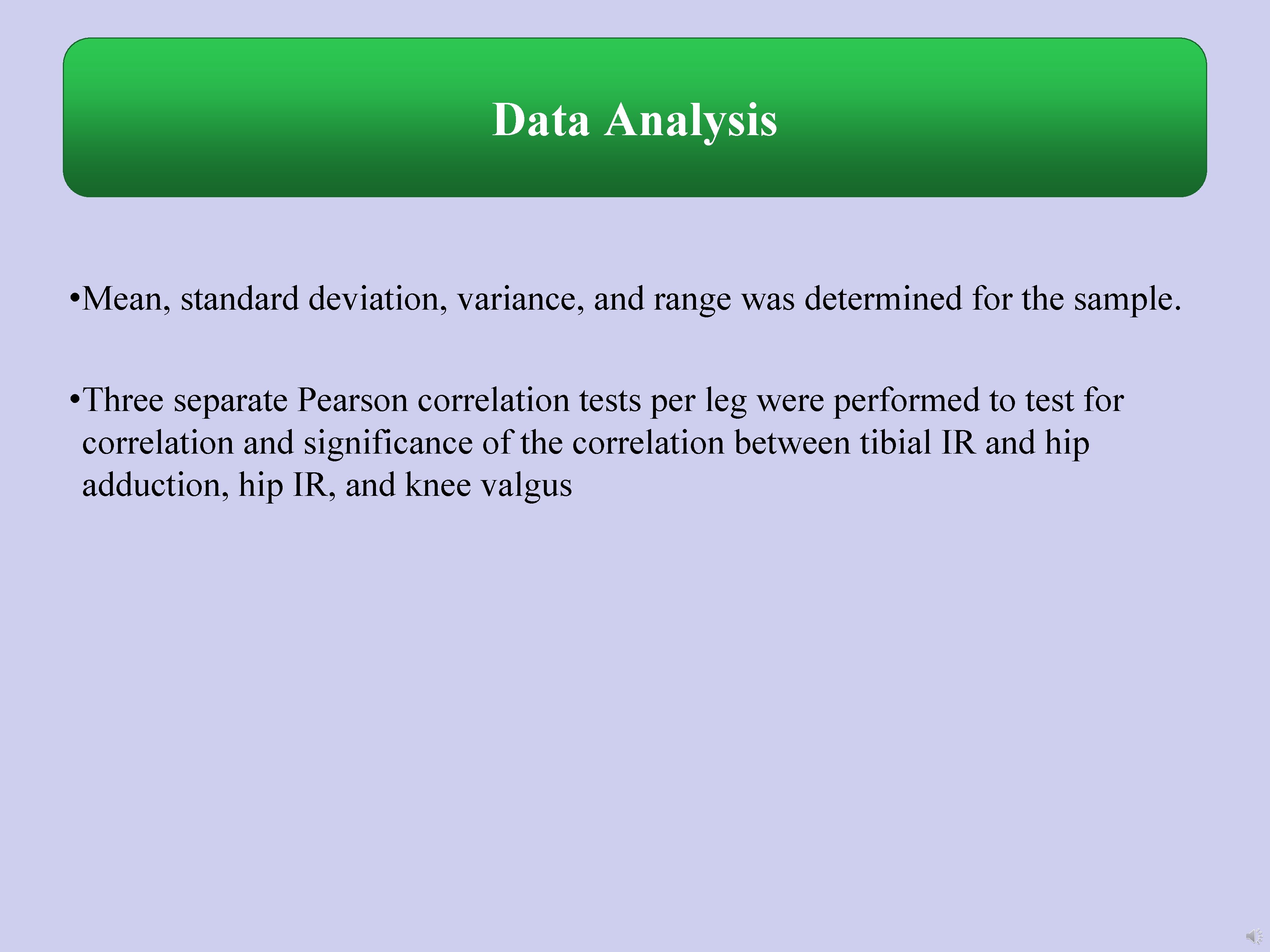

Data Analysis • Mean, standard deviation, variance, and range was determined for the sample. • Three separate Pearson correlation tests per leg were performed to test for correlation and significance of the correlation between tibial IR and hip adduction, hip IR, and knee valgus

Results • The mean left tibial internal range of motion was 18. 833 degrees (SD= ± 9. 829), mean left hip IR joint angle was -3. 591 degrees (SD= ± 5. 133), mean left hip adduction joint angle was -12. 600 degrees (SD= ± 9. 161), and mean left knee valgus joint angle was 1. 397 degrees (SD= ± 8. 369) in our sample. • The mean right tibial IR range of motion was 20. 944 degrees (SD= ± 11. 603), right hip IR joint angle was -. 893 degrees (SD= ± 6. 854), right hip adduction joint angle was -15. 341 degrees (SD= ± 3. 933), and right knee valgus joint angle was 1. 482 degrees (SD= ± 3. 632 in our sample. • No statistically significant correlations were found between left tibial IR range of motion and left hip internal rotation joint angle (r=. 638, P=. 086), left hip adduction joint angle (r= -. 231 P=. 329), or left knee valgus joint angle (r=. 293 P=. 288). • No statistically significant correlations were found between right tibial IR range of motion and right hip IR joint angle (r= -. 243, P=. 322), right hip adduction joint angle (r= -. 432, P=. 196), or right knee valgus joint angle (r=. 160, P=. 381).

Results- Cont’d

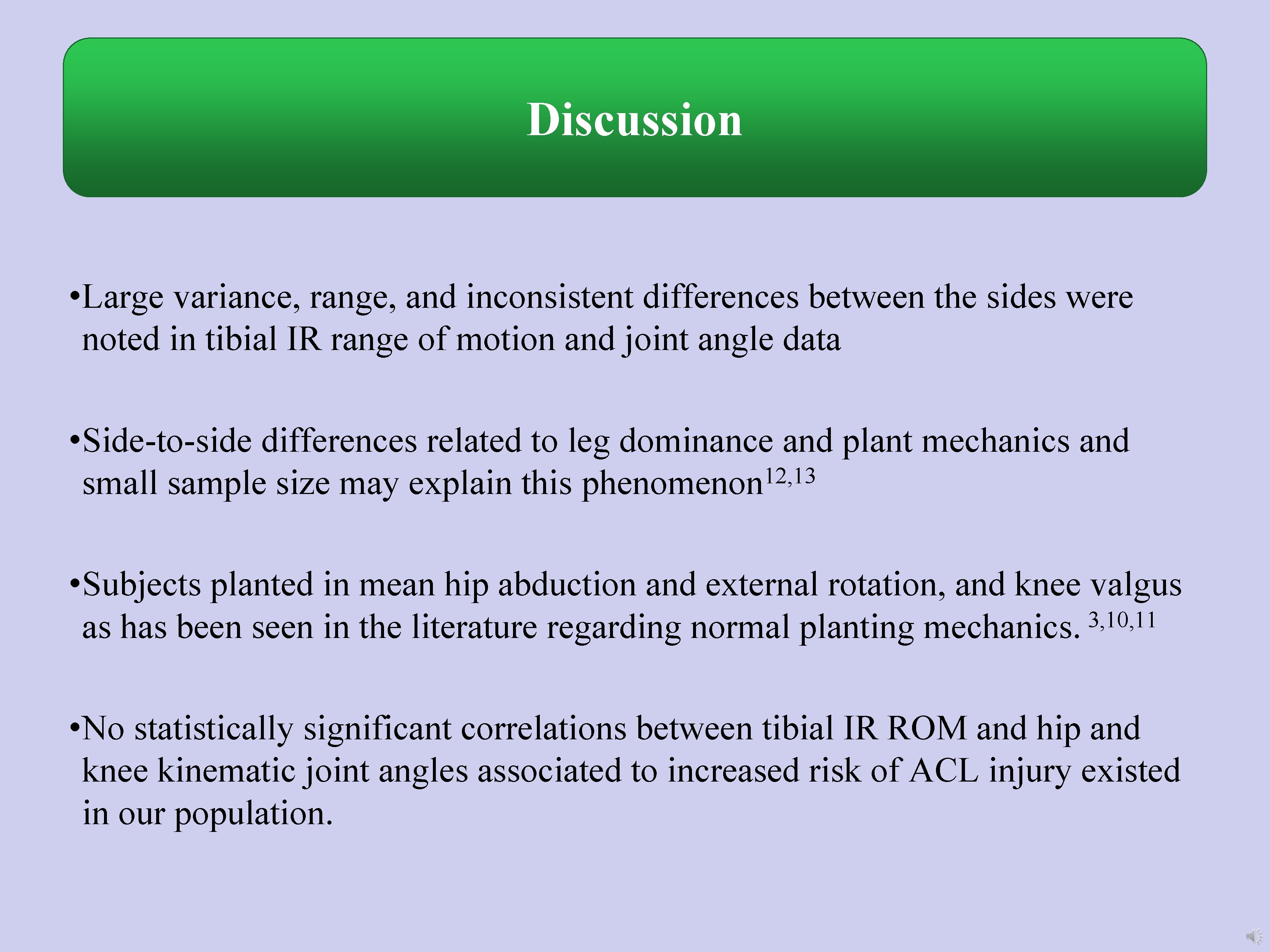

Discussion • Large variance, range, and inconsistent differences between the sides were noted in tibial IR range of motion and joint angle data • Side-to-side differences related to leg dominance and plant mechanics and 12, 13 small sample size may explain this phenomenon • Subjects planted in mean hip abduction and external rotation, and knee valgus 3, 10, 11 as has been seen in the literature regarding normal planting mechanics. • No statistically significant correlations between tibial IR ROM and hip and knee kinematic joint angles associated to increased risk of ACL injury existed in our population.

Discussion- Cont’d • Inconsistent trends were noted between tibial IR ROM and hip and knee joint kinematic data. • Small sample size, heterogeneity (i. e. , level of play) of the sample, and leg dominance 12, 13 may explain these findings, as suggested in previous research. • Limitations: sample size, heterogeneity of the sample, controlled environment, reliability of marker placement, reliability and validity of ROM measurements, variance in the pivot-turn parameters such as intensity and mechanics.

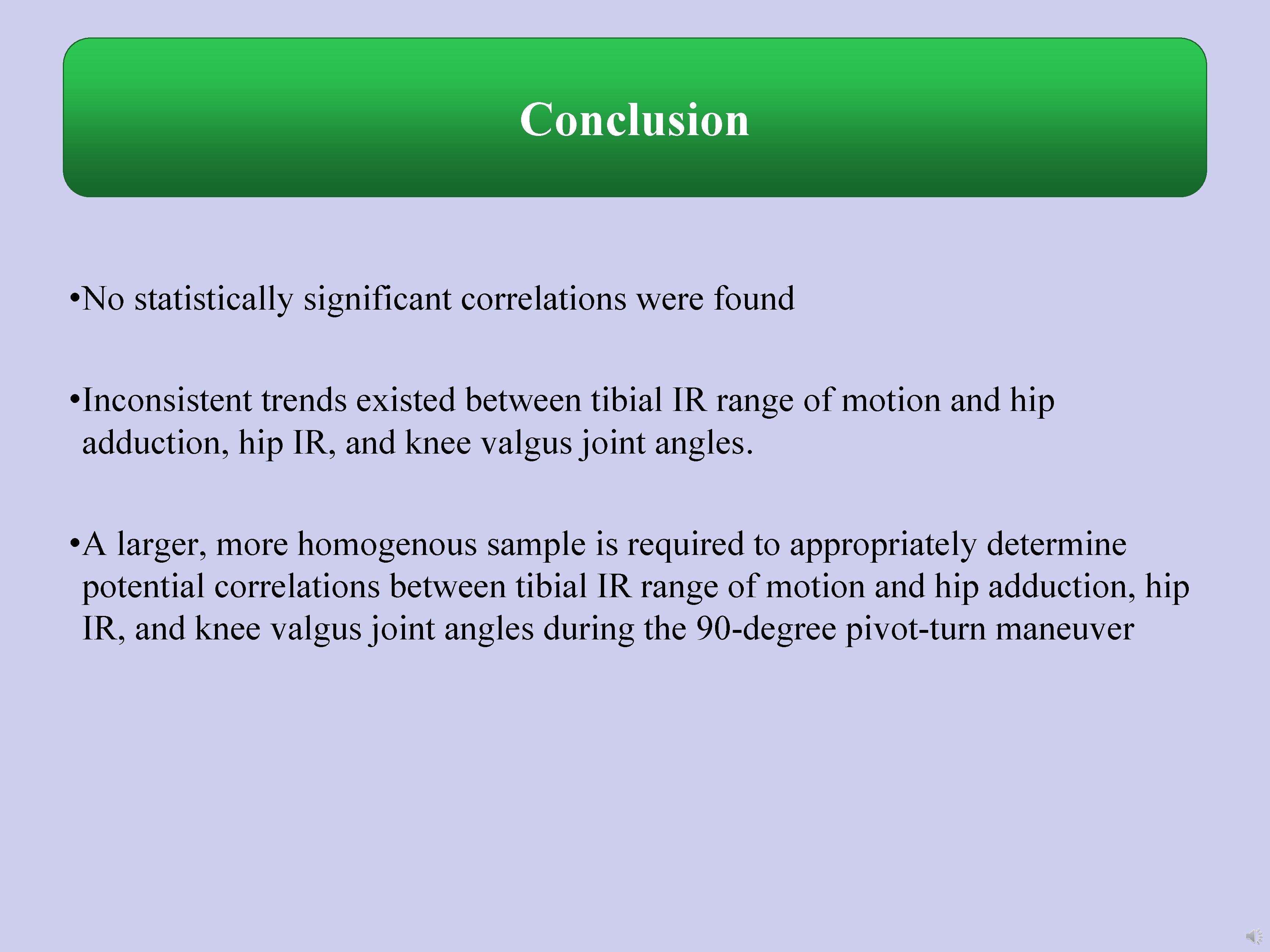

Conclusion • No statistically significant correlations were found • Inconsistent trends existed between tibial IR range of motion and hip adduction, hip IR, and knee valgus joint angles. • A larger, more homogenous sample is required to appropriately determine potential correlations between tibial IR range of motion and hip adduction, hip IR, and knee valgus joint angles during the 90 -degree pivot-turn maneuver

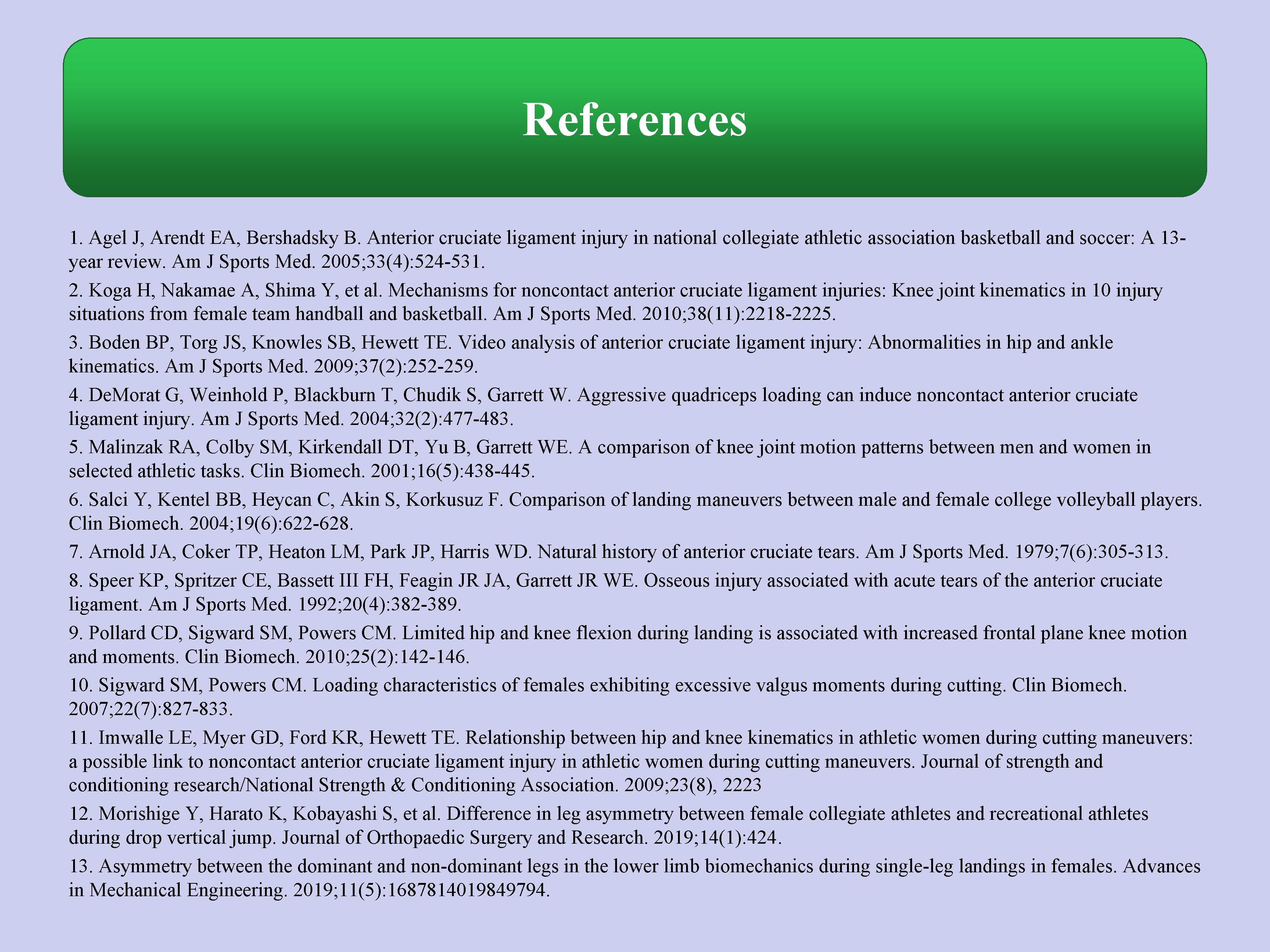

References 1. Agel J, Arendt EA, Bershadsky B. Anterior cruciate ligament injury in national collegiate athletic association basketball and soccer: A 13 year review. Am J Sports Med. 2005; 33(4): 524 -531. 2. Koga H, Nakamae A, Shima Y, et al. Mechanisms for noncontact anterior cruciate ligament injuries: Knee joint kinematics in 10 injury situations from female team handball and basketball. Am J Sports Med. 2010; 38(11): 2218 -2225. 3. Boden BP, Torg JS, Knowles SB, Hewett TE. Video analysis of anterior cruciate ligament injury: Abnormalities in hip and ankle kinematics. Am J Sports Med. 2009; 37(2): 252 -259. 4. De. Morat G, Weinhold P, Blackburn T, Chudik S, Garrett W. Aggressive quadriceps loading can induce noncontact anterior cruciate ligament injury. Am J Sports Med. 2004; 32(2): 477 -483. 5. Malinzak RA, Colby SM, Kirkendall DT, Yu B, Garrett WE. A comparison of knee joint motion patterns between men and women in selected athletic tasks. Clin Biomech. 2001; 16(5): 438 -445. 6. Salci Y, Kentel BB, Heycan C, Akin S, Korkusuz F. Comparison of landing maneuvers between male and female college volleyball players. Clin Biomech. 2004; 19(6): 622 -628. 7. Arnold JA, Coker TP, Heaton LM, Park JP, Harris WD. Natural history of anterior cruciate tears. Am J Sports Med. 1979; 7(6): 305 -313. 8. Speer KP, Spritzer CE, Bassett III FH, Feagin JR JA, Garrett JR WE. Osseous injury associated with acute tears of the anterior cruciate ligament. Am J Sports Med. 1992; 20(4): 382 -389. 9. Pollard CD, Sigward SM, Powers CM. Limited hip and knee flexion during landing is associated with increased frontal plane knee motion and moments. Clin Biomech. 2010; 25(2): 142 -146. 10. Sigward SM, Powers CM. Loading characteristics of females exhibiting excessive valgus moments during cutting. Clin Biomech. 2007; 22(7): 827 -833. 11. Imwalle LE, Myer GD, Ford KR, Hewett TE. Relationship between hip and knee kinematics in athletic women during cutting maneuvers: a possible link to noncontact anterior cruciate ligament injury in athletic women during cutting maneuvers. Journal of strength and conditioning research/National Strength & Conditioning Association. 2009; 23(8), 2223 12. Morishige Y, Harato K, Kobayashi S, et al. Difference in leg asymmetry between female collegiate athletes and recreational athletes during drop vertical jump. Journal of Orthopaedic Surgery and Research. 2019; 14(1): 424. 13. Asymmetry between the dominant and non-dominant legs in the lower limb biomechanics during single-leg landings in females. Advances in Mechanical Engineering. 2019; 11(5): 1687814019849794.
