The Relational Model • Mathematically based • Can develop theoretical design improvements & enhancements that result in applications to many different applications • Can use exact mathematical notation • Basic structure is simple, easy to understand – Separates logical from physical level – Operations do not require user to know storage structures used – Data operations easy to express, using a few powerful commands 2

Tables • Relations are represented logically as tables – Tables are related to one another – Table holds information about entities • Table rows correspond to individual records • Table columns correspond to attributes – A column contains values from one domain – Domains consist of atomic (single) values 3

Properties of Tables • Each cell contains at most one value – It is a single piece of data • Each column has a distinct name – This is the name of the attribute it represents • Values in a column all come from the same domain • Each tuple is distinct – no duplicate tuples 4

Sample: ER to Relational Model Enrolls STUDENT Taught by CLASS Student Enroll Class stu. Id last. Name first. Name major credits stu. Id S 1001 Smith Tom History 90 S 1001 ART 103 A A S 1002 Chin Ann Math 36 S 1001 HST 205 A C S 1005 Lee Perry History 3 S 1002 ART 103 A D S 1010 Burns Edward Art 63 S 1002 CSC 201 A F S 1013 Mc. Carthy Owen Math 0 S 1002 MTH 103 C B S 1015 Jones Mary Math 42 S 1010 S 1020 Rivera Jane CSC 15 Faculty fac. Id name department rank F 101 Adams Art Professo r F 105 Tanak a CSC Instructo r F 110 Byrne Math Assistan t F 115 Smith History Associat e F 221 Smith CSC Professo class. Num FACULTY grade class. Num fac. Id schedule room ART 103 A F 101 MWF 9 H 221 CSC 201 A F 105 Tu. Th. F 10 M 110 CSC 203 A F 105 MTh. F 12 M 110 HST 205 A F 115 MWF 11 H 221 ART 103 A MTH 101 B F 110 MTu. Th 9 H 225 S 1010 MTH 103 C F 110 MWF 11 H 225 S 1020 CSC 201 A B S 1020 MTH 101 B A Student (stu. Id, last. Name, first. Name, major, credits) Class (class. Num, fac. Id, schedule, room) Faculty (fac. Id, name, department, rank) Enroll(stu. Id, class. Num, grade) 5

Representing Relational Database Schemas • Can have any number of relation schemas • Example: University database schema Student (stu. Id, last. Name, first. Name, major, credits) Class (class. Number, fac. Id, schedule, room) Faculty (fac. Id, name, department, rank) Enroll(stu. Id, class. Number, grade) • This could also be represented by the relationships screen of the DBMS. 6

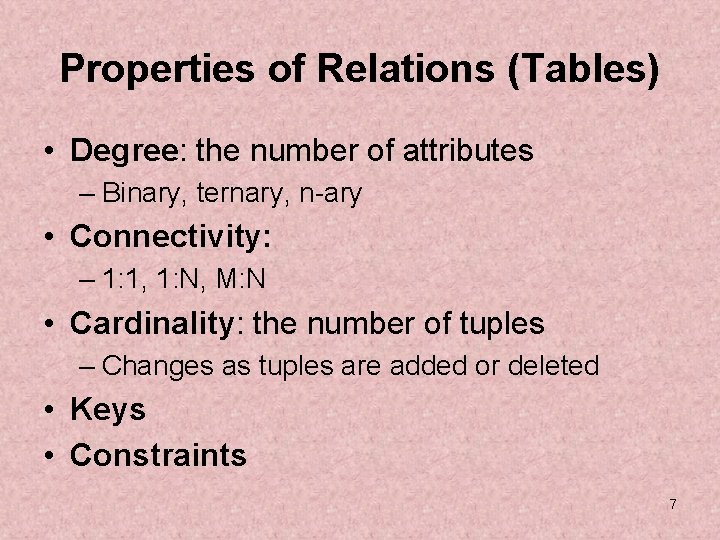

Properties of Relations (Tables) • Degree: the number of attributes – Binary, ternary, n-ary • Connectivity: – 1: 1, 1: N, M: N • Cardinality: the number of tuples – Changes as tuples are added or deleted • Keys • Constraints 7

Keys • Relations never have duplicate tuples (rows) – You can always tell tuples apart / there is always a key • Superkey: set of attributes that uniquely identifies tuples • Candidate key: minimal superkey – No proper subset of itself is also a superkey • Primary key (PK): candidate key chosen to uniquely identify tuples – You cannot verify a key by looking at an instance – why? • Foreign key (FK) is an attribute or combination of attributes of a relation that is the PK of another relation 8

Selecting the Primary Key • An ideal primary key is short, numeric, and seldom changing • If there is more than one candidate key, each should be carefully evaluated • If the entity has no identifier, some attribute must be selected as the PK – In some situations, a surrogate key may be defined 9

Surrogate Keys • These are unique, DBMS-supplied identifiers used as the PK of a relation • The values of a surrogate key have no meaning to users and are normally hidden on forms and reports • The DBMS does not allow the value of a surrogate key to be changed • Disadvantages: – FK’s based on surrogate keys have no meaning to users – When data shared among different databases contain the same ID, merging those tables might yield unexpected results 10

Constraints • Integrity constraints – to ensure “correctness and internal consistency” – Rules or restrictions that apply to all instances of the database – Enforcing them ensures only legal states of the database are created • Types of integrity constraints – Domain constraint - limits set of values for an attribute – Entity integrity - no part of a PK can be null – Referential integrity - each FK value must match the primary key value of some tuple in its related relation, or be null • General constraints are the business rules – These may be expressed as table constraints or assertions • Participation constraints reflect the extent of entities’ involvement in given relationships 11

The Database Implementation Process • This is the step in the database design process that follows the conceptual design/ERD – Create tables and columns from entities and attributes – Select primary keys – Represent relationships – Specify constraints – Performance tuning 12

Mapping the ERD to a Relational Model • Entities – Issues with composite & multi-valued attributes – Issues with weak entities • Relationships – 1: 1, 1: N and M: N – Participation constraints 13

Mapping an Entity to a Table • Each entity maps onto a table – Its non-composite, single-valued attributes comprise the table’s column headings – For composite attributes, there are 3 possible ways: • Make the composite into a single attribute • Create several individual attributes to replace the composite • Create a new entity – For multi-valued attributes, we create a new table • The PK of this new table is the composite of the original attribute coupled with the PK of the original table • This new table is created as a weak entity – Example: multiple email accounts 14

Mapping a Relationship • Binary Relationships: – 1: M • PK of 1 -side becomes a FK of the M-side table – 1: 1 • First, make sure they are not the same entity. If not, use either PK as the FK in the other table – M: M • Create a relationship table (bridge, composite) with a composite PK consisting of the PK’s of the related entities, along with any relationship attributes • Ternary or higher degree relationships: construct relationship table of keys, along with any relationship attributes • With all relationships, we must preserve referential integrity, participation & cardinality constraints 15

1: 1 Relationship EMPLOYEE 1 Has 1 AUTO 16

1: N Relationship 1 FACULTY N Teaches CLASS Class Faculty fac. Id name department rank F 101 Adams Art Professo r class. Num fac. Id schedule room ART 103 A F 101 MWF 9 H 221 CSC 201 A F 105 Tu. Th. F 10 M 110 F 105 Tanak a CSC Instructo r CSC 203 A F 105 MTh. F 12 M 110 F 110 Byrne Math Assistan t HST 205 A F 115 MWF 11 H 221 F 115 Smith History Associat e MTH 101 B F 110 MTu. Th 9 H 225 F 221 Smith CSC Professo r MTH 103 C F 110 MWF 11 H 225 17

M: N Relationship Enrolls STUDENT CLASS Student Enroll class. Num Class stu. Id last. Name first. Name major credits stu. Id grade S 1001 Smith Tom History 90 S 1001 ART 103 A A S 1002 Chin Ann Math 36 S 1001 HST 205 A C S 1005 Lee Perry History 3 S 1002 ART 103 A D S 1010 Burns Edward Art 63 S 1002 CSC 201 A F S 1013 Mc. Carthy Owen Math 0 S 1002 MTH 103 C B S 1015 Jones Mary Math 42 S 1010 S 1020 Rivera Jane CSC 15 class. Num fac. Id schedule room ART 103 A F 101 MWF 9 H 221 CSC 201 A F 105 Tu. Th. F 10 M 110 CSC 203 A F 105 MTh. F 12 M 110 HST 205 A F 115 MWF 11 H 221 ART 103 A MTH 101 B F 110 MTu. Th 9 H 225 S 1010 MTH 103 C F 110 MWF 11 H 225 S 1020 CSC 201 A B S 1020 MTH 101 B A Student (stu. Id, last. Name, first. Name, major, credits) Enroll(stu. Id, class. Num, grade) Class (class. Num, fac. Id, schedule, room) 18

Weak entities • Weak entities become tables by adding the PK of the parent (strong) entity – What is the primary key in such a table? • What about the total participation (and existence dependence) constraint? – What do we need to ensure? – How do we do this? 19

RDBMS Rules Regarding FK’s • Choices made when relationships are established between tables – Cascade deletes • If parent instance is deleted, so are all its children – Restrict deletes • Cannot delete a parent instance if it has a child – Set to NULL • If parent instance is deleted, set the FK of the child to NULL – Cascade updates • If parent instance gets new PK, change the FK of all its children 20

Total participation • Referential integrity actions need to be specified to ensure that – When the parent entity instance is deleted, the weak entity instance is deleted as well – Each new weak entity instance must have a parent instance with which to connect • Other participation situations also require careful attention. – They must be reasoned out. 21

Weak Entity Example 22

Enforcing Minimum Cardinality • If the minimum cardinality on the child is 1, at least one child row must be connected to the parent • A required parent can be specified by making the foreign key value NOT NULL • A required child can be represented by creating update and delete referential integrity actions on the child and insert referential integrity actions on the parent • Such referential integrity actions must be declared during database design and trigger codes must be written during implementation 23

Subtype Relationship 24

Entity Supertypes and Subtypes • Generalization hierarchy – Depicts a relationship between a higherlevel supertype entity and a lower-level subtype entity • Supertype entity – Contains shared attributes • Subtype entity – Contains unique attributes 25

Nulls Created with No Supertypes/Subtypes 26

A Generalization Hierarchy 27

Disjoint Subtypes • Also known as non-overlapping subtypes – Subtypes that contain a subset of the supertype entity set – Each entity instance (row) of the supertype can appear in only one of the disjoint subtypes • Supertype and its subtype(s) maintain a 1: 1 relationship – So, how is it implemented in an rdbms? 28

EMPLOYEE/PILOT Supertype/Subtype Relationship 29

A Generalization Hierarchy with Overlapping Subtypes 30

Recursive Relationships • A recursive relationship is a relationship among entities of the same class • For 1: 1 and 1: N recursive relationships, add a foreign key to the relation that represents the entity 31

1: 1 Recursive Relationships 32

1: N Recursive Relationships 33

Some issues with conceptual design using the ER model • Design choices: – – – • Should a concept be modeled as an entity or an attribute? Should a concept be modeled as an entity or a relationship? Identifying relationships: Binary or ternary? When to allow NULL values? How should privacy concerns/sensitive data collection be handled? Constraints in the ER Model: – – A lot of data semantics can (and should) be captured. But some constraints cannot be captured in ER diagrams. 34

Entity vs. Attribute • Should address be an attribute of EMPLOYEE or an entity (connected to EMPLOYEE by a relationship)? • Depends upon the use we want to make of address data, and the semantics of the data: – If we have several addresses per employee, address must be an entity – If the structure (city, street, etc. ) is important, e. g. , we want to retrieve employees in a given city, address can be modeled as an entity or as several attributes 35

Entity vs. Attribute example • Works_In does not allow an employee to work in a department for two or more periods. • Similar to the problem of wanting to record several addresses for an employee: We want to record several values of the descriptive attributes for each instance of this relationship. • Accomplished by introducing new entity set, Duration. eid to from name lot did Works_In Employees eid name dname lot Employees from budget Departments did Works_In Duration dname budget Departments to 36

Entity vs. Relationship since name • First ER diagram OK if a manager gets a separate discretionary budget for each dept. eid dbudget lot Employee did dname budget Department Manages name • What if a manager gets a discretionary budget that covers all managed depts? Could also be a supertyp e eid lot since Employee Is a Manager Manages dname did budget Department dbudget 37

Binary vs. Ternary Relationships eid name Employee What are the differences between these two diagrams? Covers Design 1 eid age Dependent Policy policyid name pname lot cost pname lot age Dependent Employee Purchaser Beneficiary Design 2 Policy policyid cost 38

Binary vs. Ternary Relationships • An example where a ternary relation is required – Contracts relates entity sets PART, DEPT and SUPPLIER, and has attribute qty. • No combination of binary relationships is an adequate substitute: • S “can-supply” P, D “needs” P, and D “deals-with” S does not imply that D has agreed to buy P from S. • And, furthermore, how would we record qty? 39

Null values • A null value is an attribute value that has not been supplied • Null values are ambiguous as they can mean – The value is unknown – The value is inappropriate – The value is known to be blank • Inappropriate nulls can be avoided by – Defining subtype or category entities – Forcing attribute values through the use of not null – Supplying initial values • Ignore nulls if the ambiguity is not a problem to the users 40
