The Refraction of Light 1 Lesson 7 November 16 th, 2010

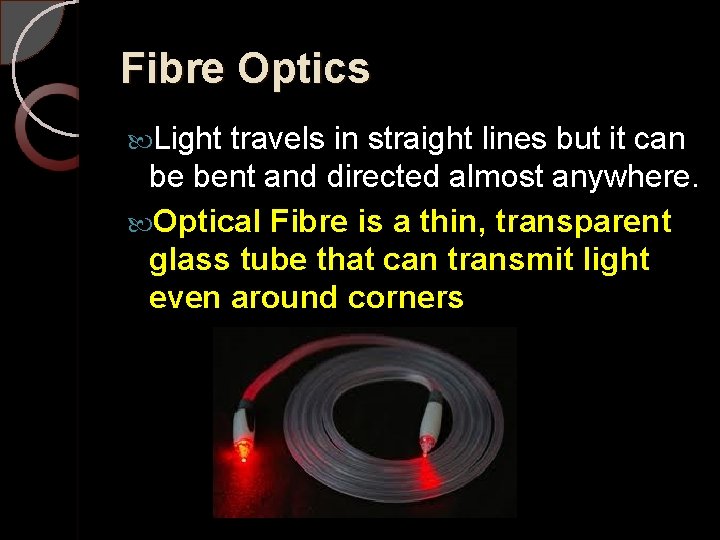

Fibre Optics Light travels in straight lines but it can be bent and directed almost anywhere. Optical Fibre is a thin, transparent glass tube that can transmit light even around corners

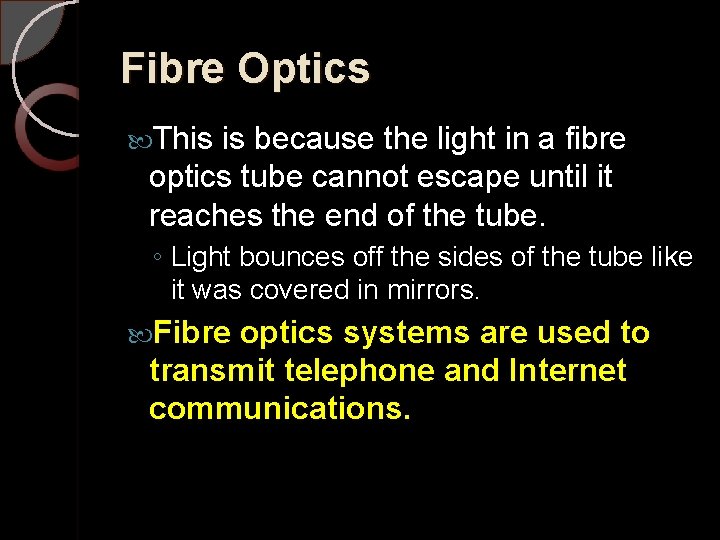

Fibre Optics This is because the light in a fibre optics tube cannot escape until it reaches the end of the tube. ◦ Light bounces off the sides of the tube like it was covered in mirrors. Fibre optics systems are used to transmit telephone and Internet communications.

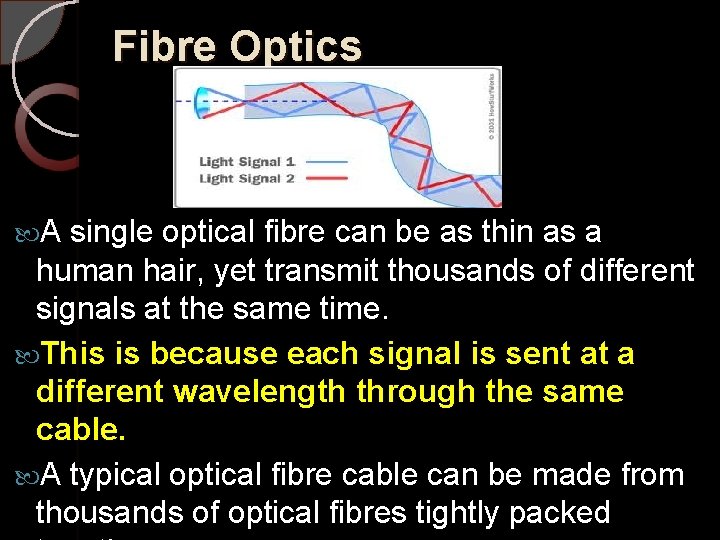

Fibre Optics A single optical fibre can be as thin as a human hair, yet transmit thousands of different signals at the same time. This is because each signal is sent at a different wavelength through the same cable. A typical optical fibre cable can be made from thousands of optical fibres tightly packed

$Refraction Light normally travels in straight lines, it when it passes from one medium$

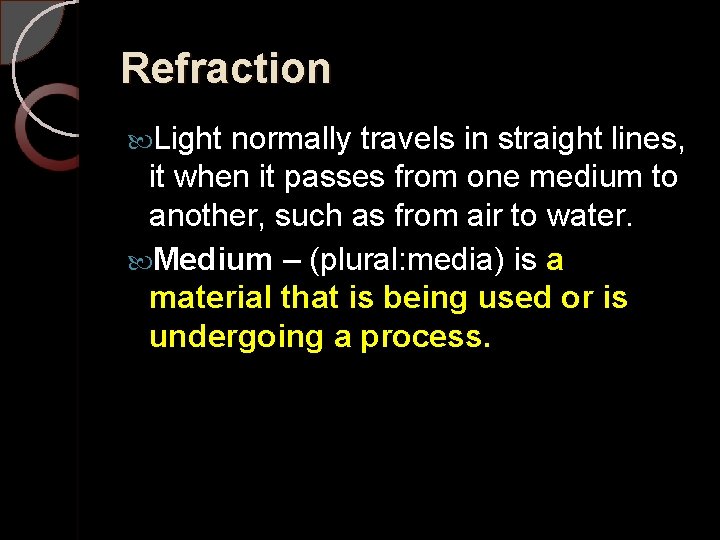

Refraction Light normally travels in straight lines, it when it passes from one medium to another, such as from air to water. Medium – (plural: media) is a material that is being used or is undergoing a process.

$Refraction The bending of light rays as they pass between two different media is$

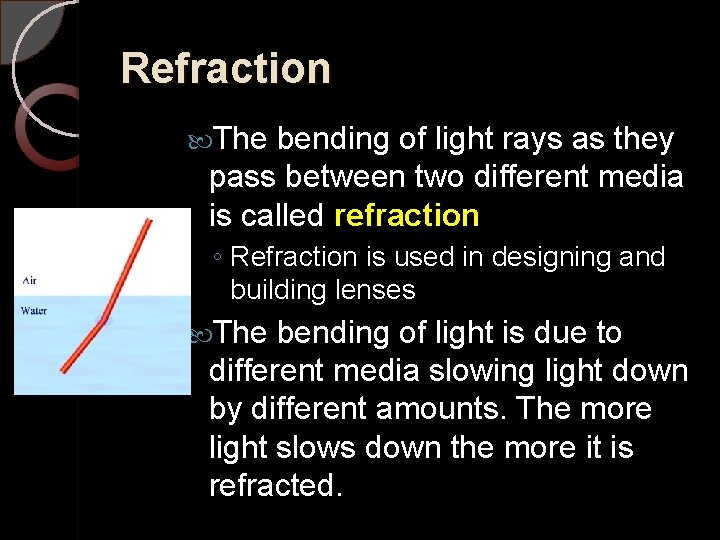

Refraction The bending of light rays as they pass between two different media is called refraction ◦ Refraction is used in designing and building lenses The bending of light is due to different media slowing light down by different amounts. The more light slows down the more it is refracted.

$Refraction This effect is commonly seen when looking at something in the water. It$

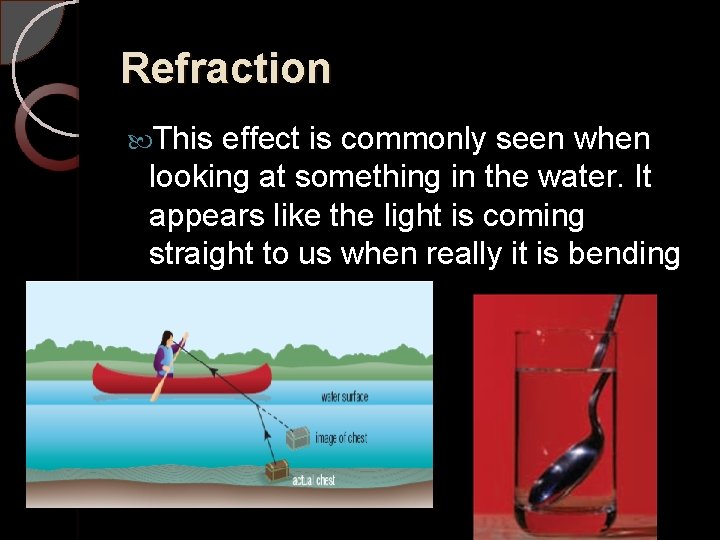

Refraction This effect is commonly seen when looking at something in the water. It appears like the light is coming straight to us when really it is bending

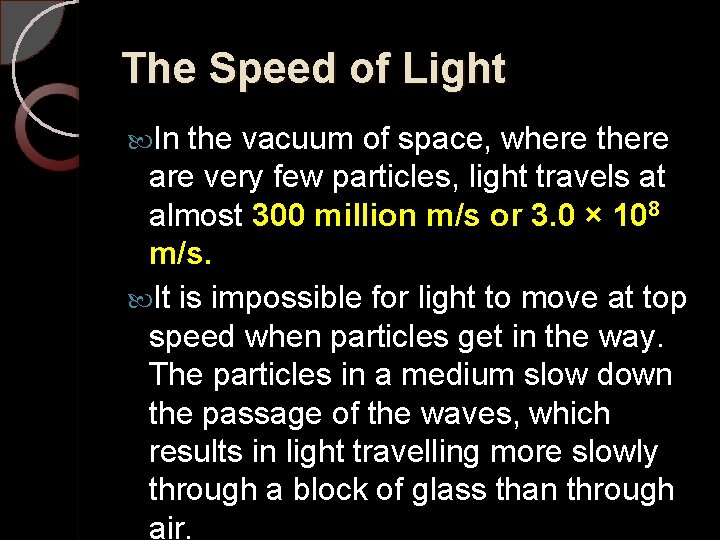

The Speed of Light In the vacuum of space, where there are very few particles, light travels at almost 300 million m/s or 3. 0 × 108 m/s. It is impossible for light to move at top speed when particles get in the way. The particles in a medium slow down the passage of the waves, which results in light travelling more slowly through a block of glass than through air.

The Speed of Light Example: The light ray strikes the Plexiglas at an angle. (a). As the light enters the Plexiglas, it slows down and refracts (b). When the light leaves the Plexiglas and enters the air, it speeds up and refracts again

$The Speed of Light Notice that light does not refract inside the block. Light$

The Speed of Light Notice that light does not refract inside the block. Light refracts only at the boundary when it is entering or leaving a medium. The angle of refraction entering the block is exactly reversed as the light leaves the block

$The Index of Refraction The amount by which a transparent medium decreases the speed$

The Index of Refraction The amount by which a transparent medium decreases the speed of light is indicated by a number called the index of refraction, also called the refractive index. The larger the refractive index, the more the medium decreases the speed of light.

$The Index of Refraction Light travels fastest in a vacuum. The refractive index of$

The Index of Refraction Light travels fastest in a vacuum. The refractive index of the speed of light in a vacuum is assigned a value of 1. 00. A value of 1. 00 can also be used for air in this class as the fourth decimal place does not affect our calculations. The refractive index of a medium, n, is determined by comparing the speed of light in the medium, v, with the speed of light in a vacuum, c.

$The Index of Refraction Since units cancel, a refractive index value does not have$

The Index of Refraction Since units cancel, a refractive index value does not have any units. Index of refraction of Material = Speed of light in vacuum Speed of light in medium OR n=c v

$Index of Refraction Values Media Vacuum Air CO 2 gas Water Alcohol Pyrex glass$

Index of Refraction Values Media Vacuum Air CO 2 gas Water Alcohol Pyrex glass Plexiglas Table Salt Flint glass Sapphire Cubic Zirconia Diamond Gallium phosphide Index of refraction 1. 00 (exactly) 1. 0003 1. 0005 1. 33 1. 36 1. 47 1. 49 1. 51 1. 61 1. 77 2. 16 2. 42 3. 50

Example Problem 1 The speed of light in a sample of glass is 1. 91 × 108 m/s. The speed of light in a vacuum is 3. 00 × 108 m/s. What is the refractive index of this G Speed ofglass? light in glass = 1. 91 S n = 3. 00 x 108 m/s = × 108 m/s Speed of light in vacuum = 3. 00 × 108 m/s R Refractive index n = ? A n= c v 1. 91 x 108 = 1. 57 m/s P Therefore, the index of refraction is 1. 57

Example Problem 2 What is the speed of light in water given that water has a reflective index of 1. 33? G Refractive index of water n S v = 3. 00 x 108 m/s = 1. 33 Speed of light in vacuum c = 2. 26 × 108 m/s = 3. 00 × 108 m/s R Speed of light in water v = P Therefore, the speed of light in water is ? 8 m/s. 2. 26 × 10 An= c v=c v n

$How Light Refracts As light enters a slower medium, the light waves are compressed.$

How Light Refracts As light enters a slower medium, the light waves are compressed. If light strikes a medium at an angle, the part of the light wave that enters the medium first will slow down first.

Example

$How Light Refracts The angles of the refracted light rays are usually measured from$

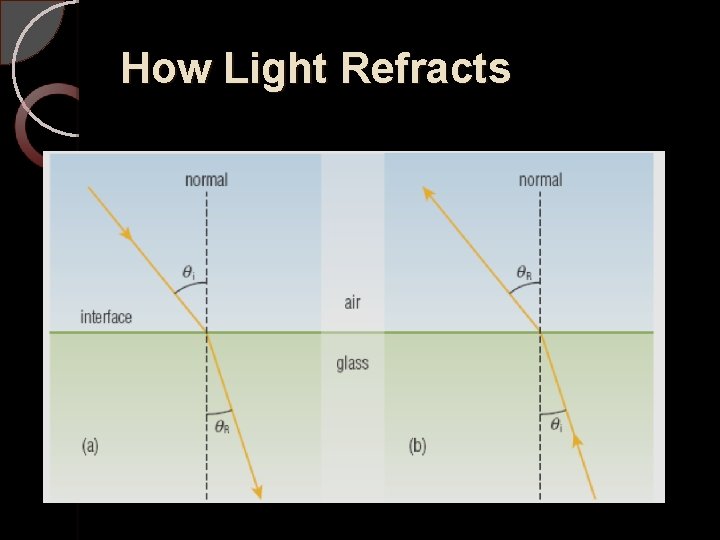

How Light Refracts The angles of the refracted light rays are usually measured from the normal, drawn at 90° to the surface where the light ray crosses between the two media

$How Light Refracts When light travels from air, with a low refractive index, into$

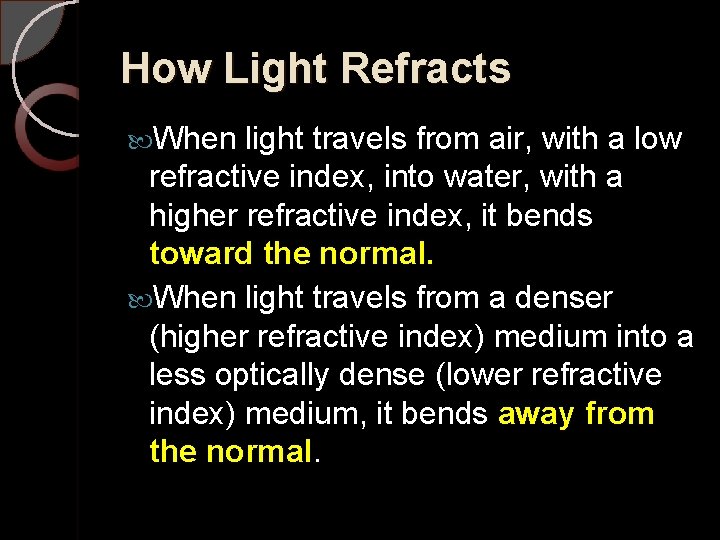

How Light Refracts When light travels from air, with a low refractive index, into water, with a higher refractive index, it bends toward the normal. When light travels from a denser (higher refractive index) medium into a less optically dense (lower refractive index) medium, it bends away from the normal.

$How Light Refracts$

How Light Refracts

$Dispersion The refraction of white light into separate wavelengths, or colours. A diamond can$

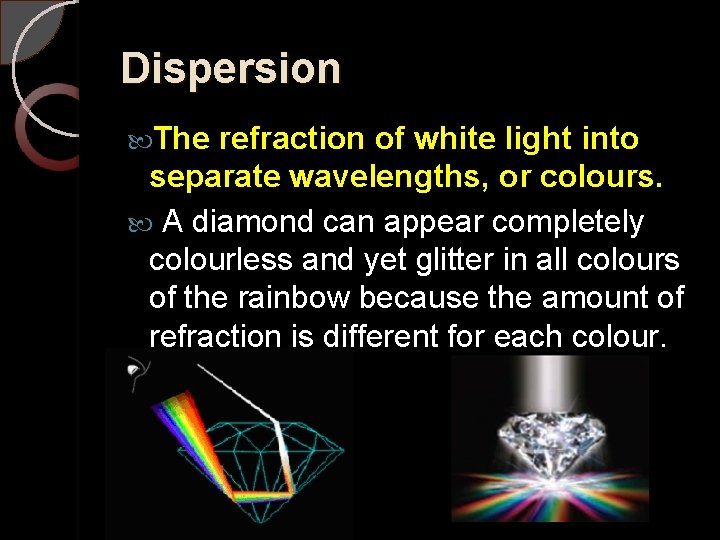

Dispersion The refraction of white light into separate wavelengths, or colours. A diamond can appear completely colourless and yet glitter in all colours of the rainbow because the amount of refraction is different for each colour.

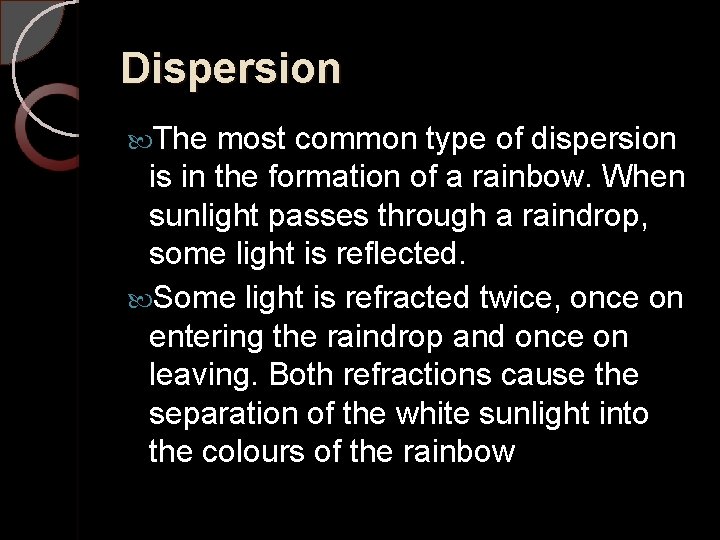

Dispersion The most common type of dispersion is in the formation of a rainbow. When sunlight passes through a raindrop, some light is reflected. Some light is refracted twice, once on entering the raindrop and once on leaving. Both refractions cause the separation of the white sunlight into the colours of the rainbow

Dispersion

Practice Problems 1. The speed of light in leaded glass is 1. 66 × 108. What is the index of refraction of this type of glass? 2. The speed of light in quartz is 2. 10 × 108 m/s. What is the index of refraction of quartz? 3. The speed of light through a material is 1. 24 × 108 m/s. What material is it? 4. What is the speed of light through alcohol? 5. What is the speed of light through gallium phosphide? 6. What is the speed of light through sapphire

$Questions 1. What is refraction? K (1) 2. Define “index of refraction. ” K$

Questions 1. What is refraction? K (1) 2. Define “index of refraction. ” K (1) 3. What refracts light more, a sapphire or a diamond? I (1) 4. What direction does light bend when it travels from a denser medium to a less dense medium? K (1) 5. How is refraction related to dispersion? I(1) K ( /3) I( /2)
