The Proposal on Fingerprint based Hand Held Biometric

The Proposal on Fingerprint based Hand Held Biometric attendance system

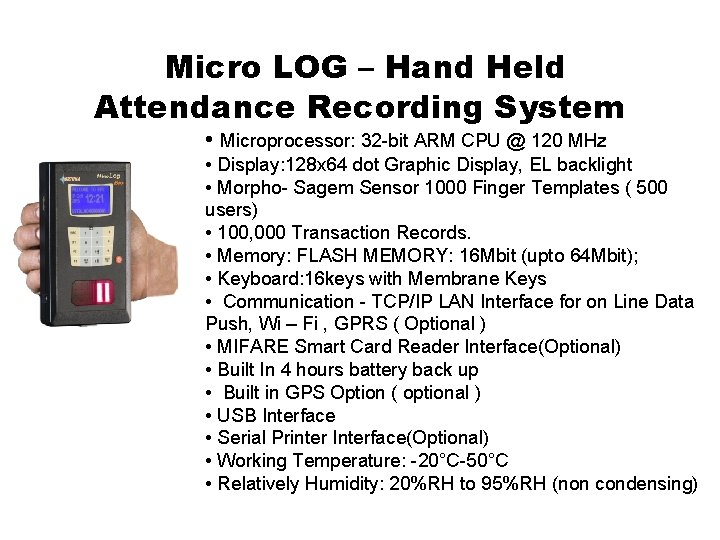

Micro LOG – Hand Held Attendance Recording System • Microprocessor: 32 -bit ARM CPU @ 120 MHz • Display: 128 x 64 dot Graphic Display, EL backlight • Morpho- Sagem Sensor 1000 Finger Templates ( 500 users) • 100, 000 Transaction Records. • Memory: FLASH MEMORY: 16 Mbit (upto 64 Mbit); • Keyboard: 16 keys with Membrane Keys • Communication - TCP/IP LAN Interface for on Line Data Push, Wi – Fi , GPRS ( Optional ) • MIFARE Smart Card Reader Interface(Optional) • Built In 4 hours battery back up • Built in GPS Option ( optional ) • USB Interface • Serial Printer Interface(Optional) • Working Temperature: -20°C-50°C • Relatively Humidity: 20%RH to 95%RH (non condensing)

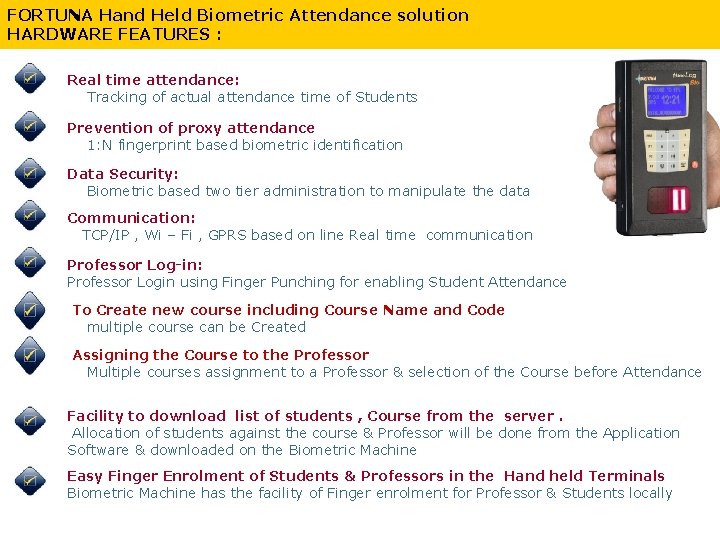

FORTUNA Hand Held Biometric Attendance solution HARDWARE FEATURES : Real time attendance: Tracking of actual attendance time of Students Prevention of proxy attendance 1: N fingerprint based biometric identification Data Security: Biometric based two tier administration to manipulate the data Communication: TCP/IP , Wi – Fi , GPRS based on line Real time communication Professor Log-in: Professor Login using Finger Punching for enabling Student Attendance To Create new course including Course Name and Code multiple course can be Created Assigning the Course to the Professor Multiple courses assignment to a Professor & selection of the Course before Attendance Facility to download list of students , Course from the server. Allocation of students against the course & Professor will be done from the Application Software & downloaded on the Biometric Machine Easy Finger Enrolment of Students & Professors in the Hand held Terminals Biometric Machine has the facility of Finger enrolment for Professor & Students locally

USP’s of Fortuna Micro. LOG Bio : Hand Held Biometric Attendance solution: • • • Professor Login using Finger Punching & Log-out after Attendance is over. Multiple Professors supported on a Single Micro. LOG Bio Each Micro. LOG may have the following database: Students : 15, 000 Subject : 64 (Expandable, if required) The Transaction data provides the Student ID, Professor ID & the Course ID along with Date/Time for better MIS Reporting Bright Automobile grade LCD Display, visible in sunlight. Battery Back-up : Upto 4 Hour operation. LAN & USB Built-in, GPRS optional, for remote sites Auto battery shut-down facility in case of idle condition Lightweight, Rugged & Indigenously designed & manufactured

Web Based Application Software SOFTWARE FEATURES : Update previous coarse data and New Course Data Addition of new Students and deletion of existing students. Marking of missed attendance Choosing of required course from the course list. The Date of class is picked-up from the RTC of the Micro. LOG Mapping of Professor with Course & allocation of Student using simple UI Weekly , Monthly or date range wise Attendance MIS Report Generation. Parents Log In and Notification facility. Auto Notification to Students in case of Multiple Continuous Absent

THE ENTIRE PROCESS FLOW AT A GLANCE

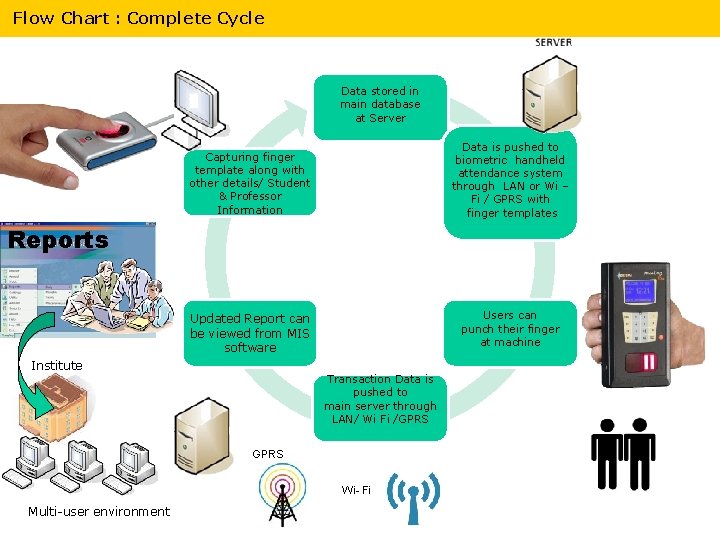

Flow Chart : Complete Cycle Data stored in main database at Server Capturing finger template along with other details/ Student & Professor Information Data is pushed to biometric handheld attendance system through LAN or Wi – Fi / GPRS with finger templates Updated Report can be viewed from MIS software Users can punch their finger at machine Reports Institute Transaction Data is pushed to main server through LAN/ Wi Fi /GPRS Wi- Fi Multi-user environment

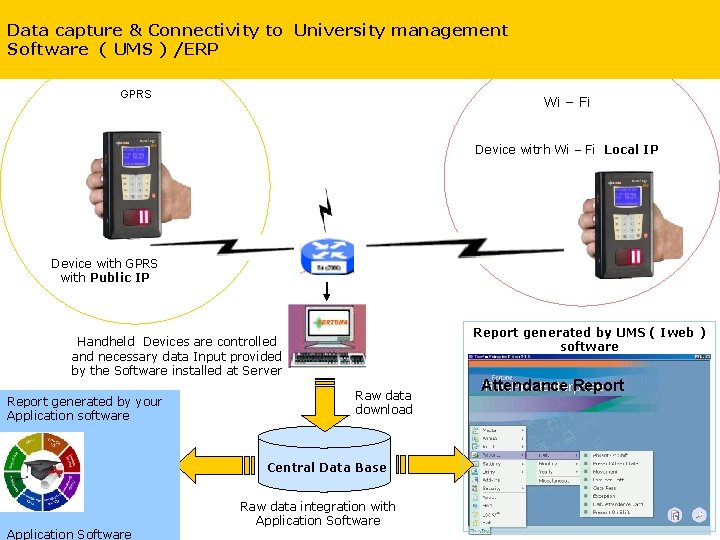

Data capture & Connectivity to University management Software ( UMS ) /ERP GPRS Wi – Fi Device witrh Wi – Fi Local IP Device with GPRS with Public IP Report generated by UMS ( Iweb ) software Handheld Devices are controlled and necessary data Input provided by the Software installed at Server Report generated by by your Report generated Application software your software or or based application Application Software Raw data download Central Data Base Raw data integration with Application Software Attendance Report
