The Power of Choice OnPremises Deployments Selfhosted and

The Power of Choice! On-Premises Deployments Self-hosted and managed Direct access to physical machines Central admin access Hosted within own data centers Entire environment customizable All accounts, machines, and data within a single AD Forest Available to companies of any size. Share. Point Online Standard Multi-tenant hosting Shared Hardware Outsourced IT management Hosted within MS data centers No support for “farm” code Support for Share. Point Designer based customizations Certificate authentication (today) or Forms based authentication (2010) Available for companies with 5+ seats Share. Point Online Dedicated Hosting Dedicated Hardware Outsourced IT management Hosted within MS data centers Most of the environment is customizable (“farm” code is supported) Machine and Process accounts in a different AD Forest NTLM Authentication Available for companies with 5000+ seats

Better Every Day $ Always up-to-date capabilities at a predictable cost Key Benefits • • • Up and running quickly Latest software No more server upgrades Subscription-based Predictable cost Optimize productivity Software + Services Accelerate the Journey IT Is A Cost Center IT Is An Efficient Cost Center IT Is A Business Center IT Is A Strategic Asset

demo

demo

Security & Stability Business Agility

Security & Stability Business Agility

Security & Stability Business Agility

WSP as the Share. Point Installer > > > >

Develop, Deploy and Debug Web Part Designer Broad Share. Point Support Project Types

demo

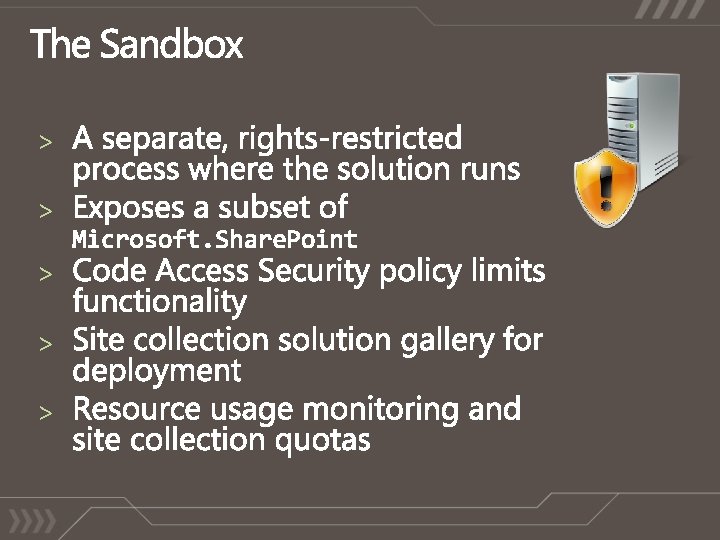

No timer jobs No web service calls No elevation/impersonation Note: A fully-trusted “proxy class” can be created to gain access to additional resources

FRONT END BACK END Execution Wrapper Host Service (Inside Application Pool) IIS (W 3 WP. EXE) (SPUCHost. Service. exe ) Worker Process (SPUCWorker. Process. exe ) Untrusted Code Subset Object Model Proxy Process (SPUCWorker. Process. Proxy. exe ) Full Object Model

FRONT END BACK END Execution Wrapper Host Service (Inside Application Pool) IIS (W 3 WP. EXE) (SPUCHost. Service. exe ) Worker Process (SPUCWorker. Process. exe ) Untrusted Code Subset Object Model Subset. Model Request Proxy Process (SPUCWorker. Process. Proxy. exe ) Full Object Model

FRONT END BACK END Execution Wrapper Host Service (Inside Application Pool) IIS (W 3 WP. EXE) (SPUCHost. Service. exe ) Worker Process (SPUCWorker. Process. exe ) Untrusted Code Subset Object Model Full-Model Request Proxy Process (SPUCWorker. Process. Proxy. exe ) Full Object Model

FRONT END BACK END Execution Wrapper Host Service (Inside Application Pool) IIS (W 3 WP. EXE) (SPUCHost. Service. exe ) Worker Process (SPUCWorker. Process. exe ) Untrusted Code Run for 30 sec Subset Object Model Resource Wasting Call Proxy Process (SPUCWorker. Process. Proxy. exe ) Full Object Model

demo

Worker Process (SPUCWorker. Process. exe ) Proxy Process (SPUCWorker. Process. Proxy. exe ) Untrusted Code Fully Trusted Code SPProxy. Operations. Args SPUtility SPProxy. Operations. Args SPProxy. Operation Secured Resource

> > > > > http: //www. microsoft. com/online/sharepoint-online. mspx

YOUR FEEDBACK IS IMPORTANT TO US! Please fill out session evaluation forms online at Microsoft. PDC. com

> > channel 9. msdn. com/learn Built by Developers for Developers….
