The Power Max Pro The Power Max Pro

The Power. Max Pro

The Power. Max Pro

The Power. Max Pro Partition

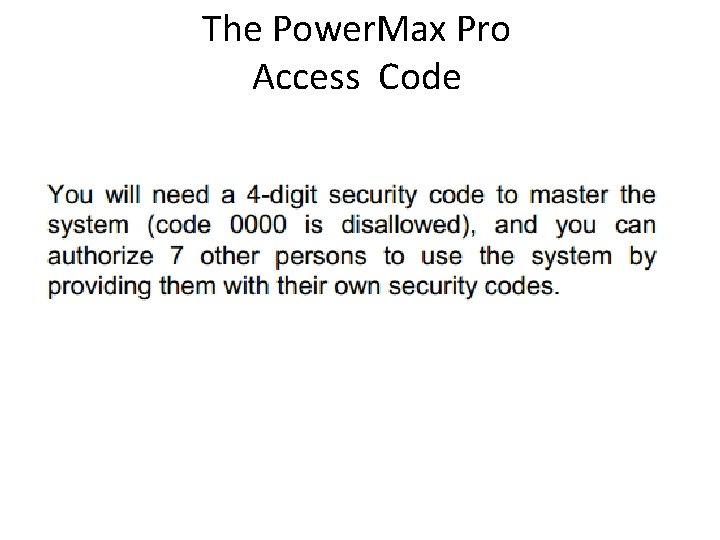

The Power. Max Pro Access Code

The Power. Max Pro • It has 30 zones; Each zone is identified by a number and a name • It has 4 partitions (optional, can be ignored); each partition can be viewed as a security system by itself • Six arming modes 1. Away 2. Away Instant 3. Home 4. Home Instant 5. Latchkey 6. Bypass • Lights and electrical appliances can be controlled if optional X-10 modules are used.

The Power. Max Pro • Looking after elderly, physically handicapped and infirm individuals: The system can be programmed to monitor activity within the protected area and send out an alert message if the person under surveillance remains still for a predefined period of time (as set by your installer). • Distress calls: Miniature pushbutton transmitters dealt out to specific individuals may be used for sending emergency calls for help. • Disarming under duress: If a user is forcibly compelled to disarm the system, he can use a special code that disarms the system apparently as usual, but sends a silent alarm to the central station

Accessing the Installer’s Menu

The entire cycle

Enrolling a Device • To enroll a device means to link a device to the controller, eg, enroll a wired contact, enroll a wireless sensor, etc • When asked to Delete using the OFF key, Use the Disarm button

During enrolling, you may see a black rectangle; it means the device has been enrolled by someone else. Hit [OFF] key to delete. Black rectangle

Enroll one device to one zone. If u enroll two devices to one zone, the previous device will be disabled Eg, wired contacts to zone 29, wireless contacts to zone 30

Note : Wired device enrolling does not have “Transmit now” display Activate device at this point, eg, open contacts

• What difference in steps did you notice between enrolling wired and wireless devices?

• Once a device is enrolled, the controller can detect it. • If you have enrolled the magnetic contacts, open the contacts and observe what is displayed on the LCD display, such as, “ Back Door Open” This confirms that the controller is able to detect the contacts – enroll successful

After Enroll, do not delete unless you want to unlink the device This black rectangle shows that You have enrolled the device

How to delete Enrolled Zone You may wish to delete an enrolled device later for some reasons. The next section is on this.

How to delete

After Deletion, the black rectangle disappears After Delete

Diagnotics Checking if devices Are Functioning properly

Perform Diagnostic Test of Wireless Devices 10. Diagnostics WL Sensors Test Fail Open door Front Door Z 01 NOT-OK PASS Open door Front Door Z 01 STRONG Diag. Testing

How to change Zone Type 3. Define Zone Z 01: TYPE -- Zone no: 01 Zone No : 01 2. Perimeter Done! How to change Zone Name Z 01: NAME -- Back door Done! How to change Chime Z 01: CHIME Z 01: PARTITION Chime OFF Partition 1 Done!

Enrol Proximity Tag • Enrol Prog Tag <ok> • Tag No 1 <ok> Present Tag: Tag No 1 <next> • To return click “home” <ok> to exit

Define Control Panel

Define Control Panel • Installer Mode <next> • Define Panel <Ok> • Entry Delay 1

Observation After Enroll After Delete

Entry Delay setting • • Installer Mode 4. Define Panel 01 Entry Delay 1 [Press OK] Choose 15 s This is the time given for a person to open the door, and go and disarm the controller. There are two Delays 2 choose from.

Exit Delay setting • • Installer Mode 4. Define Panel 02 Entry Delay 1 [Press OK] Choose 60 s (60 s after arming button pressed, then controller is activated) This is the time given for a person to arm the controller, go to the main door, lock it.

How to stop alarm

Panel Buttons

What different Arm means

How to Arm Away

How to Arm Home

From Installer Manual

Basic

Warning !
