The Plasma Membrane and Movement of Molecules AP

The Plasma Membrane and Movement of Molecules AP Biology 2014 Campbell Biology in Focus Ch. 5 Erin Eggers

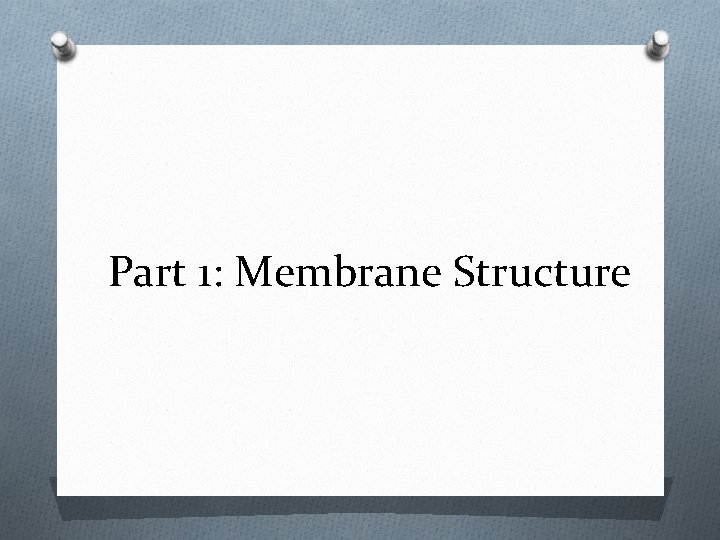

Part 1: Membrane Structure

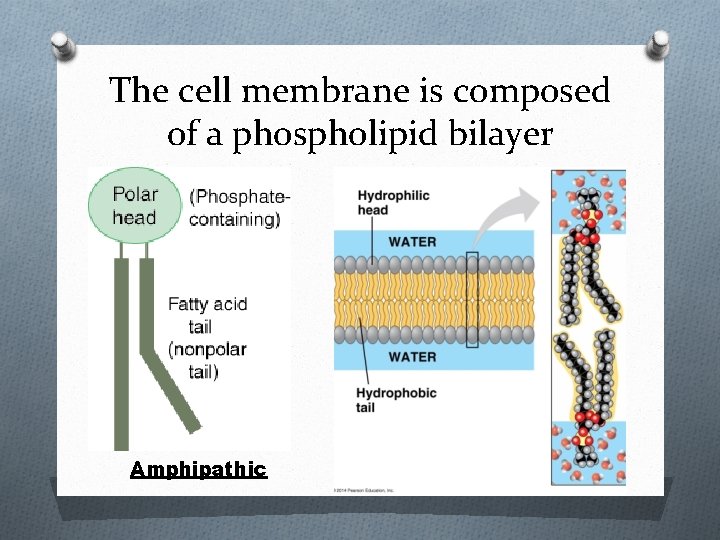

The cell membrane is composed of a phospholipid bilayer Amphipathic

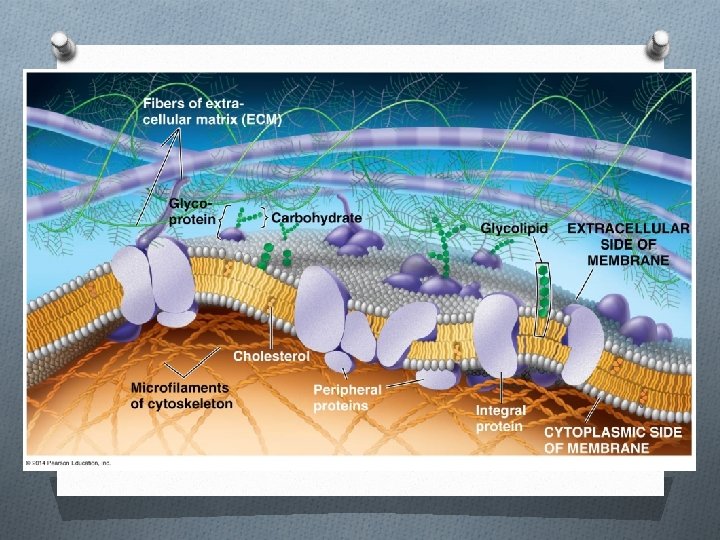

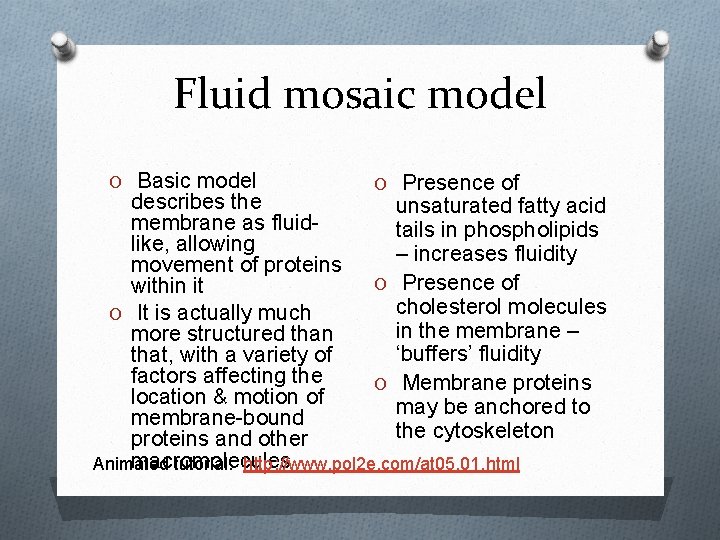

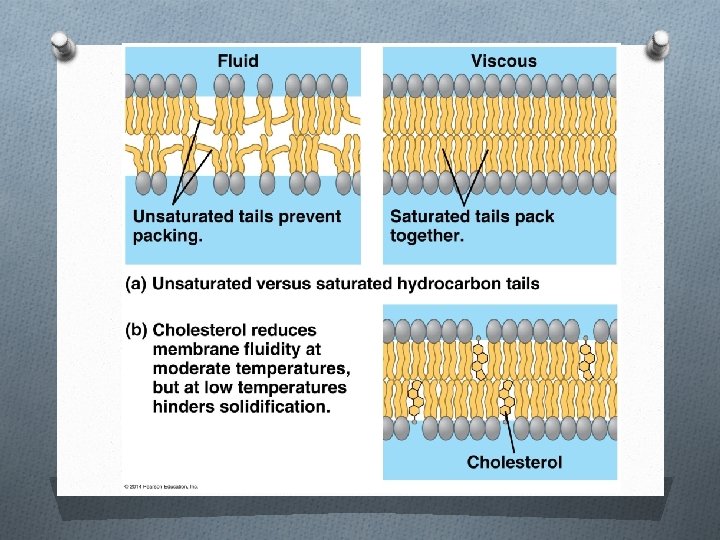

Fluid mosaic model O Basic model O Presence of describes the unsaturated fatty acid membrane as fluidtails in phospholipids like, allowing – increases fluidity movement of proteins O Presence of within it cholesterol molecules O It is actually much in the membrane – more structured than ‘buffers’ fluidity that, with a variety of factors affecting the O Membrane proteins location & motion of may be anchored to membrane-bound the cytoskeleton proteins and other macromolecules Animated tutorial: http: //www. pol 2 e. com/at 05. 01. html

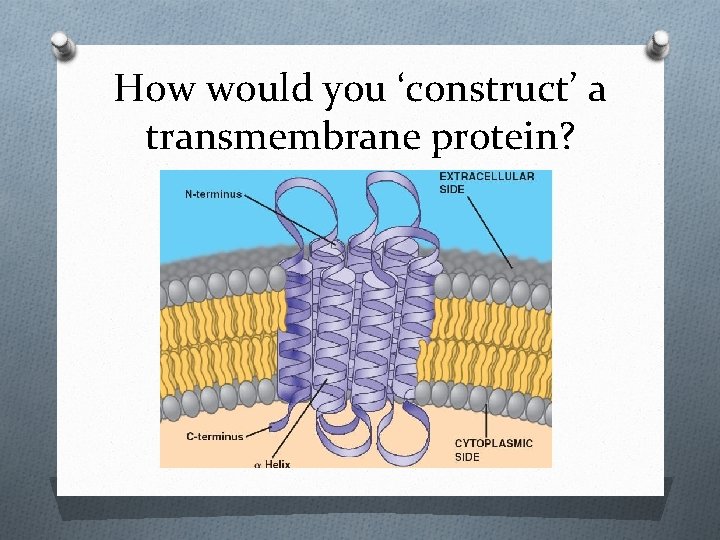

How would you ‘construct’ a transmembrane protein?

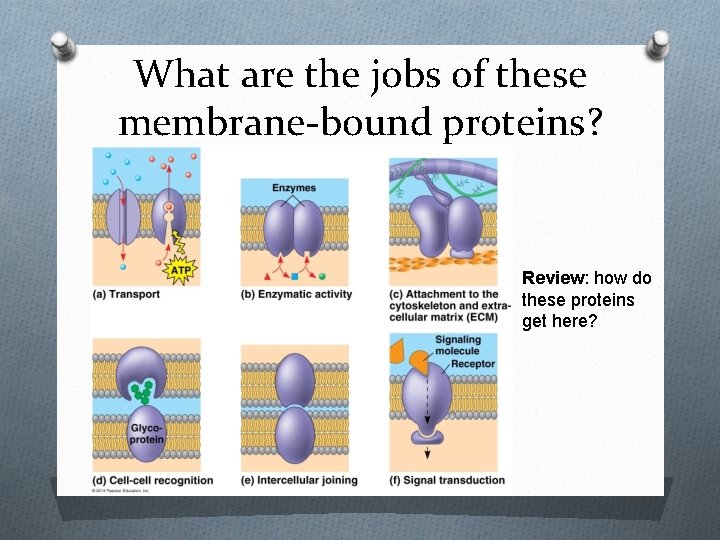

What are the jobs of these membrane-bound proteins? Review: how do these proteins get here?

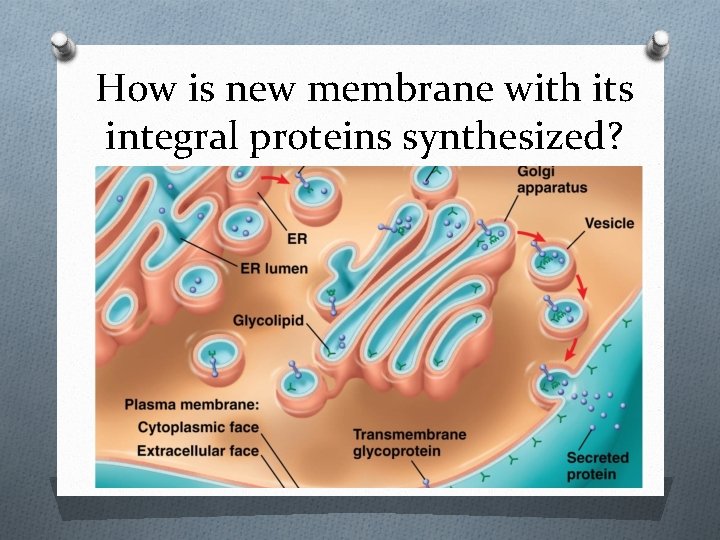

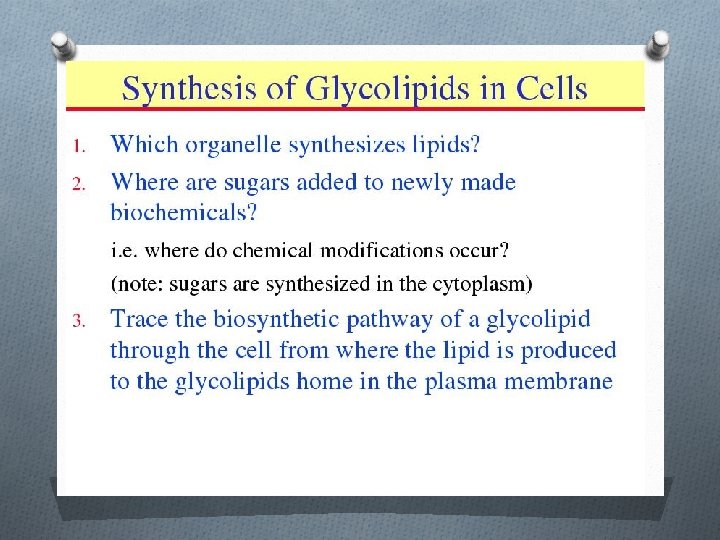

How is new membrane with its integral proteins synthesized?

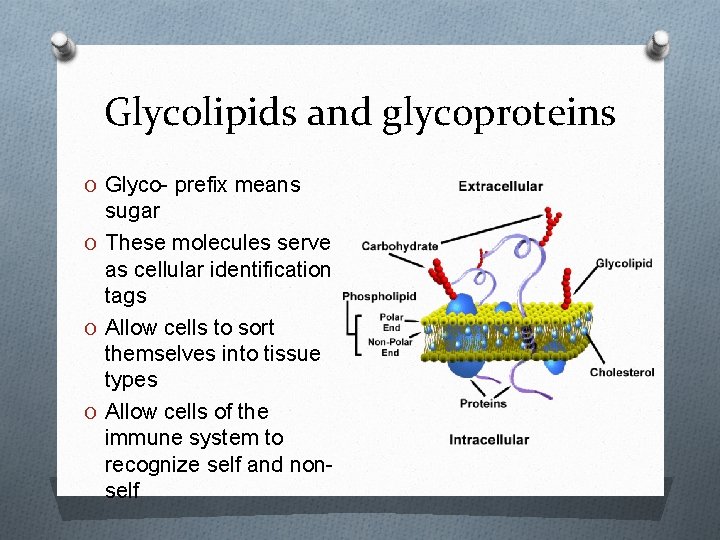

Glycolipids and glycoproteins O Glyco- prefix means sugar O These molecules serve as cellular identification tags O Allow cells to sort themselves into tissue types O Allow cells of the immune system to recognize self and nonself

Selective permeability (A VERY important concept) O What molecules can cross the plasma membrane? O What molecules cannot cross freely? O Small nonpolar molecules such as hydrocarbons and gases like CO 2 and O 2 O Charged, hydrophilic, or large molecules such as Na+, K+, Ca 2+, Cl-, glucose & other sugars

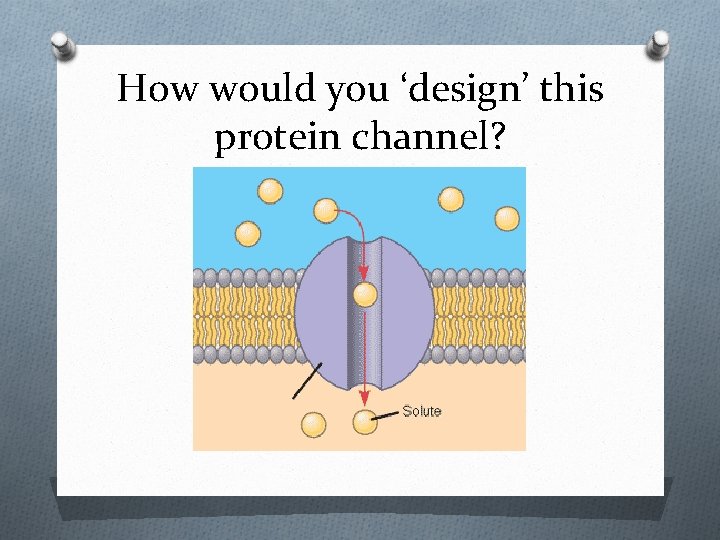

How would you ‘design’ this protein channel?

Part 2: Why molecules move: Diffusion, Osmosis & Energy

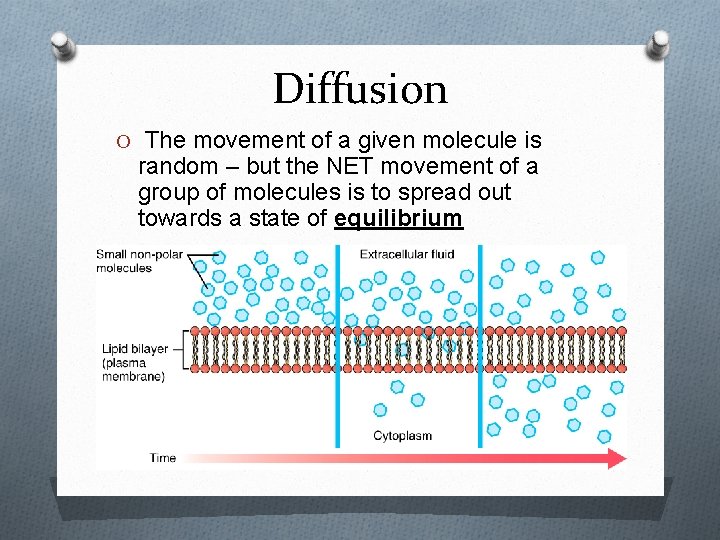

Diffusion O The movement of a given molecule is random – but the NET movement of a group of molecules is to spread out towards a state of equilibrium

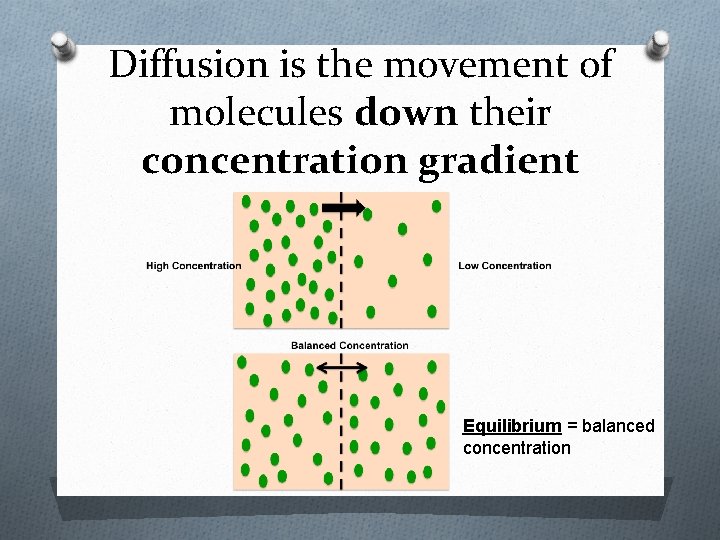

Diffusion is the movement of molecules down their concentration gradient Equilibrium = balanced concentration

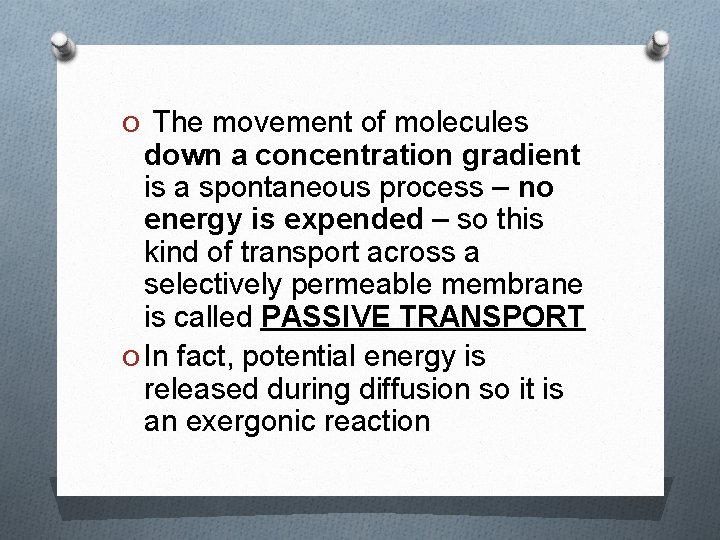

O The movement of molecules down a concentration gradient is a spontaneous process – no energy is expended – so this kind of transport across a selectively permeable membrane is called PASSIVE TRANSPORT O In fact, potential energy is released during diffusion so it is an exergonic reaction

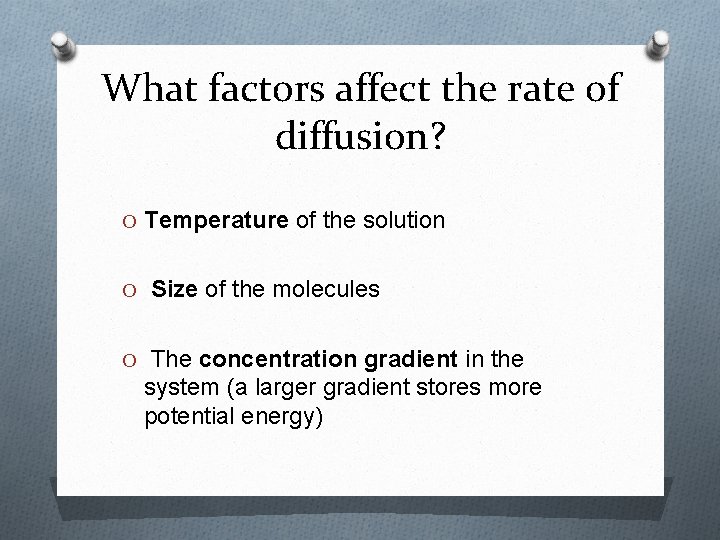

What factors affect the rate of diffusion? O Temperature of the solution O Size of the molecules O The concentration gradient in the system (a larger gradient stores more potential energy)

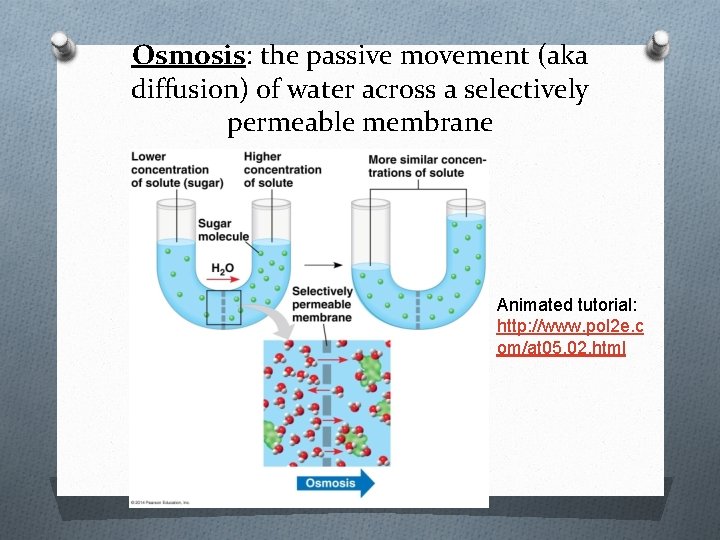

Osmosis: the passive movement (aka diffusion) of water across a selectively permeable membrane Animated tutorial: http: //www. pol 2 e. c om/at 05. 02. html

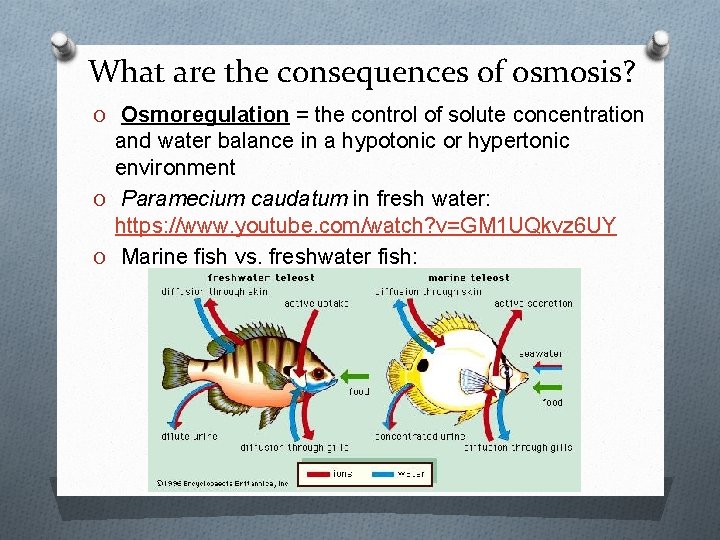

What are the consequences of osmosis? O Osmoregulation = the control of solute concentration and water balance in a hypotonic or hypertonic environment O Paramecium caudatum in fresh water: https: //www. youtube. com/watch? v=GM 1 UQkvz 6 UY O Marine fish vs. freshwater fish:

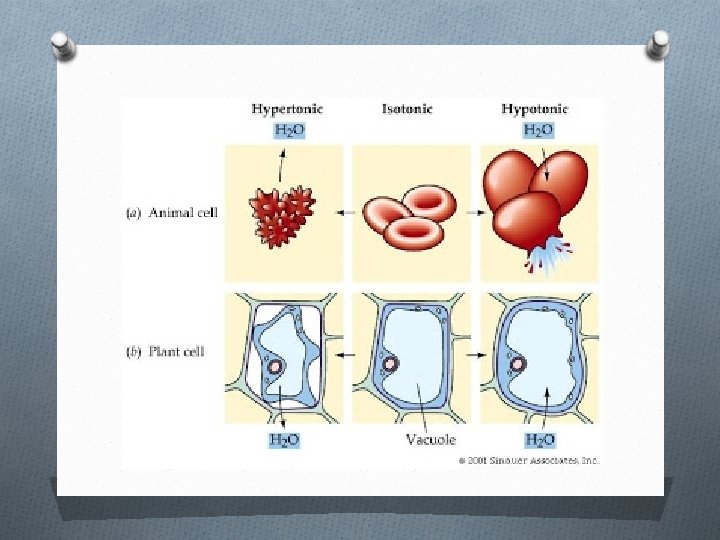

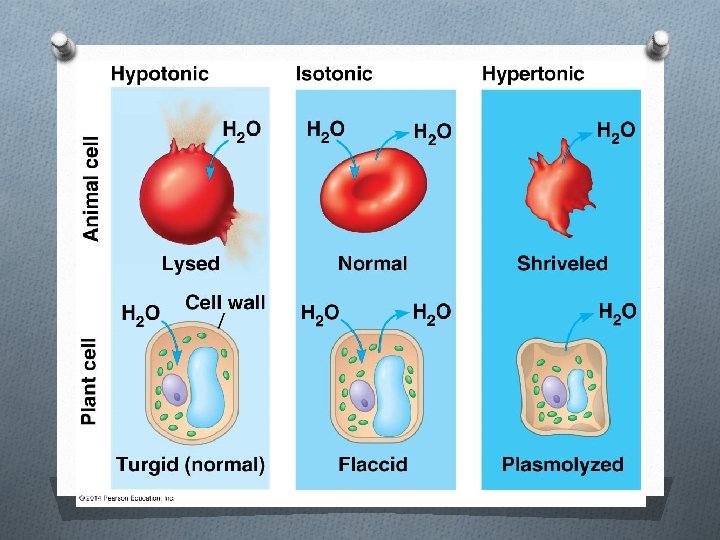

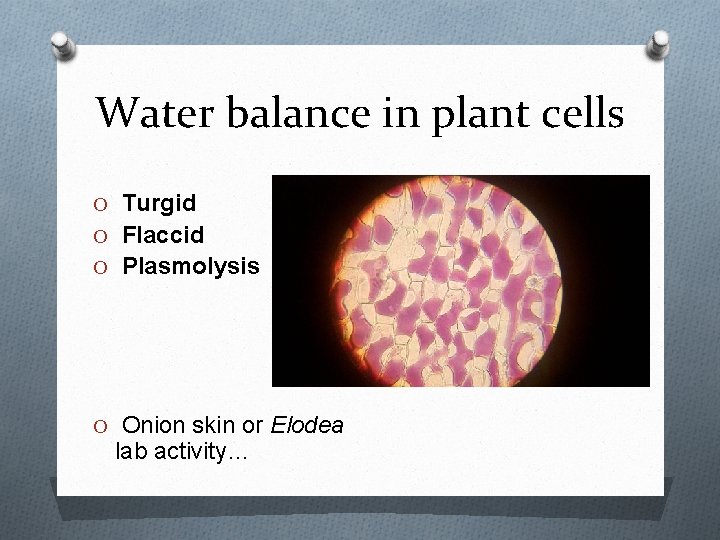

Water balance in plant cells O Turgid O Flaccid O Plasmolysis O Onion skin or Elodea lab activity…

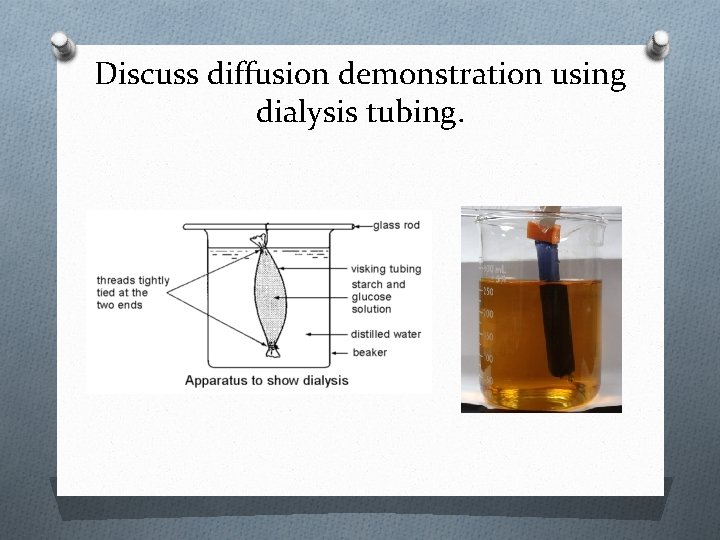

Discuss diffusion demonstration using dialysis tubing.

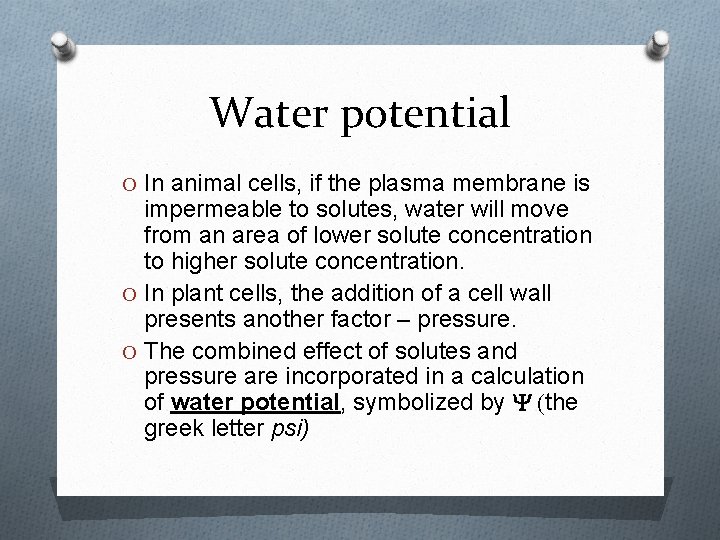

Water potential O In animal cells, if the plasma membrane is impermeable to solutes, water will move from an area of lower solute concentration to higher solute concentration. O In plant cells, the addition of a cell wall presents another factor – pressure. O The combined effect of solutes and pressure are incorporated in a calculation of water potential, symbolized by Y (the greek letter psi)

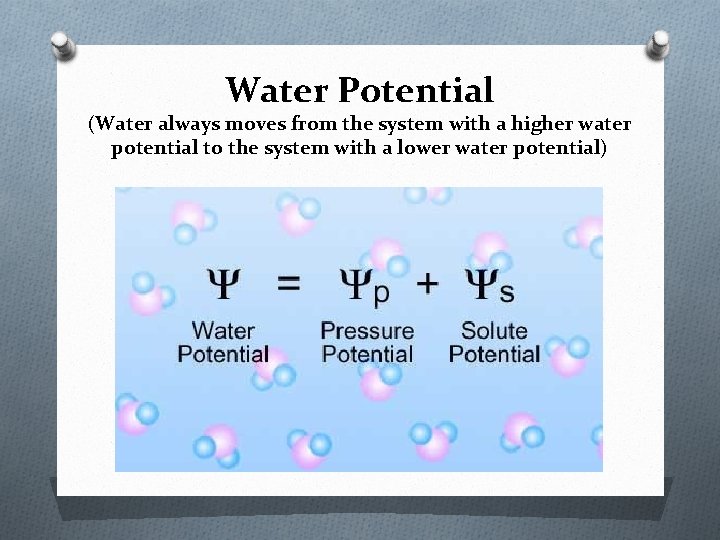

Water Potential (Water always moves from the system with a higher water potential to the system with a lower water potential)

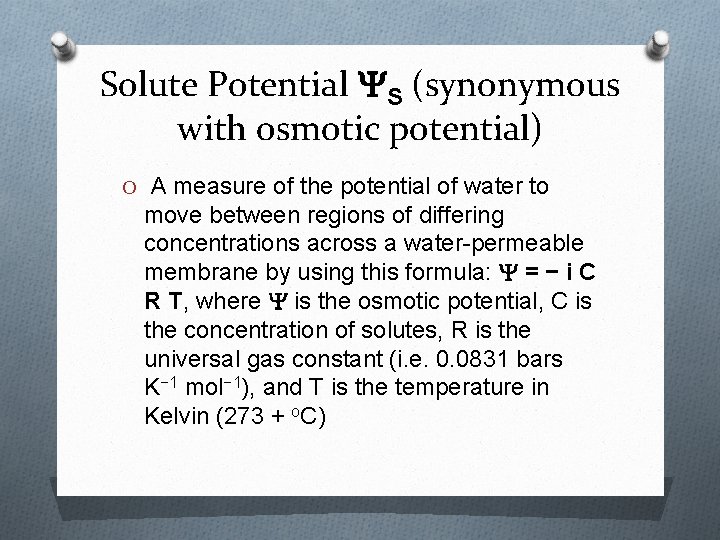

Solute Potential YS (synonymous with osmotic potential) O A measure of the potential of water to move between regions of differing concentrations across a water-permeable membrane by using this formula: Y = − i C R T, where Y is the osmotic potential, C is the concentration of solutes, R is the universal gas constant (i. e. 0. 0831 bars K− 1 mol− 1), and T is the temperature in Kelvin (273 + o. C)

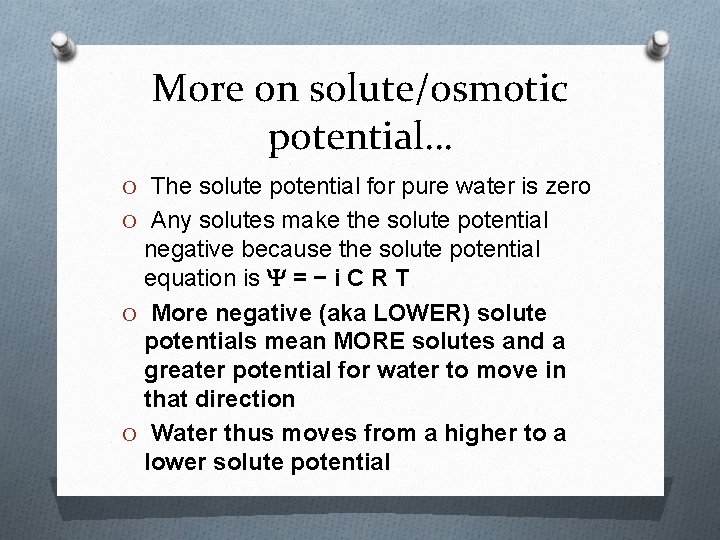

More on solute/osmotic potential… O The solute potential for pure water is zero O Any solutes make the solute potential negative because the solute potential equation is Y = − i C R T O More negative (aka LOWER) solute potentials mean MORE solutes and a greater potential for water to move in that direction O Water thus moves from a higher to a lower solute potential

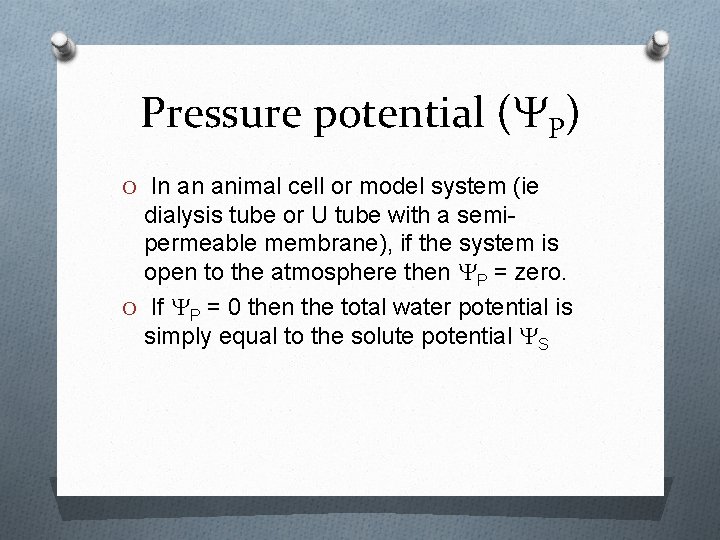

Pressure potential (YP) O In an animal cell or model system (ie dialysis tube or U tube with a semipermeable membrane), if the system is open to the atmosphere then YP = zero. O If YP = 0 then the total water potential is simply equal to the solute potential YS

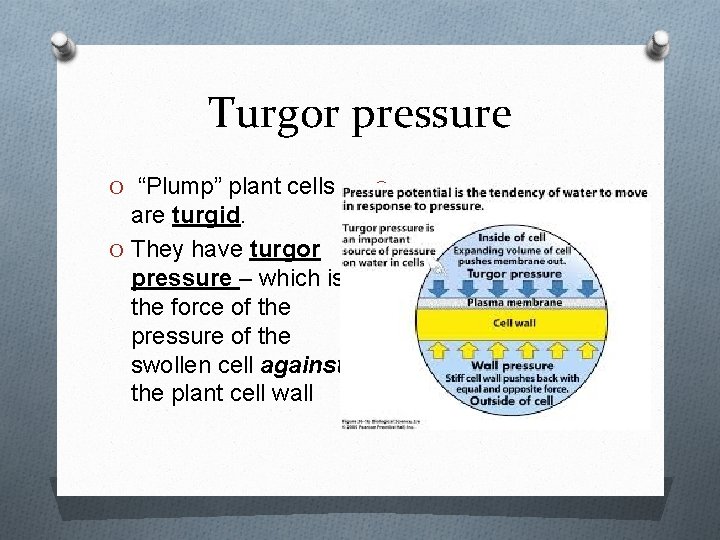

Turgor pressure O “Plump” plant cells are turgid. O They have turgor pressure – which is the force of the pressure of the swollen cell against the plant cell wall O

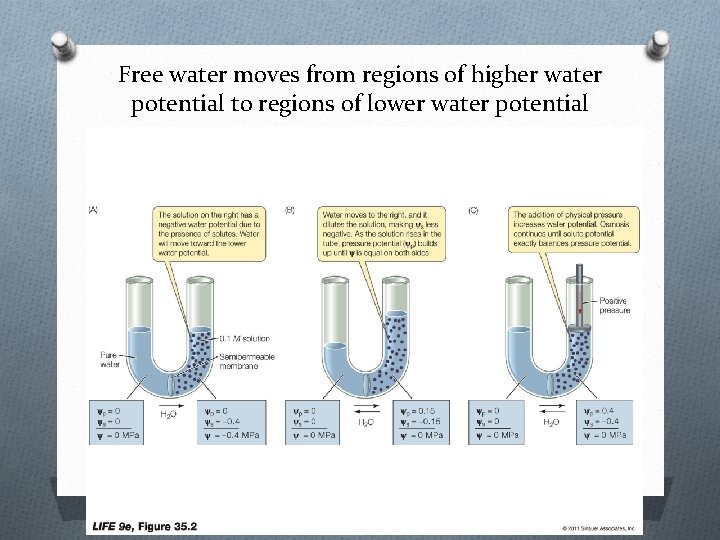

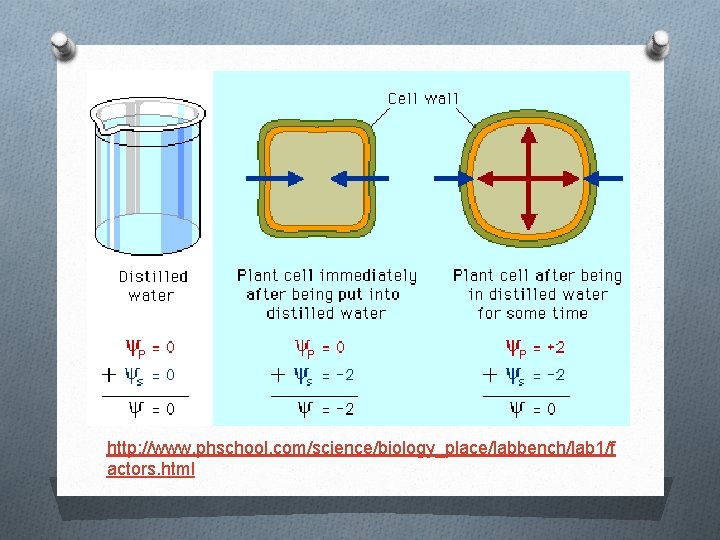

Free water moves from regions of higher water potential to regions of lower water potential

http: //www. phschool. com/science/biology_place/labbench/lab 1/f actors. html

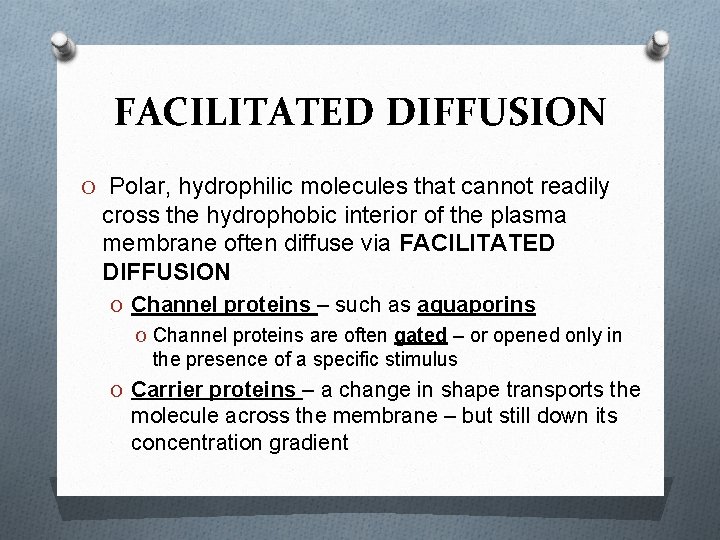

FACILITATED DIFFUSION O Polar, hydrophilic molecules that cannot readily cross the hydrophobic interior of the plasma membrane often diffuse via FACILITATED DIFFUSION O Channel proteins – such as aquaporins O Channel proteins are often gated – or opened only in the presence of a specific stimulus O Carrier proteins – a change in shape transports the molecule across the membrane – but still down its concentration gradient

Ligand-gated channel protein

Carrier protein-mediated facilitated diffusion. Explain this graph.

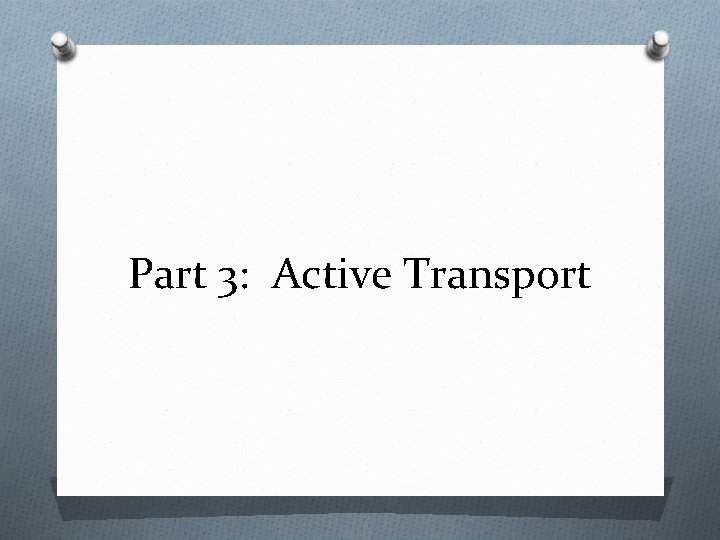

Part 3: Active Transport

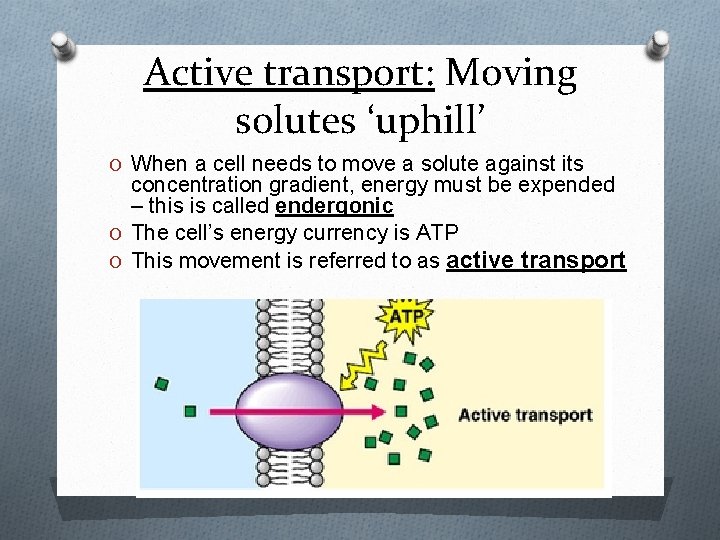

Active transport: Moving solutes ‘uphill’ O When a cell needs to move a solute against its concentration gradient, energy must be expended – this is called endergonic O The cell’s energy currency is ATP O This movement is referred to as active transport

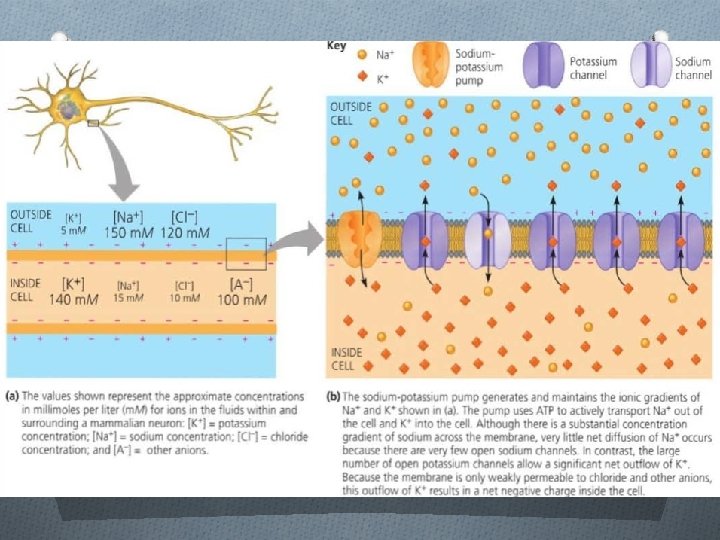

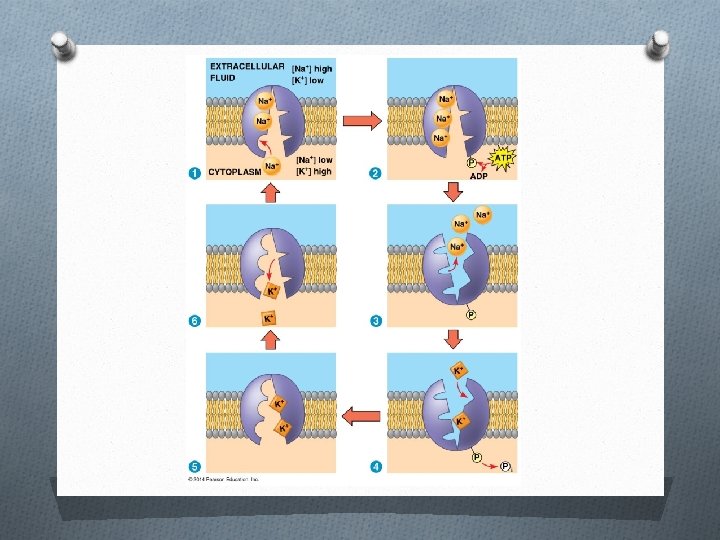

Sodium-potassium ATPase pump O This protein pump maintains a concentration gradient across the plasma membrane with a high extracellular concentration of sodium and a high intracellular concentration of potassium

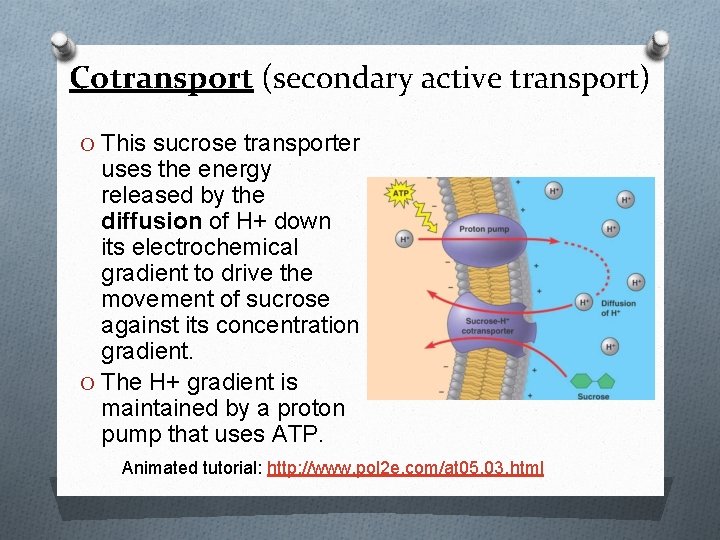

Cotransport (secondary active transport) O This sucrose transporter uses the energy released by the diffusion of H+ down its electrochemical gradient to drive the movement of sucrose against its concentration gradient. O The H+ gradient is maintained by a proton pump that uses ATP. Animated tutorial: http: //www. pol 2 e. com/at 05. 03. html

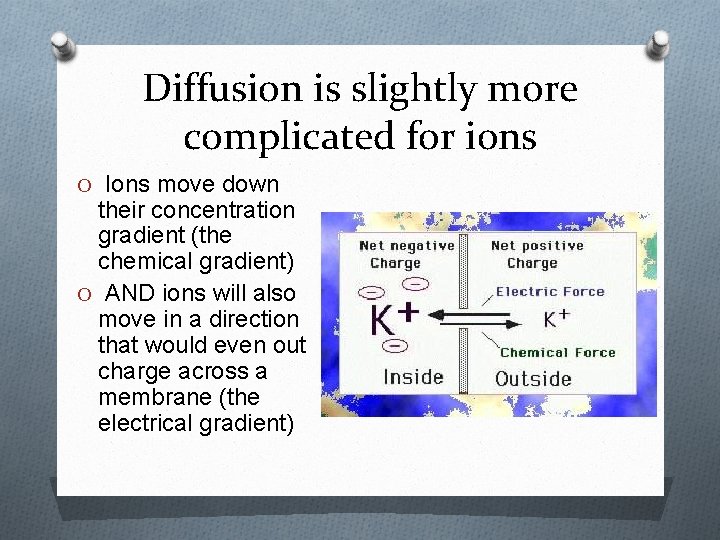

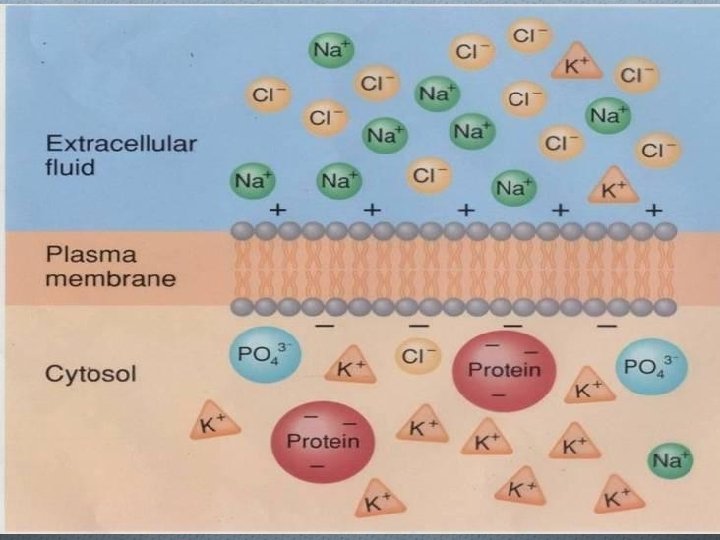

Diffusion is slightly more complicated for ions O Ions move down their concentration gradient (the chemical gradient) O AND ions will also move in a direction that would even out charge across a membrane (the electrical gradient)

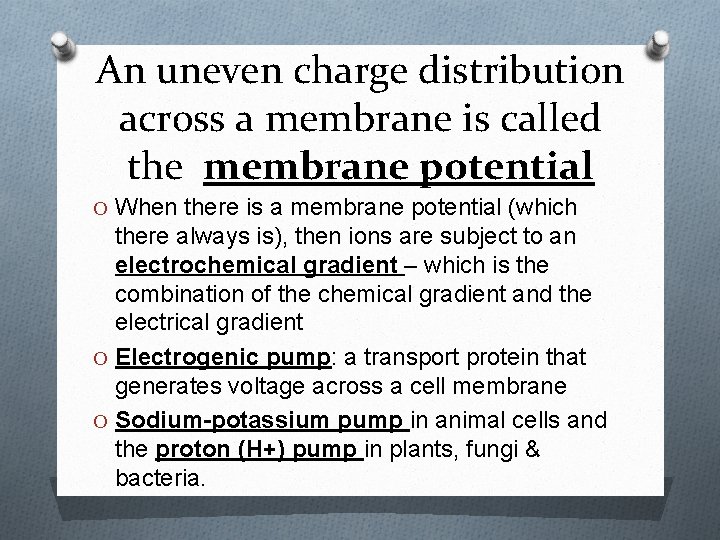

An uneven charge distribution across a membrane is called the membrane potential O When there is a membrane potential (which there always is), then ions are subject to an electrochemical gradient – which is the combination of the chemical gradient and the electrical gradient O Electrogenic pump: a transport protein that generates voltage across a cell membrane O Sodium-potassium pump in animal cells and the proton (H+) pump in plants, fungi & bacteria.

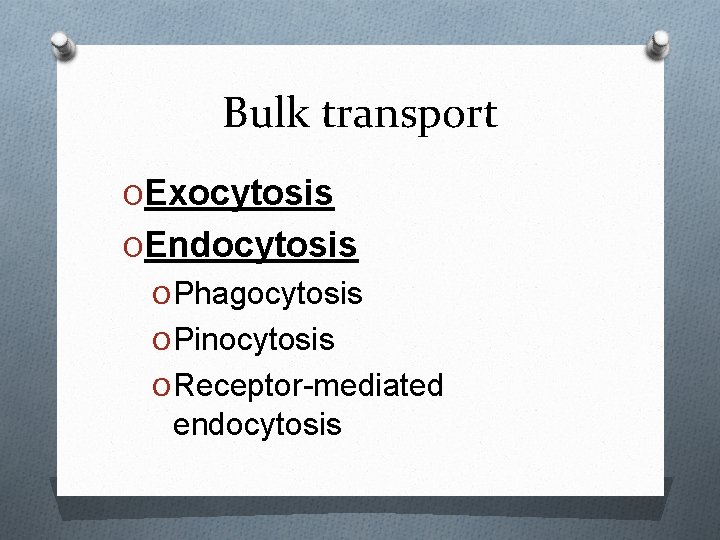

Bulk transport OExocytosis OEndocytosis O Phagocytosis O Pinocytosis O Receptor-mediated endocytosis

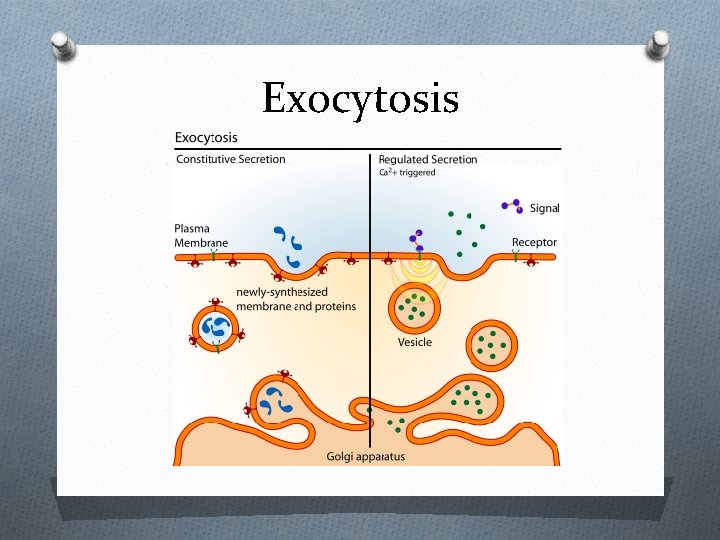

Exocytosis

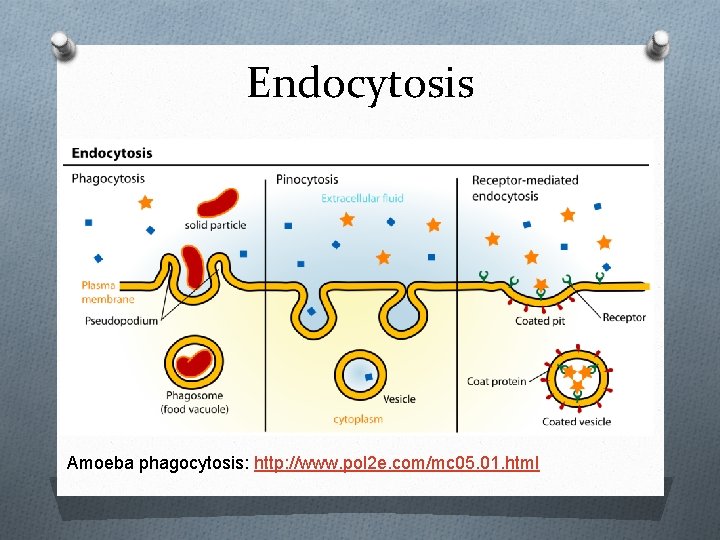

Endocytosis Amoeba phagocytosis: http: //www. pol 2 e. com/mc 05. 01. html

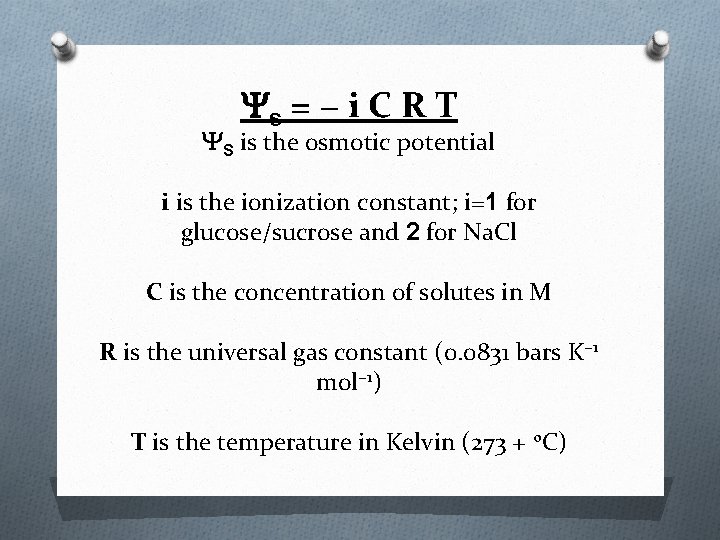

Ys = − i C R T YS is the osmotic potential i is the ionization constant; i=1 for glucose/sucrose and 2 for Na. Cl C is the concentration of solutes in M R is the universal gas constant (0. 0831 bars K− 1 mol− 1) T is the temperature in Kelvin (273 + o. C)
