THE PIPING SYSTEMS Piping network

THE PIPING SYSTEMS Piping network

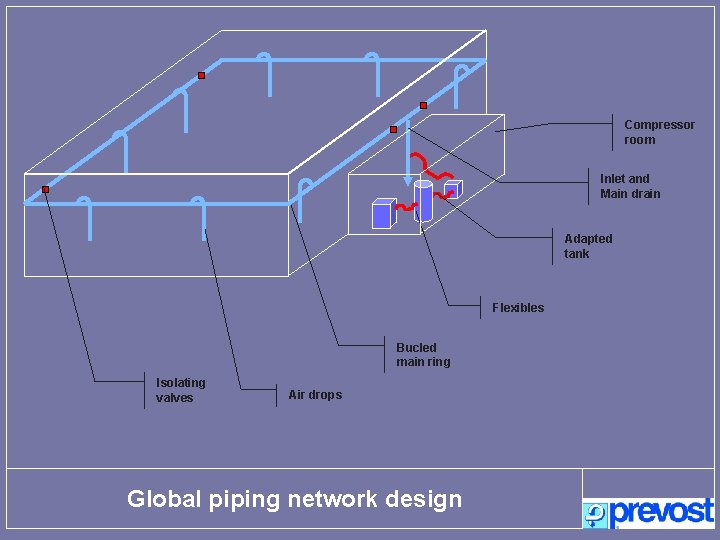

Compressor room Inlet and Main drain Adapted tank Flexibles Bucled main ring Isolating valves

Compressor room Inlet and Main drain Adapted tank Flexibles Bucled main ring Isolating valves Air drops Global piping network design

Compressor room Flexibles Compressor room should be : Large for an easy maintenance :

Compressor room Flexibles Compressor room should be : Large for an easy maintenance : Insulated and with a good aeration Flexibles will allow to : Move easily the different machines : Stop vibrations transmission Global piping network design

Main drain Adapted tank Tank will be well adapted : Compressor flow in L/mn

Main drain Adapted tank Tank will be well adapted : Compressor flow in L/mn : 3 = tank volume in liters Main drain and valve : Drain can be at the tank or down the ring inlet : Will eliminate the first condensates before coming in the piping Global piping network design

Isolating valves Bucled main ring Buckled main ring : Better flow at any point

Isolating valves Bucled main ring Buckled main ring : Better flow at any point of the network : Pression is equal along the pipe. Isolating valves : Allow a ring portion isolation for maintenance or modifications Global piping network design

Air drops : Adapted diameter (20 mm is advised) : A good number of

Air drops : Adapted diameter (20 mm is advised) : A good number of drops will avoid too many flexibles on the floor. Global piping network design

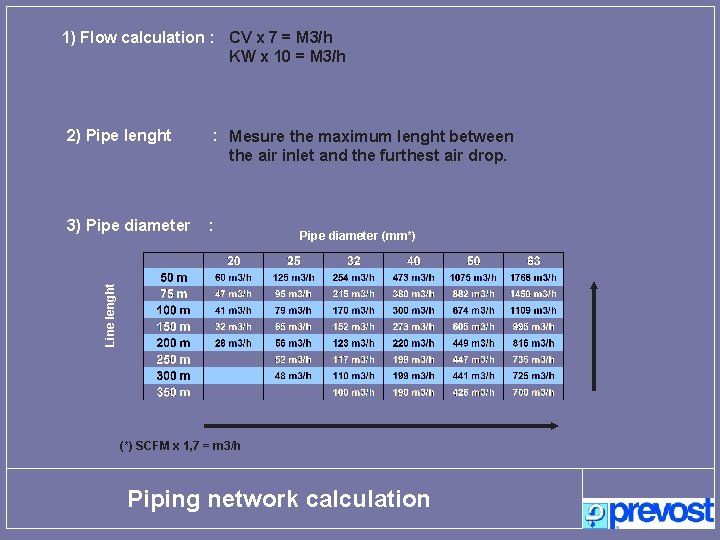

1) Flow calculation : CV x 7 = M 3/h KW x 10 =

1) Flow calculation : CV x 7 = M 3/h KW x 10 = M 3/h 2) Pipe lenght : Mesure the maximum lenght between the air inlet and the furthest air drop. 3) Pipe diameter : Line lenght Pipe diameter (mm*) (*) SCFM x 1, 7 = m 3/h Piping network calculation

Wall supports Expansion flexibles 1) Wall supports : Each 3 meters 2) Main line

Wall supports Expansion flexibles 1) Wall supports : Each 3 meters 2) Main line : Don ’t forget expansion flexibles for lenght more than 40 - 50 m 3) Drops : Blow chips before mounting the couplers or others accessories The mounting

The Prevost ALR connection system Polyamid nut 316 L Stainless steel teeth ring Polyamid

The Prevost ALR connection system Polyamid nut 316 L Stainless steel teeth ring Polyamid pushing ring nitril O ’ring Polyamid body The ALR system

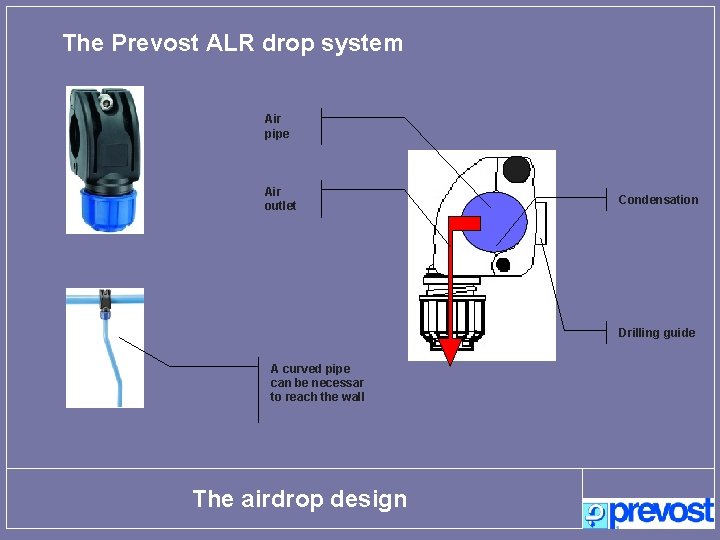

The Prevost ALR drop system Air pipe Air outlet Condensation Drilling guide A curved

The Prevost ALR drop system Air pipe Air outlet Condensation Drilling guide A curved pipe can be necessar to reach the wall The airdrop design

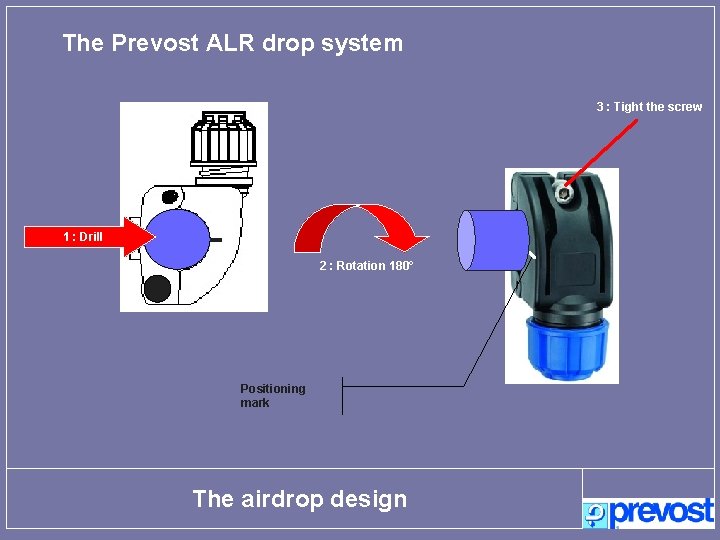

The Prevost ALR drop system 3 : Tight the screw 1 : Drill 2

The Prevost ALR drop system 3 : Tight the screw 1 : Drill 2 : Rotation 180° Positioning mark The airdrop design

The Prevost ALR drop system 1/2 or 3/4 Inlet metal insert Easy mounting Angle

The Prevost ALR drop system 1/2 or 3/4 Inlet metal insert Easy mounting Angle : 45° lateral and 45° vertical 120 / 150 cm 1/2 outlet metal inserts The airdrop design Drain in option

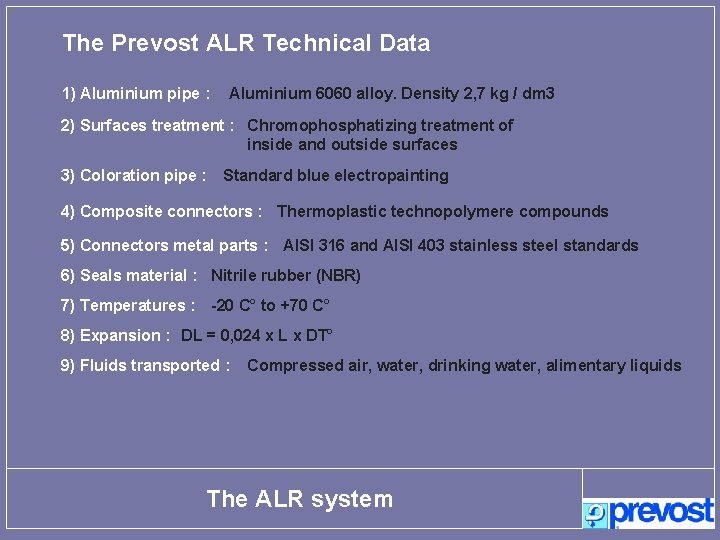

The Prevost ALR Technical Data 1) Aluminium pipe : Aluminium 6060 alloy. Density 2,

The Prevost ALR Technical Data 1) Aluminium pipe : Aluminium 6060 alloy. Density 2, 7 kg / dm 3 2) Surfaces treatment : Chromophosphatizing treatment of inside and outside surfaces 3) Coloration pipe : Standard blue electropainting 4) Composite connectors : Thermoplastic technopolymere compounds 5) Connectors metal parts : AISI 316 and AISI 403 stainless steel standards 6) Seals material : Nitrile rubber (NBR) 7) Temperatures : -20 C° to +70 C° 8) Expansion : DL = 0, 024 x L x DT° 9) Fluids transported : Compressed air, water, drinking water, alimentary liquids The ALR system

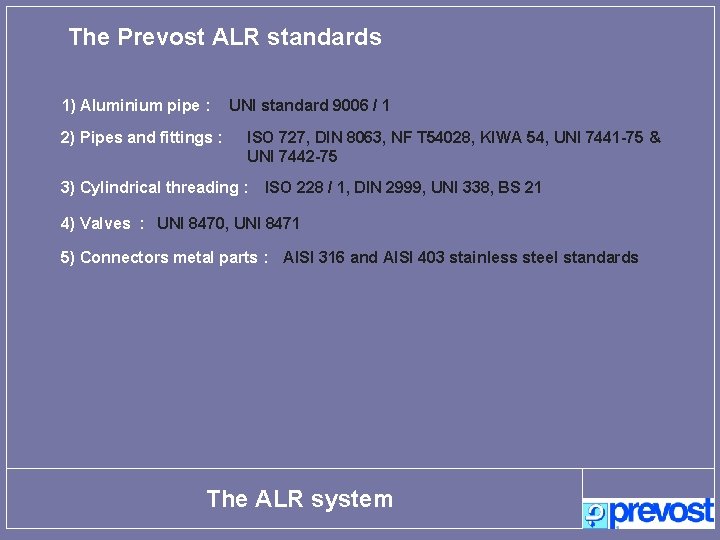

The Prevost ALR standards 1) Aluminium pipe : 2) Pipes and fittings : UNI

The Prevost ALR standards 1) Aluminium pipe : 2) Pipes and fittings : UNI standard 9006 / 1 ISO 727, DIN 8063, NF T 54028, KIWA 54, UNI 7441 -75 & UNI 7442 -75 3) Cylindrical threading : ISO 228 / 1, DIN 2999, UNI 338, BS 21 4) Valves : UNI 8470, UNI 8471 5) Connectors metal parts : AISI 316 and AISI 403 stainless steel standards The ALR system

EXAMPLE OF CALCULATION The ALR system

EXAMPLE OF CALCULATION The ALR system

Outlet 1 ’ ’ 1/4 BSP Femelle The ALR system

Outlet 1 ’ ’ 1/4 BSP Femelle The ALR system

Step 1 : The supports ( 36 m x 2 ) + ( 30

Step 1 : The supports ( 36 m x 2 ) + ( 30 m x 2 ) = 126 m for the main ring 126 m / 3 = 42 supports The ALR system

Step 2 : The main ring 126 m / 2 ( Bucled loop )

Step 2 : The main ring 126 m / 2 ( Bucled loop ) = 63 m => Diameter = 40 mm 35 ( cv ) x 7 = 245 M 3/h flow The ALR system 126 m / 4 = 32 tubes Unions will be : ALR UN 40 ( 30 pieces )

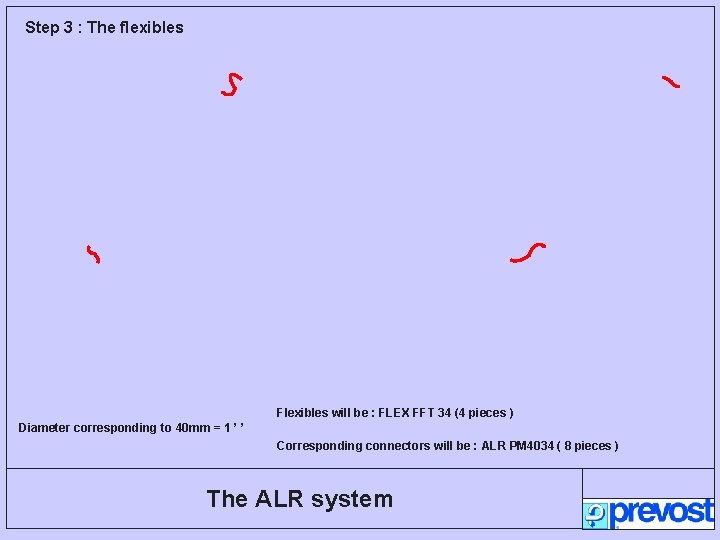

Step 3 : The flexibles Flexibles will be : FLEX FFT 34 (4 pieces

Step 3 : The flexibles Flexibles will be : FLEX FFT 34 (4 pieces ) Diameter corresponding to 40 mm = 1 ’ ’ Corresponding connectors will be : ALR PM 4034 ( 8 pieces ) The ALR system

Step 4 : The isolating valves Valve corresponding to 40 mm = ALR VA

Step 4 : The isolating valves Valve corresponding to 40 mm = ALR VA 40 ( 4 pieces ) The ALR system

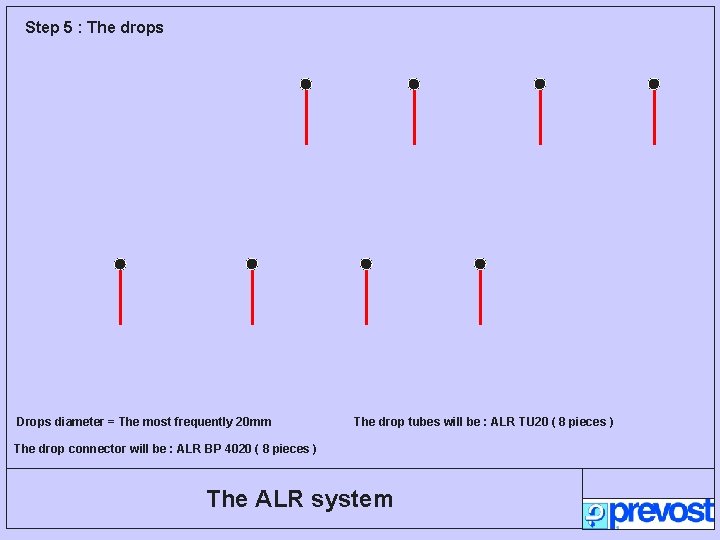

Step 5 : The drops Drops diameter = The most frequently 20 mm The

Step 5 : The drops Drops diameter = The most frequently 20 mm The drop tubes will be : ALR TU 20 ( 8 pieces ) The drop connector will be : ALR BP 4020 ( 8 pieces ) The ALR system

Step 5 : The drops 1) Drop connector : ALR BP 4020 2) Male

Step 5 : The drops 1) Drop connector : ALR BP 4020 2) Male threaded connector : ALR PM 4034 3) Wall support : AVR Y 1212 P The ALR system

Step 6 : The inlet pipe Inlet pipe diameter = 40 mm The tank

Step 6 : The inlet pipe Inlet pipe diameter = 40 mm The tank outlet is 1 ’ ’ 1/4 femelle thread The ALR system

Step 6 : The inlet pipe 1) Equal TEE connector : ALR TE 40

Step 6 : The inlet pipe 1) Equal TEE connector : ALR TE 40 2) Main valve : ALR VA 40 3) Equal TEE connector : ALR TE 40 4) Male threaded connector : ALR PM 4034 5) Flexible : FLEX FFT 42 6) Main drain valve : ALR VA 40 The ALR system
