The Periodic Table Why is the Periodic Table
The Periodic Table

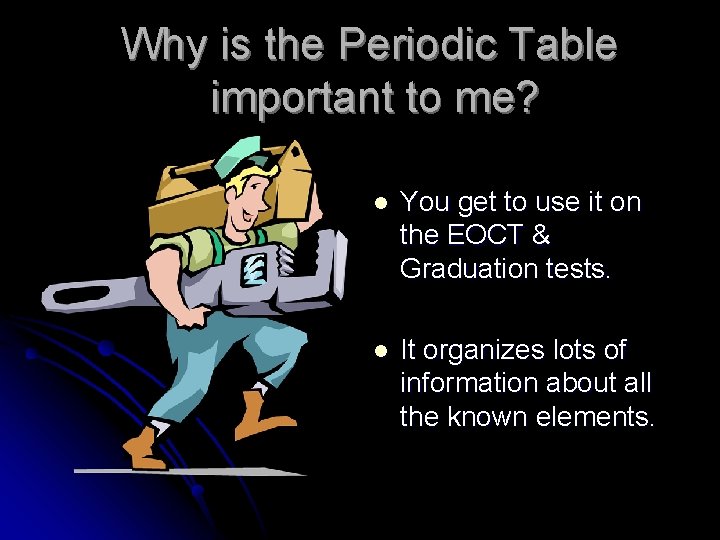

Why is the Periodic Table important to me? l You get to use it on the EOCT & Graduation tests. l It organizes lots of information about all the known elements.

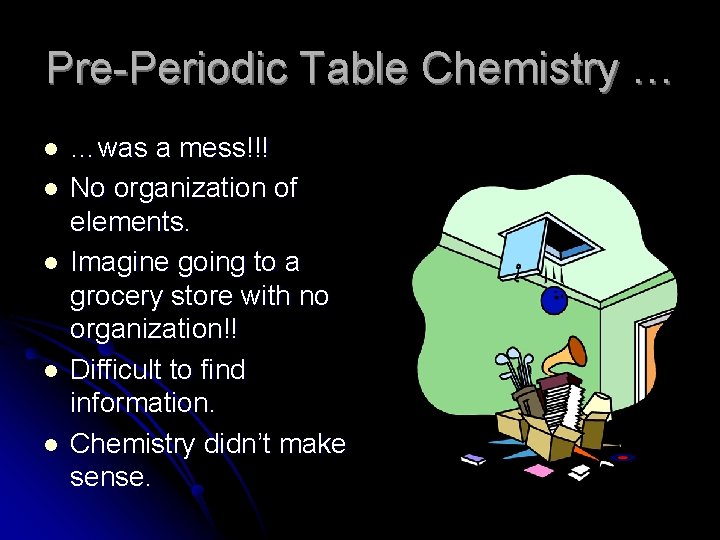

Pre-Periodic Table Chemistry … l l l …was a mess!!! No organization of elements. Imagine going to a grocery store with no organization!! Difficult to find information. Chemistry didn’t make sense.

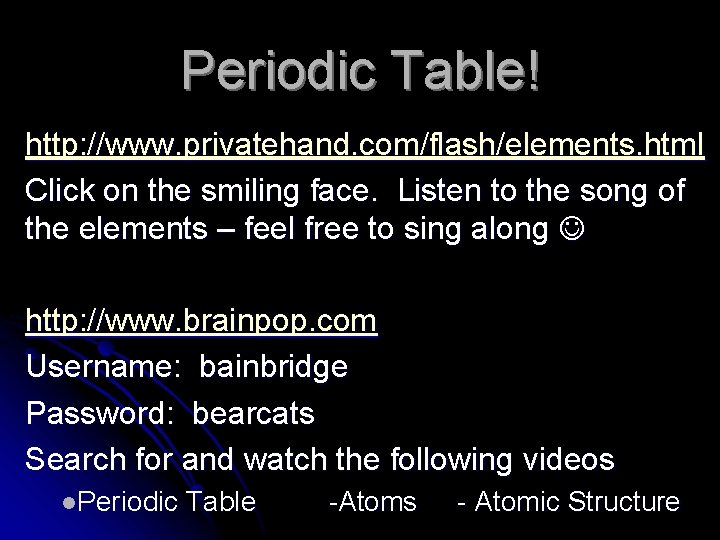

Periodic Table! http: //www. privatehand. com/flash/elements. html Click on the smiling face. Listen to the song of the elements – feel free to sing along http: //www. brainpop. com Username: bainbridge Password: bearcats Search for and watch the following videos l. Periodic Table -Atoms - Atomic Structure

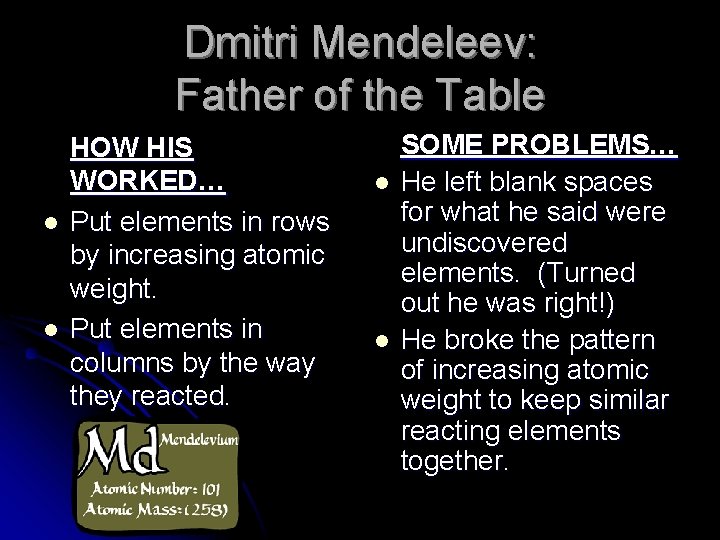

Dmitri Mendeleev: Father of the Table l l HOW HIS WORKED… Put elements in rows by increasing atomic weight. Put elements in columns by the way they reacted. l l SOME PROBLEMS… He left blank spaces for what he said were undiscovered elements. (Turned out he was right!) He broke the pattern of increasing atomic weight to keep similar reacting elements together.

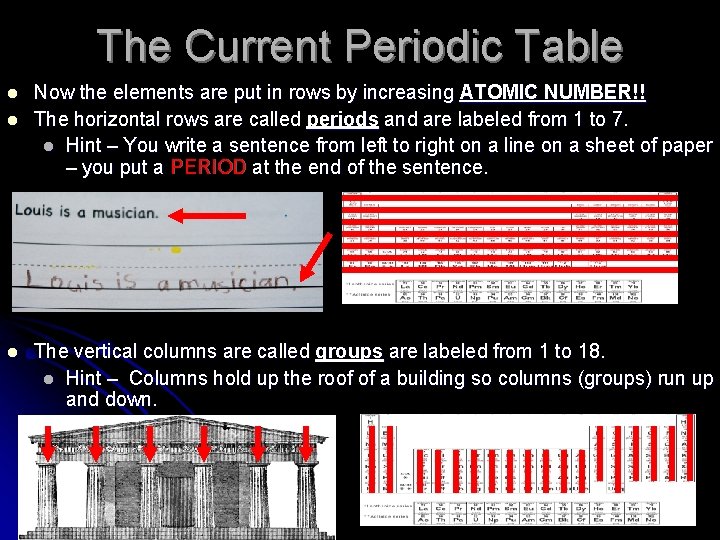

The Current Periodic Table l l l Now the elements are put in rows by increasing ATOMIC NUMBER!! The horizontal rows are called periods and are labeled from 1 to 7. l Hint – You write a sentence from left to right on a line on a sheet of paper – you put a PERIOD at the end of the sentence. The vertical columns are called groups are labeled from 1 to 18. l Hint – Columns hold up the roof of a building so columns (groups) run up and down.

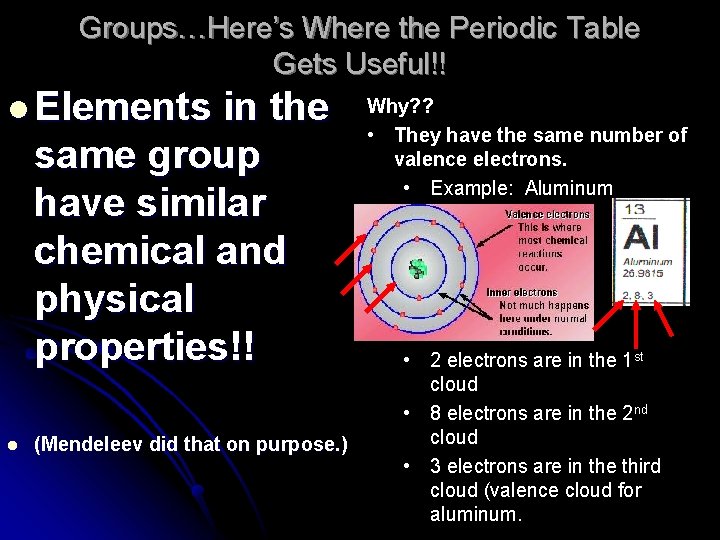

Groups…Here’s Where the Periodic Table Gets Useful!! l Elements in the same group have similar chemical and physical properties!! l (Mendeleev did that on purpose. ) Why? ? • They have the same number of valence electrons. • Example: Aluminum • 2 electrons are in the 1 st cloud • 8 electrons are in the 2 nd cloud • 3 electrons are in the third cloud (valence cloud for aluminum.

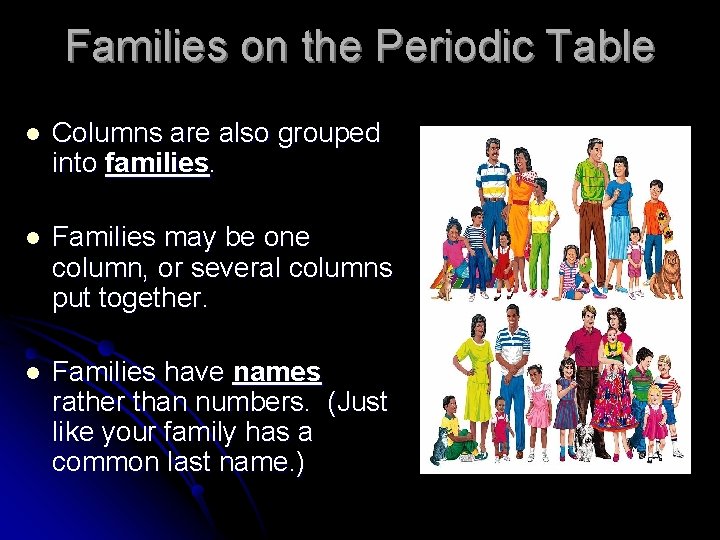

Families on the Periodic Table l Columns are also grouped into families. l Families may be one column, or several columns put together. l Families have names rather than numbers. (Just like your family has a common last name. )
Hydrogen l Hydrogen belongs to a family of its own. l Hydrogen is a diatomic, reactive gas. l Hydrogen was involved in the explosion of the Hindenberg. l Hydrogen is promising as an alternative fuel source for automobiles Click on & Watch the movie above. l Find and color Hydrogen pink on your periodic table.
Alkali Metals l 1 st column on the periodic table (Group 1) not including hydrogen. l Very reactive metals, always combined with something else in nature (like in salt -- Na. Cl). l Soft enough to cut with a butter knife l Find and color the Alkali Metals yellow – to help you remember “can be cut with a butter knife”. Click on & Watch the movie above.
Alkaline Earth Metals l Second column on the periodic table. (Group 2) l Reactive metals that are always combined with nonmetals in nature. l Several of these elements are important mineral nutrients (such as Mg and Ca) l Find and color the Alkaline Earth Metals brown – to help you remember alkaline “earth” Click on & Watch the movie above. metals
Transition Metals l Elements in groups 3 -12 l Less reactive harder metals l Includes metals used in jewelry and construction. l Metals used “as metal. ” l Find and color the Transition Metals gray Click on & Watch the movie above.
Metalloids l Found along the stair-step line that distinguishes metals from non-metals. l Have properties of both metals and non-metals l Some are semi-conductors l Includes: Boron, Silicon, Germanium, Arsenic, Antimony, Tellurium, & Polonium l Draw a black zigzag line (staircase) separating the metals and nonmetals – indicating the metalloids l Color B, Si, G, As, Sb, Te, & Po orange Click on & Watch the movie above.

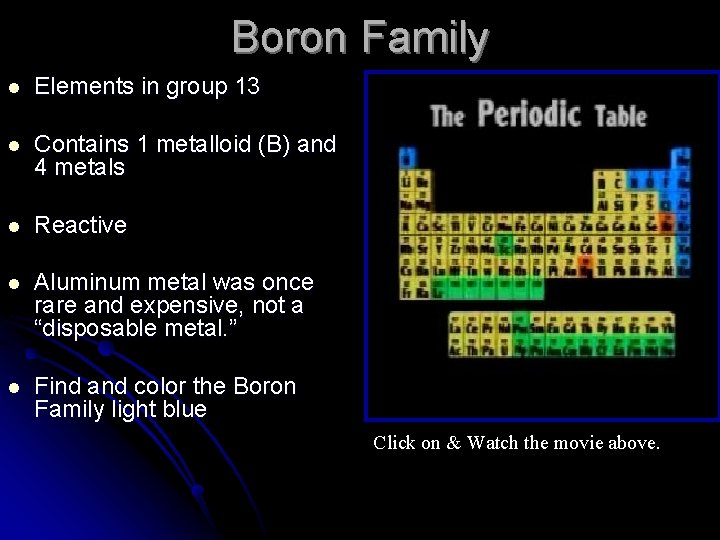

Boron Family l Elements in group 13 l Contains 1 metalloid (B) and 4 metals l Reactive l Aluminum metal was once rare and expensive, not a “disposable metal. ” l Find and color the Boron Family light blue Click on & Watch the movie above.

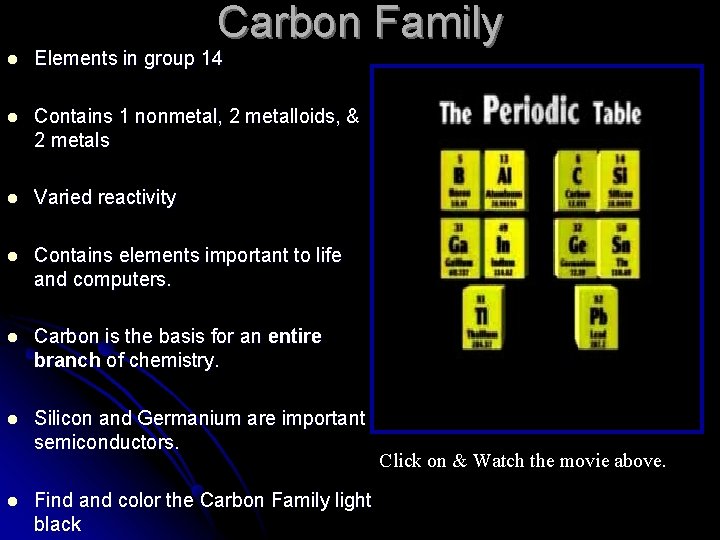

Carbon Family l Elements in group 14 l Contains 1 nonmetal, 2 metalloids, & 2 metals l Varied reactivity l Contains elements important to life and computers. l Carbon is the basis for an entire branch of chemistry. l Silicon and Germanium are important semiconductors. l Find and color the Carbon Family light black Click on & Watch the movie above.

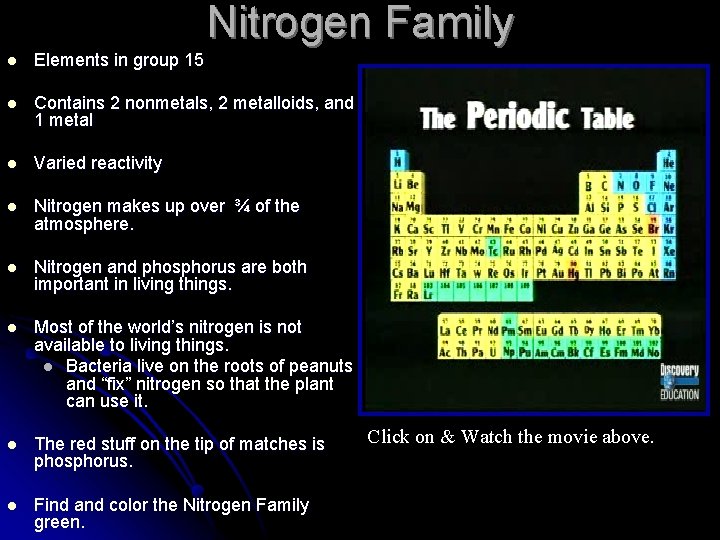

Nitrogen Family l Elements in group 15 l Contains 2 nonmetals, 2 metalloids, and 1 metal l Varied reactivity l Nitrogen makes up over ¾ of the atmosphere. l Nitrogen and phosphorus are both important in living things. l Most of the world’s nitrogen is not available to living things. l Bacteria live on the roots of peanuts and “fix” nitrogen so that the plant can use it. l The red stuff on the tip of matches is phosphorus. l Find and color the Nitrogen Family green. Click on & Watch the movie above.

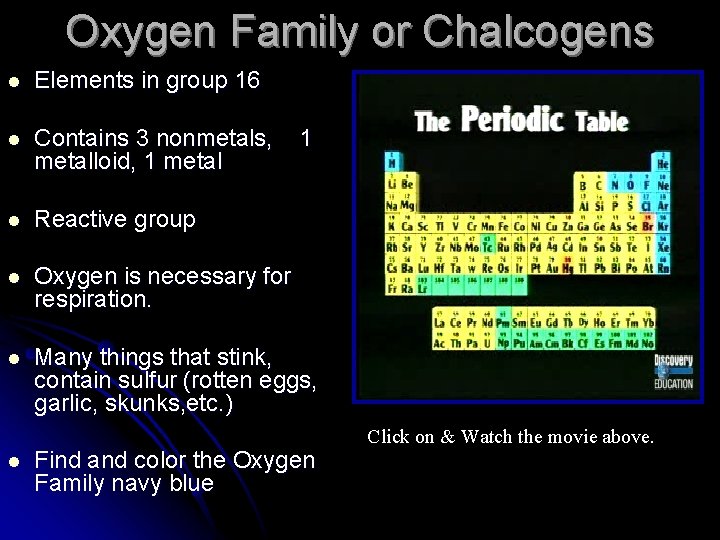

Oxygen Family or Chalcogens l Elements in group 16 l Contains 3 nonmetals, metalloid, 1 metal l Reactive group l Oxygen is necessary for respiration. l Many things that stink, contain sulfur (rotten eggs, garlic, skunks, etc. ) l 1 Find and color the Oxygen Family navy blue Click on & Watch the movie above.

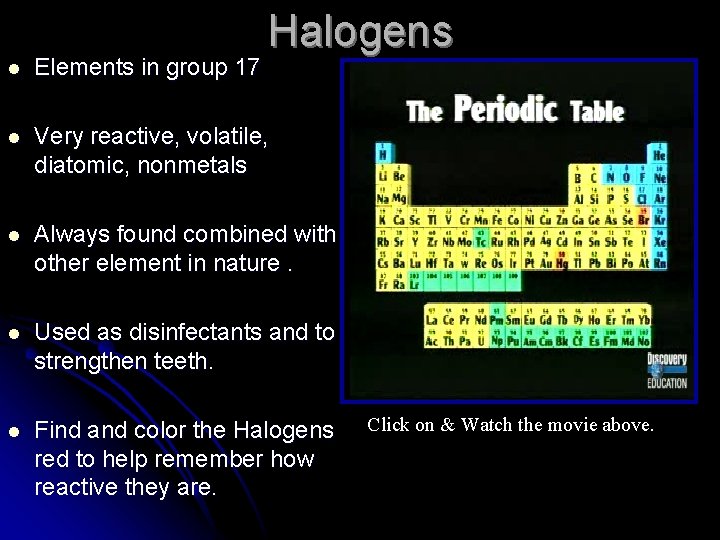

Halogens l Elements in group 17 l Very reactive, volatile, diatomic, nonmetals l Always found combined with other element in nature. l Used as disinfectants and to strengthen teeth. l Find and color the Halogens red to help remember how reactive they are. Click on & Watch the movie above.

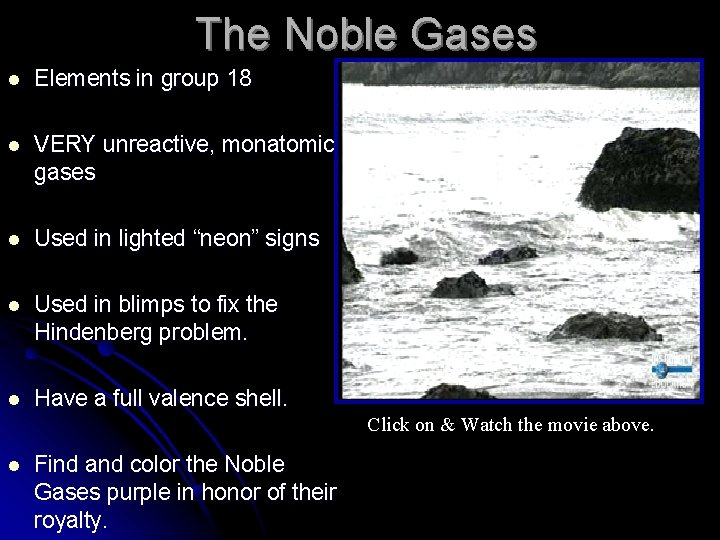

The Noble Gases l Elements in group 18 l VERY unreactive, monatomic gases l Used in lighted “neon” signs l Used in blimps to fix the Hindenberg problem. l Have a full valence shell. Click on & Watch the movie above. l Find and color the Noble Gases purple in honor of their royalty.

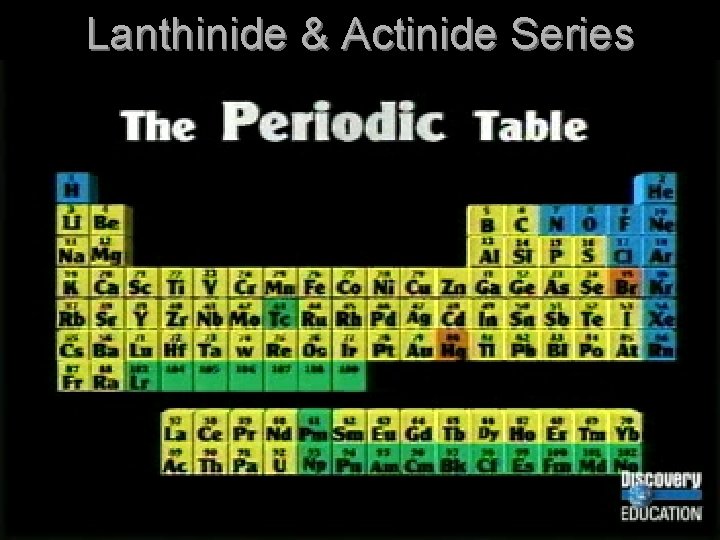

Lanthinide & Actinide Series

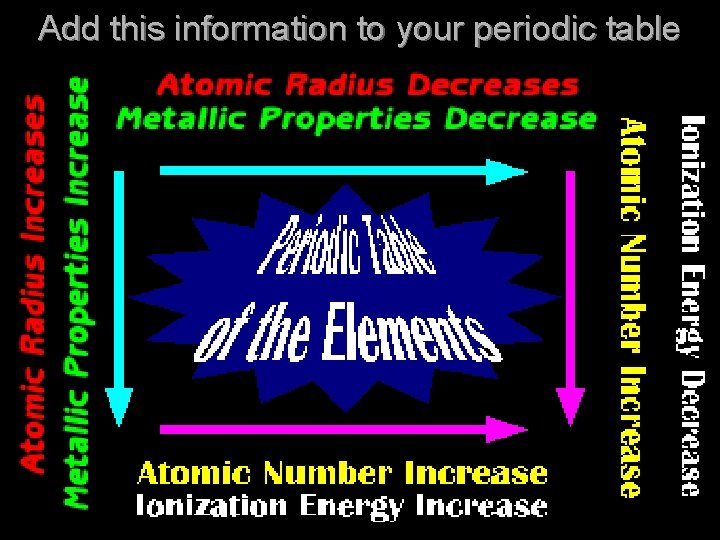

Add this information to your periodic table
