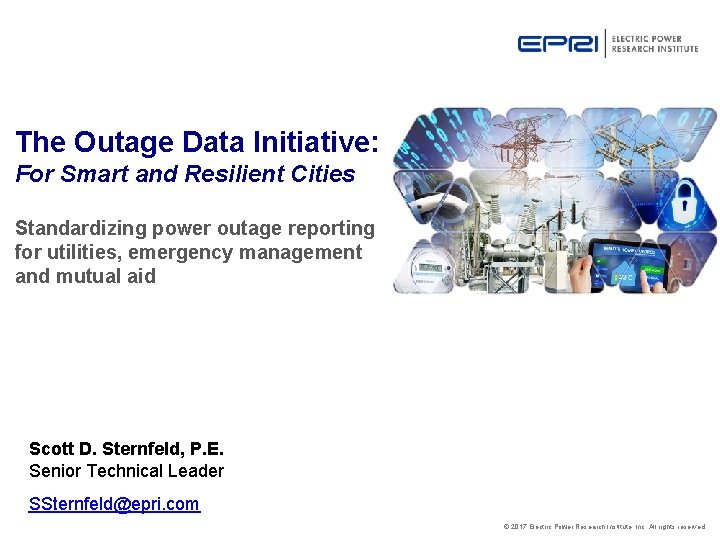

The Outage Data Initiative: For Smart and Resilient Cities Standardizing power outage reporting for utilities, emergency management and mutual aid Scott D. Sternfeld, P. E. Senior Technical Leader SSternfeld@epri. com © 2017 Electric Power Research Institute, Inc. All rights reserved.

The Outage Data Initiative Why? § To improve disaster response, recovery and awareness efforts by providing secure, real-time operational information, coordinated with internal and external stakeholders during major events. § “In time of crisis, our communities and country count on us to be able to work together as a team. We all must commit to a common way of doing business. ” – National Infrastructure Management System (NIMS) EPRI 2016 Outage Data Initiative Report: 3002007928 2 © 2017 Electric Power Research Institute, Inc. All rights reserved.

The Outage Data Initiative Why? Request from State Agency to Utilities Currently, [State Agency] accesses publicly available outage data through public websites. [State Agency] uses this information to inform emergency management operations; however, is limited by the inability to overlay outage data with incident information nor visualize a stateside outage picture. This can delay and/or misinform executive understanding of incident impacts and lead to degraded and less effective response operations. Direct access to outage data will enable [State Agency] executives and emergency responders to more accurately assess impacts on [State] residents and drive decision-making on the quantity, type and prioritization of emergency response resources. 3 © 2017 Electric Power Research Institute, Inc. All rights reserved.

ODI Progress and Where we are Going 2014 2015 • First Test of IEC Draft Standard • First Distribu. TECH multi-vendor Demonstration • EPRI 2015 Outage Data Initiative Report ID 3002006384 2016 • IEC Standard Advancement • Distribu. TECH Demonstration with 7 Utilities, 10 Vendors • EPRI 2016 Outage Data Initiative Report ID 3002007928 2017 • EDF analyzed standard in summer 2017 for planned implementation • IEC CIM Outage Standard Approved IEC 61968 -11 (UML) • Modifications ready for message implementation and validation testing 2018 4 • White House Call To action - Outage Data Initiative • IEC CIM Standard Process Starts • EPRI CIM Test Harness in place for conformance and certification testing • IEC CIM Outage Standard Messages Anticipated Approval: IEC 61968 -3 © 2017 Electric Power Research Institute, Inc. All rights reserved.

What is EPRI doing? § Engaging Utilities and State Emergency Management Agencies – Washington § Seattle City Light, PGE, PSE, Avista, Pacifi. Corp, others § WA Department of Commerce, WA Emergency Management Division – California § PG&E, SCE, SDG&E, SMUD, LADWP § California Office of Emergency Services – South Carolina § SCE&G, Duke, Santee Cooper § South Carolina Emergency Management Division § Partnering with utility vendors – OMS, ADMS, GIS vendors – Native CIM implementation of outage messages § Currently working with Seattle City Light: Implementation of Public and First Responder CIM messages – Oracle, ESRI, Data. Capable 5 © 2017 Electric Power Research Institute, Inc. All rights reserved.

Outage Data Initiative: EPRI Approach Implement the Standard Facilitate implementation of the new CIM standard with Utilities and their Vendors Verify Conformance to Standard EPRI validates conformance to the IEC standard with UCA as the ITCA for conformance and interoperability Evaluate Effectiveness EPRI evaluates effectiveness during an event or simulated event Case Study Sharing EPRI documents Outage Data Use Cases, Goals, Results and Lessons Interoperability Workshop EPRI hosts an interoperability workshop and demonstrates conformance to the IEC CIM Outage Data Standard Utilities and Stakeholders will be invited to observe 6 © 2017 Electric Power Research Institute, Inc. All rights reserved.

The Outage Data Initiative OMS / ADMS / GIS implementation UTILITY OUTAGE DATA TA L AI T DE DA DETAILED DATA STORM MANAGEMENT/MUTUAL AID ED Pr. So. U p. Mri. MA eta. RY ry DA for. TA ma t PUBLIC BENEFIT EMERGENCY MANAGEMENT Data exchange with neighboring utilities Improved regulatory reporting Public outage maps Local/county/state agencies and first responders Improved storm impact models 7 Federal agencies (Do. E, FEMA, DHS, HHS) Work management and outage reporting integration for mobile platforms Smart cities/municipalities © 2017 Electric Power Research Institute, Inc. All rights reserved. Consistent reporting to media outlets (TV, radio)

ODI Use Cases Standardization Visualization Optimization Standardization of data exchange: UC 1: Within a utility (Detailed outage data) UC 2: Between utilities (Generalized outage data) UC 3: With emergency management agencies (More accurate, granular outage data) UC 4: With media/public (Public outage map) UC 5: With other infrastructure providers (e. g. Cellular, Joint utility providers) UC 6: With end-point devices (e. g. AMI meters, street lights and traffic lights) Future opportunities Visualization: UC 7: Integration of Social Media for outage reporting to / from customers UC 8: Integration of Augmented Reality, Drones, mobile platforms and WMS with GIS & OMS for damage assessment Optimization: UC 9: Analysis of outage reporting codes UC 10: Standardized outage reporting UC 11: Improved Post-Storm Analysis “report card” 8 © 2017 Electric Power Research Institute, Inc. All rights reserved.

The Common Information Model Updates to the IEC 61968 standard (Outage is “Part 3”) UML Updates Outage Asset Health, Wires Assembly Canonical model ‘Profiles’: overlapping ‘slices’ for data exchanges DER (New) Profile expression in XML ‘language’ XSDs • hierarchical description • message exchange 9 © 2017 Electric Power Research Institute, Inc. All rights reserved.

CIM UML Updates to 61968 package Outage model: WG 14 Part 3 - Outage Data Initiative Example objects: § Outage. Area § Outage. Kind § Cause. Kind § Meters. Affected § Crew. Status. Kind § ERT § Customers. Restored 10 © 2017 Electric Power Research Institute, Inc. All rights reserved.

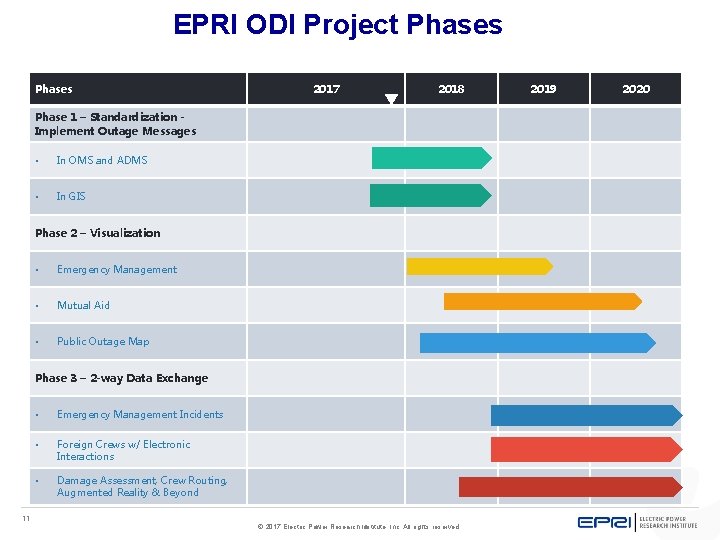

EPRI ODI Project Phases 2017 2018 Phase 1 – Standardization Implement Outage Messages • In OMS and ADMS • In GIS Phase 2 – Visualization • Emergency Management • Mutual Aid • Public Outage Map Phase 3 – 2 -way Data Exchange 11 • Emergency Management Incidents • Foreign Crews w/ Electronic Interactions • Damage Assessment, Crew Routing, Augmented Reality & Beyond © 2017 Electric Power Research Institute, Inc. All rights reserved. 2019 2020

The Outage Data Initiative Enabling Future Data Sharing Opportunities Image source: https: //www. behance. net/gallery/35441819/PG-E-UX-design Real time situational awareness for grid operators 12 Common data entry method foreign crews © 2017 Electric Power Research Institute, Inc. All rights reserved.

The Outage Data Initiative Enabling Future Data Sharing Opportunities One utility’s vision… The goal: an application to provide enhanced damage assessment, outage restoration and resource management capabilities…and… • Works via BYOD (tablet, laptop, smartphone) • Is operating system-agnostic (Android, i. OS, Windows) • Can continue to function in a disconnected (no data connection) mode • Can provide and receive real-time or near real-time data, including dynamic grid, tabular, photo, and graphical data outside the corporate firewall via temporary credentials provided to mutual assistance or other non-routine support personnel. • Provides an extremely simple interface for field users • Can authenticate local and foreign crews and track crew location • Can handle large volumes (5 K+) of simultaneous users 13 © 2017 Electric Power Research Institute, Inc. All rights reserved.

EPRI Outage Data Initiative Summary Objectives and Scope § Facilitate vendor and stakeholder implementation guidance with the IEC CIM Outage Data Standard § Evaluate standard conformance for solution providers and stakeholders using EPRI’s CIM test harness. § Conduct interoperability workshop with multiple vendors demonstrating conformance to the standard § Document the outage data use cases, goals, results, and lessons learned. Want to learn more? Value § Facilitation of exchanges with external stakeholders, including emergency management agencies Contacts § Implementation of the Outage Data Standard in your utility with your vendors § Technical: Scott Sternfeld, 843. 619. 0050 § Opportunities to identify and validate future enhancements for outage data § West: Christine Hertzog, 650. 314. 8111 chertzog@epri. com § Enabled platform for improved situational awareness and coordination with mutual aid and storm managers through consistent electric grid outage data. § East: Chris Kotting, 980. 219. 0146 ckotting@epri. com 14 ssternfeld@epri. com © 2017 Electric Power Research Institute, Inc. All rights reserved.

Together…Shaping the Future of Electricity Scott D. Sternfeld, P. E. Senior Technical Leader SSternfeld@epri. com 843 -619 -0050 15 © 2017 Electric Power Research Institute, Inc. All rights reserved.
