The Opt. IPuter— Lambda Coupled Distributed Computing, Peer-to-Peer Storage, and Volume Visualization Dr. Larry Smarr, Director, California Institute for Telecommunications and Information Technology Professor, Computer Science and Engineering, Jacobs School of Engineering, UCSD

Two New Cal-(IT)2 Buildings Approved by Legislature This Week! Bioengineering • Will Create New Laboratory Facilities UC Irvine – – Clean Rooms for Nanotech and Bio. MEMS Computer Arts Virtual Reality Wireless and Optical Networking Interdisciplinary Teams UC San Diego

Future Systems Will “Waste” Bandwidth and Storage, While Conserving Computing Scientific American, January 2001

S-Curves of Exponential Technology Growth Lambda Grids Experimental Networks Production/ Mass Market DWDM 100% Technology Penetration Internet 2 Abilene Experimental/ Early Adopters Connections Program 0% Research Time Technology S-Curve Gigabit Testbeds ~1990 s 2000 2010 Networking Technology S-Curves

A Lambda. Grid Will Be the Backbone for an e-Science Network Apps Middleware • Metro Area Laboratories Springing Up Worldwide • Developing Gig. E and 10 Gig. E Applications and Services • Testing Optical Switches • Metro Optical Testbeds-the next Giga. POP? Clusters Dynamically Allocated Lightpaths Switch Fabrics Physical Monitoring C O N T R O L P L A N E Source: Joe Mambretti, NU

NSF Defines Three Classes of Networks Beyond the Commodity Internet • • Production Networks (e. g. Internet 2) – High-Performance Networks – Reaches All US Researchers – 24 / 7 Reliable Experimental Networks – Trials of Cutting-Edge High-Performance Networks – Deliver Advanced Application Needs Unsupported by Production Networks – Robust Enough to Support Application-Dictated Development: – Software Application Toolkits, – Middleware, – Computing and Networking • Research Networks – Smaller-Scale Network Prototypes – Enable Basic Scientific and Engineering Network Research – Testing of Component Technologies, Protocols, Network Architectures – Not Expected to Be Persistent – Not Expected to Support Production Applications www. evl. uic. edu/activity/NSF/index. html

Local and Regional Lambda Experimental Networks Are Achievable and Practical • Several Giga. POPs Are Building Multi-Lambda Metropolitan Experimental Networks by Lighting up Their Own Dark Fiber – With Hundreds of Lambdas by 2010 • Lambda. Grid Software to Dynamically Couple Applications to Metro and Resources Is Possible • Metro Experimental Networks Will Be Sensitized to: – End Application Needs – Local Connectivity Issues – Current National Production Networks Have Not Begun to Satisfy • Substantial State and Local Funds Can Be Heavily Leveraged by an NSF Experimental Networks Program – – – Cross-country Inter-Connection Persistent Support of Emerging Experimental Networks First NSF Workshop UIC December 2001 Second NSF Workshop UCI May 2002 Expected NSF RFP by Fall 2002

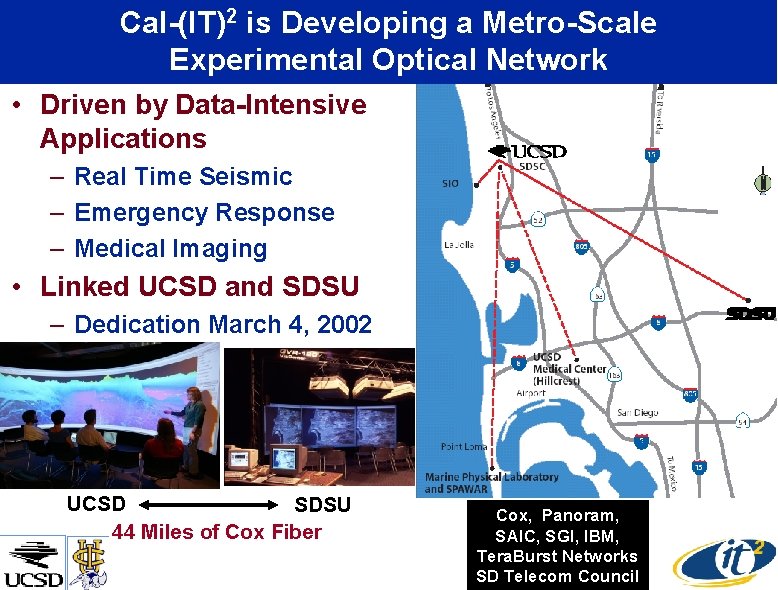

Cal-(IT)2 is Developing a Metro-Scale Experimental Optical Network • Driven by Data-Intensive Applications – Real Time Seismic – Emergency Response – Medical Imaging • Linked UCSD and SDSU – Dedication March 4, 2002 Linking Control Rooms UCSD SDSU 44 Miles of Cox Fiber Cox, Panoram, SAIC, SGI, IBM, Tera. Burst Networks SD Telecom Council

Beginning of Cal-(IT)2 Metro Optical Networking Laboratory

Next Step– California Must Have a State-Wide Experimental Optical Network • The Institutes are Creating a Joint Plan – Led by Cal-(IT)2 & CITRIS – Involving QB 3 and CNSI • Leveraging Today’s CENIC Investment – Provides California Internet Connectivity – K-12 and Universities • Necessary for Data-Intensive Science – Widely Available to Many Disciplines • California is Not the Leader Today! – Illinois, Indiana, and Canada Already There

CENIC and CISI May Create a Dark Fiber Experimental and Research Network The So. Cal Component

Some Scientific Applications Require Experimental Optical Networks • Challenges – – Large Data Challenges in Neuro and Earth Sciences Each Data Object is 3 D and Gigabytes Data are Generated and Stored in Distributed Archives Research is Carried Out on Federated Repository • Requirements – – Computing Requirements PC Clusters Communications Dedicated Lambdas Data Large Peer-to-Peer Lambda Attached Storage Visualization Collaborative Volume Algorithms • Response – Cal-(IT)2 Opt. IPuter Research Project

NIH is Funding a National-Scale Grid Which is an Opt. IPuter Application Driver Biomedical Informatics Research Network (BIRN) Part of the UCSD CRBS National Partnership for Advanced Computational Infrastructure Center for Research on Biological Structure NIH Plans to Expand to Other Organs and Many Laboratories

The Opt. IPuter is an Experimental Network Research Project • Multiple Lambdas Linking Clusters and Storage – – – Integration with Infini. Band PC Clusters Rethink TCP/IP Protocols Peer to Peer Storage Lambda. Grid Software Stack Interactive Collaborative Volume Visualization • NSF Large Information Technology Research Proposal – Larry Smarr, PI – UCSD and UIC Lead Campuses – USC, UCI, SDSU, NW Partnering Campuses – Industrial Partners: IBM, Telcordia/SAIC, Chiaro Networks, CENIC – San Diego Telecom Council Letter of Support – Submitted April 4, 2002 – Seeking $15 M over 5 Years

The Opt. IPuter Research Team and Its Regional, National, Int’l Extensions Asia Pacific Vancouver Seattle Portland CA*net 4 e n * Pacific Light Rail CA Chicago San Francisco NI CE USC Los Angeles UCI UCSD, SDSU San Diego (SDSC) rid G a r e T et DTFn UIC NU PSC NYC NCSA C Asia Pacific SURFnet CERN Atlanta AMPATH Source: Tom De. Fanti and Maxine Brown, UIC

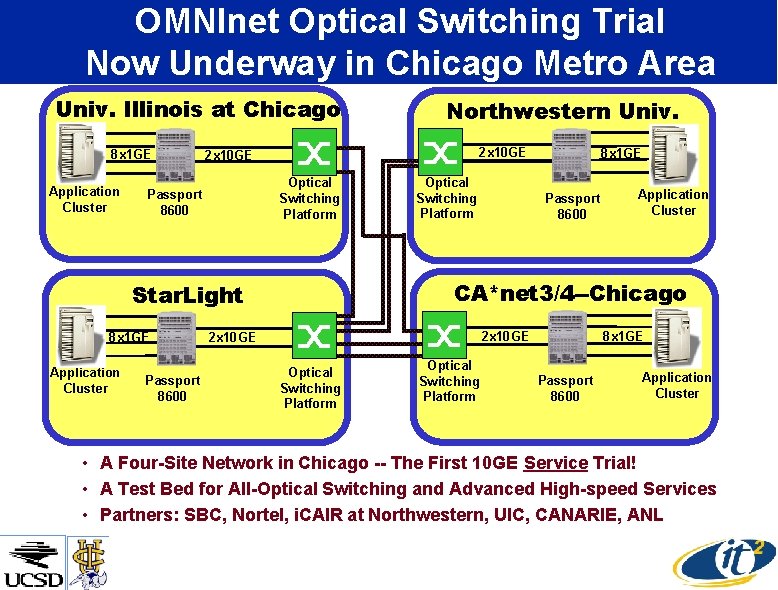

OMNInet Optical Switching Trial Now Underway in Chicago Metro Area Univ. Illinois at Chicago 8 x 1 GE Application Cluster 2 x 10 GE Passport 8600 OPTera Metro 5200 Optical Switching Platform Application Cluster Passport 8600 Optical Switching Platform 8 x 1 GE Passport 8600 Application Cluster CA*net 3/4 --Chicago Star. Light 8 x 1 GE Northwestern Univ. 8 x 1 GE 2 x 10 GE Optical Switching Platform Passport 8600 Application Cluster • A Four-Site Network in Chicago -- The First 10 GE Service Trial! • A Test Bed for All-Optical Switching and Advanced High-speed Services • Partners: SBC, Nortel, i. CAIR at Northwestern, UIC, CANARIE, ANL

Planned Chicago Metro Electronic Switching Opt. IPuter Laboratory Internationals: Canada, Holland, CERN, GTRN, Am. PATH, Asia… Int’l GE, 10 GE 16 x 10 GE Metro GE, 10 GE 16 -Processor Mc. Kinley at University of Illinois at Chicago 10 x 1 GE + 1 x 10 GE Nat’l GE, 16 -Processor Montecito/Chivano at Northwestern 10 GE Star. Light Nationals: Illinois, California, Wisconsin, Indiana, Abilene, Fed. Nets. Washington, Pennsylvania… Source: Tom De. Fanti

Plan for UCSD Campus-Scale Opt. IPuter Initially Connect: Schools of Medicine and Engineering with SIO and SDSC Philip Papadopoulos, SDSC

Opt. IPuter Optical Research Topics • • Integrate Infini. Band IP Over Lambdas – Connectivity, Addressing, Configuration, Recovery and Resource Discovery Design Evaluation, Monitoring and Analysis Tools for – Optimizing Infini. Band Over Dedicated Lambdas Devise Network Control and Management (NC&M) and Traffic Engineering – Gather Cluster Demand Signal the Reconfiguration of the Network Extend Signaling – Permit Opt. IPuter Clusters to Establish and Teardown Connections to Peer Clusters Across the IP/Lambda Network – Integrate This Signaling With Network-based NC&M • Extend the IP/Lambda Network to Support Very Fast Switches – Participate in the Optical Switching of Label Switched Paths (LSPS) That Transport Infini. Band Messages • Develop Common-Control-Plane Optical Transport Architectures – With Generalized Multi-Protocol Label Switching (GMPLS) – Transport Traffic Over Multiple User Planes With Variable Switching Modes, Namely Lambda Switching – Burst Switching – Inverse Multiplexing (Enabling One Application to Use Multiple Lambdas)

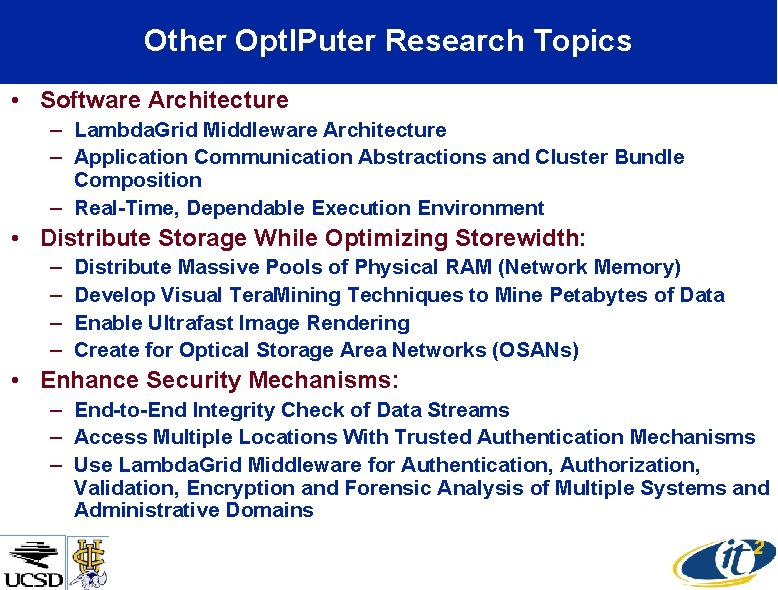

Other Opt. IPuter Research Topics • Software Architecture – Lambda. Grid Middleware Architecture – Application Communication Abstractions and Cluster Bundle Composition – Real-Time, Dependable Execution Environment • Distribute Storage While Optimizing Storewidth: – – Distribute Massive Pools of Physical RAM (Network Memory) Develop Visual Tera. Mining Techniques to Mine Petabytes of Data Enable Ultrafast Image Rendering Create for Optical Storage Area Networks (OSANs) • Enhance Security Mechanisms: – End-to-End Integrity Check of Data Streams – Access Multiple Locations With Trusted Authentication Mechanisms – Use Lambda. Grid Middleware for Authentication, Authorization, Validation, Encryption and Forensic Analysis of Multiple Systems and Administrative Domains
