The Open Source Logbook Gary Hemming European Gravitational

The Open Source Logbook Gary Hemming European Gravitational Observatory (gary. hemming@ego-gw. it) KAGRA F 2 F, 31/07/14

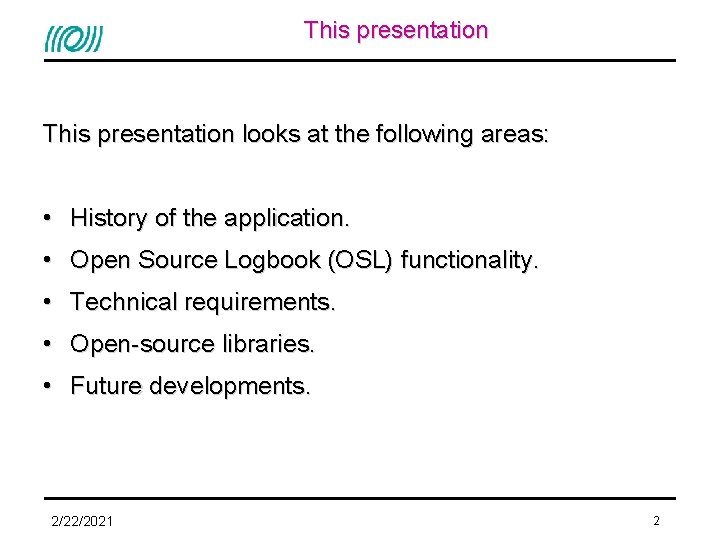

This presentation looks at the following areas: • History of the application. • Open Source Logbook (OSL) functionality. • Technical requirements. • Open-source libraries. • Future developments. 2/22/2021 2

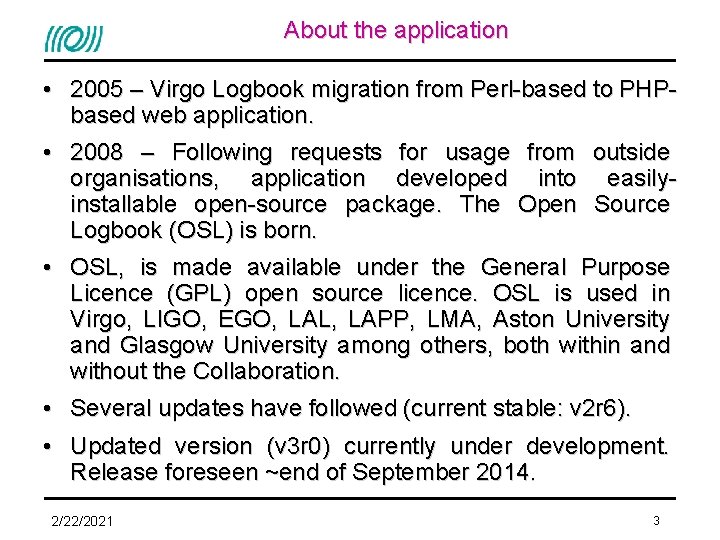

About the application • 2005 – Virgo Logbook migration from Perl-based to PHPbased web application. • 2008 – Following requests for usage from outside organisations, application developed into easilyinstallable open-source package. The Open Source Logbook (OSL) is born. • OSL, is made available under the General Purpose Licence (GPL) open source licence. OSL is used in Virgo, LIGO, EGO, LAL, LAPP, LMA, Aston University and Glasgow University among others, both within and without the Collaboration. • Several updates have followed (current stable: v 2 r 6). • Updated version (v 3 r 0) currently under development. Release foreseen ~end of September 2014. 2/22/2021 3

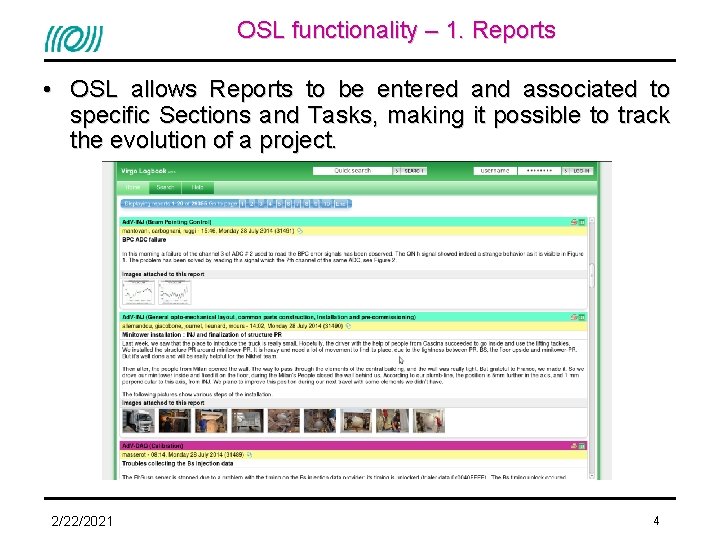

OSL functionality – 1. Reports • OSL allows Reports to be entered and associated to specific Sections and Tasks, making it possible to track the evolution of a project. 2/22/2021 4

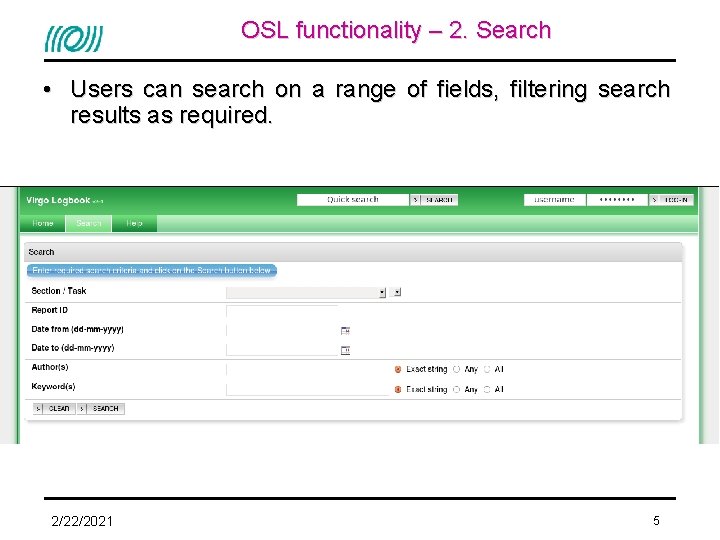

OSL functionality – 2. Search • Users can search on a range of fields, filtering search results as required. 2/22/2021 5

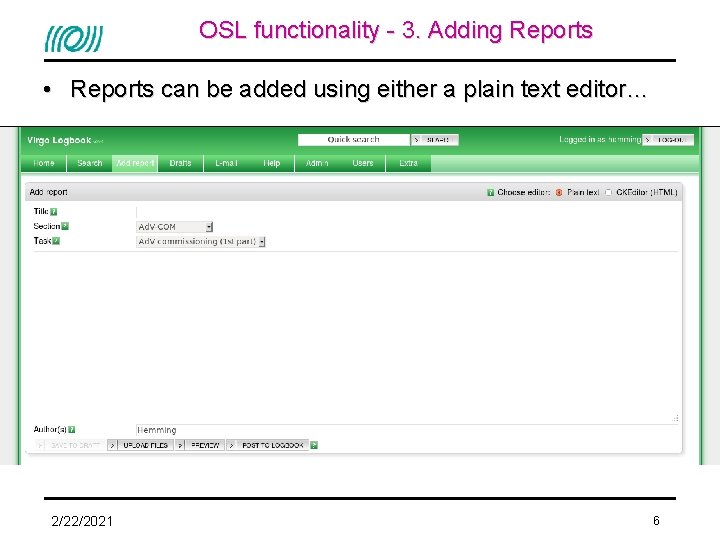

OSL functionality - 3. Adding Reports • Reports can be added using either a plain text editor… 2/22/2021 6

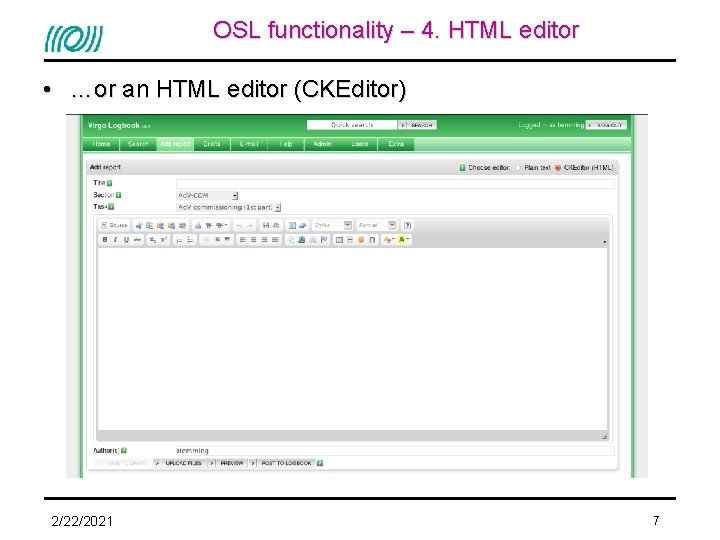

OSL functionality – 4. HTML editor • …or an HTML editor (CKEditor) 2/22/2021 7

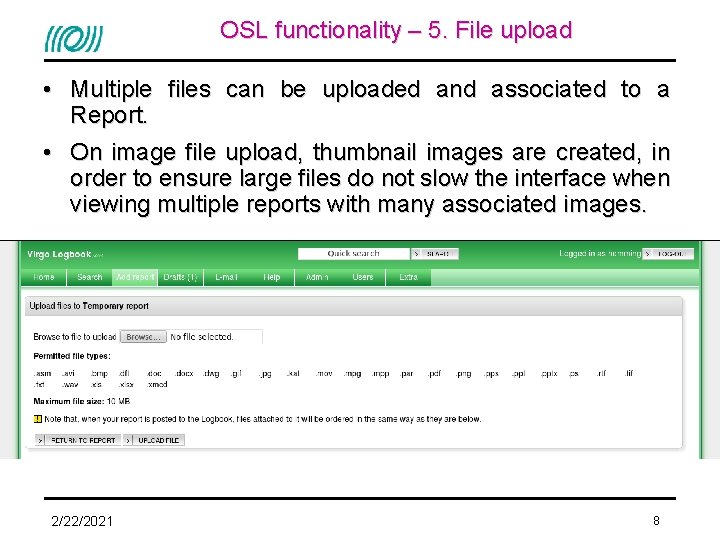

OSL functionality – 5. File upload • Multiple files can be uploaded and associated to a Report. • On image file upload, thumbnail images are created, in order to ensure large files do not slow the interface when viewing multiple reports with many associated images. 2/22/2021 8

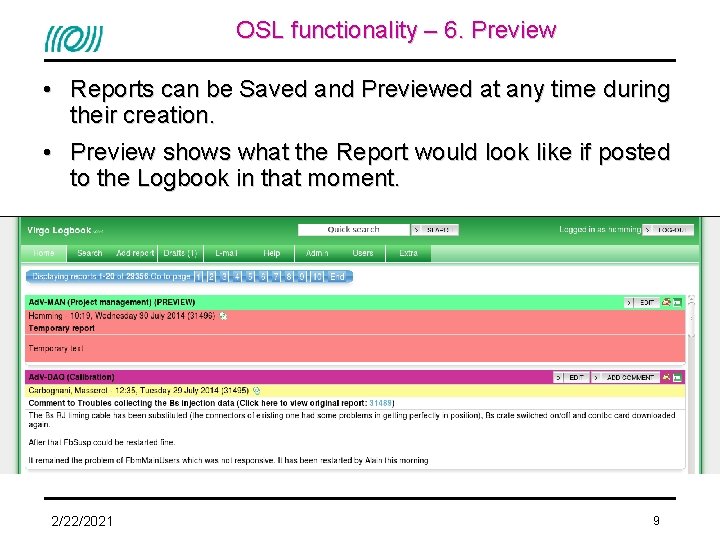

OSL functionality – 6. Preview • Reports can be Saved and Previewed at any time during their creation. • Preview shows what the Report would look like if posted to the Logbook in that moment. 2/22/2021 9

OSL functionality – 7. Drafts • Reports can be Saved to Draft and then returned to at a later date; retrieving them from the Drafts section. • Old, unwanted Drafts can also be deleted by a user from this section. 2/22/2021 10

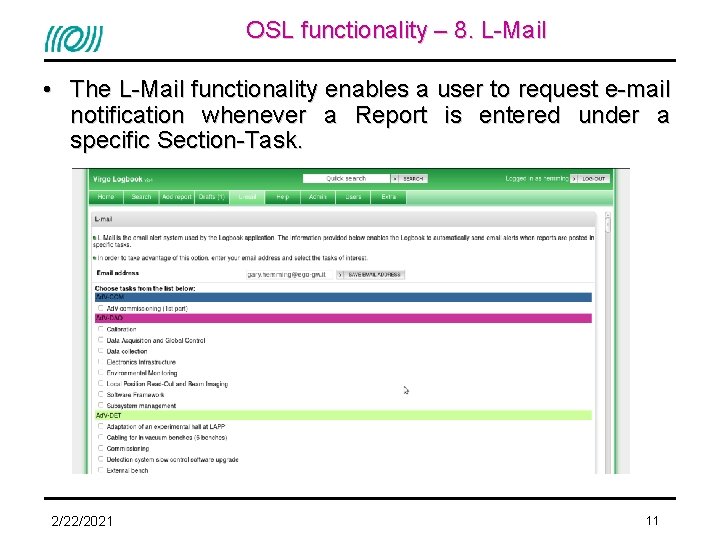

OSL functionality – 8. L-Mail • The L-Mail functionality enables a user to request e-mail notification whenever a Report is entered under a specific Section-Task. 2/22/2021 11

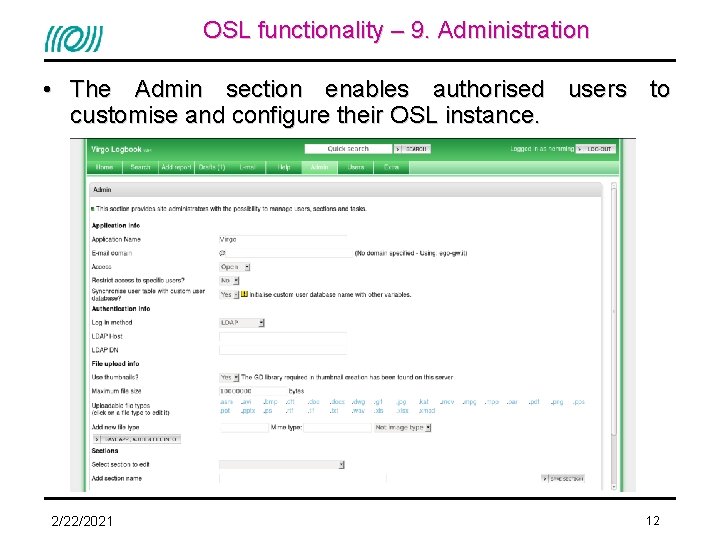

OSL functionality – 9. Administration • The Admin section enables authorised users to customise and configure their OSL instance. 2/22/2021 12

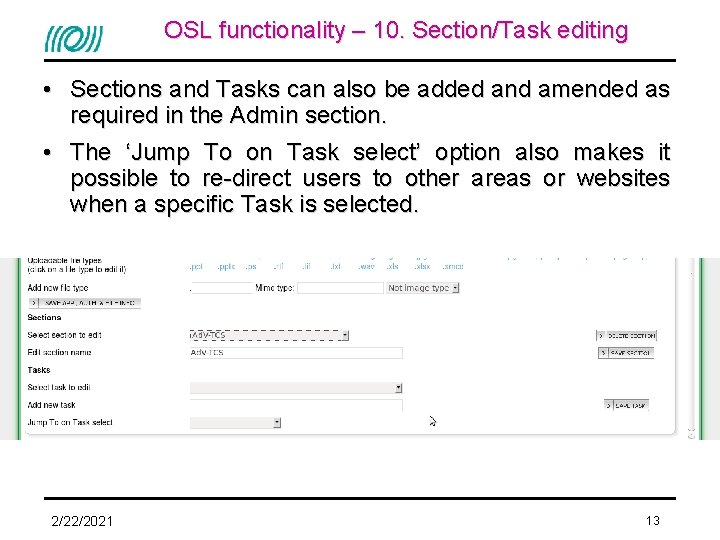

OSL functionality – 10. Section/Task editing • Sections and Tasks can also be added and amended as required in the Admin section. • The ‘Jump To on Task select’ option also makes it possible to re-direct users to other areas or websites when a specific Task is selected. 2/22/2021 13

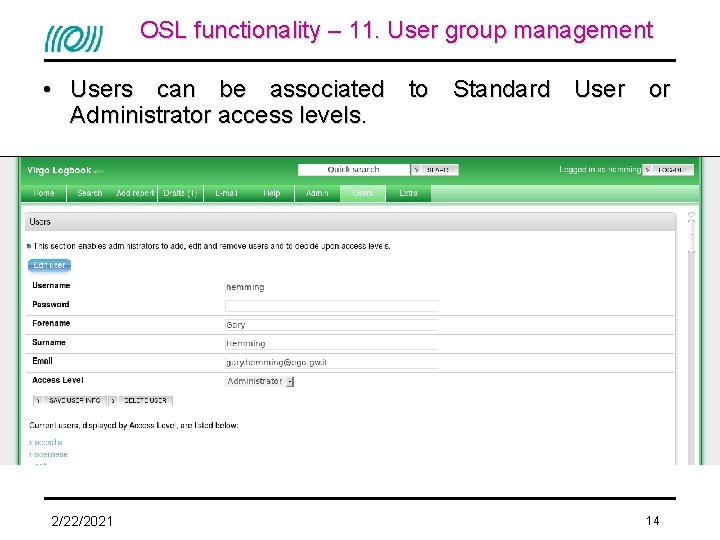

OSL functionality – 11. User group management • Users can be associated to Standard User or Administrator access levels. 2/22/2021 14

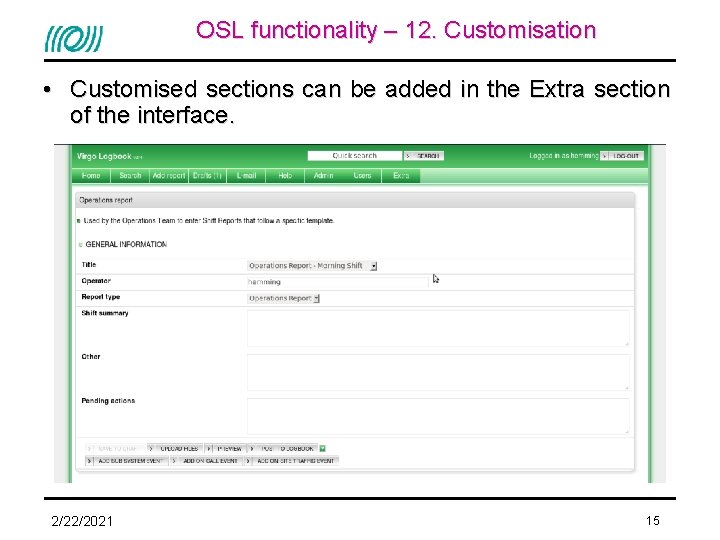

OSL functionality – 12. Customisation • Customised sections can be added in the Extra section of the interface. 2/22/2021 15

OSL functionality – 13. Help • Detailed Help section also available. 2/22/2021 16

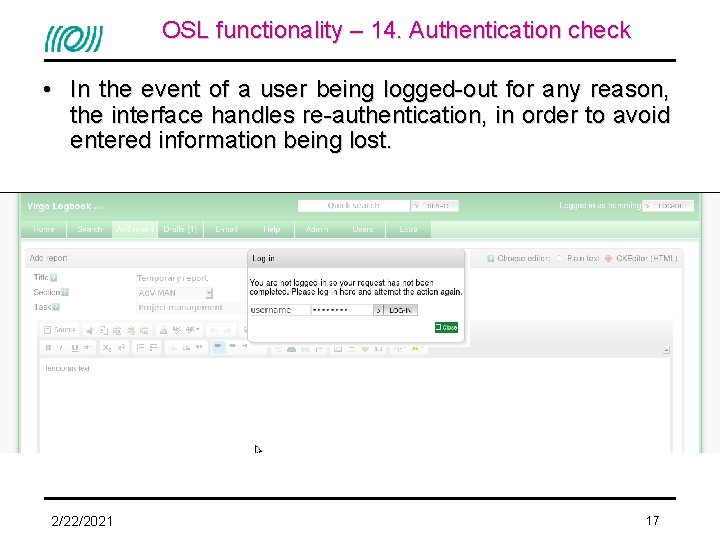

OSL functionality – 14. Authentication check • In the event of a user being logged-out for any reason, the interface handles re-authentication, in order to avoid entered information being lost. 2/22/2021 17

Technical requirements • Standard web server (Apache, IIS, etc. ) • PHP 5. 1+ (inc. GD library for thumbnail image creation)* • My. SQL 5. 0+ ** • Java. Script-supporting (i. e. all modern) browser * 5. 0+ would actually suffice, but up-coming version will use PHP Data Objects (PDO) for database communication and prepared statement execution, and is only available from PHP 5. 1 onwards. ** A My. SQL management application, such as php. My. Admin (www. phpmyadmin. net), is recommended for easy management of the database itself. 2/22/2021 18

Open-source libraries used in application and already included in software package: • CKEditor (ckeditor. com) – used as HTML editor in Report creation. Available under GPL, LPGL & MPL licences. • j. Query (jquery. com) - the widely-used j. Query Java. Script AJAX integration library (v 1. 4. 4+). j. Query is made available to applications under the MIT and GPL v 2 licences. • Tigra (www. softcomplex. com/products/tigra_calendar/) The Java. Script Tigra Calendar v 4. 0, available under the Tigra Calendar v 4. 0 licence is used in assisting user-filled data HTML input fields. • Simple AJAX Code-Kit (SACK) (www. twilightuniverse. com), available under a modified X 11 licence. 2/22/2021 19

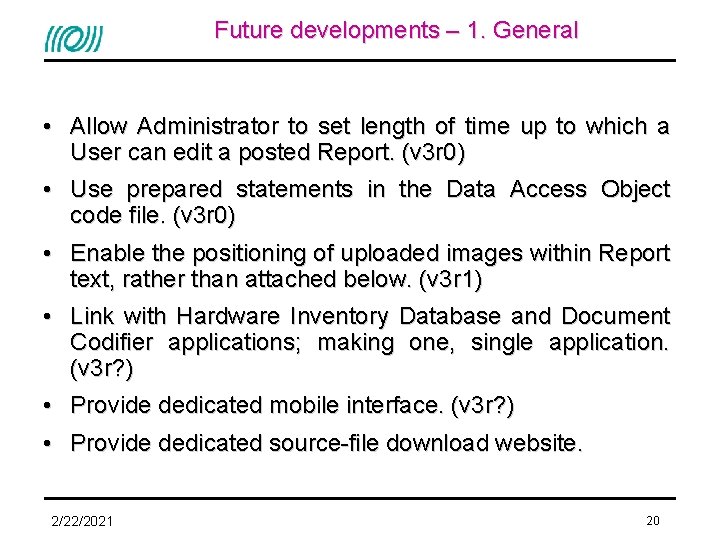

Future developments – 1. General • Allow Administrator to set length of time up to which a User can edit a posted Report. (v 3 r 0) • Use prepared statements in the Data Access Object code file. (v 3 r 0) • Enable the positioning of uploaded images within Report text, rather than attached below. (v 3 r 1) • Link with Hardware Inventory Database and Document Codifier applications; making one, single application. (v 3 r? ) • Provide dedicated mobile interface. (v 3 r? ) • Provide dedicated source-file download website. 2/22/2021 20

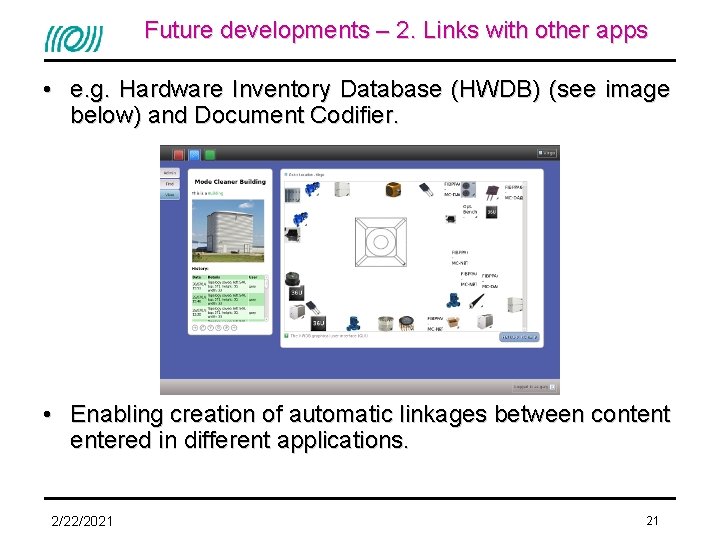

Future developments – 2. Links with other apps • e. g. Hardware Inventory Database (HWDB) (see image below) and Document Codifier. • Enabling creation of automatic linkages between content entered in different applications. 2/22/2021 21
