The OL 756 High Accuracy UVVIS Spectroradiometer 200
- Slides: 11
The OL 756 High Accuracy UV-VIS Spectroradiometer (200 -800 nm) 9/9/2020 Confidential & Proprietary Optronic Laboratories, Inc. Slide 1
Overview Introduction to the OL 756 Software Features and Benefits Technical Specifications Accessories Contact Information 9/9/2020 2
Introduction to the OL 756 State of the art fully automated compact and portable double monochromator – electronics and optics combined in a single package 200 -800 nm range High efficiency gratings coupled to a TE-cooled high sensitivity S-20 response PMT based detection Automated 6 -decade gain autoranging data acquisition system Automated linear gradient second order blocking filter blocks second order wavelengths without discontinuities in data Interchangeable fixed slits allow user to vary half bandwidth from 0. 5 -5 nm 9/9/2020 3
Software Features Includes calibration and measurement routines for performing measurements of: Source Spectral Analysis Spectral Reflectance Spectral Transmission Highly flexible plot manipulation shows up to 10 scans on a single graph. Select and/or protect one or many with “hide scan” or “lock scan” features. Favorites calibration file list saves searching and selection time by showing recently used files. Supervisor password protects data and prevents measurement setups from being altered. Sends results directly into Excel for custom analysis and into Word templates for custom report generation. 9/9/2020 4
Software Features Continued Color CIE diagrams with zoom capability for precise color studies, sequential measurement result accumulation on the diagram. Data reduction includes custom illuminants. “One-click” measurement routines and automatic file saving. Savitzky-Golay plot smoothing reduces noise while preserving features such as peak height and width. Automated Web Software Update feature checks for new software versions and automatically installs updates if desired by the user. Optional Active. X controls available for custom programming. Compatible with Windows 2000 and XP OS Optional accessories available 9/9/2020 5
Features and Benefits Multiple scan modes: Manual for single point monitoring and point to point mode for high speed/precision measurements Quick scan for fastest measurements with high precision† Large dynamic range High speed motion control system and DSP – measurements in < 10 seconds Superior resolution and stray light rejection 200 -800 nm range High speed USB/RS 232 PC compatible †Not found on any other scanning spectroradiometer 9/9/2020 6
Technical Specifications 9/9/2020 7
Example of Measurement Each spectrum shown was scanned in 0. 25 seconds and exported to Microsoft™ Excel in real time! 9/9/2020 8
Optional Accessories OL 756 -150 Dual Calibration Module Cosine corrected integrating spheres (submersible sphere for underwater measurements up to 20 m) Telescopes and microscopes for spectral radiance measurements Quartz fiber optic probe coupling NIST-traceable standards 9/9/2020 9
Questions? 9/9/2020 10

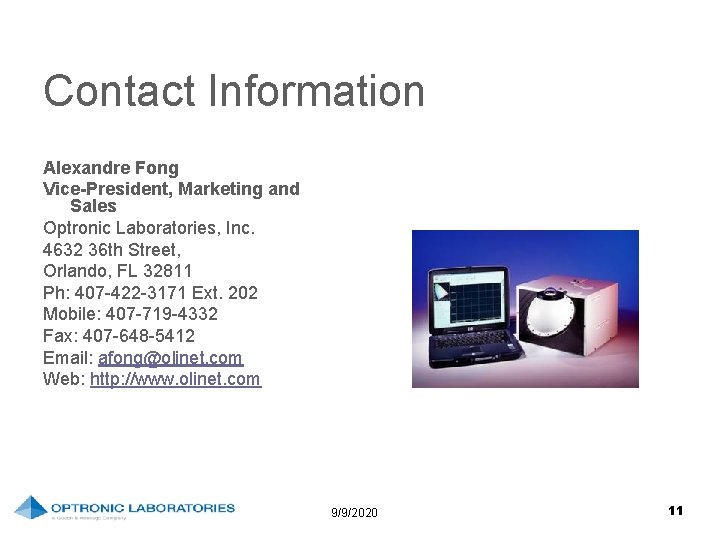

Contact Information Alexandre Fong Vice-President, Marketing and Sales Optronic Laboratories, Inc. 4632 36 th Street, Orlando, FL 32811 Ph: 407 -422 -3171 Ext. 202 Mobile: 407 -719 -4332 Fax: 407 -648 -5412 Email: afong@olinet. com Web: http: //www. olinet. com 9/9/2020 11
