The OFIDIA Project CMCC Lecce, MUST, November 24 th, 2015 In collaborazione con

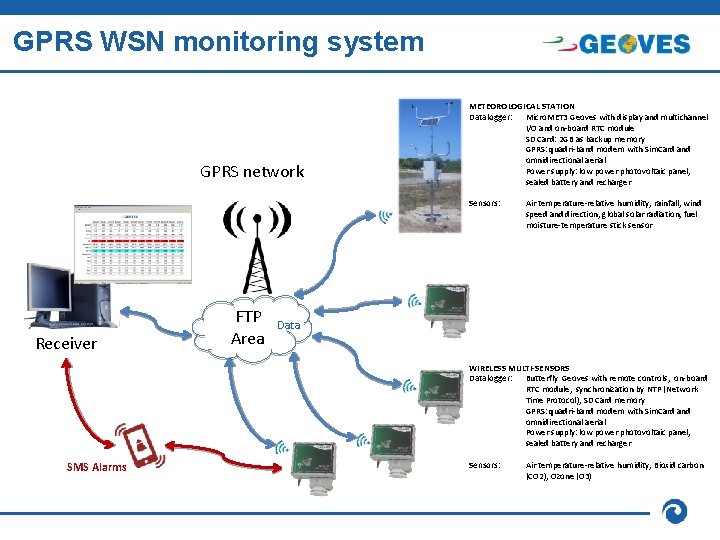

GPRS WSN monitoring system GPRS network METEOROLOGICAL STATION Datalogger: Micro. MET 3 Geoves with display and multichannel I/O and on-board RTC module SD Card: 2 GB as backup memory GPRS: quadri-band modem with Sim. Card and omnidirectional aerial Power supply: low power photovoltaic panel, sealed battery and recharger Sensors: Receiver FTP Area Air temperature-relative humidity, rainfall, wind speed and direction, global solar radiation, fuel moisture-temperature stick sensor Data WIRELESS MULTI-SENSORS Datalogger: Butterfly Geoves with remote controls, on-board RTC module, synchronization by NTP (Network Time Protocol), SD Card memory GPRS: quadri-band modem with Sim. Card and omnidirectional aerial Power supply: low power photovoltaic panel, sealed battery and recharger SMS Alarms Sensors: Air temperature-relative humidity, Bioxid carbon (CO 2), Ozone (O 3)

GPRS based Wireless Sensors Network Implementation of a WSN using a global system for mobile communication modem: ü all sensors communicate their data to a protected FTP area connected with centralized server software; ü the server has control over individual meteorological stations and multi-sensor nodes; ü every measurement node is autonomous and can communicate individually from the other nodes; in this way the measurement network becomes a real system with distributed intelligence; ü users can dynamically set the alarm thresholds from the centralized server software. Advantages of GPRS wireless transmission: ü GPRS modems join with microcontroller unit can provide instant alerts using SMS or email or by transmitting data to the FTP Area with a faster sample rate based on alarm conditions. The alarms will be checked from centralized software getting a useful for fault tolerance and redundancy controls; ü wide covering area, able to remotely monitor, high monitoring precision, fast network establishment and reasonable cost; ü GPRS is a mature technology, wide covering area, long communication distance; ü Low power consumption and easy installation.

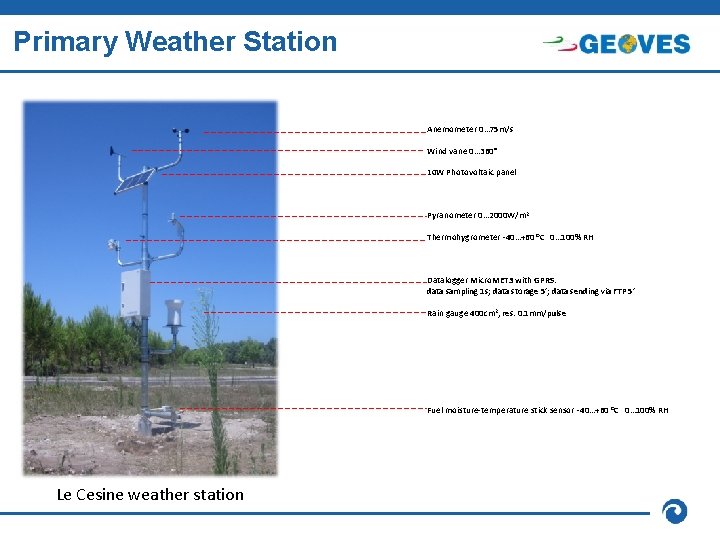

Primary Weather Station Anemometer 0… 75 m/s Wind vane 0… 360° 10 W Photovoltaic panel Pyranometer 0… 2000 W/m 2 Thermohygrometer -40…+60 ºC 0… 100% RH Datalogger Micro. MET 3 with GPRS: data sampling 1 s; data storage 5’; data sending via FTP 5’ Rain gauge 400 cm 2, res. 0. 1 mm/pulse Fuel moisture-temperature stick sensor -40…+60 ºC 0… 100% RH Le Cesine weather station

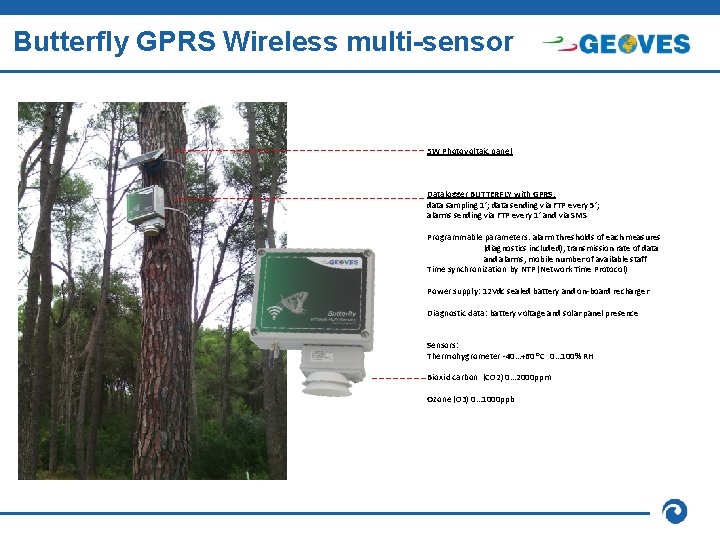

Butterfly GPRS Wireless multi-sensor 5 W Photovoltaic panel Datalogger BUTTERFLY with GPRS: data sampling 1’; data sending via FTP every 5’; alarms sending via FTP every 1’ and via SMS Programmable parameters: alarm thresholds of each measures (diagnostics included), transmission rate of data and alarms, mobile number of available staff Time synchronization by NTP (Network Time Protocol) Power supply: 12 Vdc sealed battery and on-board recharger Diagnostic data: battery voltage and solar panel presence Sensors: Thermohygrometer -40…+60 ºC 0… 100% RH Bioxid carbon (CO 2) 0… 2000 ppm Ozone (O 3) 0… 1000 ppb

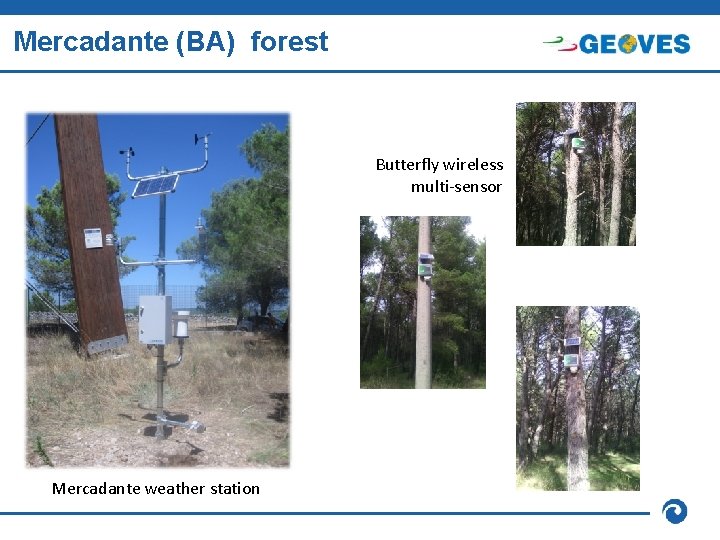

Mercadante (BA) forest Butterfly wireless multi-sensor Mercadante weather station

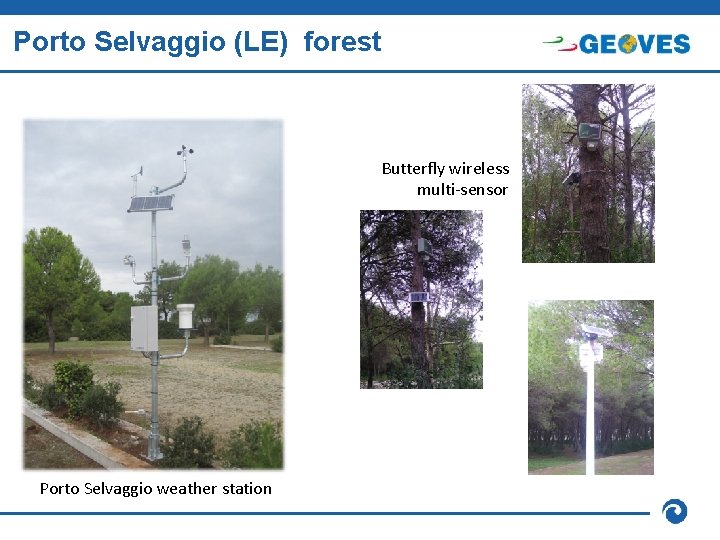

Porto Selvaggio (LE) forest Butterfly wireless multi-sensor Porto Selvaggio weather station

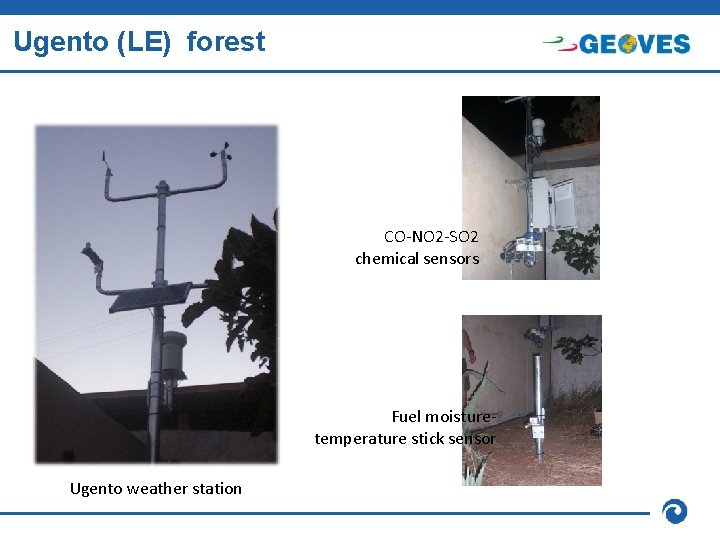

Ugento (LE) forest CO-NO 2 -SO 2 chemical sensors Fuel moisturetemperature stick sensor Ugento weather station
