The NUMAchine Multiprocessor ICPP 2000 Westin Harbour Castle

The NUMAchine Multiprocessor ICPP 2000 Westin Harbour Castle, August 24, 2000

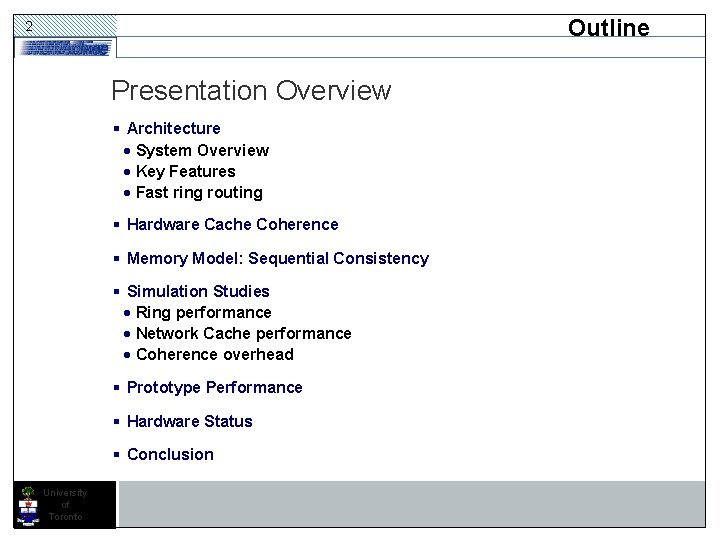

Outline 2 Presentation Overview § Architecture · System Overview · Key Features · Fast ring routing § Hardware Cache Coherence § Memory Model: Sequential Consistency § Simulation Studies · Ring performance · Network Cache performance · Coherence overhead § Prototype Performance § Hardware Status § Conclusion University of Toronto

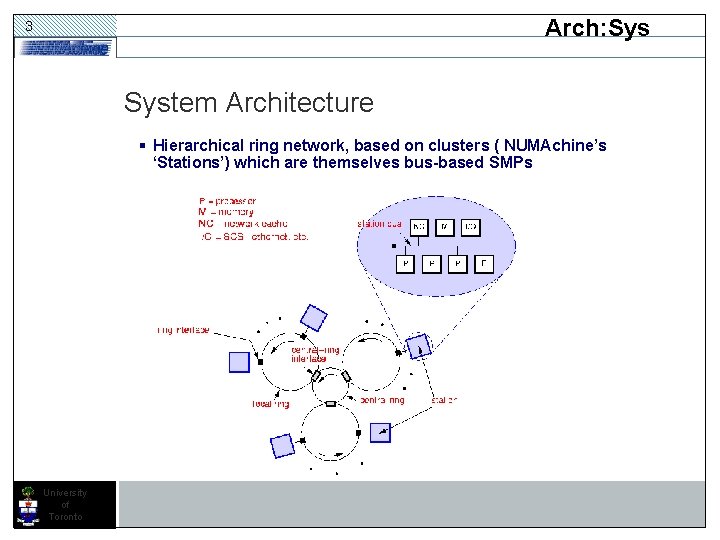

Arch: Sys 3 System Architecture § Hierarchical ring network, based on clusters ( NUMAchine’s ‘Stations’) which are themselves bus-based SMPs University of Toronto

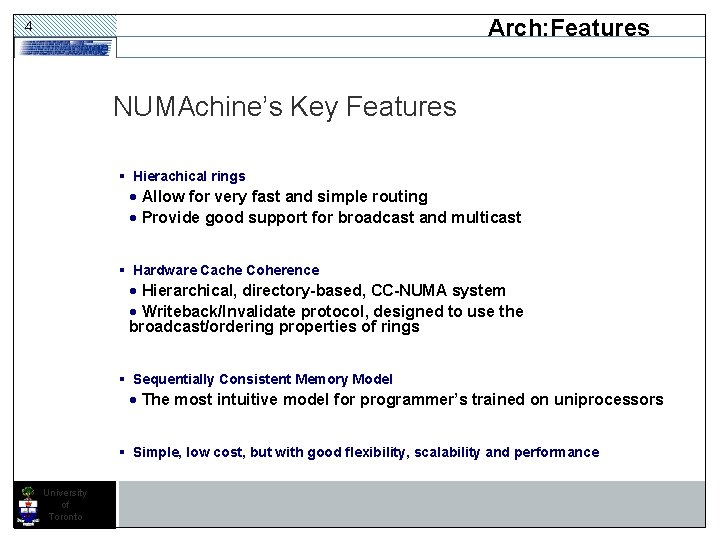

Arch: Features 4 NUMAchine’s Key Features § Hierachical rings · Allow for very fast and simple routing · Provide good support for broadcast and multicast § Hardware Cache Coherence · Hierarchical, directory-based, CC-NUMA system · Writeback/Invalidate protocol, designed to use the broadcast/ordering properties of rings § Sequentially Consistent Memory Model · The most intuitive model for programmer’s trained on uniprocessors § Simple, low cost, but with good flexibility, scalability and performance University of Toronto

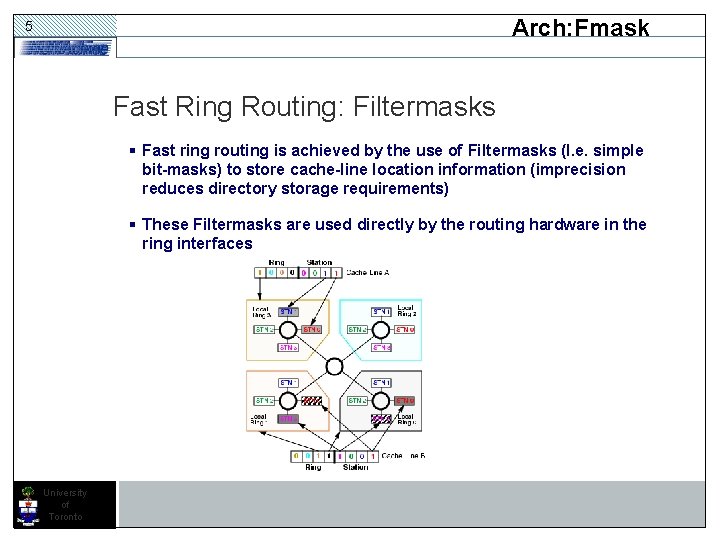

Arch: Fmask 5 Fast Ring Routing: Filtermasks § Fast ring routing is achieved by the use of Filtermasks (I. e. simple bit-masks) to store cache-line location information (imprecision reduces directory storage requirements) § These Filtermasks are used directly by the routing hardware in the ring interfaces University of Toronto

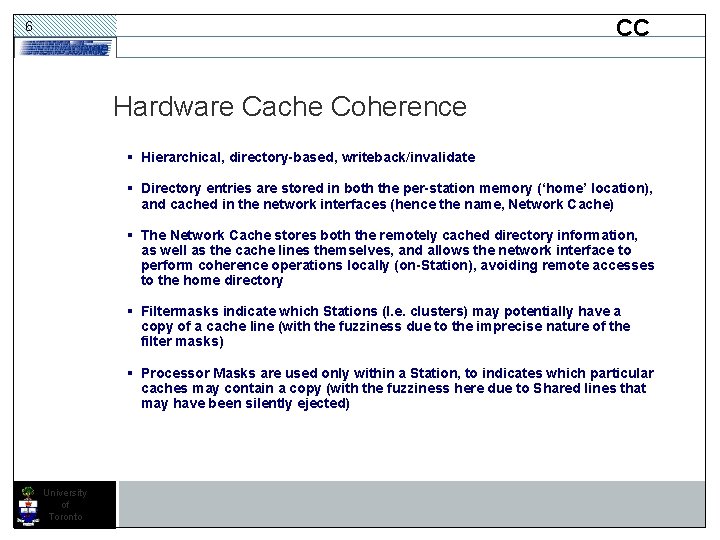

CC 6 Hardware Cache Coherence § Hierarchical, directory-based, writeback/invalidate § Directory entries are stored in both the per-station memory (‘home’ location), and cached in the network interfaces (hence the name, Network Cache) § The Network Cache stores both the remotely cached directory information, as well as the cache lines themselves, and allows the network interface to perform coherence operations locally (on-Station), avoiding remote accesses to the home directory § Filtermasks indicate which Stations (I. e. clusters) may potentially have a copy of a cache line (with the fuzziness due to the imprecise nature of the filter masks) § Processor Masks are used only within a Station, to indicates which particular caches may contain a copy (with the fuzziness here due to Shared lines that may have been silently ejected) University of Toronto

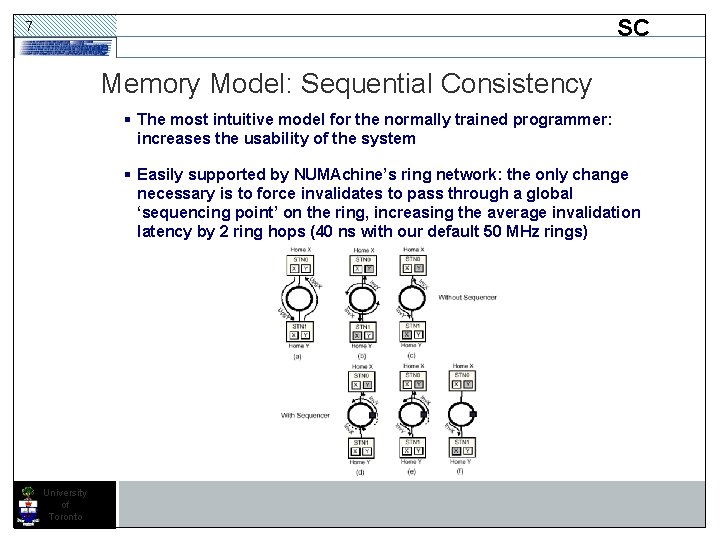

SC 7 Memory Model: Sequential Consistency § The most intuitive model for the normally trained programmer: increases the usability of the system § Easily supported by NUMAchine’s ring network: the only change necessary is to force invalidates to pass through a global ‘sequencing point’ on the ring, increasing the average invalidation latency by 2 ring hops (40 ns with our default 50 MHz rings) University of Toronto

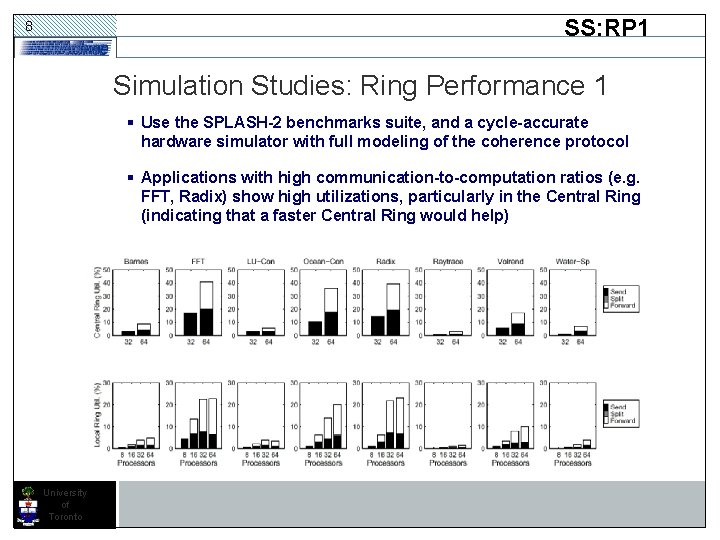

SS: RP 1 8 Simulation Studies: Ring Performance 1 § Use the SPLASH-2 benchmarks suite, and a cycle-accurate hardware simulator with full modeling of the coherence protocol § Applications with high communication-to-computation ratios (e. g. FFT, Radix) show high utilizations, particularly in the Central Ring (indicating that a faster Central Ring would help) University of Toronto

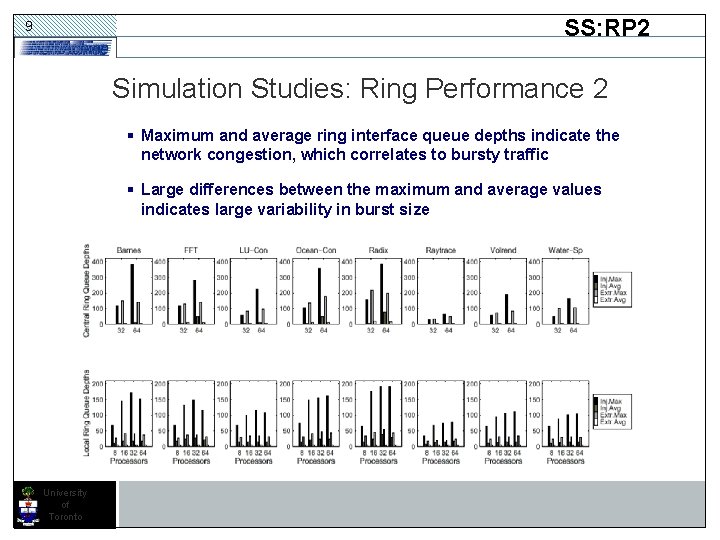

SS: RP 2 9 Simulation Studies: Ring Performance 2 § Maximum and average ring interface queue depths indicate the network congestion, which correlates to bursty traffic § Large differences between the maximum and average values indicates large variability in burst size University of Toronto

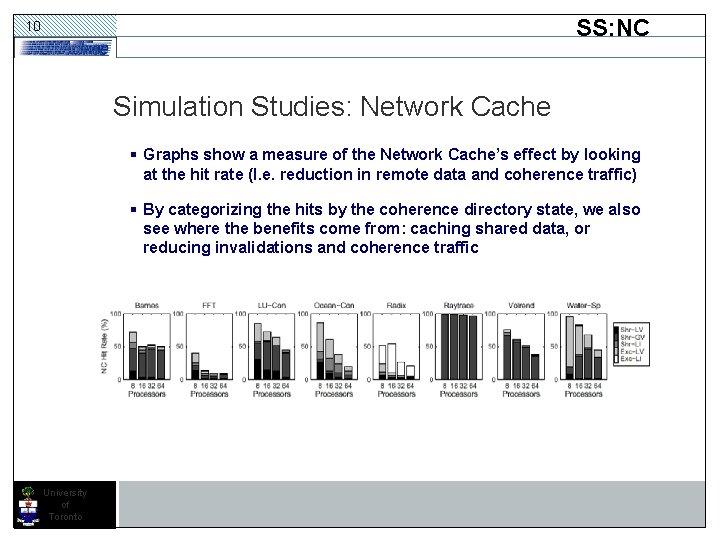

SS: NC 10 Simulation Studies: Network Cache § Graphs show a measure of the Network Cache’s effect by looking at the hit rate (I. e. reduction in remote data and coherence traffic) § By categorizing the hits by the coherence directory state, we also see where the benefits come from: caching shared data, or reducing invalidations and coherence traffic University of Toronto

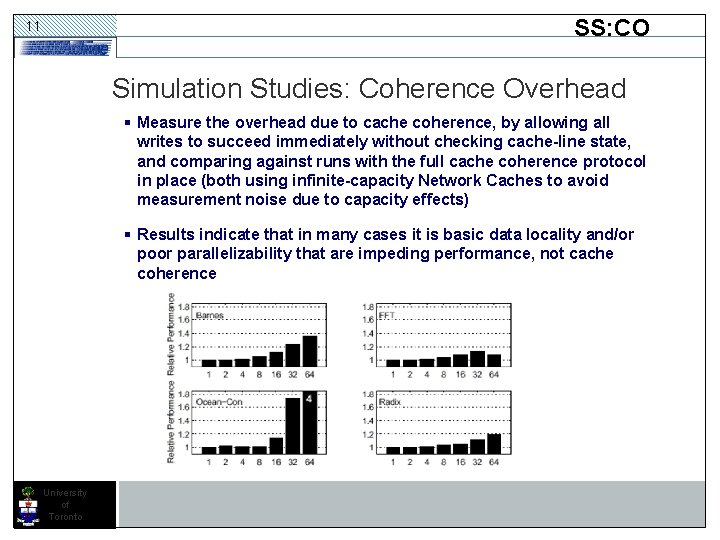

SS: CO 11 Simulation Studies: Coherence Overhead § Measure the overhead due to cache coherence, by allowing all writes to succeed immediately without checking cache-line state, and comparing against runs with the full cache coherence protocol in place (both using infinite-capacity Network Caches to avoid measurement noise due to capacity effects) § Results indicate that in many cases it is basic data locality and/or poor parallelizability that are impeding performance, not cache coherence University of Toronto

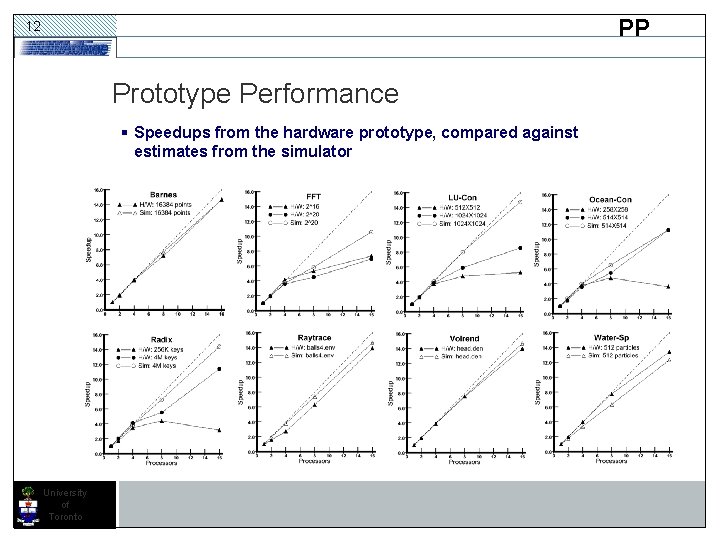

PP 12 Prototype Performance § Speedups from the hardware prototype, compared against estimates from the simulator University of Toronto

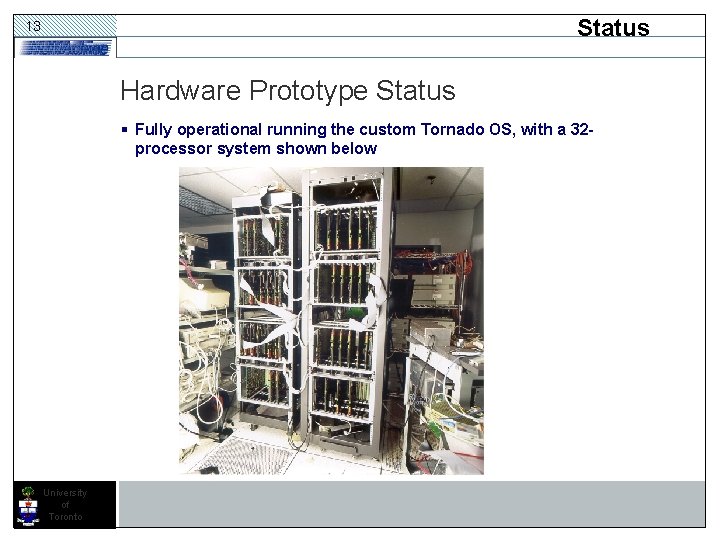

Status 13 Hardware Prototype Status § Fully operational running the custom Tornado OS, with a 32 processor system shown below University of Toronto

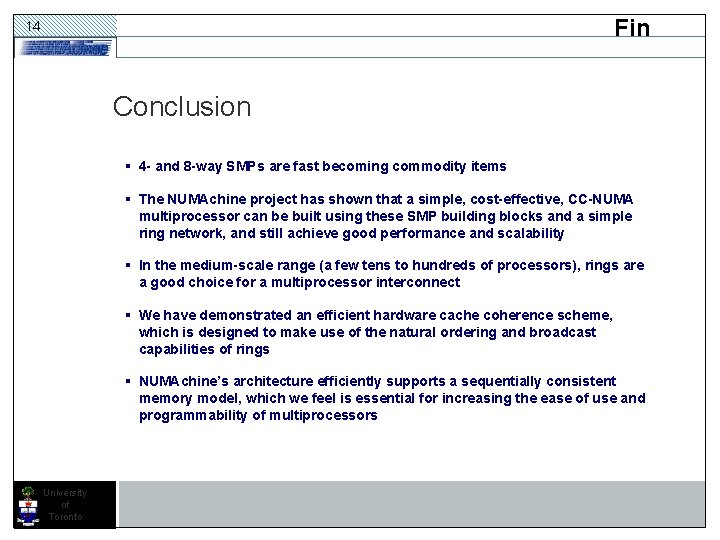

Fin 14 Conclusion § 4 - and 8 -way SMPs are fast becoming commodity items § The NUMAchine project has shown that a simple, cost-effective, CC-NUMA multiprocessor can be built using these SMP building blocks and a simple ring network, and still achieve good performance and scalability § In the medium-scale range (a few tens to hundreds of processors), rings are a good choice for a multiprocessor interconnect § We have demonstrated an efficient hardware cache coherence scheme, which is designed to make use of the natural ordering and broadcast capabilities of rings § NUMAchine’s architecture efficiently supports a sequentially consistent memory model, which we feel is essential for increasing the ease of use and programmability of multiprocessors University of Toronto

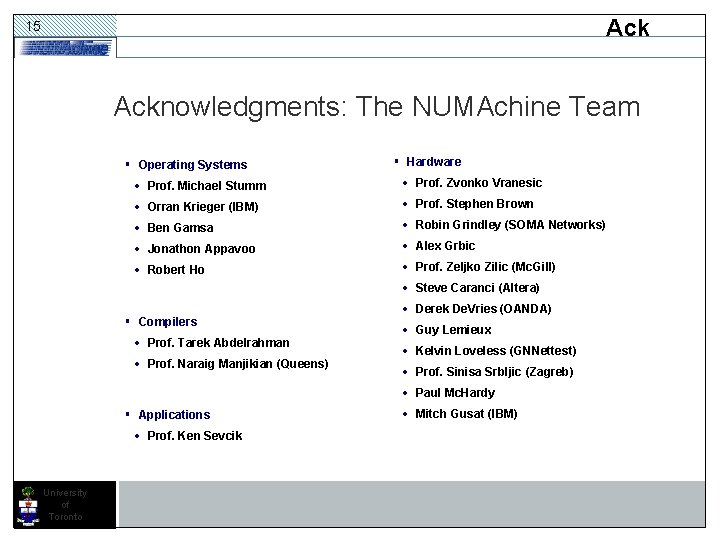

Ack 15 Acknowledgments: The NUMAchine Team § Operating Systems § Hardware · Prof. Michael Stumm · Prof. Zvonko Vranesic · Orran Krieger (IBM) · Prof. Stephen Brown · Ben Gamsa · Robin Grindley (SOMA Networks) · Jonathon Appavoo · Alex Grbic · Robert Ho · Prof. Zeljko Zilic (Mc. Gill) · Steve Caranci (Altera) § Compilers · Prof. Tarek Abdelrahman · Prof. Naraig Manjikian (Queens) · Derek De. Vries (OANDA) · Guy Lemieux · Kelvin Loveless (GNNettest) · Prof. Sinisa Srbljic (Zagreb) · Paul Mc. Hardy § Applications · Prof. Ken Sevcik University of Toronto · Mitch Gusat (IBM)
