The normal airway begins functionally at the nares

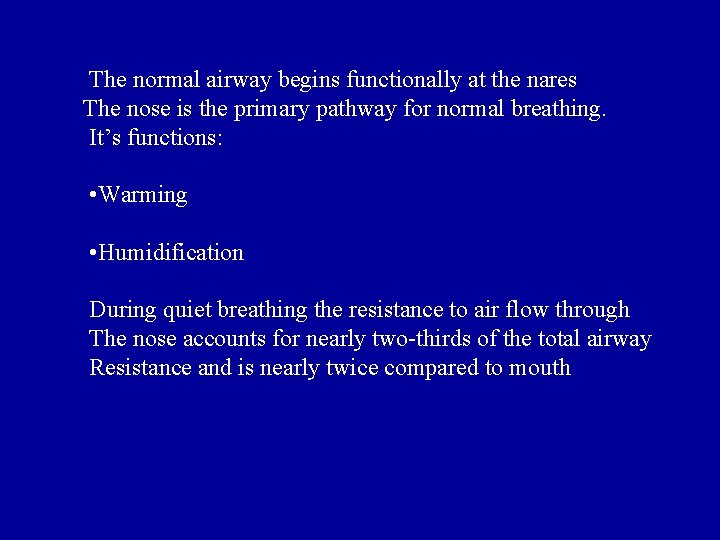

The normal airway begins functionally at the nares The nose is the primary pathway for normal breathing. It’s functions: • Warming • Humidification During quiet breathing the resistance to air flow through The nose accounts for nearly two-thirds of the total airway Resistance and is nearly twice compared to mouth

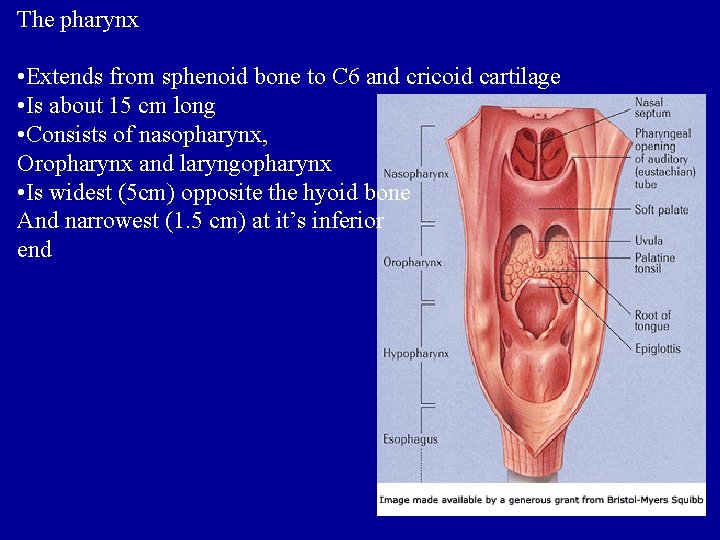

The pharynx • Extends from sphenoid bone to C 6 and cricoid cartilage • Is about 15 cm long • Consists of nasopharynx, Oropharynx and laryngopharynx • Is widest (5 cm) opposite the hyoid bone And narrowest (1. 5 cm) at it’s inferior end

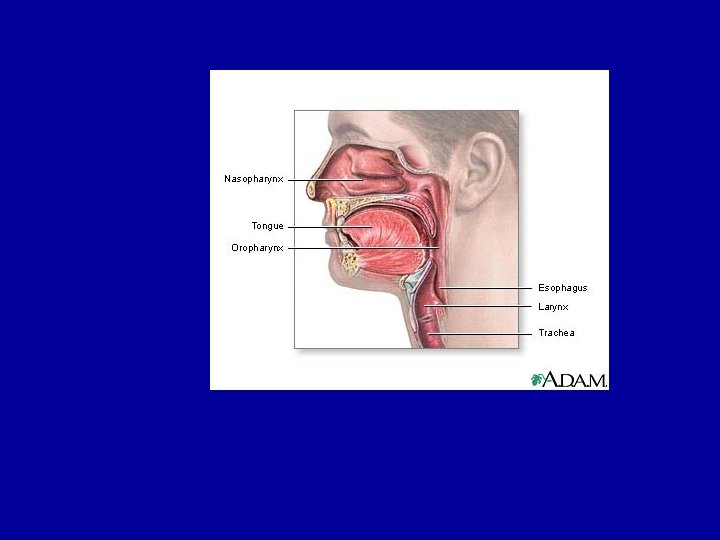

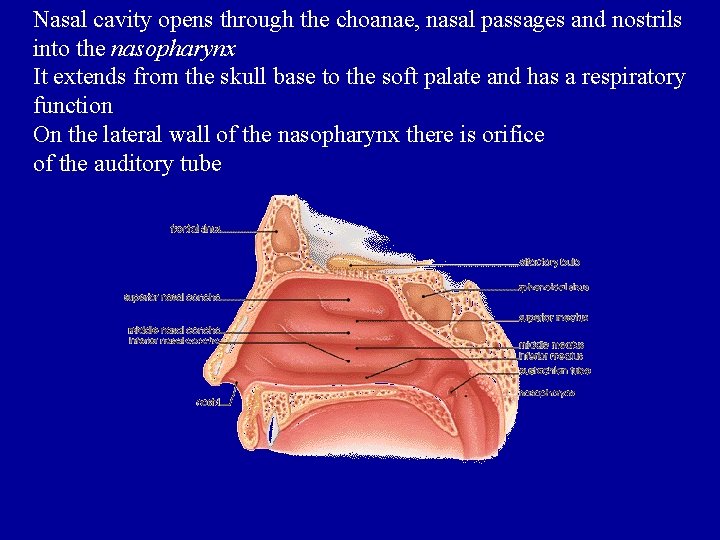

Nasal cavity opens through the choanae, nasal passages and nostrils into the nasopharynx It extends from the skull base to the soft palate and has a respiratory function On the lateral wall of the nasopharynx there is orifice of the auditory tube

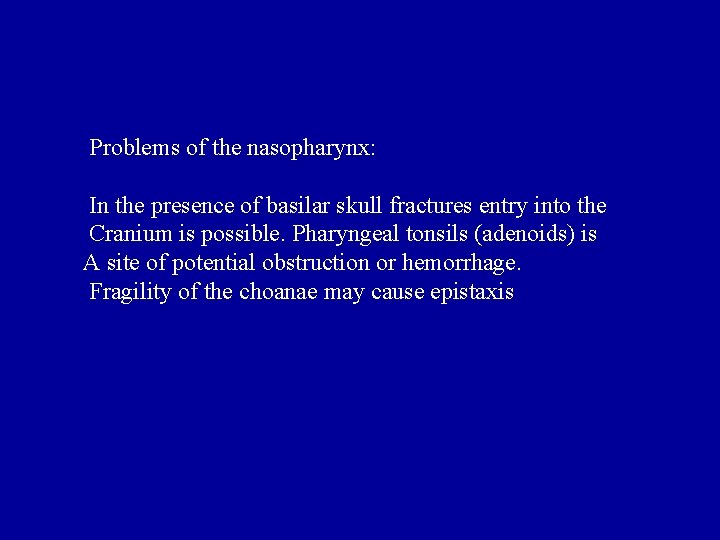

Problems of the nasopharynx: In the presence of basilar skull fractures entry into the Cranium is possible. Pharyngeal tonsils (adenoids) is A site of potential obstruction or hemorrhage. Fragility of the choanae may cause epistaxis

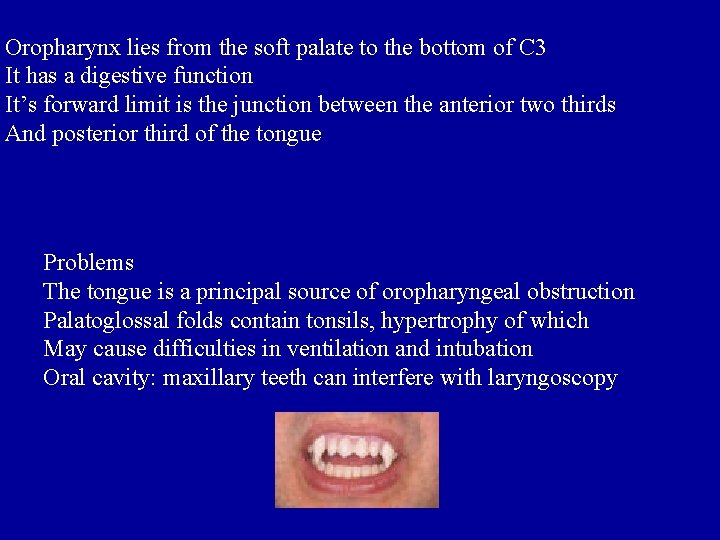

Oropharynx lies from the soft palate to the bottom of C 3 It has a digestive function It’s forward limit is the junction between the anterior two thirds And posterior third of the tongue Problems The tongue is a principal source of oropharyngeal obstruction Palatoglossal folds contain tonsils, hypertrophy of which May cause difficulties in ventilation and intubation Oral cavity: maxillary teeth can interfere with laryngoscopy

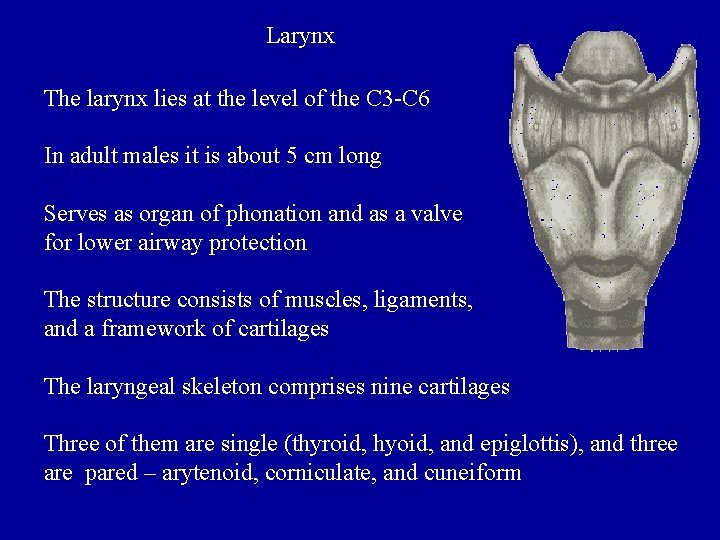

Larynx The larynx lies at the level of the C 3 -C 6 In adult males it is about 5 cm long Serves as organ of phonation and as a valve for lower airway protection The structure consists of muscles, ligaments, and a framework of cartilages The laryngeal skeleton comprises nine cartilages Three of them are single (thyroid, hyoid, and epiglottis), and three are pared – arytenoid, corniculate, and cuneiform

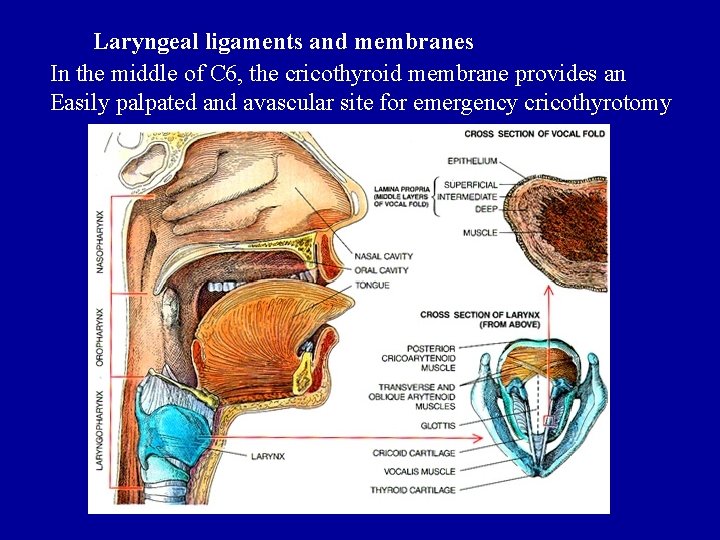

Laryngeal ligaments and membranes In the middle of C 6, the cricothyroid membrane provides an Easily palpated and avascular site for emergency cricothyrotomy

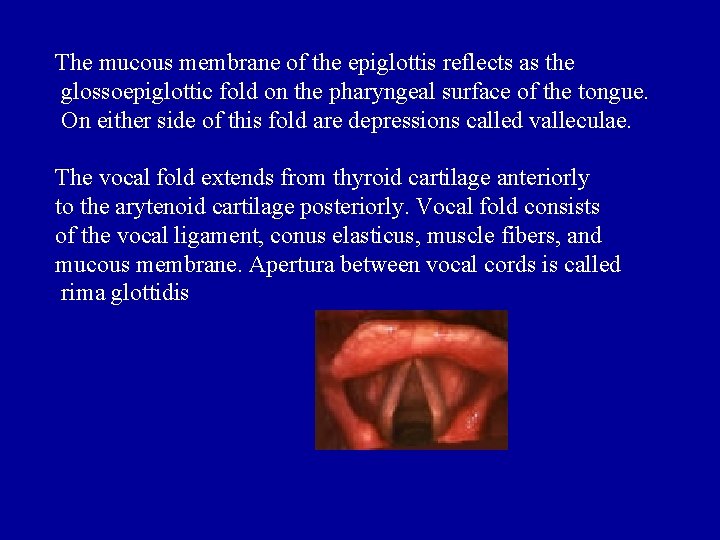

The mucous membrane of the epiglottis reflects as the glossoepiglottic fold on the pharyngeal surface of the tongue. On either side of this fold are depressions called valleculae. The vocal fold extends from thyroid cartilage anteriorly to the arytenoid cartilage posteriorly. Vocal fold consists of the vocal ligament, conus elasticus, muscle fibers, and mucous membrane. Apertura between vocal cords is called rima glottidis

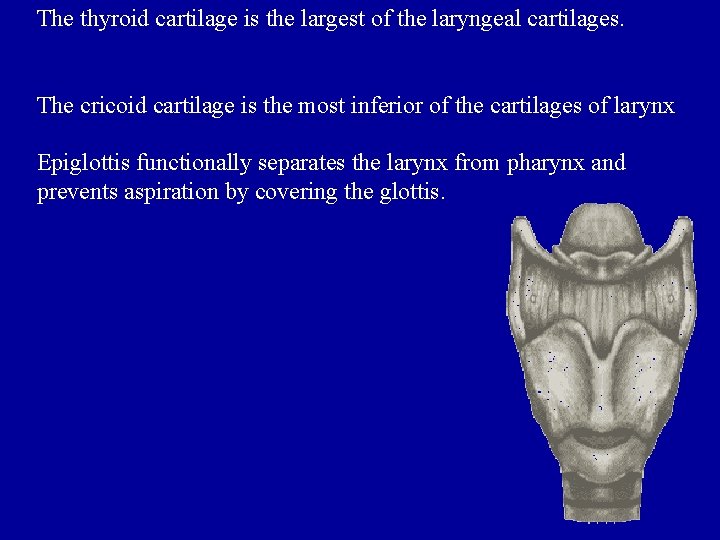

The thyroid cartilage is the largest of the laryngeal cartilages. The cricoid cartilage is the most inferior of the cartilages of larynx Epiglottis functionally separates the larynx from pharynx and prevents aspiration by covering the glottis.

Indications for tracheal intubation • Control of airway, it’s patency • Prevention and protection against aspiration • Resuscitation of a moribund patient • Establishment of route for ventilation • Fear that ventilation and intubation later on are impossible

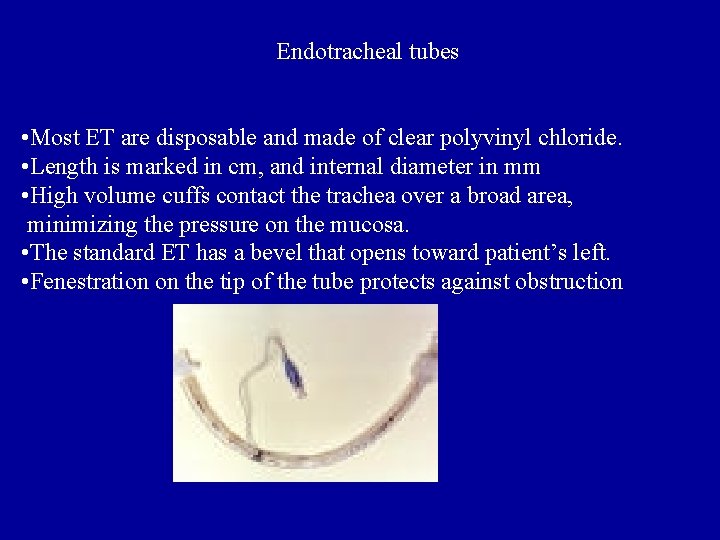

Endotracheal tubes • Most ET are disposable and made of clear polyvinyl chloride. • Length is marked in cm, and internal diameter in mm • High volume cuffs contact the trachea over a broad area, minimizing the pressure on the mucosa. • The standard ET has a bevel that opens toward patient’s left. • Fenestration on the tip of the tube protects against obstruction

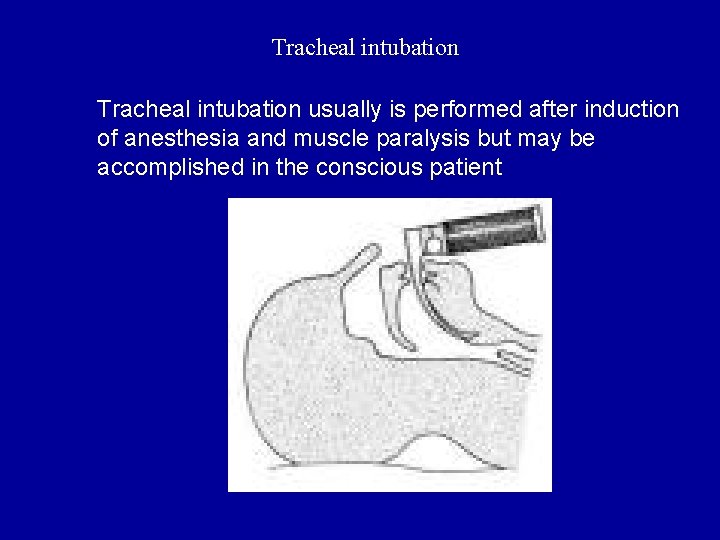

Tracheal intubation usually is performed after induction of anesthesia and muscle paralysis but may be accomplished in the conscious patient

Laryngoscopes These instruments are designed to create a line of sight for passage of the ET by displacing the tongue and epiglottis anteriorly Macintosh blade Miller blade

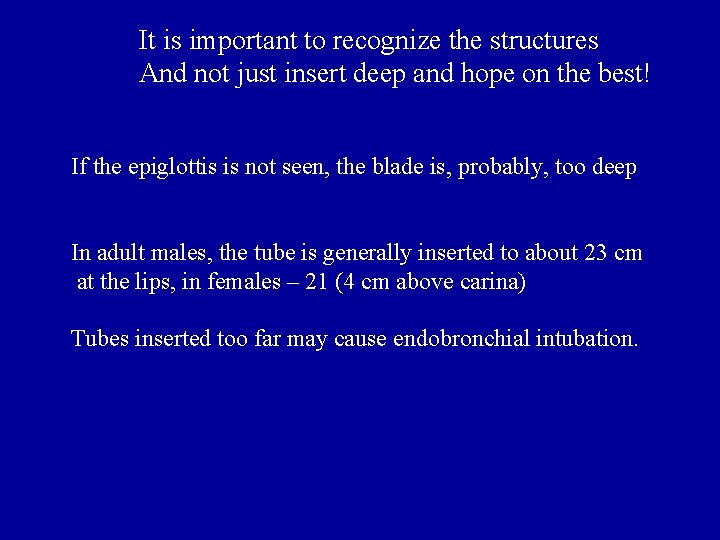

It is important to recognize the structures And not just insert deep and hope on the best! If the epiglottis is not seen, the blade is, probably, too deep In adult males, the tube is generally inserted to about 23 cm at the lips, in females – 21 (4 cm above carina) Tubes inserted too far may cause endobronchial intubation.

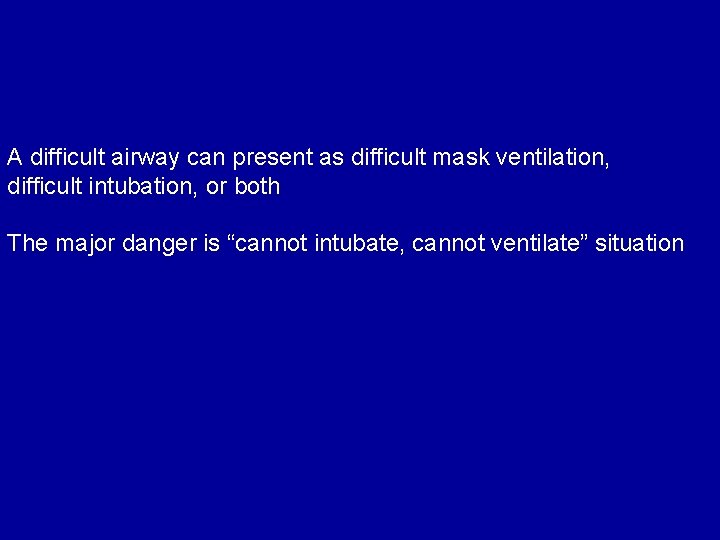

A difficult airway can present as difficult mask ventilation, difficult intubation, or both The major danger is “cannot intubate, cannot ventilate” situation

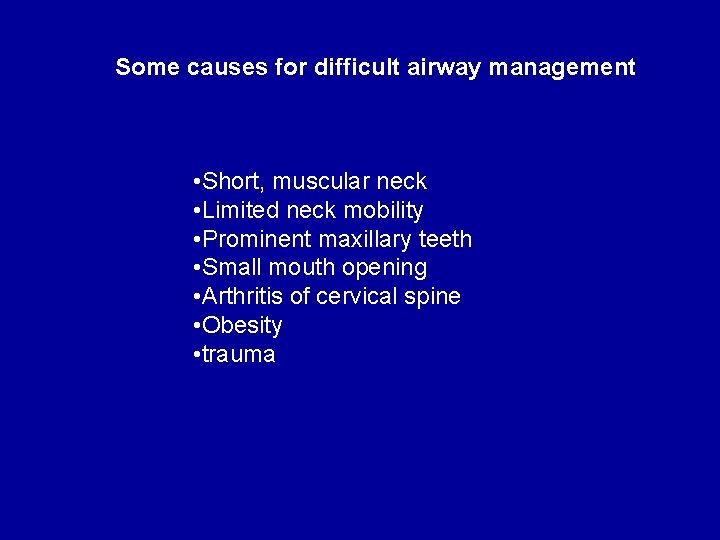

Some causes for difficult airway management • Short, muscular neck • Limited neck mobility • Prominent maxillary teeth • Small mouth opening • Arthritis of cervical spine • Obesity • trauma

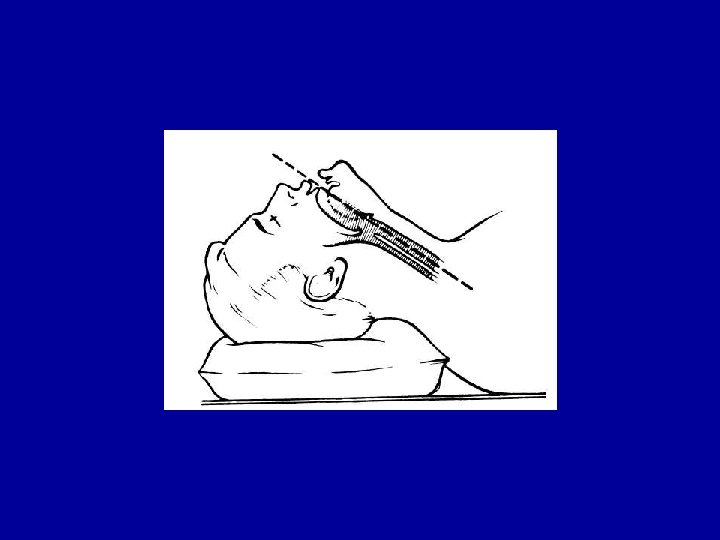

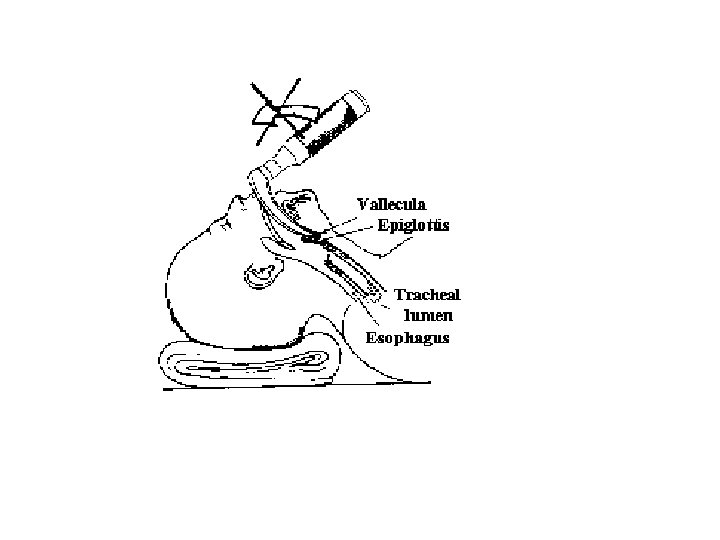

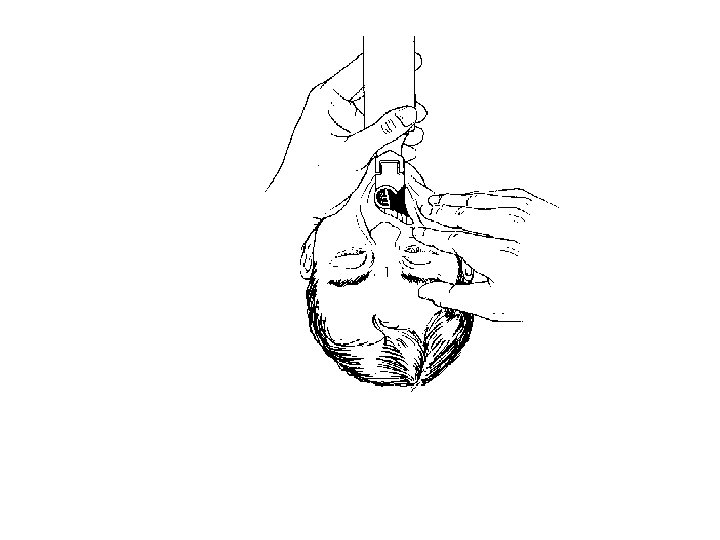

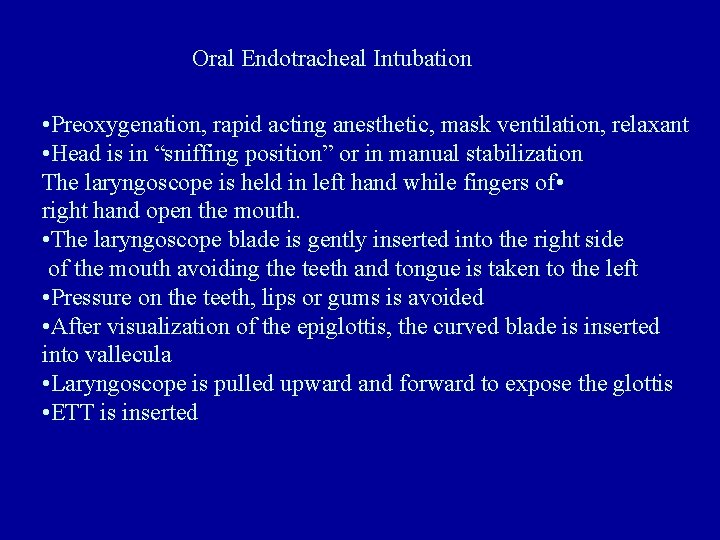

Oral Endotracheal Intubation • Preoxygenation, rapid acting anesthetic, mask ventilation, relaxant • Head is in “sniffing position” or in manual stabilization The laryngoscope is held in left hand while fingers of • right hand open the mouth. • The laryngoscope blade is gently inserted into the right side of the mouth avoiding the teeth and tongue is taken to the left • Pressure on the teeth, lips or gums is avoided • After visualization of the epiglottis, the curved blade is inserted into vallecula • Laryngoscope is pulled upward and forward to expose the glottis • ETT is inserted

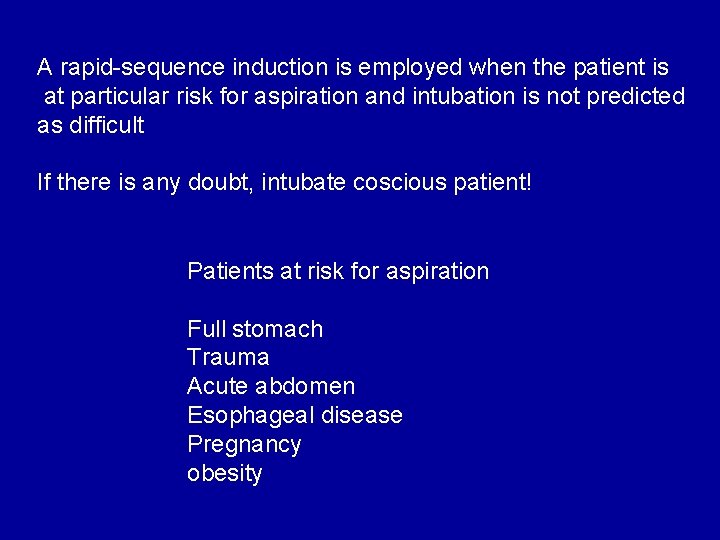

A rapid-sequence induction is employed when the patient is at particular risk for aspiration and intubation is not predicted as difficult If there is any doubt, intubate coscious patient! Patients at risk for aspiration Full stomach Trauma Acute abdomen Esophageal disease Pregnancy obesity

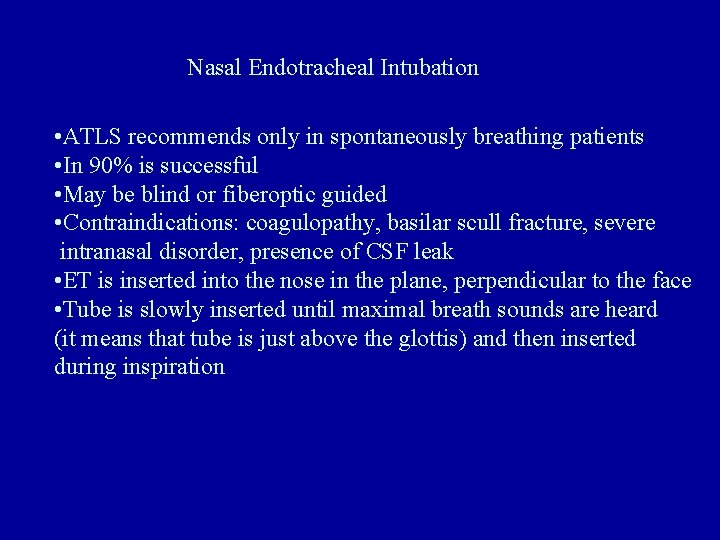

Nasal Endotracheal Intubation • ATLS recommends only in spontaneously breathing patients • In 90% is successful • May be blind or fiberoptic guided • Contraindications: coagulopathy, basilar scull fracture, severe intranasal disorder, presence of CSF leak • ET is inserted into the nose in the plane, perpendicular to the face • Tube is slowly inserted until maximal breath sounds are heard (it means that tube is just above the glottis) and then inserted during inspiration

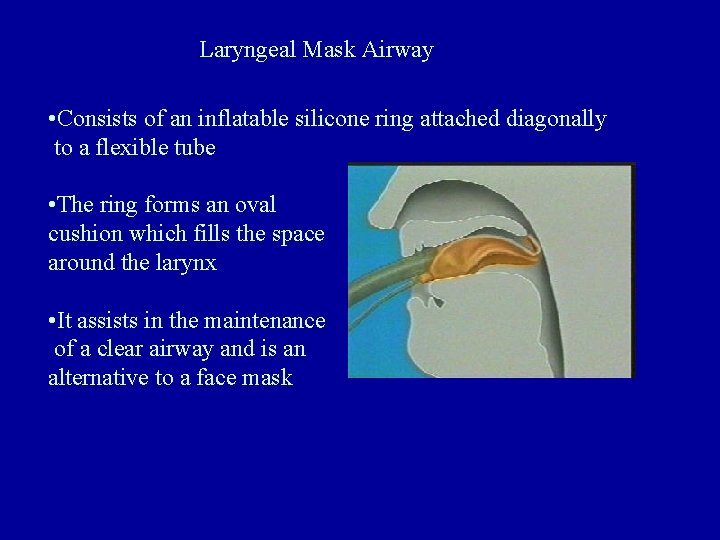

Laryngeal Mask Airway • Consists of an inflatable silicone ring attached diagonally to a flexible tube • The ring forms an oval cushion which fills the space around the larynx • It assists in the maintenance of a clear airway and is an alternative to a face mask

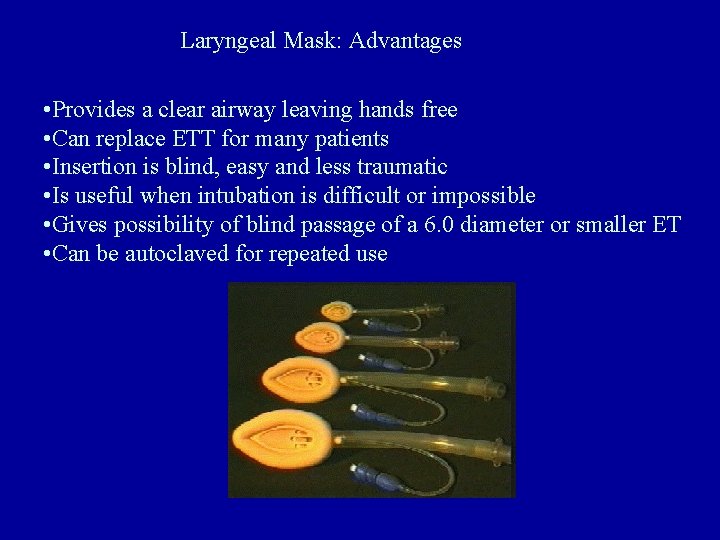

Laryngeal Mask: Advantages • Provides a clear airway leaving hands free • Can replace ETT for many patients • Insertion is blind, easy and less traumatic • Is useful when intubation is difficult or impossible • Gives possibility of blind passage of a 6. 0 diameter or smaller ET • Can be autoclaved for repeated use

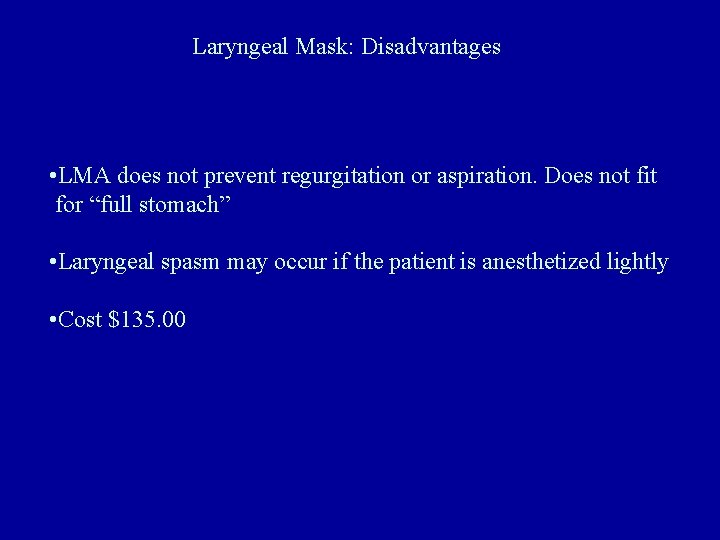

Laryngeal Mask: Disadvantages • LMA does not prevent regurgitation or aspiration. Does not fit for “full stomach” • Laryngeal spasm may occur if the patient is anesthetized lightly • Cost $135. 00

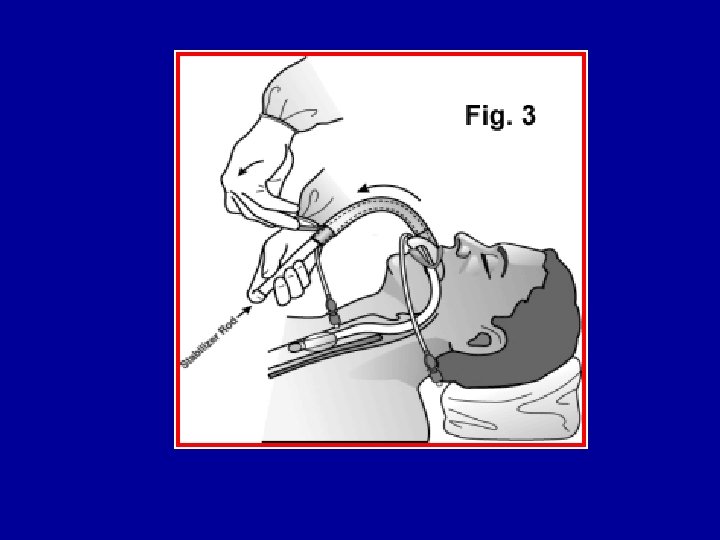

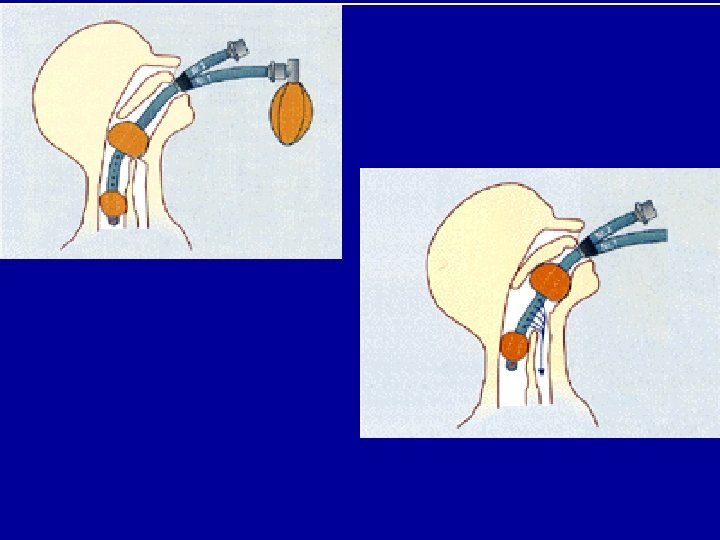

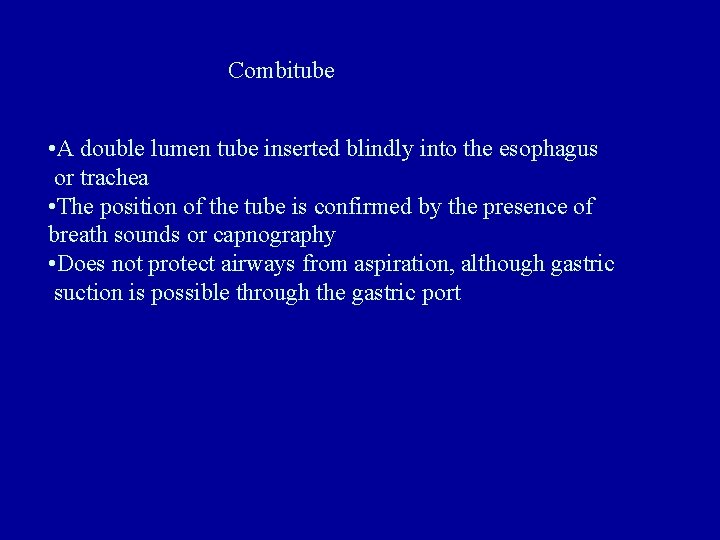

Combitube • A double lumen tube inserted blindly into the esophagus or trachea • The position of the tube is confirmed by the presence of breath sounds or capnography • Does not protect airways from aspiration, although gastric suction is possible through the gastric port

Combitube • Technisch unkomplizierte Einführung • Beatmung in ösophagealer und trachealer Lage möglich • weitgehender Aspirationsschutz • bei eingeklemmten, schwer zugänglichen Patienten • Komplikationsrate (zu tief plaziert, falsches Lumen beatmet) • hohe Kosten
