THE NITROGEN CYCLE IN SURFACE WATERS PHYTOPLANKTON ELEMENTAL

THE NITROGEN CYCLE IN SURFACE WATERS

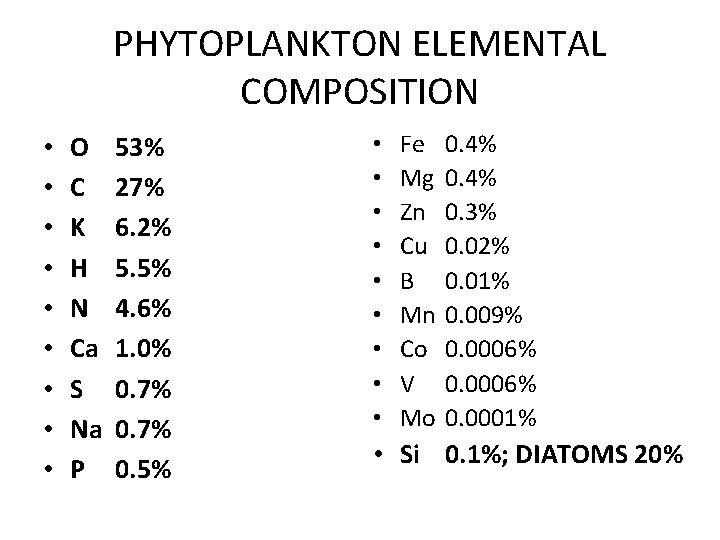

PHYTOPLANKTON ELEMENTAL COMPOSITION • • • O C K H N Ca S Na P 53% 27% 6. 2% 5. 5% 4. 6% 1. 0% 0. 7% 0. 5% • • • Fe Mg Zn Cu B Mn Co V Mo 0. 4% 0. 3% 0. 02% 0. 01% 0. 009% 0. 0006% 0. 0001% • Si 0. 1%; DIATOMS 20%

N 2

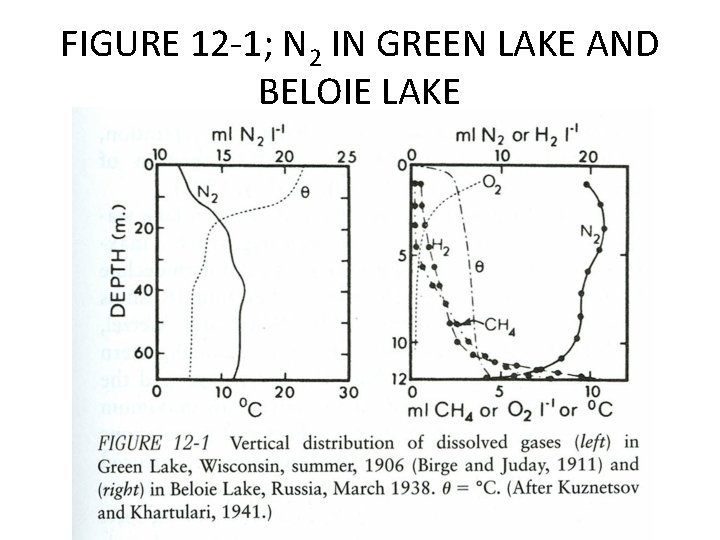

FIGURE 12 -1; N 2 IN GREEN LAKE AND BELOIE LAKE

N-FIXATION

CYANOBACTERIA AND N-FIXATION

OTHER MICROBIAL NITROGEN FIXERS • Azotobacter

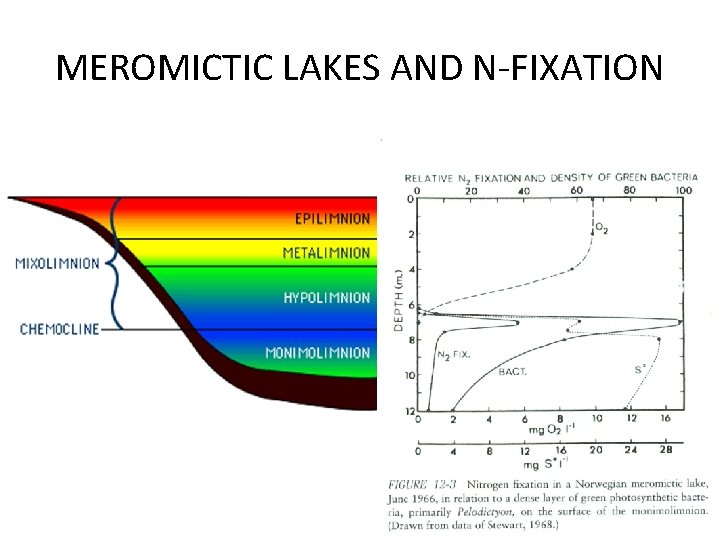

MEROMICTIC LAKES AND N-FIXATION

SYMBIOSIS • N-FIXATION OFTEN THROUGH SYMBIOSIS WITH VASCULAR PLANTS e. g. – Alders (wetland plants) – Legumes – Azolla (aquatic fern)

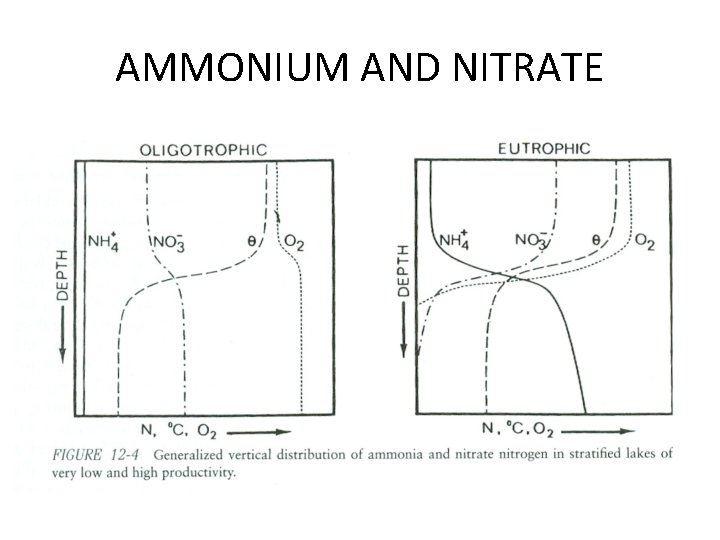

AMMONIUM AND NITRATE

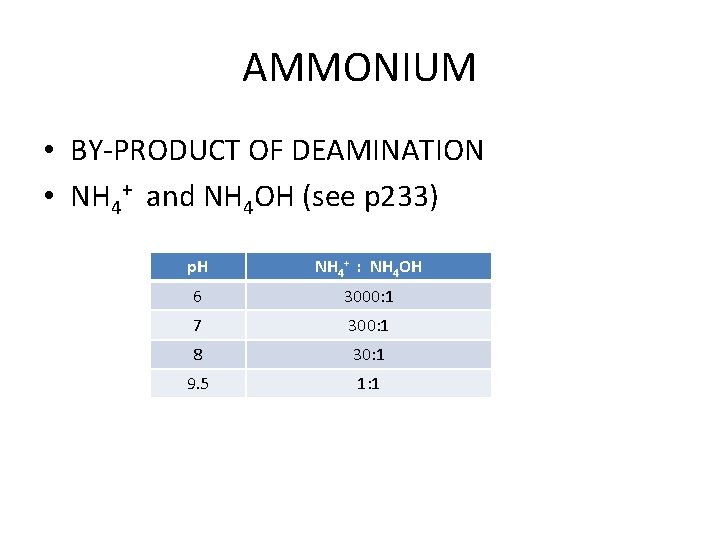

AMMONIUM • BY-PRODUCT OF DEAMINATION • NH 4+ and NH 4 OH (see p 233) p. H NH 4+ : NH 4 OH 6 3000: 1 7 300: 1 8 30: 1 9. 5 1: 1

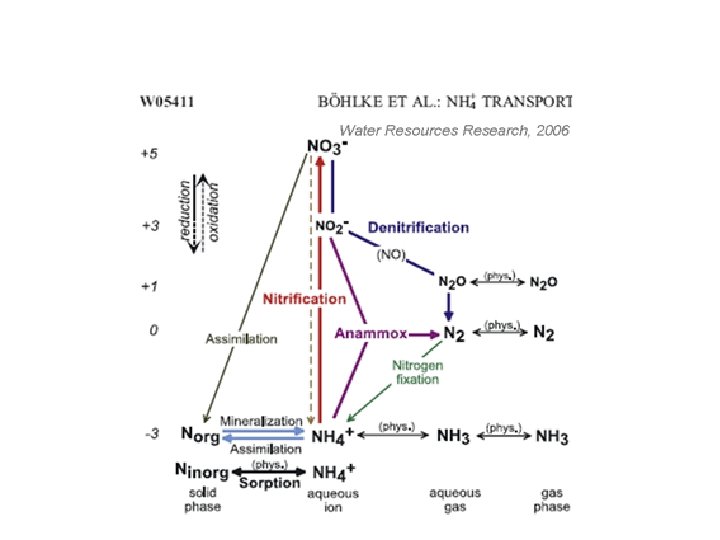

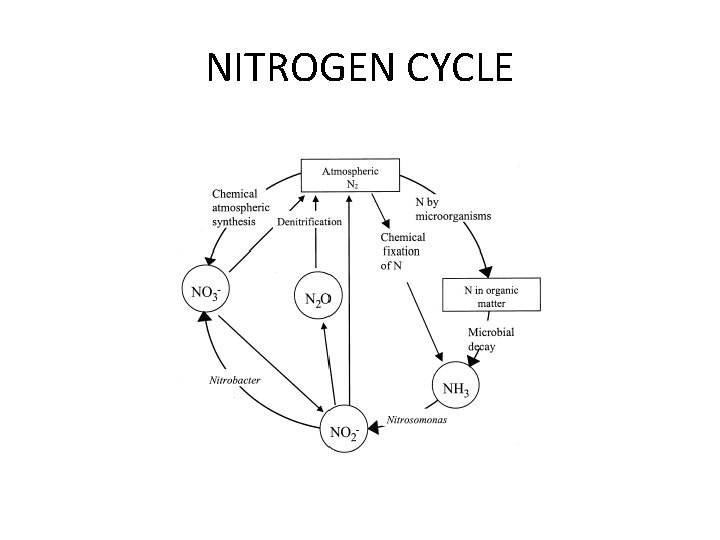

NITROGEN CYCLE

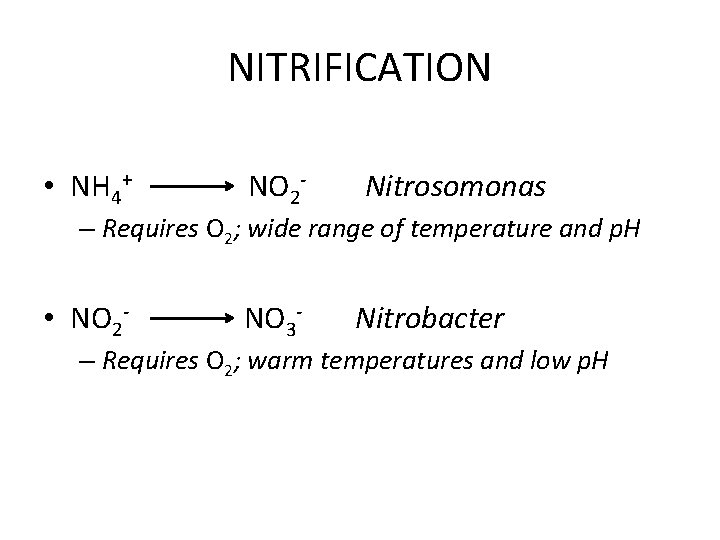

NITRIFICATION • NH 4+ NO 2 - Nitrosomonas – Requires O 2; wide range of temperature and p. H • NO 2 - NO 3 - Nitrobacter – Requires O 2; warm temperatures and low p. H

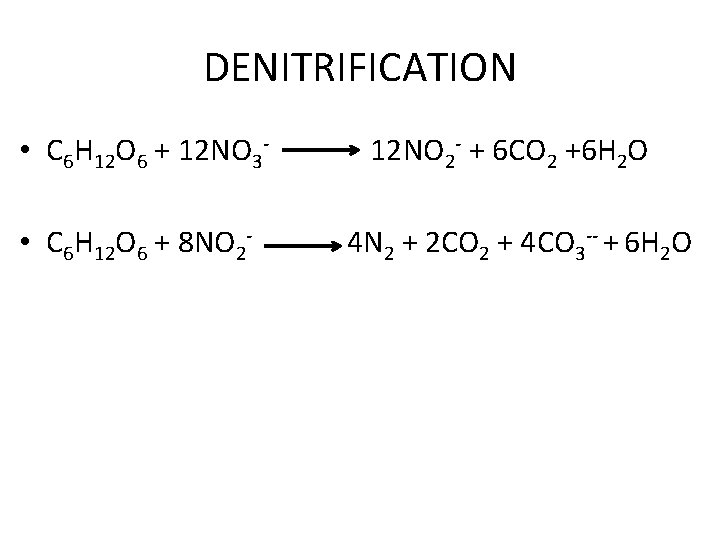

DENITRIFICATION • C 6 H 12 O 6 + 12 NO 3 • C 6 H 12 O 6 + 8 NO 2 - 12 NO 2 - + 6 CO 2 +6 H 2 O 4 N 2 + 2 CO 2 + 4 CO 3 -- + 6 H 2 O

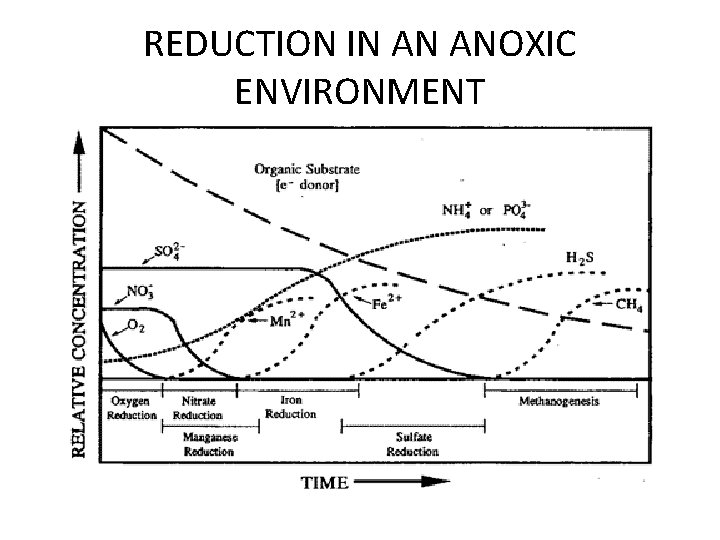

REDUCTION IN AN ANOXIC ENVIRONMENT

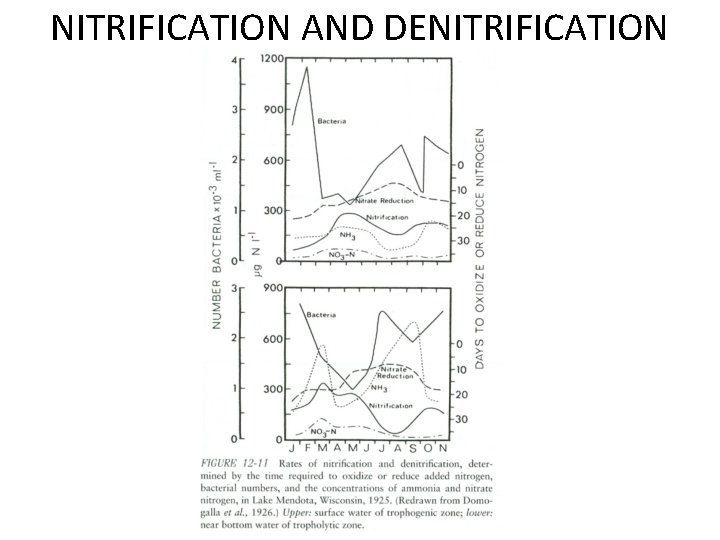

NITRIFICATION AND DENITRIFICATION

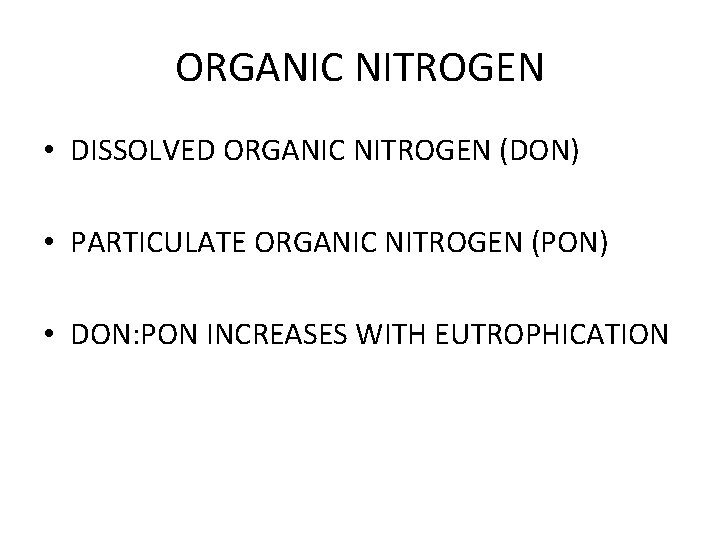

ORGANIC NITROGEN • DISSOLVED ORGANIC NITROGEN (DON) • PARTICULATE ORGANIC NITROGEN (PON) • DON: PON INCREASES WITH EUTROPHICATION

NITRATE AND PON

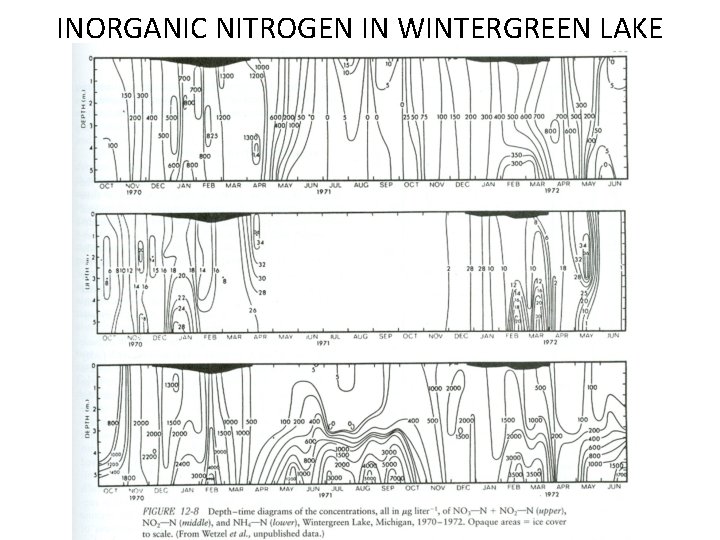

INORGANIC NITROGEN IN WINTERGREEN LAKE

NITROGEN CYCLE

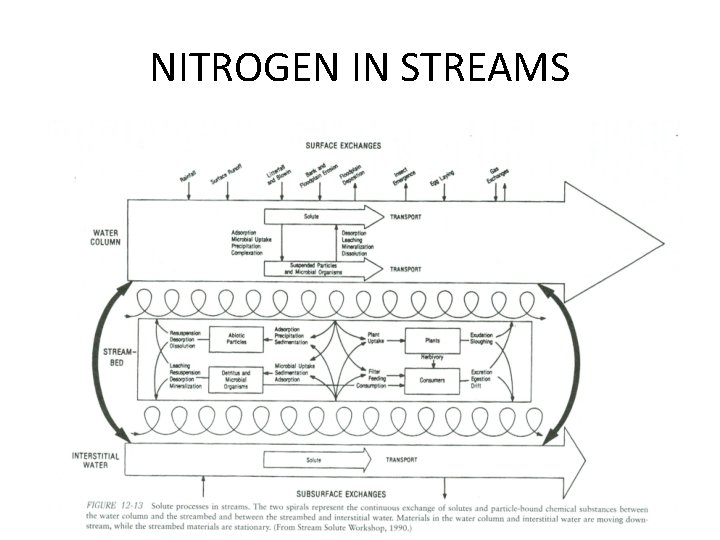

NITROGEN IN STREAMS

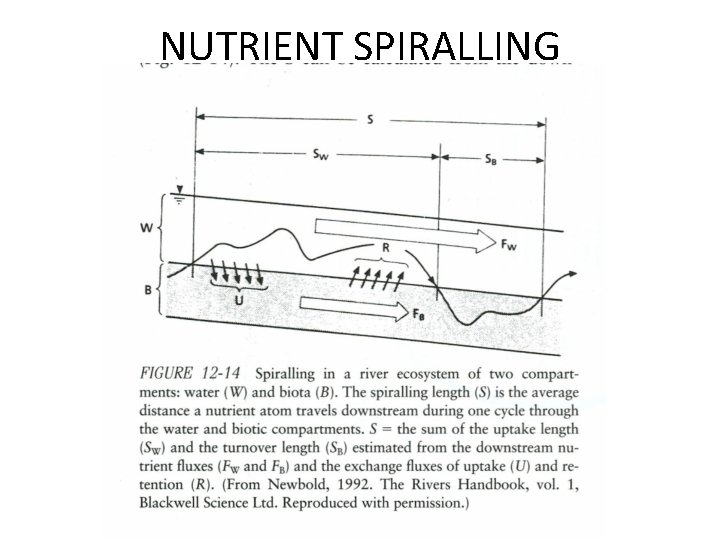

NUTRIENT SPIRALLING

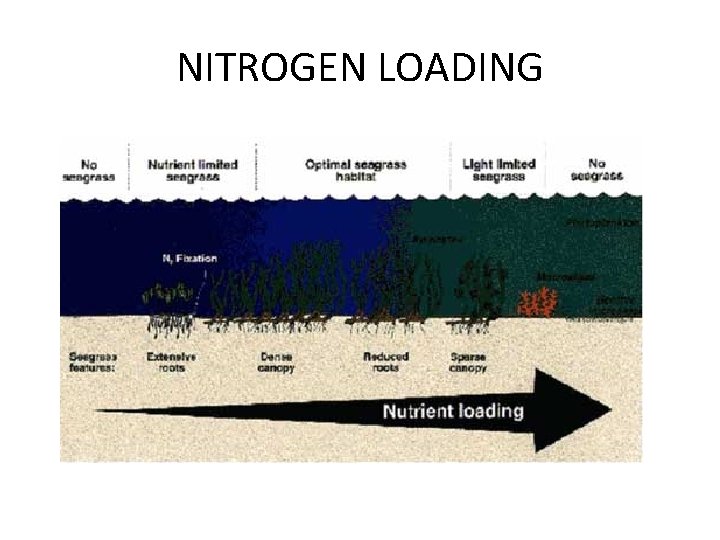

NITROGEN LOADING

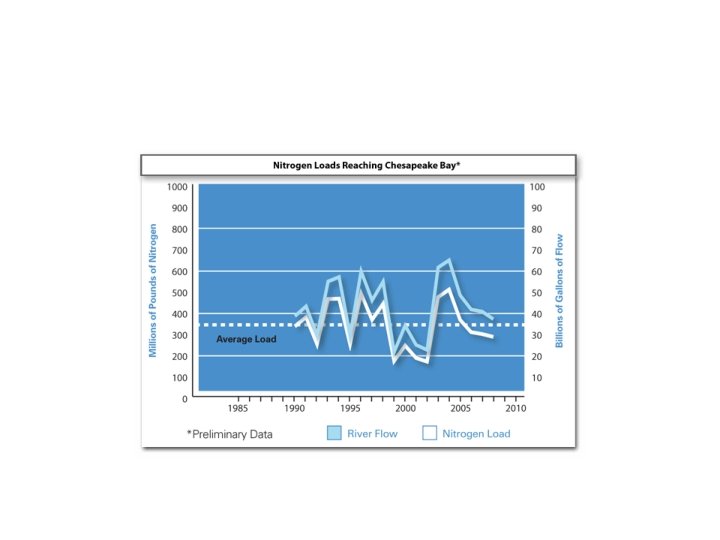

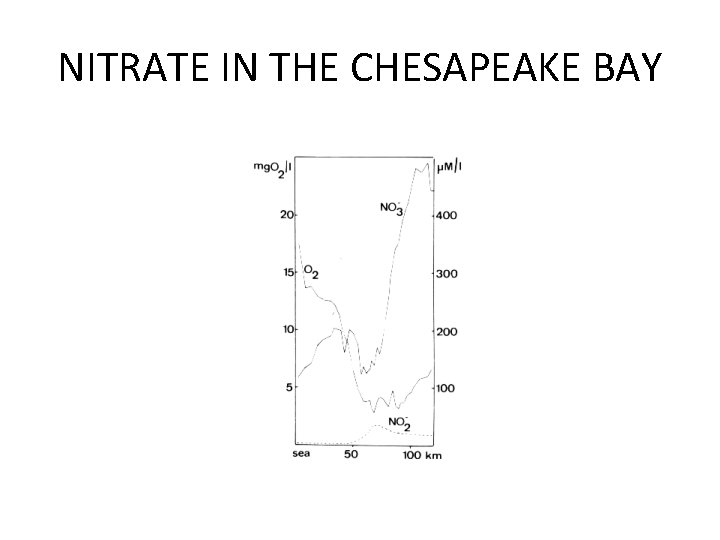

NITRATE IN THE CHESAPEAKE BAY

Dead Zone summer 2011, USEPA
