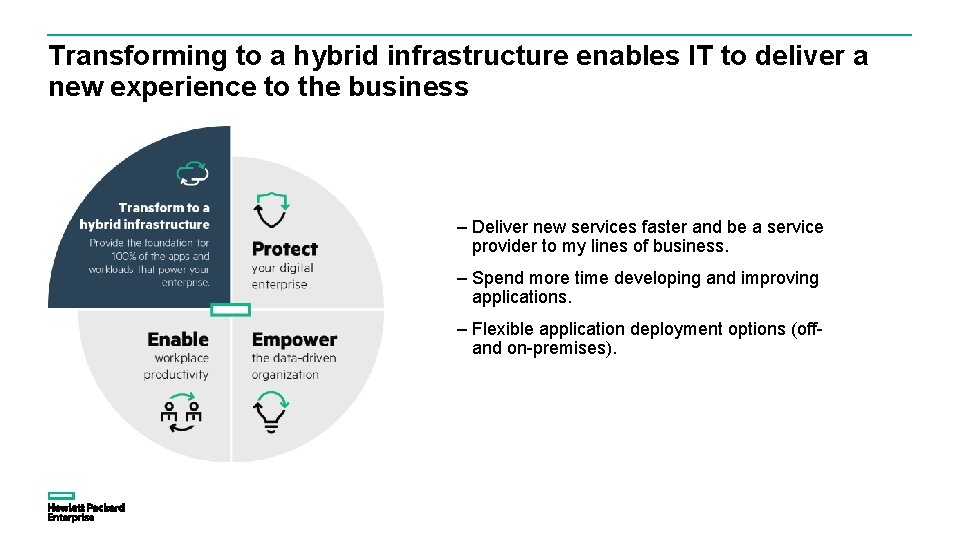

Transforming to a hybrid infrastructure enables IT to deliver a new experience to the business – Deliver new services faster and be a service provider to my lines of business. – Spend more time developing and improving applications. – Flexible application deployment options (offand on-premises).

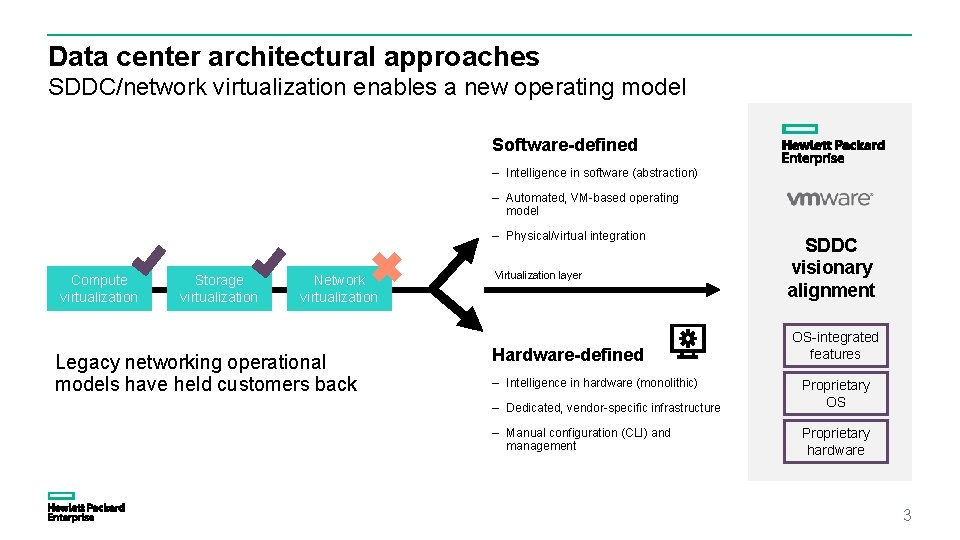

Data center architectural approaches SDDC/network virtualization enables a new operating model Software-defined – Intelligence in software (abstraction) – Automated, VM-based operating model – Physical/virtual integration Compute virtualization Storage virtualization Network virtualization Legacy networking operational models have held customers back Virtualization layer Hardware-defined – Intelligence in hardware (monolithic) SDDC visionary alignment OS-integrated features – Dedicated, vendor-specific infrastructure Proprietary OS – Manual configuration (CLI) and management Proprietary hardware 3

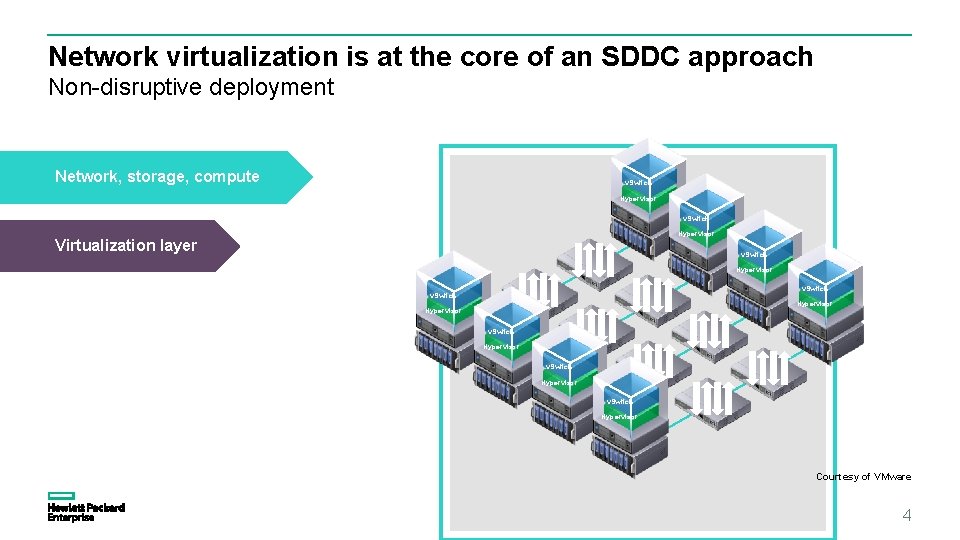

Network virtualization is at the core of an SDDC approach Non-disruptive deployment Network, storage, compute v. Switch Hypervisor Virtualization layer v. Switch Hypervisor v. Switch Hypervisor Courtesy of VMware 4

Network virtualization is at the core of an SDDC approach Non-disruptive deployment Network, storage, compute Virtualization layer v. Switc h Hypervi sor v. Switc “Network hypervisor” h Hypervi sor v. Switc h Hypervi sor Virtual data centers v. Switc h Hypervi sor Courtesy of VMware 5

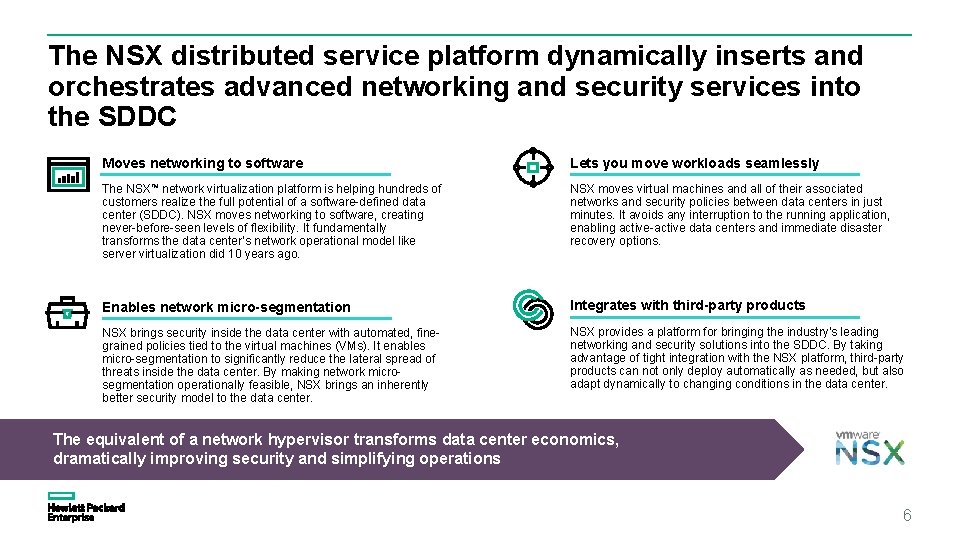

The NSX distributed service platform dynamically inserts and orchestrates advanced networking and security services into the SDDC Moves networking to software Lets you move workloads seamlessly The NSX™ network virtualization platform is helping hundreds of customers realize the full potential of a software-defined data center (SDDC). NSX moves networking to software, creating never-before-seen levels of flexibility. It fundamentally transforms the data center’s network operational model like server virtualization did 10 years ago. NSX moves virtual machines and all of their associated networks and security policies between data centers in just minutes. It avoids any interruption to the running application, enabling active-active data centers and immediate disaster recovery options. Enables network micro-segmentation Integrates with third-party products NSX brings security inside the data center with automated, finegrained policies tied to the virtual machines (VMs). It enables micro-segmentation to significantly reduce the lateral spread of threats inside the data center. By making network microsegmentation operationally feasible, NSX brings an inherently better security model to the data center. NSX provides a platform for bringing the industry’s leading networking and security solutions into the SDDC. By taking advantage of tight integration with the NSX platform, third-party products can not only deploy automatically as needed, but also adapt dynamically to changing conditions in the data center. The equivalent of a network hypervisor transforms data center economics, dramatically improving security and simplifying operations 6

Section 1 Why HPE and VMware NSX 7

Accelerating the customer journey to the software-defined data center HPE and VMware together revolutionized SDDC economics and efficiencies – HPE’s industry-leading position in servers for 15 years – VMware’s game changing approach to virtualization – HPE is the #1 global leader in server virtualization solutions based on VMware with more than 500, 000 users – Largest global-authorized training center for VMware – More than 90 training centers in over 30 countries – First to train over 17, 000 students with true 24/7 support – Single point of support for VMware/SDDC, including more than 1000 VMware-certified professionals – Decades of networking, virtualization, and security expertise 8

HPE-VMware NSX partnership HPE VMware NSX OEM Network certification HPE-branded services One partner capable of delivering SDDC life cycle solutions Differentiated through bridging virtual/physical Global end-to-end SDDC and virtualization lifecycle services The industry’s first NSX OEM network virtualization lifecycle partnership – simplifying the customer experience HPE Flex. Fabric Open v. Switch Database (OVSDB) certification with VMware NSX The industry’s most complete end-to-end services portfolio with decades of networking and VMware expertise 9

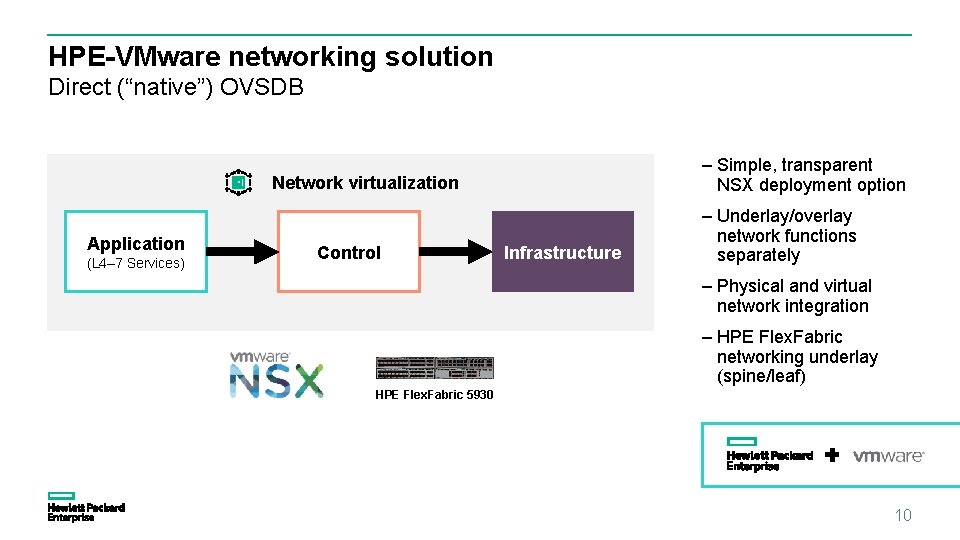

HPE-VMware networking solution Direct (“native”) OVSDB – Simple, transparent NSX deployment option Network virtualization Application (L 4– 7 Services) Control Infrastructure – Underlay/overlay network functions separately – Physical and virtual network integration – HPE Flex. Fabric networking underlay (spine/leaf) HPE Flex. Fabric 5930 10

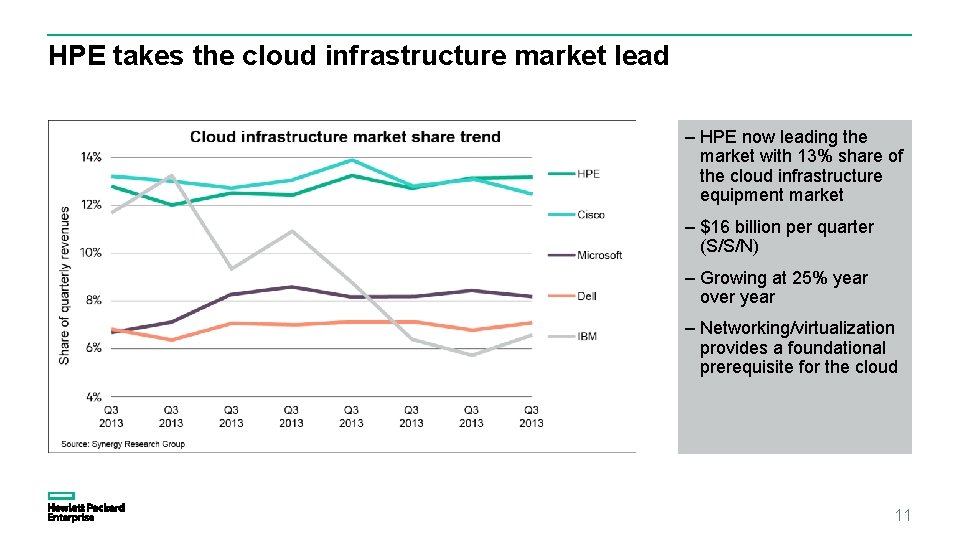

HPE takes the cloud infrastructure market lead – HPE now leading the market with 13% share of the cloud infrastructure equipment market – $16 billion per quarter (S/S/N) – Growing at 25% year over year – Networking/virtualization provides a foundational prerequisite for the cloud 11

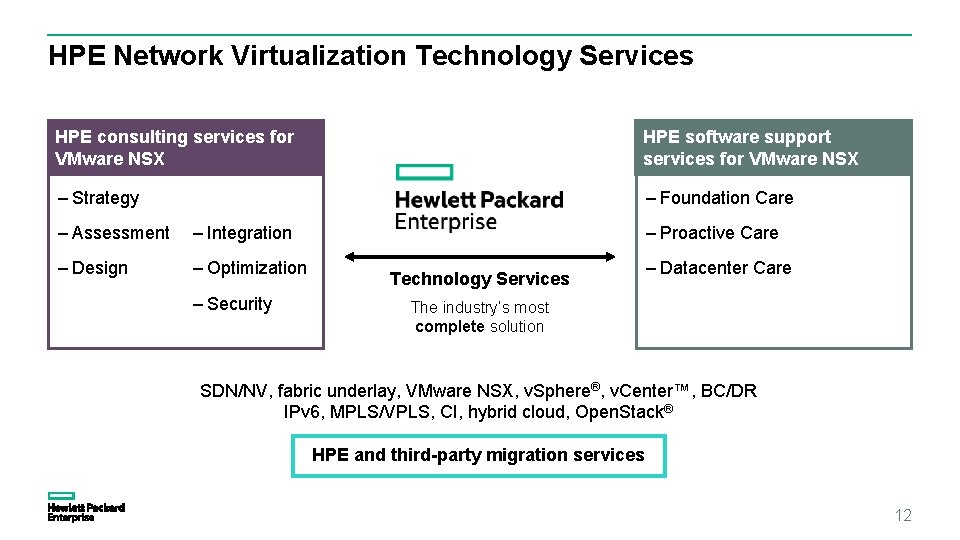

HPE Network Virtualization Technology Services HPE consulting services for VMware NSX HPE software support services for VMware NSX – Strategy – Foundation Care – Assessment – Integration – Design – Optimization – Security – Proactive Care Technology Services – Datacenter Care The industry’s most complete solution SDN/NV, fabric underlay, VMware NSX, v. Sphere®, v. Center™, BC/DR IPv 6, MPLS/VPLS, CI, hybrid cloud, Open. Stack® HPE and third-party migration services 12

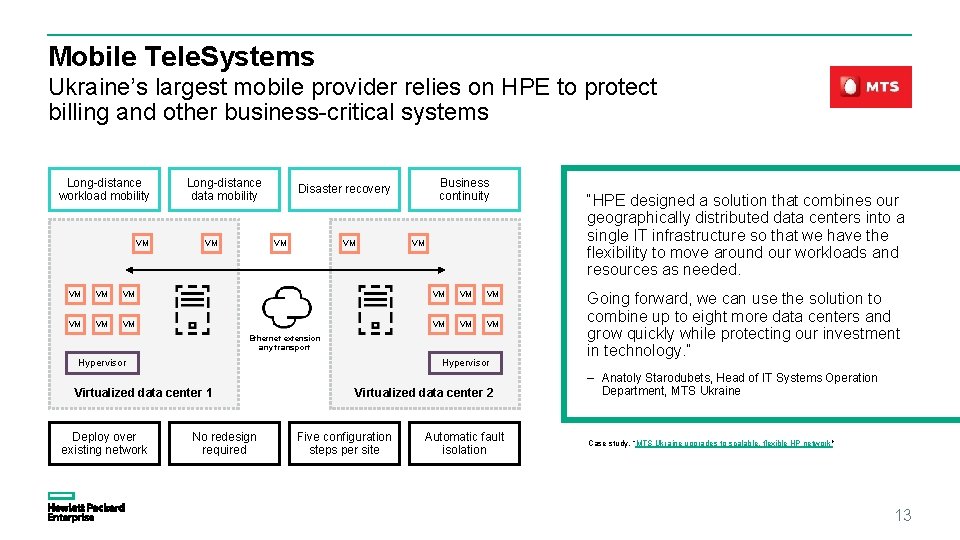

Mobile Tele. Systems Ukraine’s largest mobile provider relies on HPE to protect billing and other business-critical systems Long-distance workload mobility VM Long-distance data mobility VM Business continuity Disaster recovery VM VM VM VM Ethernet extension any transport Hypervisor Virtualized data center 1 Deploy over existing network No redesign required Virtualized data center 2 Five configuration steps per site Automatic fault isolation “HPE designed a solution that combines our geographically distributed data centers into a single IT infrastructure so that we have the flexibility to move around our workloads and resources as needed. Going forward, we can use the solution to combine up to eight more data centers and grow quickly while protecting our investment in technology. ” – Anatoly Starodubets, Head of IT Systems Operation Department, MTS Ukraine Case study, “MTS Ukraine upgrades to scalable, flexible HP network " 13

Mobile Tele. Systems HPE-VMware extended OEM partnership is significant to MTS and supports their business NSX OEM agreement is significant in that MTS is able to partner with a single, trusted partner—HPE—capable of delivering the full life cycle of data center, networking, and virtualization services. – Simplify operations, speed application delivery, and lower cost – Trusted partner with decades of networking, virtualization, and data center experience and comprehensive 24 x 7 x 365 life-cycle services – Confidence to move forward with new technology innovations that increase our competiveness and delight customers 14

Section 2 VMware NSX momentum and use cases 15

NSX customer momentum Service providers Transportation Global financials Government Retail Education Healthcare Media and communications Integrators 16

VMware NSX in the data center Application continuity Disaster recovery with NSX Security Micro segmentation through NSX IT automation Integrating physical workloads to NSX 17

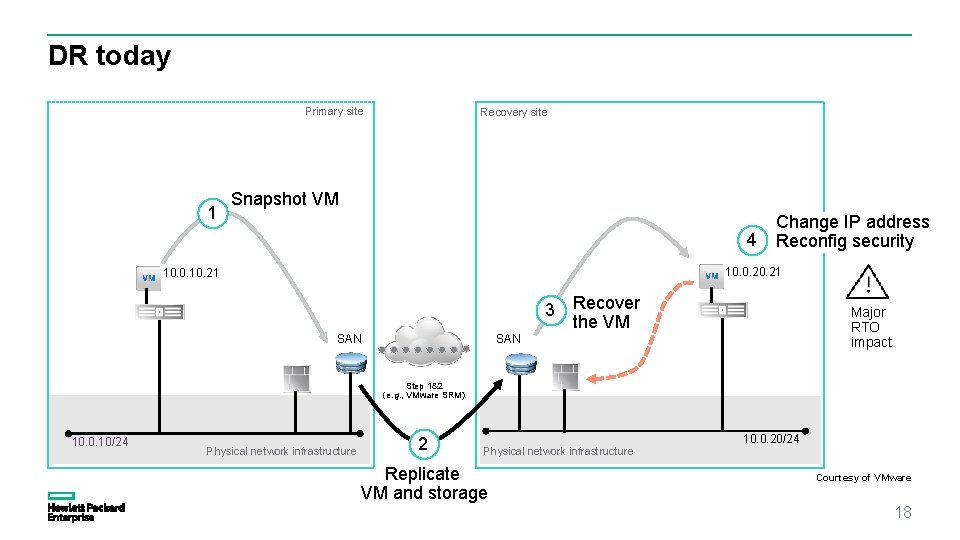

DR today Primary site 1 Recovery site Snapshot VM 4 Change IP address Reconfig security 10. 0. 21 10. 0. 10. 21 3 Recover the VM SAN Major RTO impact SAN Step 1&2 (e. g. , VMware SRM) 10. 0. 10/24 Physical network infrastructure 2 Physical network infrastructure Replicate VM and storage 10. 0. 20/24 Courtesy of VMware 18

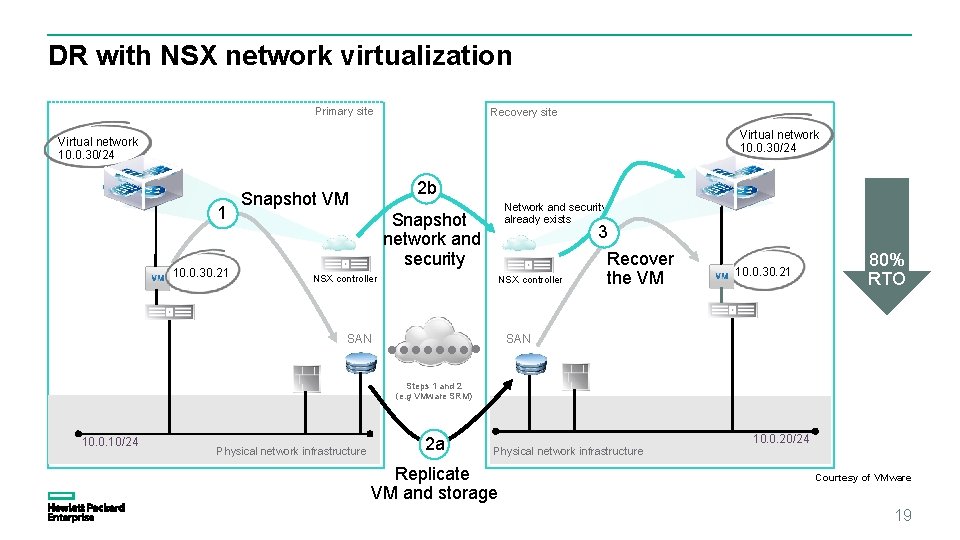

DR with NSX network virtualization Primary site Recovery site Virtual network 10. 0. 30/24 1 10. 0. 30. 21 2 b Snapshot VM Network and security already exists Snapshot network and security NSX controller SAN 3 Recover the VM 10. 0. 30. 21 80% RTO SAN Steps 1 and 2 (e. g VMware SRM) 10. 0. 10/24 Physical network infrastructure 2 a Physical network infrastructure Replicate VM and storage 10. 0. 20/24 Courtesy of VMware 19

Problem: Data center network security Perimeter-centric network security has proven insufficient, and micro-segmentation is operationally infeasible Internet Little or no lateral controls inside perimeter Insufficient Operationally infeasible Courtesy of VMware 20

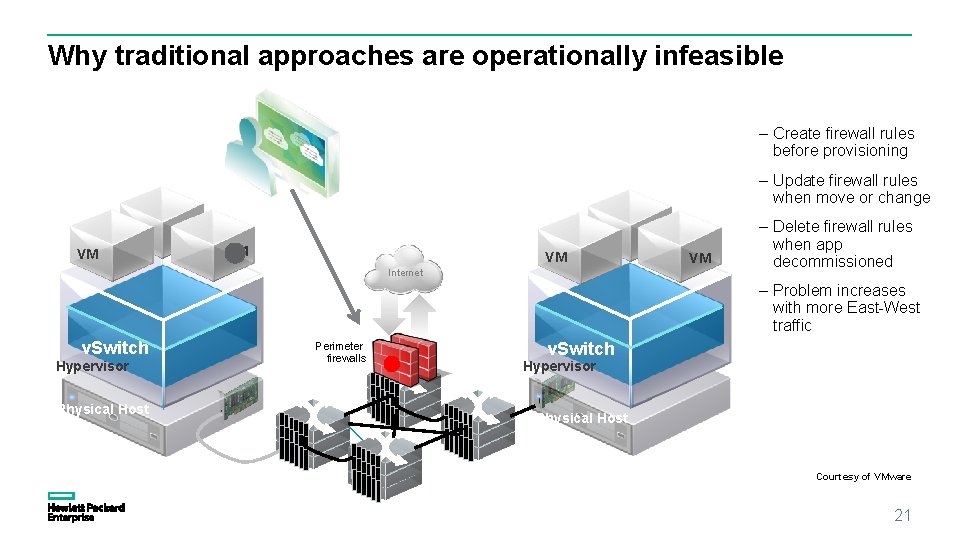

Why traditional approaches are operationally infeasible – Create firewall rules before provisioning – Update firewall rules when move or change VM VM VM Internet VM – Delete firewall rules when app decommissioned – Problem increases with more East-West traffic v. Switch Hypervisor Physical Host Perimeter firewalls v. Switch Hypervisor Physical Host Courtesy of VMware 21

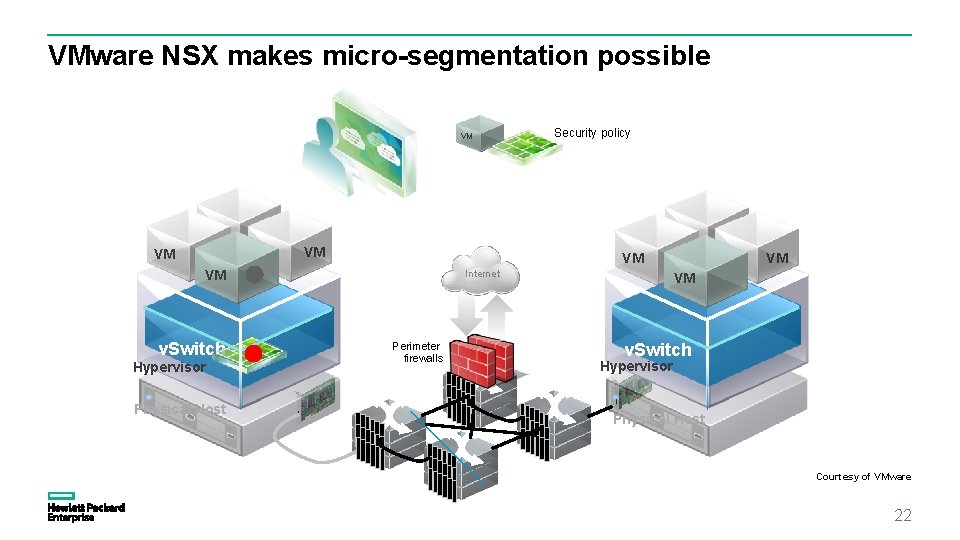

VMware NSX makes micro-segmentation possible Cloud Management Platform VM VM VM v. Switch Hypervisor Physical Host Security policy Internet Perimeter firewalls VM VM v. Switch Hypervisor Physical Host Courtesy of VMware 22

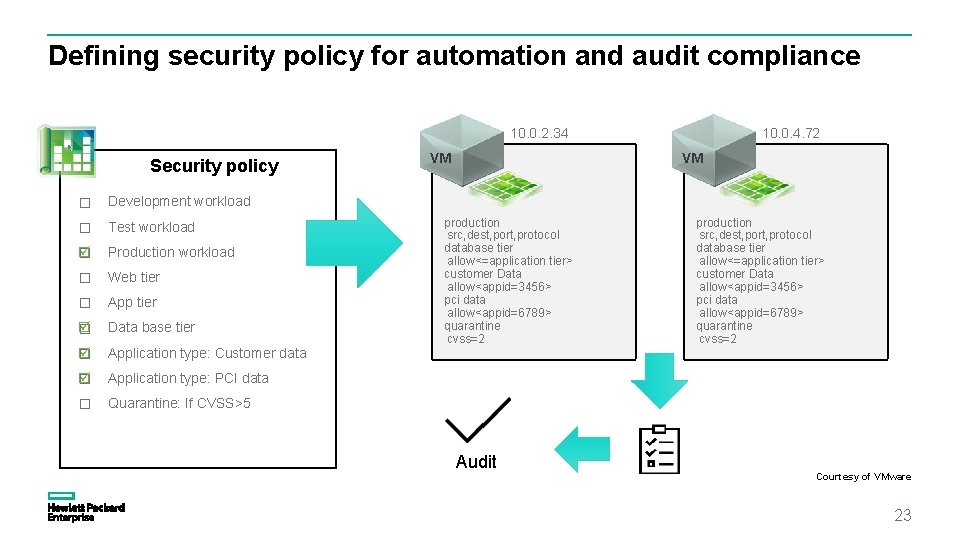

Defining security policy for automation and audit compliance 10. 0. 2. 34 Security policy ☐ Development workload ☐ Test workload ☐ Production workload ☐ Web tier ☐ App tier ☐ Data base tier ☐ Application type: Customer data ☐ Application type: PCI data ☐ Quarantine: If CVSS>5 VM 10. 0. 4. 72 VM production src, dest, port, protocol database tier allow<=application tier> customer Data allow<appid=3456> pci data allow<appid=6789> quarantine cvss=2 Audit production src, dest, port, protocol database tier allow<=application tier> customer Data allow<appid=3456> pci data allow<appid=6789> quarantine cvss=2 Courtesy of VMware 23

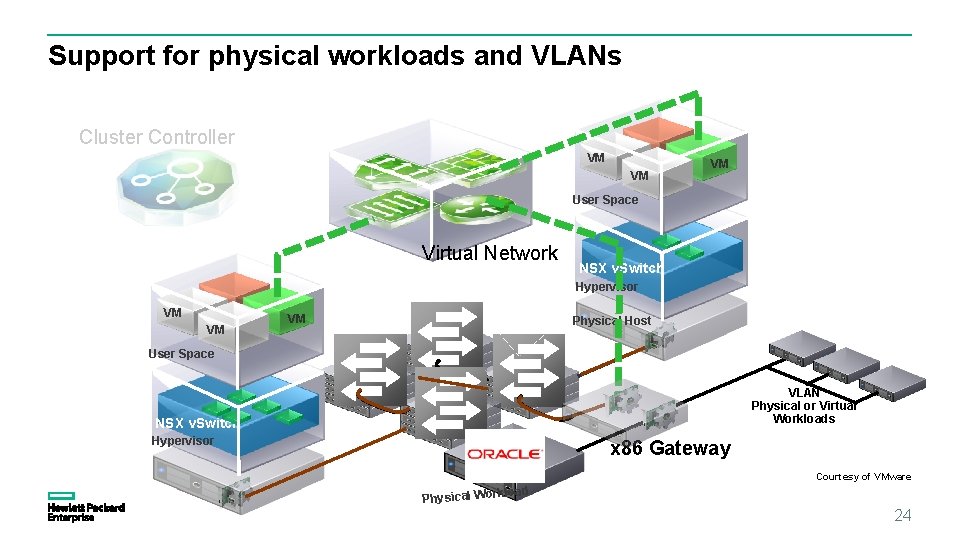

Support for physical workloads and VLANs Cluster Controller VM VM VM User Space Virtual Network NSX v. Switch Hypervisor VM VM VM Physical Host User Space VLAN Physical or Virtual Workloads NSX v. Switch Hypervisor x 86 Gateway Courtesy of VMware load Physical Work 24

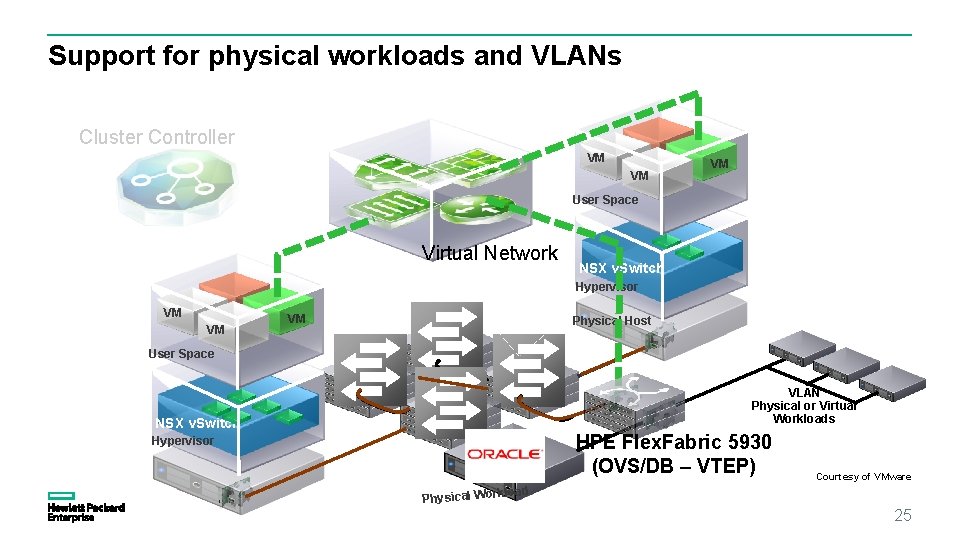

Support for physical workloads and VLANs Cluster Controller VM VM VM User Space Virtual Network NSX v. Switch Hypervisor VM VM VM Physical Host User Space VLAN Physical or Virtual Workloads NSX v. Switch HPE Flex. Fabric 5930 (OVS/DB – VTEP) Hypervisor Courtesy of VMware load Physical Work 25

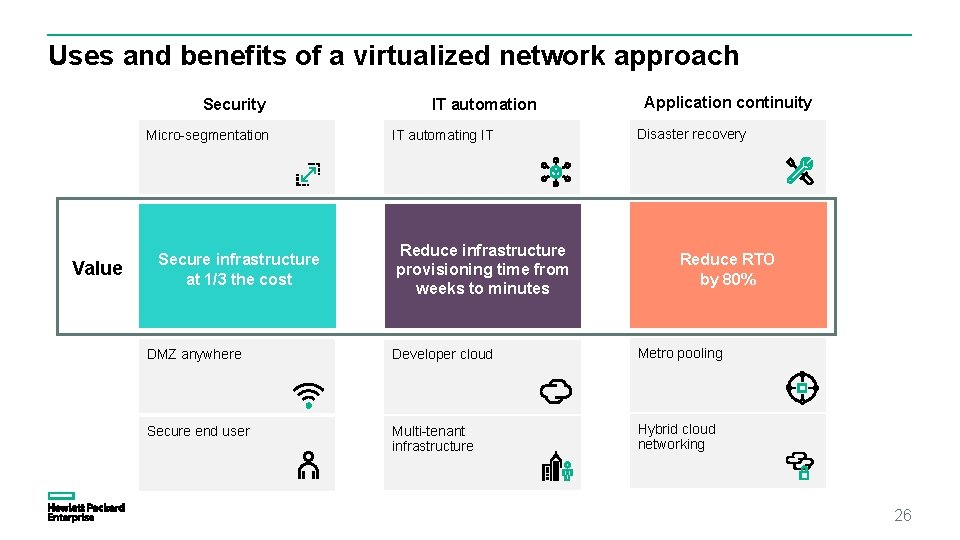

Uses and benefits of a virtualized network approach Security Micro-segmentation Value Secure infrastructure at 1/3 the cost IT automation IT automating IT Reduce infrastructure provisioning time from weeks to minutes Application continuity Disaster recovery Reduce RTO by 80% DMZ anywhere Developer cloud Metro pooling Secure end user Multi-tenant infrastructure Hybrid cloud networking 26

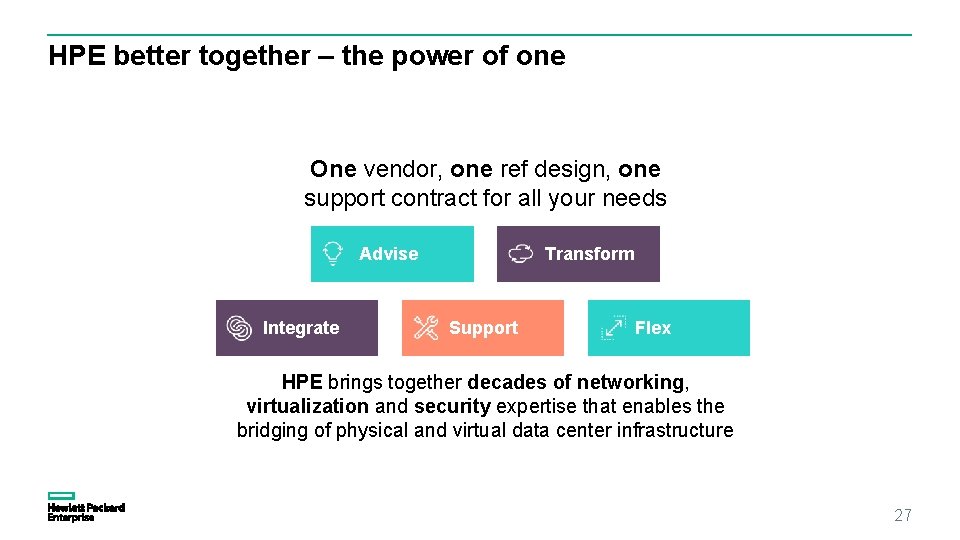

HPE better together – the power of one One vendor, one ref design, one support contract for all your needs Advise Integrate Transform Support Flex HPE brings together decades of networking, virtualization and security expertise that enables the bridging of physical and virtual data center infrastructure 27
