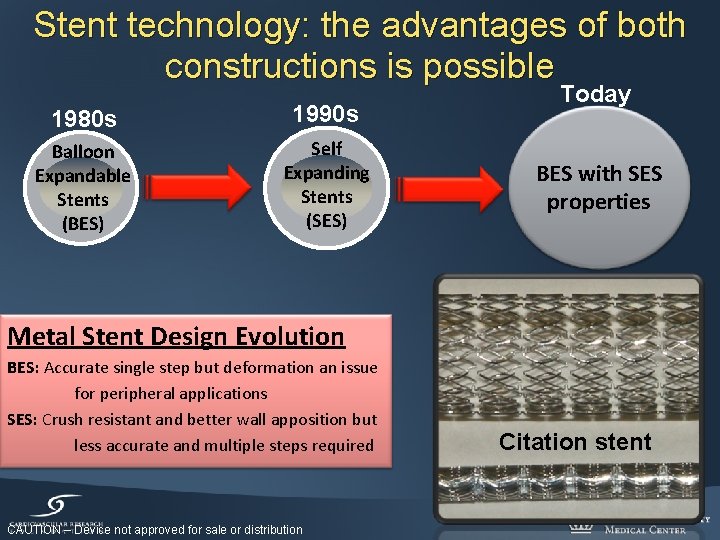

Stent technology: the advantages of both constructions is possible 1980 s 1990 s Balloon Expandable Stents (BES) Self Expanding Stents (SES) Today BES with SES properties Metal Stent Design Evolution BES: Accurate single step but deformation an issue for peripheral applications SES: Crush resistant and better wall apposition but less accurate and multiple steps required CAUTION – Device not approved for sale or distribution Citation stent

Finite element analysis (FEA) of current tube-cut nitinol stents CAUTION – Device not approved for sale or distribution

Inversion Point™ Stent Technology achieves bistability in nitinol FEA of 2 Citation stent cells crimping CAUTION – Device not approved for sale or distribution

Nitinol bistability allows new considerations in stenting Balloon Expandable Non-Crushable Stent • The accuracy of balloon placement • Direct stenting with nitinol • 1 -2 less steps per stent • Less radiation exposure • Cost savings (less balloon use) Value of bistable stenting is in the system potential to match the “ease of use” value of rapid exchange CAUTION – Device not approved for sale or distribution

Bistable nitinol conforms to vessel contours OCT of Citation stent in porcine iliac (accommodation of bladder compression between 11: 00 and 2: 00) CAUTION – Device not approved for sale or distribution

Comparison of stent classes Conventional SS or Co. Cr Stent Conventional Ni. Ti Stent Bistable Ni. Ti Stent Non-deformable No Yes Conformability Yes No Yes Delivery system flexibility Procedure steps 1 to 2 2 to 3 1 to 2 Accuracy Direct stenting CAUTION – Device not approved for sale or distribution

What about vessel length and conformational changes? SFA and popliteal foreshortening Two cadaver studies evaluated the % decrease in stent length with axial load. Results showed reduction of stent length by 3% to 25%. Journal of Vascular Surgery 2008; 48: 435 -440

Consequences of a stent with limited axial compression ability during knee bend Stent distal edge

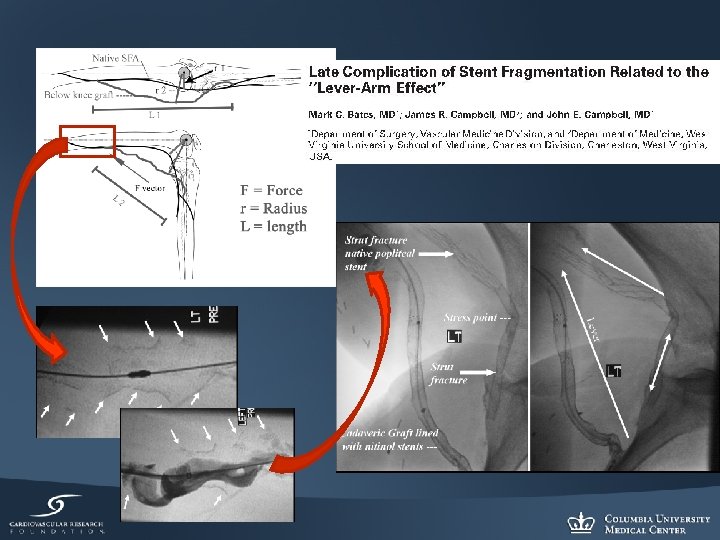

SFA nitinol stent fracture and restenosis due to axial compression and stent yield or “hinge points”

TRIAD™ stent system: A next-generation SFA stent Bistability Controlled Ring Segmentation Nitinol TRIAD™ CAUTION – Device not approved for sale or distribution

Controlled Ring Segmentation Design • Design goals – Provide for longitudinal (axial) and torsional flexibility required by SFAs – Lessen wall shear stress interaction with artery – Maintain value of bistability • Accuracy, less steps, cost savings, less radiation exposure, deliverability CAUTION – Device not approved for sale or distribution

TRIAD™ Pre-Clinical Animal Study

Bistable Stent Family Accura cy Less Steps Delivery Cost Savings Iliacs SFAs • Controlled Ring Segmentation for axial conformability Popileteal • Controlled Ring Segmentation for axial conformability Carotids • Spot stenting of ICA • . 014” BDC delivery to reduce sheath prolapse risk Venous • Lower profile, large Ni. Ti stents Neuro • Lower profile, microcatheter compatibility Grafts CAUTION – Device not approved for sale or distribution Other • Percutaneous option

Maturation of the Technology: Today • Cobalt alloys (low profile and less elastic recoil): Low-profile coronary stent with a prohealing coating has completed EU safety/feasibility trial ¡ Medium and large peripheral stents in pre-clinical assessment ¡ • Shape memory alloys (balloon expandable crush resistant): ¡ Iliac stent completing pre-clinical studies CAUTION – Device not approved for sale or distribution

Maturation of the Technology: Implications for Tomorrow • SFA Segmented: Initiated pre-clinical testing • SFA Helical: In design phase • Future: Carotids, stent grafts, low profile valve rings… CAUTION – Device not approved for sale or distribution

Conclusion Bistable stenting offers a new class of stents that promises to combine the benefits of today’s BE and SE stents Additionally, bistability allows for clinical and engineering applications not previously possible • Accurate spot stenting • Direct stenting of Ni. Ti • Segmented stent design CAUTION – Device not approved for sale or distribution
